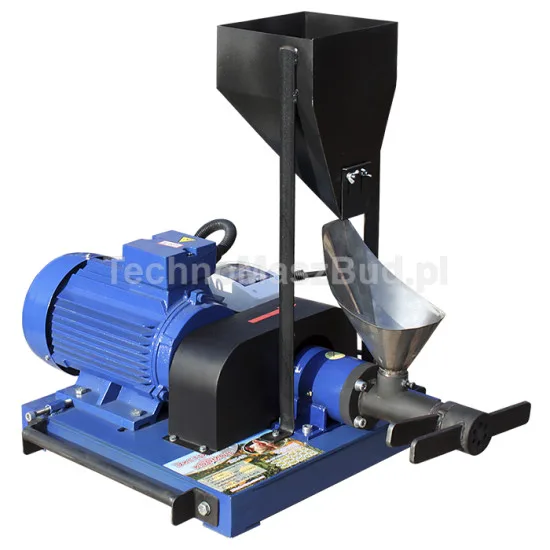

Grain Extruder EGK-30
  • 4 kW
  • Grain Extruder EGK-30

Grain Extruder EGK-30

In Stock
Rating:

In Stock 8,474.70
6,890.00zł

Incl Tax: 8,474.70zł


  • Product Code: EGK-30

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Length: 750.0(mm)
Width: 800.0(mm)
Height: 500.0(mm)
Weight: 70.0(kg)
Product type: Extruder

Description

The EGK-30 grain extruder from the manufacturer TechnoMaszBud is designed to obtain high-quality feed aimed at significantly improving

the growth of animals and increasing the amount of milk produced.


The extruder will transform the grain into a foamy mass in the form of small sticks or flakes. Anti-nutritional substances in legumes are

deactivated. High temperatures disinfect the feed, killing harmful microflora, fungi and pathogenic bacteria, to which young animals and

chicks are particularly sensitive.


Moreover, under pressure and high temperature, the starch components that are difficult for the digestive system are divided into more

light and simple carbohydrates and sugars. Vitamins and all other nutrients are preserved because the effect of temperature is short-lived,

occurring in a fraction of a second. Thanks to this, animals do not waste their energy on digesting feed, but instead direct all their energy

and strength into increasing their body weight and the amount of milk produced. The digestibility of food by animal is 90%.


The finished product is perfect for transport and storage because it does not delaminate or crumble.


How it works.


The working part of the feed extruder consists of two chambers - the raw material is ground in the loading chamber, and the pressed raw

material is heat treated to 160-180 degrees under high pressure. Then, the raw material passing through the holes of the feed extruder

explodes, receiving water hammer due to the sharp drop in pressure. As a result, the grain foams increasing several times in size. Therefore,

to saturate animals, you need less feed in the form of air sticks than in regular or granulated form.

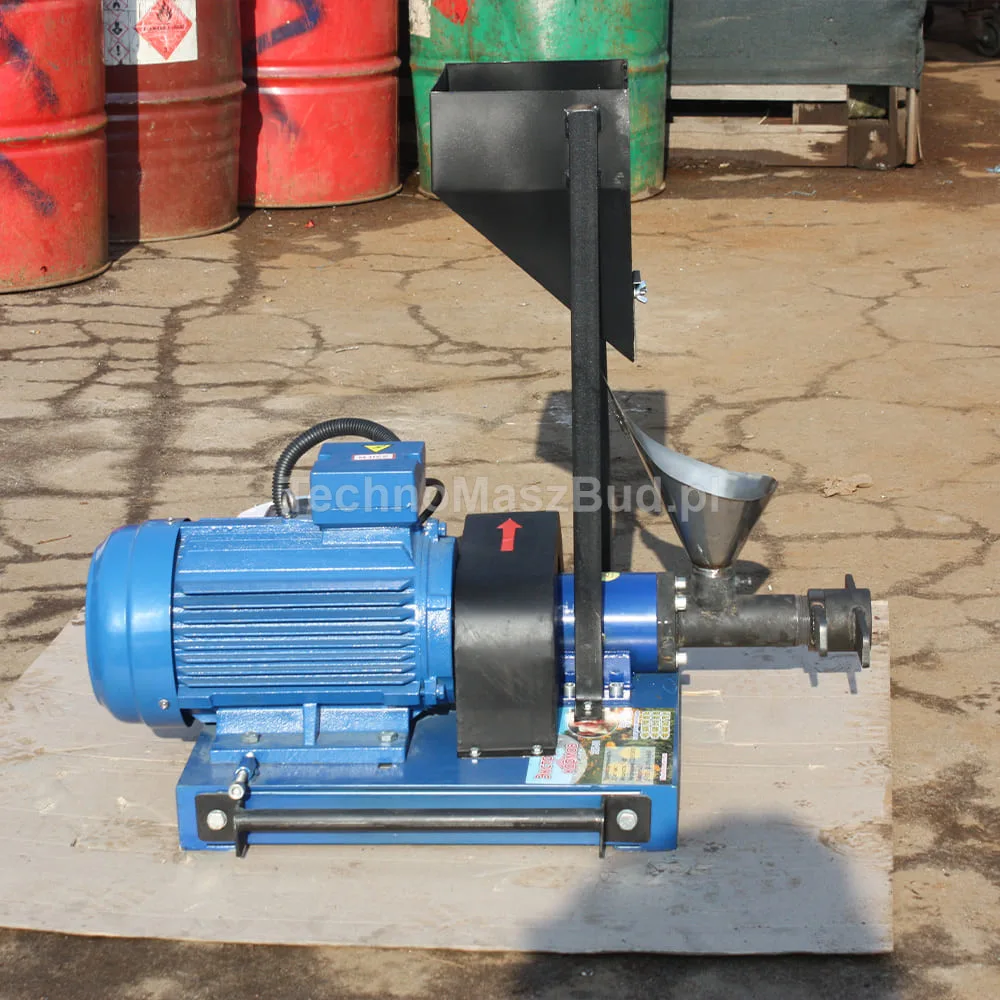

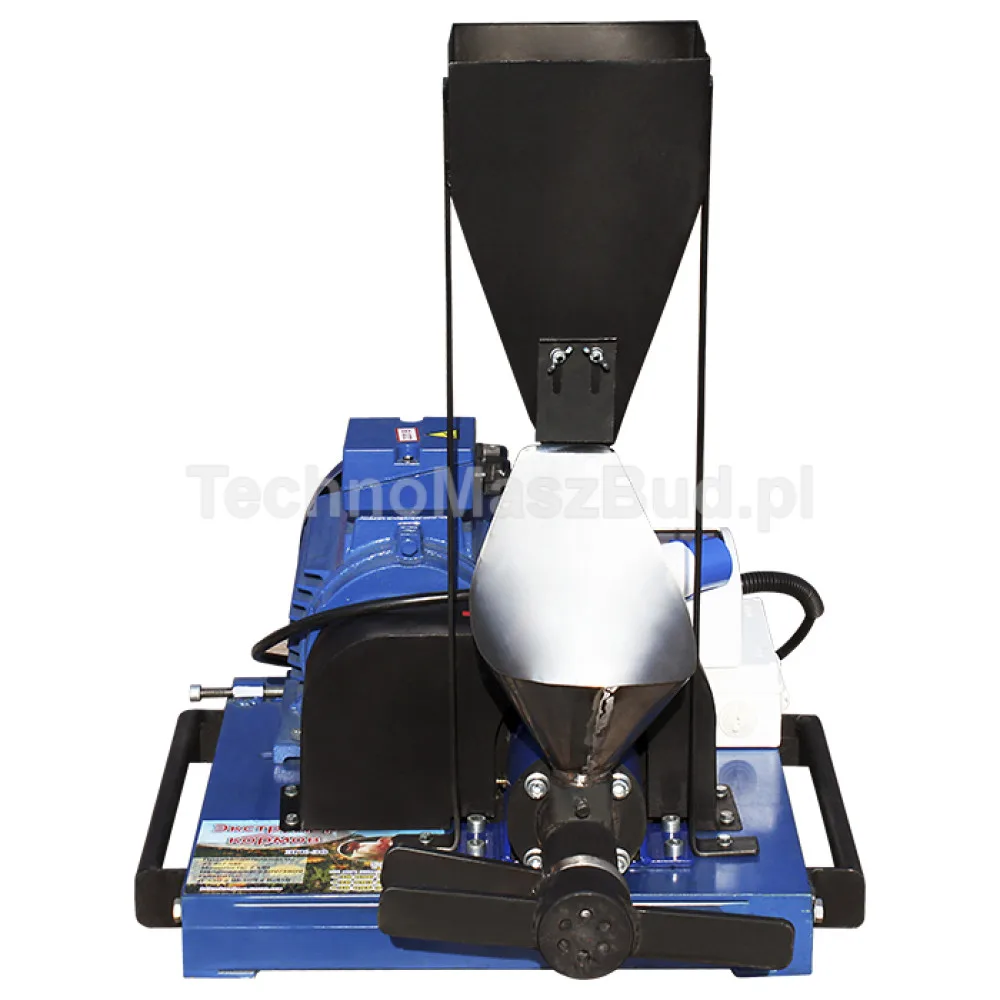

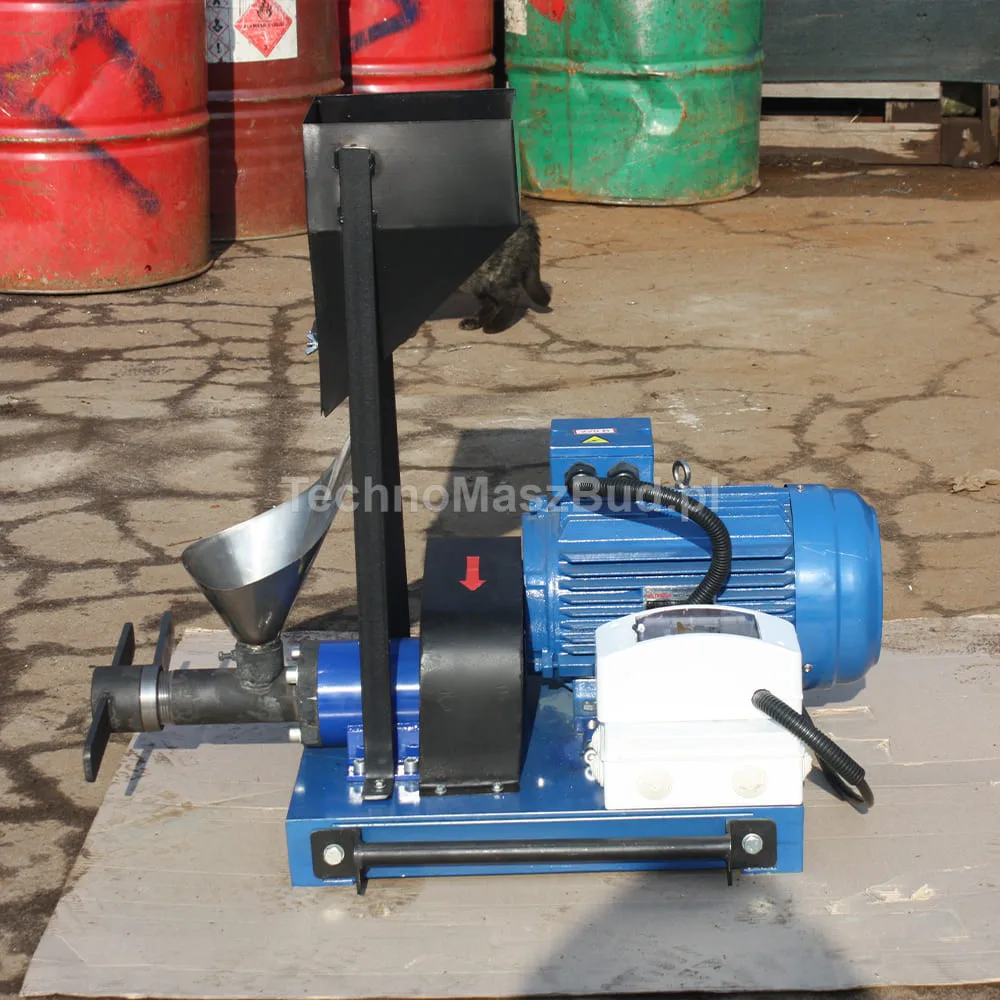

The EGK-30 feed extruder is equipped with an electric motor, pulleys to reduce the speed of operation and a small host tank, a magnet for

capturing metal elements in the feed.


Extruders can be purchased by contacting us by phone or e-mail.


We ship all over Poland

Completeness

Set

Price

EGK-30 (with 4kw / 1000rpm 220W motor)
4580 PLN
EGK-30 (with 4kw / 1000rpm motor 380W)
4510 PLN
EGK-30 (without engine)
3260 PLN
EGK-30 (working part made of pulleys)
2680 PLN
EGK-30 (working part)
2120 PLN

Main features

Manufacturer
TechnoMaszBud
Raw material for processing
Grain
Drive type
Electric
Performance
25.0(kg/h)
Engine power
4.0(kw)
Power consumption
4.0(kw)
Tension
220.0(W)
Tank capacity
6.0(L)
Guarantee period
12 months



Dimensions


Length550.0(mm)
Width
520.0(mm)
Height
450.0(mm)
Weight
70.0(kg)





Capacity in kg / h

Yield / Grain
25.0(kg/h)

Extra Features

Grain extruder EGK-30
for extruding feed
The obtained product
foamed sticks 10 mm in diameter 10 mm long
Raw materials for the extruder
cereals containing no oil with a moisture content of 15-25%
Drive
4 kW electric motor 220/380 W

Information for the order


Method of packaging
cardboard + sheathing

Comparison

Model:

EGK-30

EGK-50

EGK-80

Performance

25.0(kg/h)

50.0(kg/h)

80.0(kg/h)

Engine power

4.0(kw)

5.5(kw)

7.5(kw)

Tension

220.0(W)

380.0(W)

380.0(W)

Tank capacity

6.0 (L)

3.0 (L)

3.0 (L)

Weight

70.0(kg)

71.0(kg)

72.0(kg)

Price

4580 PLN

5040 PLN

5620 PLN

Specification

Dimensions
Length
750.0(mm)
Width
800.0(mm)
Height
500.0(mm)
Weight
70.0(kg)
Key features
Product type
Extruder
Usage
For extrusion of feed
Type of drive
Electric
Production capacity
30.0(kg/h)
Engine power
4(kW)
Voltage
230/400.0(V) (optional)
Rotation speed
1500 (rpm)
Additional features
Hopper capacity
3 L
Raw materials for processing
Grain (wheat, not containing oil | moisture 15-25 %)
Resulting product
Foam sticks 10 mm in diameter, 10 mm long
Warranty
12 months
Dimensions
Length
750.0(mm)
Width
800.0(mm)
Height
500.0(mm)
Weight
70.0(kg)
Key features
Product type
Extruder
Usage
For extrusion of feed
Type of drive
Electric
Production capacity
30.0(kg/h)
Engine power
4(kW)
Voltage
230/400.0(V) (optional)
Rotation speed
1500 (rpm)
Additional features
Hopper capacity
3 L
Raw materials for processing
Grain (wheat, not containing oil | moisture 15-25 %)
Resulting product
Foam sticks 10 mm in diameter, 10 mm long
Warranty
12 months
