Shredder / Straw Chopper RD-1000

WE INVITE YOU TO TEST THE CRUSHING OF YOUR RAW MATERIALS AT OUR WAREHOUSE!

The RD-1000 shredder is designed for shredding stems of various crops. It crushes straw, grain, chips, seeds, hay, alfalfa, reed, grass, and leaves. The technical process results in a fraction size from 3 to 20 millimeters, with an output of up to 600 kg/hour. This straw shredder is equipped with a unique rotor that allows for good performance with minimal energy consumption. Additionally, the device is quite simple to operate, easy to transport, and very mobile. It is perfectly matched for lines producing heating pellets, granules, and briquettes.

The main advantages of the RD-1000 Hay / Straw Shredder include:

• solid steel construction, compact size, and lightweight;
• optimal grinding mode;
• handles even long grass and reed exceptionally well;
• safety and reliability of operation;
• interchangeable screens allow flexible fraction regulation;
• high wear resistance because the device has high-quality alloy steel blades;

Basic parameters:

• Motor power: 18.5 KW 1500rpm
• Fraction size: 5-50 mm
• Drive: electric.
• Voltage: 400 V.
• Performance: up to 1000 kg / hour

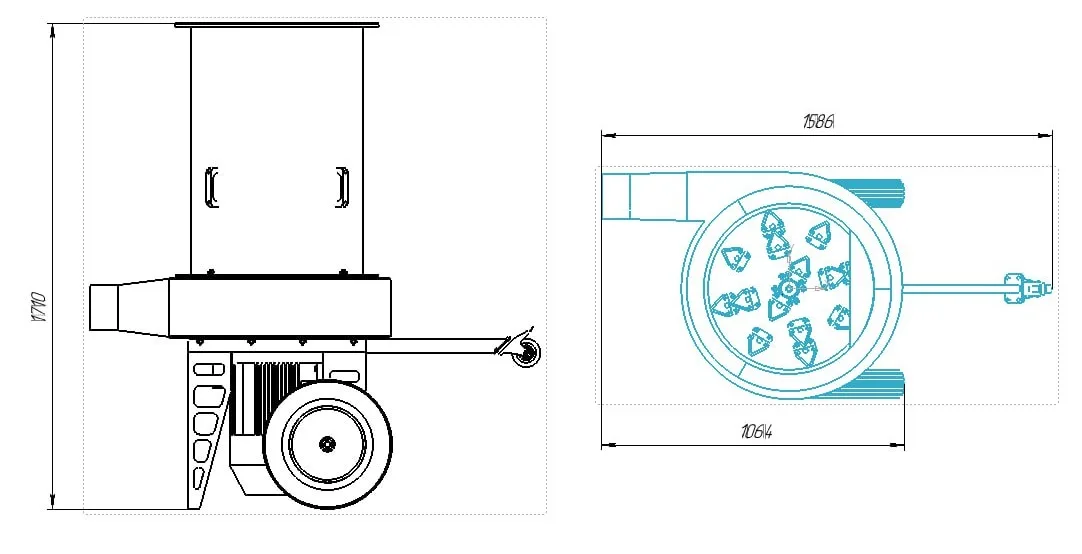

Technical drawing:

In fact, this device is an essential piece of equipment for rural livestock farms and in pellet and briquette production. The resulting product can be used as feed and bedding for animals and birds. The RD-1000 is very popular among large and small farms. The raw materials obtained can also be used for the production of mushroom substrate, fuel briquettes, and pellets.

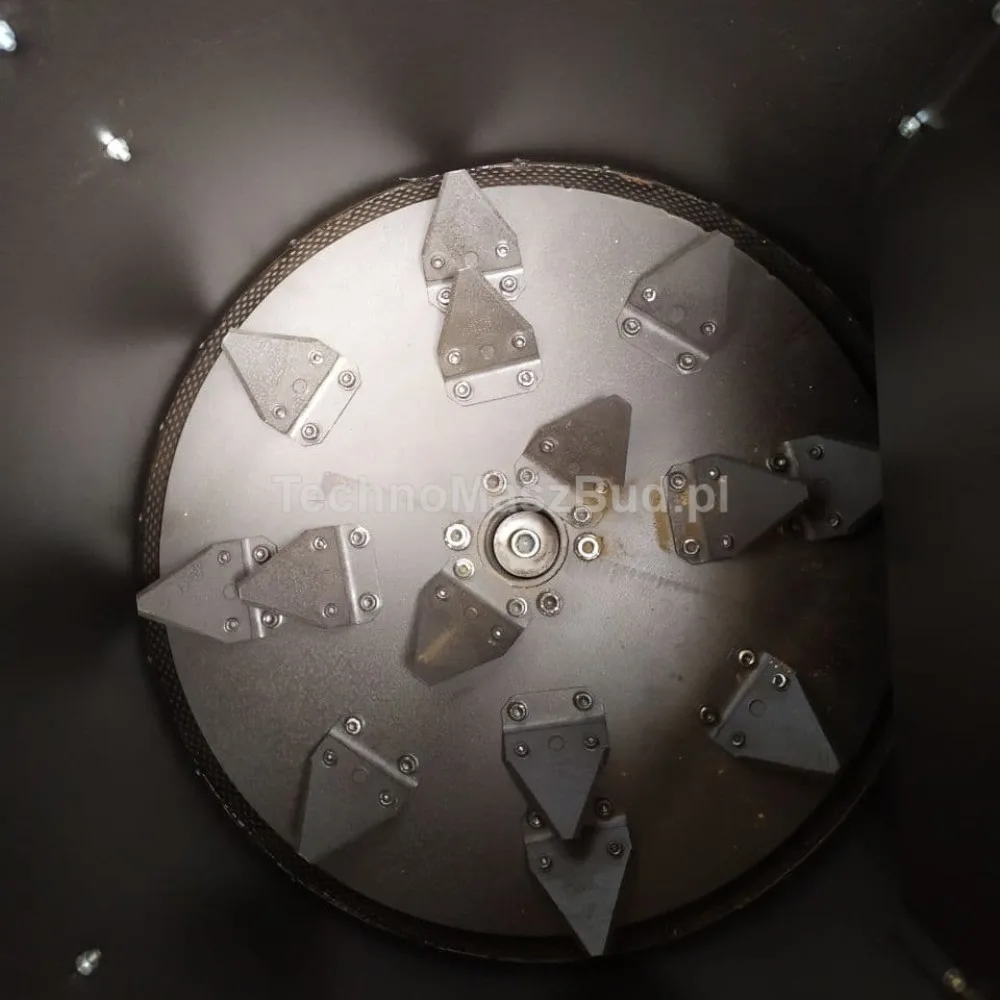

Our shredder uses an innovative solution for shredding raw materials, namely a flywheel weighing 45 kg and special knives; thanks to these solutions, we have achieved high performance with relatively low energy costs.
