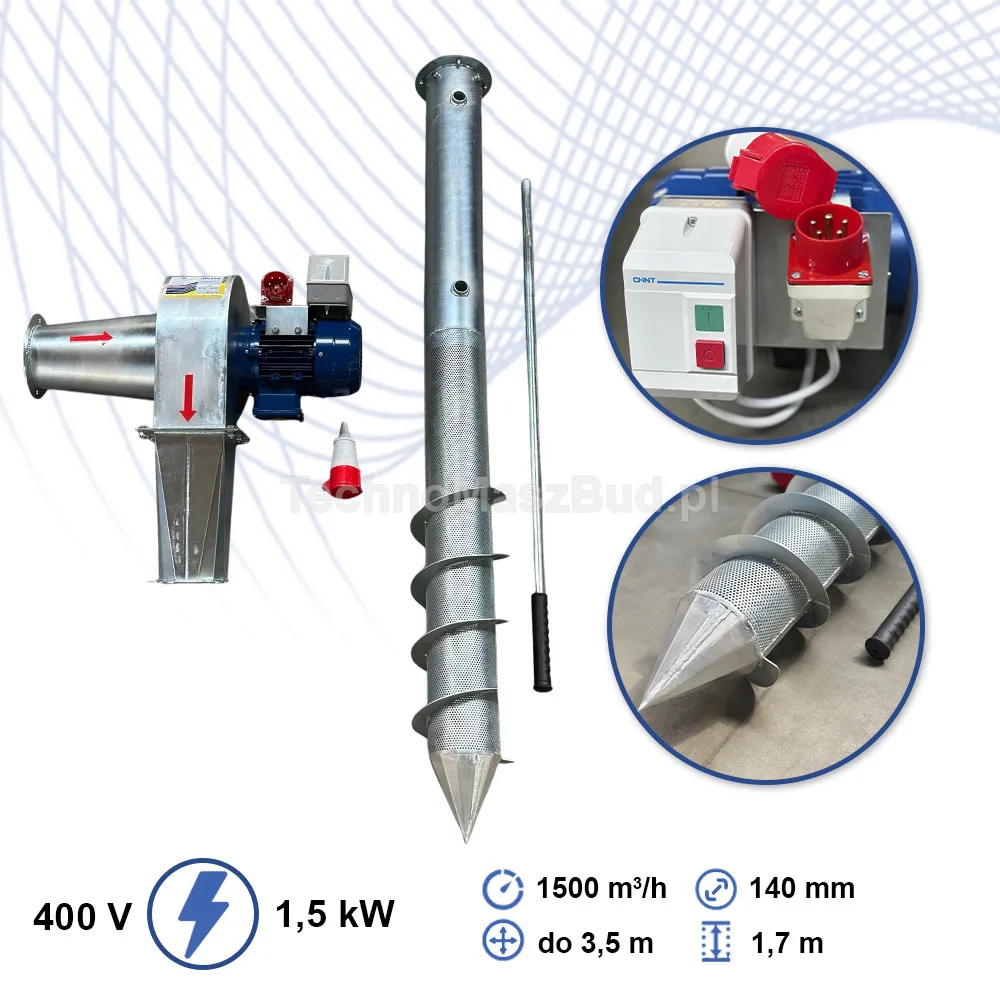

Aerator Kozak-2 Zn 1.5 kW | 400 V
- Product Code: Kozak-2 Zn 1,5 kW | 400 V
Description
Aerator Kozak-2 Zn is a device designed for agriculture to improve ventilation in stored grain. Proper air circulation is crucial for maintaining optimal storage conditions, particularly in terms of temperature and humidity. Excessive humidity and improper temperature can lead to mold and fungal growth, affecting the quality and quantity of the harvest.
The galvanized version of the Kozak-2 Zn aerator has been designed to provide long-lasting resistance to atmospheric factors and corrosion, increasing its durability and reliability, especially in demanding storage conditions. The galvanization provides additional protection, extending the device’s lifespan and allowing it to be used in various environments, including areas with high humidity.
The Kozak-2 Zn aerator offers two operating modes: air injection into the grain mass and air extraction from the pile. This functionality allows ventilation to be adjusted to the current storage conditions and the user’s needs. The air injection mode is ideal for introducing fresh air into the deeper layers of grain, while the air extraction mode helps remove excess moisture from stored grain, preventing mold and fungal growth.
Purpose and Application:
- Protection against overheating - thanks to the appropriate depth of the aeration pipe, the aerator penetrates even the deepest layers of grain, eliminating the risk of overheating and loss of crop quality;
- High-level ventilation - effective grain ventilation at a depth of up to 1.7 m, ensuring optimal temperature and humidity levels;
- Precise parameter control - an aeration pipe diameter of 140 mm, a fan capacity of 1500 m3/h, a working area pressure of 1100 Pa, and a motor power of 1.5 kW have been carefully selected to guarantee optimal ventilation conditions for various types of grain;
- Protection against mold and fungi - effective ventilation prevents mold and fungal growth, helping to maintain the cleanliness and nutritional value of the grain.
- Energy efficiency and durability - low fan power consumption (1.5 kW) combined with high efficiency makes the Kozak-2 aerator an economical solution. A solid structure with a total length of 2250 mm ensures stability and durability.
- Versatile application - ideal for use in both traditional storage facilities and modern silo systems.
Main parameters of the Kozak-2 Zn aerator:
- Functions: aeration (air injection), air extraction
- Fan capacity: 1500 m3/h
- Total pressure in the working area: 1100 Pa
- Effective operating radius: 1750 mm
- Height of the ventilated grain layer: up to 1700 mm
- Maximum depth of the aeration pipe in the pile: 1680 mm
- Aeration pipe diameter: 140 mm
- Diameter of holes in the aeration pipe: 1.5 or 3 mm
- Motor power: 1.5 kW
- Power supply voltage: 380-400 V
- Dimensions: 2527 x 755 x 376 mm
- Weight with fan: 46 kg
- Warranty period: 12 months
The Kozak-2 Zn aerator by Technomaszbud ensures efficient air circulation in grain thanks to the use of a 140 mm diameter aeration pipe. With its efficiency and longevity, it is the perfect solution for effective grain storage in various conditions, preventing mold growth and preserving the quality of the harvest.
