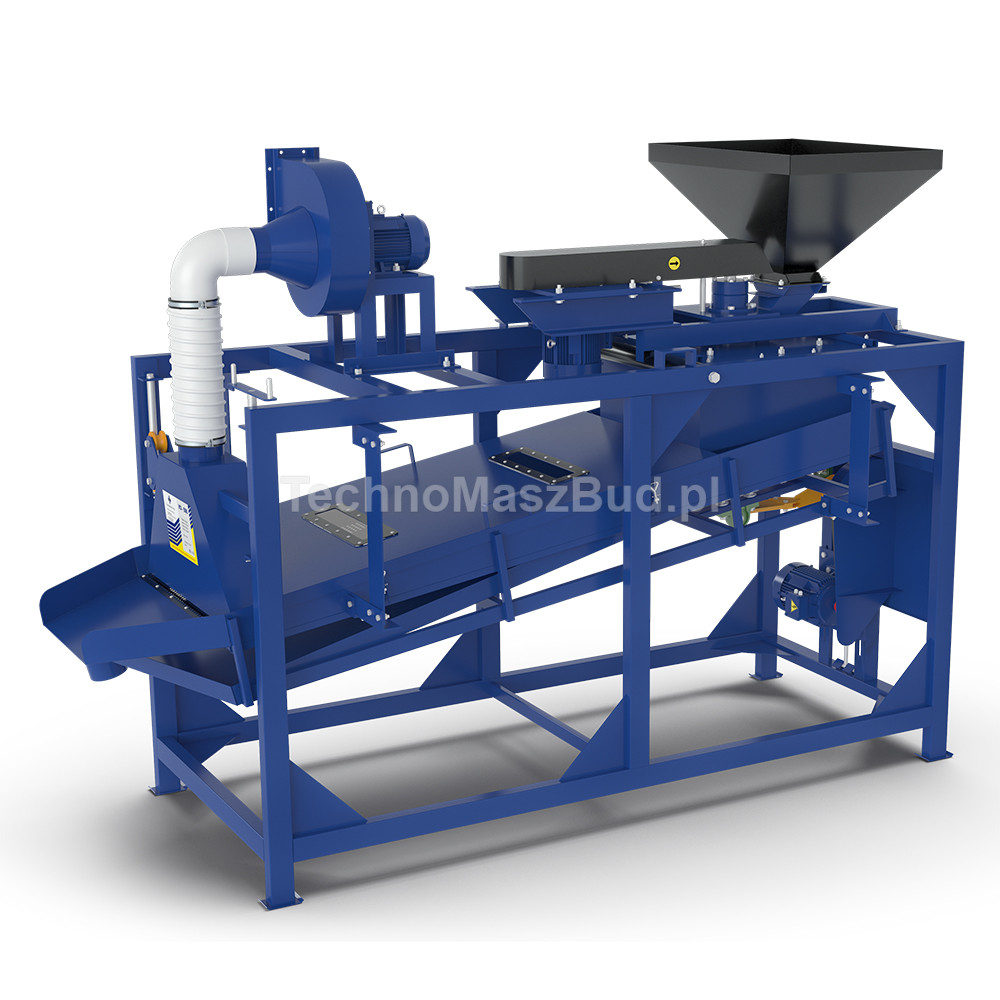

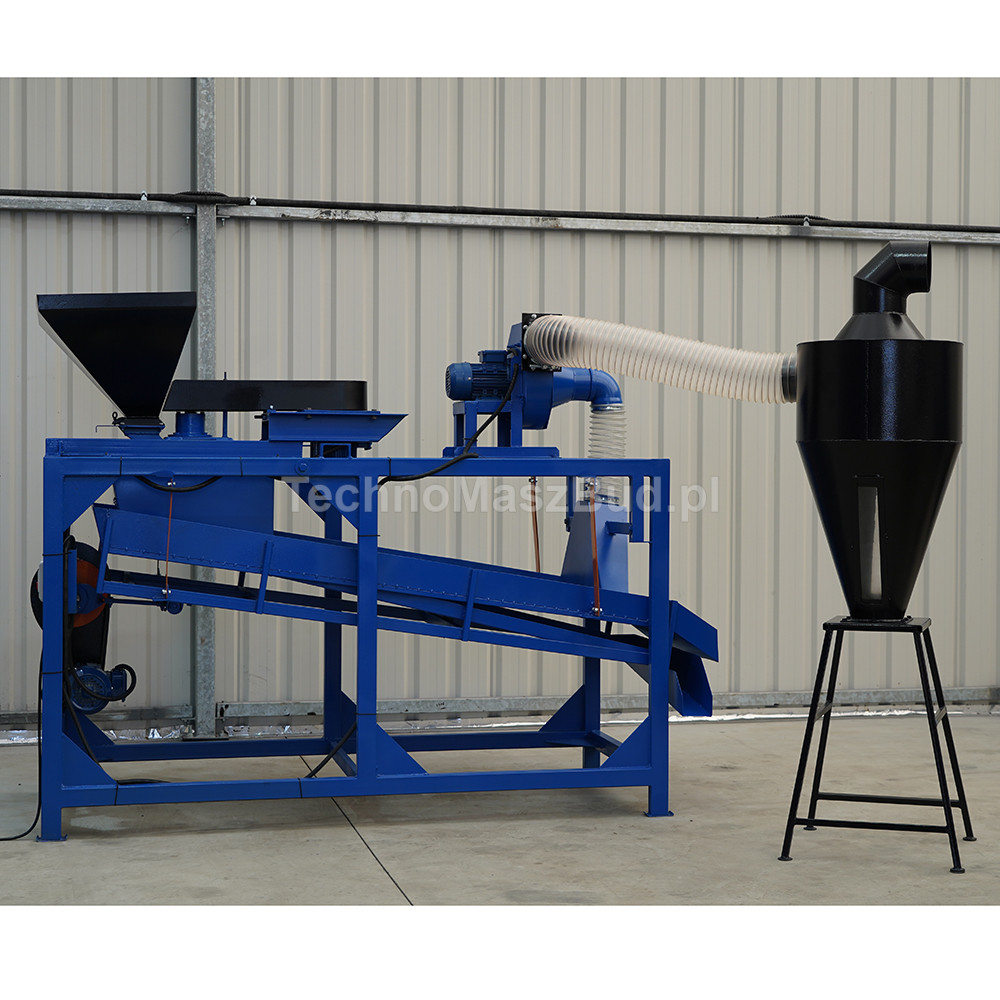

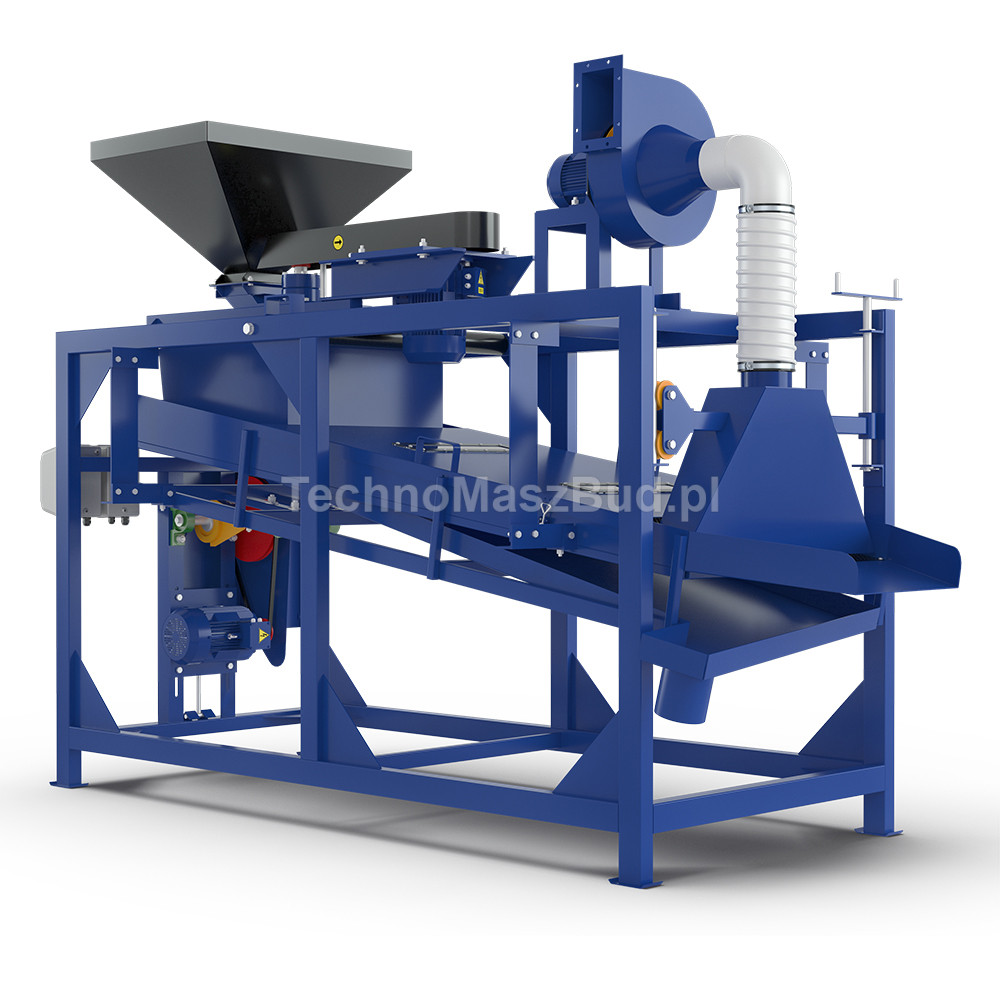

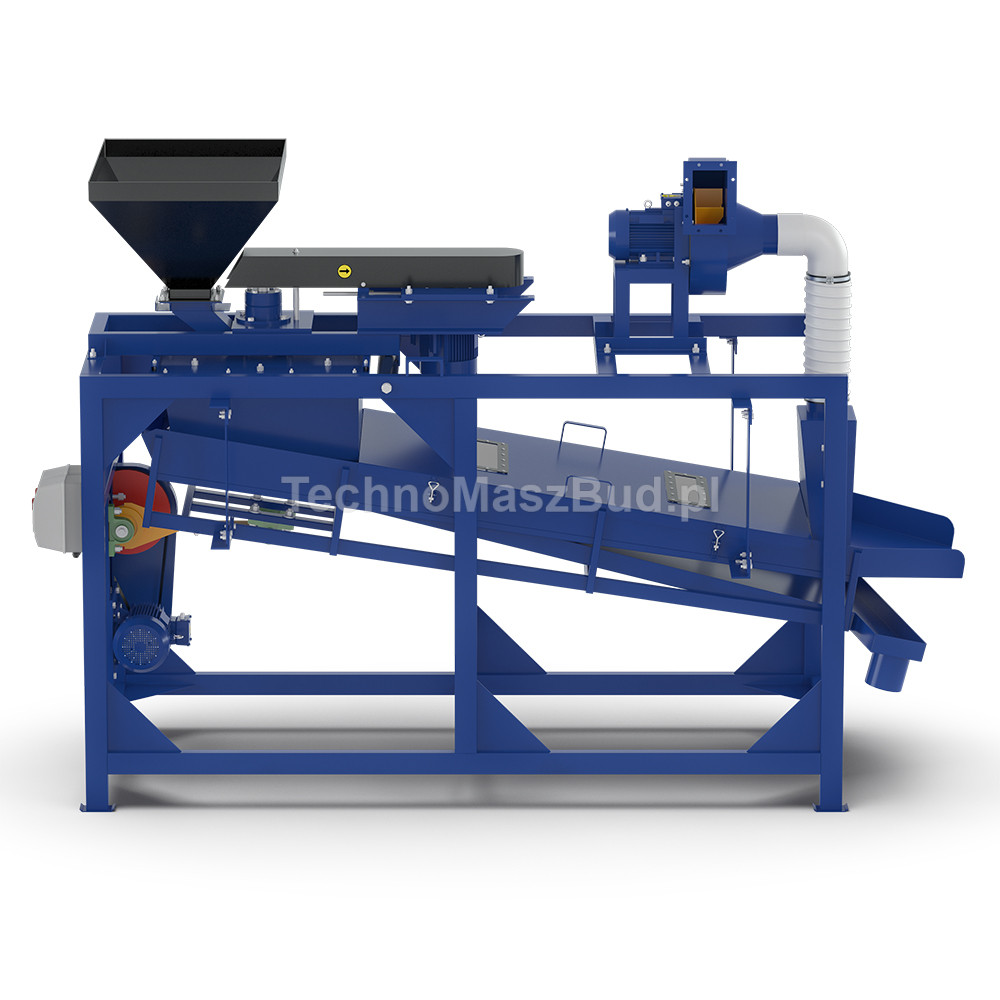

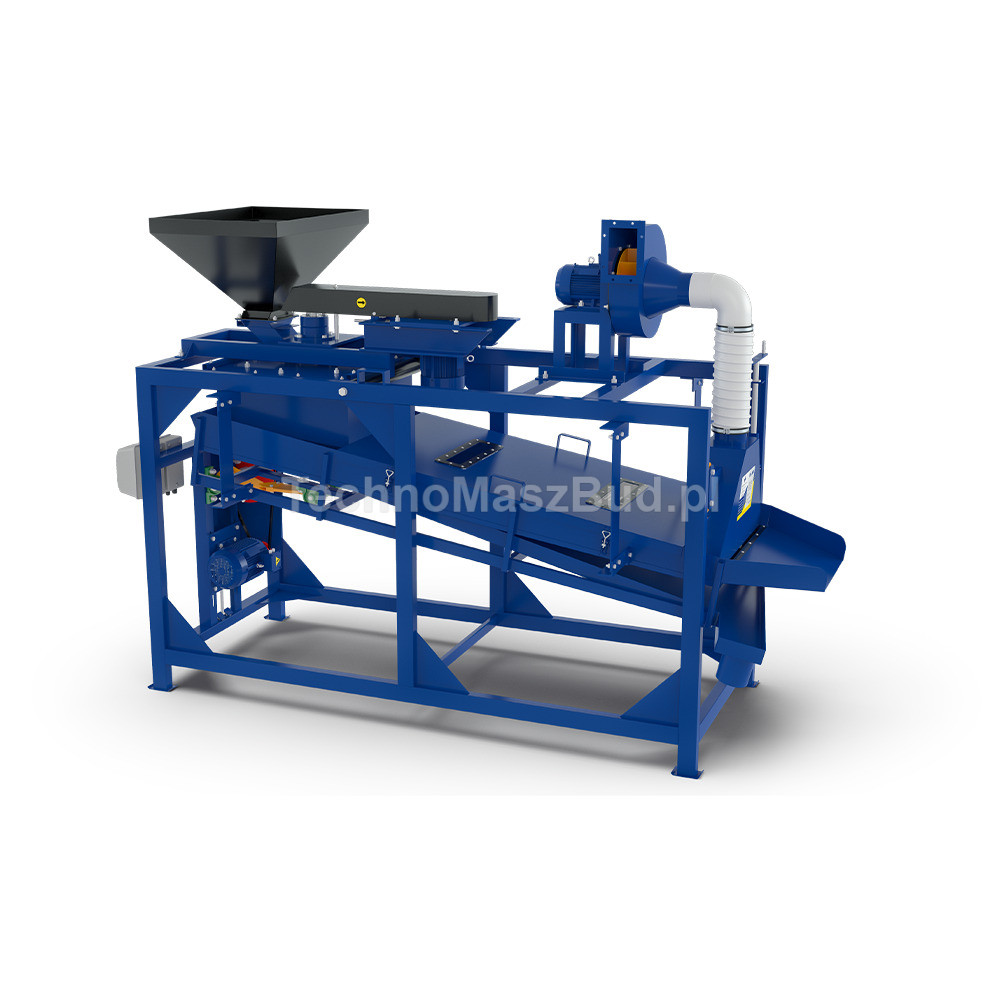

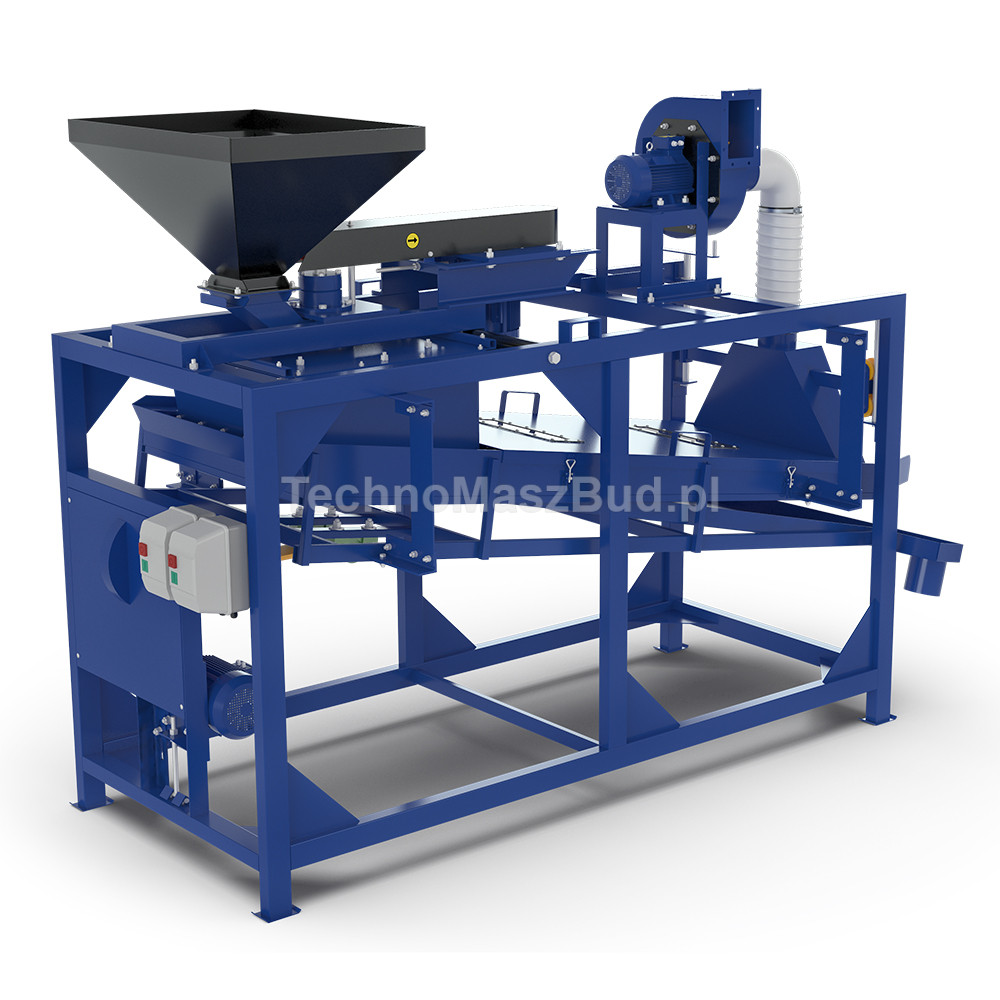

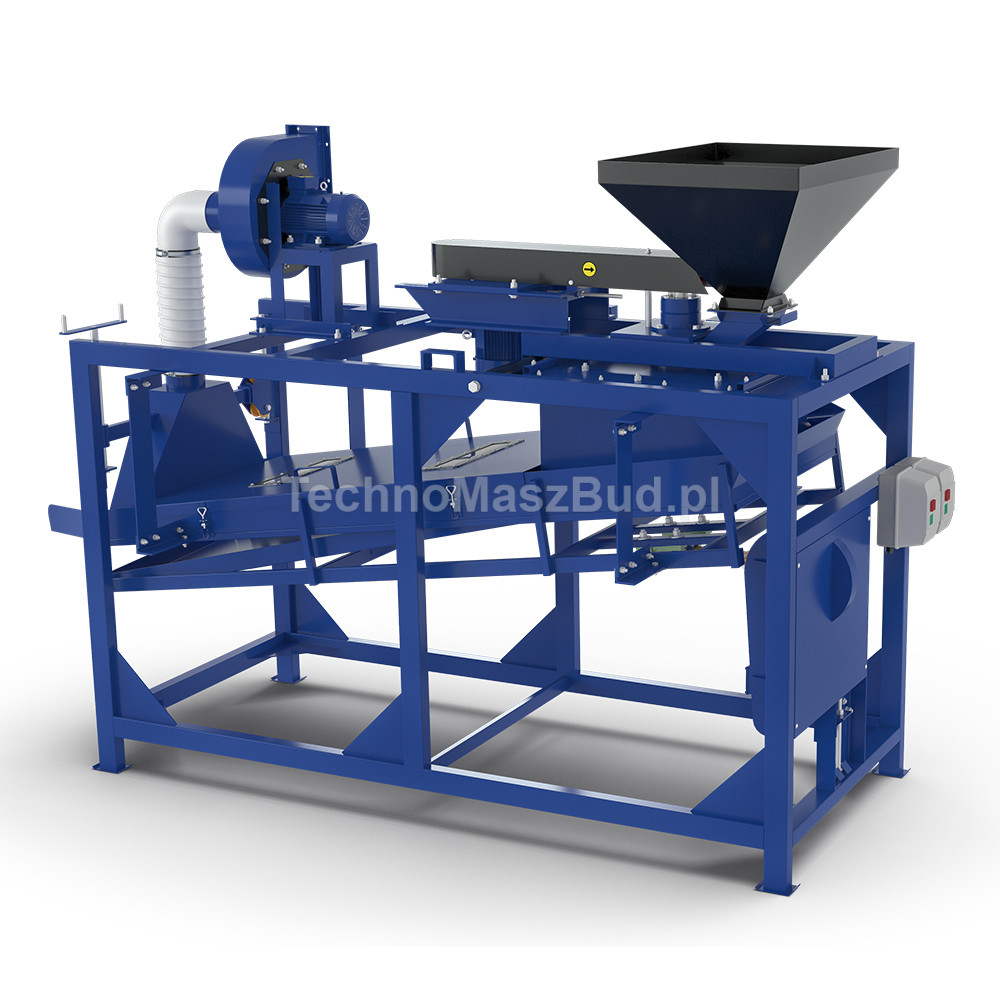

Soybean seed huller OS-500M

OS-500M Dehuller is an advanced technological device designed for the effective dehulling of soybean seeds. It is used in oilseed processing, feed, and food industry plants, where high quality of the final product, process repeatability, and high efficiency of the production line are crucial.

During operation, seeds move along an inclined working surface where their hull is breached. The resulting mixture of fractions is then separated using a system of screens and reciprocating vibrations, which enables effective separation of hulls from the kernel.

To achieve optimal technological results, it is recommended to operate the device in combination with a calibrator, which ensures a uniform input fraction. Compared to the OS-500 model, the OS-500M version is equipped with an additional protective cover with inspection windows, allowing ongoing observation of the dehulling process.

The improved height adjustment system of the hull extraction cover allows for highly precise adjustment of separation parameters to the characteristics of the raw material. This solution is especially important when processing soybean seeds, where the accuracy of fraction separation directly impacts the quality of further processing.

The new cover design effectively prevents raw material loss, which in earlier versions could escape from under the rotor knives beyond the calibration screen. As a result, the dehulling process is more efficient and economical.

OS-500M seed dehuller is a continuous operation machine designed for hulling and dehulling seeds. The device is widely used in the oil and fat, feed, and food industries. During operation, the raw material is effectively separated from the hull, which significantly improves the quality of further processing.

For maximum efficiency, it is recommended to use the device in combination with a seed cleaner and a calibrator. Such a combination allows for a high level of cleaning and dehulling of the raw material, as well as stability of the entire technological process.

The OS-500M dehuller is an essential element in the raw material preparation stage for plants planning long-term operation in the vegetable oil sector. Its use contributes to extending the life of oil presses and increasing both the yield and quality of the obtained oil.

The operating principle of the device is based on breaking the hard seed hull by striking it against an inclined, hard working surface (deck). The material is then separated into fractions using a set of screens operating in a reciprocating motion.

Benefits and Advantages of Using a Seed Dehulling System

1. Increased protein content due to reduced fiber
2. Extended service life of oil press working elements through decreased raw material abrasiveness
3. Reduction of paraffins and colorants in the oil, making its filtration easier
4. Increased oil yield

Technical Data

• Dimensions (L x W x H): 2350 x 1000 x 1750 mm
• Capacity: up to 500 kg/h
• Power: 5 kW
• Weight: 450 kg
