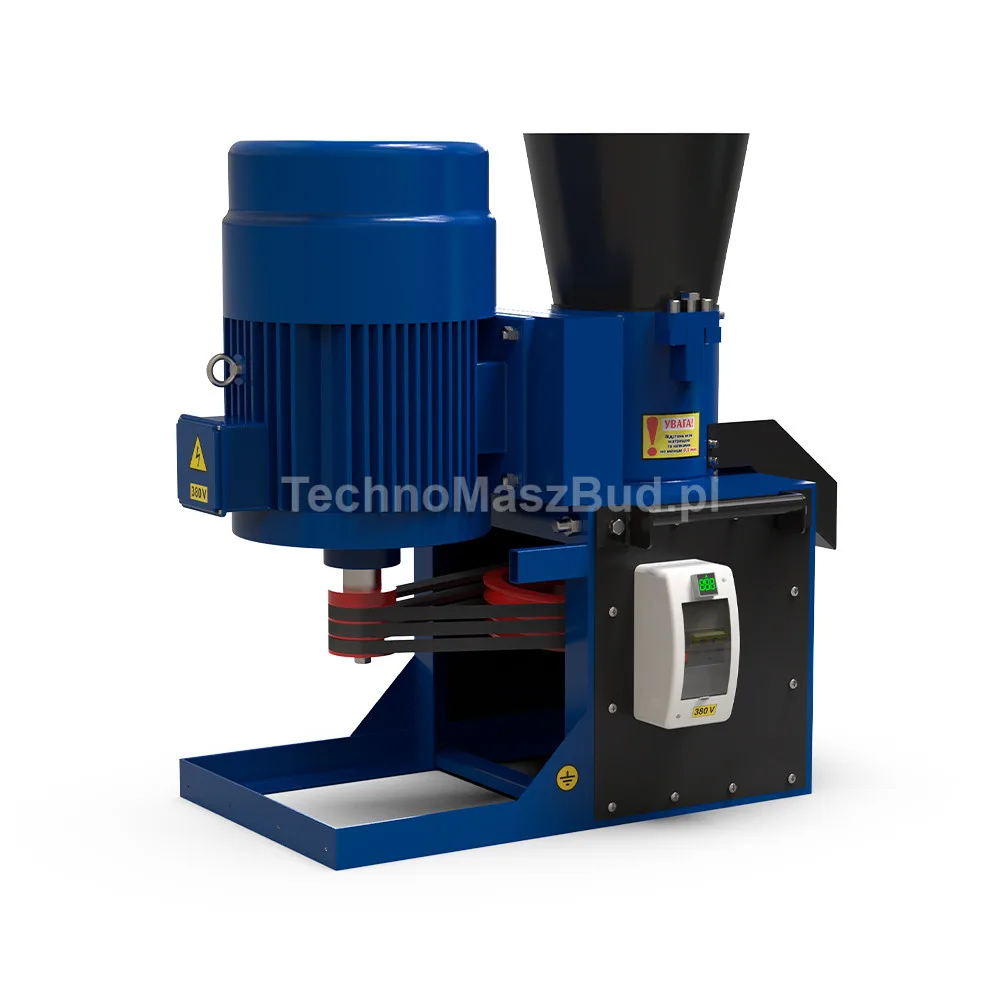

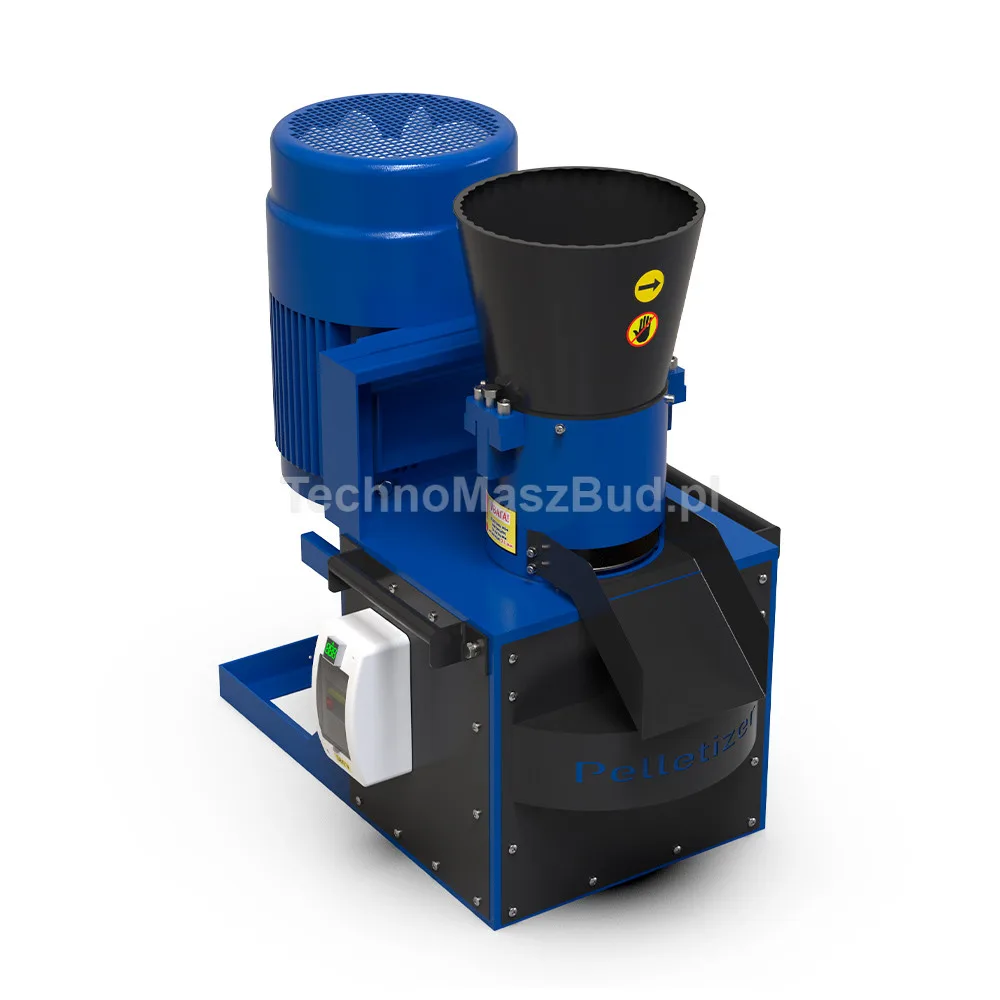

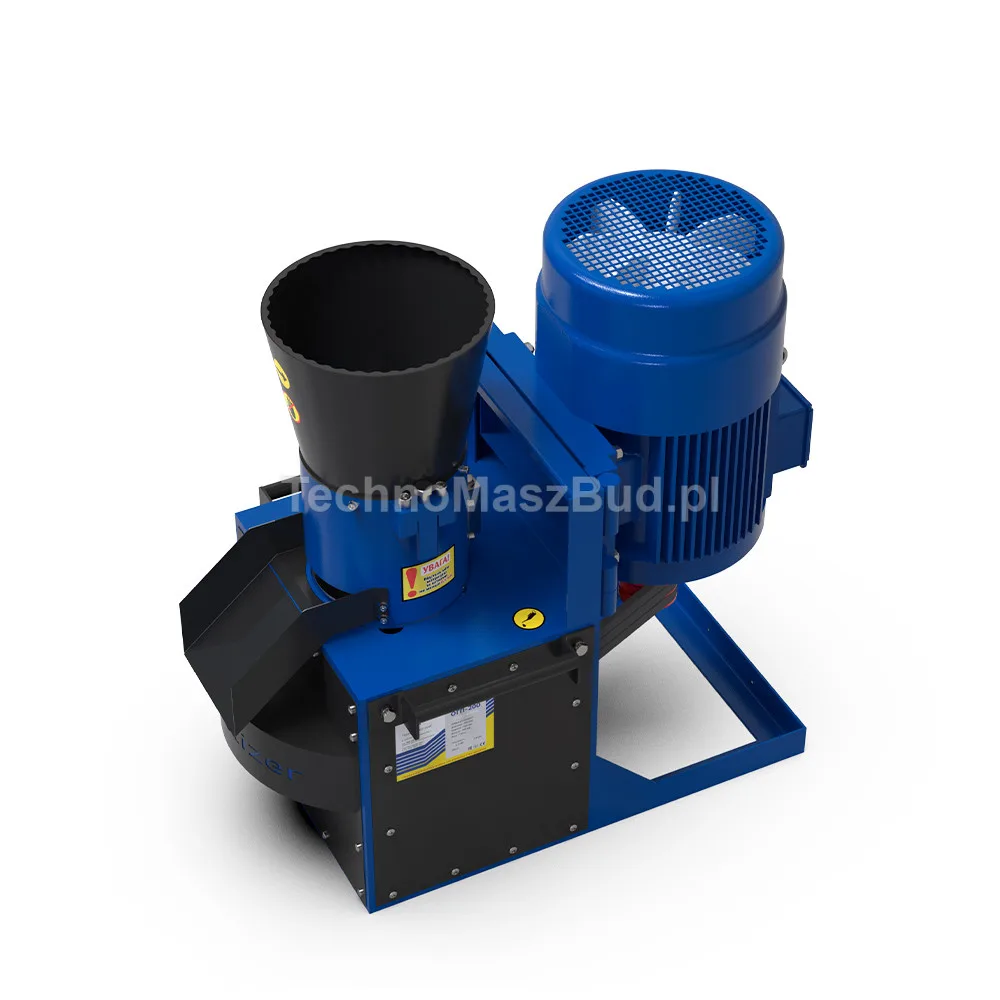

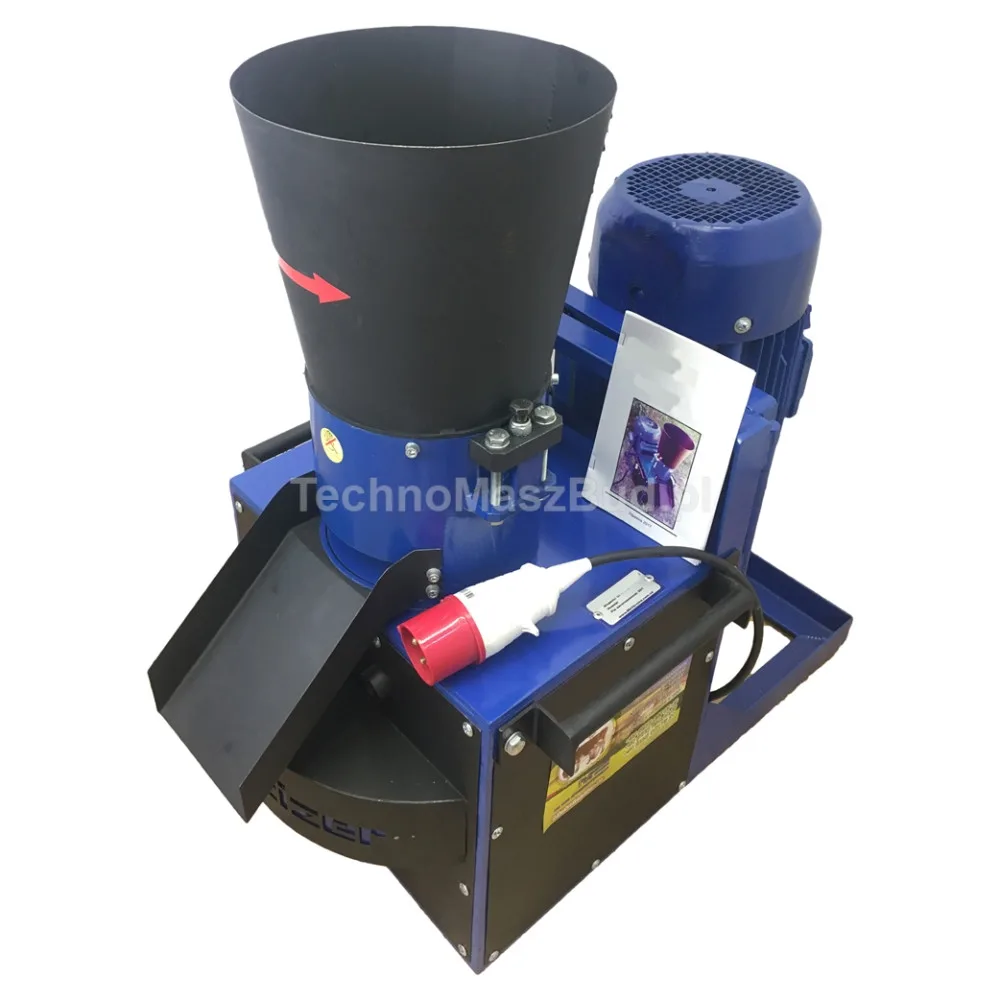

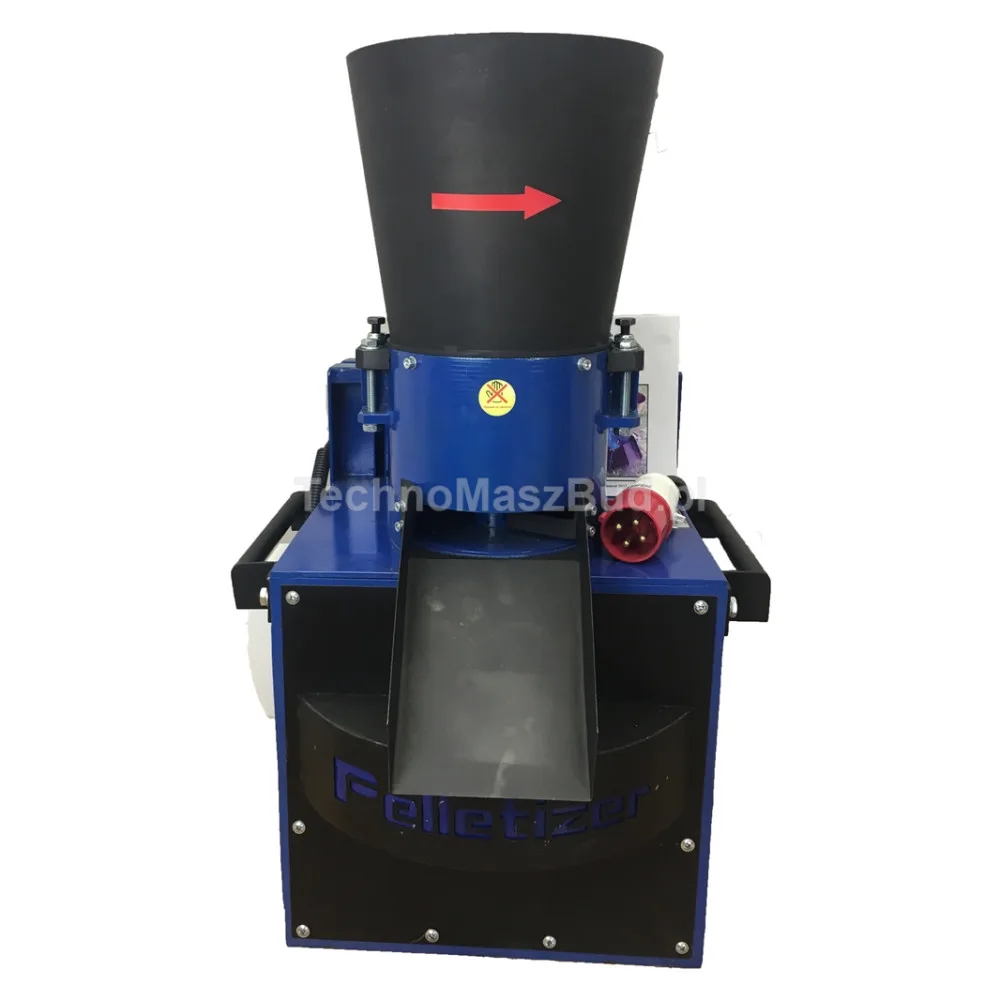

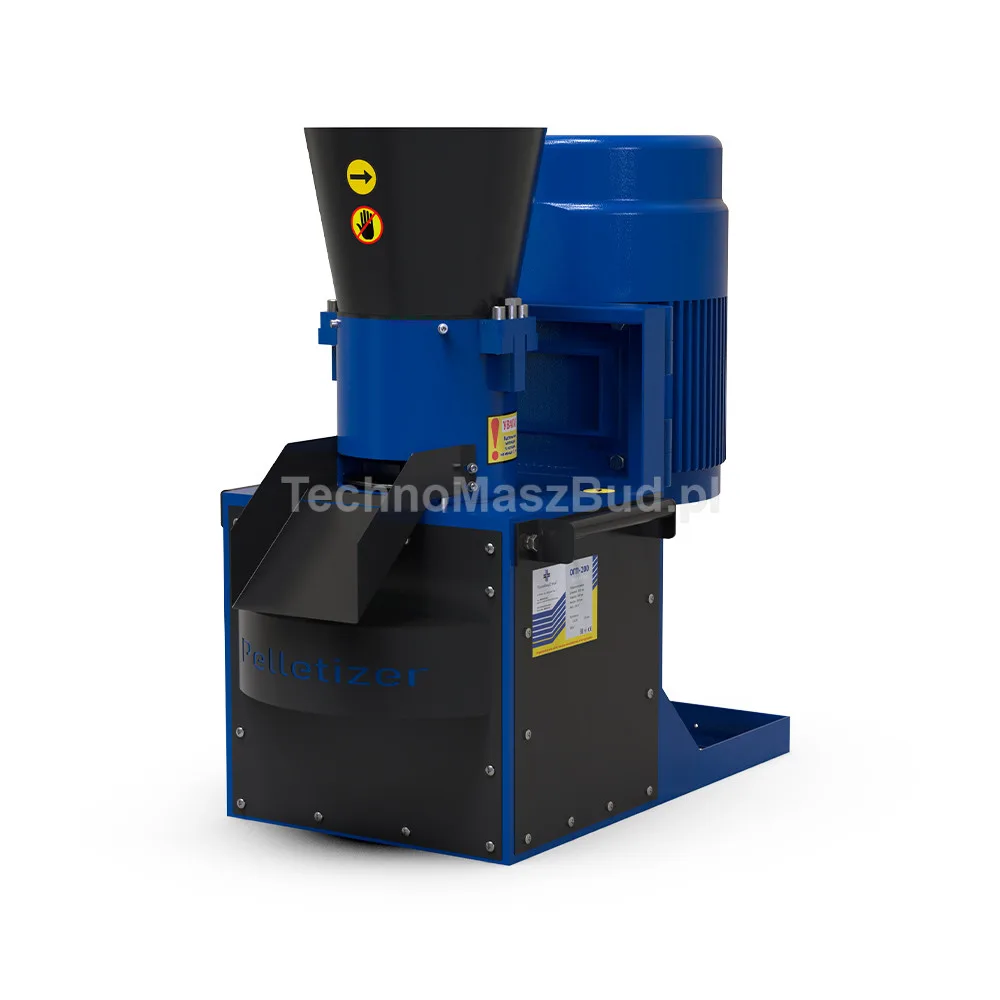

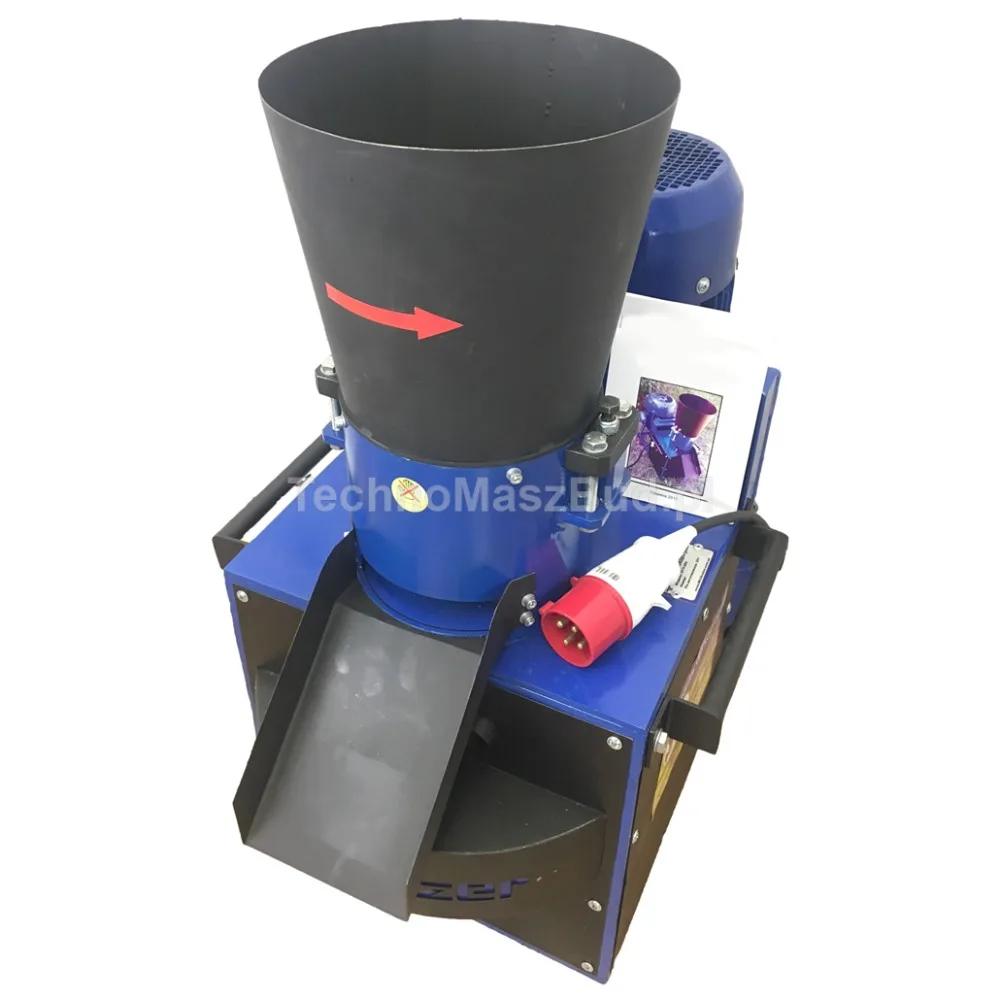

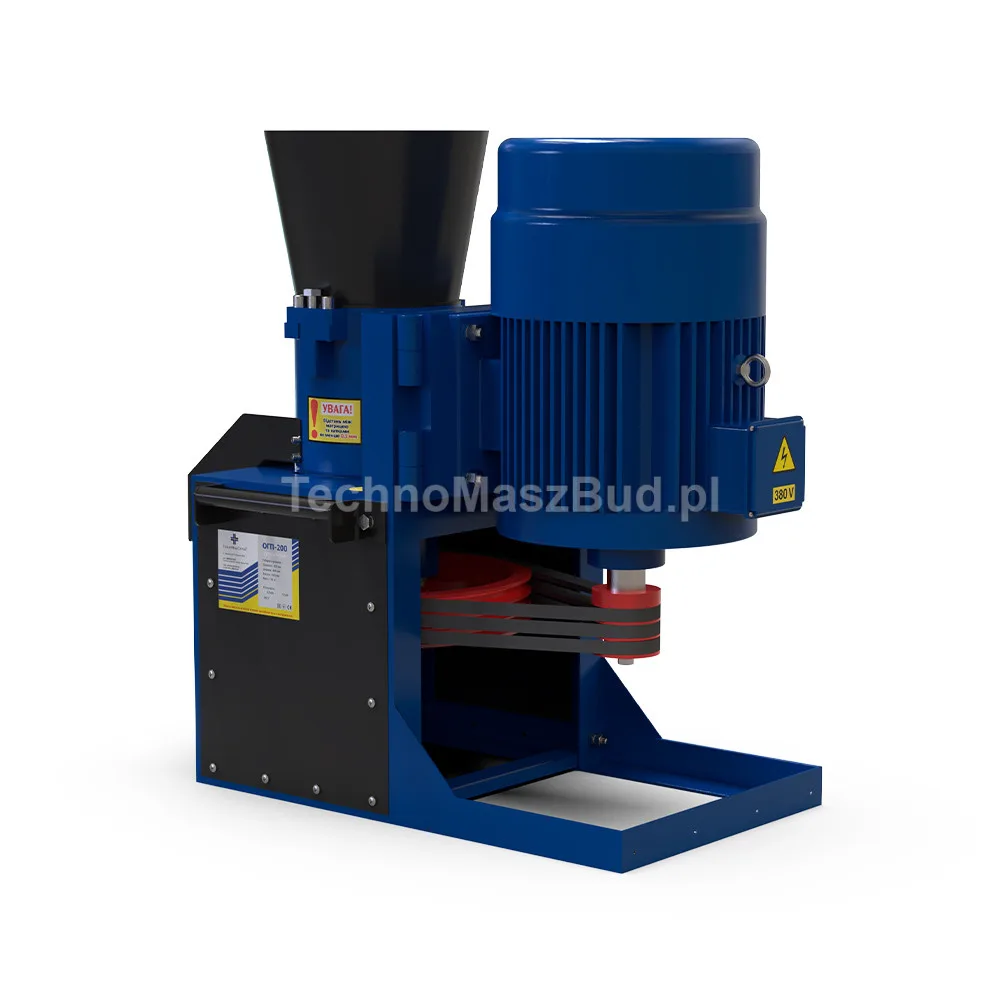

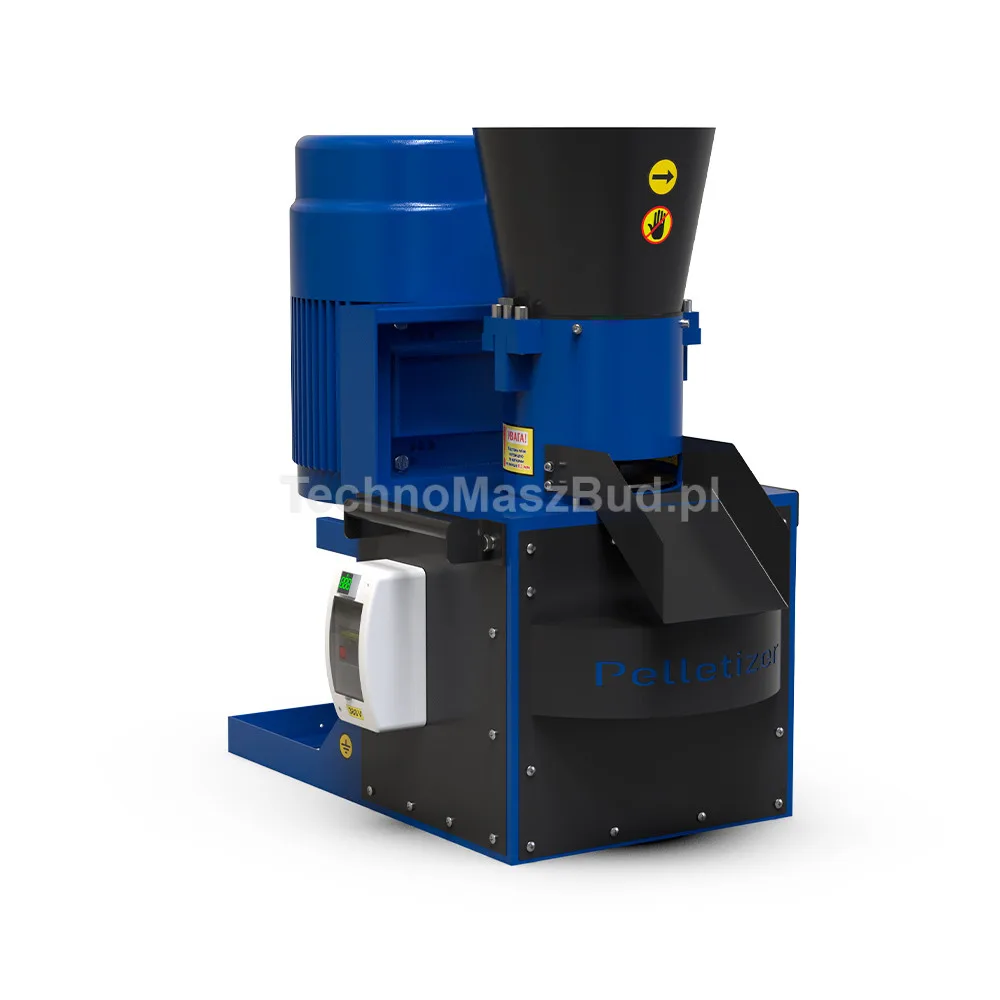

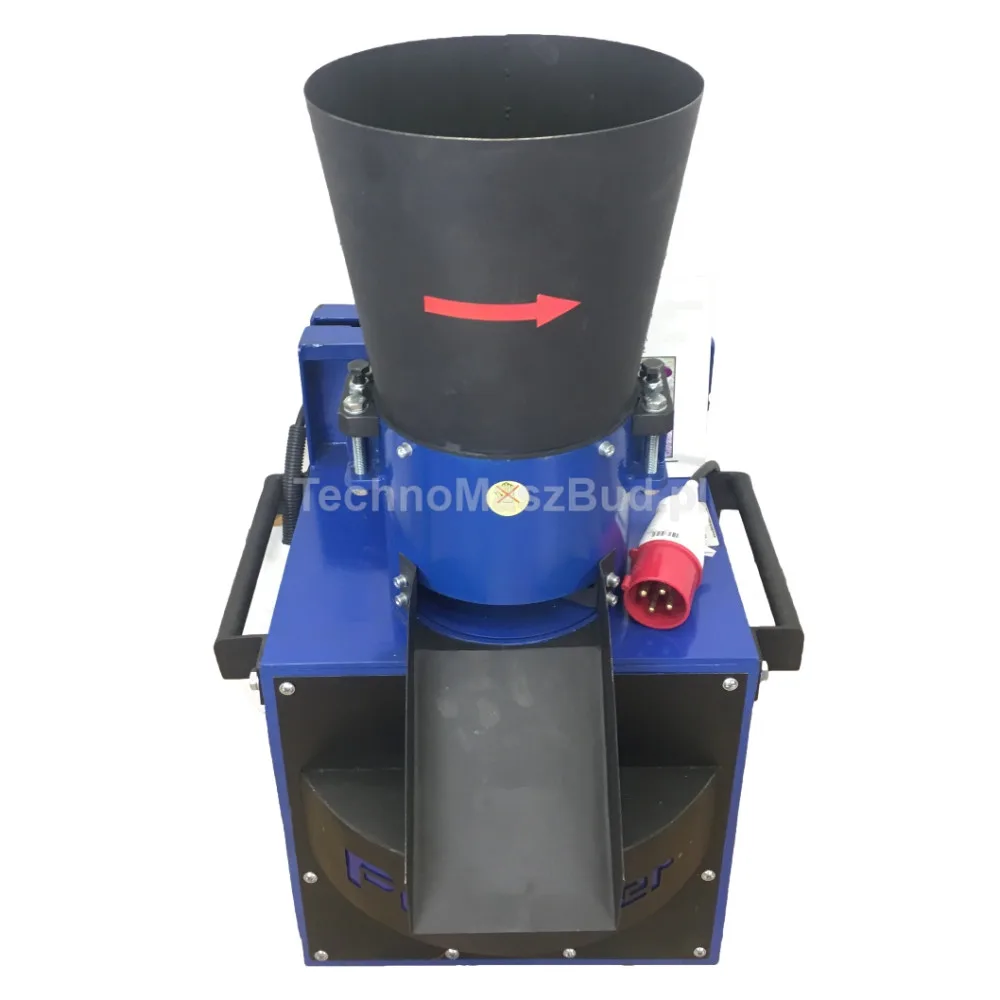

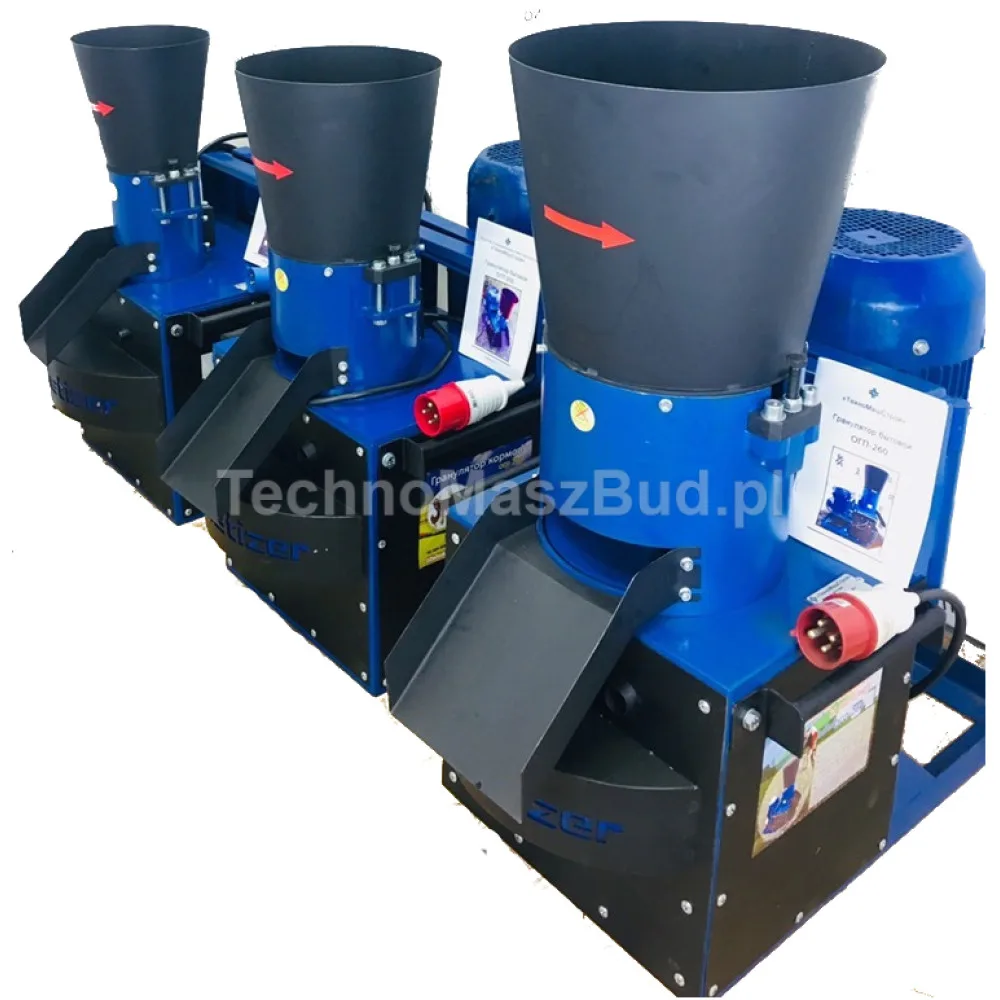

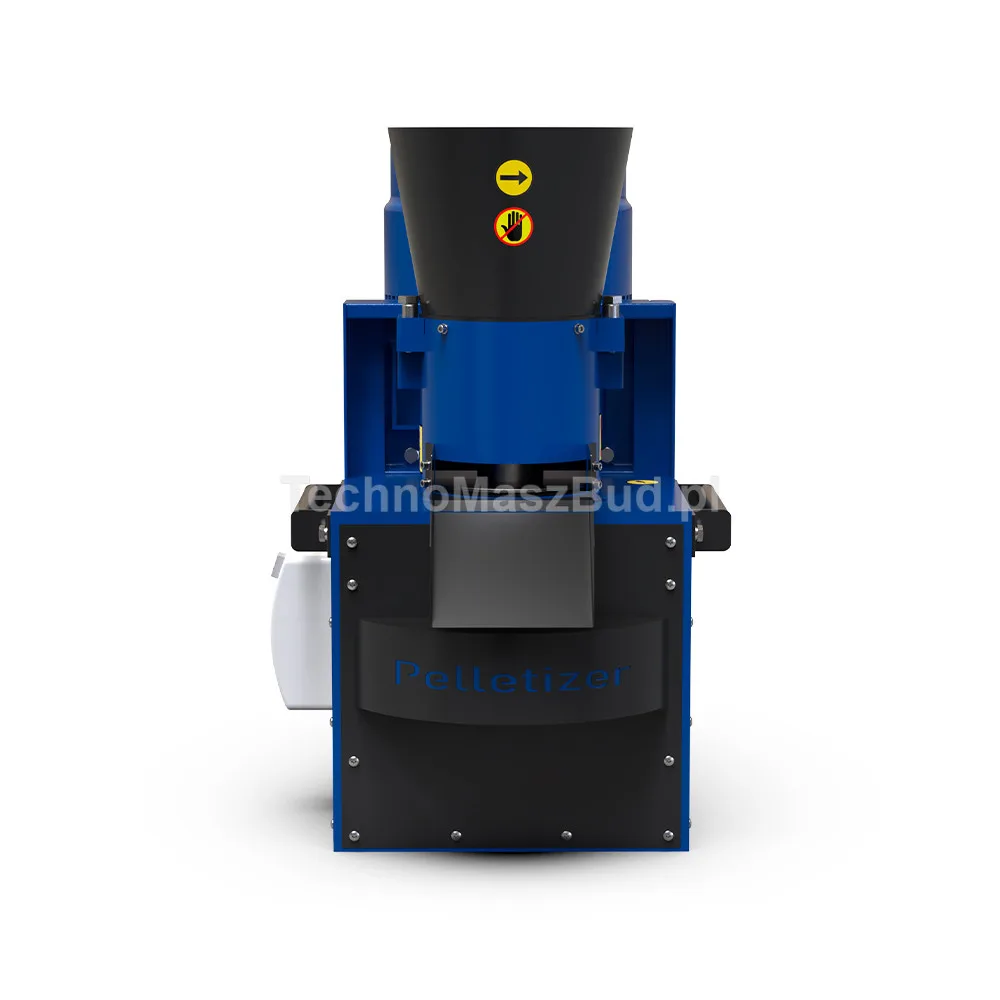

Granulator / Pellet mill RTH-200

Granulator / Pellet mill RTH-200

In Stock
Rating:

Available Options


In Stock 6,981.48
5,676.00zł

Incl Tax: 6,981.48zł


  • Product Code: RTH-200


Main characteristics All specifications
Length: 800.0(mm)
Width: 400.0(mm)
Height: 900.0(mm)
Weight: 150.0(kg)
The diameter of radial holes in the die: from 2 to 8 mm (optional)

The RTH - 200 granulator for feed and pellets is suitable for granulating animal feed (rabbits, chickens, quails, broilers, pigs, fish etc.), it is also possible to produce pellets from straw and hay.

When granulating the feed mixture with the RTH-200 granulator, you get granules with a diameter of 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm (depending on the installed matrix), the length of the granulate can vary from 2 mm to 35 mm, depending on from the position of the knife-pellet cutter (you can determine the position of the knife yourself). Granular feed has many advantages over loose feed. The biggest ones are: the presence of the same composition in each granule, greater safety of the granules, and feed disinfection.


Additionally, if you have a granulator on your farm, you can prepare granulated food yourself. And above all, waste such as straw can be used to make an excellent fuel for heating residential and production spaces.

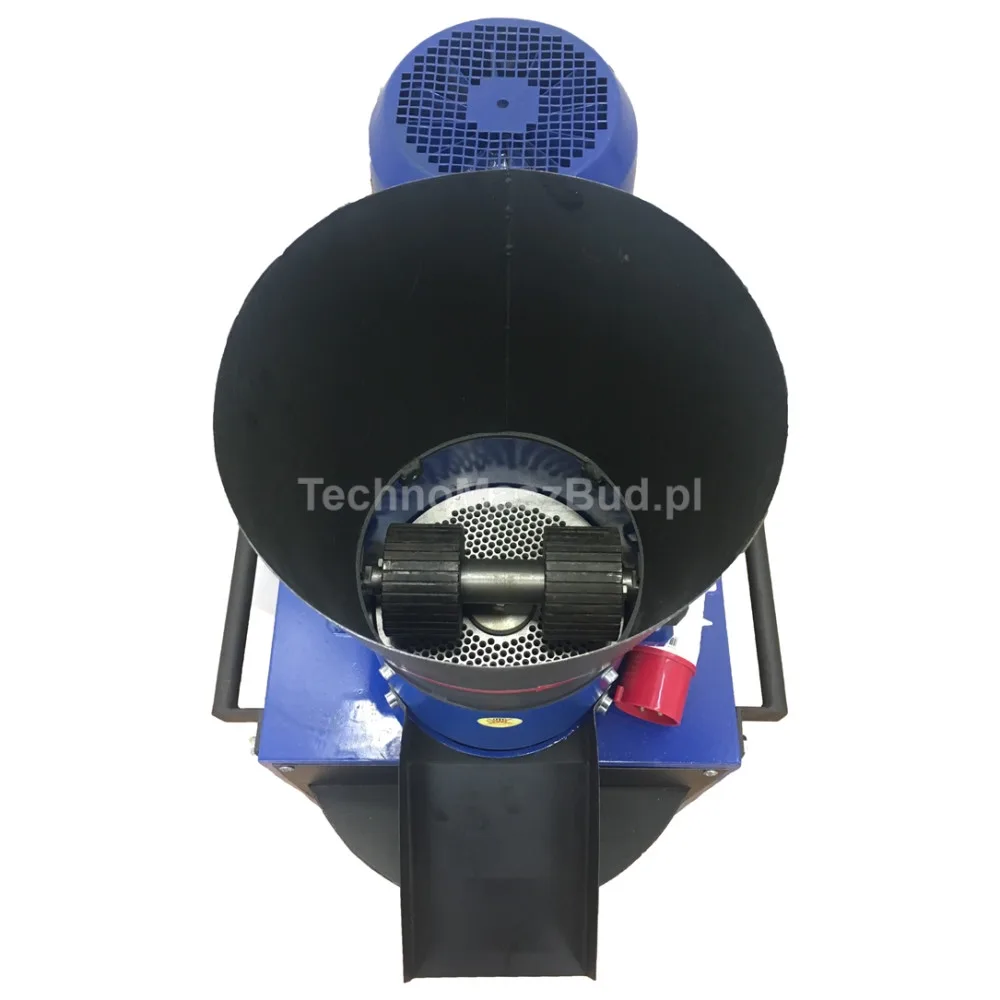

The RTH-200 granulator can be used for the production of granulated feed and pellets for commercial purposes, because it is an efficient device for granulating (pelleting), its capacity is - 200 kg / h. Engine with a power of 5.5 kW / 7.5 kW, 380 volts. One RTH-200 granulator can be used to produce granulated fodder and pellets. Additional dies can be purchased separately. All components are of our own production, made of high-quality stainless steel. Die and rollers are hardened.




Dimensions:
Length: 800.0 (mm)
Width: 400.0 (mm)
Height: 900.0 (mm)
Weight: 150.0 (kg)

Dimensions
Length
800.0(mm)
Width
400.0(mm)
Height
900.0(mm)
Weight
150.0(kg)
Key features
The diameter of radial holes in the die
from 2 to 8 mm (optional)
Usage
For production of granular nutriment and pellets
Product type
Granulator / Pellet Mill
Type of drive
Electrical
Production capacity
till 200.0(kg/h) - feed / till 100.0(kg/h) - pellets
Engine power
5.5(kW) / 7.5(kW)
Voltage
380V
Rotation speed
250 obrotów / min
The diameter of the die
200(mm)
Additional features
Warranty
12 month
The number of rolls
2(PCs)
The number of knives
1(PCs)
Extended bunker
Yes
