Belt conveyor - calibrator PK-2
In Stock
In Stock 11,660.40
9,480.00zł
Incl Tax: 11,660.40zł
- Product Code: PK-2
Main characteristics All specifications
Belt width: 200.0(mm)
Inclined height: 1850.0(mm)
The length of the body: 2000.0(mm)
Width without attachment: 436.0(mm)
Width: 1250.0(mm)

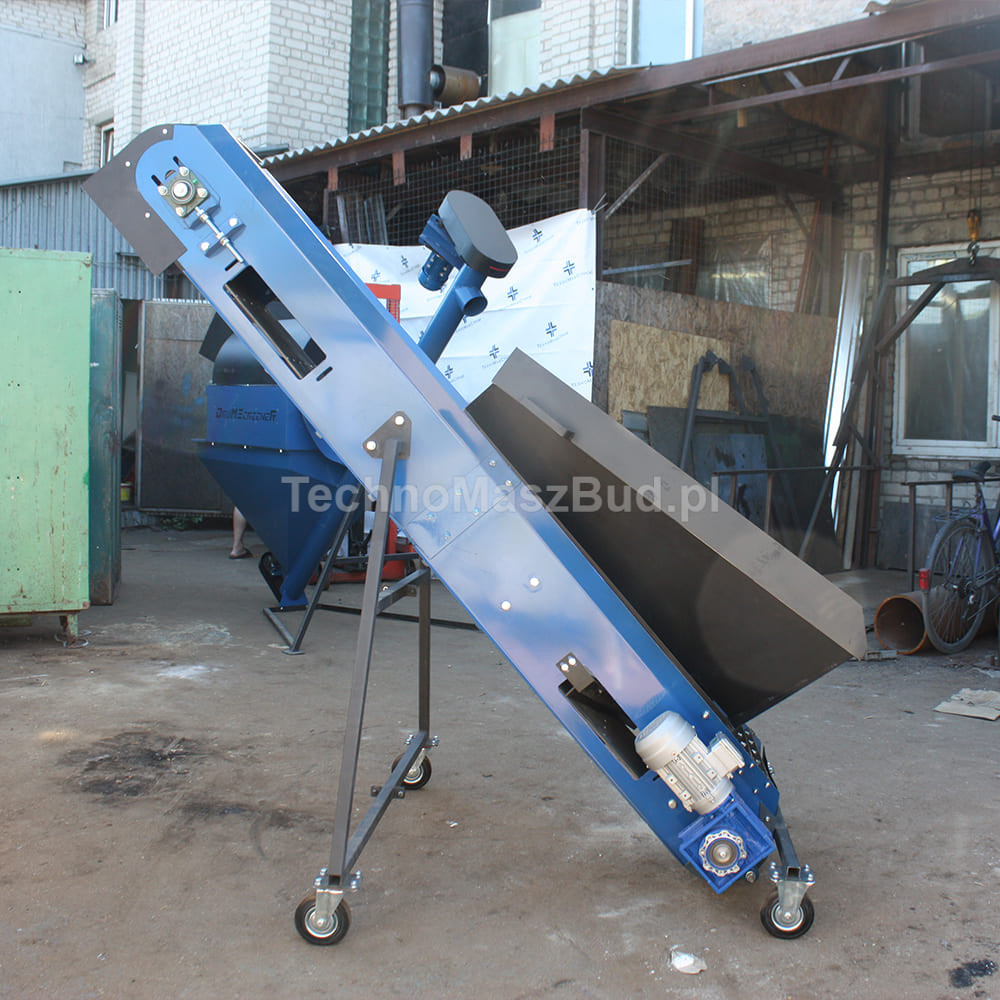

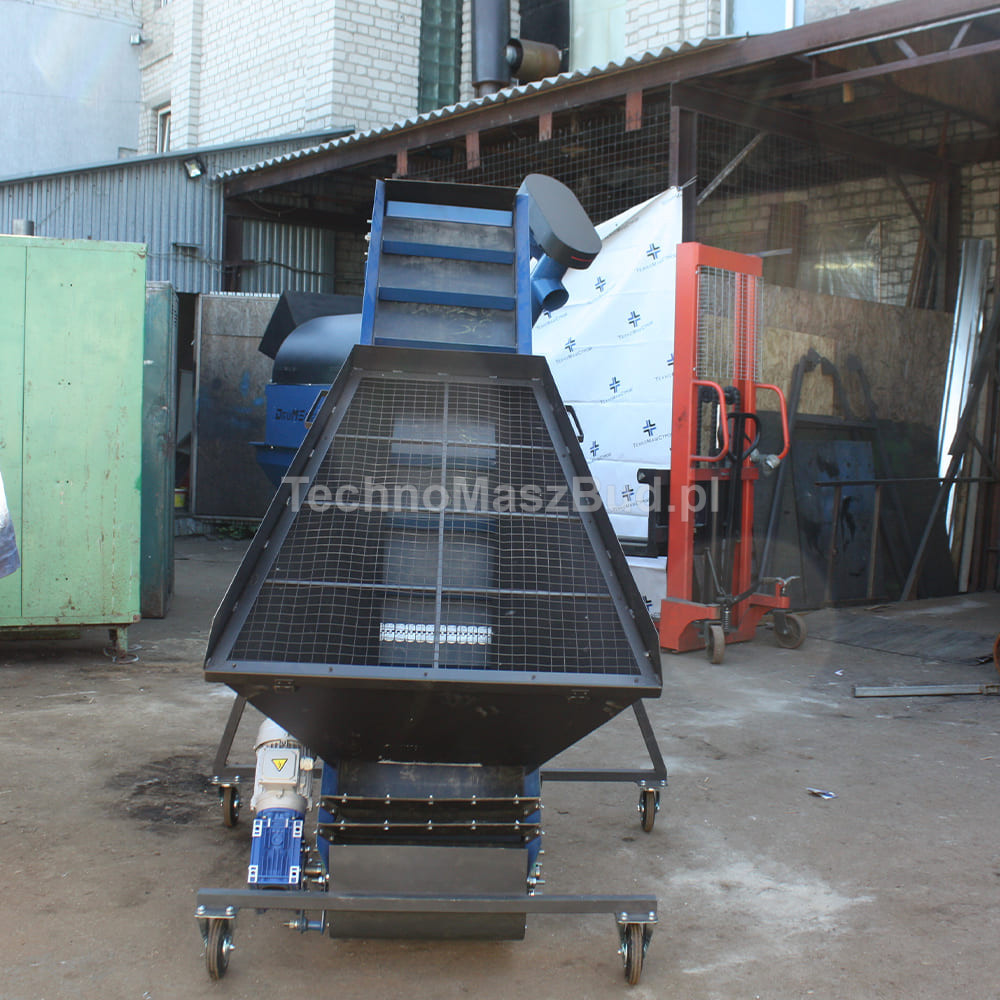

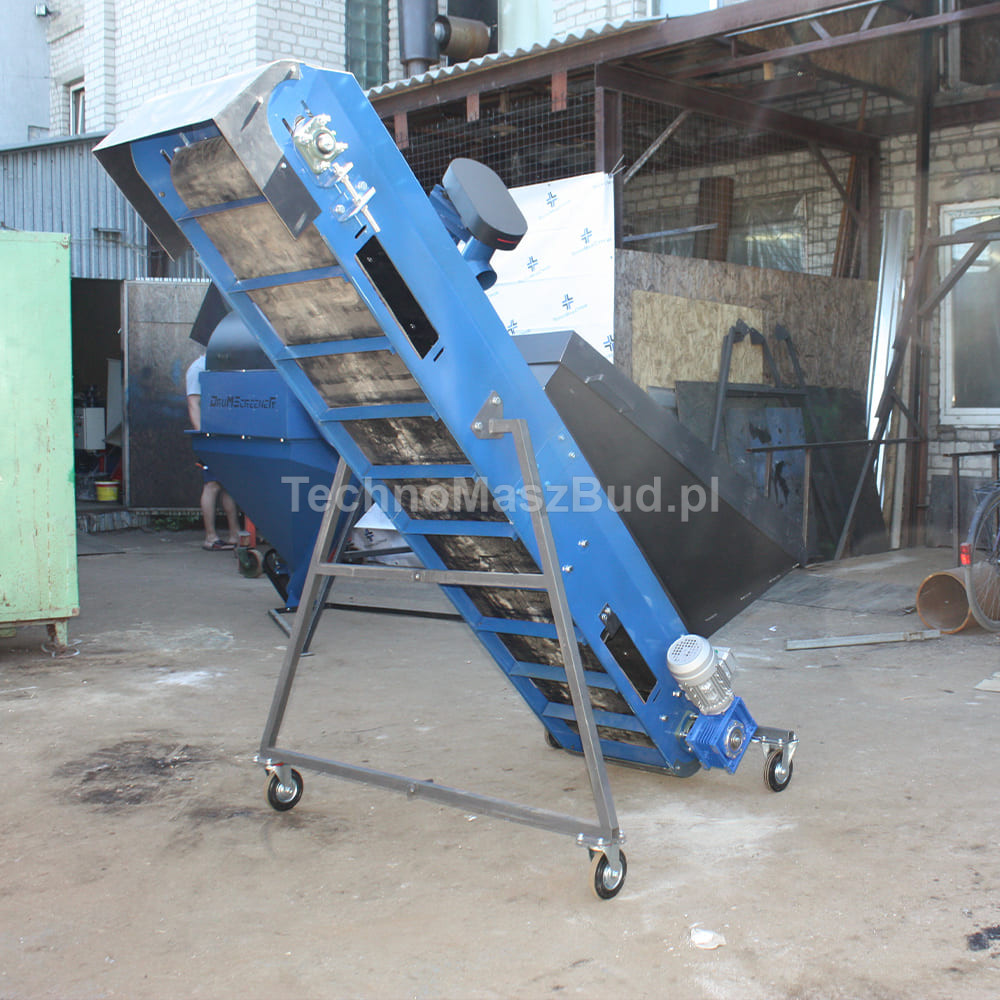

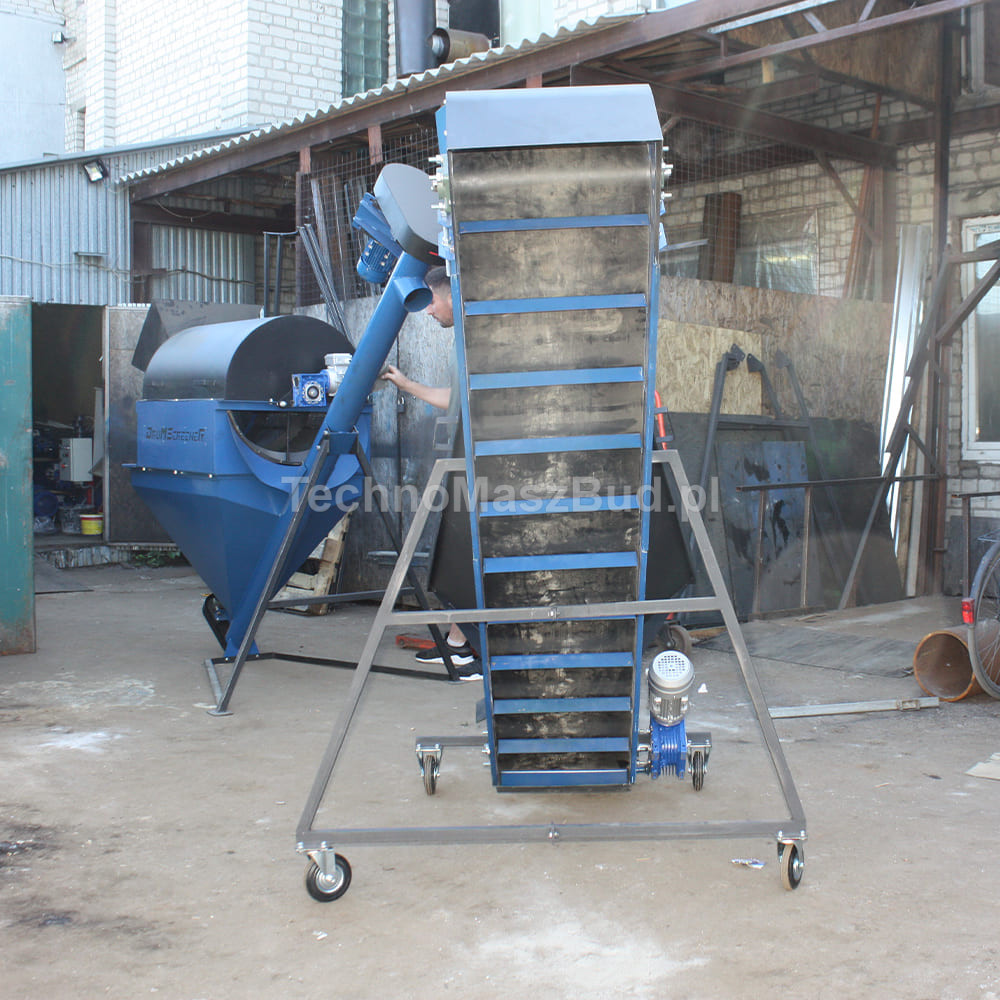

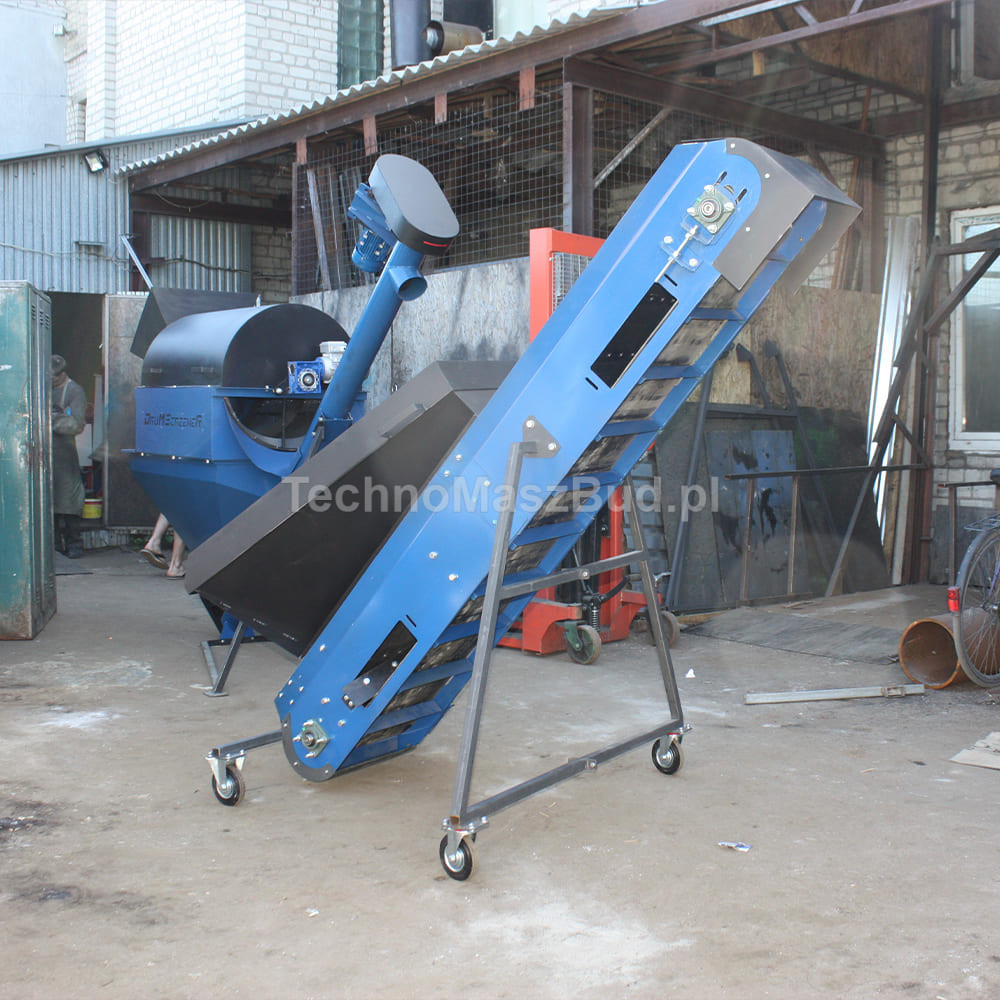

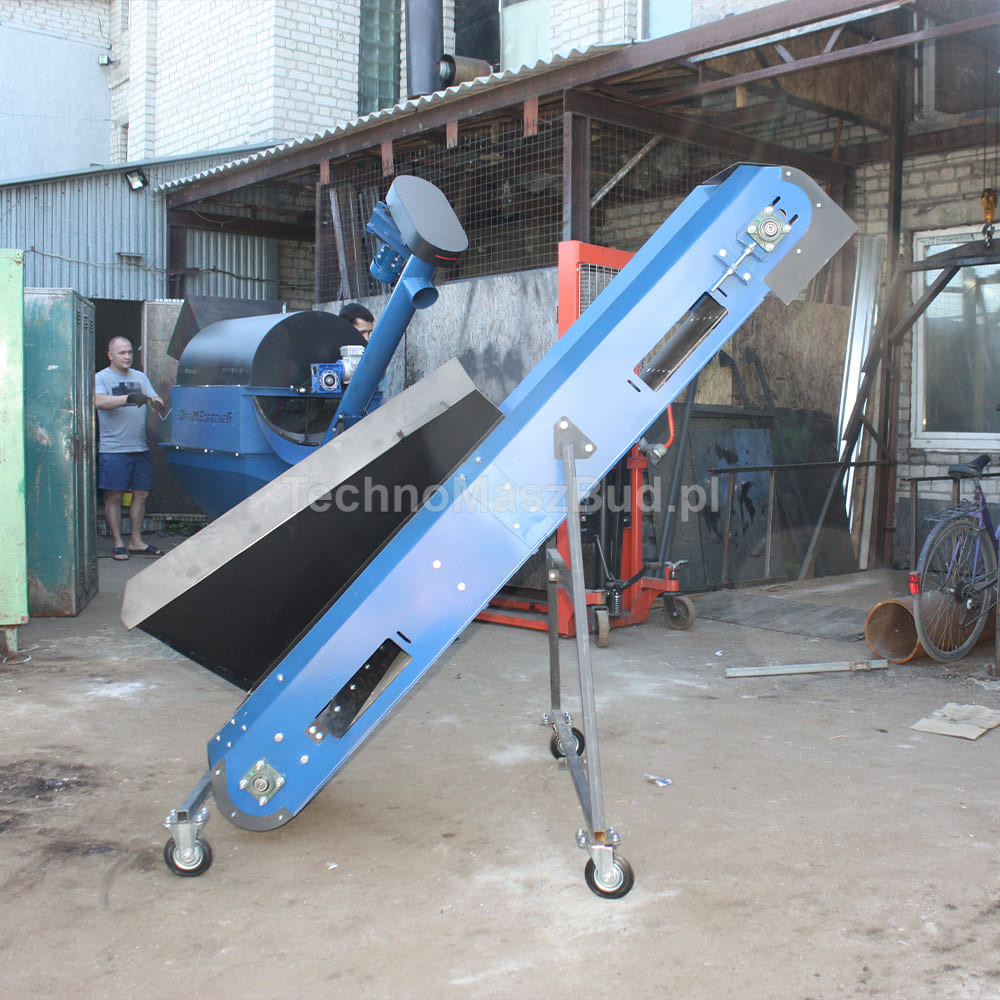

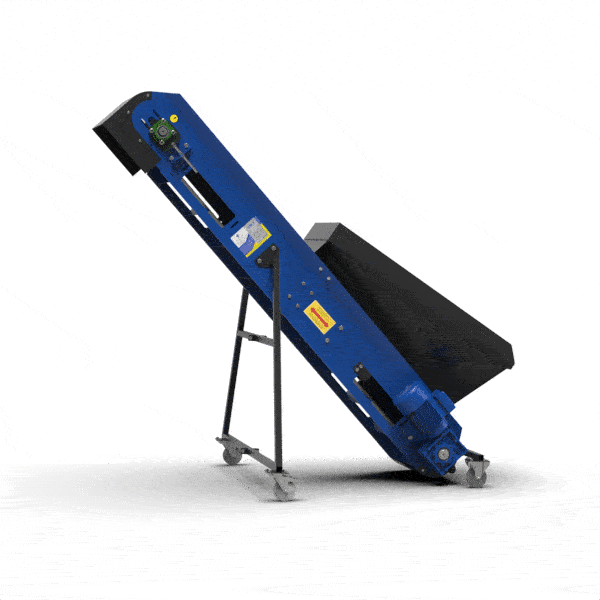

PK-2 - a new device from "TechnoMaszBud". Our specialists are constantly working on improvements and new solutions. After the creation of the LDG-2000 combi + and LDG-3000 combi + granulation lines, there was a need for additional equipment for loading the raw material into the line calibrator or dryer. This device was the PK-2 belt conveyor.
What tasks are solved by new equipment:
- It transports loose, lumpy and unit materials directly to the line calibrator or dryer.
- By installing an additional mesh, it separates large parts of the incoming raw material.
- To prevent spilling of raw materials, the device is equipped with special scrapers that are resistant to high temperatures.
The belt conveyor has the following characteristics:
- Equipped with a 0.25 kw motor.
- Dimensions: width 1250mm, body length 2000mm, weight 105kg
- The height of the TLK-2 under the slope is 1850 mm
- Belt speed 7 m per minute.
- Capacity from 100 to 1000 kg (average 286 m3 / h).
Dimensions
Belt width
200.0(mm)
Inclined height
1850.0(mm)
The length of the body
2000.0(mm)
Width without attachment
436.0(mm)
Width
1250.0(mm)
Weight
105.0(kg)
Key features
Belt speed
7m/min
Thrust
Belt
Type of track
Inclined
Product type
Belt conveyor
Type of drive
Electrical
Production capacity
till 500.0(kg/h)
Engine power
gearmotor 0.25 kW.
Additional features
Warranty
12 month
