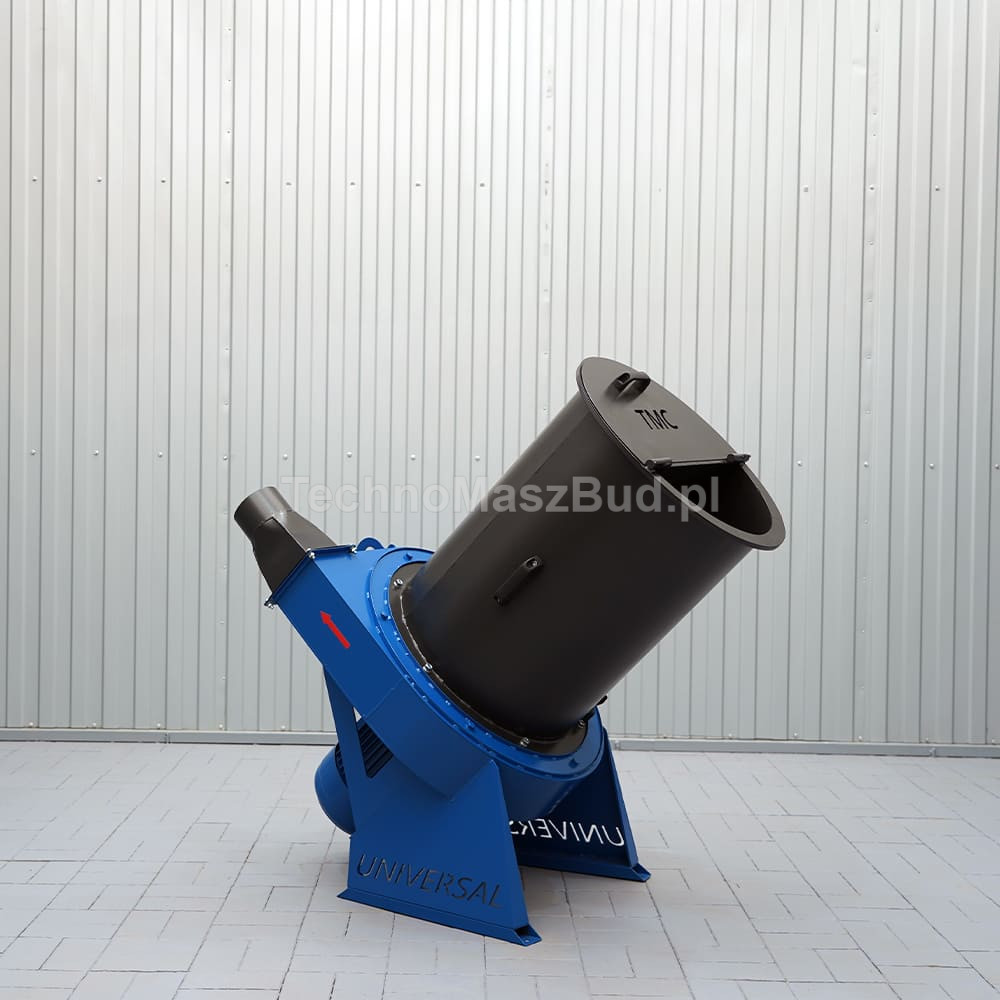

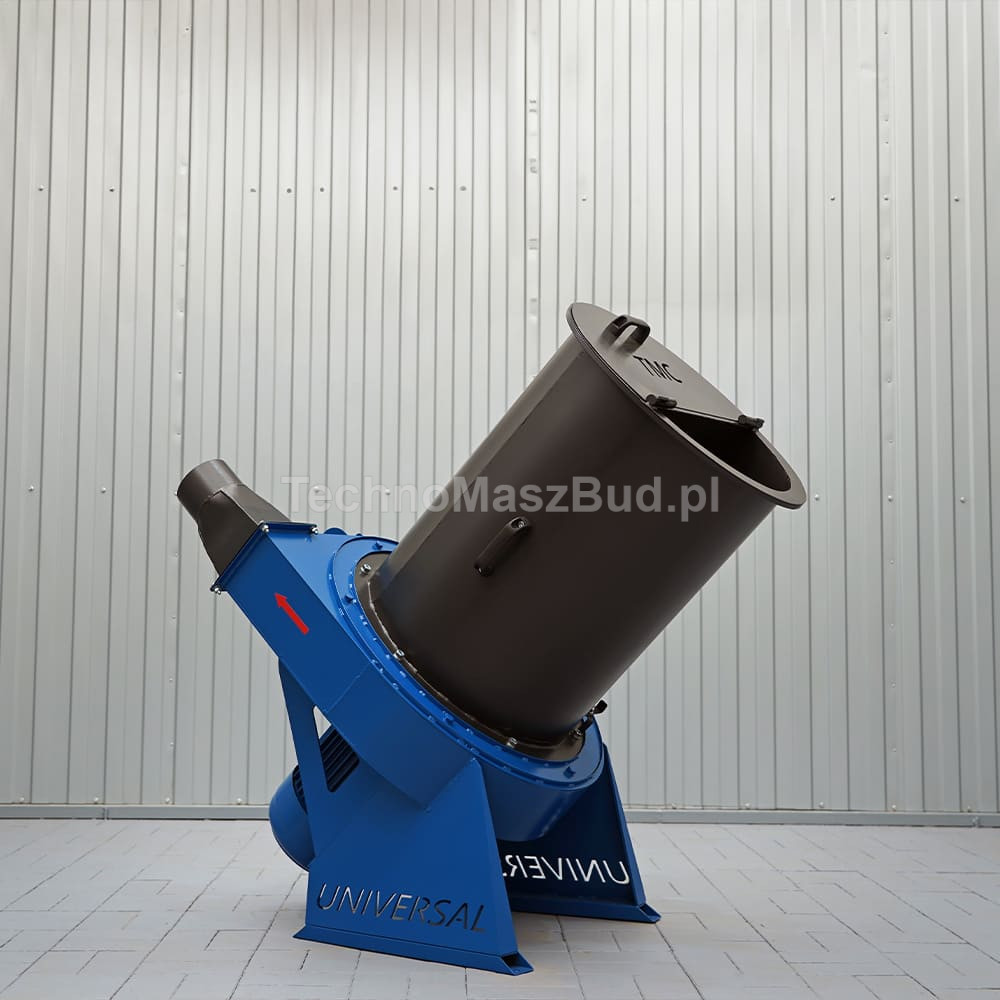

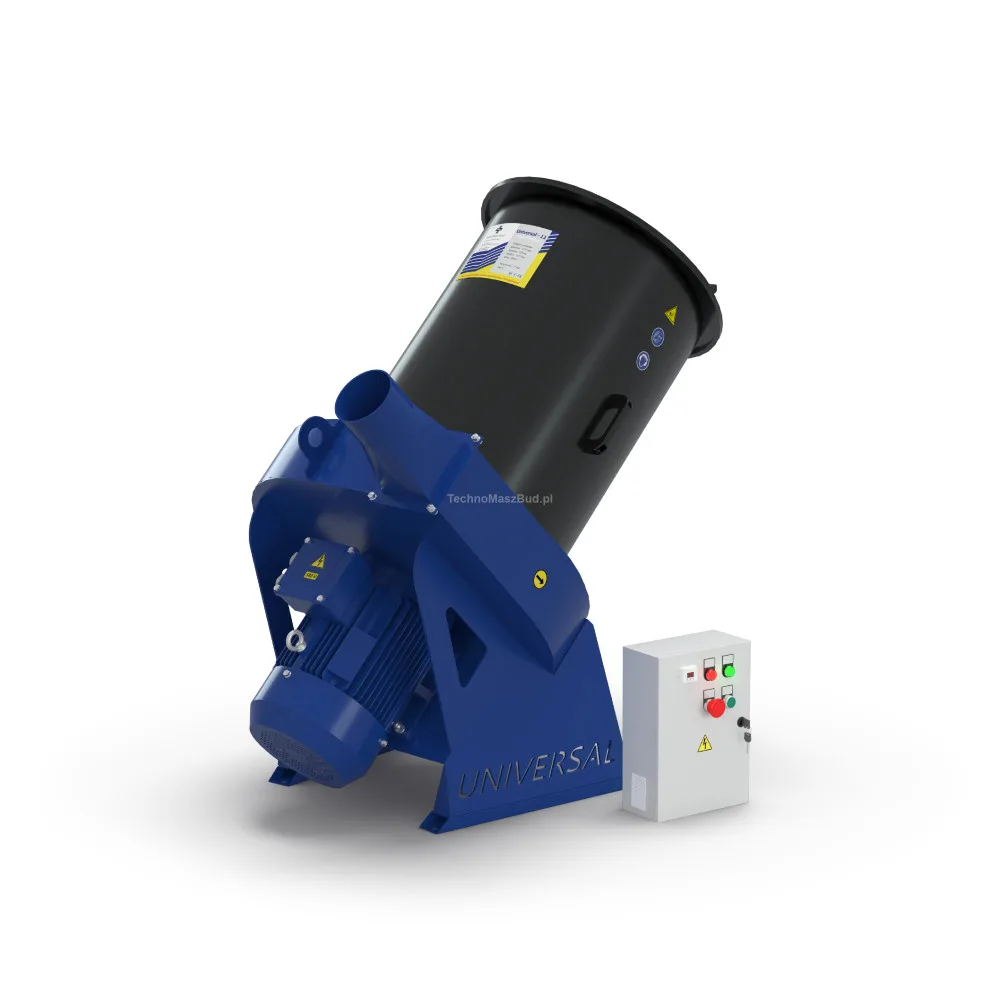

Shredder / Crusher UNIVERSAL-11

WE INVITE YOU TO CONDUCT A CRUSHING TEST OF YOUR RAW MATERIAL AT OUR WAREHOUSE!

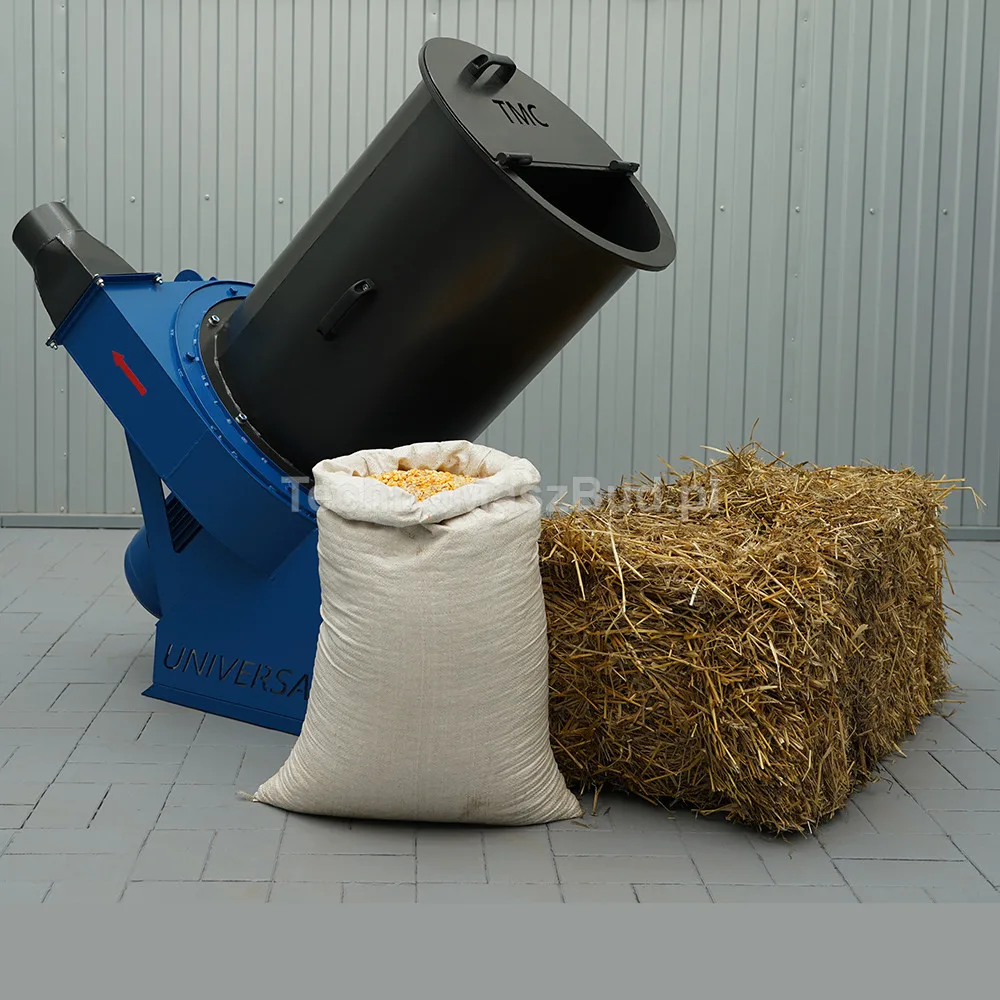

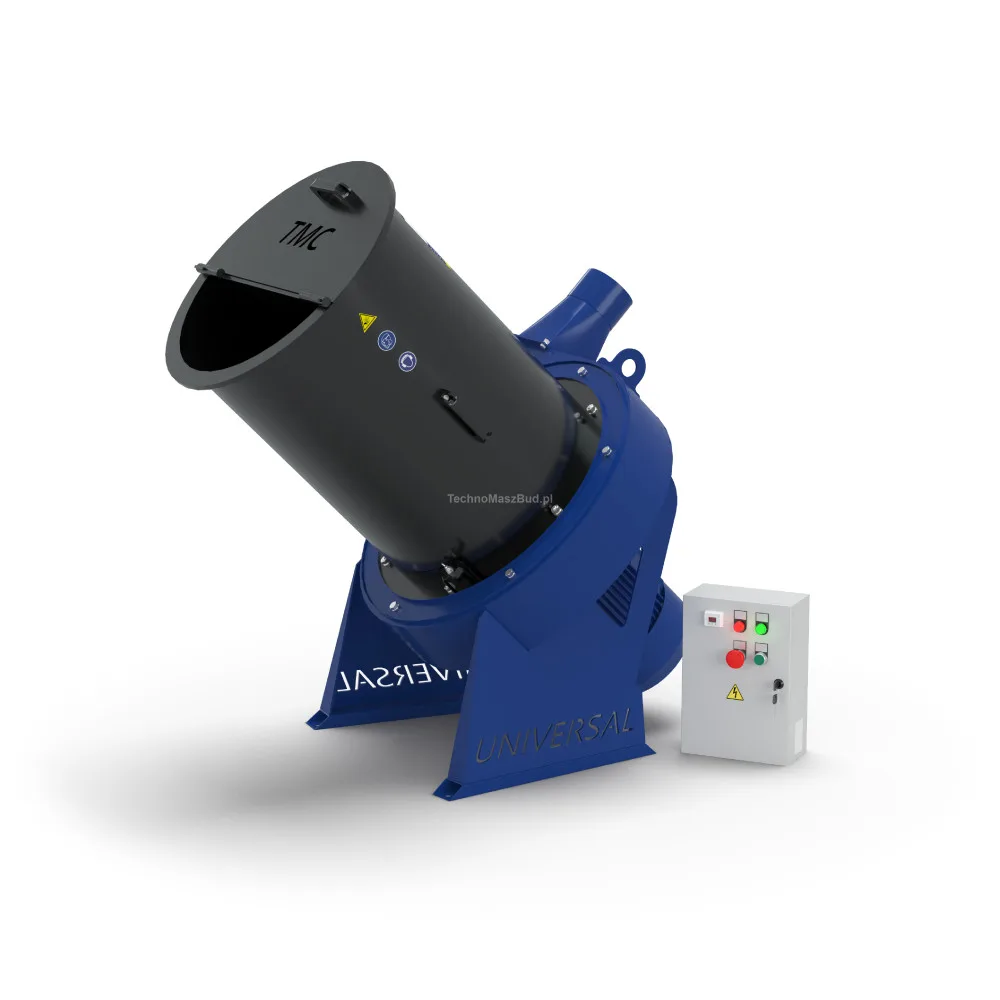

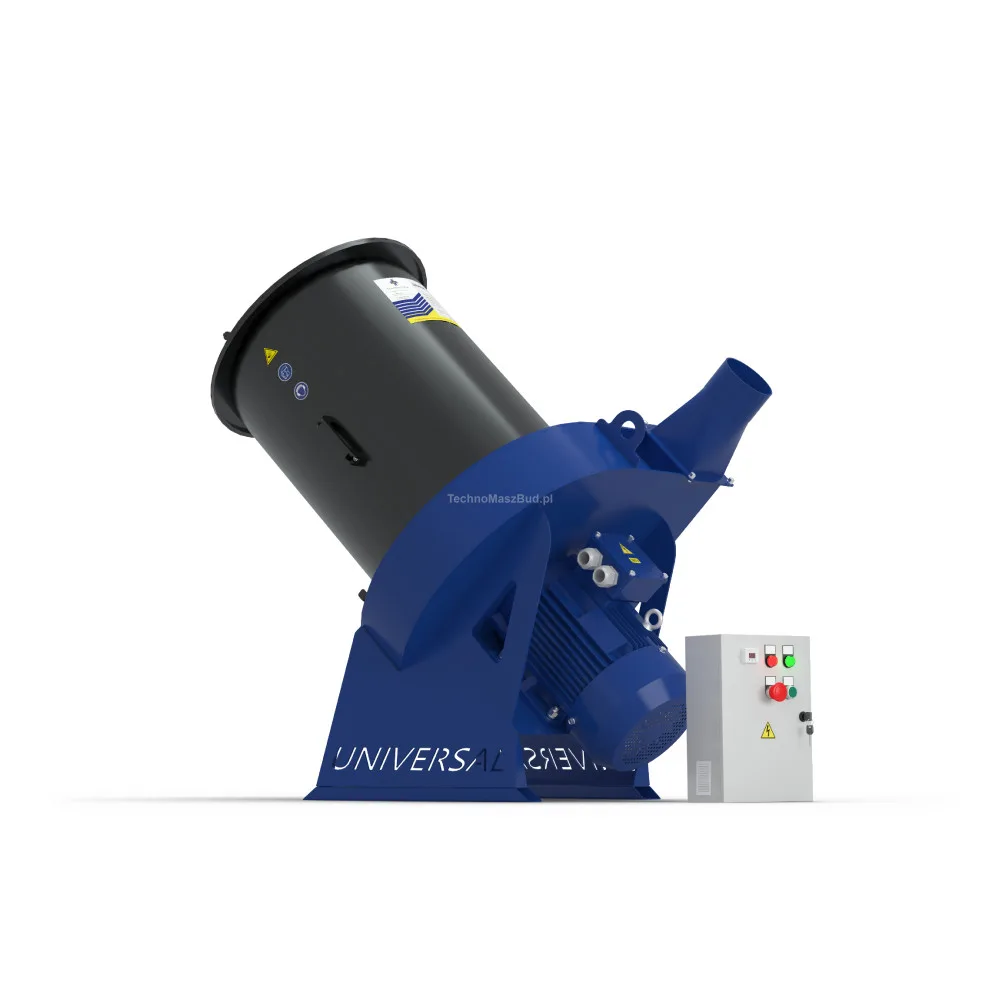

The unique design of the UNIVERSAL-11 crusher allows for the crushing of all types of grains, straw, hay, reeds, wood chips, husks, and leaves. The crusher's output is up to one ton per hour for grains and 200 kg per hour for straw when using a sieve with a hole diameter of 6 mm.

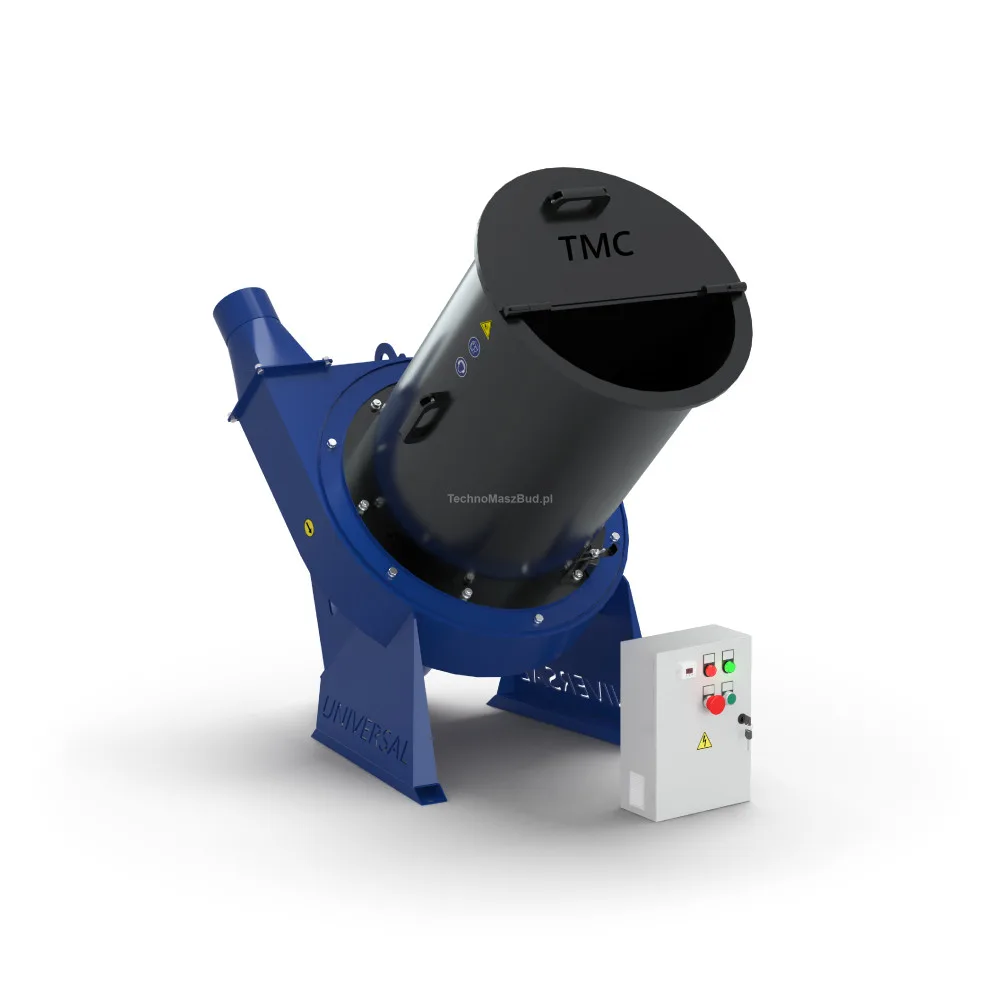

The feeding of fibrous raw material takes place in the upper chamber of the hopper, while grains are poured into the lower chamber. The chambers are separated by a vertical partition, and for user convenience, there is a hinged cover at the top. A sliding gate with a lock serves to regulate the crushing speed of the grains.

The main advantages of the UNIVERSAL-11 Crusher include:

• a solid steel construction, compact size, and lightweight;
• optimal grinding mode;
• efficiency in handling long grass and reeds;
• safety and reliability of operation;
• interchangeable grates allowing flexible fraction regulation;
• high wear resistance due to high-quality alloy steel blades;

Basic parameters:

• Motor power: 11 KW 1500rpm
• Fraction size: 3-20 mm
• Drive: electric.
• Voltage: 400 V.
• Motor power: 11 KW
• Grain output: up to 1000 kg/h
• Straw output: up to 200 kg/h.

Technical drawing:

In reality, the device is an essential piece of equipment for rural livestock farms and in the production of pellets and granulated feed. The resulting product can be used as feed and bedding for animals and birds. This model is very popular among both large and small farms.
