LD-50 wood splitter with electric motor

LD-50 is a mobile, industrial log splitter designed for preparing firewood for home or industrial needs. Log splitter LD-50 enables fast, efficient and, importantly, safe splitting of logs with a diameter of 500 mm and a height of 420 mm.

The device uses a gear-driven (inertial) system - using kinetic energy to split the wood along the grain.

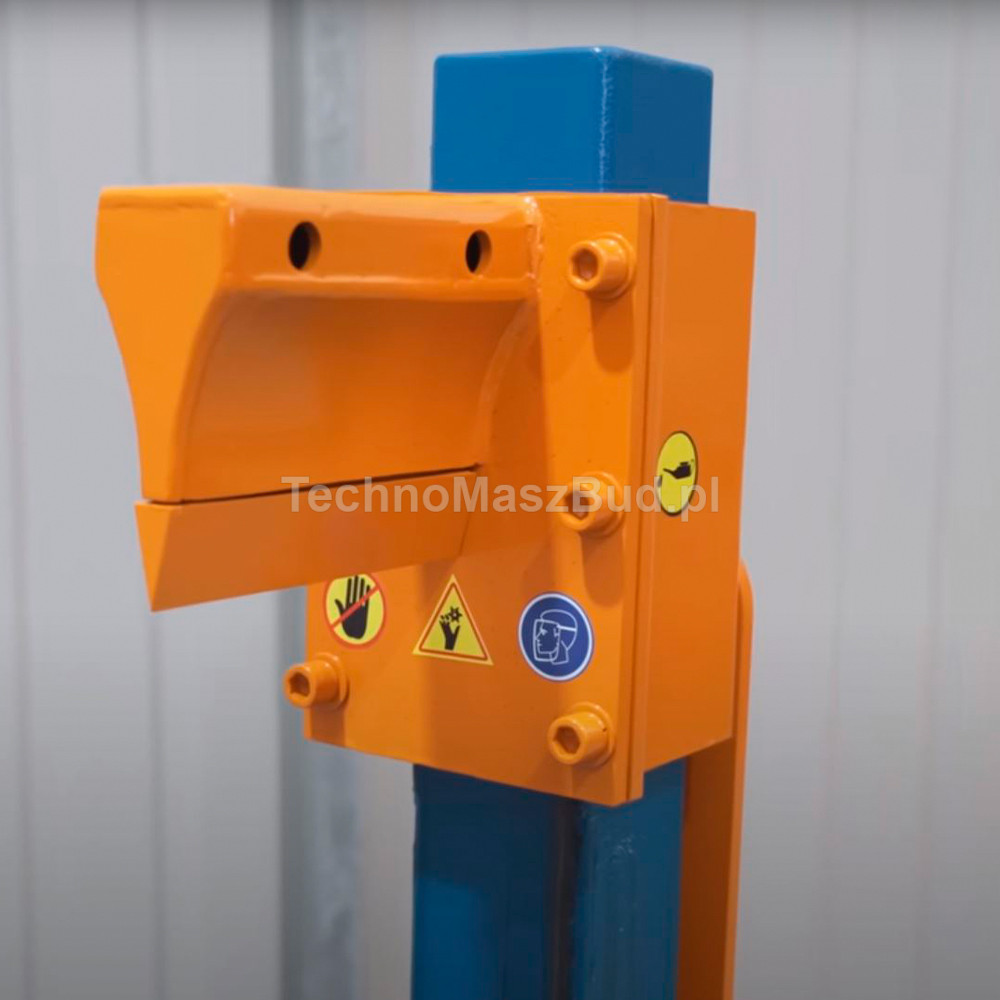

The ram strikes the end of the log, which then cracks upon contact with the splitting wedge blade.

A single strike allows the block to be divided into 2, 4, or more pieces - depending on the installed attachment.

The LD-50 log splitter is powered by a 6.5 HP gasoline engine.

The splitter is equipped with 13R automotive wheels and a tow hitch mount, which allows it to be moved with a vehicle.

Advantages of the LD-50

• Powerful 6.5 HP gasoline engine - independent operation in the field without the need for electrical power
• Mobility - thanks to the wheels it can reach locations far from any buildings
• Stable construction weighing 350 kg, enabling intensive work in industrial conditions
• Option to mount a roller conveyor - streamlines the continuous wood-splitting process
• 13R automotive wheels and a tow hitch coupling - easy transport and machine mobility
• Robust housing and steel structure resistant to mechanical damage

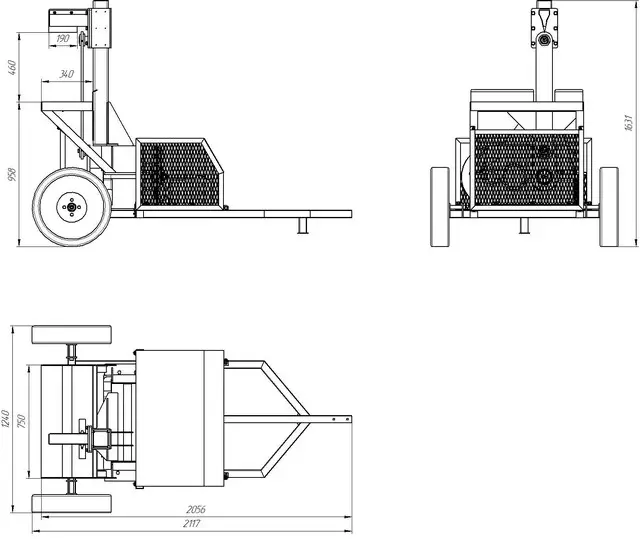

Technical drawing:

Applications

The LD-50 gasoline-powered log splitter works great for both home and industrial use. Its mobile design and independence from a power source mean that LD-50 is also suitable for field work.

The LD-500 splitter is a reliable machine for splitting firewood.

Technical specifications:

• Power - 6.5 HP
• Maximum log height - 460 mm
• Maximum log diameter - 340 mm
• Length - 2120 mm
• Width - 1240 mm
• Height - 1630 mm
• Weight - 375 kg
