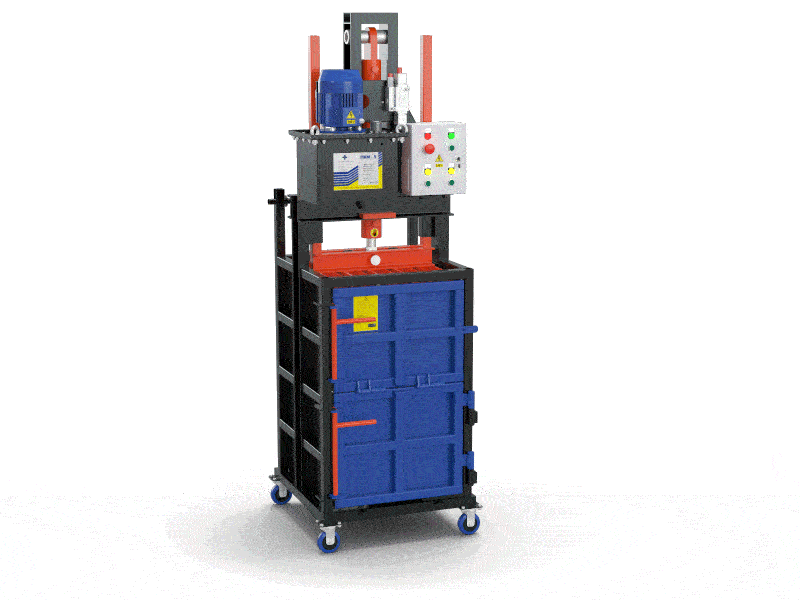

Baler for Waste Paper BM-5 MINI

Baler for Waste Paper BM-5 MINI

In Stock
Rating:

In Stock 20,331.90
16,530.00zł

Incl Tax: 20,331.90zł


  • Product Code: BM-5 MINI

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Length: 900 (mm)
Width: 700 (mm)
Height: 2100 (mm)
Type of drive: Electric
Production capacity: 200 kg/h (paper waste); 100 kg/h (PET)

Description

The cardboard and recycling press is a specialized device designed for compacting paper, cardboard, plastic bottles/PET packaging, and other waste into dense bales, allowing for a reduction in original volume by up to 10 times.

Here are some features of the cardboard balers:

  1. Efficiency: Balers are capable of effectively crushing and cutting large amounts of paper and other recyclable materials.
  2. Durability and reliability: Balers are made from high-quality materials, making them resistant to wear and ensuring long-lasting performance.
  3. Ergonomics: Balers are designed ergonomically for easy and comfortable use.
  4. Portability: Balers are lightweight and easy to move, allowing for convenient relocation as needed.
  5. Space-saving: Balers occupy little space, enabling them to be stored in offices and other locations.
  6. Environmental protection: Balers facilitate the recycling of paper and other materials, contributing to environmental conservation and reducing greenhouse gas emissions.
  7. Performance: Balers can process large quantities of paper and other materials in a short time, saving time and improving efficiency.

The press operates with the following raw materials:

  • Paper;
  • Cardboard;
  • Plastic bottles;

How to choose a recycling press?

To make the purchase of such equipment as effective as possible, the following aspects should be analyzed:

  1. Required volume of the pressing chamber.
  2. Required efficiency.
  3. Drive power.
  4. Maximum density of pressed materials.
  5. Dimensions and transportability of collected bales.



Cardboard press PMK-5 "Mini:

  • Maximum pressing force: 5,000 kg
  • Full cycle time: 43 seconds
  • Working movement speed: 25 seconds
  • Return movement speed: 18 seconds
  • Pressing pressure: 1.6 kg/cm²
  • Working liquid pressure: 170 MPa
  • Tank capacity: 25 l
  • Hydraulic system capacity: 50 l
  • Weight of the press: 354 kg
  • Weight of the bale: up to 140 kg
  • Bale dimensions (LxWxH): 600 x 600 x 500 mm
  • Loading opening: 600 x 450 mm
  • Piston stroke: 630 mm
  • Power: 1.5 kW
  • Number of binding stations: 2
  • Bale discharge: integrated plate
  • Noise level: up to 79 dB
  • Video: Hydraulic press "BM-5 MINI" for waste paper (cardboard), PET bottles, polymers, and other waste

    Specification

    Dimensions
    Length
    900 (mm)
    Width
    700 (mm)
    Height
    2100 (mm)
    Key features
    Type of drive
    Electric
    Production capacity
    200 kg/h (paper waste); 100 kg/h (PET)
    Engine power
    1,1 kW
    Voltage
    400 (V)
    Additional features
    Warranty
    12 months
    Dimensions
    Length
    900 (mm)
    Width
    700 (mm)
    Height
    2100 (mm)
    Key features
    Type of drive
    Electric
    Production capacity
    200 kg/h (paper waste); 100 kg/h (PET)
    Engine power
    1,1 kW
    Voltage
    400 (V)
    Additional features
    Warranty
    12 months
