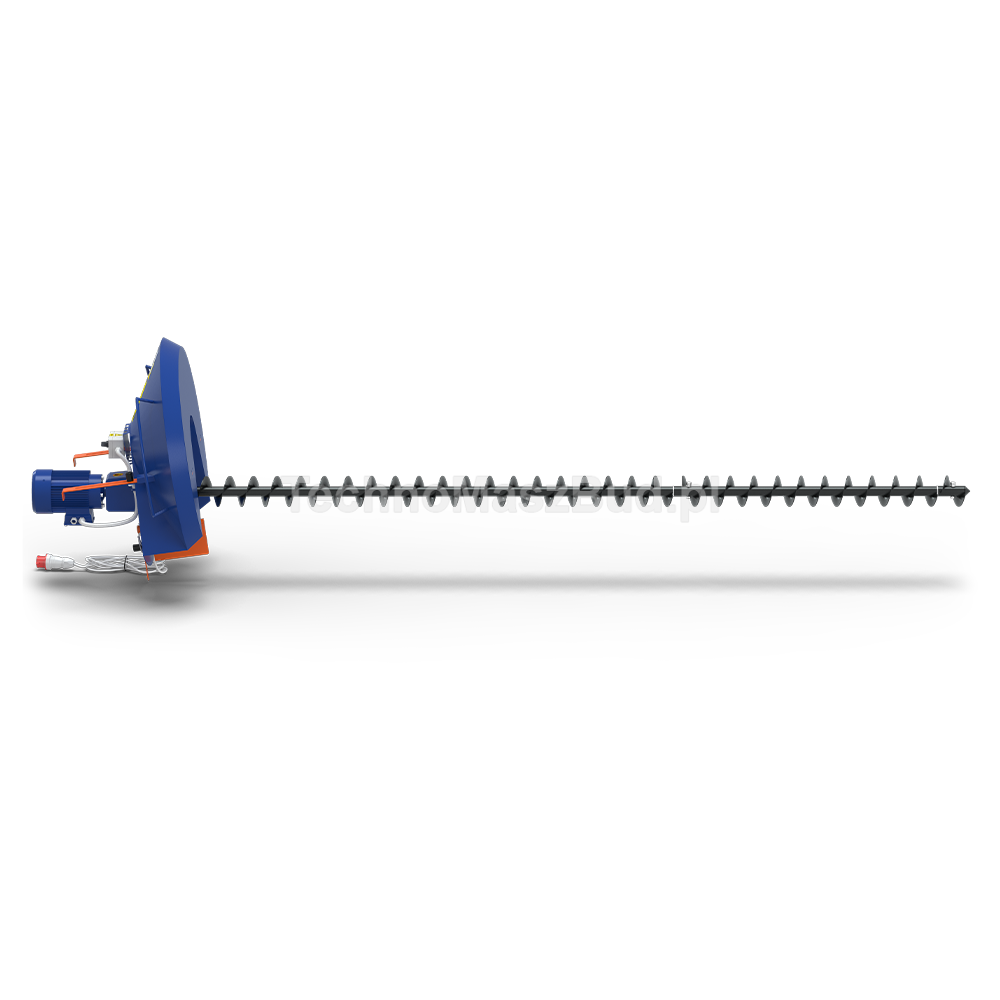

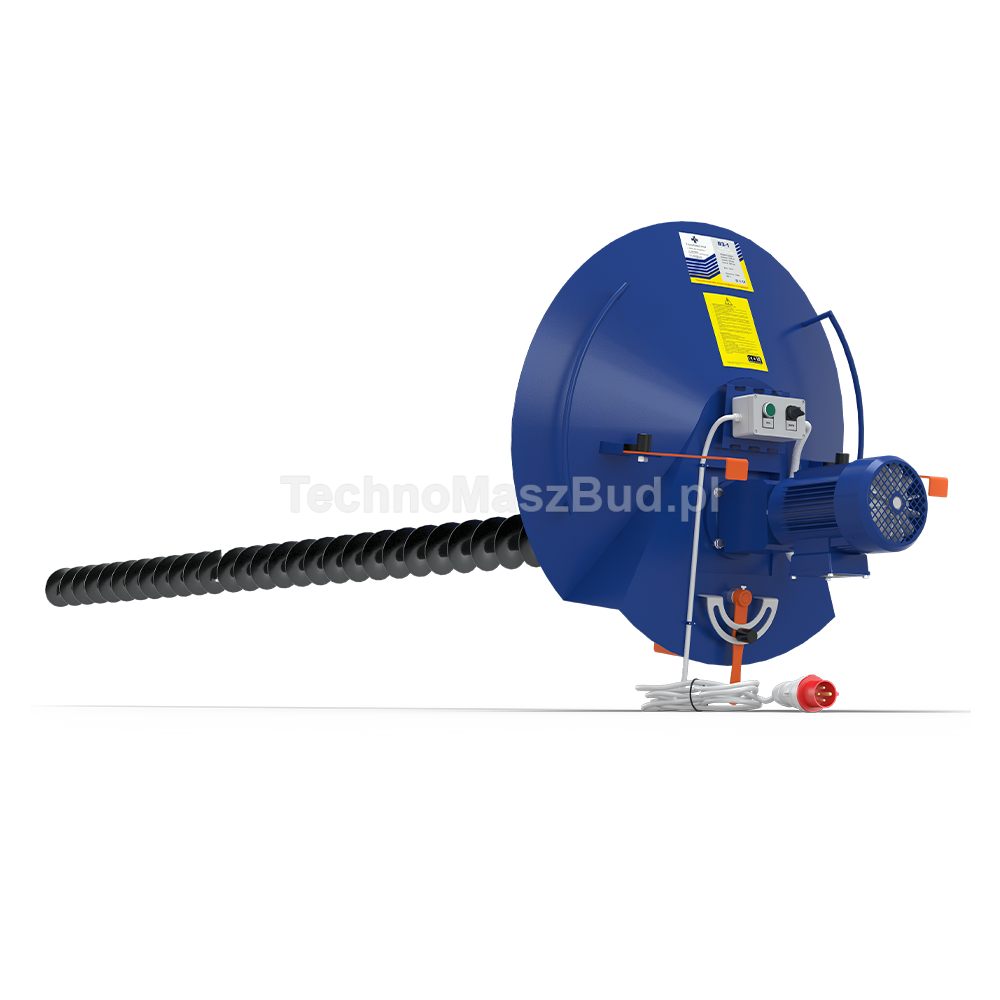

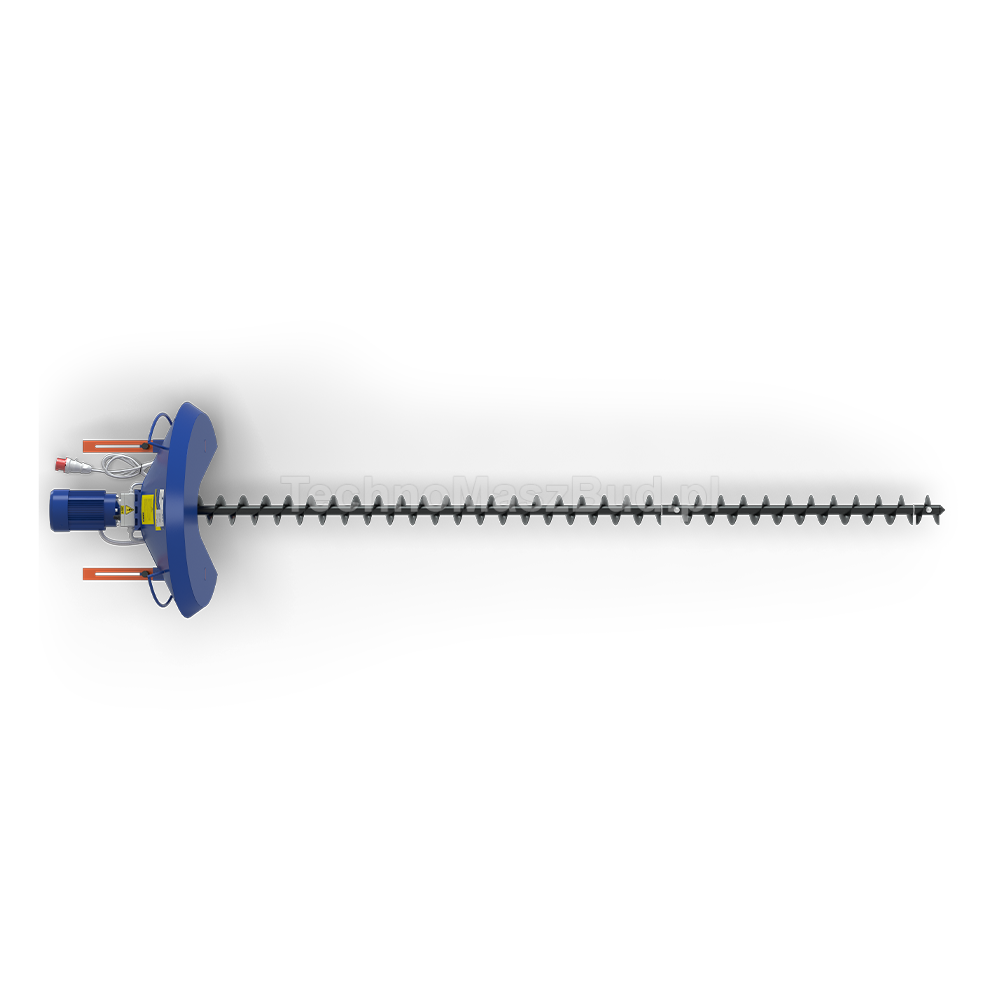

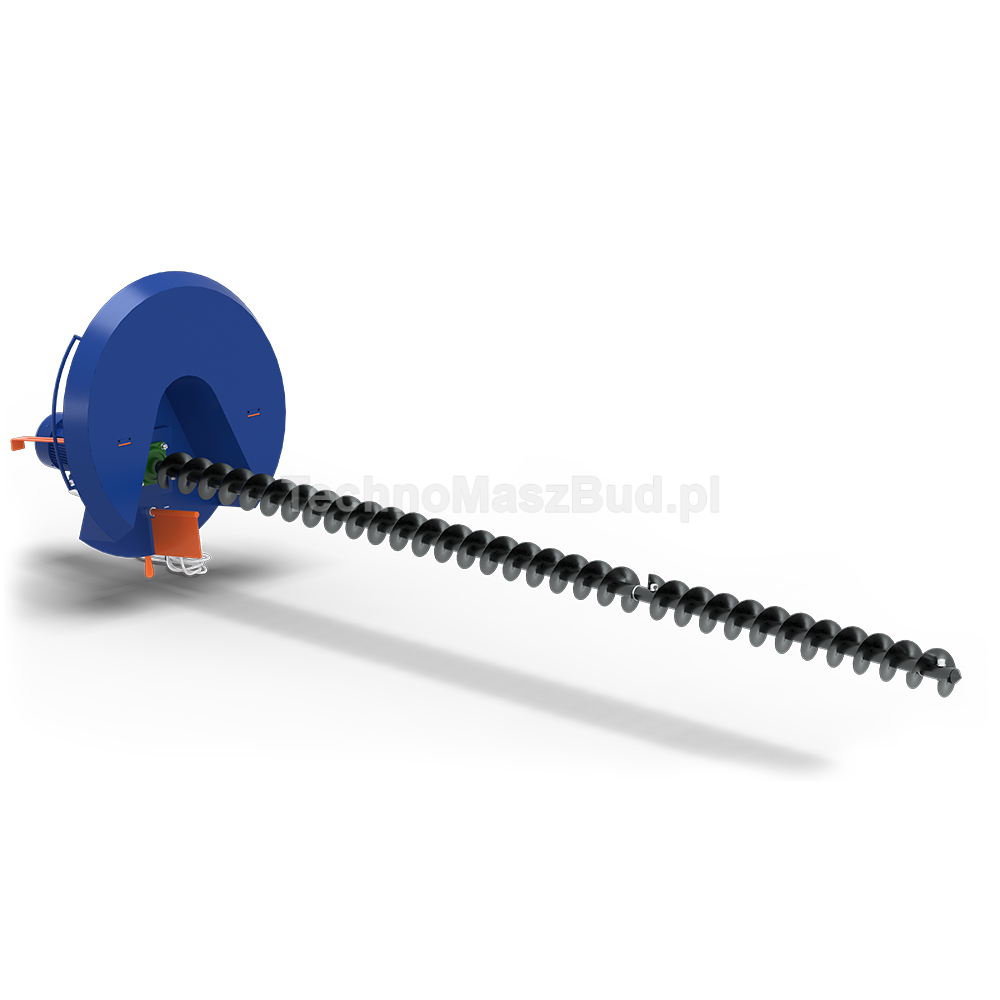

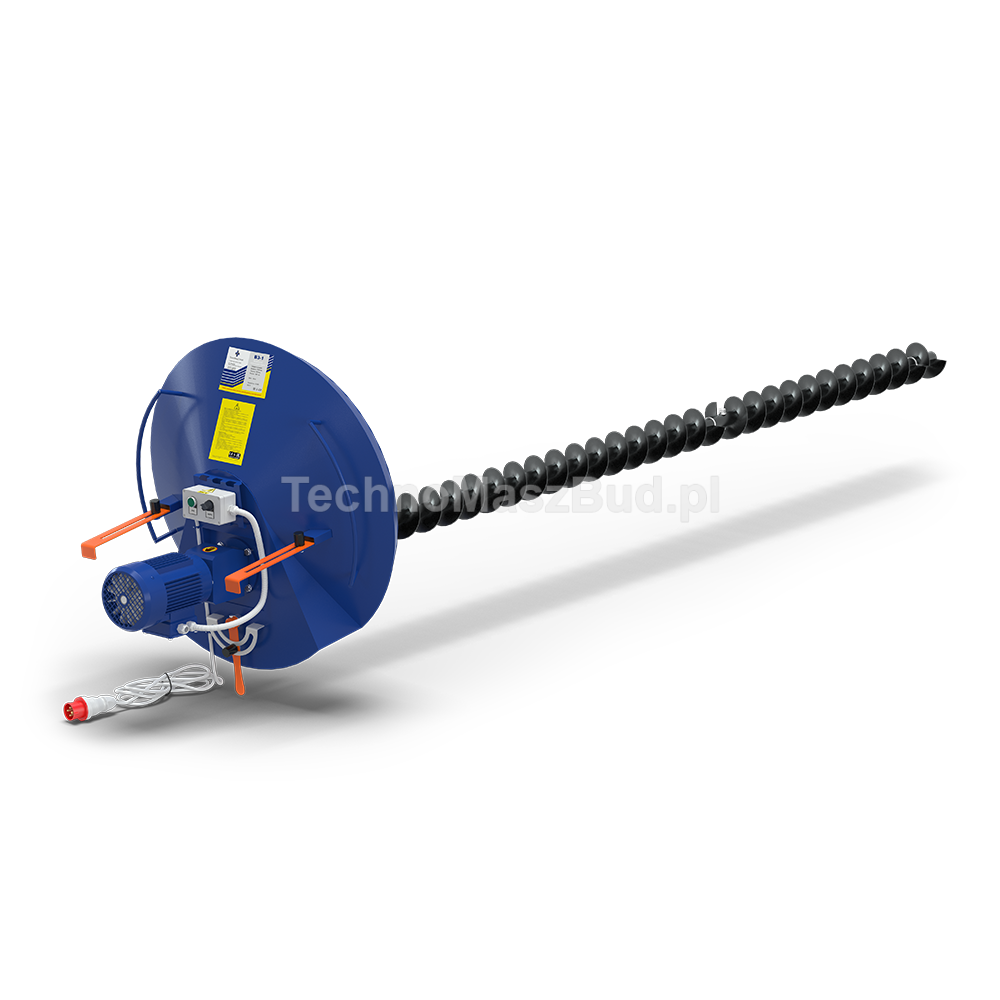

Portable Grain Stirrer ZM-3
  • 2.2 kW
  • Portable Grain Stirrer ZM-3

Portable Grain Stirrer ZM-3

In Stock

In Stock 12,238.50
9,950.00zł

Incl Tax: 12,238.50zł


  • Product Code: ZM-3

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Weight: 70 kg
Maximum depth of aeration pipe in the cereal heap : 3 m.
Diameter of the aeration pipe: 110 mm
Product type: Grain agitator / grain Aerator
Usage: To improve ventilation and air flow in stored grain masses, to maintain optimal storage conditions and prevent grain overheating.

Description

Portable Grain Stirrer ZM-3

The portable grain stirrer ZM-3 is used for mixing grain (up to a 3-meter layer) in floor storage grain warehouses. The auger of the stirrer lifts the grain from the lower layer to the top, thus mixing it. When the motor is turned on, the auger of the stirrer immerses itself into the grain. Once the auger reaches a vertical position, the grain stirrer starts moving and processing the grain heap.


The Portable Grain Stirrer is designed for:

  • Mixing and loosening the grain (including raw grain)
  • Eliminating compacted areas
  • Improving grain ventilation
  • Removing self-heating hotspots in the grain
  • Reducing grain temperature by lifting it from the bottom to the top from a set depth (up to 3 meters)

Advantages of the ZM-3 Grain Stirrer:

  • Additional stabilizing keel for easy maneuvering between storage supports
  • Adjustable reverse control, allowing effortless return to a horizontal position after operation
  • Reinforced bearing assembly at the reducer shaft and auger connection for increased durability
  • Operated by just one person
  • Low energy consumption – only 2.2 kW per hour
  • High performance – processes 70-80 tons per hour
  • Interchangeable augers (1, 2, and 3 meters) for different heap heights
  • Enhanced moisture distribution in grain

Technical Specifications:

  • Overall dimensions (without auger), mm: Width – 850; Height – 660
  • Auger dimensions, mm: Diameter – 80 to 110; Length – 1000 to 3000 mm
  • Weight – 70 kg

Operating Principle:

  1. Place the grain stirrer horizontally on the grain heap.
  2. Select the auger length so that it does not touch the floor when in a vertical position.
  3. Turn on the grain stirrer while standing on the motor side.
  4. Once powered on, the auger will automatically dig into the grain.
  5. When the auger reaches a vertical position, the stirrer will start moving and processing the grain heap.


The price includes all components of the ZM-3 Grain agitator without Auger. In addition, you can purchase a suitable snail: Auger 1 meter-540 PLN net Auger 2 meters-1020 PLN net Auger 3 meters-1550 PLN net

Specification

Dimensions
Weight
70 kg
Maximum depth of aeration pipe in the cereal heap
3 m.
Diameter of the aeration pipe
110 mm
Key features
Product type
Grain agitator / grain Aerator
Usage
To improve ventilation and air flow in stored grain masses, to maintain optimal storage conditions and prevent grain overheating.
Production capacity
70-80 t/h.
Engine power
2,2 kW
Voltage
400 V
Additional features
Warranty
12 months
Dimensions
Weight
70 kg
Maximum depth of aeration pipe in the cereal heap
3 m.
Diameter of the aeration pipe
110 mm
Key features
Product type
Grain agitator / grain Aerator
Usage
To improve ventilation and air flow in stored grain masses, to maintain optimal storage conditions and prevent grain overheating.
Production capacity
70-80 t/h.
Engine power
2,2 kW
Voltage
400 V
Additional features
Warranty
12 months
