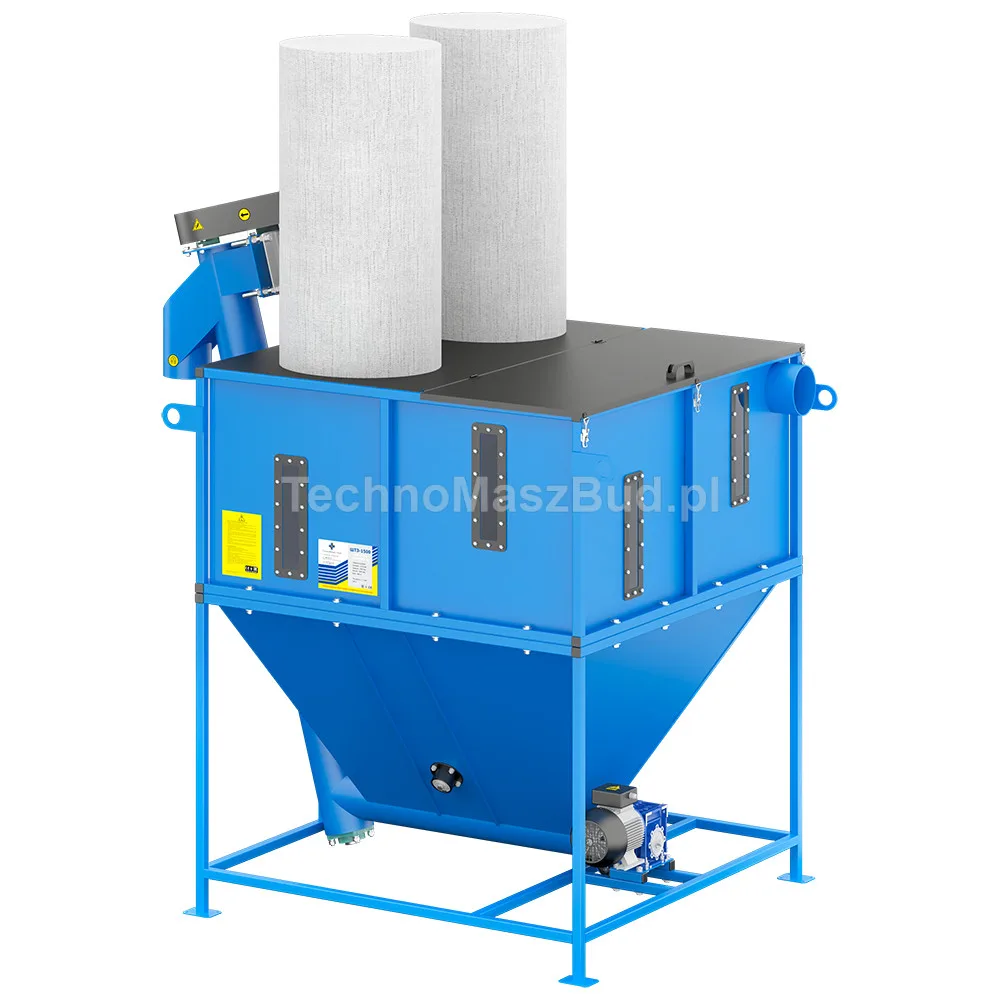

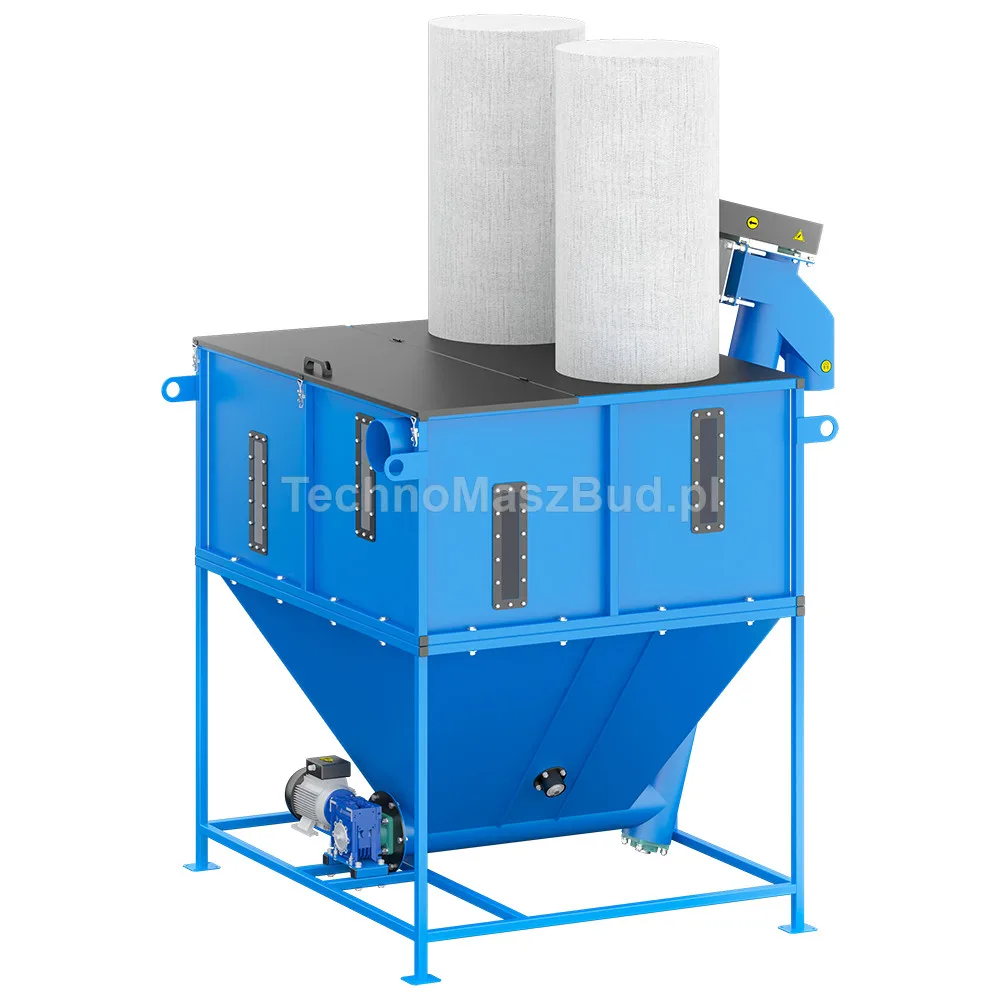

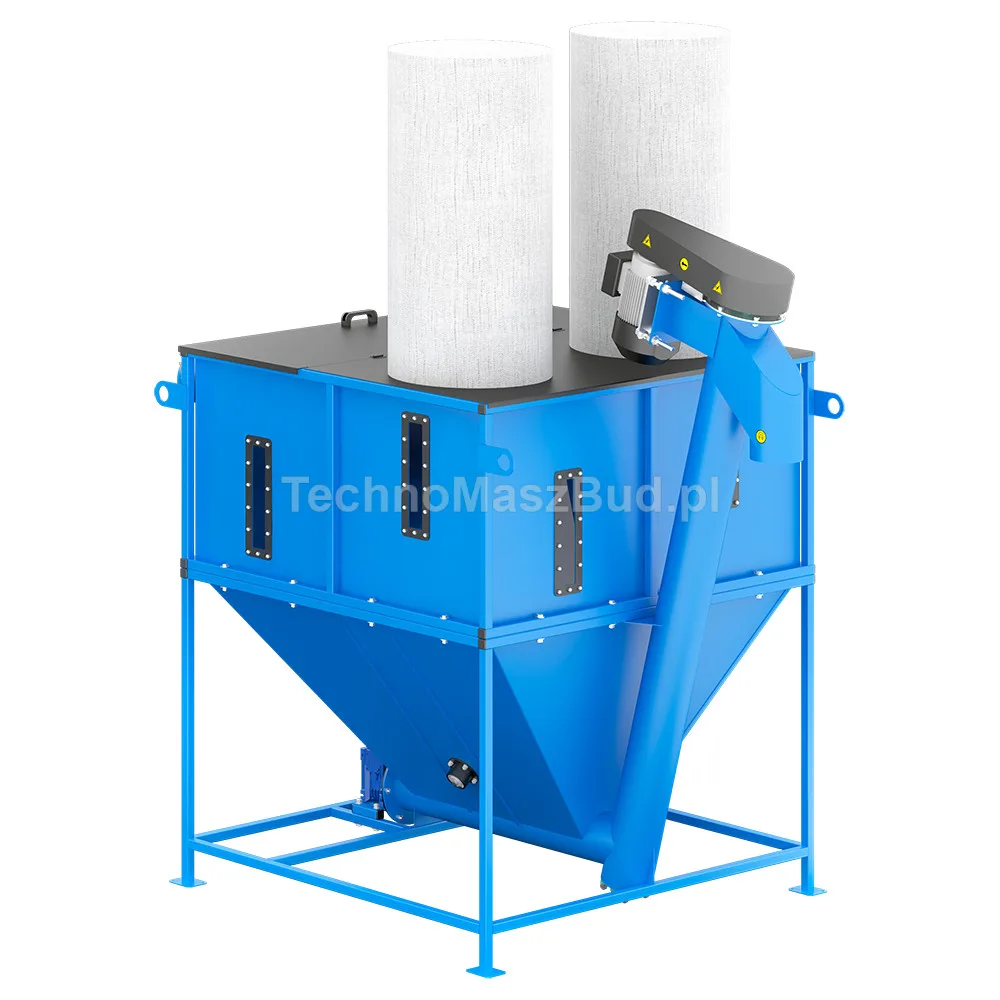

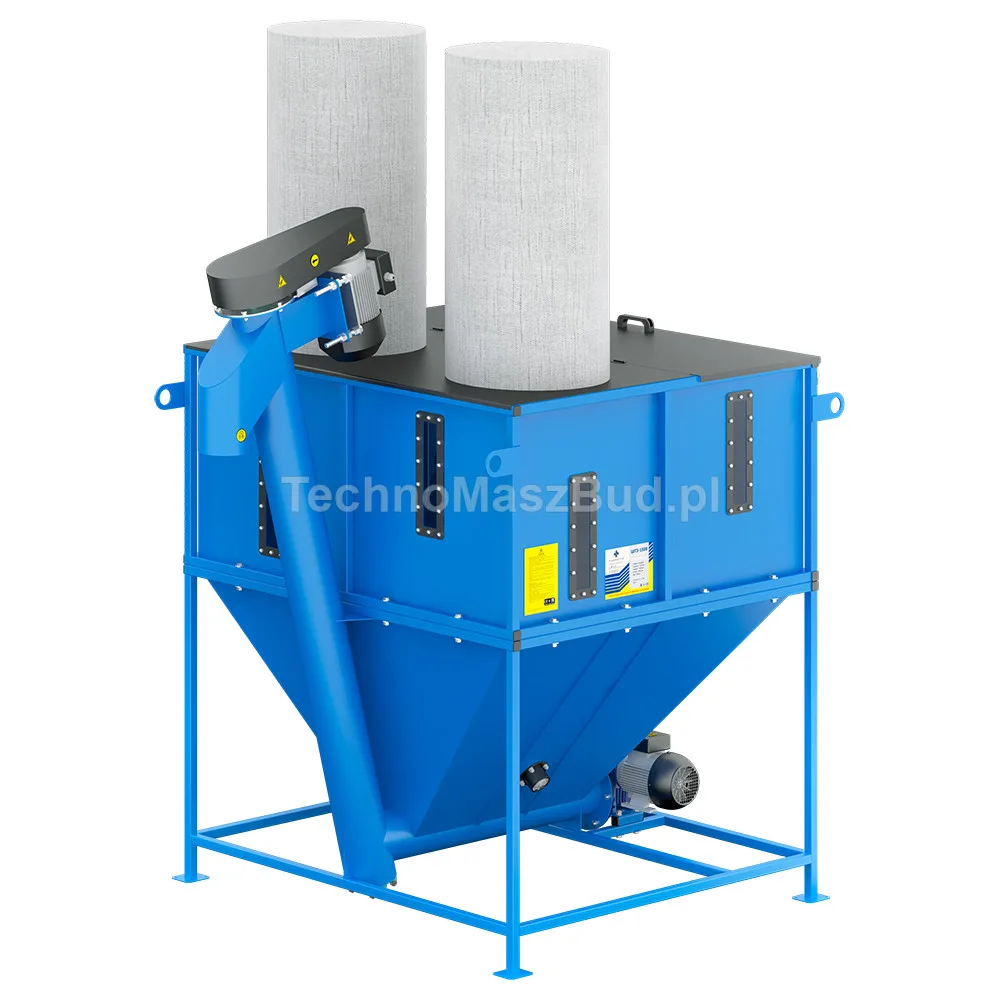

PS-1500 screw feeder
In Stock
- Product Code: PS-1500
Main characteristics
All specifications
Length:
2370 mm
Width:
1600 mm
Height:
2650 mm
Weight:
450 kg
Production capacity:
On sawdust - up to 800 kg/h;
On feed - up to 1000 kg/h;
Description
The PS-1500 screw feeder from the Technomaszbud company ensures uninterrupted feeding of raw materials to the pellet machine or
other equipment.
The volume of the tank is 1.5 m3. The raw material feed is regulated using a frequency converter (not included in the set).
This screw feeder can be connected to the RD-500 crusher, MB-500 hammer mill or a pneumatic extractor.
It is equipped with a tank with bags that functions as a cyclone.
The PS-1500 screw feeder is also an element of the LDG-4000 MAX + granulation line.
Specification
Dimensions
Length
2370 mm
Width
1600 mm
Height
2650 mm
Weight
450 kg
Key features
Production capacity
On sawdust - up to 800 kg/h;
On feed - up to 1000 kg/h;
Engine power
Screw drive power: 1,1 KW, 380 V;
Power of the drive (geared motor) of the mixer: 1,5 KW, 380 V;
Voltage
380V
Rotation speed
Drive rotation - 750 rpm;
Mixer rotation in the tank - 25 rpm.
Additional features
Hopper capacity
1.5 m³
Warranty
12 months
