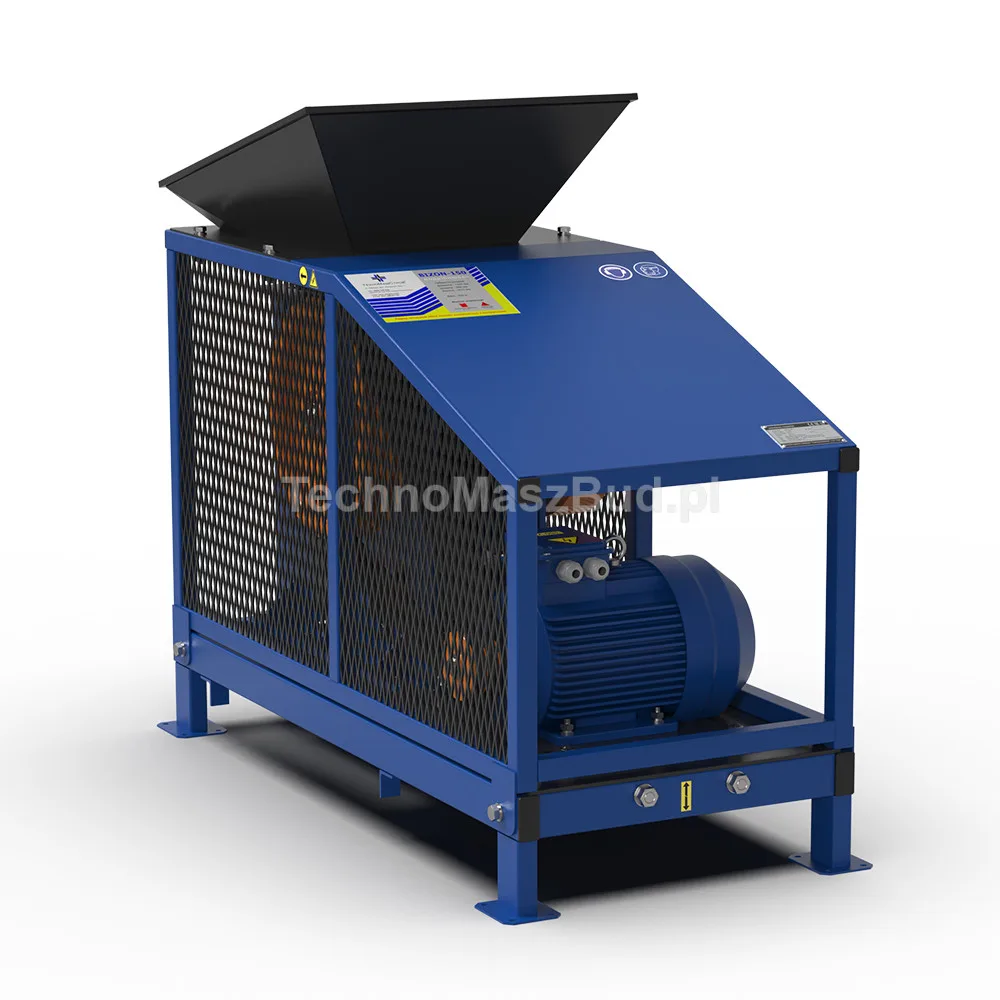

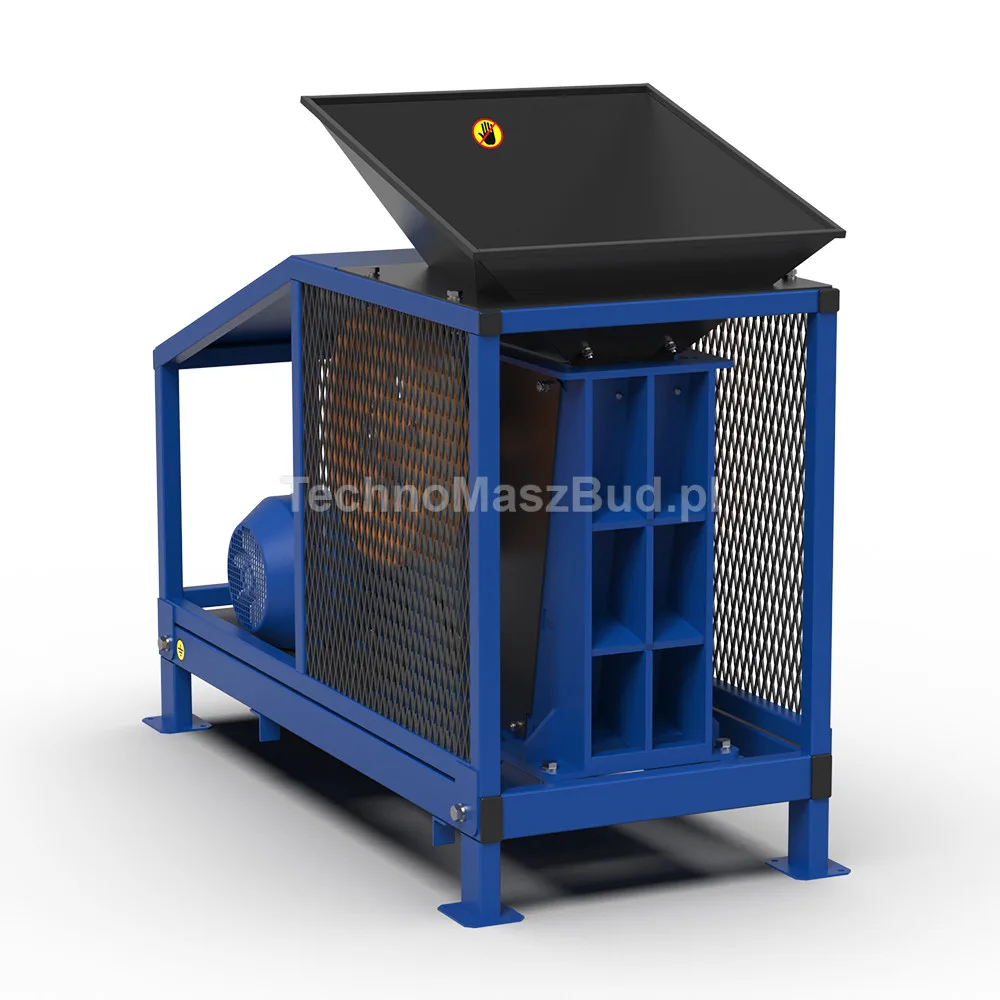

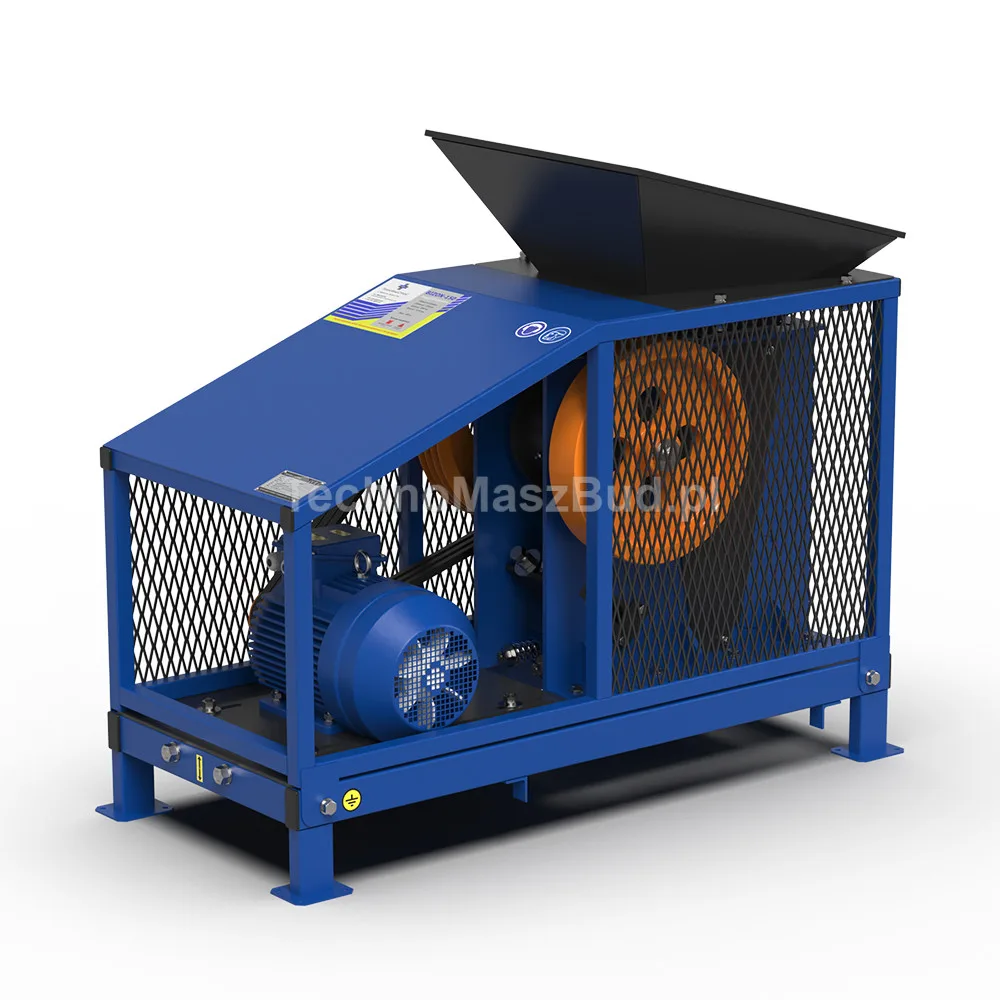

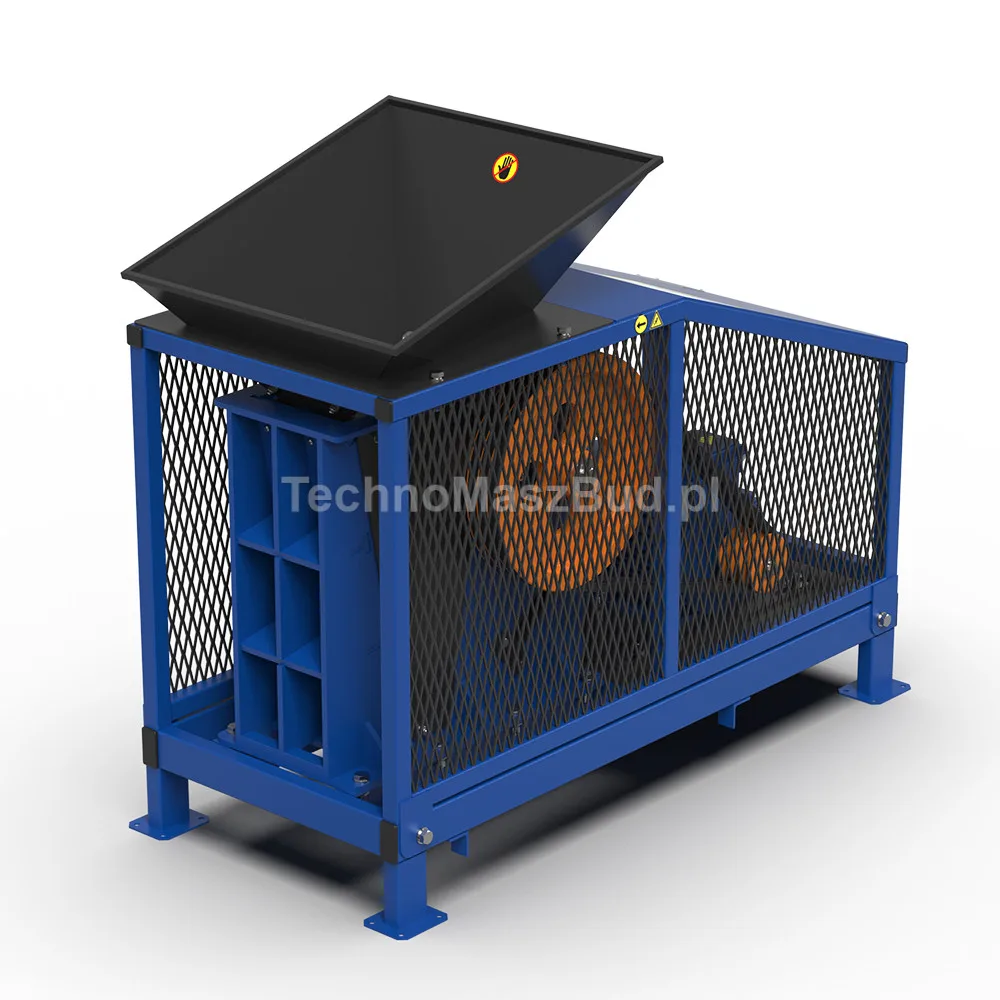

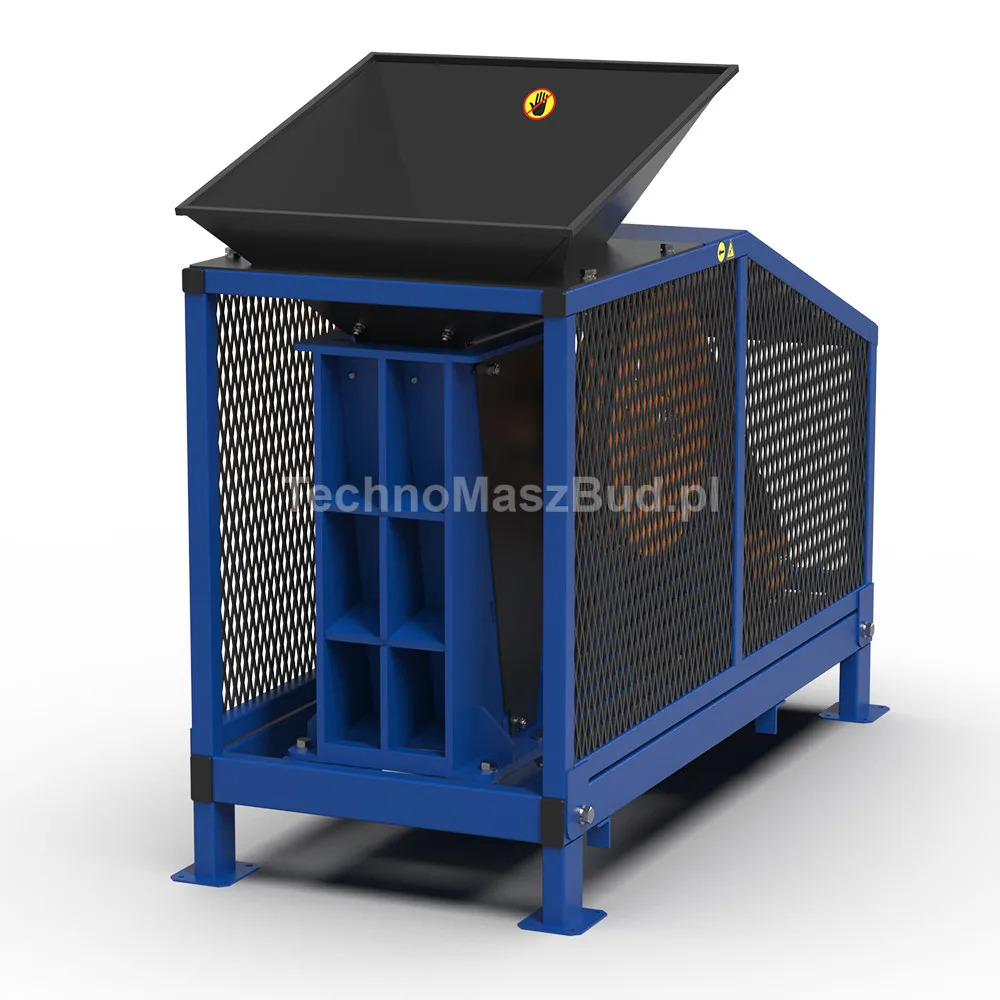

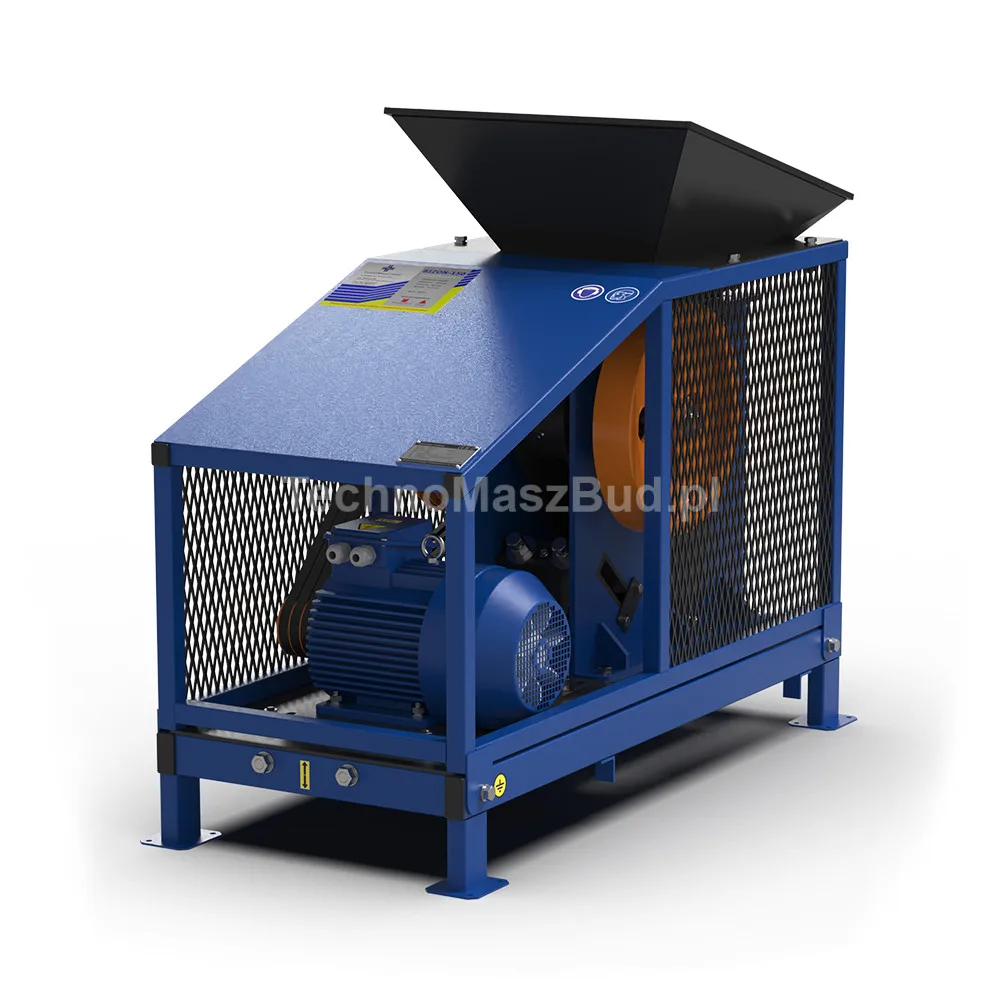

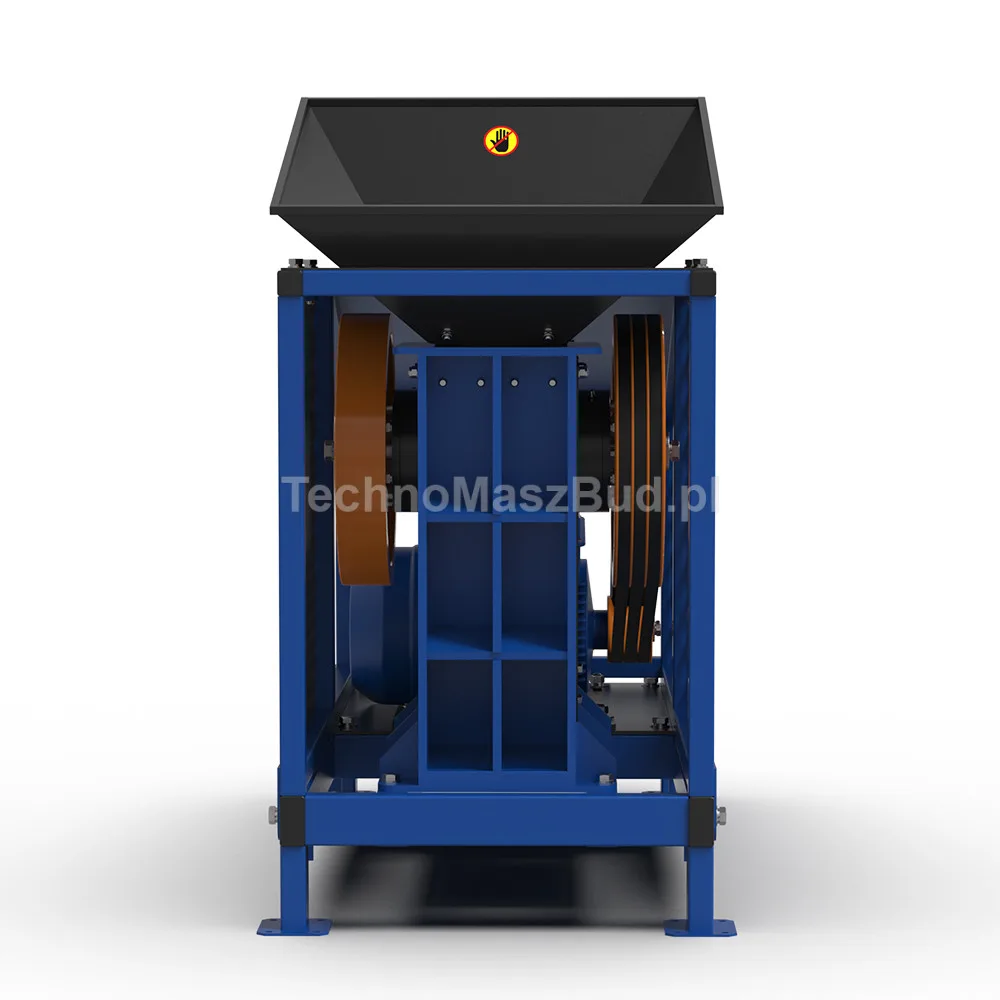

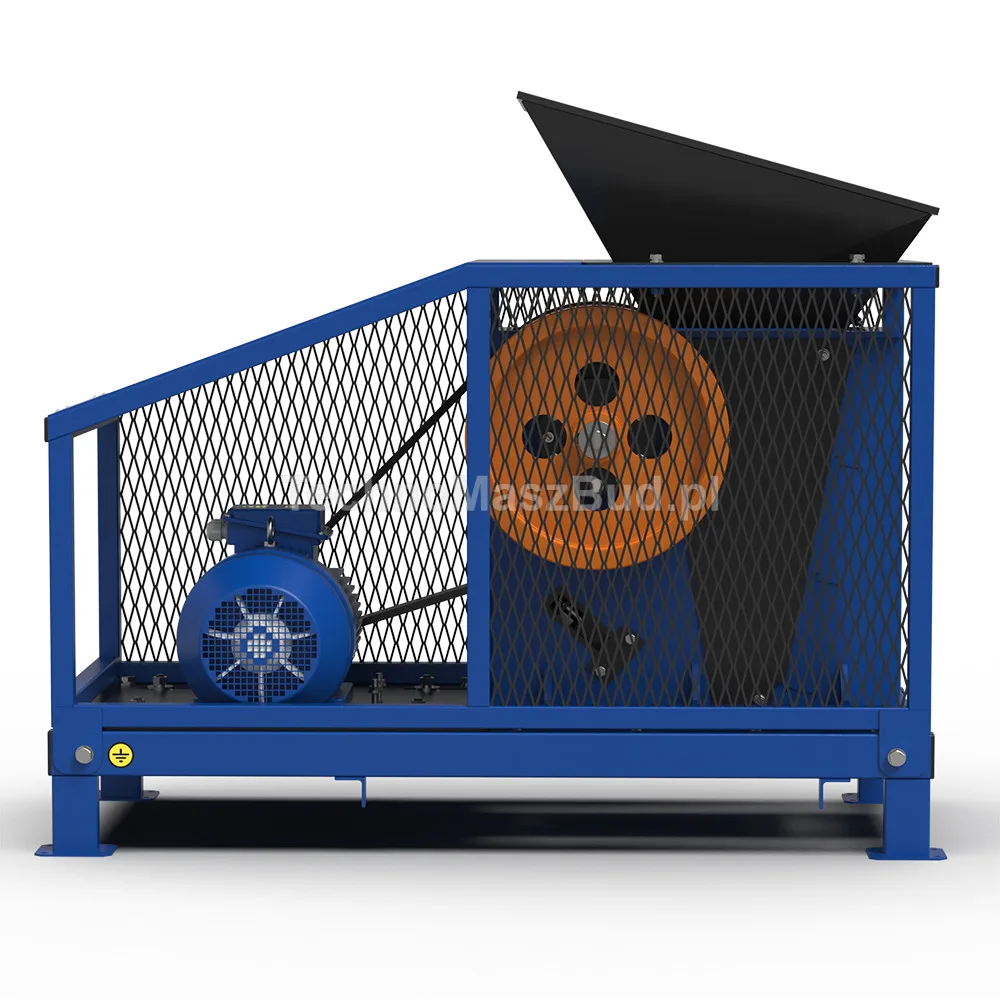

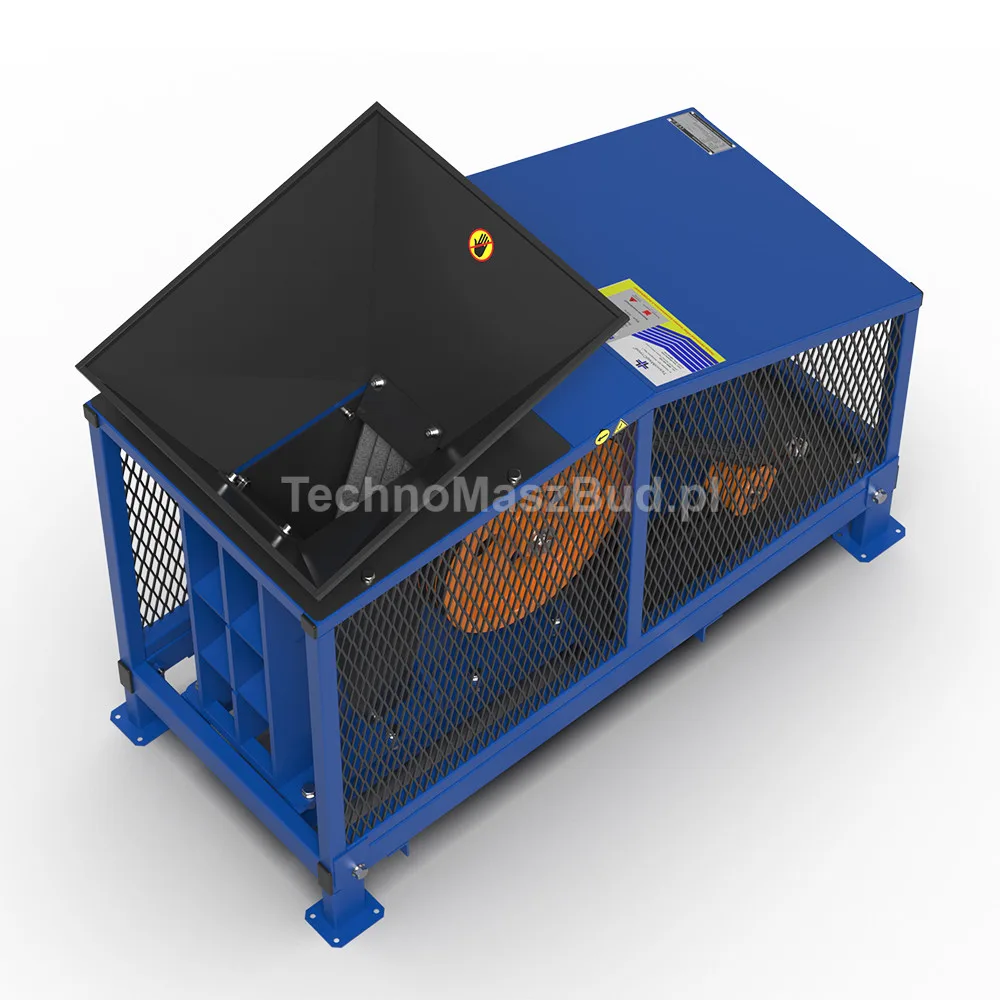

Jaw crusher BIZON-150 with electric motor

Bizon-150-E is a compact, efficient jaw crusher designed to operate in locations where quiet, clean, and even operation matters. The electric drive (400 V) provides smooth material crushing and low operating costs, while the jaw system proven in intensive use ensures a uniform output fraction—from fine particles to larger granulation, depending on the settings. Alternatively, the Bizon-150-S model with a petrol engine is available. The combustion engine version provides independence from 400 V power supply and can be conveniently used in the field.

How it works

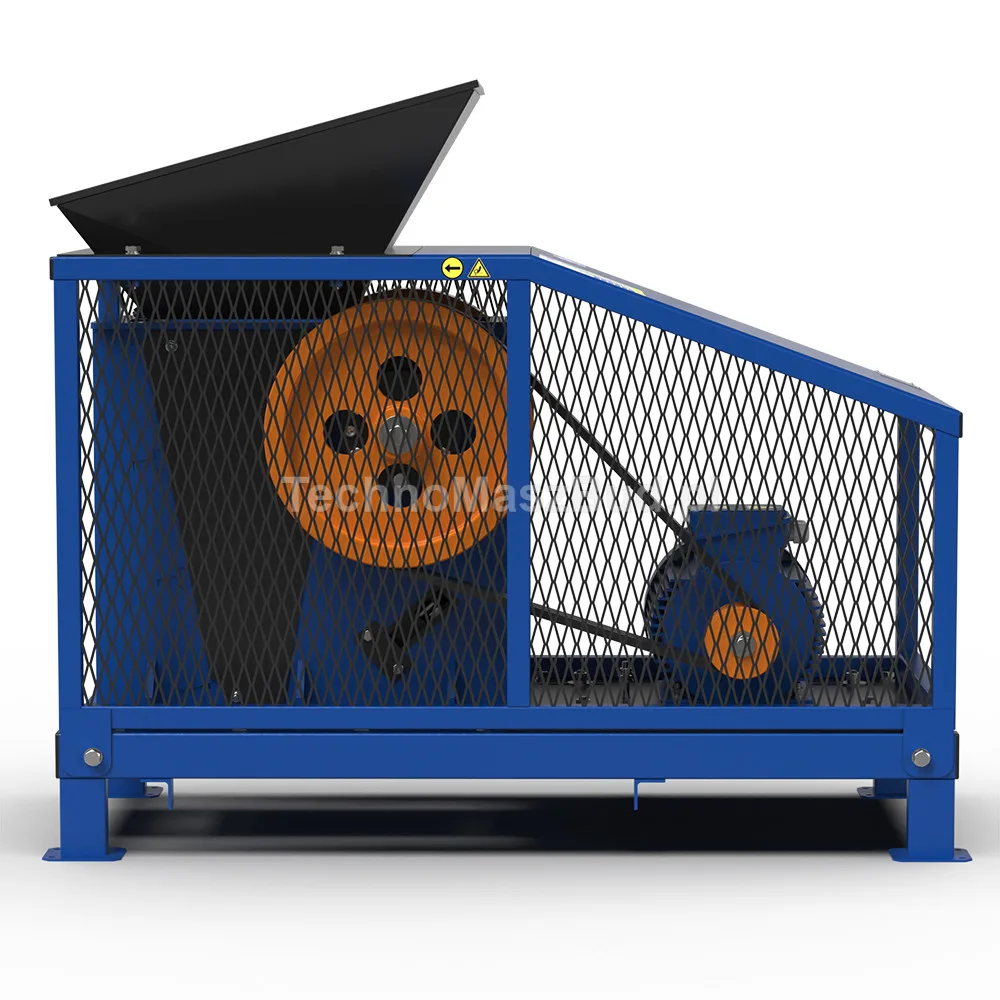

The jaw crusher is powered by an engine of your choice—either petrol or electric. The movable plate (jaw) moves up and down thanks to an eccentric shaft. The angle and distance between the fixed plate (jaw) and the moving one become smaller when the moving plate descends—this is when the material is crushed into pieces. The distance increases as the movable jaw rises. When the moving plate shifts away from the fixed one by means of springs, the crushed particles leave the working zone.

Advantages of the Bizon-150E Jaw Crusher:

• Quiet operation and no exhaust fumes – ideal for halls and enclosed spaces.

• Lower operating costs – easy to use, fewer maintenance activities.

• Stable operation – precise control of speed and parameters thanks to the electric drive.

• Sturdy construction – resistant to heavy loads and intensive use.


Technical drawing:

Applications

The Bizon-150-E device is perfectly suited as a stone crusher, concrete crusher or rubble crusher. It can be used for tasks related to recycling construction waste, ground preparation, or road works. This model is a reliable solution for daily, repetitive work in construction companies and recycling sites that prefer the environmentally friendly version of the Bizon-150 jaw crusher series.

Technical data:

• Feed opening dimensions – 150 mm х 200 mm
• Petrol engine – 7 HP
• Electric motor – 5.5 kW
• Weight – 305 kg
