Pellet Burner DOMNA PRO 100 kW

The DOMNA PRO 100 kW pellet burner, developed by TechnoMaszBud, is a modern heating device designed to provide efficient and economical heating. With a power output of 100 kW, it is an ideal solution for both single-family homes and small commercial facilities. It combines innovative technologies and functionality, resulting in high performance and ease of use.

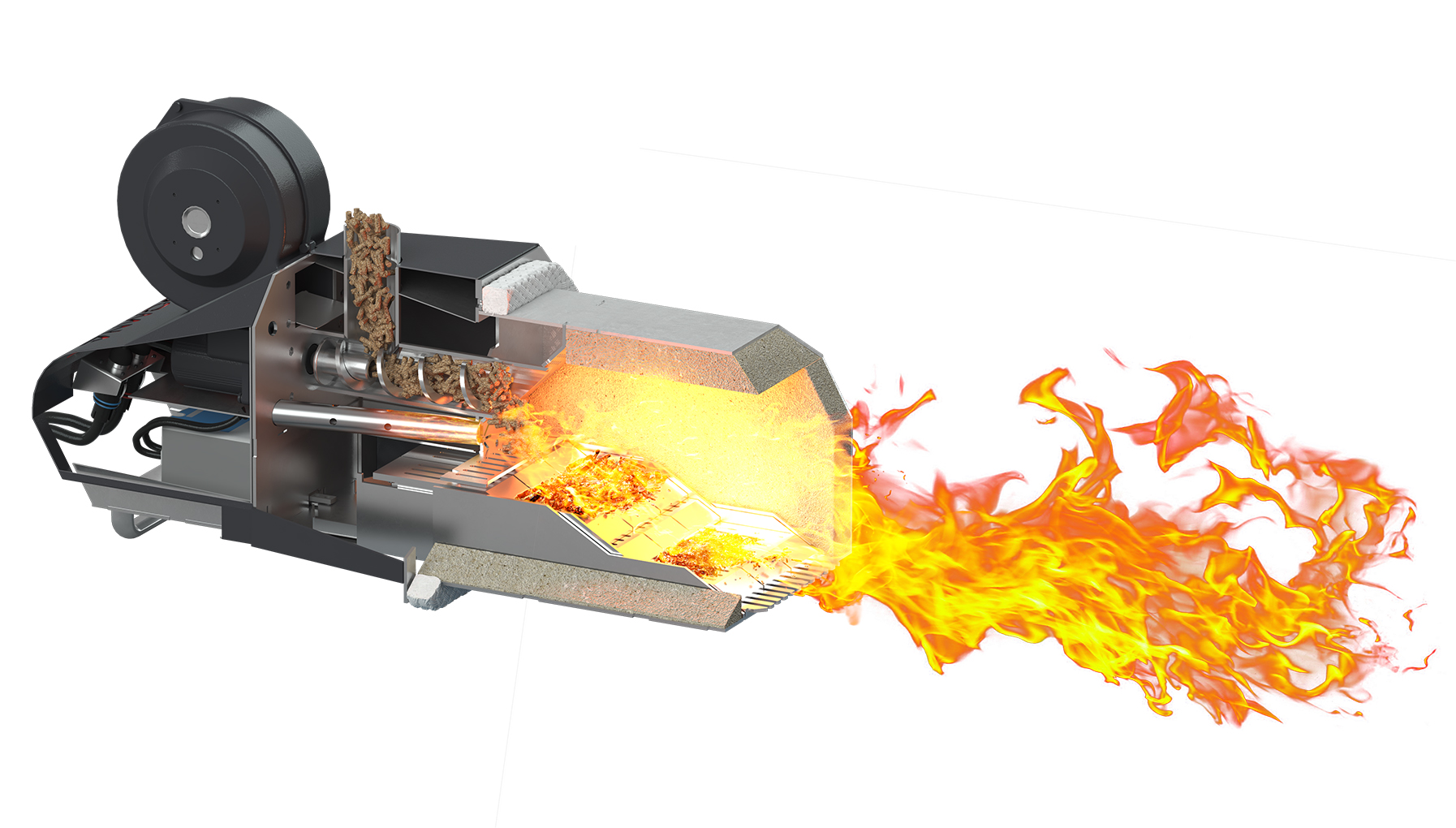

How does the DOMNA PRO 100 kW pellet burner work?

1. Fuel delivery:
   Pellets stored in an external tank (available separately) are transported by a screw feeder into the burner.

2. Fuel ignition:
   The fuel is delivered to the grate system and ignites through elements of the ignition system.

3. Air supply:
   Air is precisely metered by fans and directed onto the fuel, enabling efficient combustion.

4. Heat transfer:
   In boilers integrated with the burner, heat from the flame is transferred to the heat exchanger and then to the water, which serves as the heat carrier in the heating system.

5. Combustion process control:
   The entire process is supervised by an advanced electronic controller by PLUM, which regulates air flow, pellet feeding speed, and monitors flue gas and water temperature.

Key advantages of the DOMNA PRO 100 kW burner:

1. Automatic ignition and combustion support system:
   Ensures quick start and stable flame maintenance, minimizing energy losses.

2. Precise pellet dosing:
   The screw feeder mechanism ensures constant and controlled fuel delivery, enhancing combustion efficiency.

3. Self-cleaning system:
   Automatic ash removal reduces the need for frequent burner cleaning, saving time and effort for the user.

4. Automatic operation monitoring:
   The controller continuously analyzes boiler operation parameters and adjusts its performance, eliminating the need for constant supervision.

5. Compatibility with various pellet types:
   The device handles both high-quality pellets and those with higher ash content, providing greater flexibility in fuel choice.

6. Intuitive user interface:
   A simple and clear control panel enables easy operation and configuration of burner settings.

7. Optical flame control:
   Allows visual inspection of the flame, facilitating the detection of any irregularities.

8. Programmable daily and weekly thermostat:
   Allows for scheduling burner operation to suit individual user needs.

9. Fuel consumption and controller operation log:
   Enables tracking burner performance and pellet consumption, helping optimize operational costs.

10. Temperature control sensors:
    Monitor the temperature of the pellet feeder neck, ensuring stable operation and device safety.

11. Versatility:
    The burner can be used in various installations, both residential and industrial, making it a versatile heating solution.

DOMNA PRO 100 kW set contents:

1. DOMNA PRO 100 kW pellet burner
2. PLUM controller with sensor and cable set
3. Fuel feeder ⌀ 63 x 1850 mm
4. Thermal corrugation ⌀ 50 x 1000 mm
5. User manual and warranty card
6. Rotary air safety valve (optional)

Versatile applications of the DOMNA PRO 100 kW burner:

• Residential buildings
• Agricultural facilities
• Warehouses and industrial halls
• Greenhouses
• Baking ovens
• Steam generators

The DOMNA PRO 100 kW burner is not just a heat source but also a guarantee of stability, efficiency, and energy savings. Thanks to its advanced control automation and intuitive user interface, managing heating becomes simple and effective.

DOMNA PRO 100 kW – Your reliable partner for efficient heating!

* Without screw feeder and controller
** Dependent on boiler and heating system
