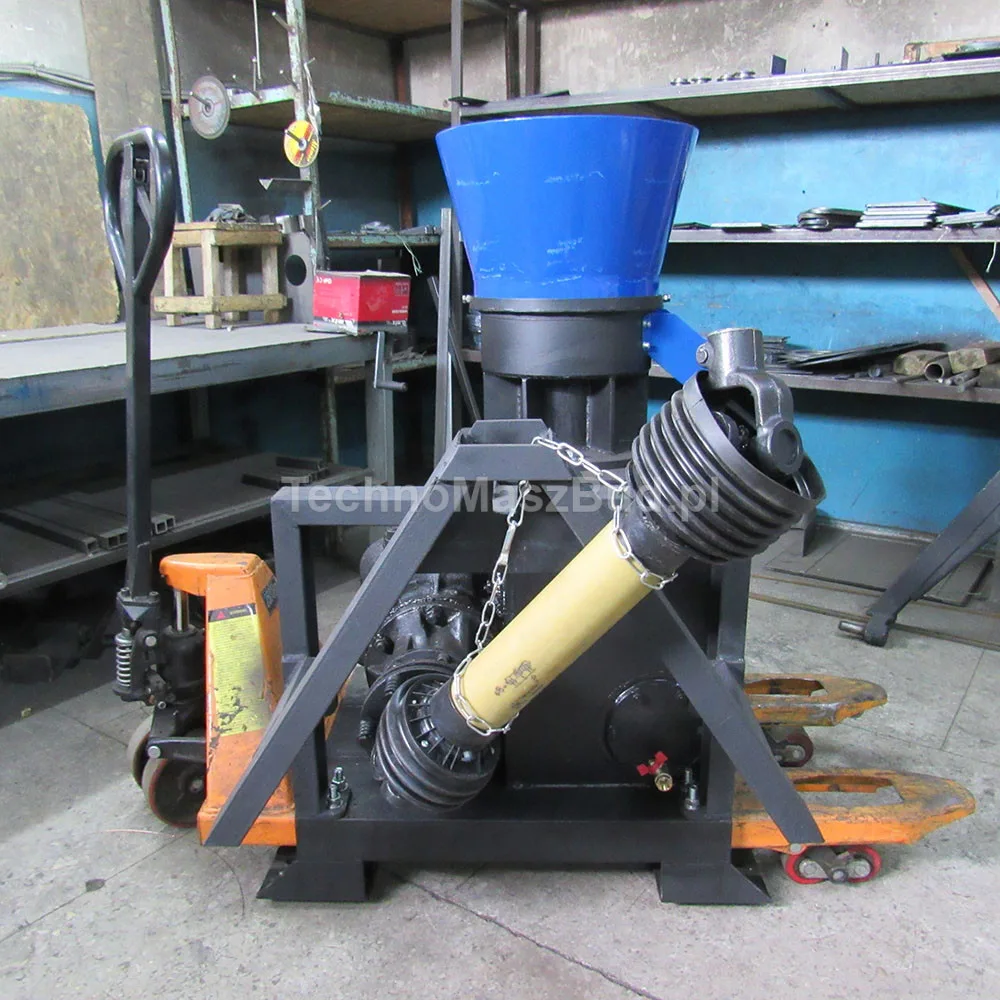

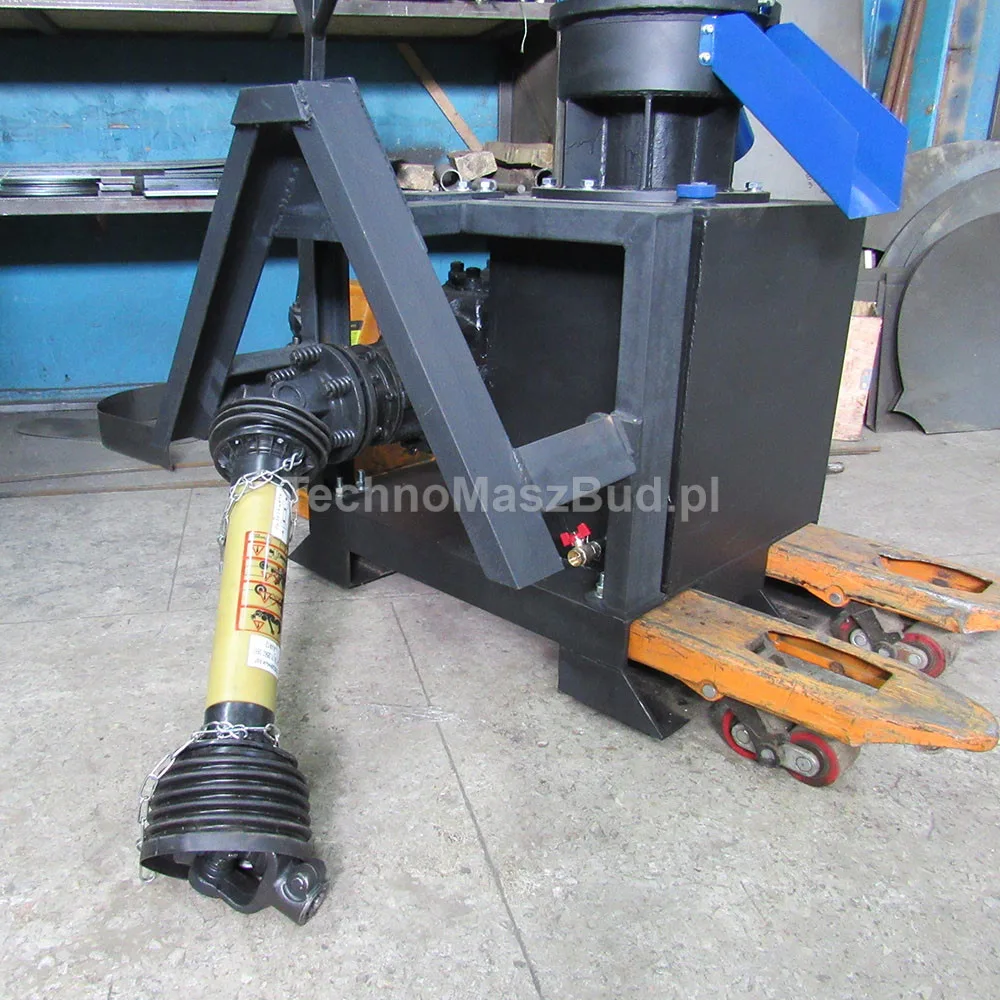

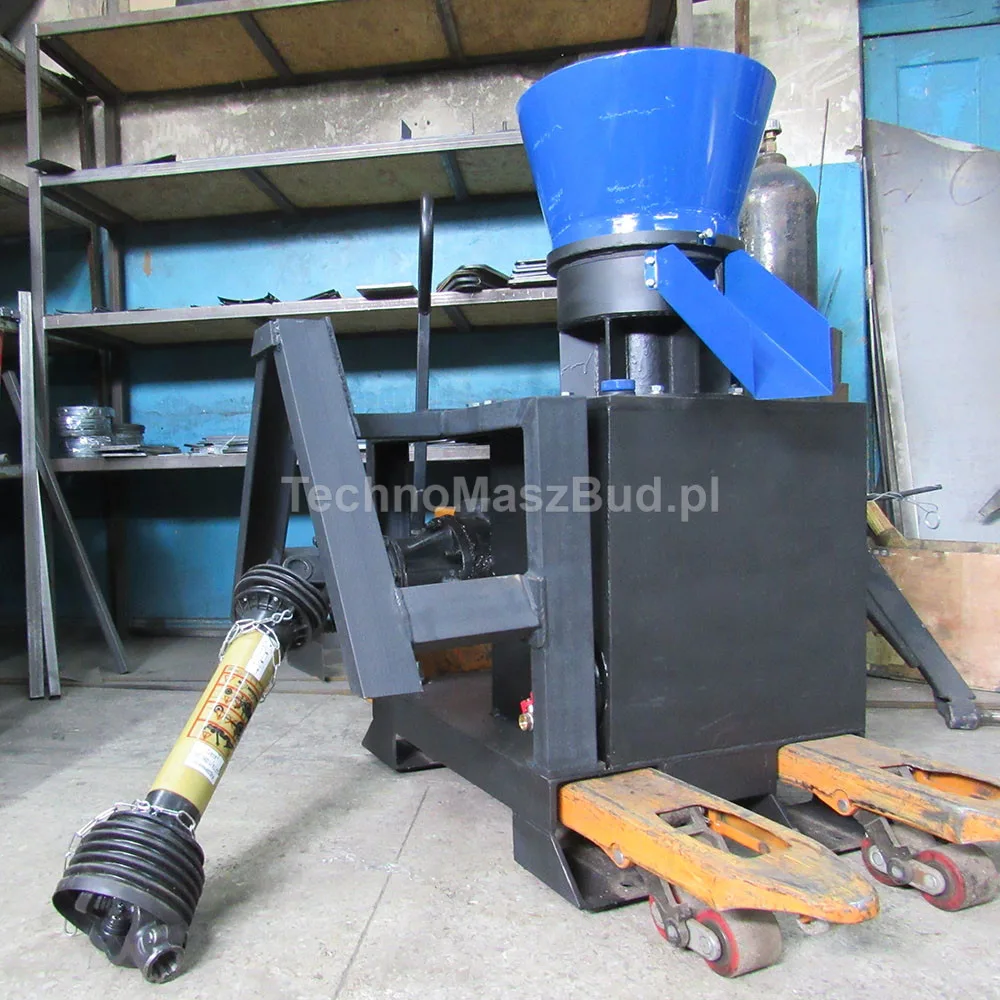

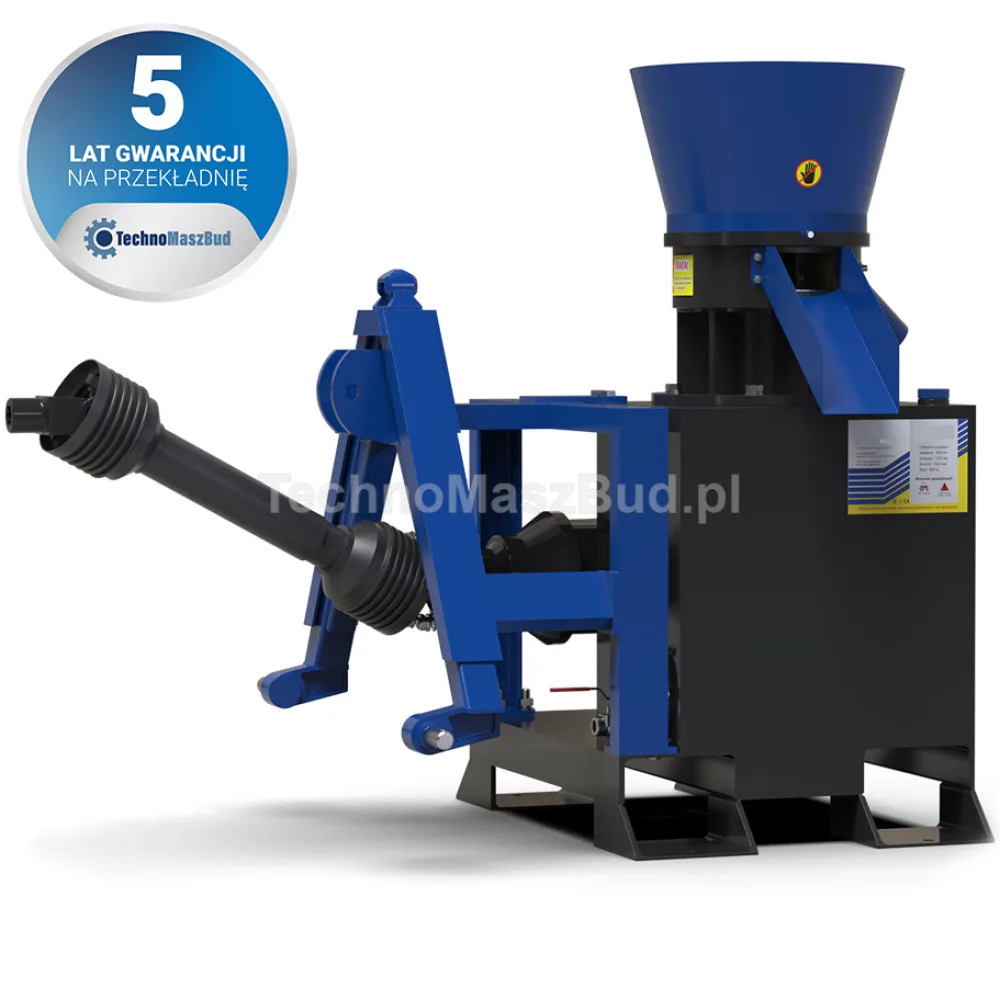

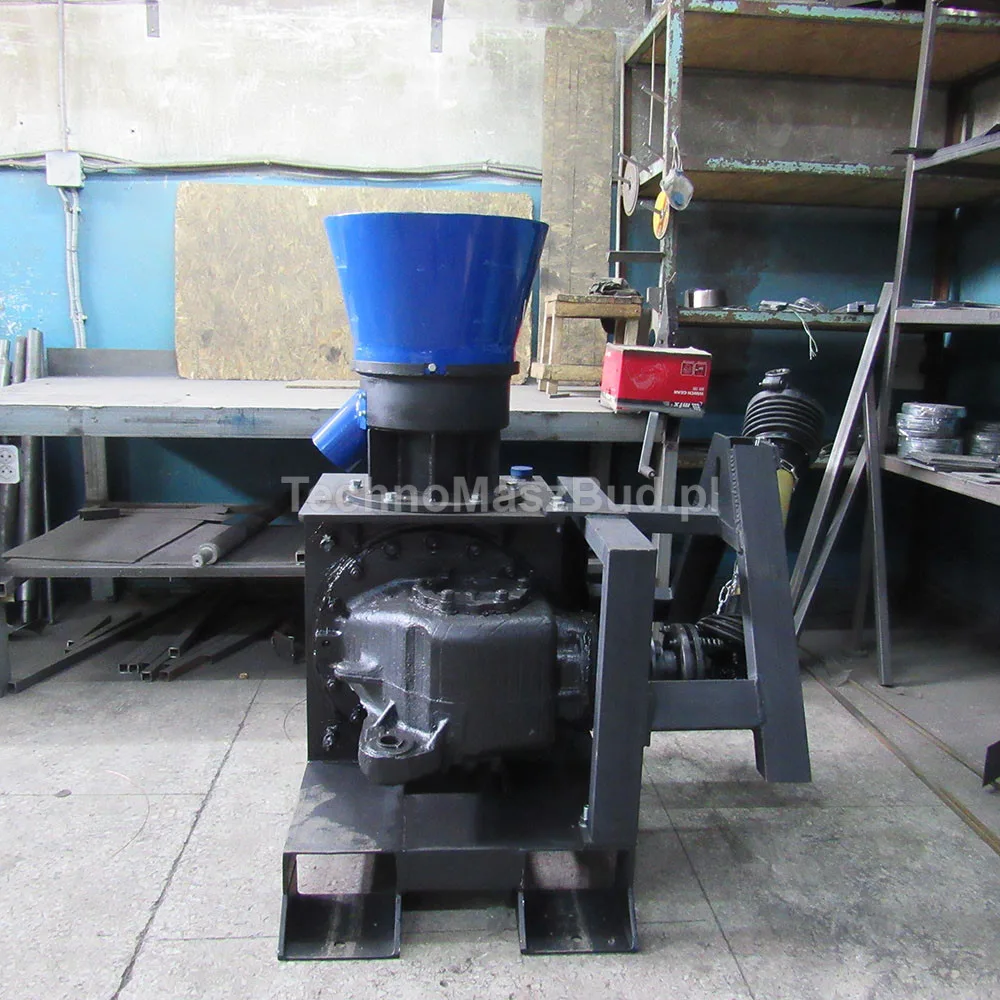

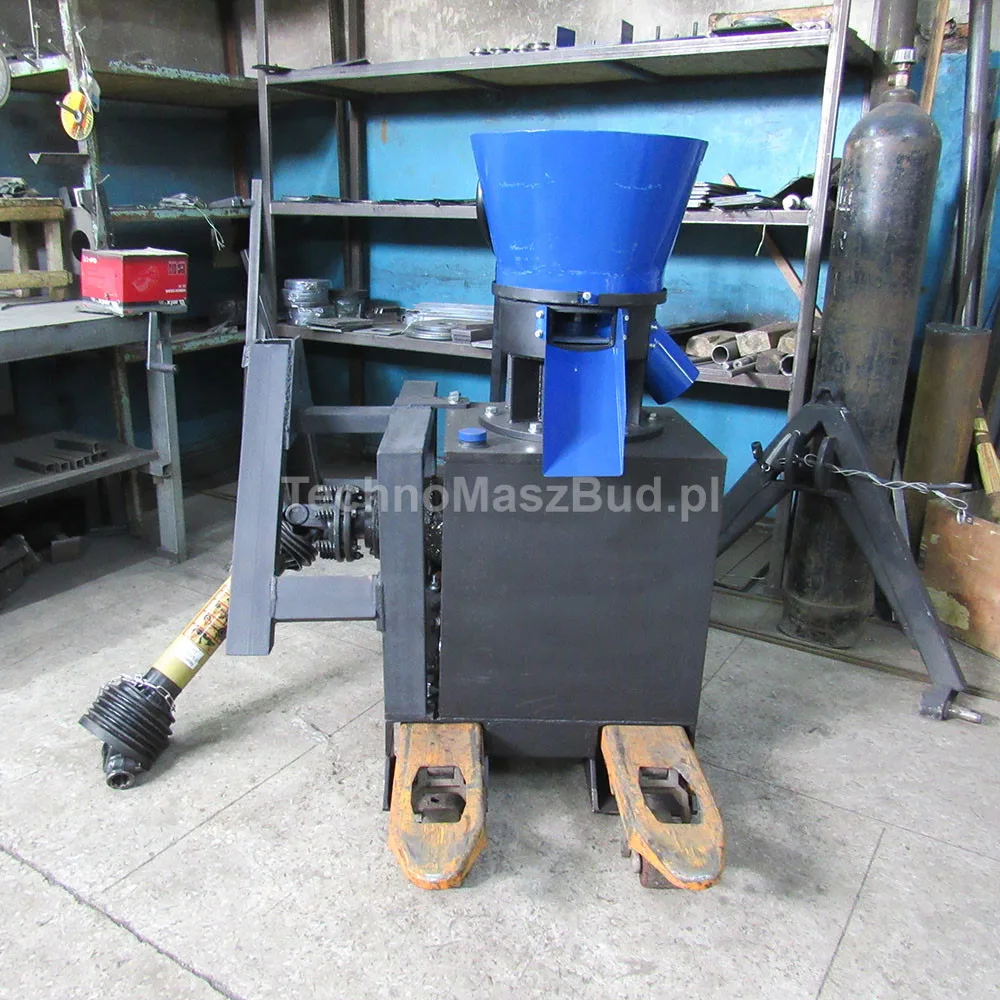

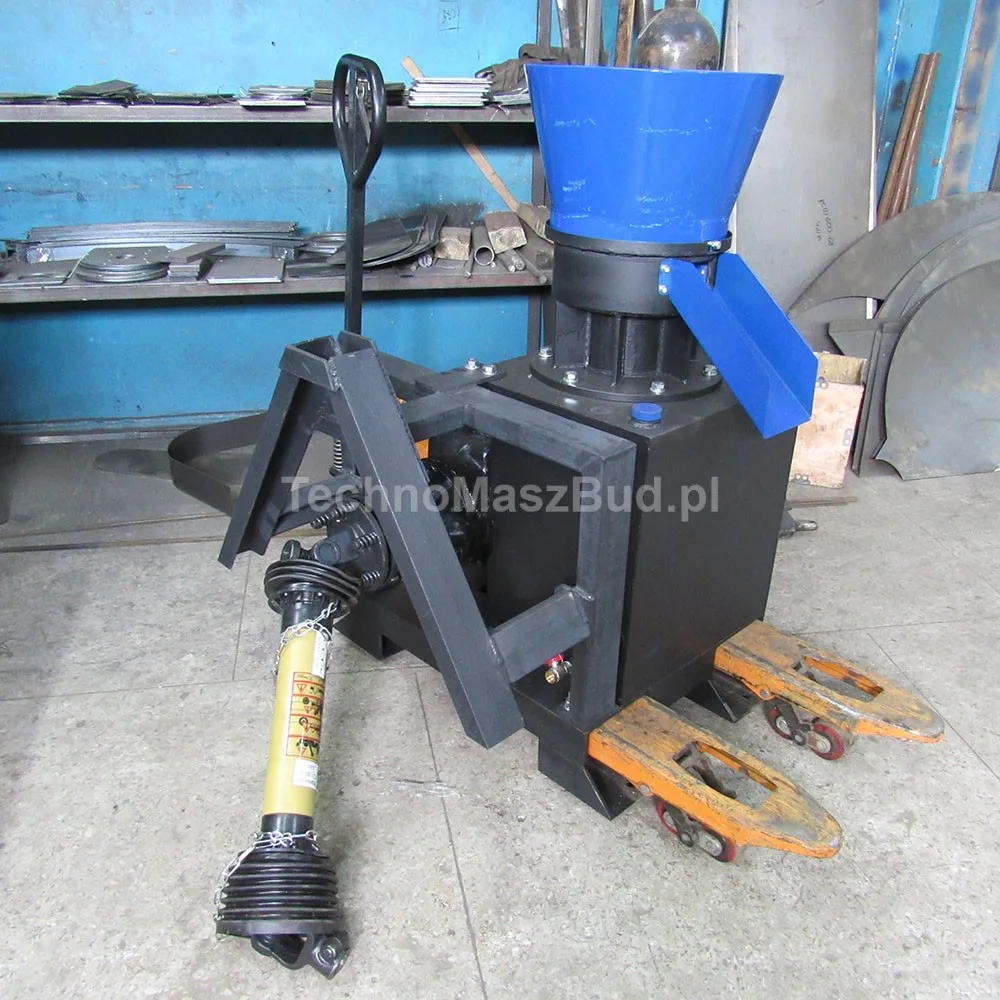

Pellet Mill / Granulator PRIME-300 with PTO drive

Possibility of testing the pelleting of your raw material on this pellet mill at our warehouse!

The PRIME-300 Pellet Mill/Granulator is designed for granulating sawdust, hay, straw, herbs, and feed and is part of the LDG-3000 KOMBI, LDG-3000 MAX line.

 The PRIME-300 Granulator, driven by the power take-off (PTO) shaft, is equipped with two movable rollers with a diameter of 148mm, processing not only softwood sawdust but also hardwood sawdust. Pine sawdust, which contains a high amount of a special adhesive substance – lignin, is mainly used for pellet production, making granulation significantly easier. There is practically no lignin in hardwood species, but the PRIME-300 pellet mill generates high pressure, which also allows for the granulation of hardwood sawdust.

In addition, the PRIME-300 pellet mill processes feed for rabbits, chickens, broilers, pigs, cows, and quails.

The PRIME-300 pellet mill can pellet the following types of raw materials:

- softwood sawdust;

- hardwood sawdust;

- sunflower husk, straw, hay, grass;

- feed mixtures;

- plastics (polypropylene, bags, foil);

Performance:

- Feed mixture – up to 700 kg/h;

- Sawdust – up to 300 kg/h.

- Straw / Hay - up to 250 kg/h.

- Sunflower husk - up to 300 kg/h.

- Grain waste - up to 350 kg/h.

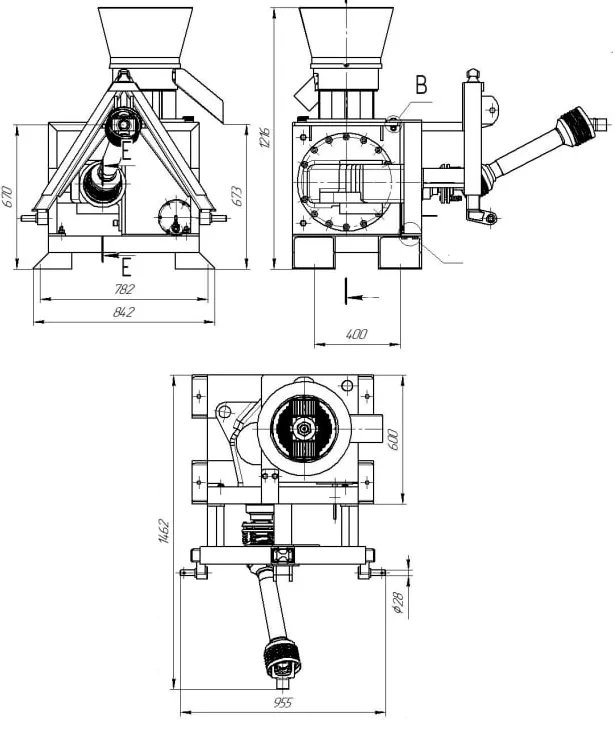

Technical drawing:

Another advantage of the PRIME-300 granulator is the ability to granulate feed for animals, fuel pellets made from hay, straw, and grain waste. You only need to have a few additional matrices specifically selected for feed, for pellets made from softwood and hardwood.

We also offer a PS-200 screw feeder for smoothly supplying raw materials. The capacity of the tank is over 0.2 m3. The feed rate is regulated by a frequency inverter.

- Movable rollers with a diameter of 148mm;

- Reliable gearbox;

- Ability to pelletize sawdust from hard wood species;

- Die diameter: 300 mm;

- Approximate die wear: on average about 70 tons (after usage regeneration possible);

- Material from which the dies and rollers are made: hardened steel 40 X, 55 HRC.

- Engine power: >30 HP

- Speed: approx. 500 rpm.

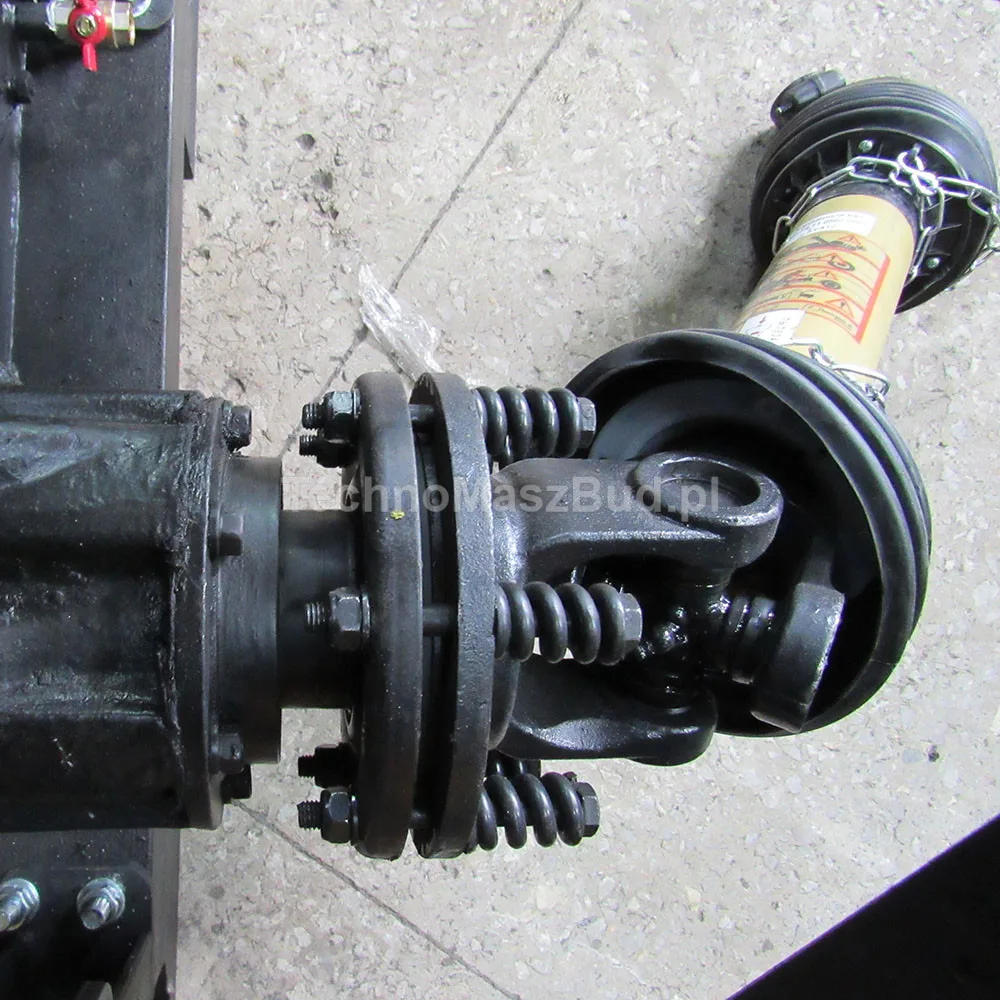

Parameters of the PTO shaft produced in Italy with a friction coupling L800, 830Nm, which is part of the kit:

• Connecting ends: 1 3/8"-6Z (35mm standard)
• Length of the assembled shaft: 800mm
• Continuous working torque: 830Nm
• Category: 6
• Clutch type: overload friction clutch
• Clutch torque: 1200Nm
• Cross: 30.2x92 mm
• Power at 1000 rpm: 74 kW
• Power at 540 rpm: 47 kW
• Tube profile: triangular
• Working angle: max. 25° (temporary max. 45°)
• Machine protection: side latch
• Tractor protection: side latch
