DVSV-F: semi-automatic weighing dispenser for free-flowing products | up to 400 portions/hour.
- Product Code: DVSV-F
Description
The dispenser is used for packing frozen fruits and vegetables into bags and open bags with a weight ranging from 5 kg to 70 kg.
Description of the dispenser's operation:
The principle of the dispenser's operation is based on cyclic dosing of doses of a specified weight into bags and open bags. Stages of the dosing process:
- 1.The operator puts a bag on the opening.
- 2.Opens the throttle, initiating the dosing process of the substance into the bag.
- 3.Upon reaching the specified weight, the dispenser automatically completes the dosing process.
Technical data:
* Minimum dosing limit, kg: 5
- * Maximum dosing limit, kg: 70
- * Measurement accuracy, kg: 0.005
- * Accuracy class according to GOST 24619: 0.1
- * Performance at a dose of 50 kg, doses per hour: 400
- * External dimensions, mm: 800x600x500
- * Weight, kg: 115

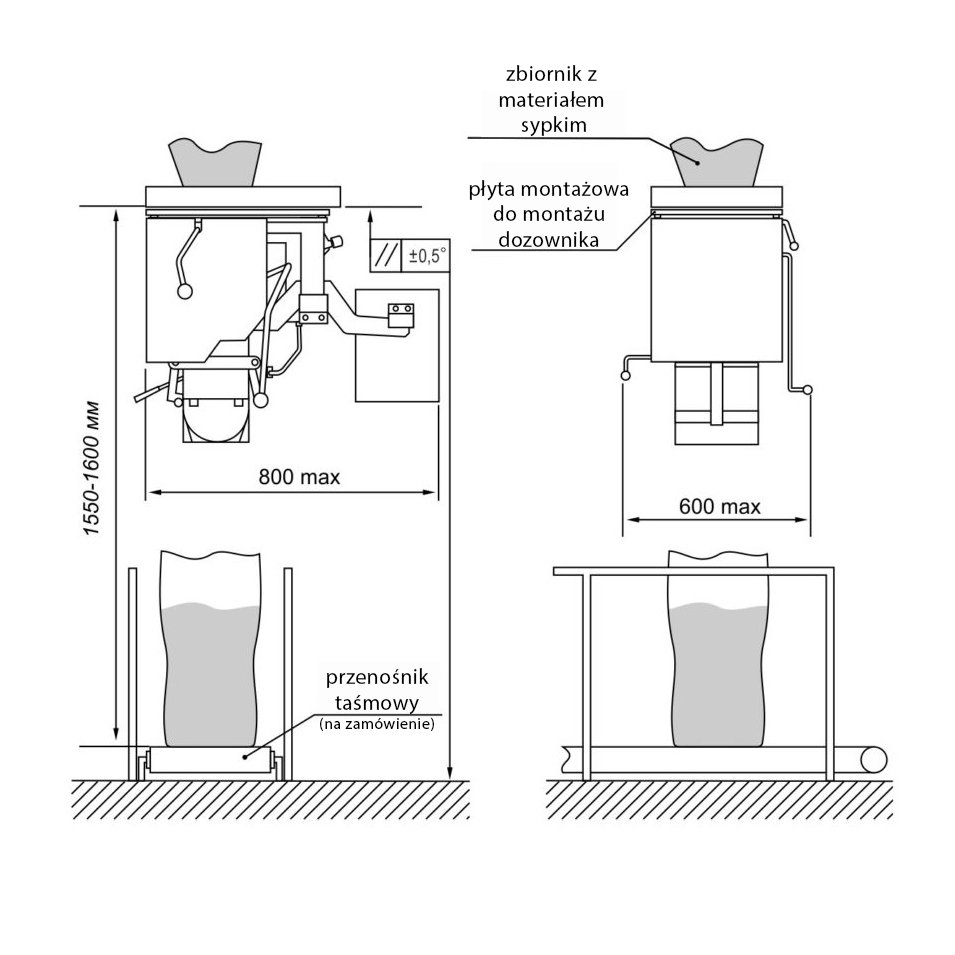

The dispenser is part of a set that includes the dispenser itself and a mounting plate that is welded to the tank, to which the dispenser is attached. The stand in the photo is not included in the set.
Operating conditions:
- Ambient temperature: from -50 °C to +50 °C
- Warranty (months): 12
- Service life (not less than, years): 10
Specification
Tags: #weighing dispenser, #DVSVF, #packing of bulk products, #efficiency 400 servings, #frozen product fruit and vegetables, #simple operation, #durability, #no electric power, #precise weighing, #mechanical packing machine
