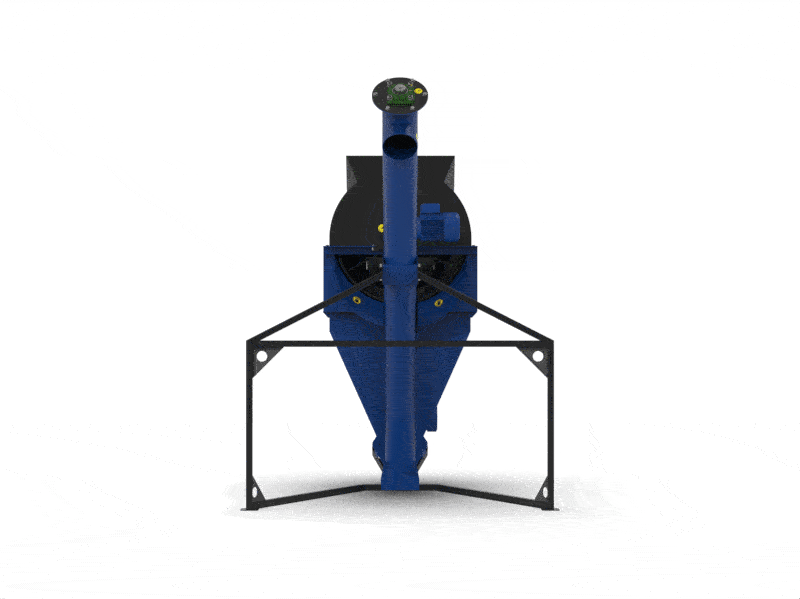

Calibrator-feeder KPS-400
In Stock
- Product Code: KPS-400
Main characteristics
All specifications
Length:
2510 mm
Width:
1240 mm
Height:
2260 mm
Weight:
220 kg
Production capacity:
Up to 700 kg/h (sawdust);
Up to 1000 kg/h (fodder).
Description
Calibrator - KPS-400 screw feeder from the "Technomaszbud" company equipped with a drum sifter to filter bark, pieces of wood, branches,
and garbage from large fractions. It easily ensures uninterrupted supply of raw materials to the granulator or other equipment.
The volume of the tank is 0.2 m3. The supply of raw materials is regulated using a frequency converter (not included in the set). The
equipment consists of a support pipe with a screw inside, a loading tank with a mixer and a drum sieve. Calibrator-feeder KPS-400 can also be
an element of lines for the production of pellets LDG-2000 KOMBI, LDG-3000 KOMBI, LDG-4000 KOMBI and is part of the SA-400 aerodynamic
dryer.
Specification
Dimensions
Length
2510 mm
Width
1240 mm
Height
2260 mm
Weight
220 kg
Key features
Production capacity
Up to 700 kg/h (sawdust);
Up to 1000 kg/h (fodder).
Engine power
1,5 kW
Voltage
380V
Rotation speed
56-84 rpm. without inverter
Additional features
Hopper capacity
0,2 m³
Warranty
12 months
