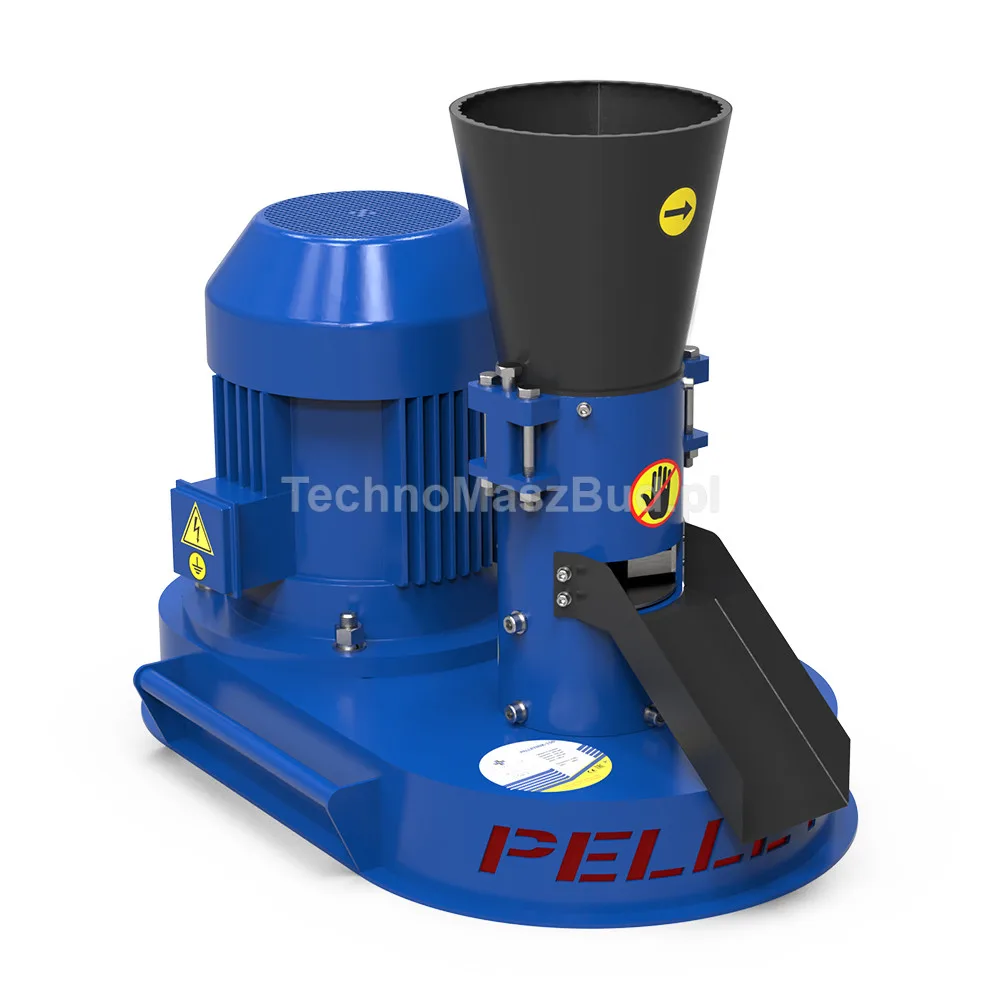

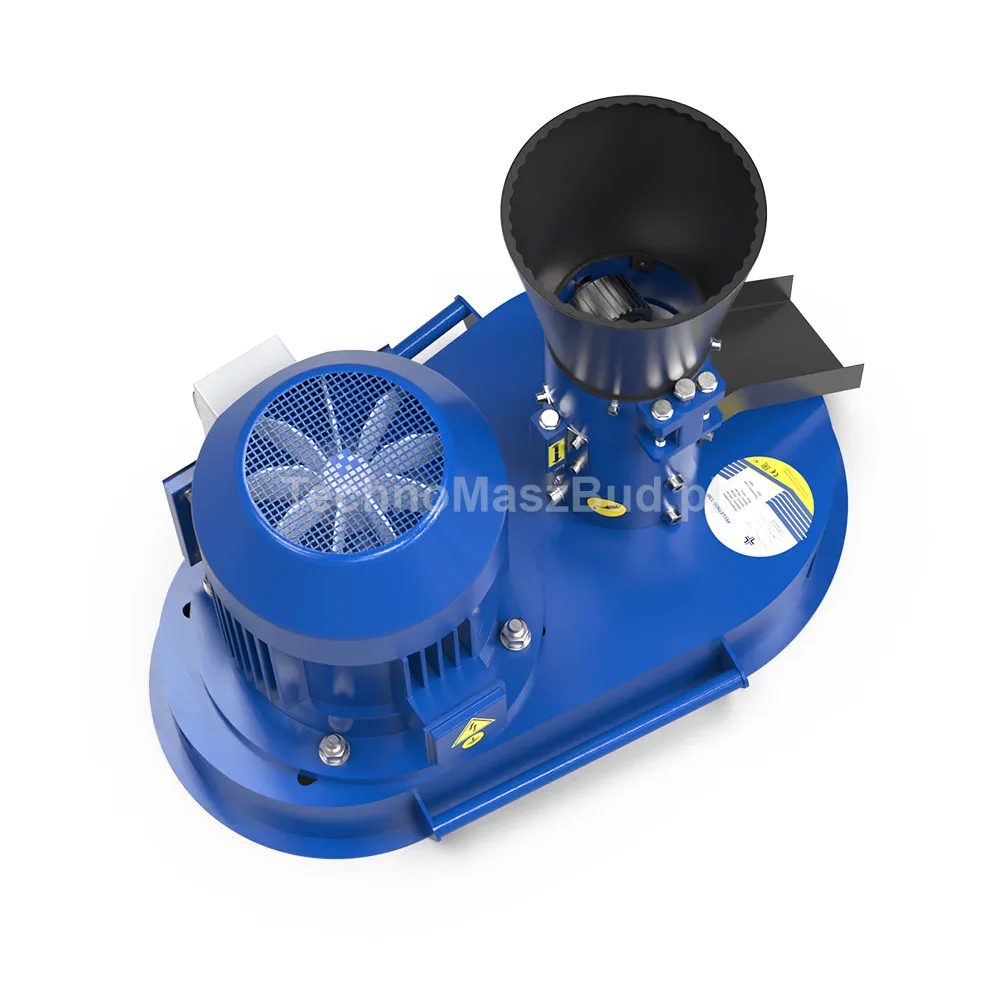

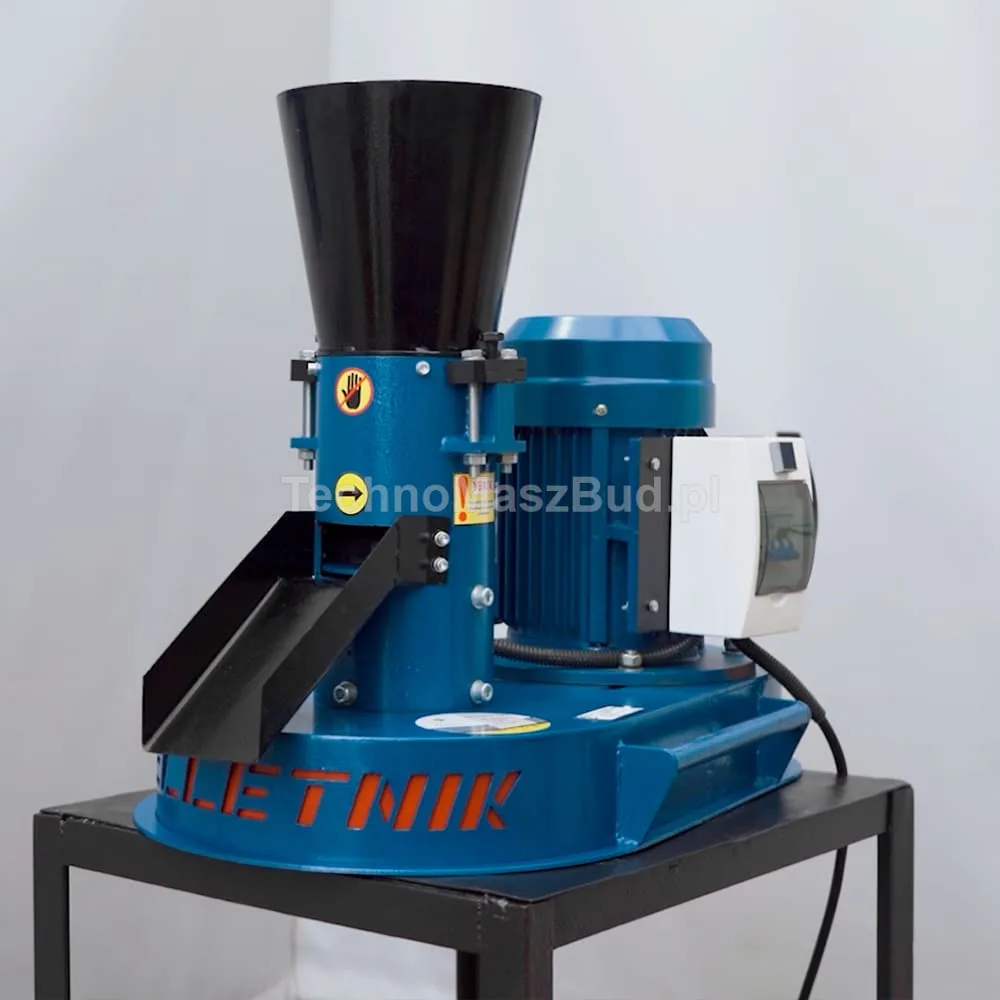

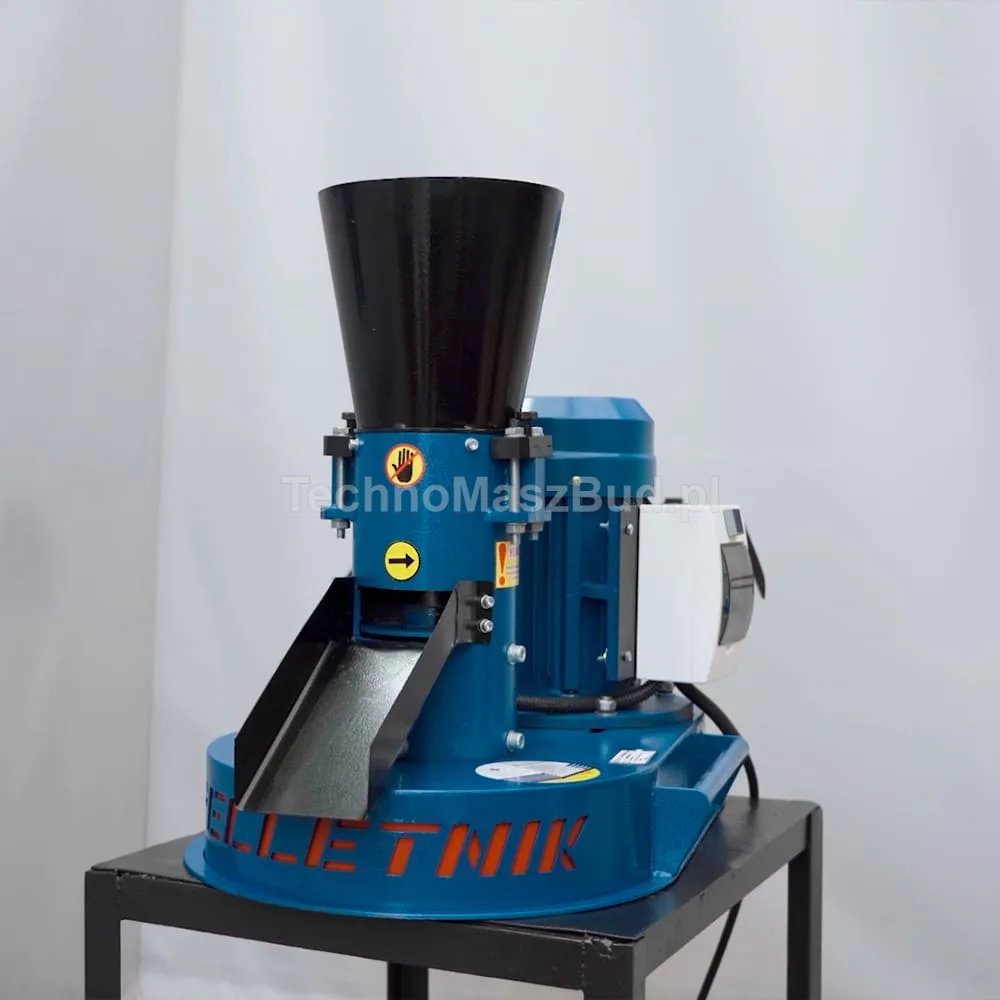

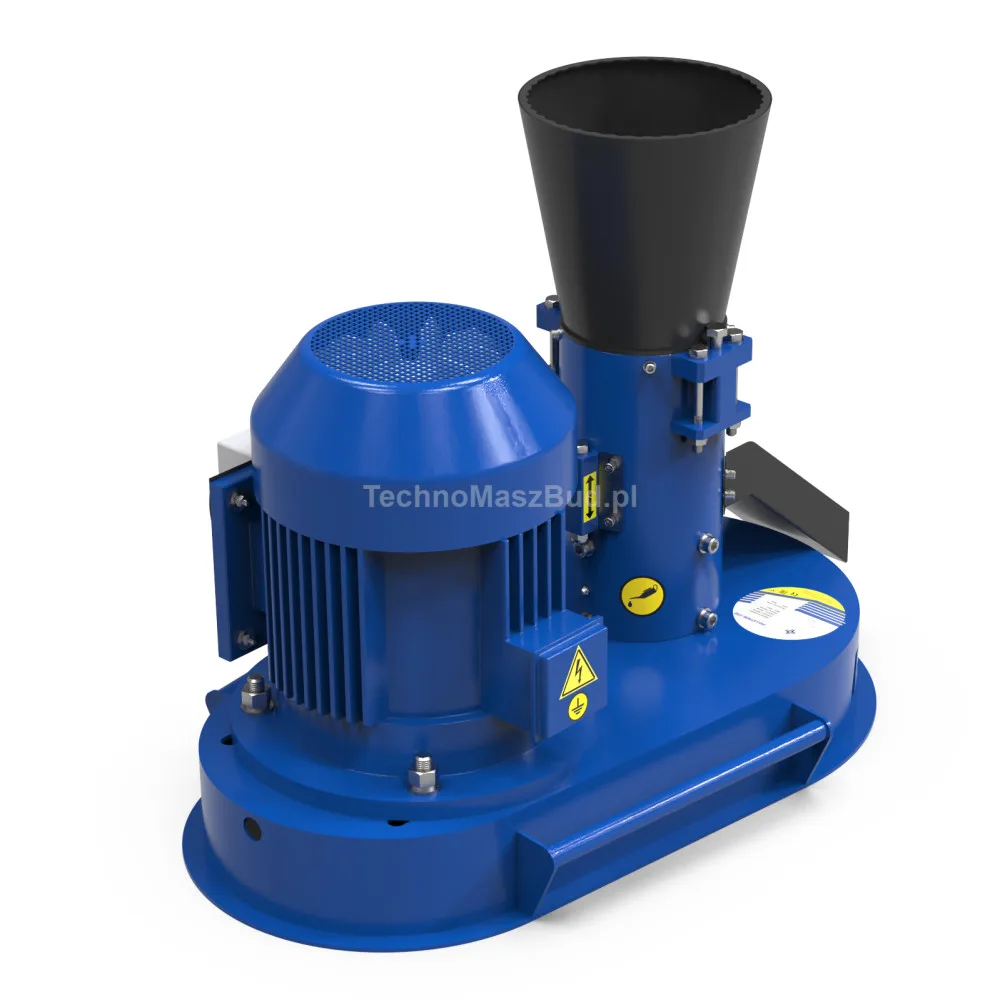

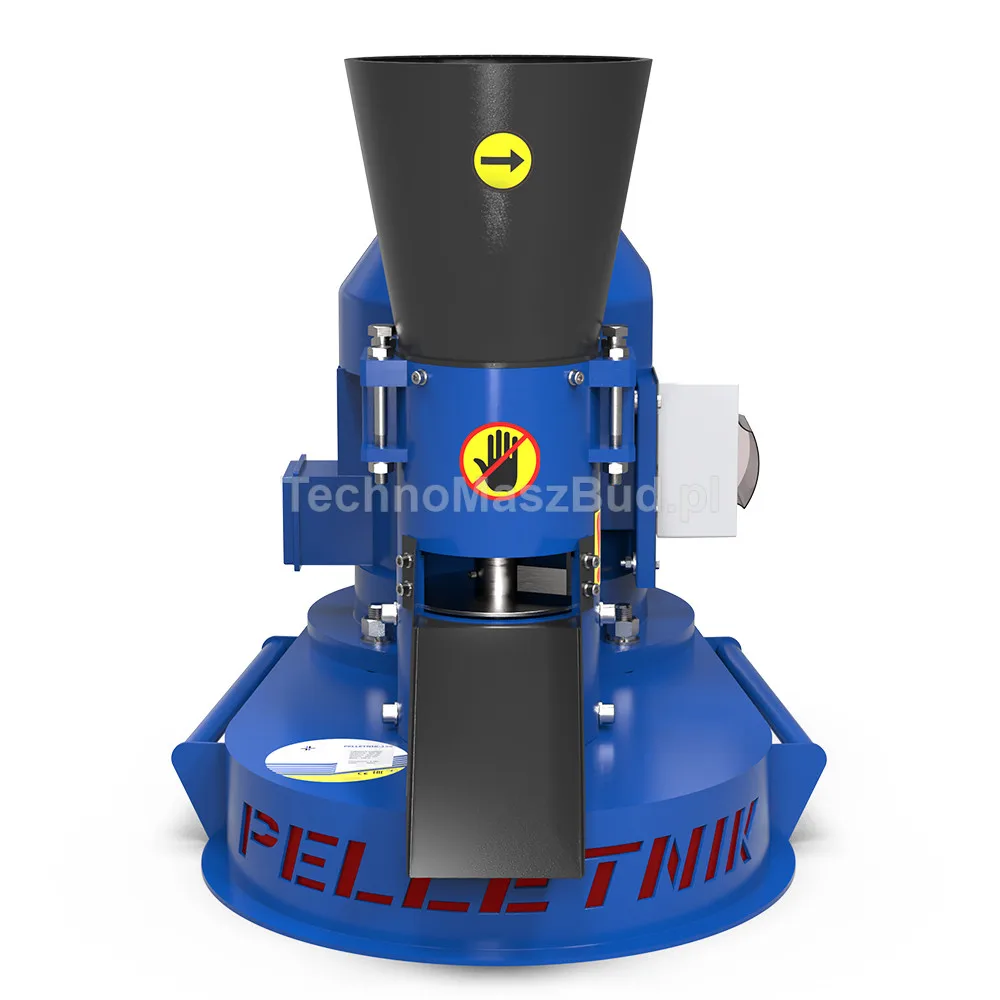

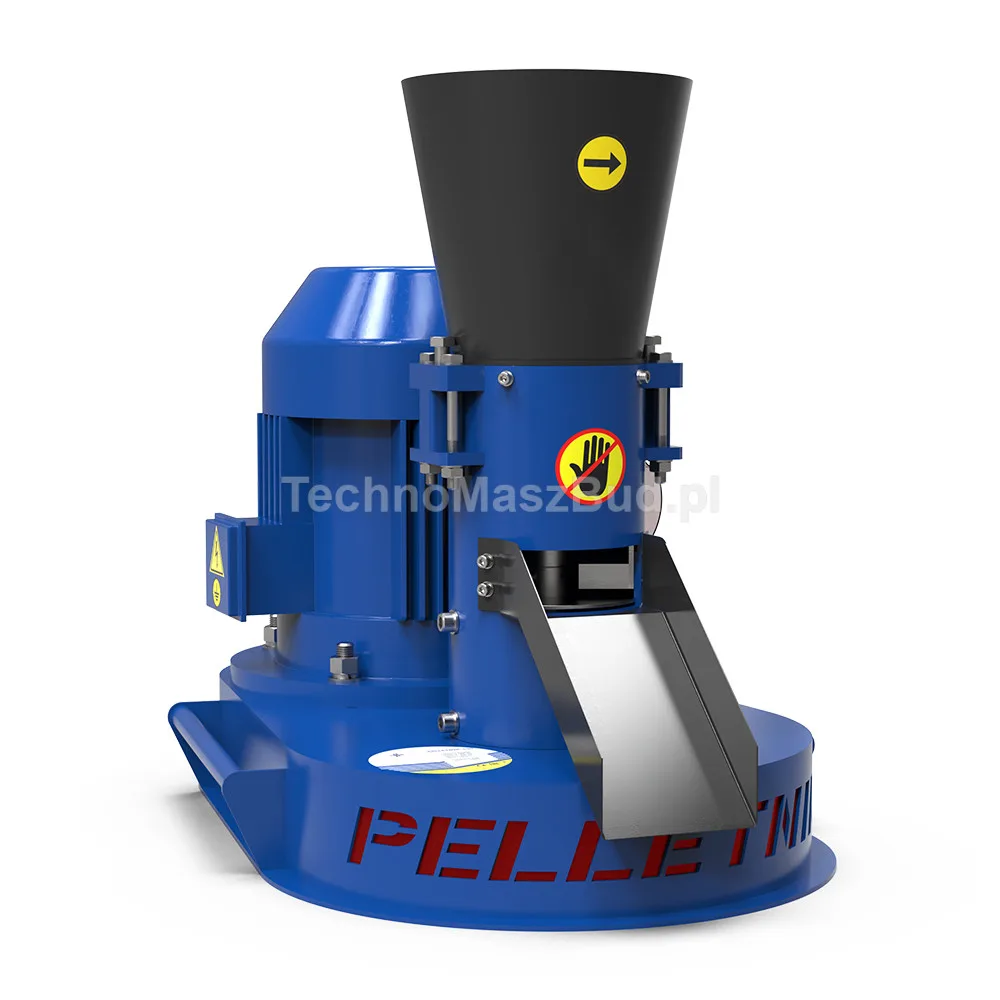

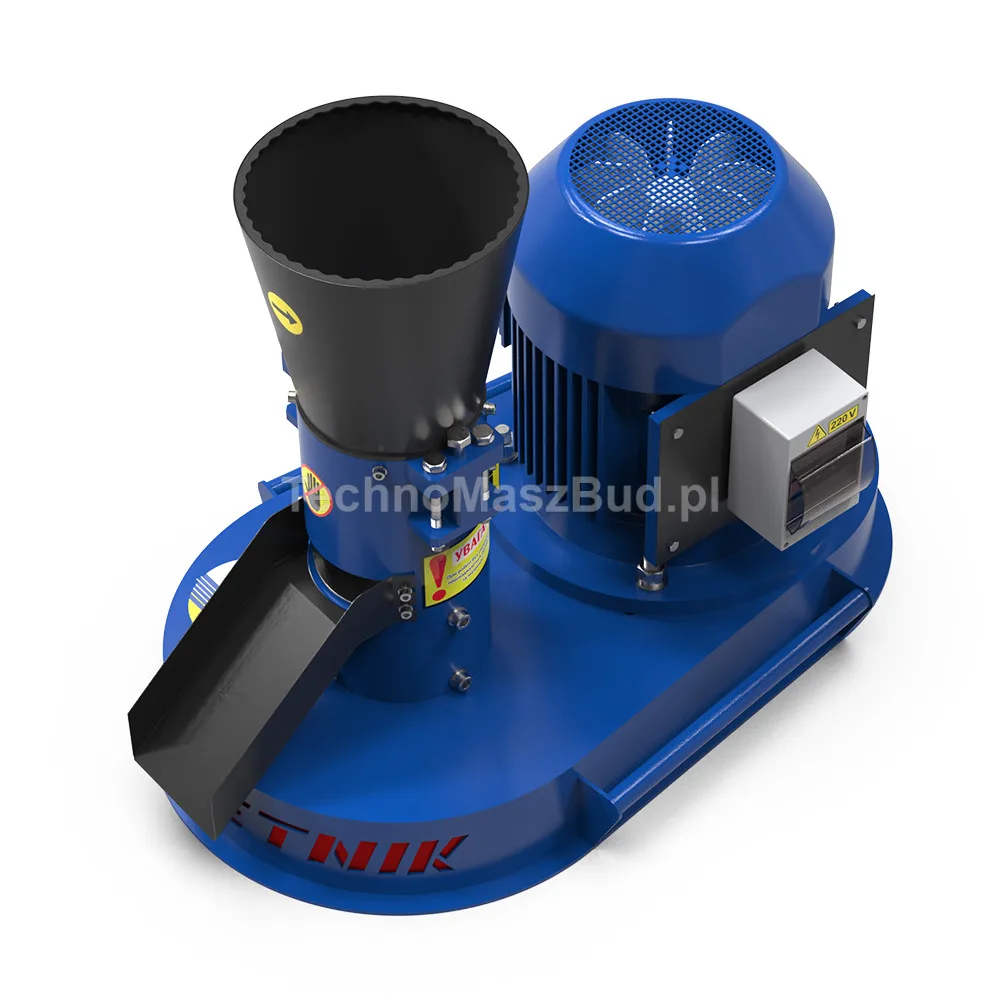

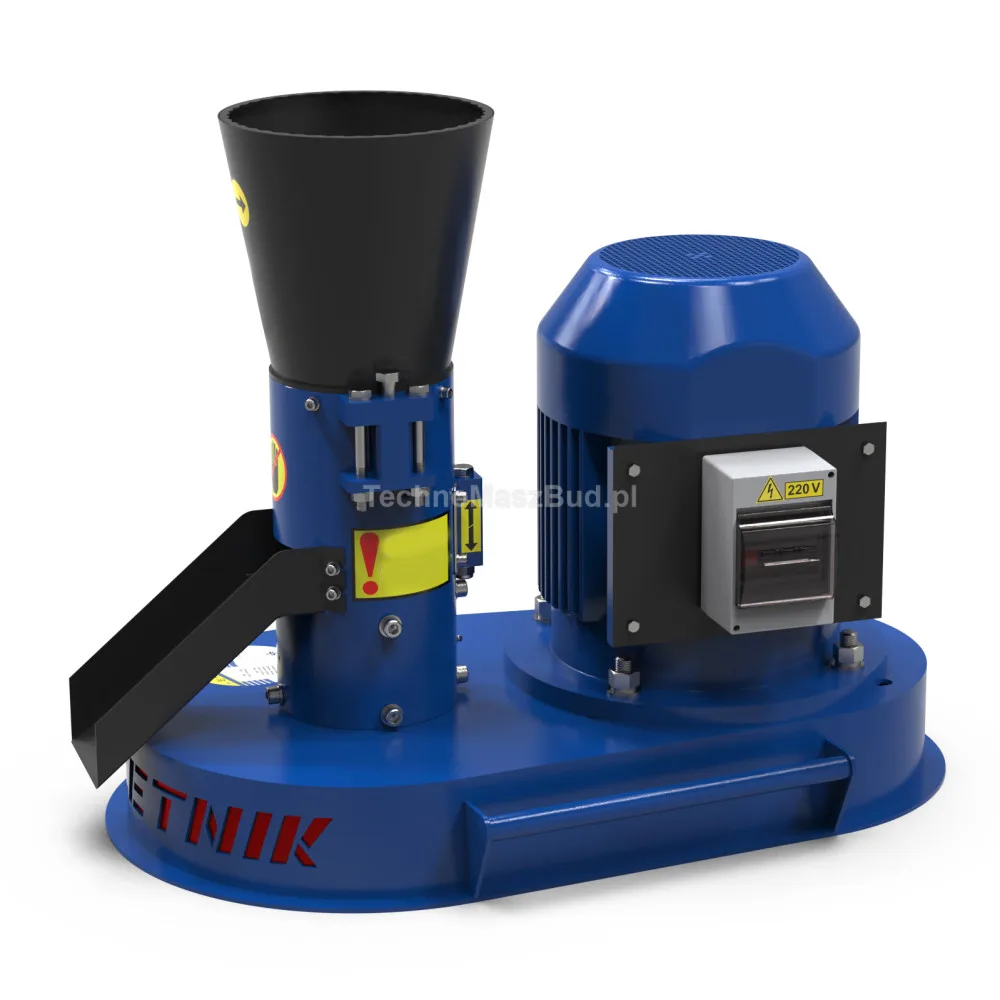

Pellet Mil / Granulator PELLETNIK-150

Pelletnik-150 is a pellet mill that can fully meet pellet needs for home or small business. The device is capable of producing pellets from the following types of raw materials: wood chips, straw, hay, crushed leaves, sunflower waste.

The main criteria for effective granulation are particle size (up to 5 mm) and low moisture content (up to 14%).

The Pelletnik-150 granulator has been designed based on previous models that have proven to be reliable and durable. The simplicity of construction, minimalist design, and ease of transport make this model exceptionally competitive in its class. The granulator is equipped with a 4 kW flange motor, with increased torque due to reduced rotations. An important advantage of this granulator is that it can be produced in both three-phase and single-phase versions.

Video:Granulators with Belt Transmission from TechnoMaszBud

Video: Performance measurement of the PELLETNIK-200 pellet mill | Pine + Oak wood chips:

The granulator's output in pellet production can reach up to 50 kg per hour. Each granulator is equipped with a die chosen by the customer. At the customer's request and for an additional fee, the granulator can be equipped with an additional pulley that can be installed to achieve maximum efficiency in feed production (in this case, output can reach even 100 kg per hour).

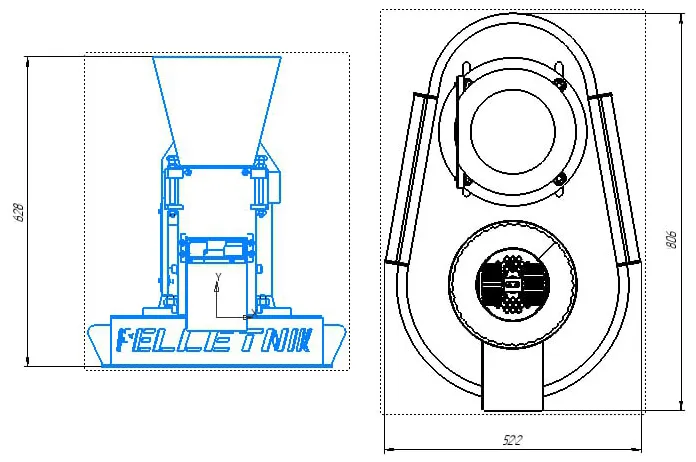

Technical drawing:

Pelletnik-150 is stationary and constructed based on a simple and low-maintenance belt drive that acts as a reducer. All that needs to be done according to the regulations is to lubricate the roller bearings on time. There are lubrication points in the axle of the rollers for this purpose. It is advisable to change the oil when the rollers are warm from working, and it is necessary to stop pumping only when fresh oil begins to flow from the outlet point.
