Kozak-2 grain Aerator 230 V, 1.5 kW

KOZAK-2 (230 V) is a compact grain aerator, which has been designed for effective ventilation and aeration of grain in silos, warehouses, as well as on grain piles. Thanks to being adapted for operation at single-phase 230 V, it can be used in any farm setting – no need for a three-phase power supply.

Equipped with a reliable 1.5 kW motor, the KOZAK-2 grain dryer efficiently ventilates grain, supporting the process of grain drying and preventing it from overheating.

Main advantages of the KOZAK-2 grain aerator:

• 220-230 V power supply – can be connected in any farm
• 1.5 kW centrifugal fan – suitable for small and medium batches of grain
• Sturdy, steel construction – resistant to mechanical damage and external factors
• Ability to blow in fresh air and expel humid, hot air from the grain pile
• Compact size and mobility – easy to move the device between locations
• Aerator available with mesh sizes of 3 mm or 1.5 mm, depending on the type of material

Application

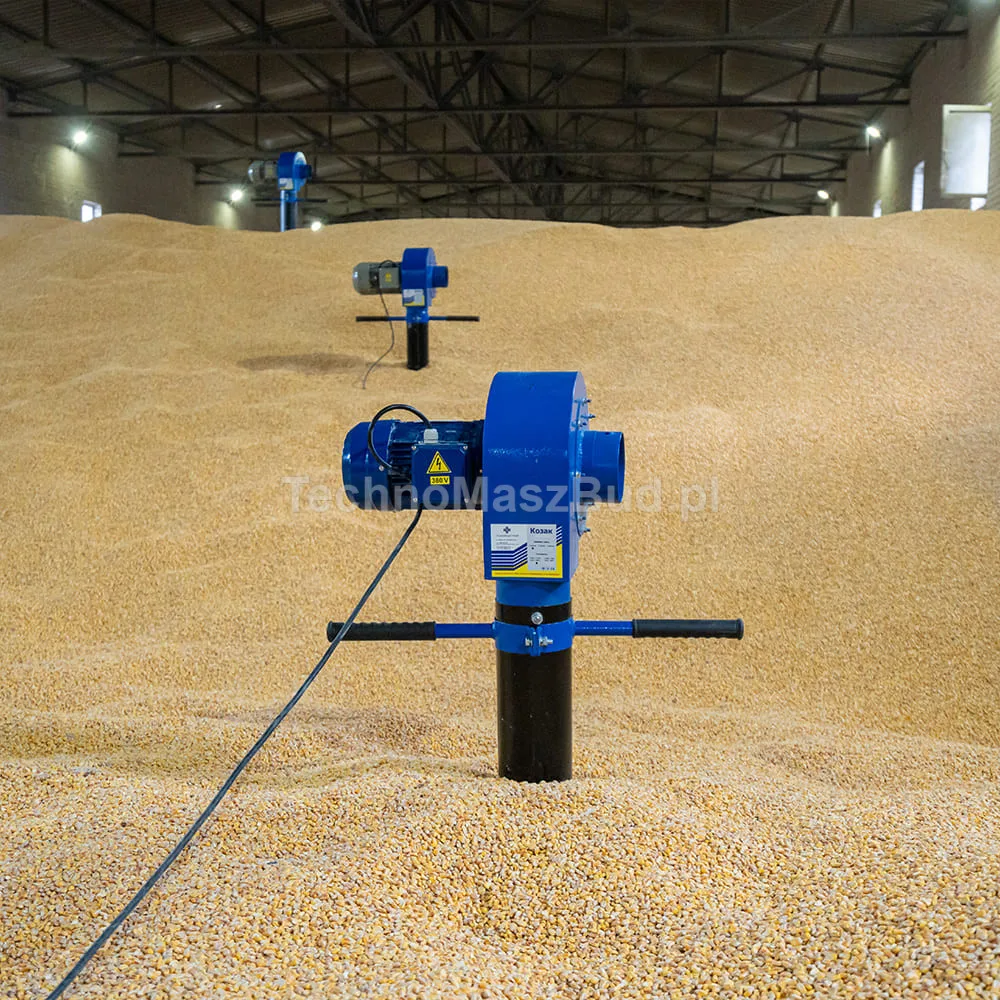

KOZAK-2 aerator is an effective solution for grain ventilation, grain drying, and grain aeration in warehouses and flat-bottomed tanks. It is ideal as a mobile grain ventilator that can be easily moved as needed. It can be successfully used both on smaller farms and in larger storage operations.

The compact form and 230 V power operation make the KOZAK-2 grain dryer a universal tool that improves the quality of stored material, minimizing losses and increasing the overall storage efficiency.

This aerator is ideal for use:

• On grain piles.

• In elevators.

• In warehouses and grain storage facilities.

Technical data

• Motor power: 1.5 kW (3000 rpm).

• Total length of grain aerator: 2878 mm.
• Maximum immersion of the aeration pipe in a grain pile: 1950 mm.
• Length of the lance (without extension): 1793 mm.

• Length of the perforated section: 1058 mm.

• Extension insert length: 1000 mm.

• Perforation diameter: 3 mm or 1.5 mm (holes of other diameters available upon request).

• Operating modes: blowing and suction.

• Impeller diameter: 200 mm.
• Weight: 41 kg.


Equipment

• 220-240 V: electric motor with inverter and 220-240 V plug.

Purpose

• Ventilation of grain, corn, rapeseed, sunflower, flax, soy, etc.

• Reducing humidity and temperature of grain.

• Elimination of “heat nests” (self-heating hotspots).

• Prevention of mold, fungi, and pest control.

• Pre-sowing warming of seed material.

• Grain drying.
