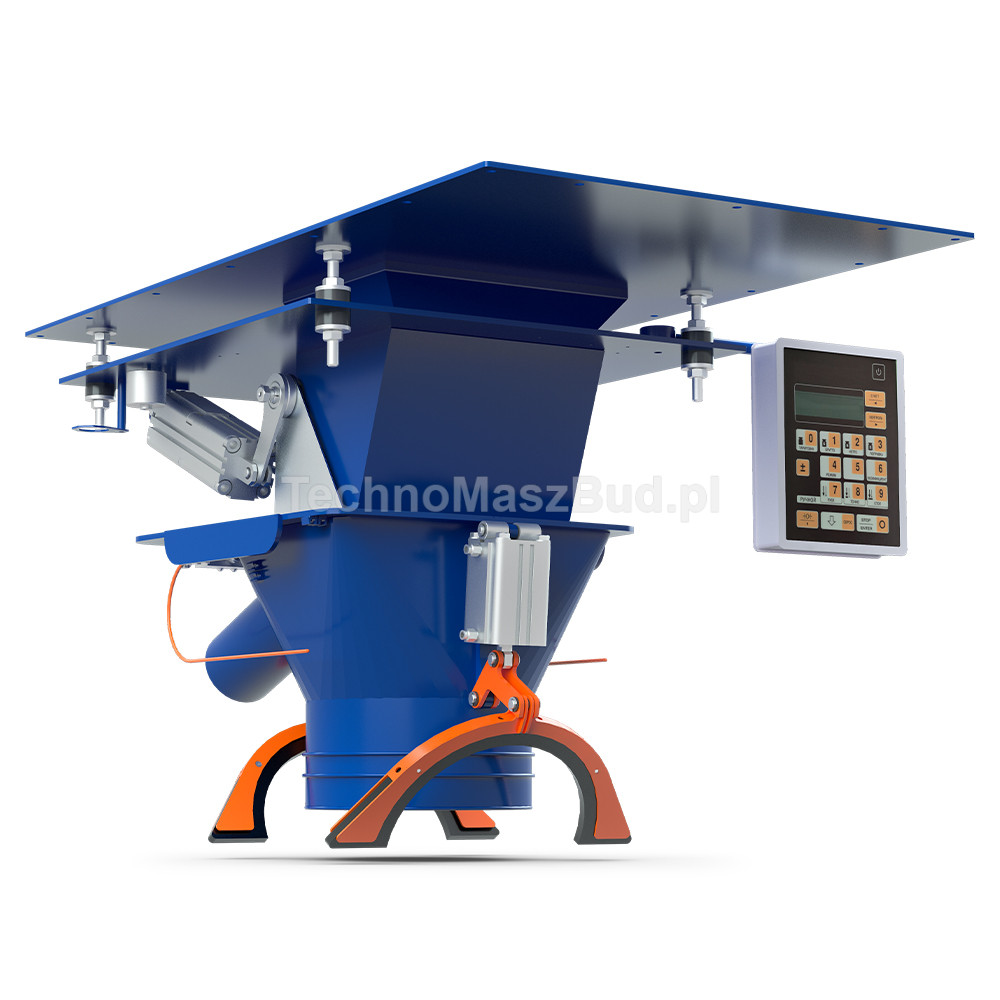

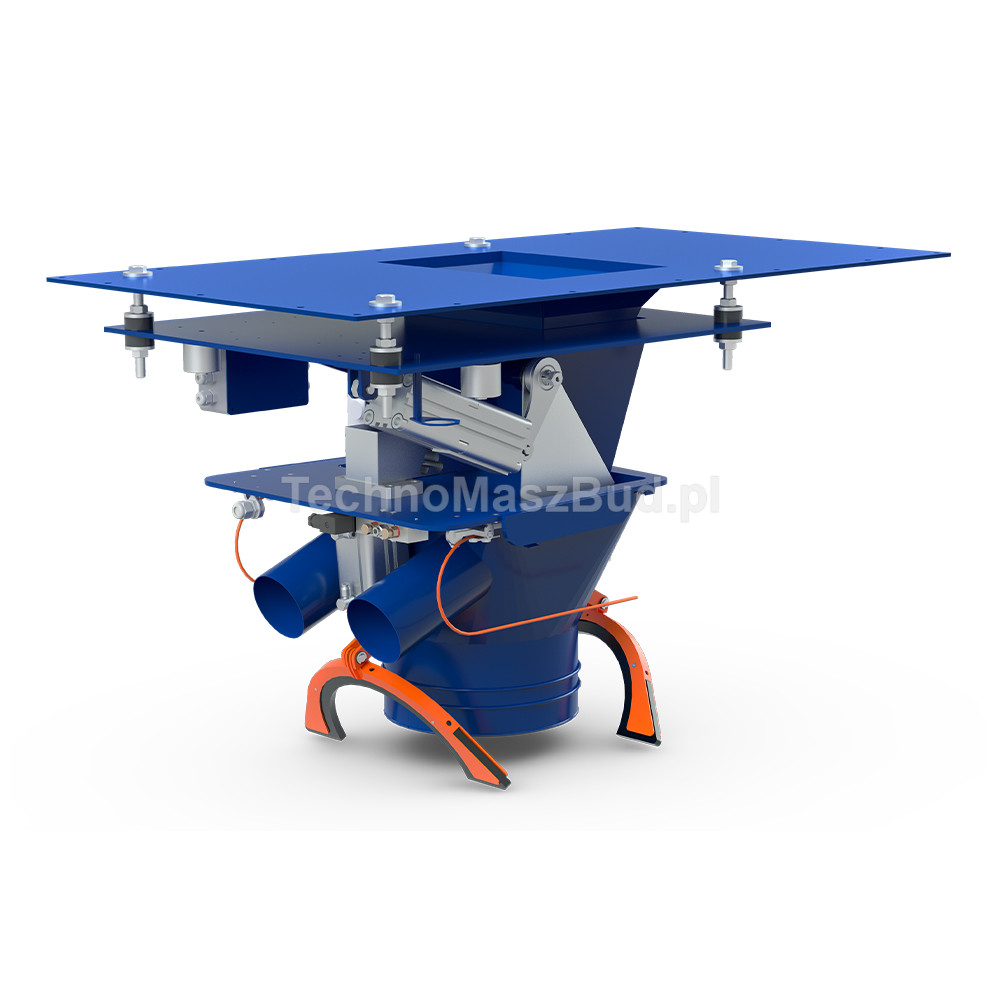

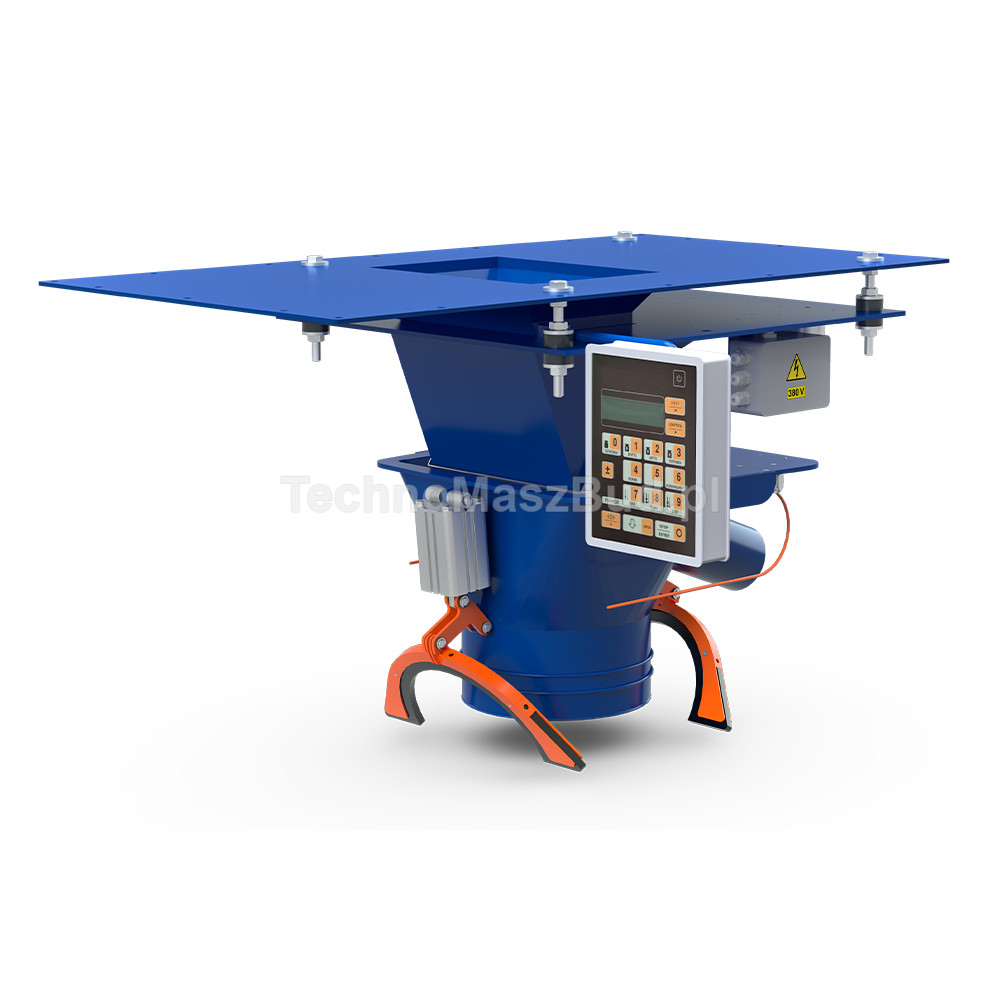

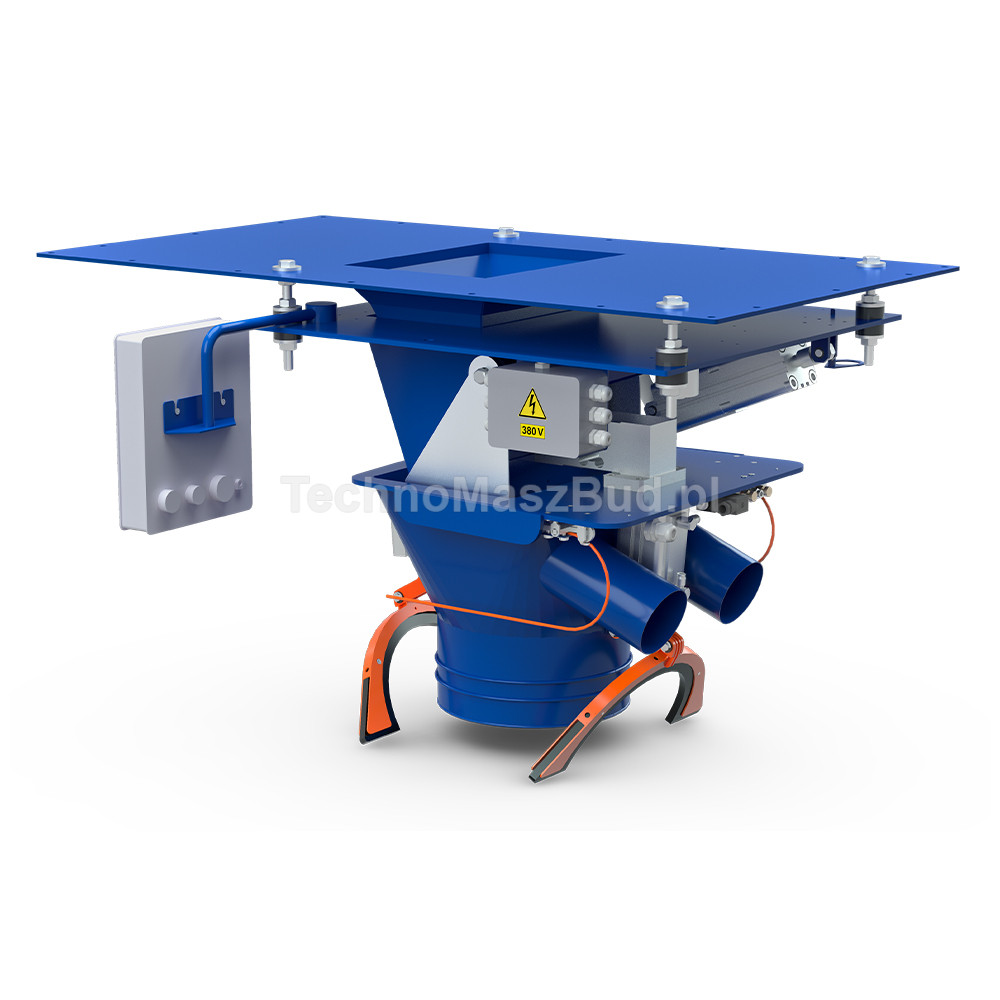

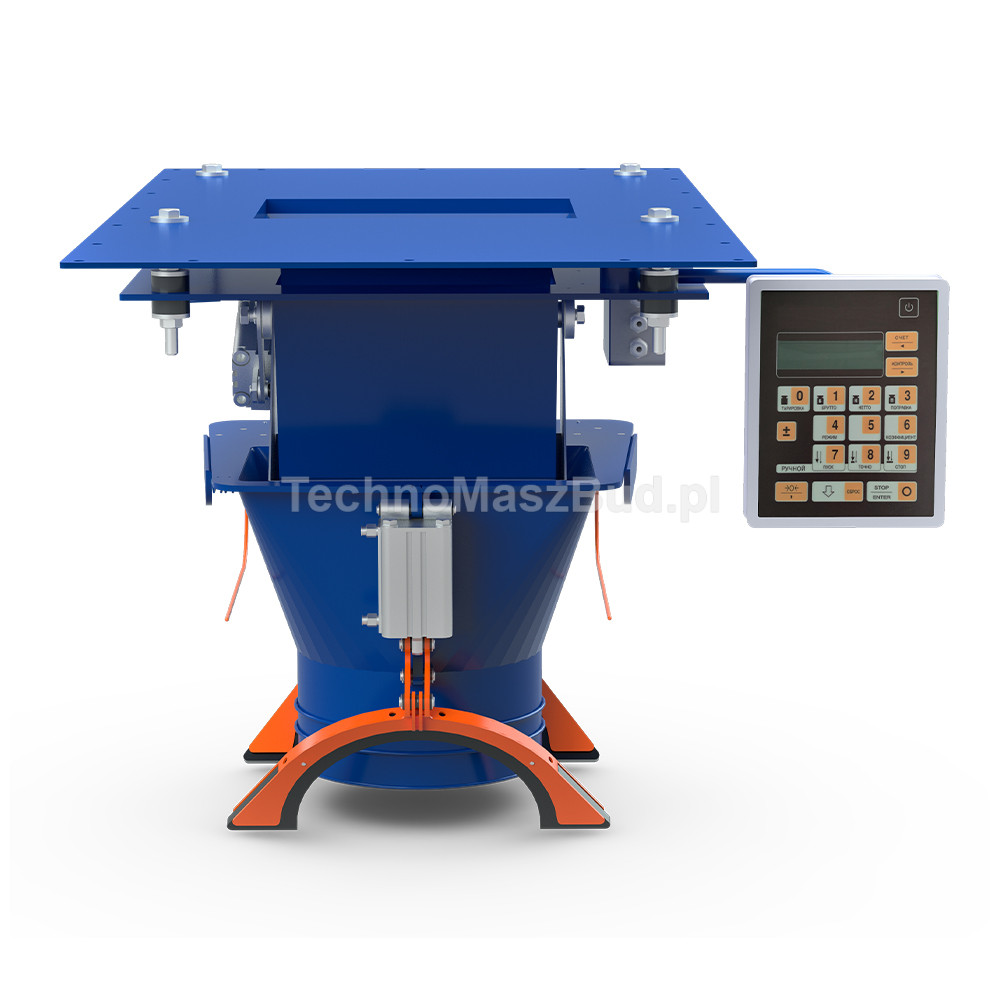

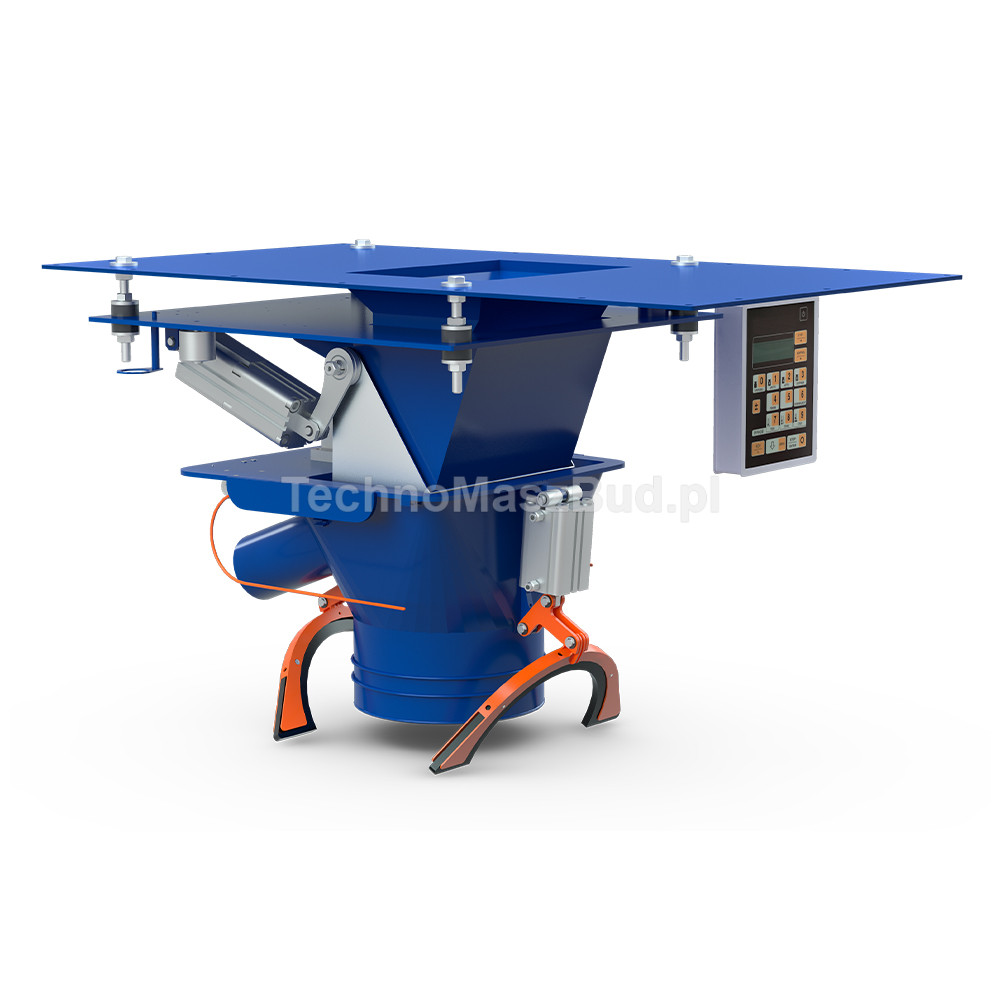

Weighing dispenser Norma-S

The Norma-S Weighing Dispenser is a proven and precise solution for fast filling of bulk materials into open bags. The device is perfect for dispensing sugar, groats, grains, seeds, animal feed, granulates, and other products of similar structure. Thanks to its ability to operate in both gross and net modes, the dispenser can be easily adapted to various technological processes.

The Norma-S has been designed for stable continuous operation and high dosing accuracy. Its modular construction allows for easy assembly, expansion, and integration with a loading hopper and a packing line. The integrated dust extraction system improves workplace comfort and cleanliness in the packing area.

Functional Advantages

• Automatic counting of filled bags
• High and stable performance even during continuous operation
• Modular design for easy assembly and expansion
• Quick access to components for servicing and adjustment
• Possibility of rigid connection to a loading hopper
• Integrated dust extraction and collection system
• Transfer of operating data to a remote computer or record-keeping system

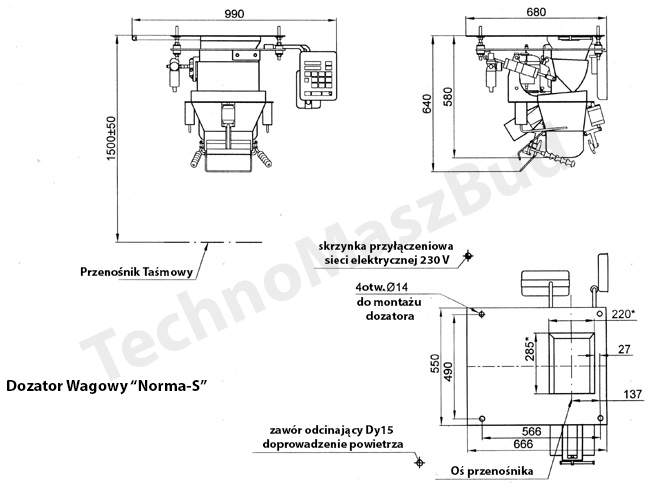

Technical Drawing:

Technical Parameters

• Performance: up to 500 doses/hour
• Dosing range: 5-50 kg
• Dosing accuracy:
• 5–15 kg – no more than 0.37%
• 15–50 kg – no more than 0.1%
• Minimum bag width: 455 mm (250 mm*)
• Height with a suspended 50 kg bag: 1550 mm
• Device weight: 70 kg
• Air consumption (4 atm): up to 1.0 m³/h
• Power consumption: up to 60 W (230 V)

* When using the SM spout.

The Norma-S Weighing Dispenser combines high accuracy, compact dimensions, and ease of use, making it an optimal solution for packing lines in small and medium-sized production facilities.
