Feed Granulator ROTEX-100
  • 1.5 kW
    2.2 kW
  • Feed Granulator ROTEX-100

Feed Granulator ROTEX-100

In Stock
Rating:

Available Options


In Stock 3,874.50
3,150.00zł

Incl Tax: 3,874.50zł


  • Product Code: ROTEX-100

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Length: 600.0(mm)
Width: 430.0(mm)
Height: 410.0(mm)
Weight: 40.0(kg)
Product type: Granulator / Pellet mill

Description

The ROTEX-100 feed granulator is a compact home granulator at an affordable price, designed for processing animal feed. The difference between the KGM-100 model and the ROTEX-100 lies only in the casing form. The following raw materials can be used:

  • wheat bran
  • grain mixes, waste cereal

THERE IS AN OPTION TO TEST FEED PELLETIZATION FROM YOUR RAW MATERIAL IN OUR STORAGE!


The granulator enables the production of pellets intended for various species of livestock, birds, and fish. The device is equipped with a special die with radial holes. It is possible to purchase the granulator with a selected set of dies tailored to produce pellets that perfectly meet your animals' needs.

Video: Feed Granulator 1.5 kW | Performance Measurement

The granulator is recommended for owners of:

  • small farms and ancillary businesses,
  • livestock halls,
  • fish farms,
  • plants engaged in the production of pelleted gravel and animal feed.

This is an ideal solution for any farmer who wants to increase efficiency, reduce costs, and optimize their business.

With its affordable price, the granulator is accessible even for beginner entrepreneurs. Moreover, the investment in this device pays off on average in just 3 months.


THERE IS AN OPTION TO TEST FEED PELLETIZATION FROM YOUR RAW MATERIAL ON THIS DEVICE IN OUR STORAGE!


Video: How the KGM-100 Pellet Granulator / Mixed Feed Granulator Works


Technical Specifications of the ROTEX-100 Granulator:

The granulator is equipped with a motor available in two power variants:

  • 1.5 kW, 400V (1500 rpm),
  • 2.2 kW, 230V (1500 rpm).

This is sufficient power to process grain mixes and bran, producing about 40 kg of pellets per hour.

The device can operate at 230V or 400V – the choice should be indicated when placing an order. The granulator is suitable for use in homes, garages, sheds, or utility rooms, making it extremely versatile.

The interchangeable die with a diameter of 100 mm allows for the regulation of pellet size with hole diameters ranging from 2 to 8 mm.

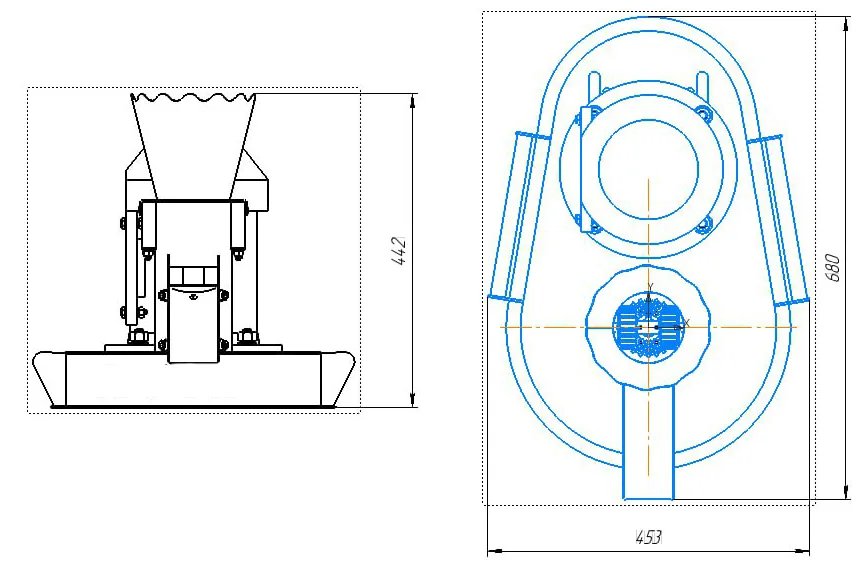

Technical Drawing:


Advantages of Using the ROTEX Feed Granulator-100

1. Balanced diet: Pellets produced using the ROTEX-100 provide animals with a comprehensively balanced feed, containing an optimal amount of minerals, vitamins, and amino acids.

2. Reduced risk of diseases: During operation, the die and rollers heat up to high temperatures, which helps reduce the risk of gastrointestinal diseases in animals.

3. Full feed utilization: Pellets are fully consumed by animals, eliminating the problem of excessive feed intake or waste.

4. Economical transportation and storage: Pellets are more resistant to damage during transport – they do not crumble and do not lose their properties. Additionally, due to their moisture resistance, they do not mold even under difficult storage conditions.

The set includes:

  1. Granulator-1 pc.
  2. User manual-1 pc.
  3. Die remover

Video: KGM-100 1.5Kw Pellet Granulator, up to 30kg/h TechnoMaszBud, Mixed Feed Granulator


Video: KGM-100 Feed Granulator | 1.5 kW


Specification

Dimensions
Length
600.0(mm)
Width
430.0(mm)
Height
410.0(mm)
Weight
40.0(kg)
Key features
Product type
Granulator / Pellet mill
The diameter of radial holes in the die
from 2 to 8 mm (optional)
Usage
For production of granular nutriment
Type of drive
Electric
Production capacity
up to 40.0(kg/h)
Engine power
1.5(kW)
Voltage
230V / 400V
Rotation speed
1500 rpm
The diameter of the die
100(mm)
The number of knives
1 pc
Additional features
The number of rolls
2 pcs
Warranty
12 months
Dimensions
Length
600.0(mm)
Width
430.0(mm)
Height
410.0(mm)
Weight
40.0(kg)
Key features
Product type
Granulator / Pellet mill
The diameter of radial holes in the die
from 2 to 8 mm (optional)
Usage
For production of granular nutriment
Type of drive
Electric
Production capacity
up to 40.0(kg/h)
Engine power
1.5(kW)
Voltage
230V / 400V
Rotation speed
1500 rpm
The diameter of the die
100(mm)
The number of knives
1 pc
Additional features
The number of rolls
2 pcs
Warranty
12 months
