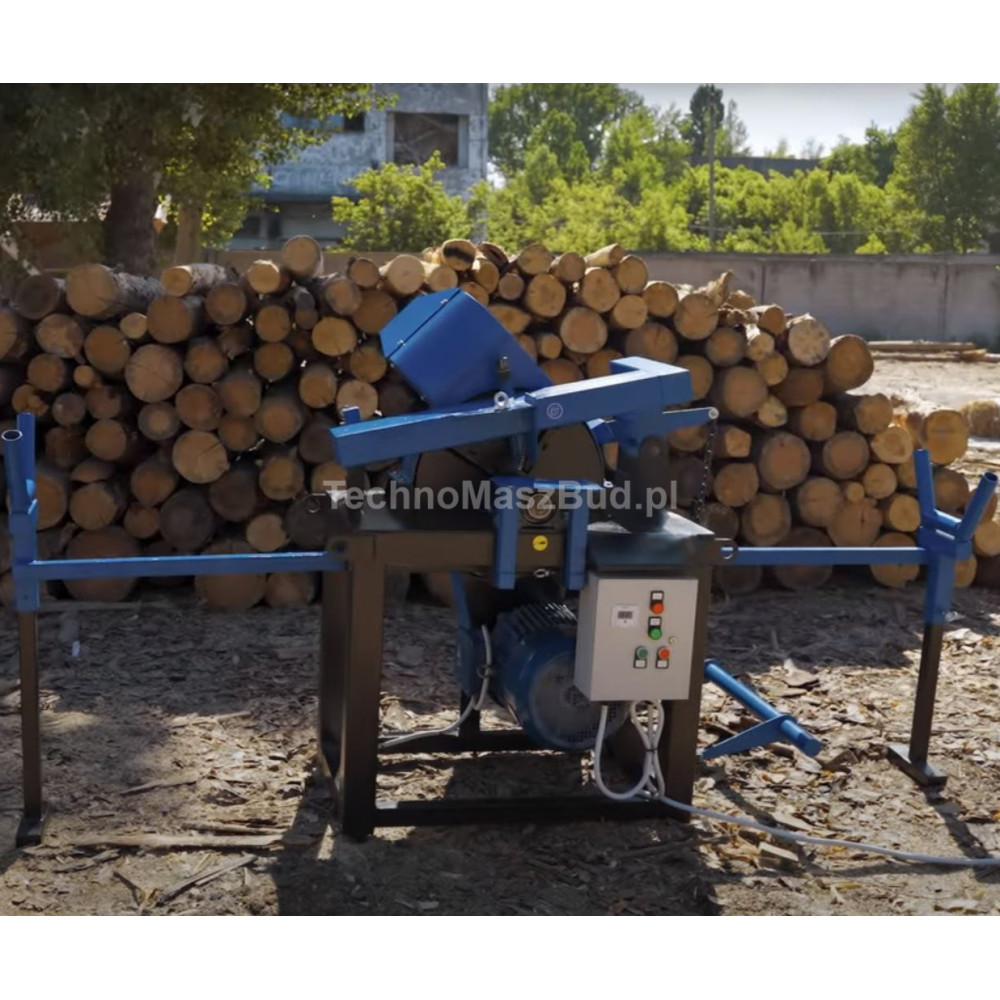

Wood debarking machine KD-200

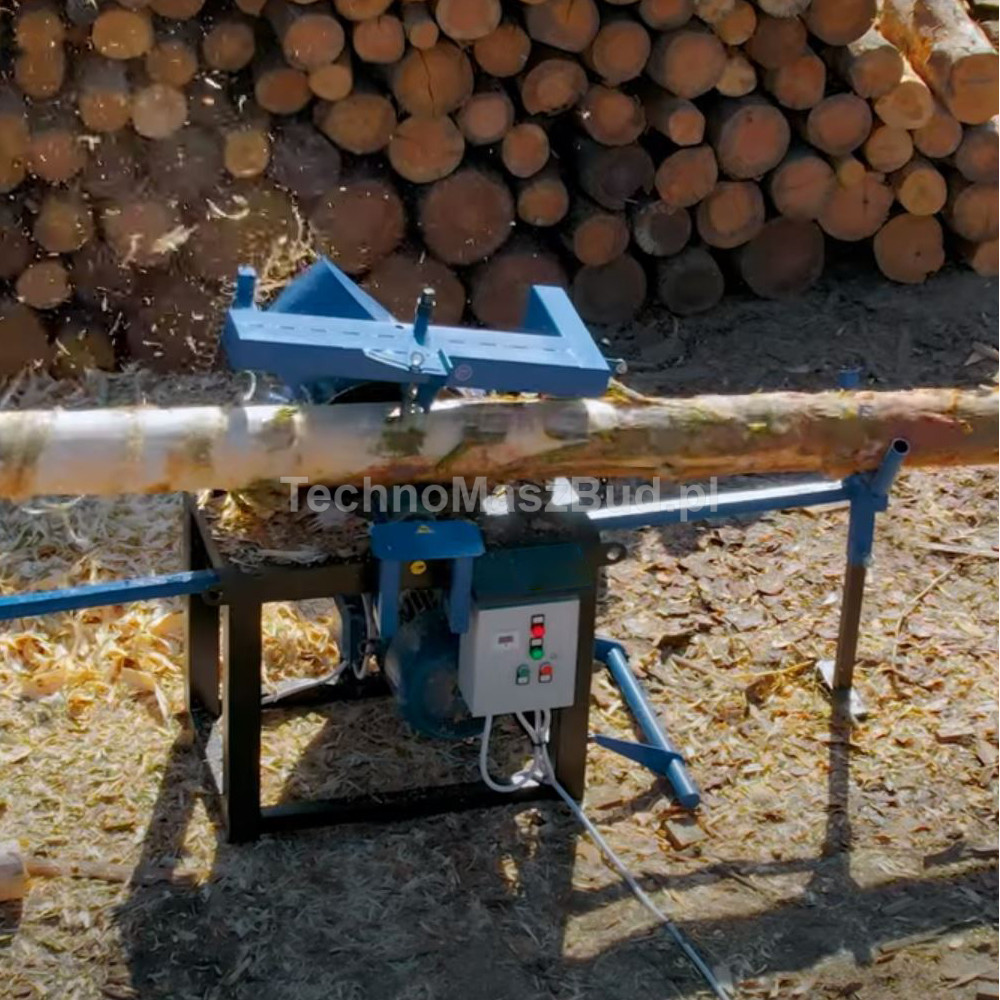

The KD-200 debarker is a modern and efficient machine designed for removing bark from logs with a diameter of 50 to 200 mm and a length of 1.5 to 6 meters. Its advanced technological features, such as adjustable cutting depth and log feed speed, ensure optimal wood processing quality. Thanks to this device, the debarking process becomes more precise, faster, and energy-efficient, which contributes to the overall efficiency of the facility.

Advantages of the KD-200 debarker:

• Extended tool lifespan – removing bark along with impurities like sand or dirt significantly reduces the wear of saw blades and other tools.
• High processing quality – clean and precise cutting improves productivity and wood quality, minimizing material waste.
• Energy efficiency – lower energy consumption due to precise adjustment of cutting parameters to the type of processed material.
• Adjustable operating parameters – smoothly adjustable knife reach and log feed speed allow tailoring the debarking process to specific requirements.
• Versatility – the machine can be used for log preparation not only for sawing but also for pellet and briquette production.

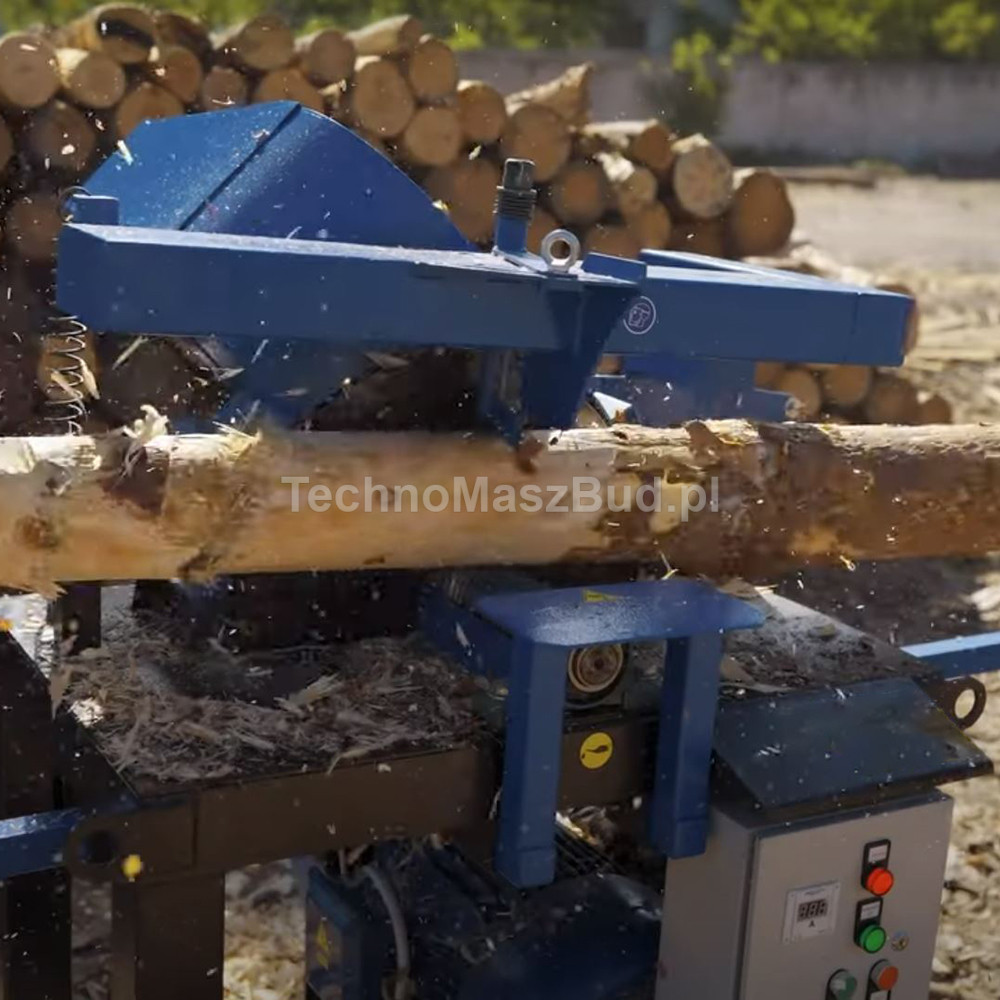

• Automatic sawdust removal system – sawdust is ejected up to 4 meters away, ensuring a clean workspace.

During debarking, sand and various impurities that get into the bark during harvesting and transportation are removed along with it. This increases the durability of saw blades when cutting debarked logs, resulting in lower tool and energy consumption. The saw ensures a cleaner cut, improving the quality of the wood. The efficiency of the sawmill's frame increases as the log slippage on the feed rollers is reduced. The machine is used for preparing logs for sawing and for the production of pellets and briquettes.

Technical specification:

• Processed wood diameter: 50-200 mm
• Log length: 1.5-6 m
• Motor power: 11 kW
• Cutting depth adjustment system: smooth, stepless adjustment

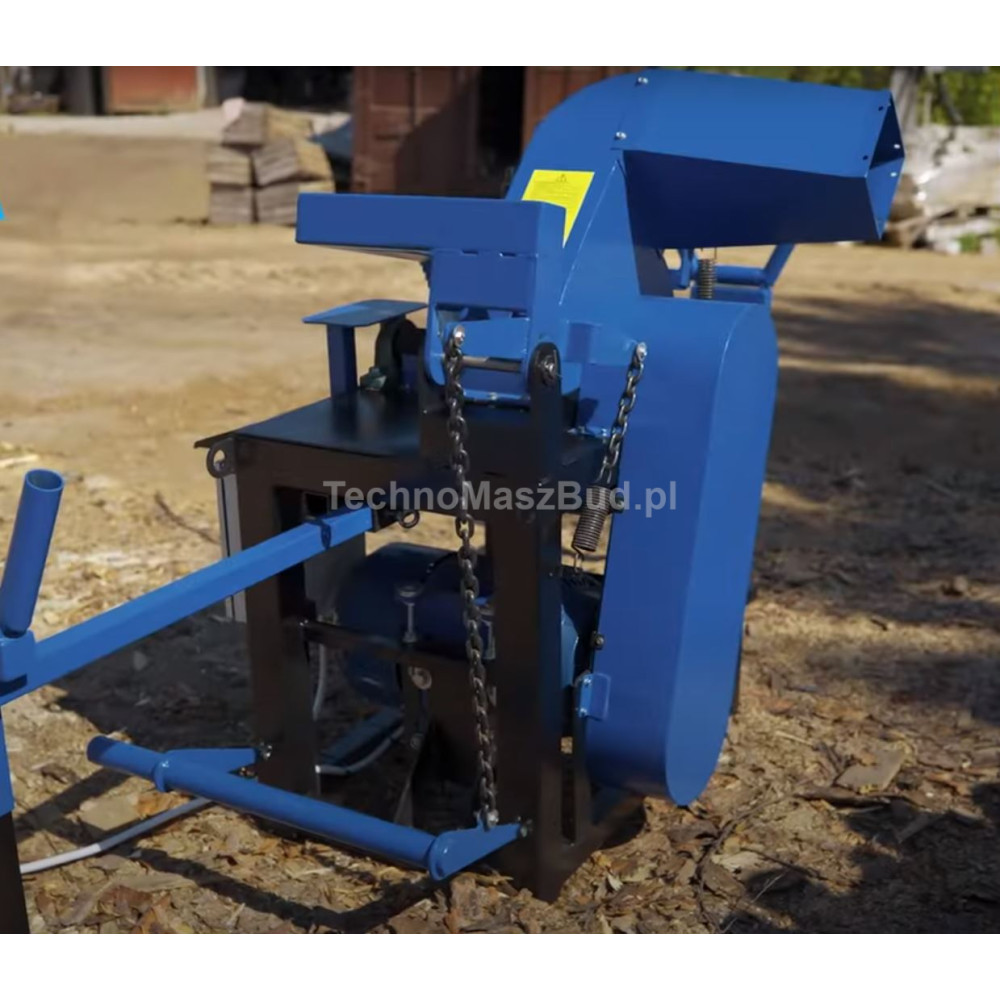

• Sawdust ejection system: built-in fan (ejection distance up to 4 meters)

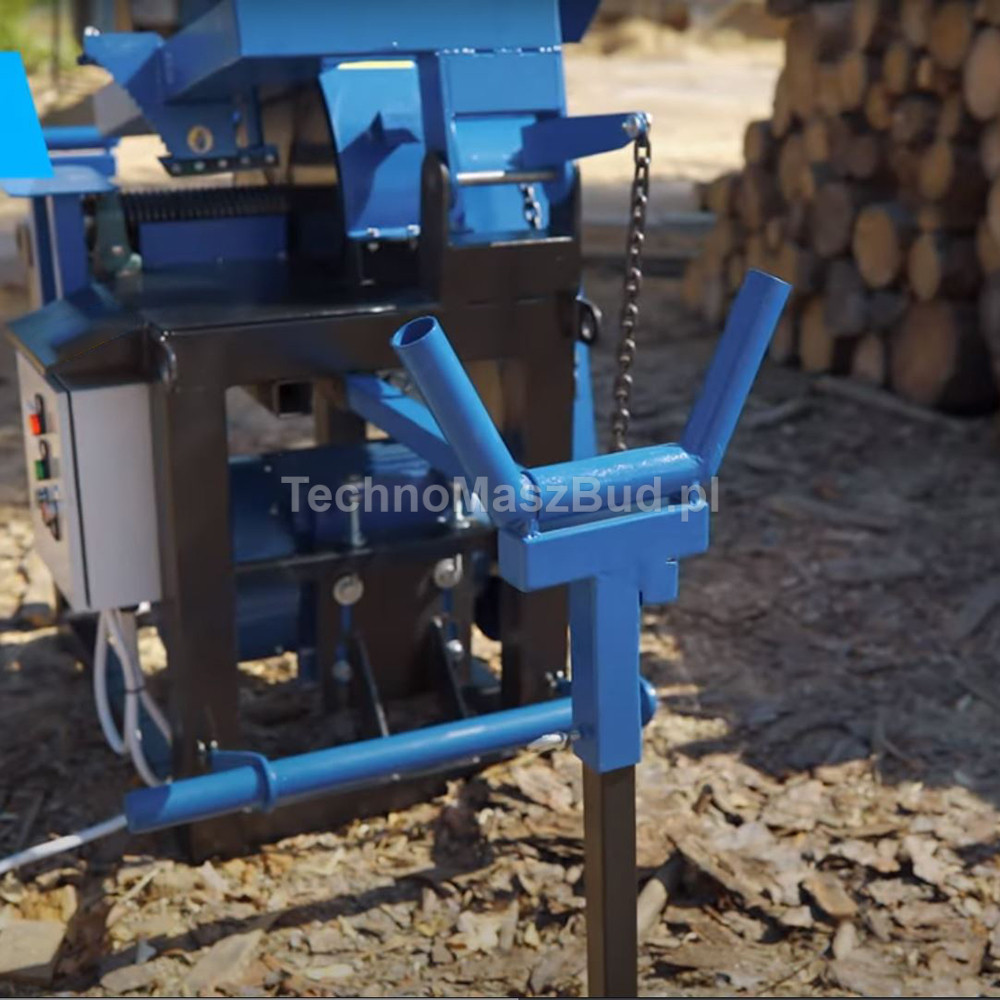

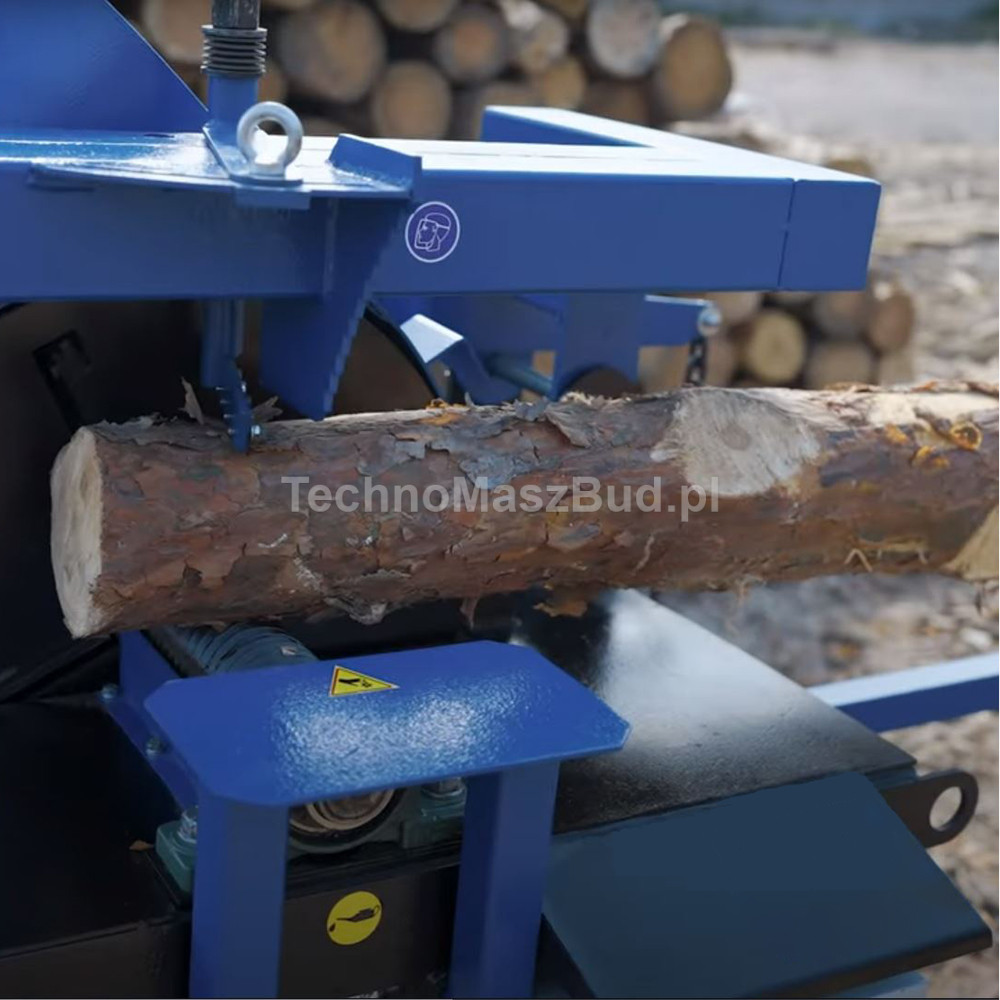

The machine has an adjustable knife reach (cutting depth or chip thickness), which can be smoothly regulated depending on the type of wood. The speed of log feed relative to the knife disc is also steplessly adjustable, affecting the cutting depth, log surface smoothness, and processing speed per meter. The machine is equipped with adjustable, extendable log supports on the entry and exit sides, a removable table (for log support during loading), and a pedal for lifting the log clamping mechanism. Sawdust is ejected by a built-in fan up to 4 meters away. The cutting depth and log movement speed relative to the cutter determine the log processing quality depending on the requirements.

The KD-200 debarker is an ideal solution for sawmills and woodworking facilities looking to improve product quality and increase work efficiency. Investing in this machine guarantees time, tool, and energy savings.
