Hammer Mill KRAFT
  • 4 kW - 22 kW
  • Hammer Mill KRAFT

Hammer Mill KRAFT

In Stock
Rating:

Available Options


In Stock 7,330.80
5,960.00zł

Incl Tax: 7,330.80zł


  • Product Code: KRAFT

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Length: KRAFT 4 - 600.0 (mm); KRAFT 7.5 / KRAFT 11 - 800.0(mm); KRAFT 15, 22 - 900.0(mm)
Width: KRAFT 4 - 560.0(mm); KRAFT 7.5 / KRAFT 11 - 700.0(mm); KRAFT 15, 22 - 850.0(mm)
Height: KRAFT 4 - 770.0(mm); KRAFT 7.5 / KRAFT 11 - 1050.0(mm); KRAFT 15, 22 - 1050.0(mm)
Weight: KRAFT 4 - 81 (kg); KRAFT 7.5 / KRAFT 11 - 180; 200 (kg); KRAFT 15 / KRAFT 22- 240; 300 (kg)
Product type: Hammer mill

Description

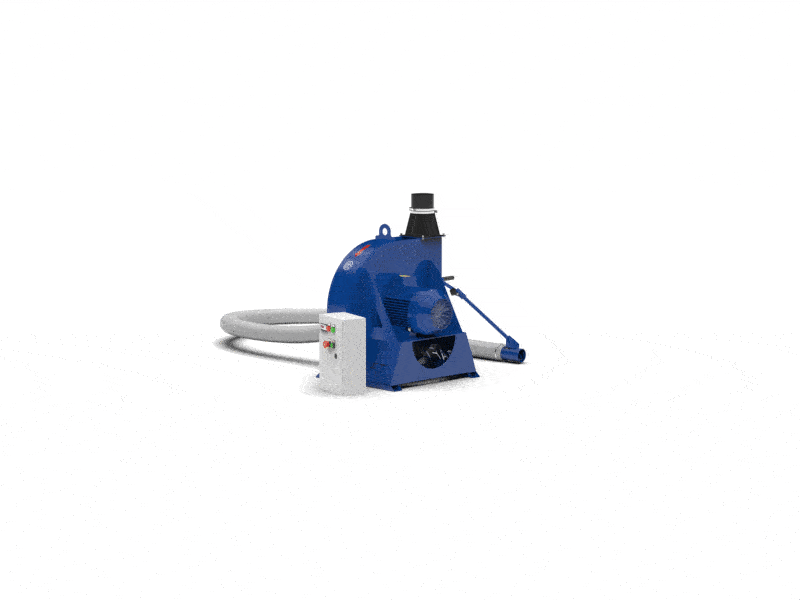

The KRAFT hammer mill/shredder is designed for grinding shavings into sawdust and grains into meal. The device sucks in raw materials

prepared for grinding or crushing, and then feeds it into a tank, cyclone or production unit.

The KRAFT hammer mill can be used as a separate device for home use or on small enterprises or farms as part of a pellet production line

or a line for the production of feed for pets and poultry.


KRAFT ensures uniform grinding of raw materials with low formation of fine dust fractions and has the ability to change the mesh to adjust

the degree of grinding. The device significantly reduces costs when working with cattle and poultry.


The drive part of the device is based on a reliable electric motor that provides the necessary power reserve. The hammer mill has a low

weight and small dimensions, so there are no problems with carrying and storing it.



Specification

Dimensions
Length
KRAFT 4 - 600.0 (mm); KRAFT 7.5 / KRAFT 11 - 800.0(mm); KRAFT 15, 22 - 900.0(mm)
Width
KRAFT 4 - 560.0(mm); KRAFT 7.5 / KRAFT 11 - 700.0(mm); KRAFT 15, 22 - 850.0(mm)
Height
KRAFT 4 - 770.0(mm); KRAFT 7.5 / KRAFT 11 - 1050.0(mm); KRAFT 15, 22 - 1050.0(mm)
Weight
KRAFT 4 - 81 (kg); KRAFT 7.5 / KRAFT 11 - 180; 200 (kg); KRAFT 15 / KRAFT 22- 240; 300 (kg)
Key features
Product type
Hammer mill
Usage
For grinding shavings, sawdust and grain
Type of drive
Electric
Production capacity
150.0(kg/h) | 300.0(kg/h) | 450.0(kg/h) - Shavings; 400.0(kg/h) | 700.0(kg/h) | 1000.0(kg/h) | 1500.0(kg/h) | 2000.0(kg/h) - Grain;
Engine power
4 (kW) | 7,5 (kW) | 11 (kW) | 15 (kW)| 22 (kW)
Voltage
400.0(V)
Rotation speed
3000 rpm
Additional features
Warranty
12 months
Dimensions
Length
KRAFT 4 - 600.0 (mm); KRAFT 7.5 / KRAFT 11 - 800.0(mm); KRAFT 15, 22 - 900.0(mm)
Width
KRAFT 4 - 560.0(mm); KRAFT 7.5 / KRAFT 11 - 700.0(mm); KRAFT 15, 22 - 850.0(mm)
Height
KRAFT 4 - 770.0(mm); KRAFT 7.5 / KRAFT 11 - 1050.0(mm); KRAFT 15, 22 - 1050.0(mm)
Weight
KRAFT 4 - 81 (kg); KRAFT 7.5 / KRAFT 11 - 180; 200 (kg); KRAFT 15 / KRAFT 22- 240; 300 (kg)
Key features
Product type
Hammer mill
Usage
For grinding shavings, sawdust and grain
Type of drive
Electric
Production capacity
150.0(kg/h) | 300.0(kg/h) | 450.0(kg/h) - Shavings; 400.0(kg/h) | 700.0(kg/h) | 1000.0(kg/h) | 1500.0(kg/h) | 2000.0(kg/h) - Grain;
Engine power
4 (kW) | 7,5 (kW) | 11 (kW) | 15 (kW)| 22 (kW)
Voltage
400.0(V)
Rotation speed
3000 rpm
Additional features
Warranty
12 months
