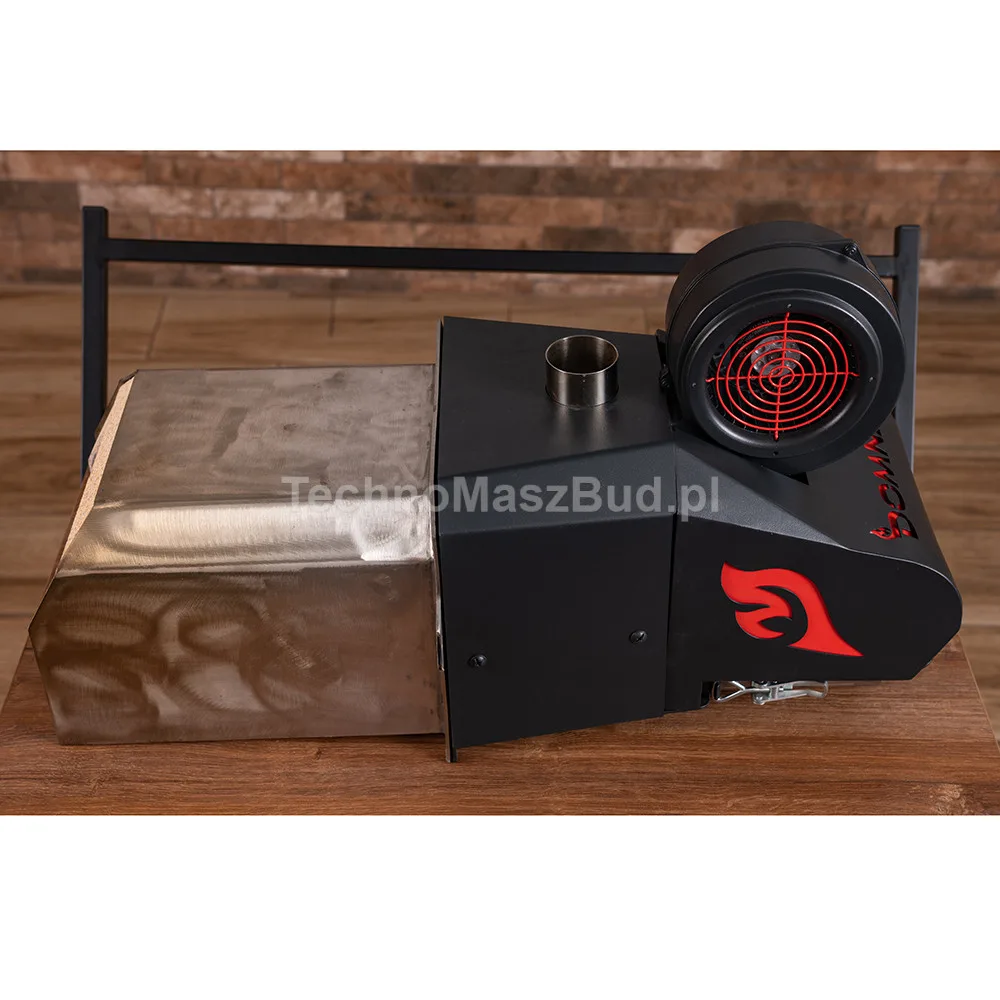

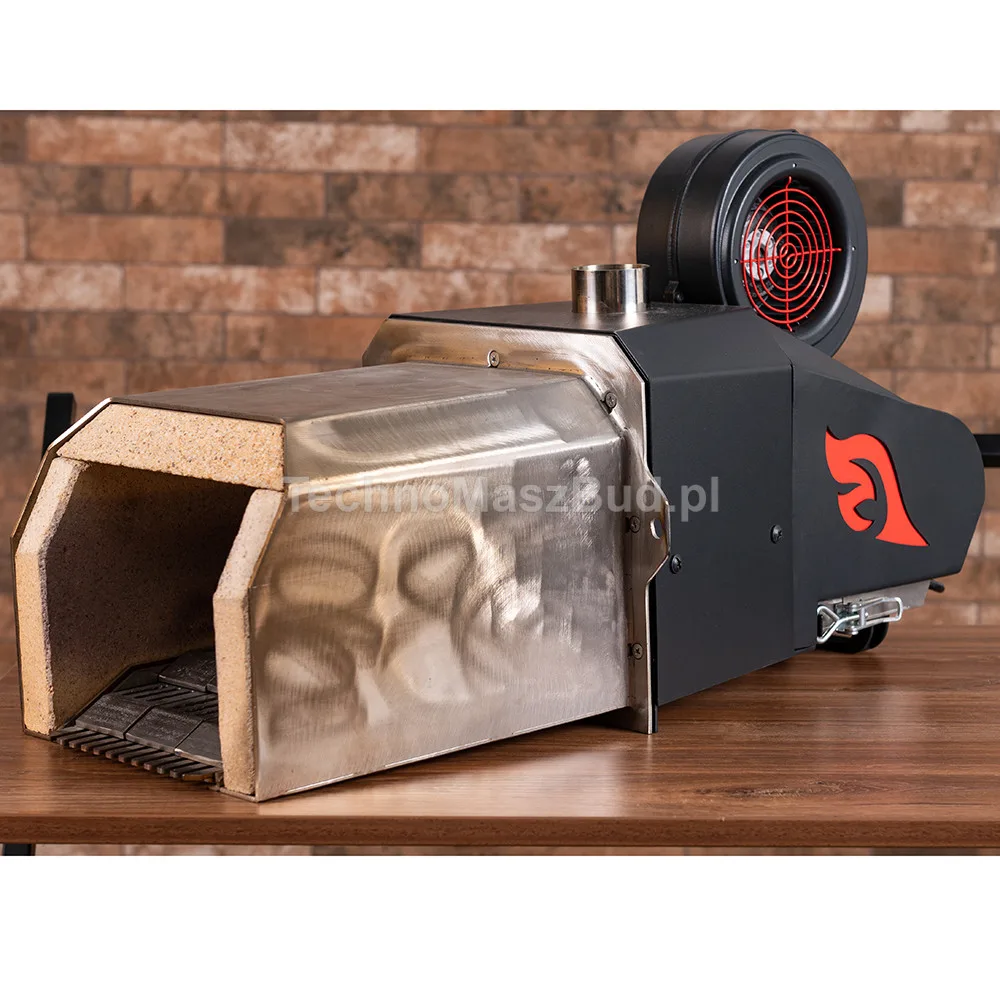

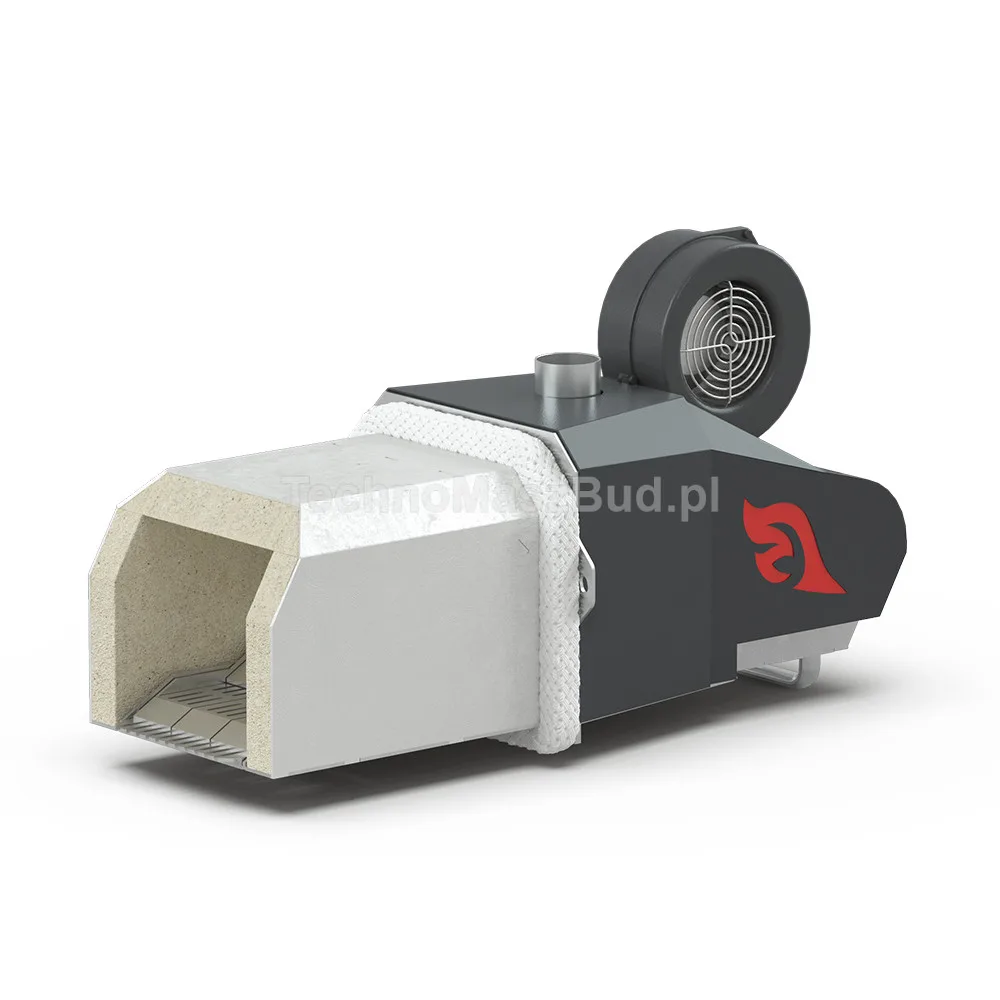

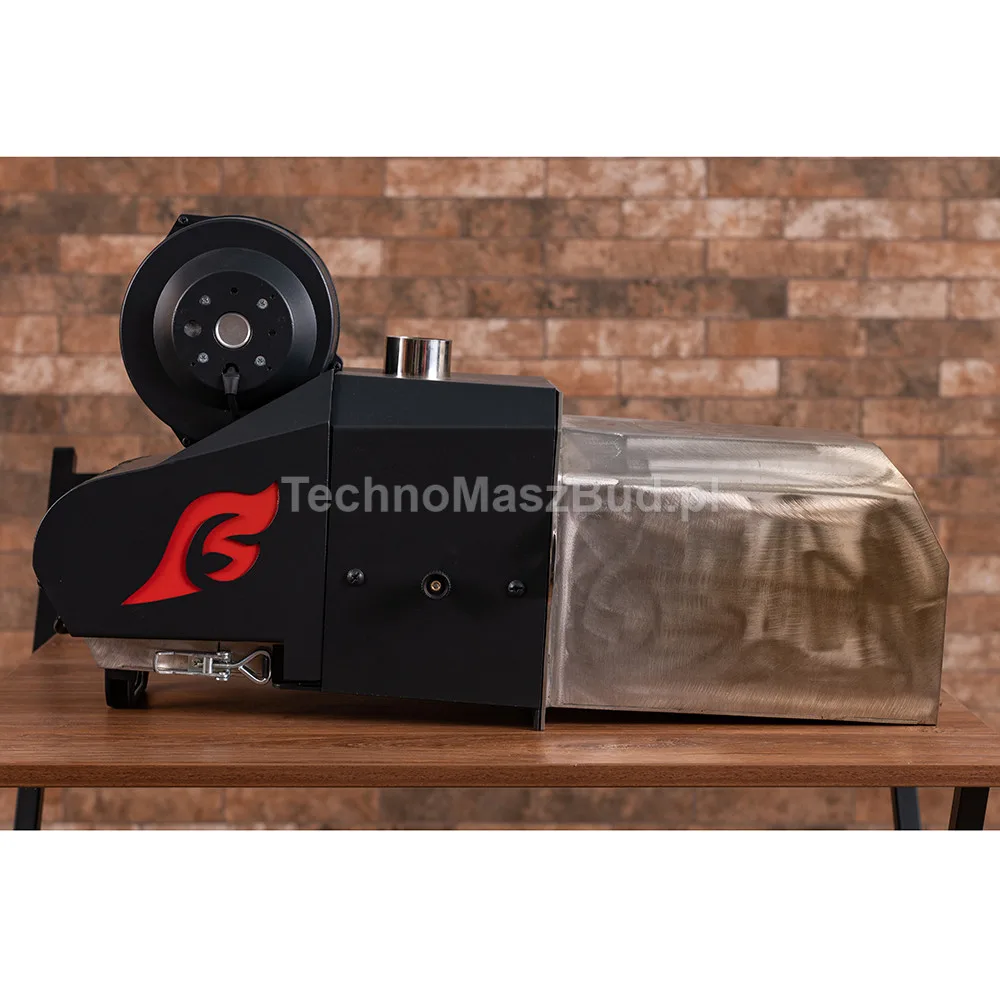

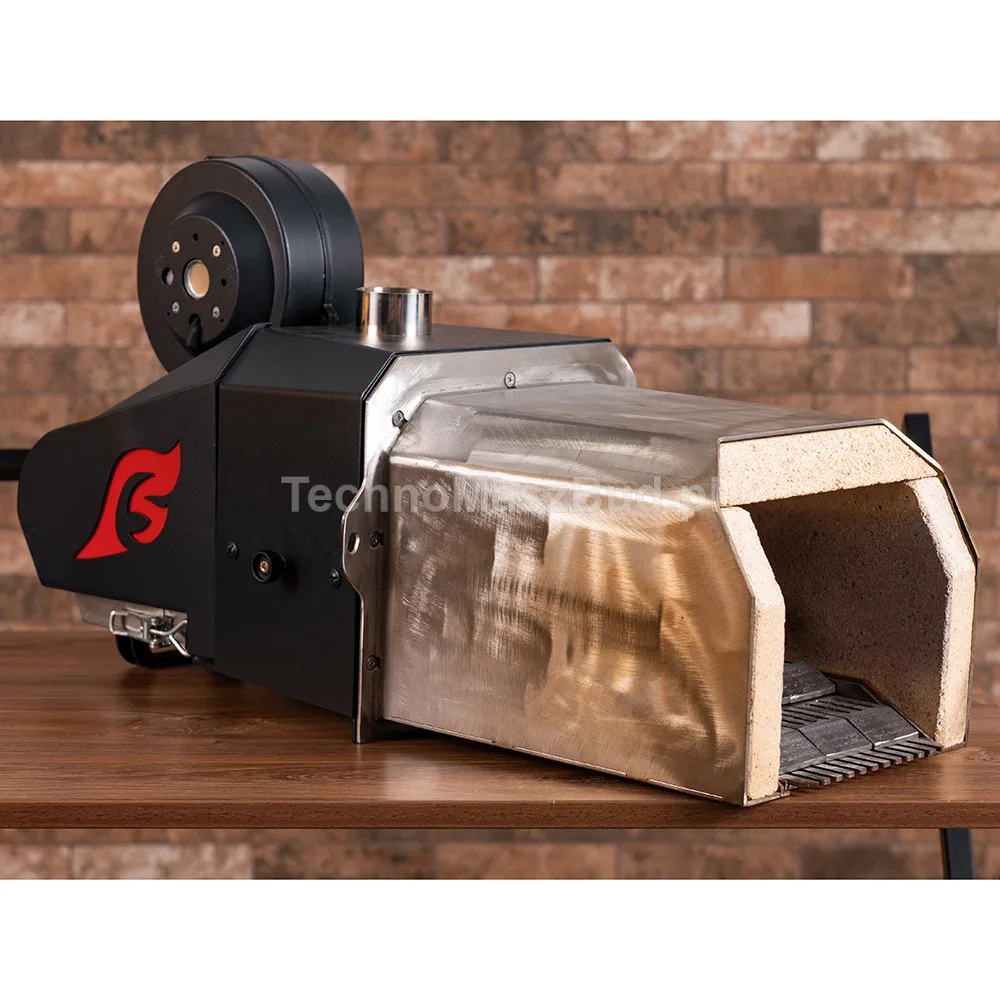

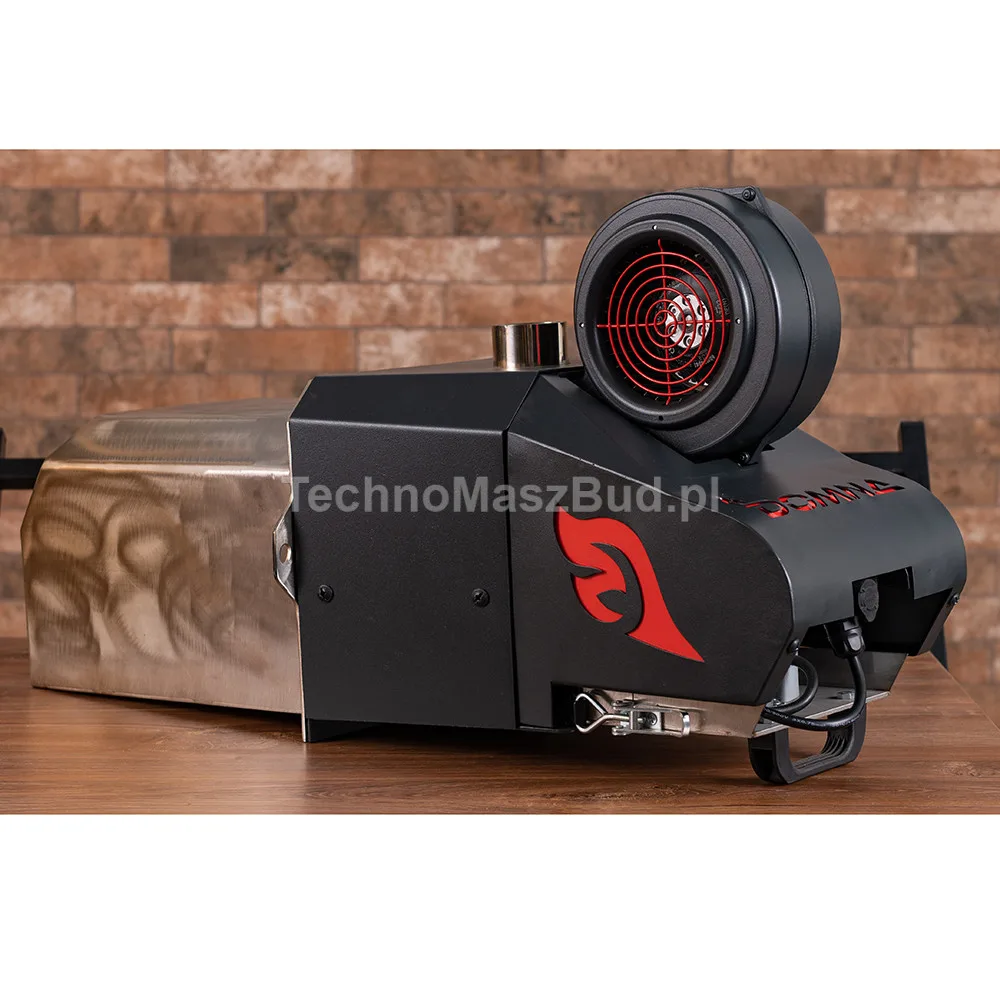

Pellet burner DOMNA ECO 80 kW

DOMNA ECO-80 Pellet Burner, created by the renowned manufacturer TechnoMaszBud, is an advanced solution that ensures efficient and convenient heating for you. With a power output of 80 kW, it is an ideal choice for both single-family homes and smaller commercial buildings. It features a number of innovative characteristics that significantly enhance its functionality and efficiency.

Operating Principle of the DOMNA Pellet Burner:

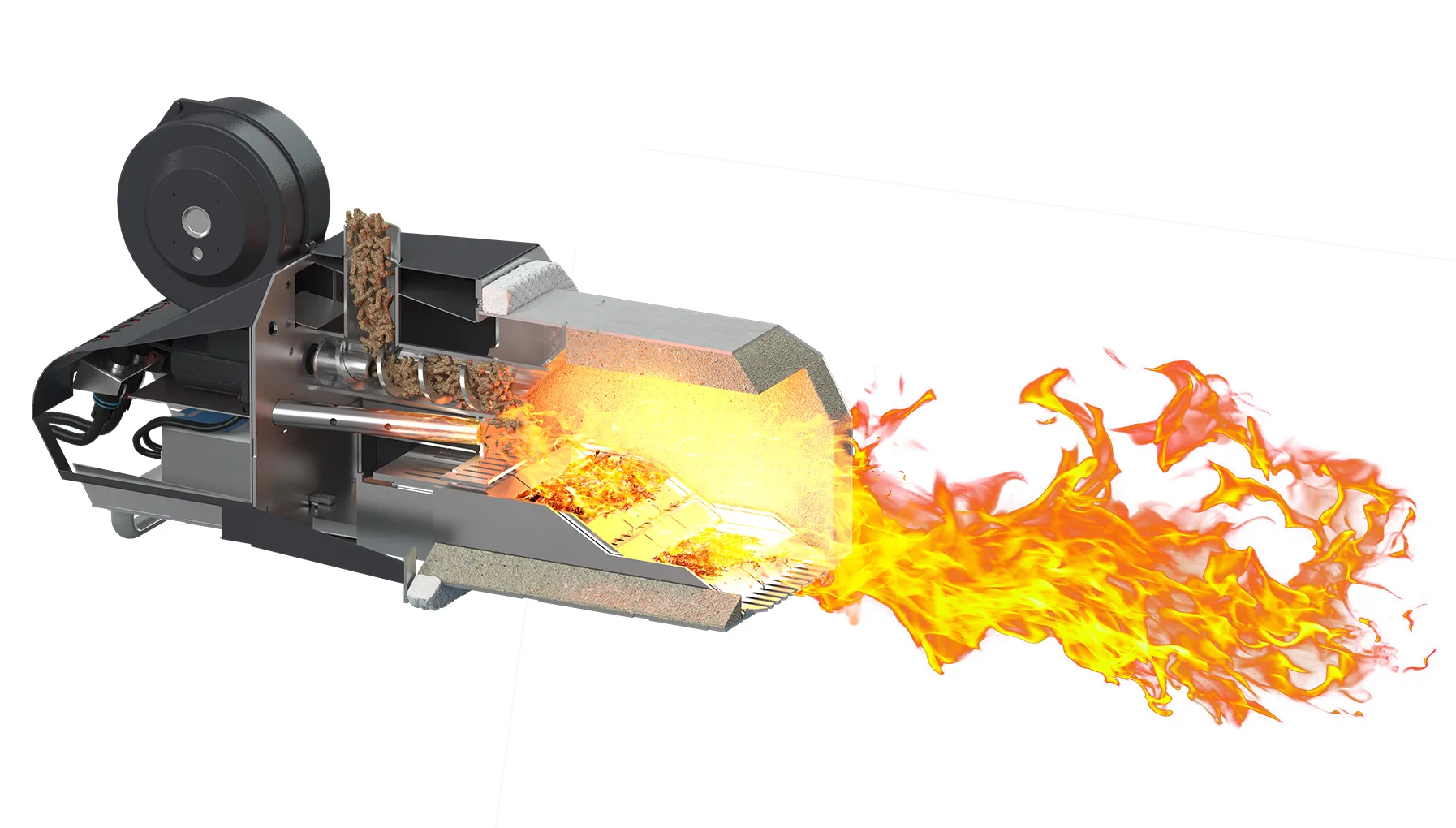

The fuel stored in the tank (not included) is delivered by a screw feeder to the burner, then to the grate system, where it ignites due to contact with ignition system elements. Air is directed by fans directly to the supplied fuel, causing the flame to ignite, which is then directed into the boiler's combustion chamber.

When the burner is mounted to a boiler, hot air from the burner passes further through the boiler's heat exchanger channels, heating up the water, which is the main heat carrier of the boiler. Air is supplied only in the necessary quantity for clean combustion, and its flow is controlled by an integrated controller.

The proper combustion process and fuel supply to the pellet burner are monitored by an electronic controller from the renowned company PLUM. It controls the boiler's operating cycle: regulates air supply to the burner; adjusts the fuel feed rate by the screw feeder; monitors water temperature and chimney flue gases; controls the operation of pumps and maintains the set temperature in the boiler.

Advantages of the Automatic Pellet Burner:

1. Automatic Ignition and Combustion Support System: The Domna-80 burner is equipped with an advanced automatic ignition system that ensures a quick and reliable start of the combustion process. Additionally, the combustion support system adjusts the fuel feed parameters, resulting in optimal energy use.

2. Precise Granulate Feeding Dosing: Thanks to the intelligent screw feeding mechanism, the burner provides precise fuel dosing. This allows for maintaining a steady and controlled amount of pellets, translating to uniform and effective combustion.

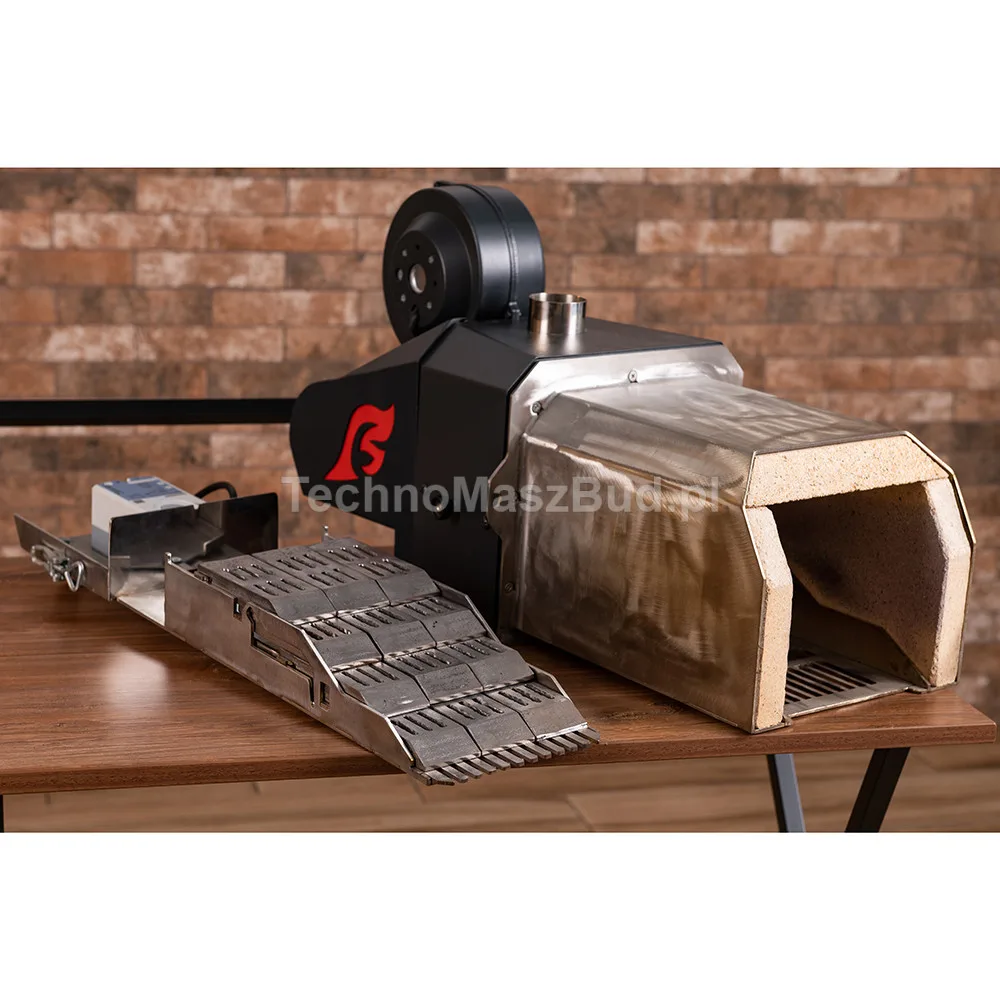

3. Ash Self-Cleaning System: The Domna-80 burner is equipped with an advanced ash self-cleaning system. This simplifies maintenance, significantly reducing the need for regular cleaning, ensuring user convenience.

4. Unattended Operation Monitoring: The burner includes a built-in system for monitoring the boiler's operating modes. This gives assurance that the entire heating process is controlled and automatically adjusted, minimizing the need for user intervention.

5. Fuel Variety: The burner's ability to operate on different types of pellets, including those of low quality or with high ash content, offers greater flexibility in fuel choice, which leads to savings and fuel availability on the local market.

6. User-Friendly Interface: The burner features an intuitive and user-friendly interface. This makes managing work parameters and monitoring the boiler's status exceptionally easy and accessible to everyone.

7. Optical Fire Control: The option for optical fire control not only offers an aesthetic experience but also enables observing the combustion process and responding to any irregularities.

8. Daily and Weekly Thermostat: The burner includes a thermostat, allowing for setting the operating program based on daily or weekly movement. This enables adjusting heating to your daily or weekly needs.

9. Fuel Consumption and Controller Operation Log: The log function allows monitoring pellet consumption and the controller's operation. This provides full control over burner operation and enables tracking its performance efficiency.

10. Pellet Feed Nozzle Temperature Control Sensors: Built-in sensors for controlling the temperature of the pellet feed nozzle ensure the burner’s stability and precision, maintaining optimal combustion conditions.

11. Multitasking: The Domna-80 burner is designed to perform multiple functions simultaneously. This allows it to be utilized in various heating scenarios, ensuring reliability and efficiency in each.

The DOMNA ECO-80 pellet burner from TechnoMaszBud is not only a heat source but also a manifestation of advanced technology and innovative solutions. Its automatic functions and friendly interface make managing the heating process exceptionally simple, with energy efficiency and savings at the highest level. Regardless of the type of pellet you use, the Domna-80 burner will provide reliable and efficient heating in all conditions.

The DOMNA ECO-80 pellet burner has a maximum power of 85 kW and is intended for heating residential, agricultural, storage and industrial buildings, greenhouses, production facilities as well as for operating bakery ovens, steam generators, etc.

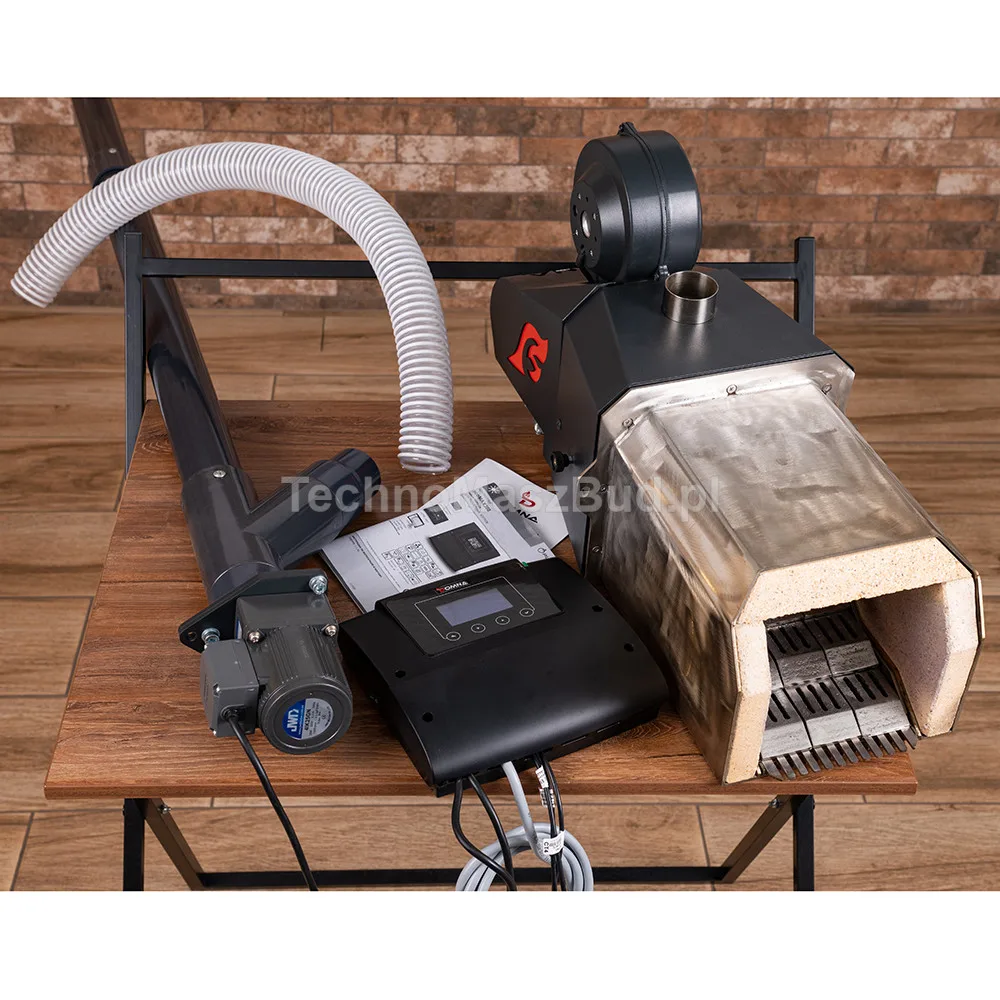

Set Includes:

• Domna ECO burner with appropriate power
• Controller with sensor set
• Feeding screw Ø63 x 1700 mm
• Pipe Ø50 x 1000 mm
• Rotary safety valve (optional)
• User manual

* Without feeder screw and controller
** Depends on the boiler and heating system
