11 kW
-
Granulator RTH-260
In Stock
Available Options
- Product Code: RTH-260
Main characteristics
All specifications
Length:
900.0(mm)
Width:
600.0(mm)
Height:
850.0(mm)
Weight:
175.0(kg)
Product type:
Granulator / Pellet Mill
Description

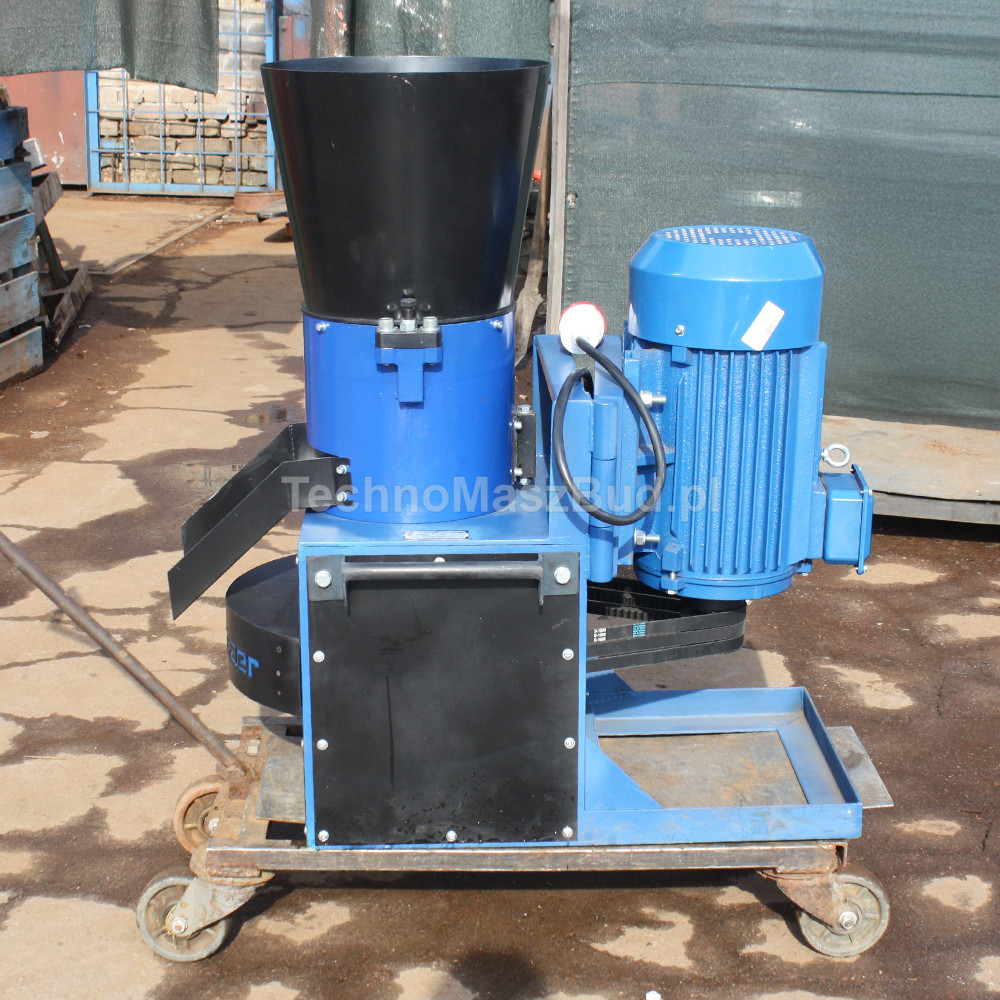

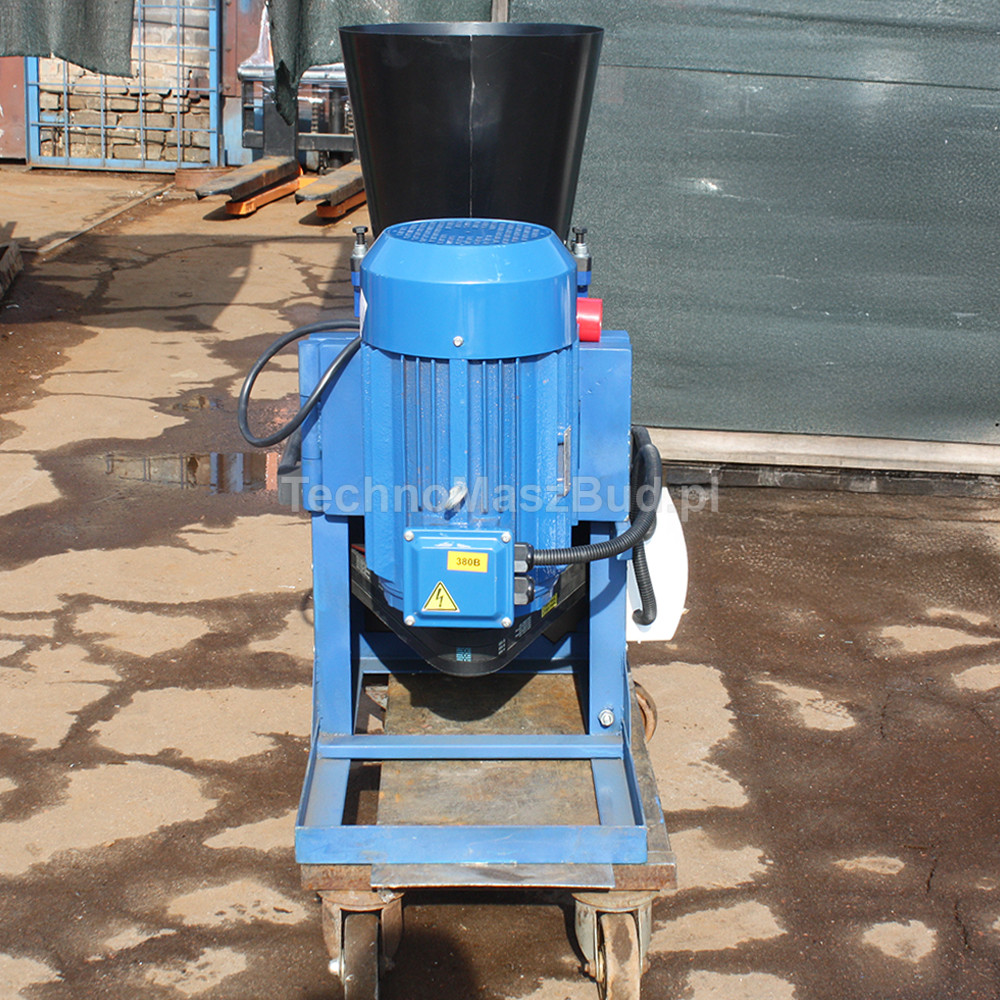

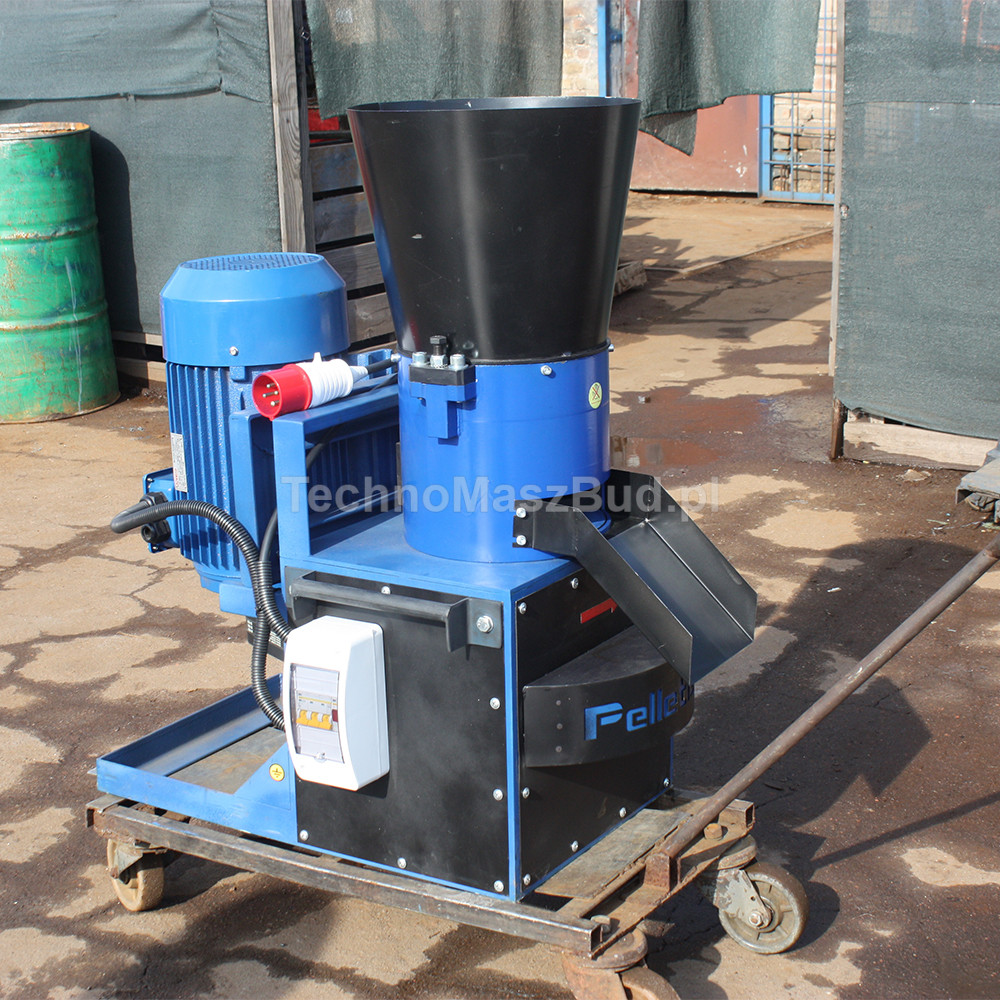

We would like to present you a brand new RTH-260 granulator for the production of granulated feed mixture, powered by an 11 kW
engine.
Advantages of the RTH-260 feed and pellet granulator:
- Relatively small dimensions: the machine does not need a lot of storage space.
- The RTH-260 granulator model stands out among competitors with its high productivity. The capacity is 300 kg per hour.
- A replaceable matrix can be purchased additionally to the set. This allows you to produce pellets of different diameters for the needs of
different animals.
- Also, the RTH-260 granulator can be purchased with a screw feeder for smooth feeding of raw material. Thanks to this, the work becomes
almost completely automated and more effective (the feeder allows you to increase efficiency).
The RTH-260 granulator processes and granulates:
- sawdust of coniferous species of wood;
- straw, hay, seed husk;
- grain, grain waste, fodder, meal.
Entrepreneurs and farmers care most about:
- reducing expenses on the most necessary products in agriculture - granulated, extruded feed and fuel pellets;
- increasing work efficiency in an enterprise or farm;
- starting their own production focused on granules and pellets, which are becoming more and more popular.
We recommend a 2 in 1 machine that will produce fuel pellets for home heating and granulated feed of the highest quality for animals, fish
and birds in the household and agriculture.
Parameters:
Diameter of transverse holes in the matrix: from 2 to 8 mm (optional)
Application: For the production of granulated feed and pellets
Drive type: Electric
Capacity: up to 300.0 (kg / g) - feed / up to 150.0 (kg / g) - pellets
Engine power: 11 (kW)
Voltage: 380V
Rotation speed: 250 revolutions / min
Matrix diameter: 259 (mm)
Specification
Dimensions
Length
900.0(mm)
Width
600.0(mm)
Height
850.0(mm)
Weight
175.0(kg)
Key features
Product type
Granulator / Pellet Mill
The diameter of radial holes in the die
from 2 to 8 mm (optional)
Usage
For production of granular nutriment and pellets
Type of drive
Electric
Production capacity
up to 300.0(kg/h) - feed / up to 150.0(kg/h) - pellets
Engine power
11(kW)
Voltage
400(V)
Rotation speed
1500 rpm

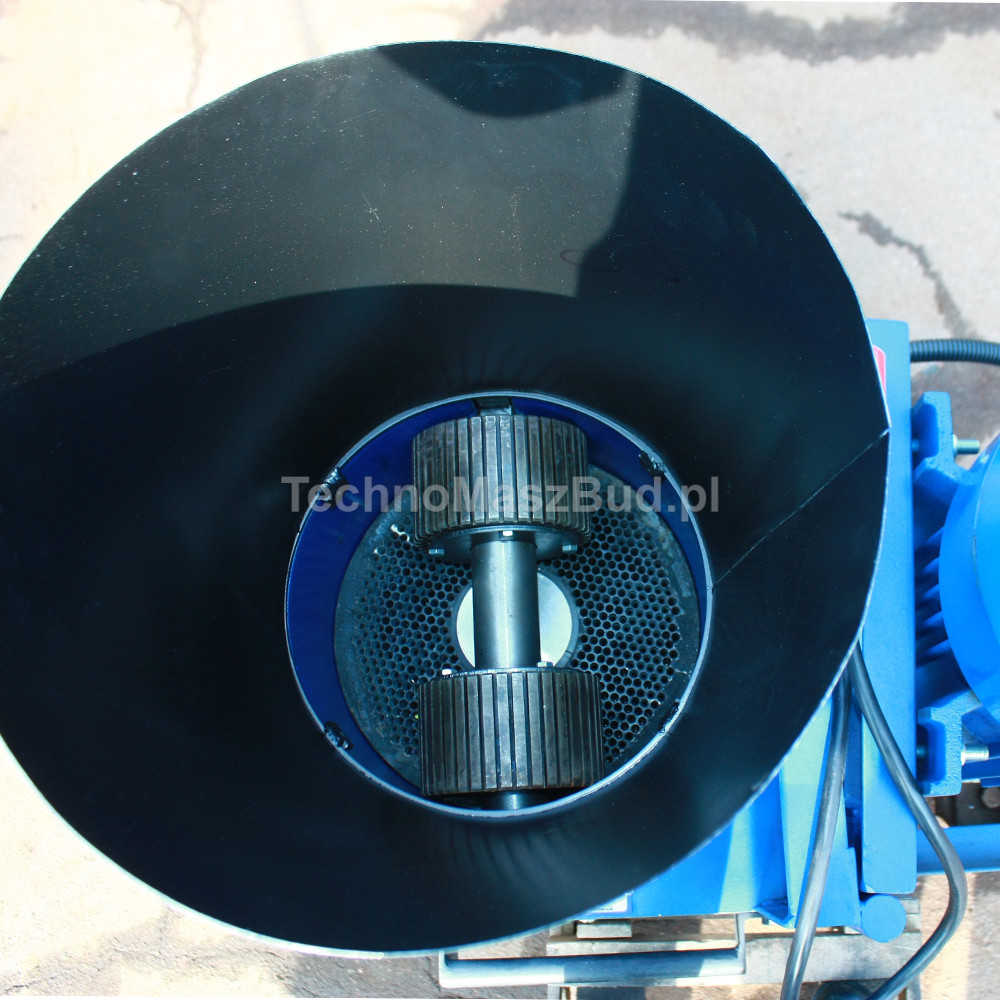

The diameter of the die
259(mm)
The number of knives
1 pc
Additional features
The number of rolls
2 pcs
Extended bunker
Yes
Warranty
12 months
Dimensions
Length
900.0(mm)
Width
600.0(mm)
Height
850.0(mm)
Weight
175.0(kg)
Key features
Product type
Granulator / Pellet Mill
The diameter of radial holes in the die
from 2 to 8 mm (optional)
Usage
For production of granular nutriment and pellets
Type of drive
Electric
Production capacity
up to 300.0(kg/h) - feed / up to 150.0(kg/h) - pellets
Engine power
11(kW)
Voltage
400(V)
Rotation speed
1500 rpm
The diameter of the die
259(mm)
The number of knives
1 pc
Additional features
The number of rolls
2 pcs
Extended bunker
Yes
Warranty
12 months
Tags: Granulators, Pellet mills, RTH,
