Shredder / Crusher RD-150

RD-150 Chopper / Hammer Mill – Compact and Efficient Solution for Feedstock Preparation

The RD-150 is a versatile device designed for chopping grass, hay, straw, and crushing grain. Combining the functionality of two machines, it serves as an indispensable tool for farmers, agritourism farms, and small-scale livestock operations.

This device is ideal for the initial preparation of raw materials for feed pelletizing. The shredded material can be used as a component of a balanced feed mix for poultry, pigs, cattle, and other livestock.

Main Advantages of RD-150:

• Compact dimensions, allowing operation in confined workspaces
• Economical energy consumption and high efficiency
• Operable by a single person
• Quick fraction change thanks to interchangeable screens
• Two functions in one device: straw chopping and grain crushing
• 12-month manufacturer's warranty

Operating Instructions:

Place the RD-150 on a stable and level surface. Before starting, install a screen with the appropriate mesh size (standard is 20 mm) and prepare a container for the processed material. The device can be connected to a 230 V or 400 V power supply. The first startup should be conducted without loading any material.

Feed the raw material through the appropriate hopper. Gently push the material using a wooden block—do not use hands. The operator's tasks are limited to loading hay or grain and periodically replacing the container.

Technical Specifications:

• Electric motor: 2.2 kW, 3000 rpm, 230 V or 400 V power supply
• Performance:
  • Grain: up to 150 kg/h
  • Hay: up to 100 kg/h

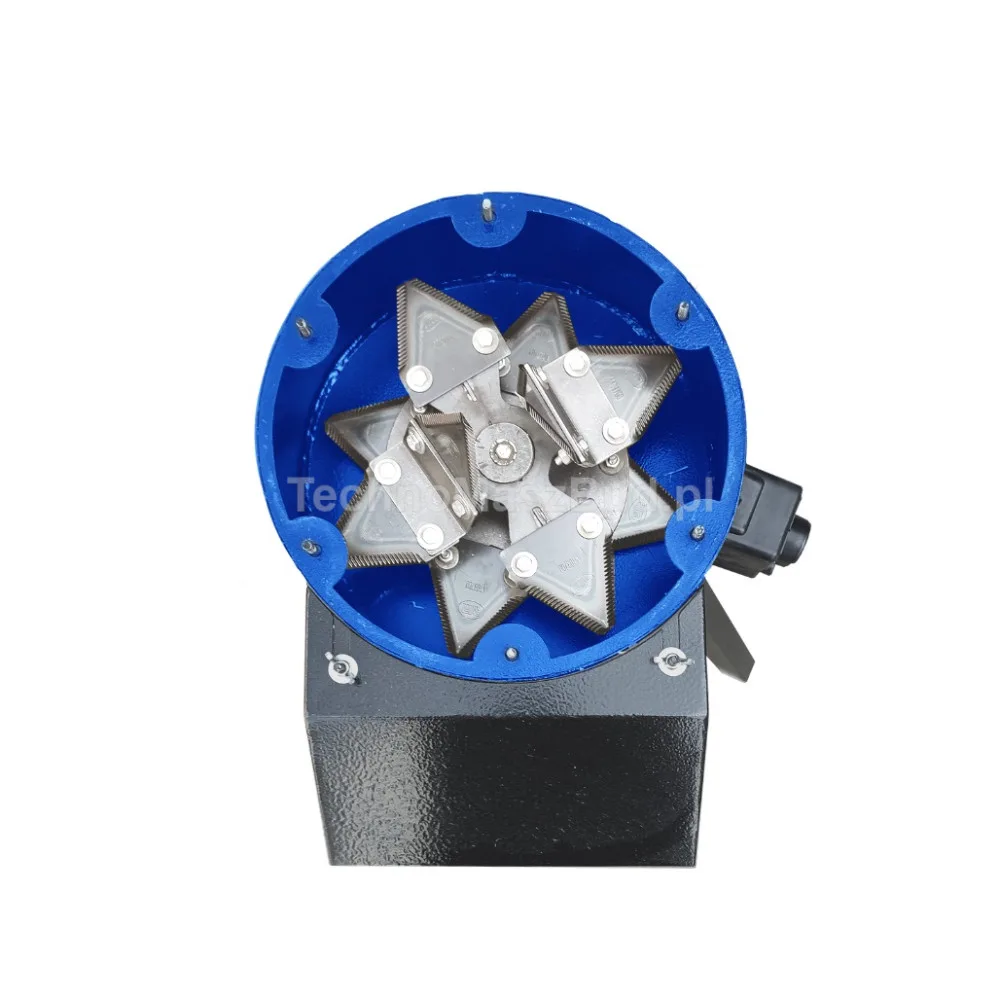

• Blades: Hardened steel (Austria)
• Dimensions: 100 × 35 × 35 cm
• Weight: 35 kg

Standard Equipment:

• Two hoppers: separate ones for hay and grain
• One 20 mm screen
• Set of additional screens: 3 mm, 5 mm, and 8 mm
