Seed treater ZNS-160
  • 0,75 kW
  • Seed treater ZNS-160

Seed treater ZNS-160

In Stock

In Stock 13,222.50
10,750.00zł

Incl Tax: 13,222.50zł


  • Product Code: ZNS-160

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Total length: 2175 mm
Overall Width: 870 mm
Overall Height: 1350 mm
Weight: 100 kg
Product type: Zaprawiarka do nasion ślimakowa

Description

The ZNS-160 screw-type seed treater is an effective and reliable solution for pre-sowing seed treatment, designed to increase yields and protect seeds from diseases and pests. The machine stands out for its high-quality technical parameters, simplicity of operation, and ease of maintenance, making it an ideal choice for farmers aiming to achieve maximum results from their crops.

Advantages of the ZNS-160 Seed Treater:

  1. High Efficiency: Thanks to its reliable design and well-planned mechanism, the seed treater delivers excellent performance in seed treatment, saving both time and effort.
  2. Precision and Stability in Dosing: The peristaltic dosing pump NП-02 ensures precise and even application of the working solution, guaranteeing optimal results for each treatment.
  3. Ease of Use: The machine features a simple and convenient design that is easy to master. Seeds can be loaded manually or using additional tools, and discharged into bags.
  4. Flexible Settings: The seed treater is equipped with a system for smooth regulation of the working fluid supply, allowing precise adjustment of the treatment process depending on the type of seeds and the working solution.

Technical Specifications:

  • Peristaltic dosing pump NП-02 for working with multi-component solutions.
  • Efficient and reliable design.
  • Smooth regulation of the working fluid supply.
  • Simple operation and maintenance.

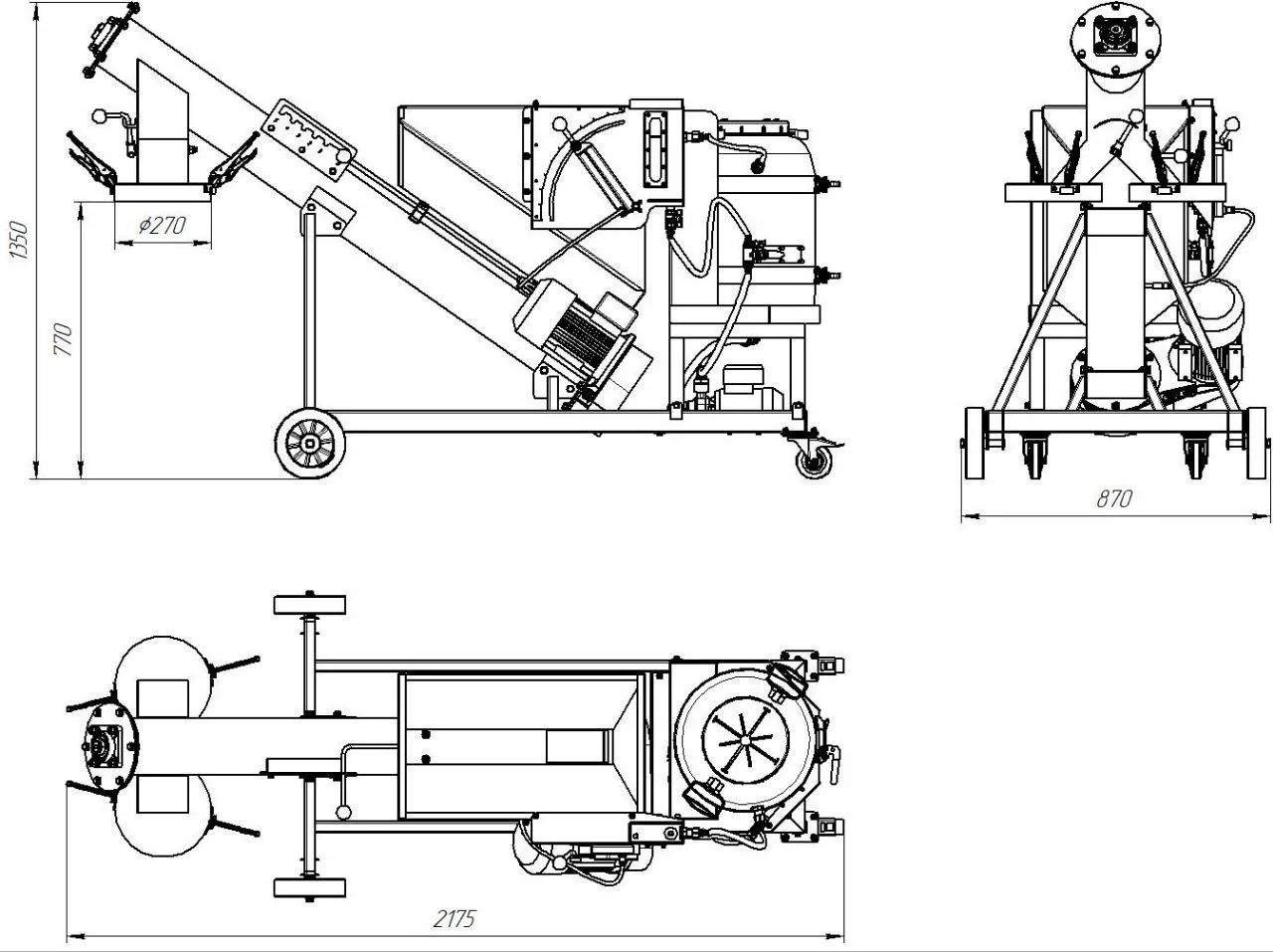

Technical Drawing:

Technical Drawing of ZNS-160

Application:

The ZNS-160 seed treater is designed for the treatment of cereal seeds, such as wheat, using aqueous solutions or pesticide suspensions. Thanks to its precise dosing and even distribution of the treatment, the treater ensures high-quality and resilient future yields.

Purchasing the ZNS-160 seed treater is a cost-effective investment in your crops and future yields, ensuring maximum results and efficiency in seed treatment.

Specification

Dimensions
Total length
2175 mm
Overall Width
870 mm
Overall Height
1350 mm
Weight
100 kg
Key features
Product type
Zaprawiarka do nasion ślimakowa
Usage
do obróbki nasion roślin zbożowych, takich jak pszenica, za pomocą wodnych roztworów lub zawiesin pestycydów
Production capacity
1-3 t/h
Engine power
0.75 kW
Voltage
230 V / 400 V
Additional features
Hopper capacity
50 l
The range of solution dispensing
0,1 - 3,3 l./min.
Warranty
12 months
Dimensions
Total length
2175 mm
Overall Width
870 mm
Overall Height
1350 mm
Weight
100 kg
Key features
Product type
Zaprawiarka do nasion ślimakowa
Usage
do obróbki nasion roślin zbożowych, takich jak pszenica, za pomocą wodnych roztworów lub zawiesin pestycydów
Production capacity
1-3 t/h
Engine power
0.75 kW
Voltage
230 V / 400 V
Additional features
Hopper capacity
50 l
The range of solution dispensing
0,1 - 3,3 l./min.
Warranty
12 months
