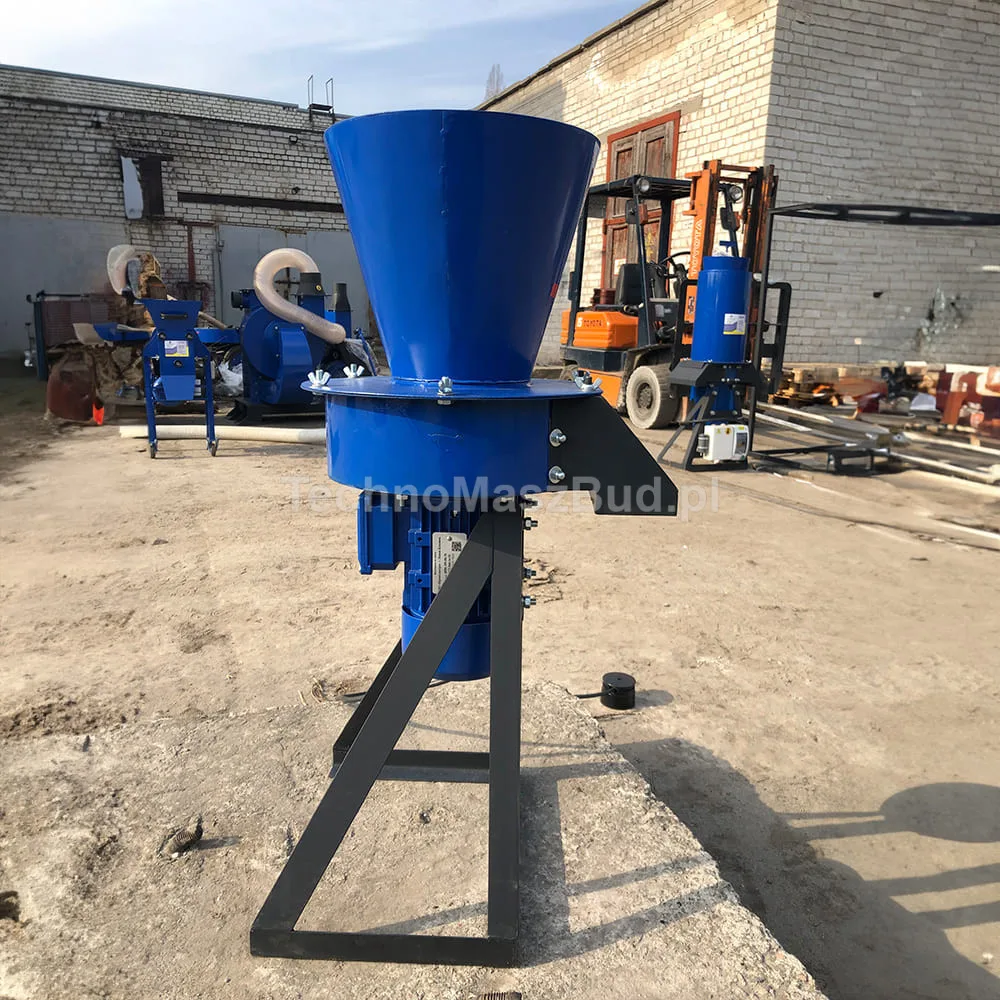

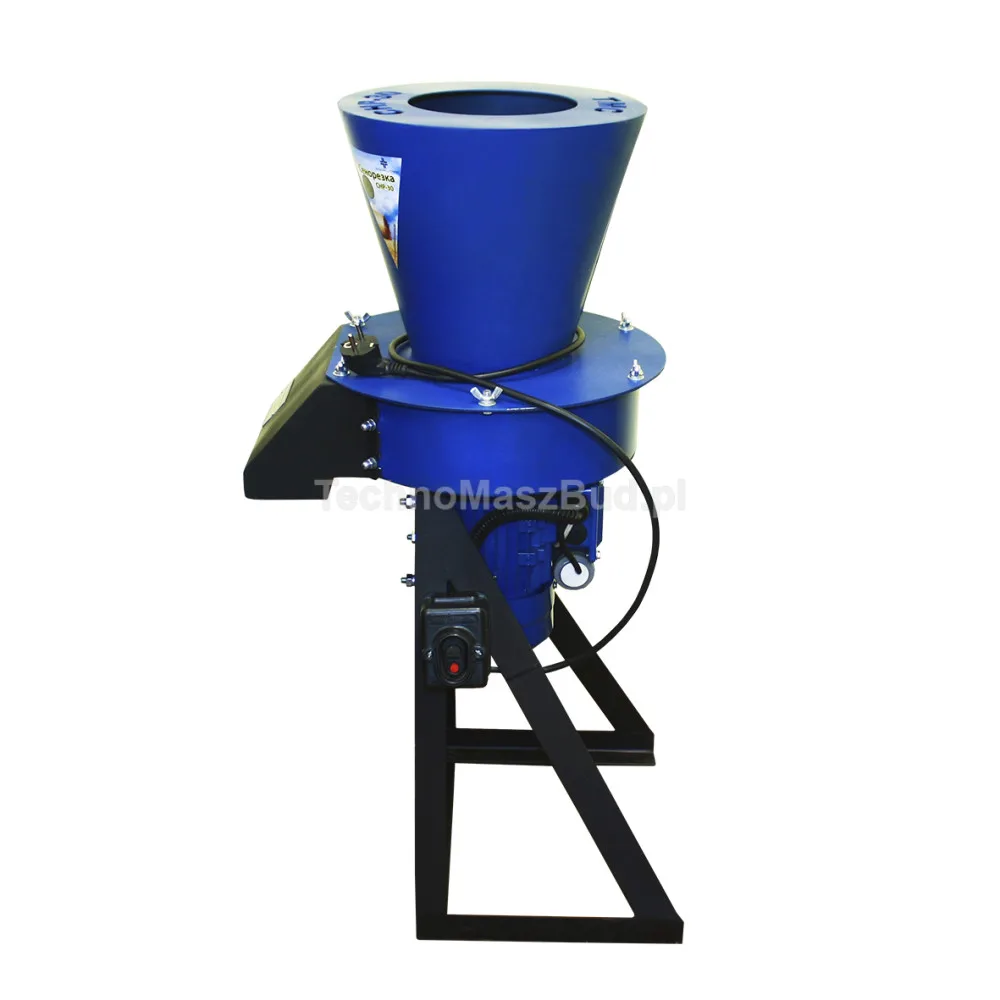

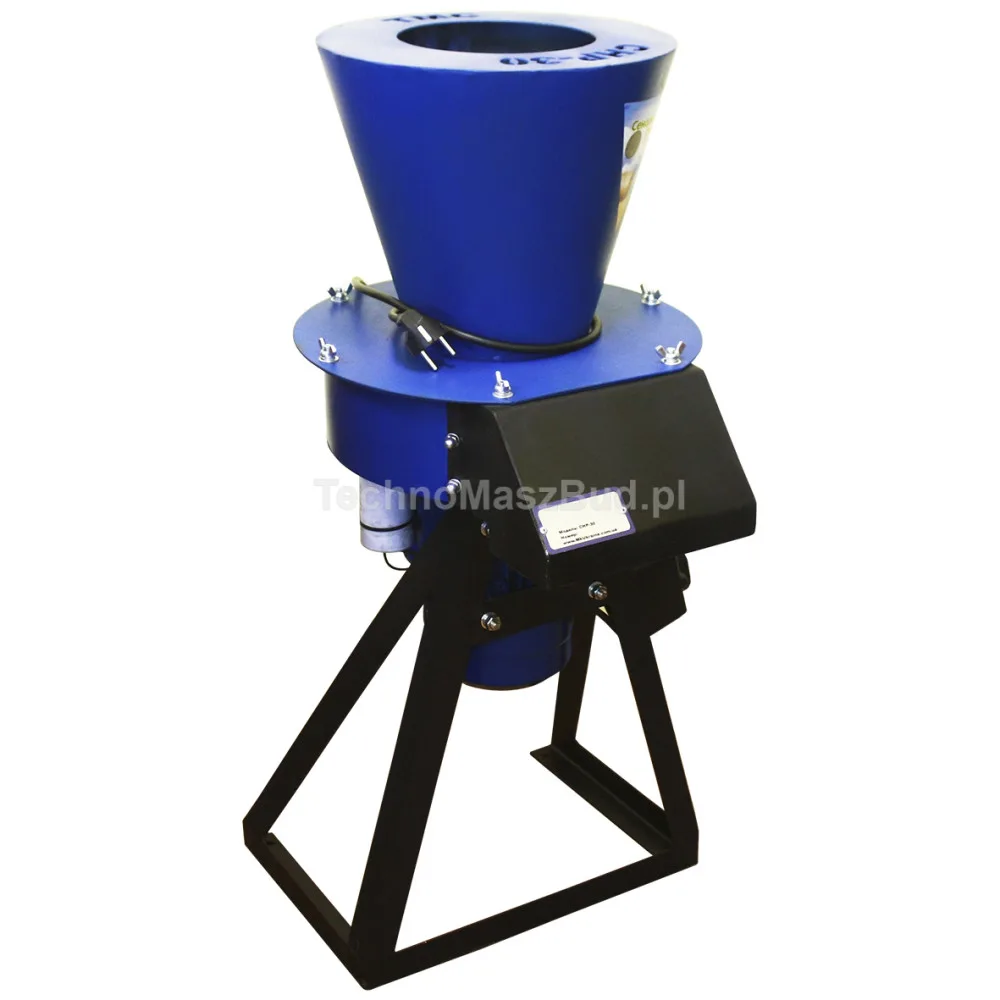

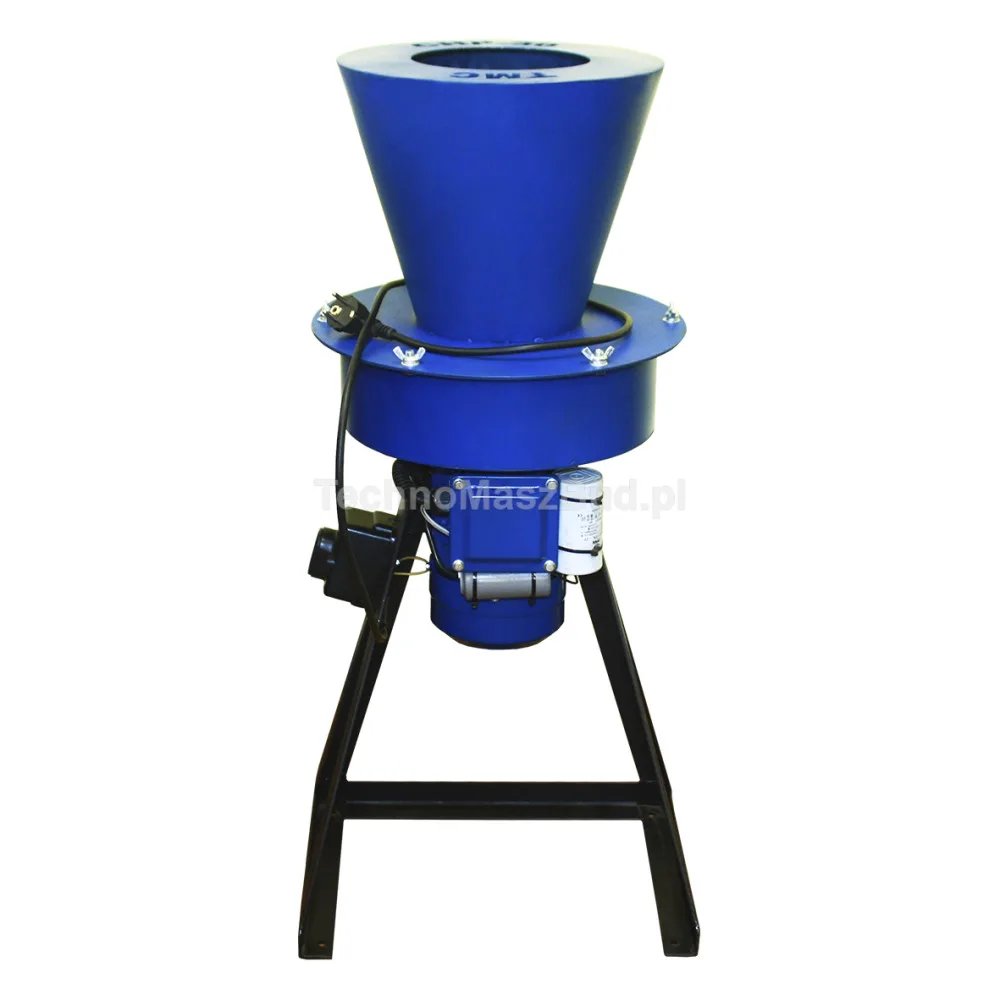

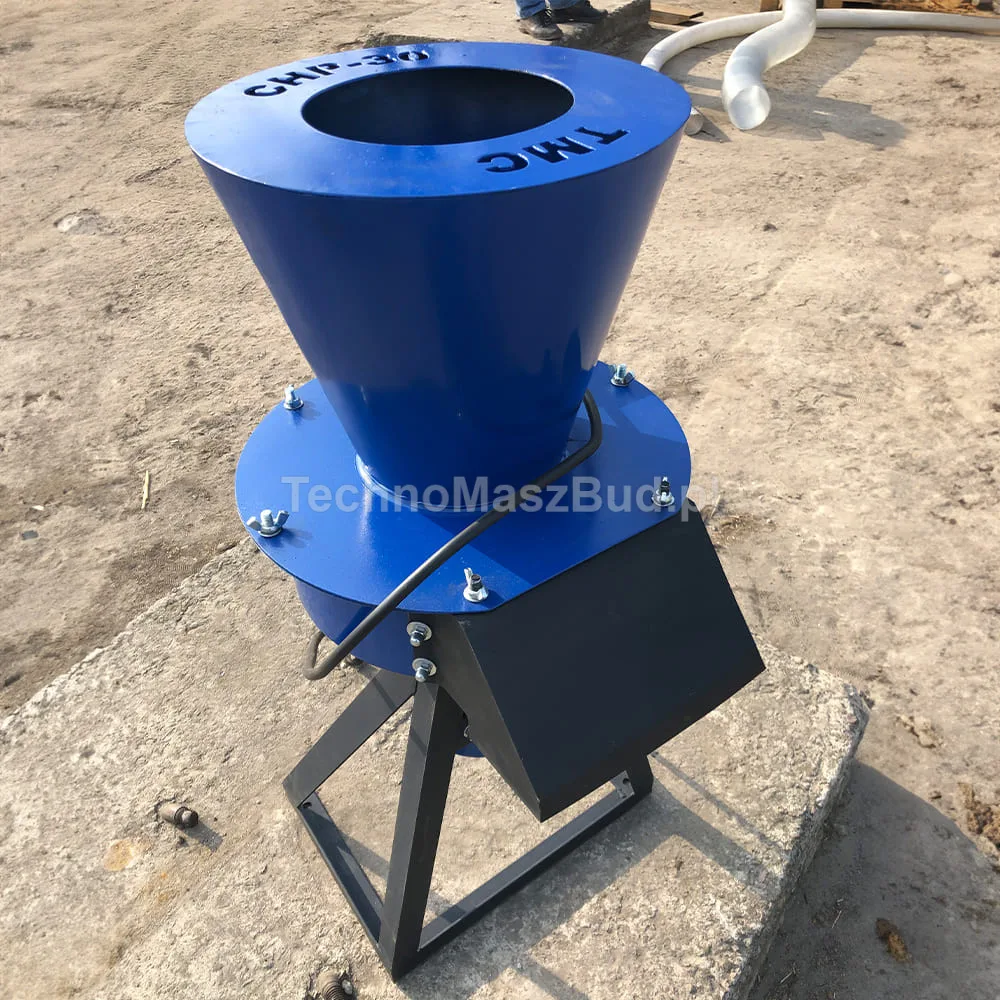

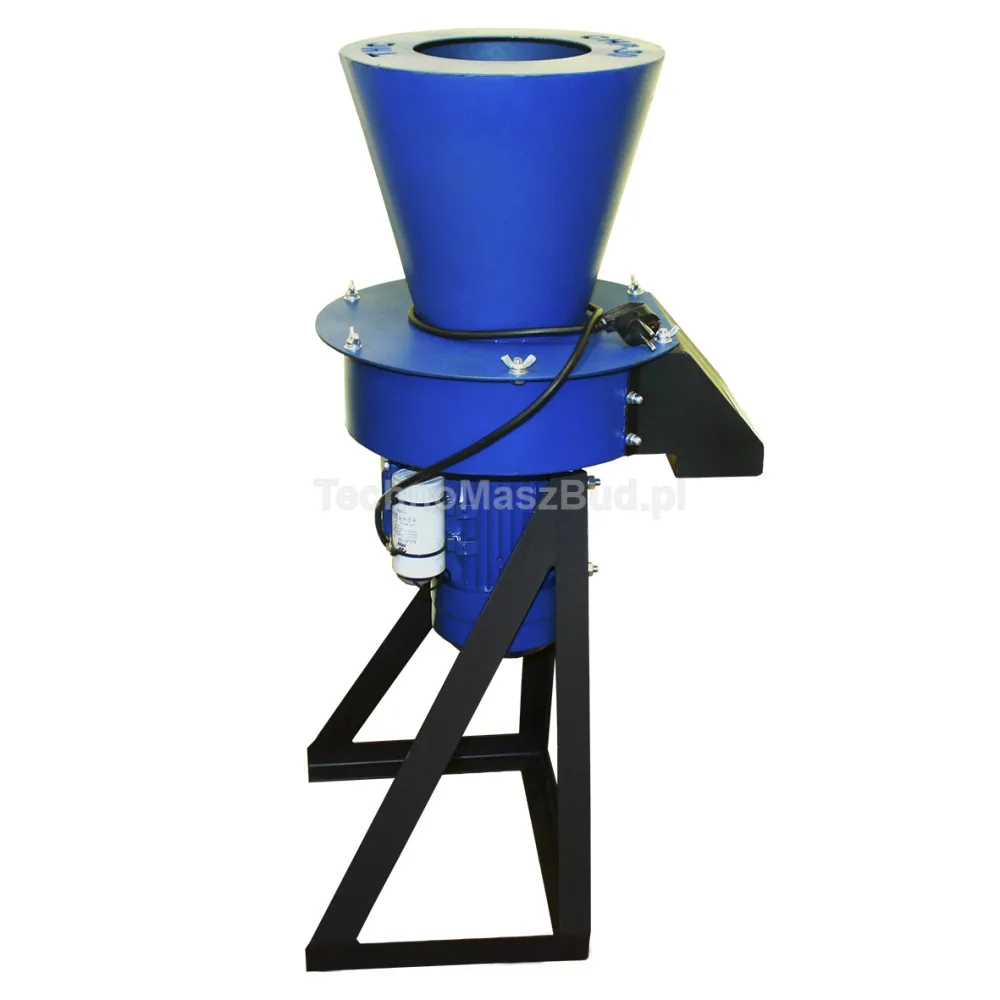

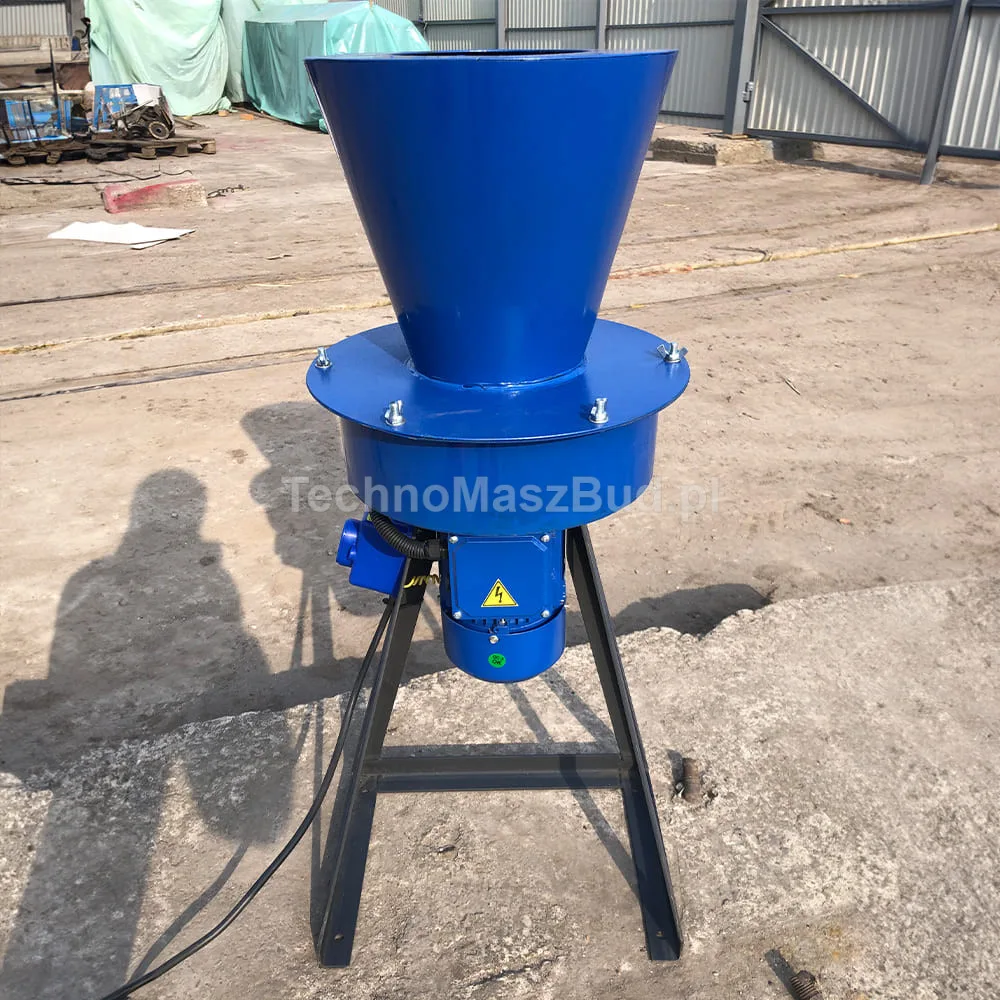

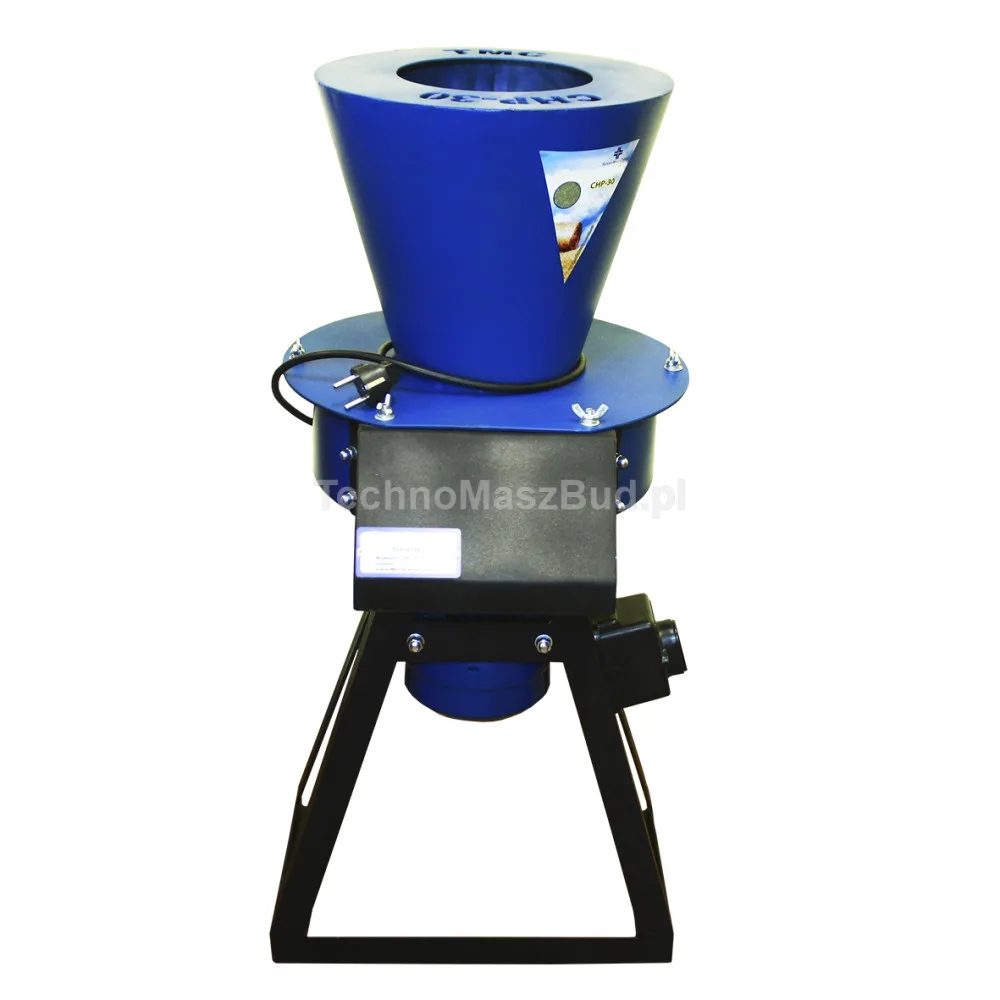

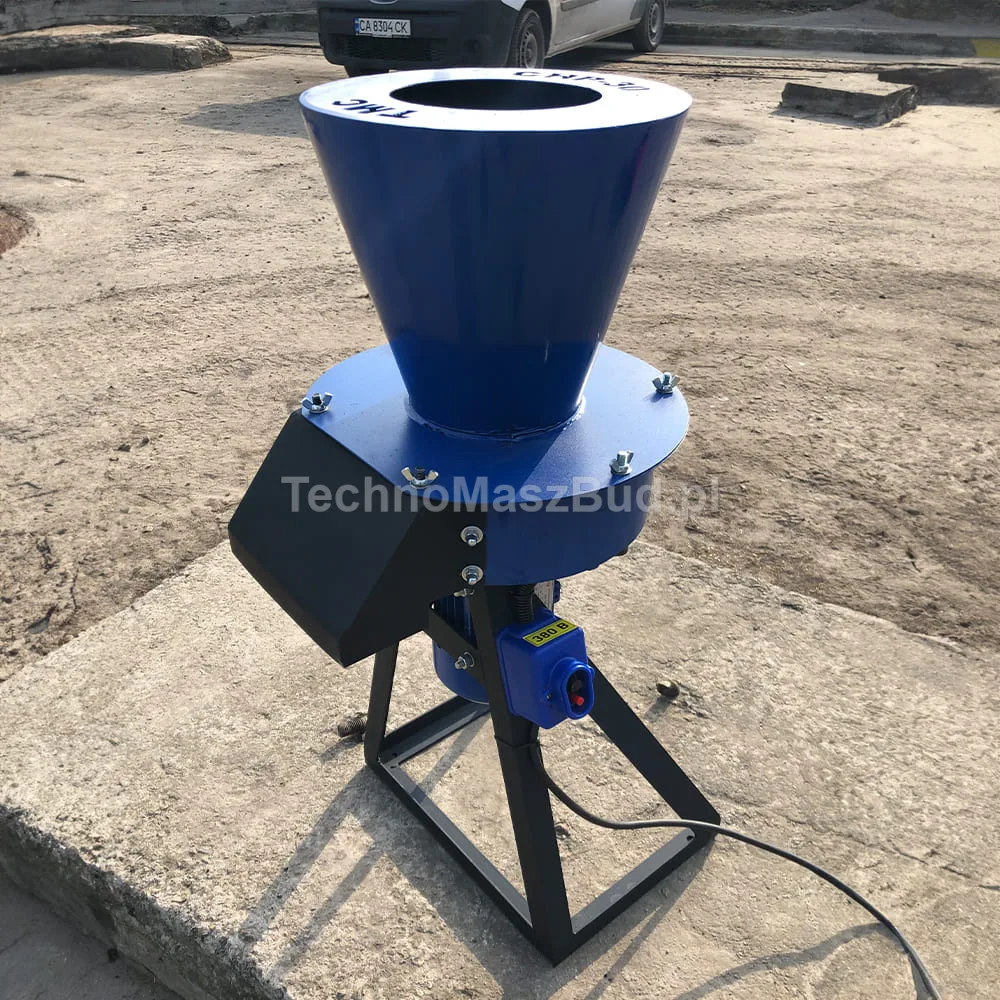

Straw, hay shredder / chopper RDS-30

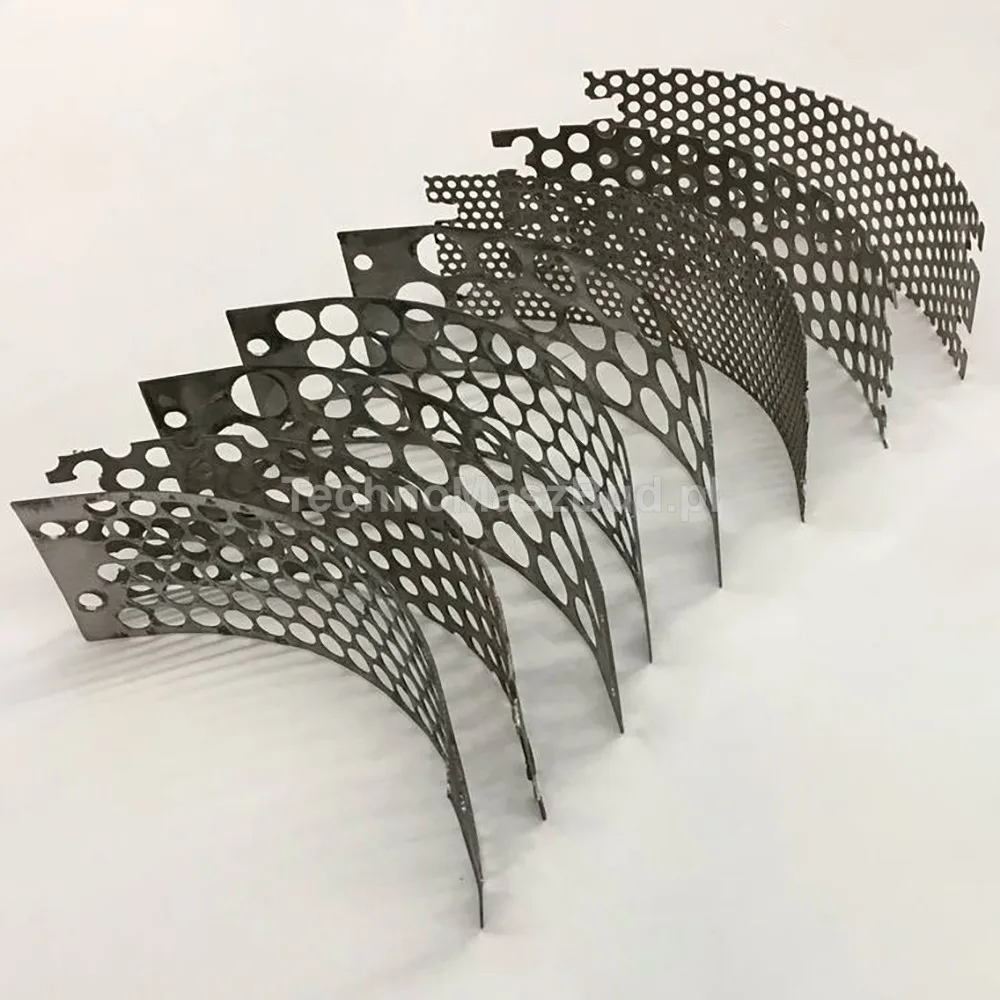

The RDS-30 straw shredder is designed for shredding straw, hay, herbs for pets, and dry leaves. Due to its low electric motor power and ease of connection to a three-phase electrical network, the shredder is used both for private use and in small farms. The standard fraction of the shredded material is about 5 mm. A characteristic feature of the RDS-30 straw shredder is the possibility of selecting a mesh with different holes (from 5-20 mm), which allows obtaining the appropriate fraction of shredded straw and hay. The ground material can be used as an additive to feed, as well as for the production of feed, pellets, or briquettes. The moisture content of the material should not exceed 20%, as high moisture content causes the material to accumulate in the shredding area, which leads to partial engine overload or complete engine shutdown.

The shredder's output is about 30-50 kg per hour. Ground hay and straw are suitable for granulation. For granulation of hay, straw, and dry feed, one of the feed granulators is suitable: KGM-100, GMK-150, GMK-200, GMK-260.  jeden z granulatorów paszowych: KGM-100, GMK-150, GMK-200, GMK-260.

RDS-30 is not suitable for processing hemp!!

Video: RDS-30 Straw Shredder:

Order of operation of the RDS-30 straw shredder:

• if the shredder is used stationary, it should be mounted on a hard, flat surface and provide adequate ventilation.

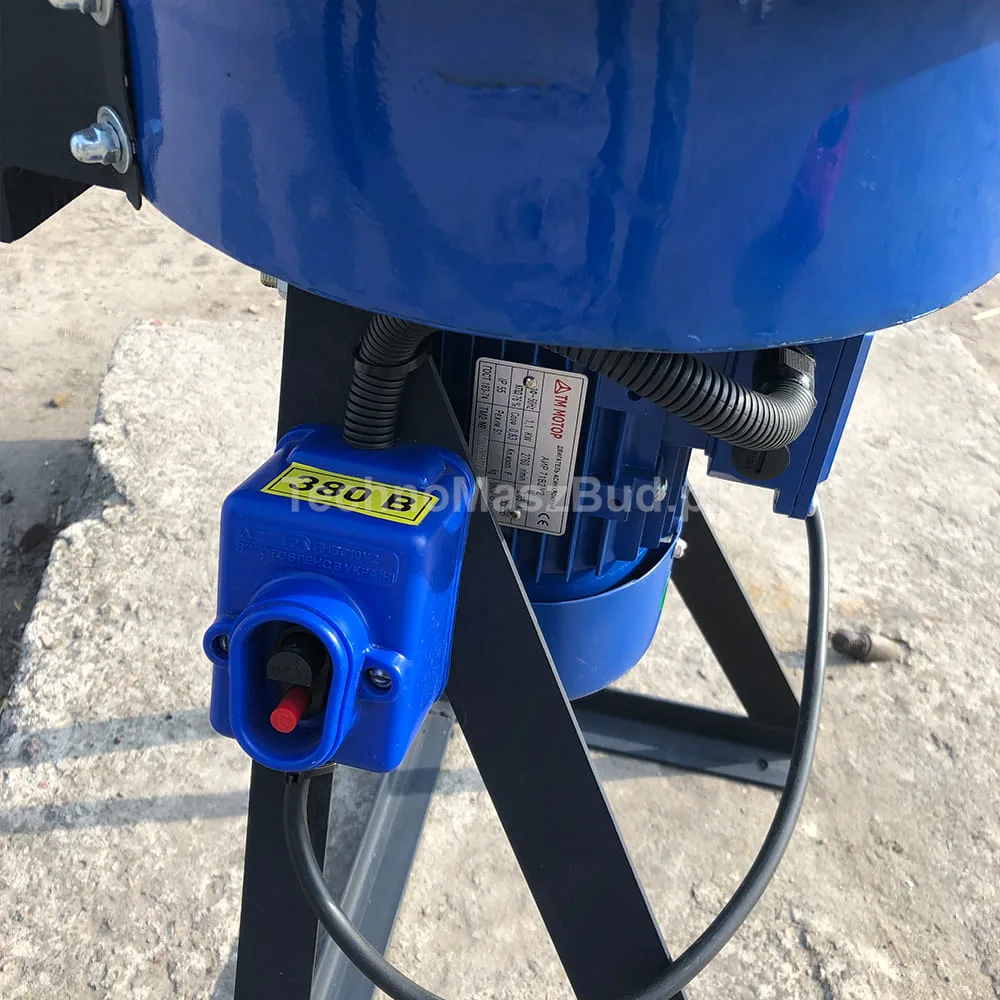

• the shredder must be connected to a 220/380 V power supply, depending on the capability and choice.
• start the motor at idle and check the direction of the rotor rotation. It should match the arrow sign on the protective cover - if the direction is opposite, change the electrical connection of the cables.
• place a bag or other container for the finished material.
• feed the straw/hay through the top opening. Push the material, e.g., with a wooden beam. Never put hands into the opening!

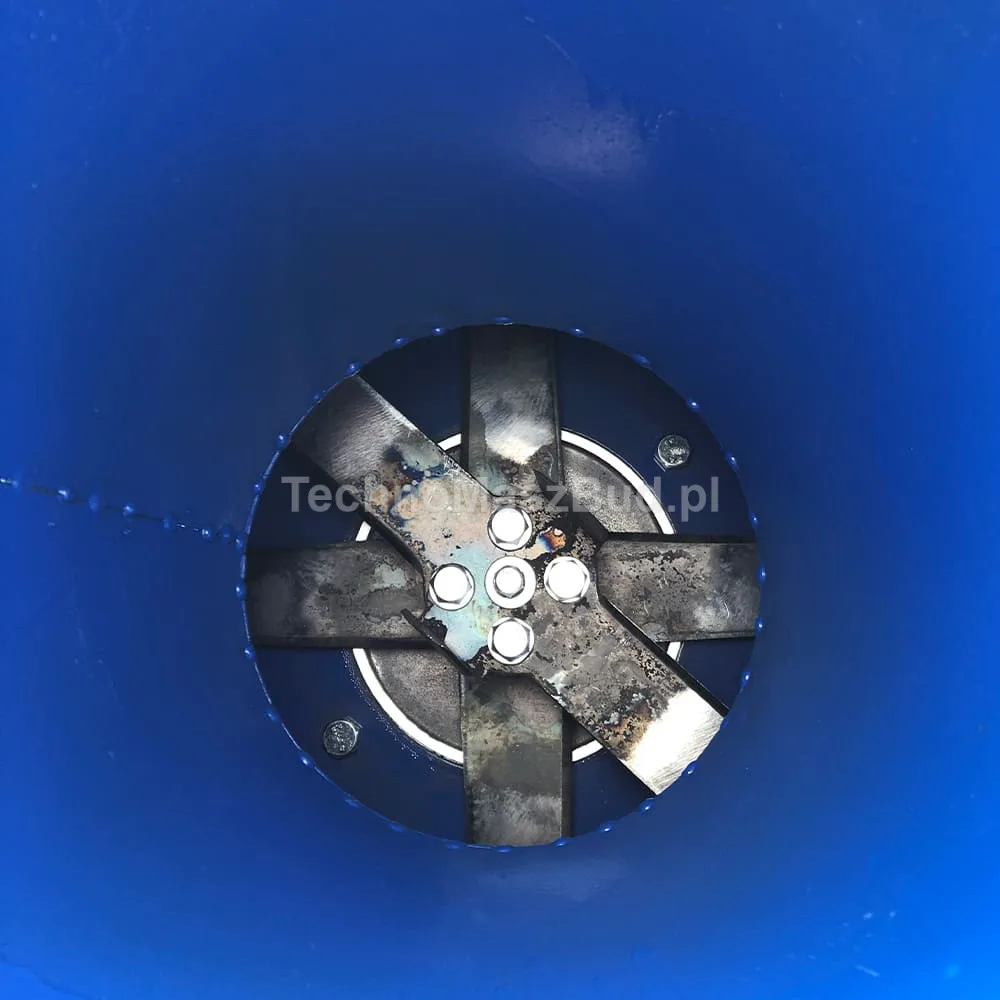

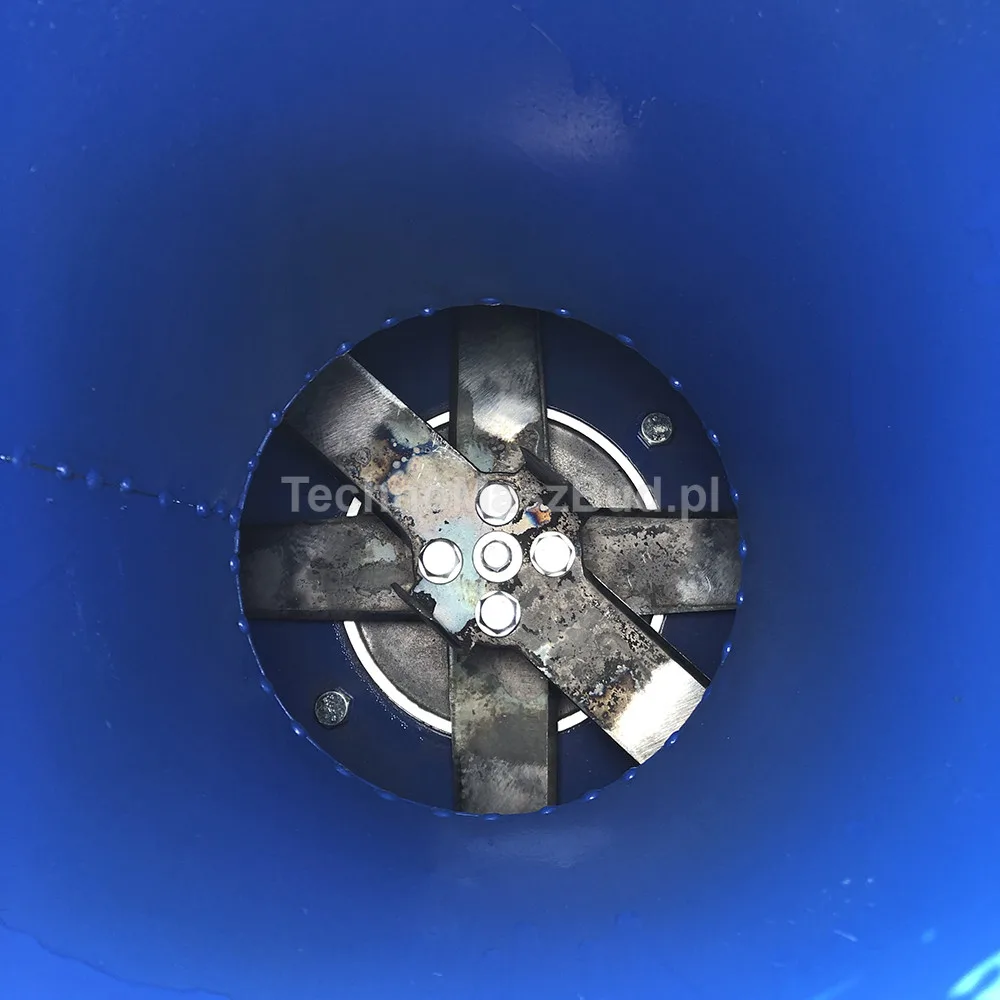

• the knife rotation speed is 3000 rpm and ensures effective shredding of the material to the specified fraction.
• after use, thoroughly clean the shredder of hay and straw residues.
