Aerodynamic Sawdust Dryer SA-400 PRO

Aerodynamic Sawdust Dryer SA-400 PRO

In Stock
Rating:

In Stock 118,793.40
96,580.00zł

Incl Tax: 118,793.40zł


  • Product Code: SA-400-PRO

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Length: 960.0(cm)
Width: 306.0(cm)
Height: 360.0(cm)
Weight: 900.0(kg)
Diameter of the connecting pipeline: 210 mm

Description

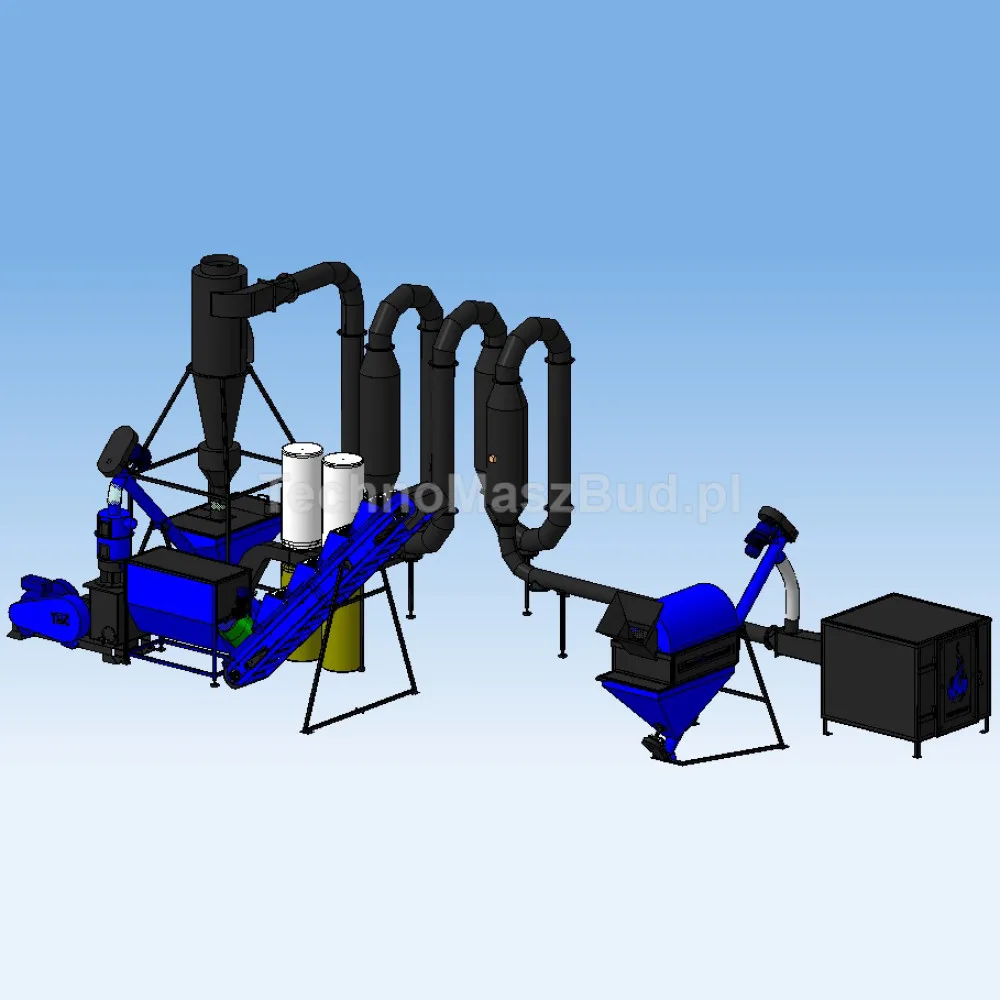

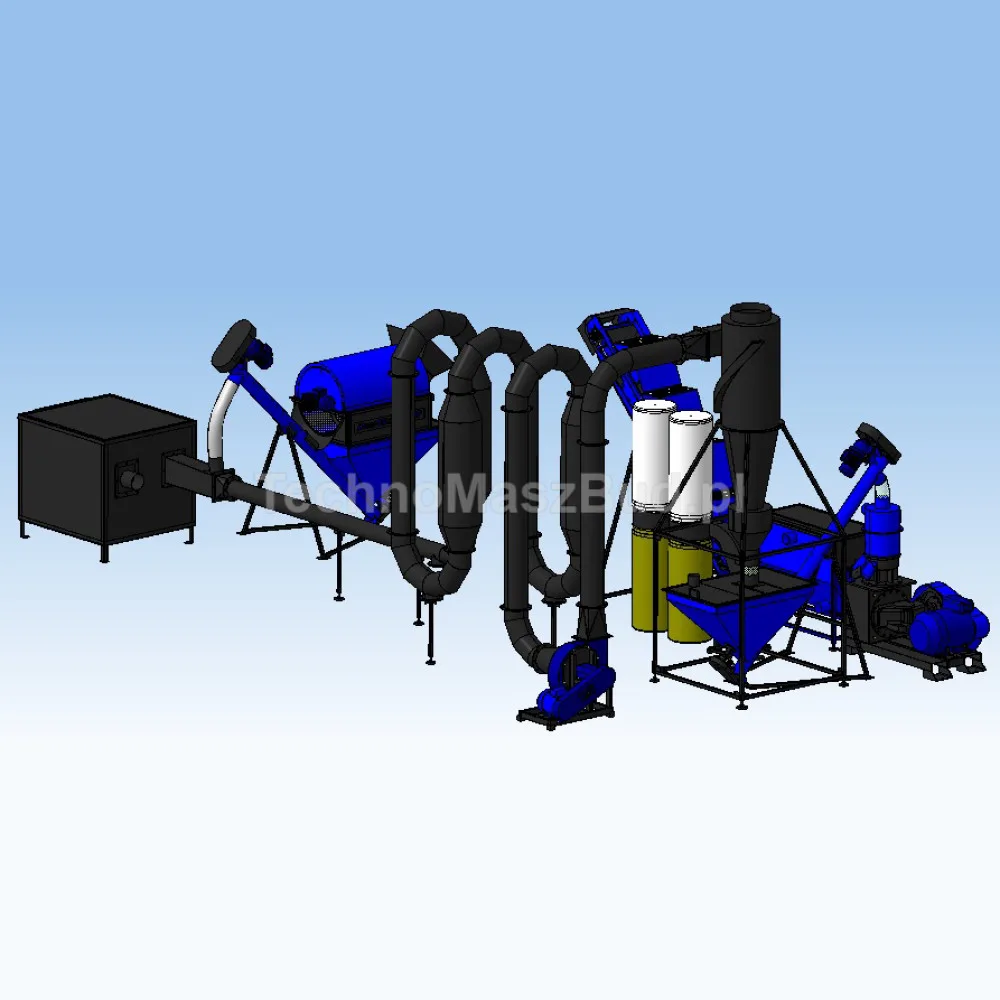

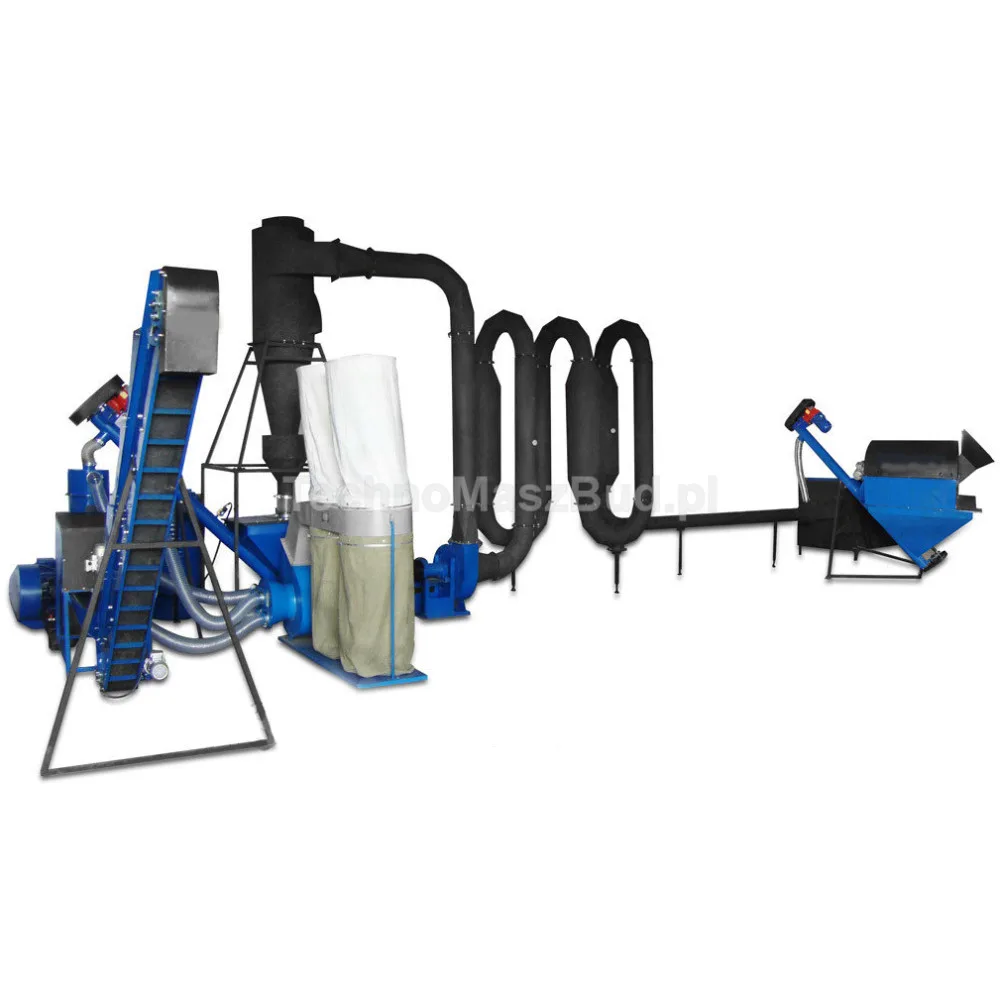

TechnoMaszBud offers an aerodynamic sawdust dryer SA-400 PRO, which in combination with the LDG pellet production line gives you

the opportunity to start a business, producing fuel pellets for boilers, fireplaces and furnaces. The main difference between the SA

400 and SA-600 dryers is the combination of the PRO Series dryers with an automatic pellet burner. Using such a burner allows you to get a

lot of advantages, namely:


  • increased efficiency compared to classic burners thanks to a special design developed by our engineers;
  • automatic ignition and combustion assist system;
  • dosed feed of granules through the screw conveyor;
  • ash self-cleaning system;
  • control of boiler operation modes without your participation;
  • works on all types of pellets, including low-quality ones with a high ash content;
  • user friendly interface;
  • optical fire control;
  • daily-weekly programmable thermostat;
  • log of pellet consumption and controller operation;
  • temperature control sensors of pellet feeding connection pipe;
  • multitasking.

The automatic pellet burners (DOMNA-250 and DOMNA-350) are also compatible with our SA-400 and SA-600 aerodynamic dryers. To install

such burner all you need to do is replace the door on the existing stove.

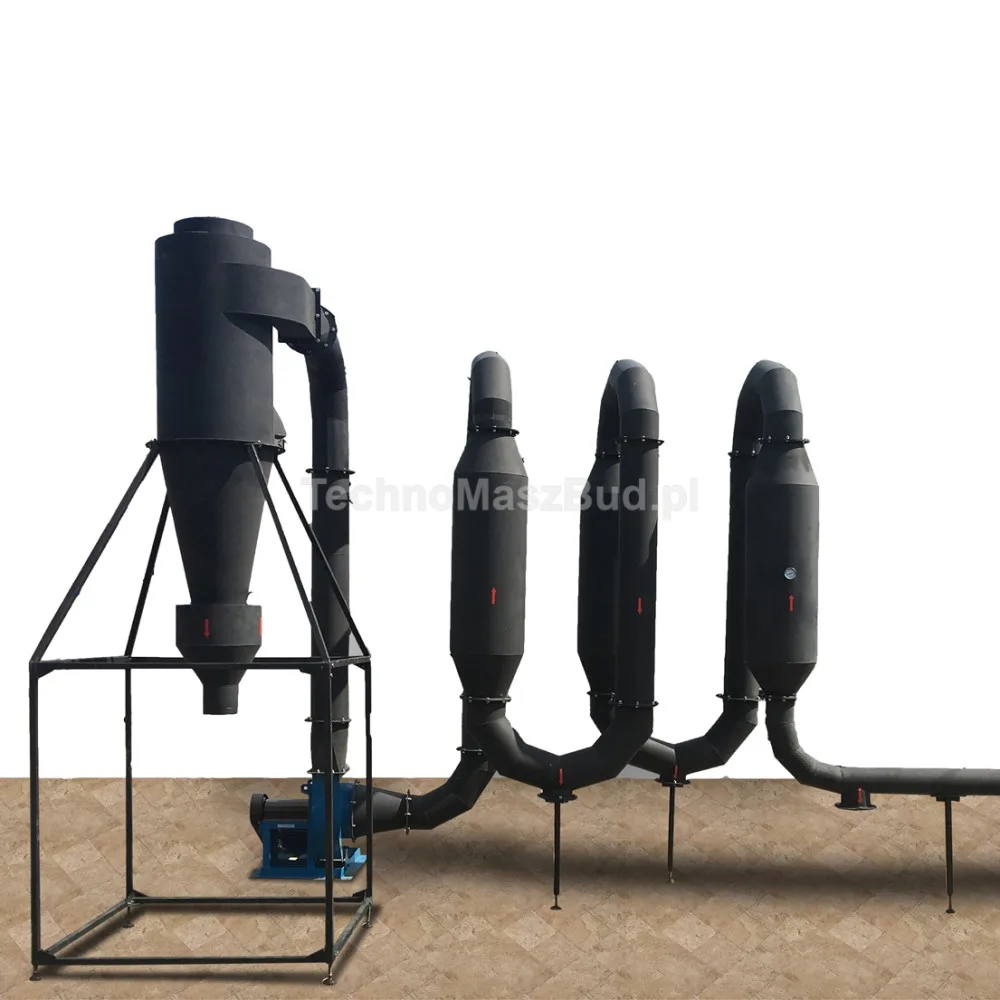

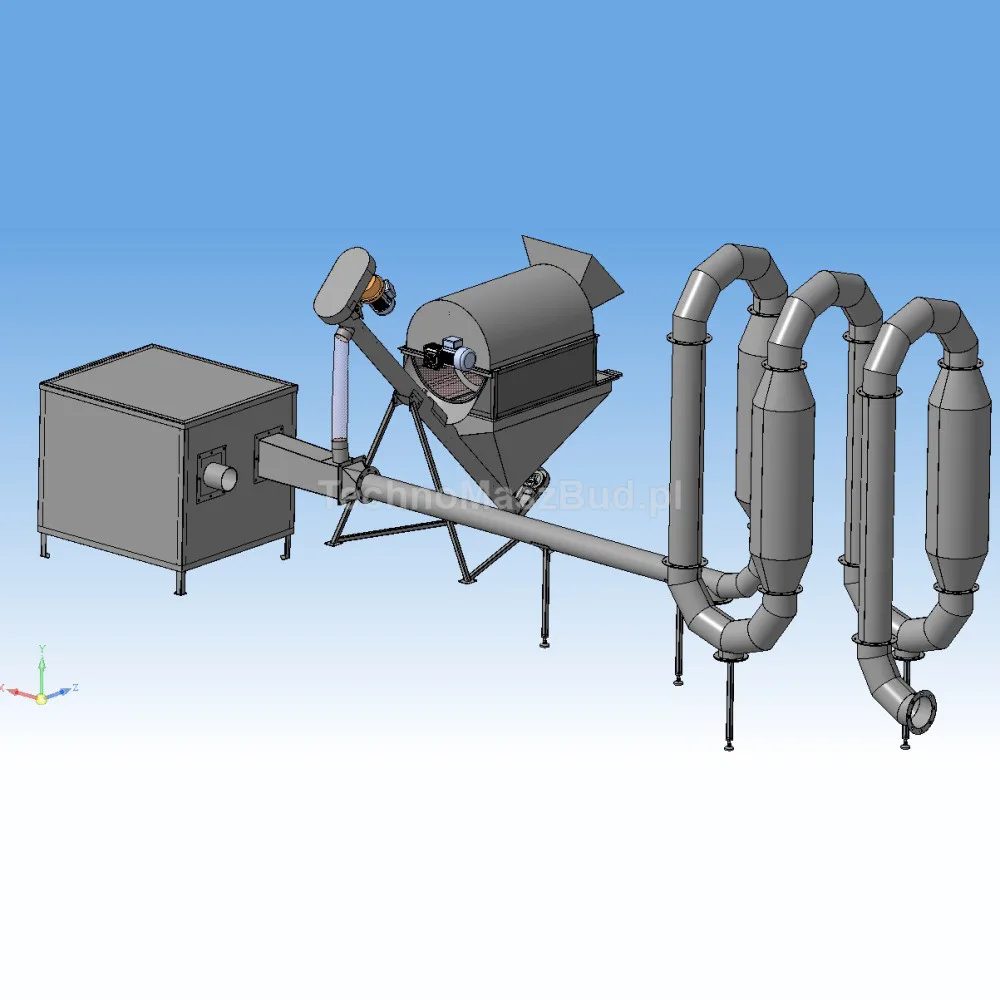

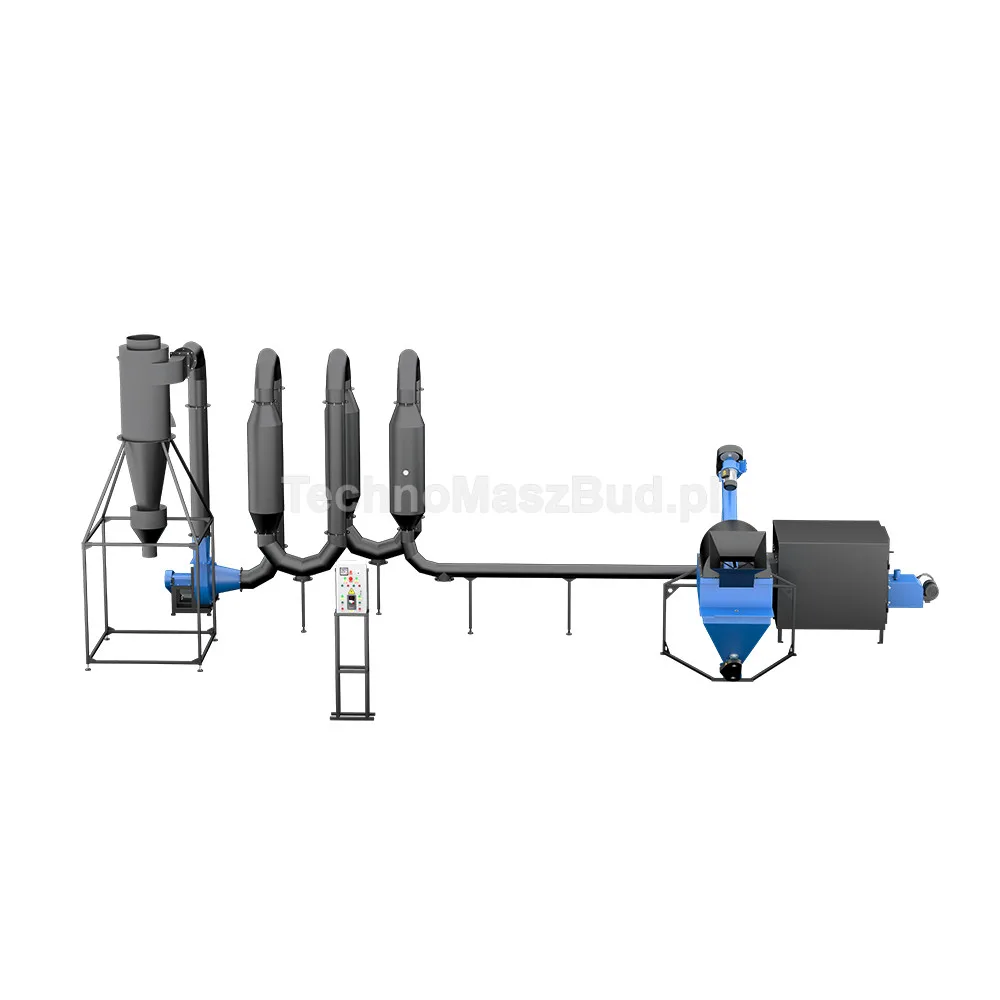

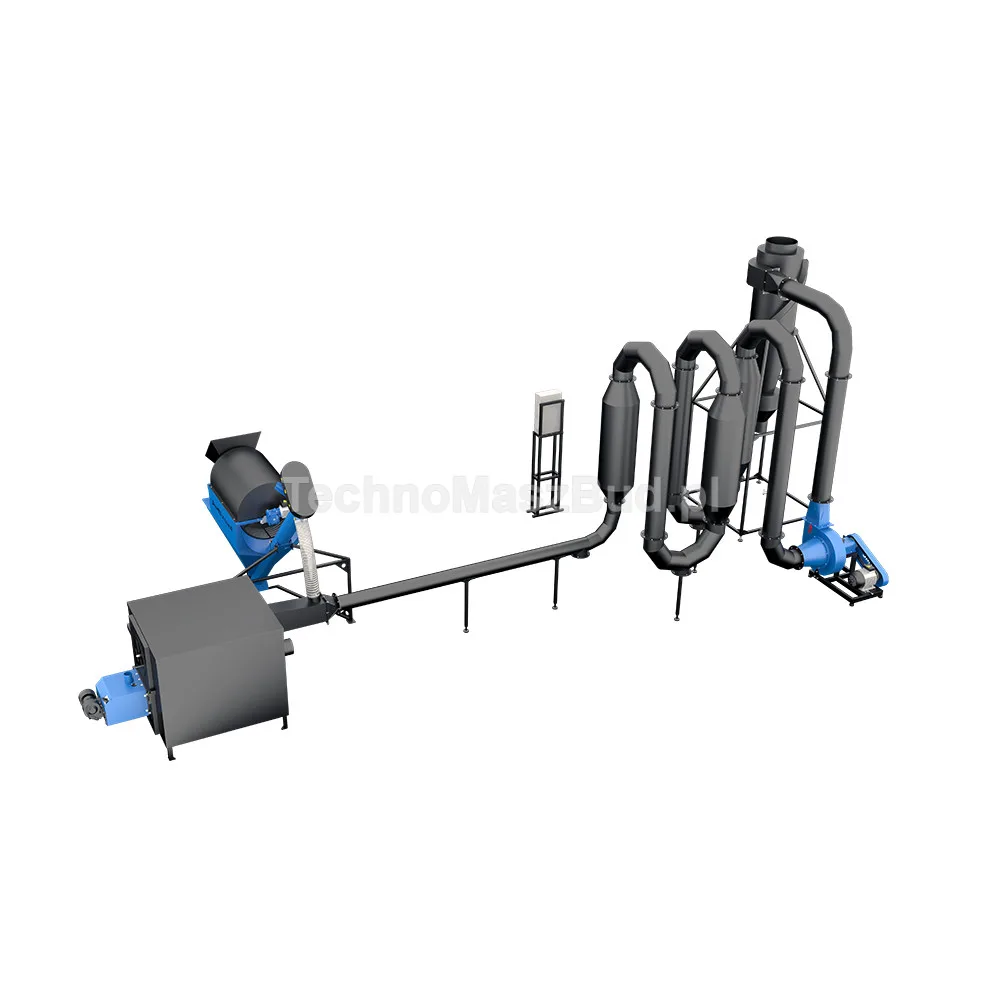

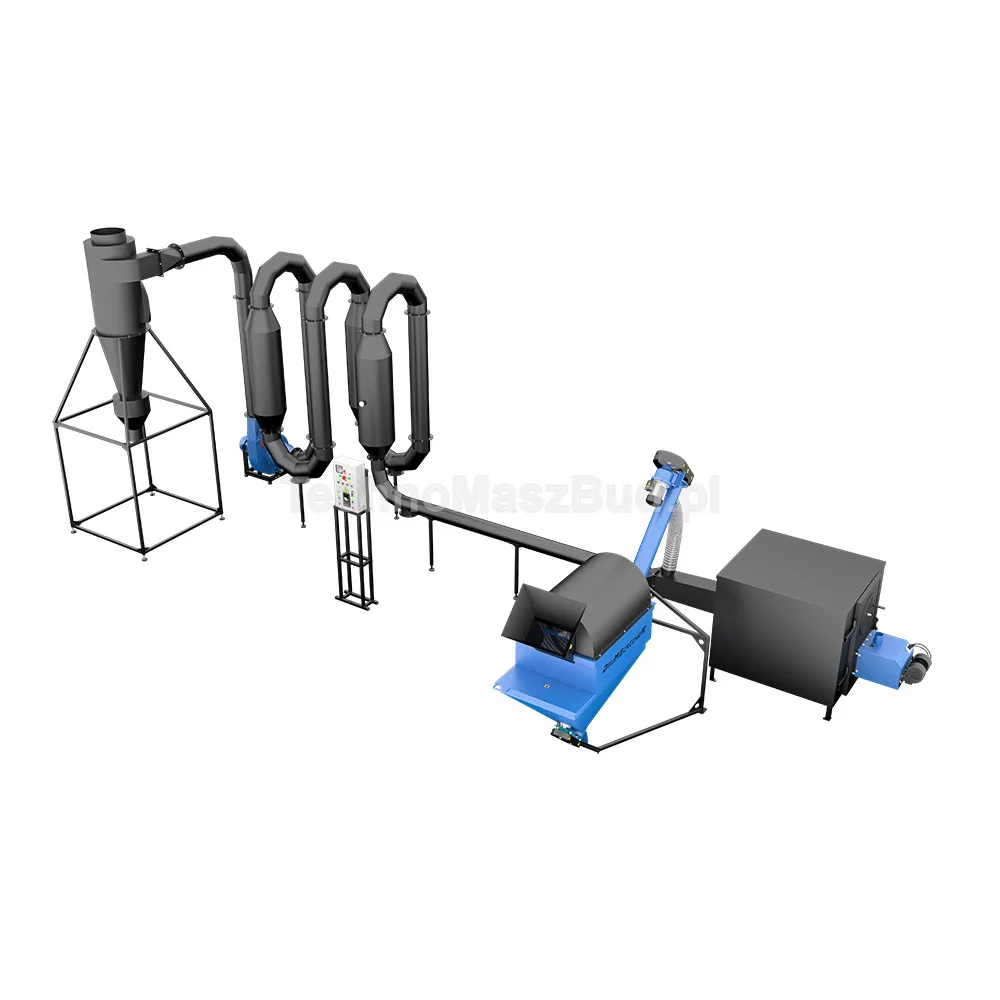

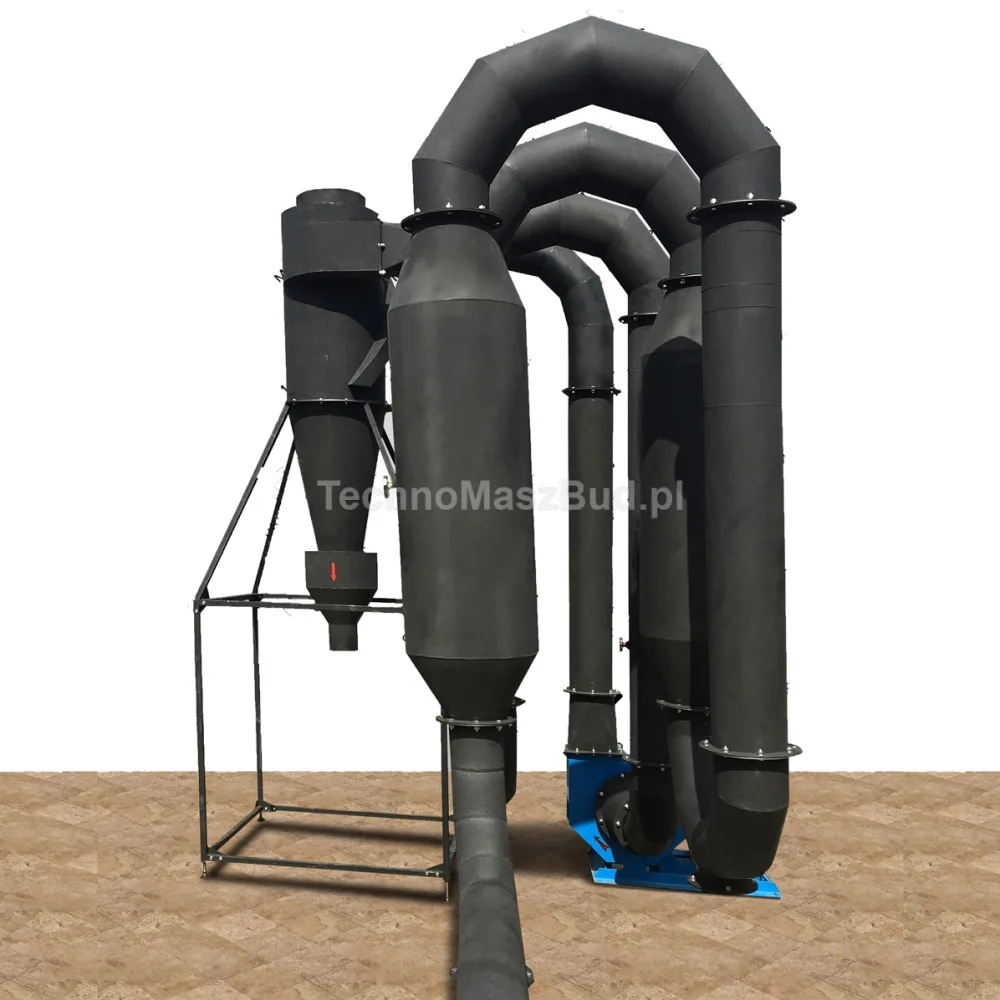

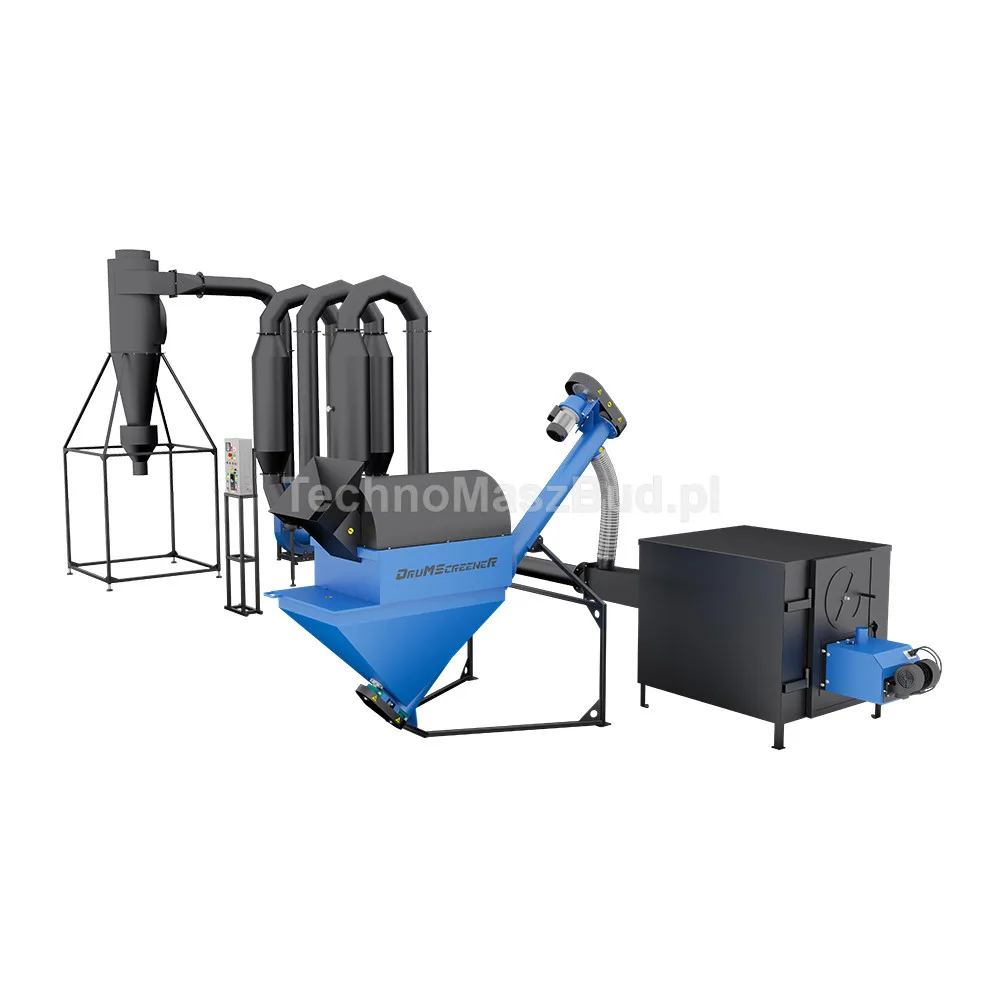

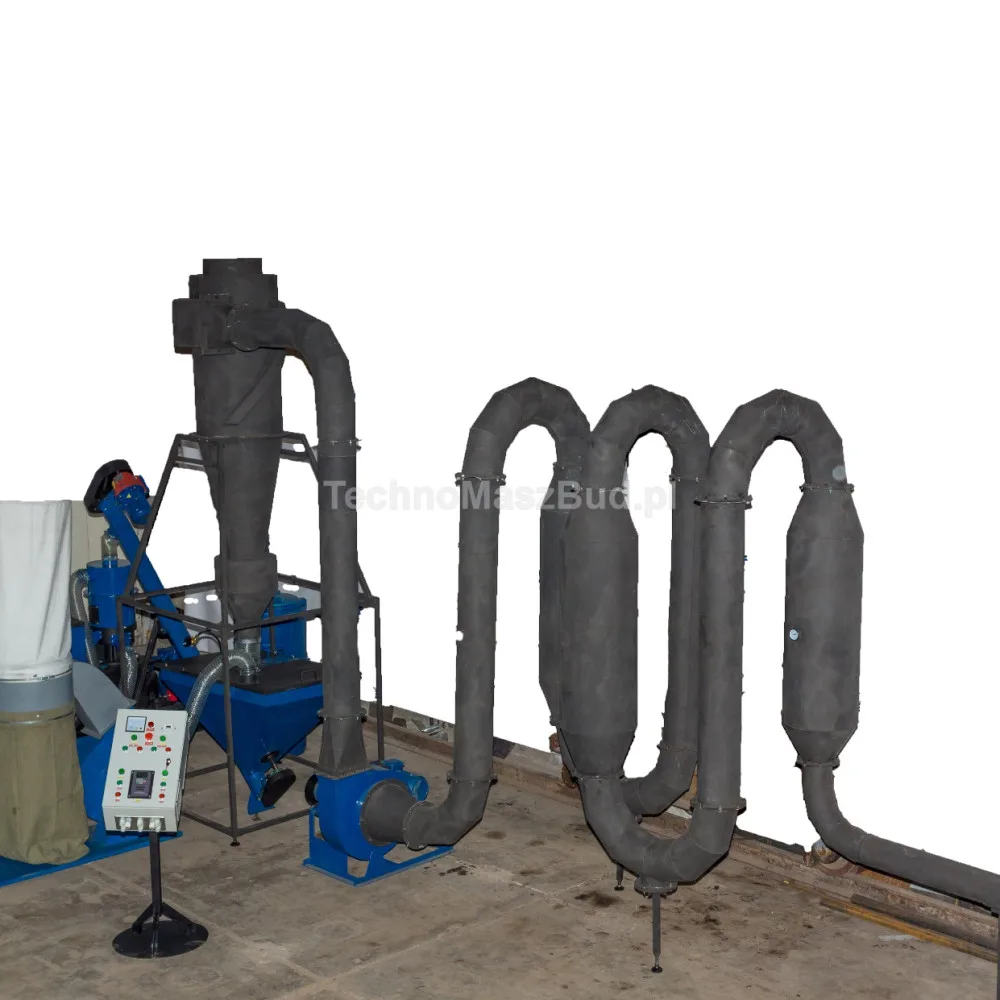

The aerodynamic dryer SA-400 PRO consists of the following parts:

      1. Furnace (made of 350 chamotte bricks).

2. DOMNA-250 pellet burner with a screw and a control panel.

      3. Calibrator-feeder KPS-400the main task of which is to calibrate and sieve the raw material by removing bark, pieces of wood,

    branches, garbage and evenly feed the raw material to the drying pipelines.

4. Pipeline system. Raw material is dried while it passes through the pipelines.

5. Exhaust blower. It pulls the hot air along with the raw material through the pipelines.

6. Cyclone: separates the dried material (sawdust) from smoke and dust.

7. Control panel.


Kiln brick and motor connection cables are not included in the set.


Also you will get a digital laser thermometer and grease gun for FREE.



Fresh wood sawdust with 40-60% humidity and below is dried and prepared for pelleting after a single pass through the dryer.


Our aerodynamic dryers are delivered unassembled for easier transport and optimal use of space. Dryer installation is a key process so we

recommend you to contact our customer service specialist. Professional technical support will help you solve any problems when installing

the dryer, as its efficiency and durability depend on it.



Specification

Dimensions
Length
960.0(cm)
Width
306.0(cm)
Height
360.0(cm)
Weight
900.0(kg)
Key features
Diameter of the connecting pipeline
210 mm
Incoming raw material humidity
up to 60%
Number of expansion tanks
3 pc.
Number of fans
1 pc
Product type
Aerodynamic Dryer for Sawdust
The output moisture of the raw material
6 - 12 %
The source of heating air
fireclay oven (brickwork of 350 fireclay bricks)
Usage
for drying of a fine fraction of wood waste in a hot air stream
Production capacity
up to 400 kg / h
Engine power
4(kw)
Additional features
Warranty
12 months
Dimensions
Length
960.0(cm)
Width
306.0(cm)
Height
360.0(cm)
Weight
900.0(kg)
Key features
Diameter of the connecting pipeline
210 mm
Incoming raw material humidity
up to 60%
Number of expansion tanks
3 pc.
Number of fans
1 pc
Product type
Aerodynamic Dryer for Sawdust
The output moisture of the raw material
6 - 12 %
The source of heating air
fireclay oven (brickwork of 350 fireclay bricks)
Usage
for drying of a fine fraction of wood waste in a hot air stream
Production capacity
up to 400 kg / h
Engine power
4(kw)
Additional features
Warranty
12 months
