DVSV-50: semi-automatic weighing dispenser up to 400 portions/h
- Product Code: DVSV-50
Description
The DVSV-50
semi-automatic weighing dispenser has been designed for packing explosive and
highly dusty loose materials into open bags in doses ranging from 25 kg to 70
kg.
Each
purchased product is covered by a 12-month warranty and comes with
comprehensive documentation regarding installation and operation. We are
available by phone and e-mail to answer all your questions related to our
dispenser.
The
principle of operation of the distributor is based on cyclic dosing of doses of
a specific weight into bags and open bags. Dosing process steps:
1.The
operator puts the bag over the opening.
2.Opens the
throttle, which starts the process of dosing the substance into the bag.
3. After reaching the set weight, the dispenser automatically ends the dosing process.
Technical
data:
* Minimum
dosage limit, kg: 25
* Maximum
dosage limit, kg: 70
*
Measurement accuracy, kg: 0.005
* Dose
efficiency/h (at a dose of 50 kg), : 400
* External
dimensions, mm: 720х795х510
* Weight,
kg: 177

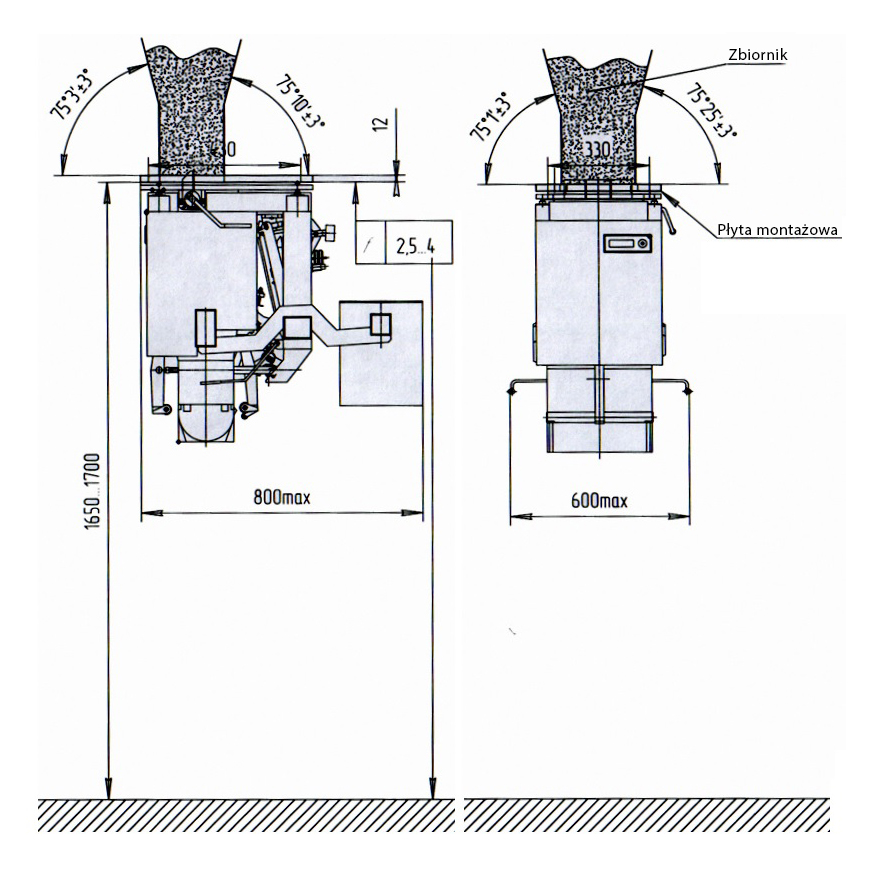

The
dispenser is part of a kit that includes the dispenser and a mounting plate
that is welded to the tank and the dispenser is attached to it. The stand in
the photo is not included.
Operating
conditions:
Ambient
temperature: -50 °C to +50 °C
Warranty
(months): 12
Service life (not less than, years): 10
Specification
