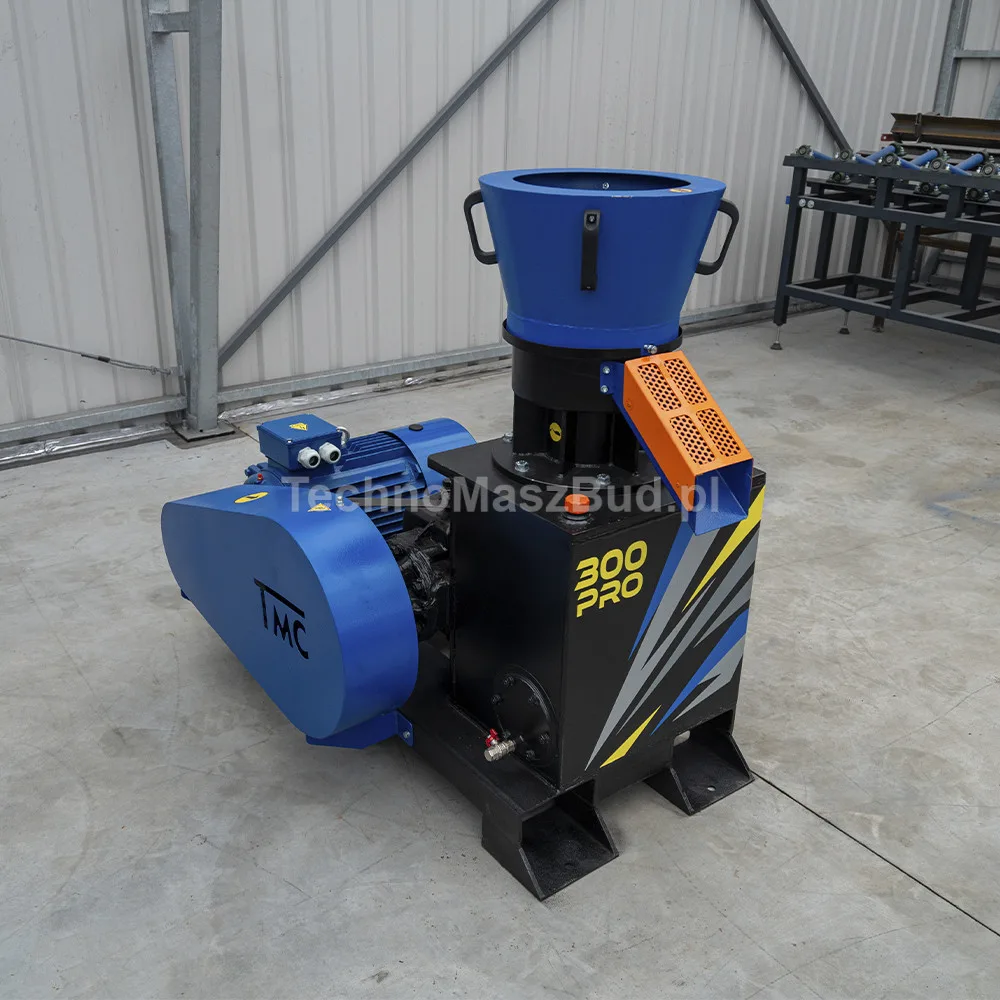

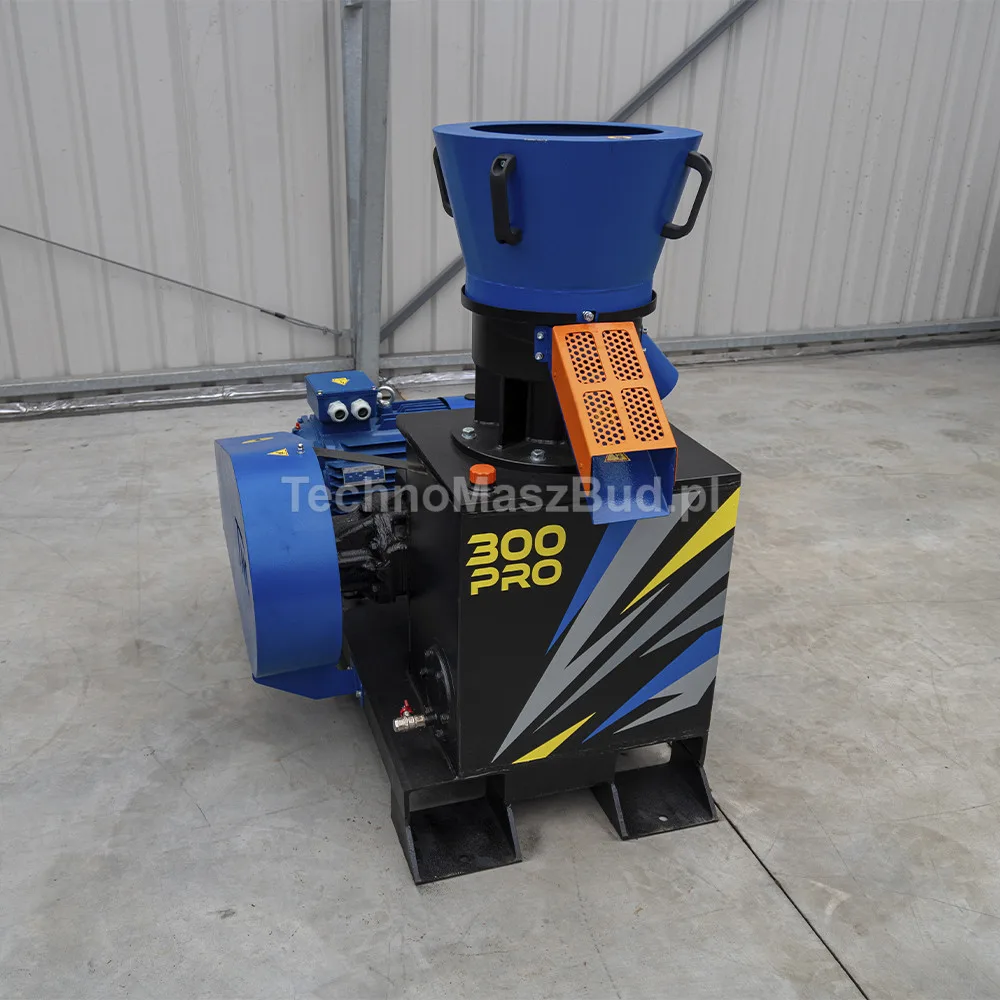

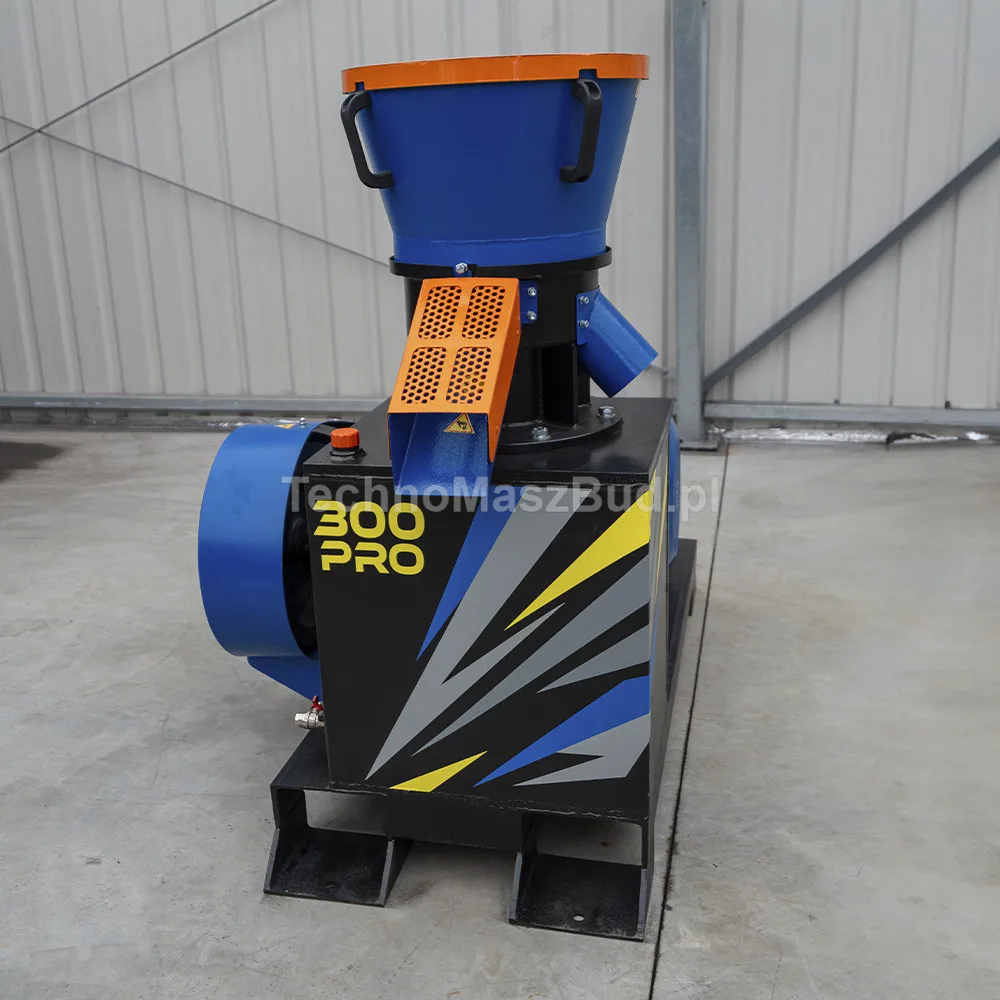

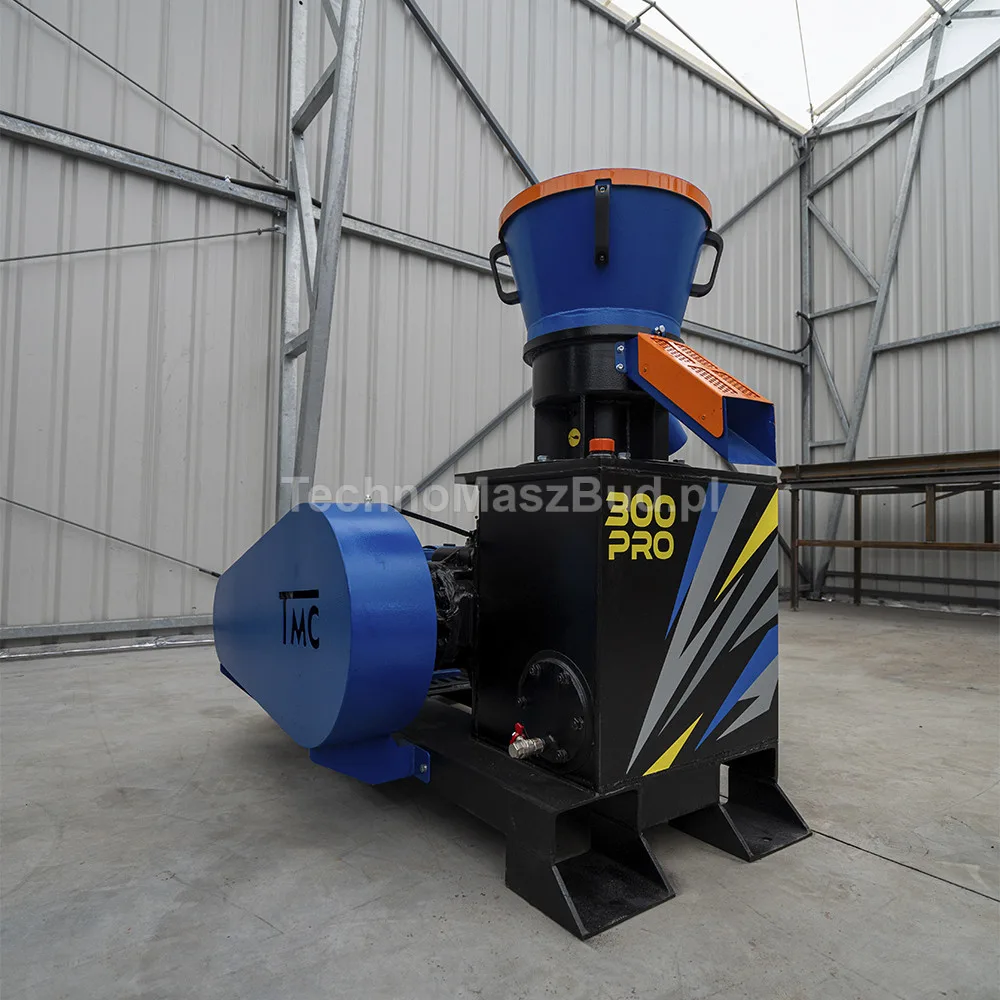

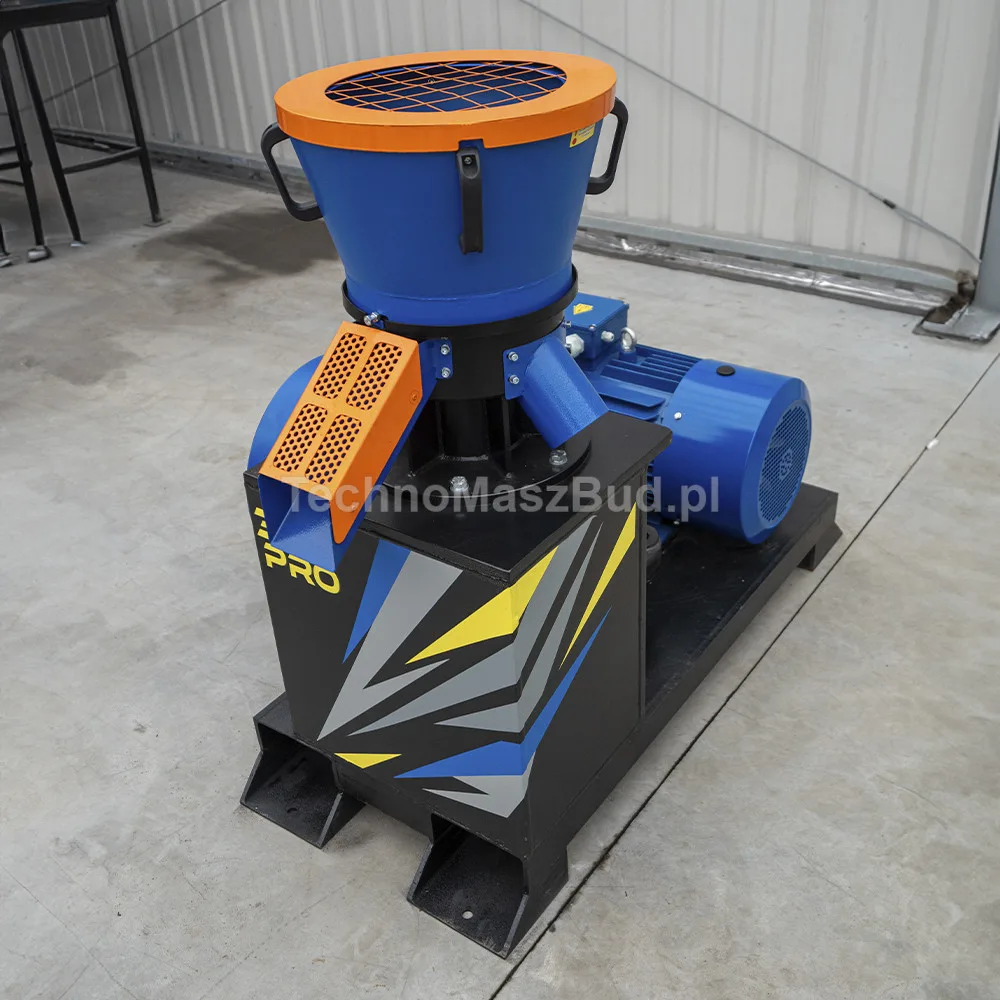

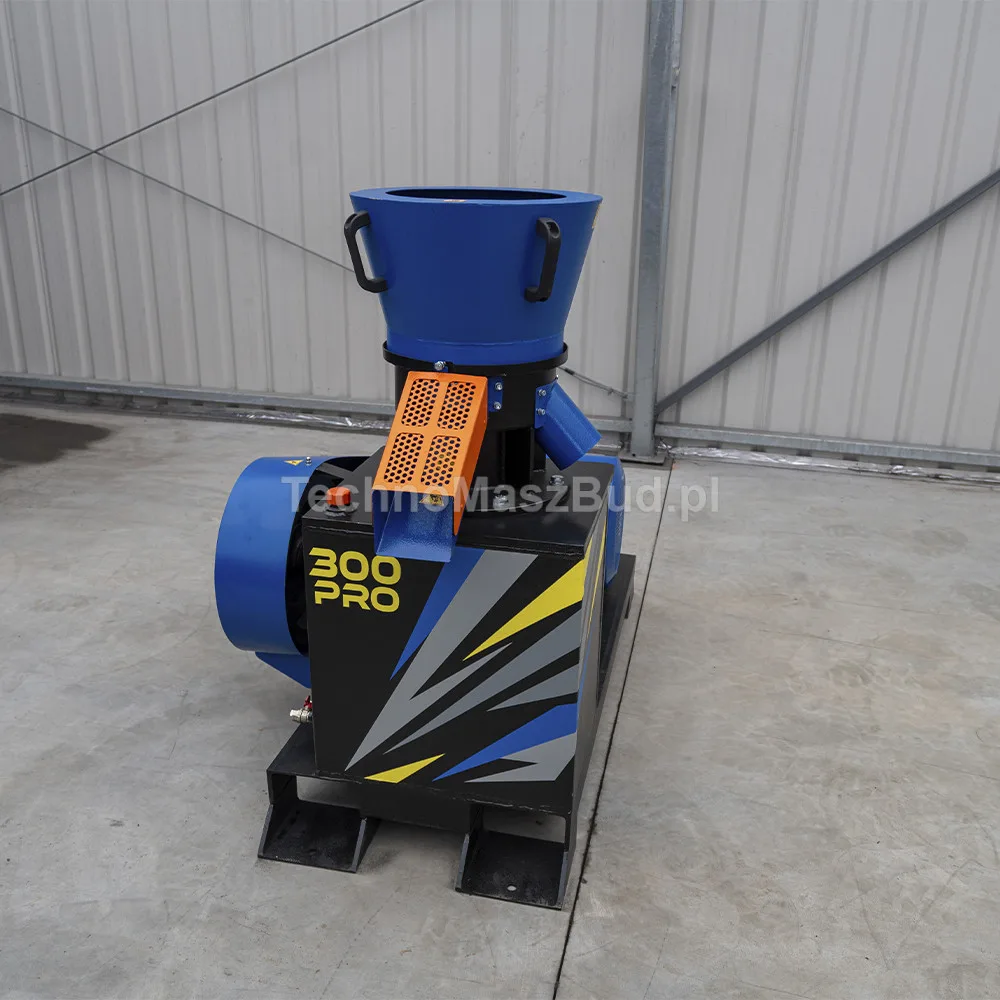

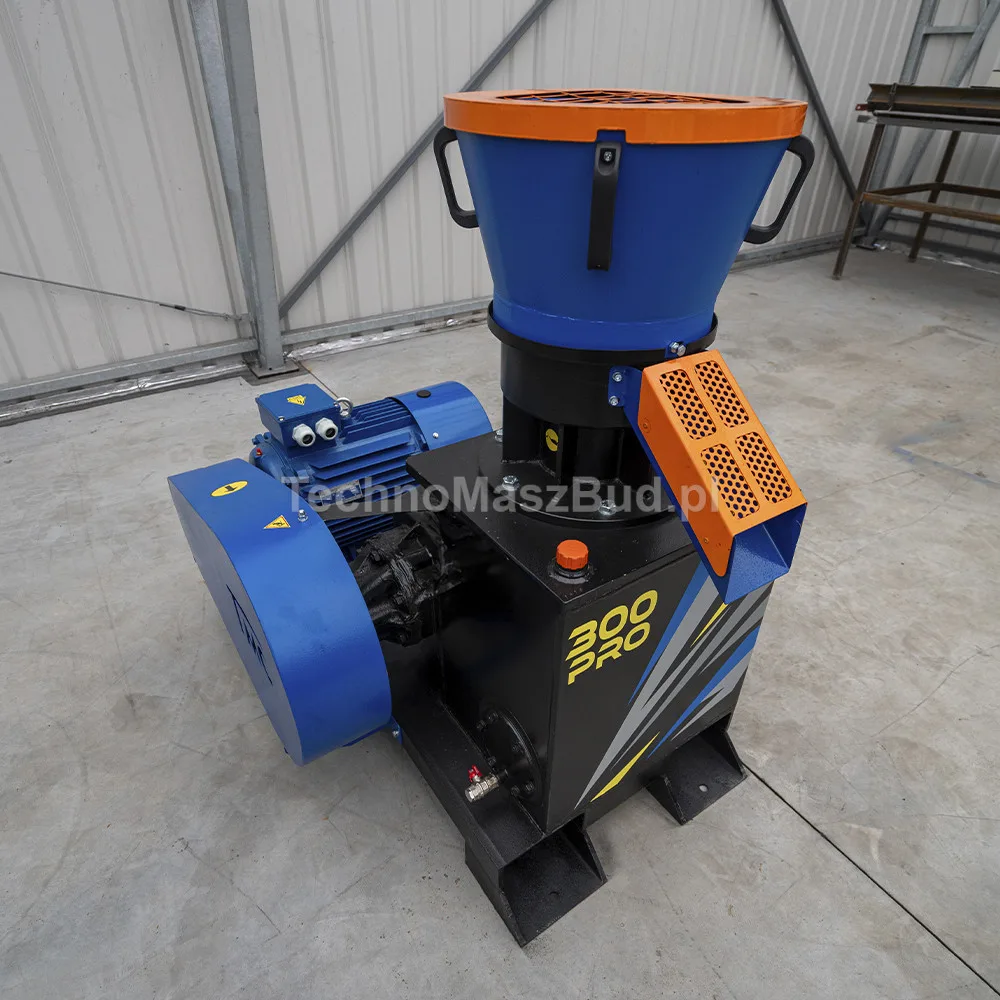

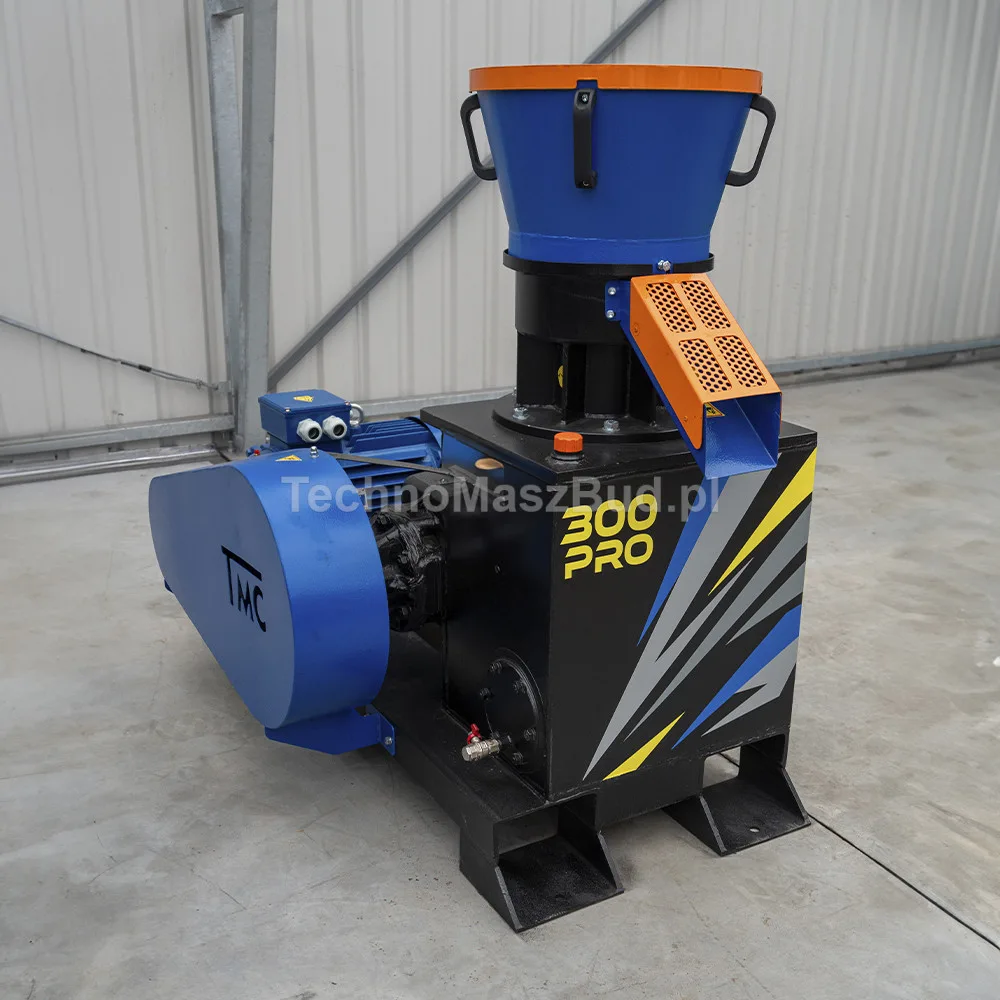

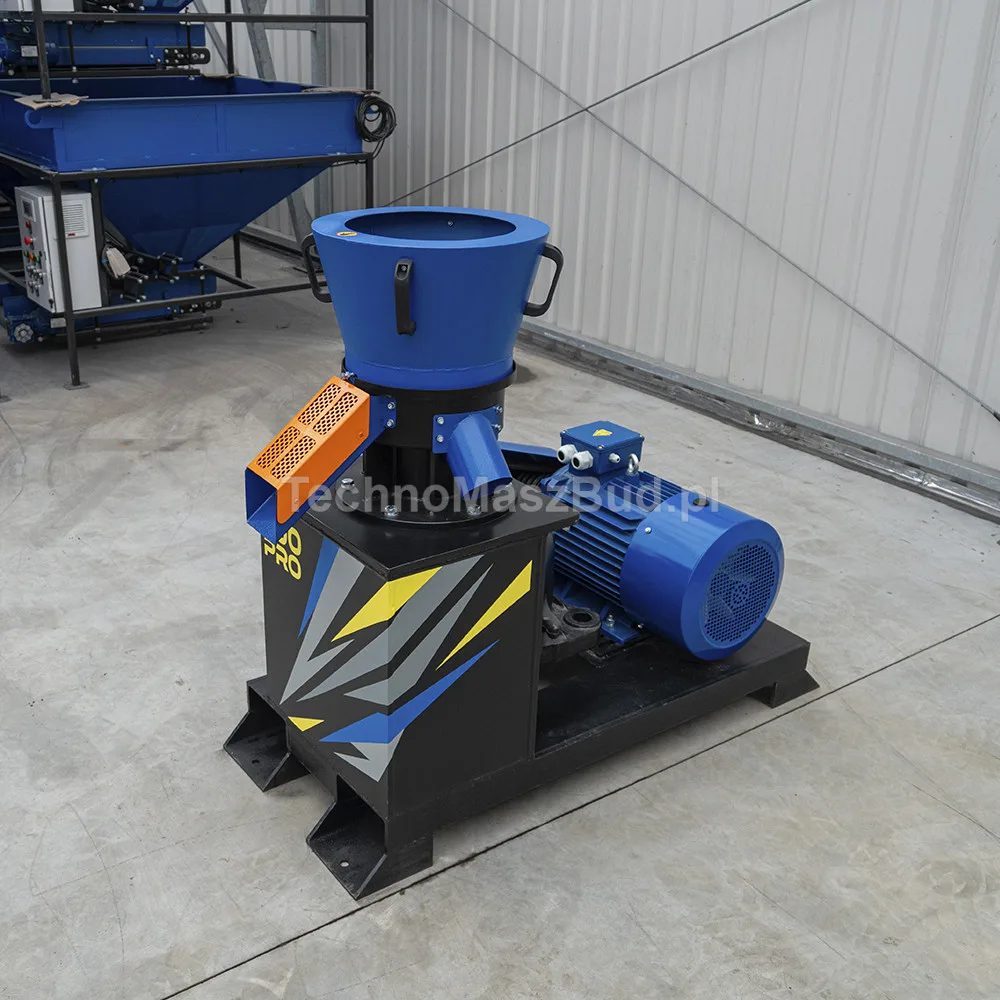

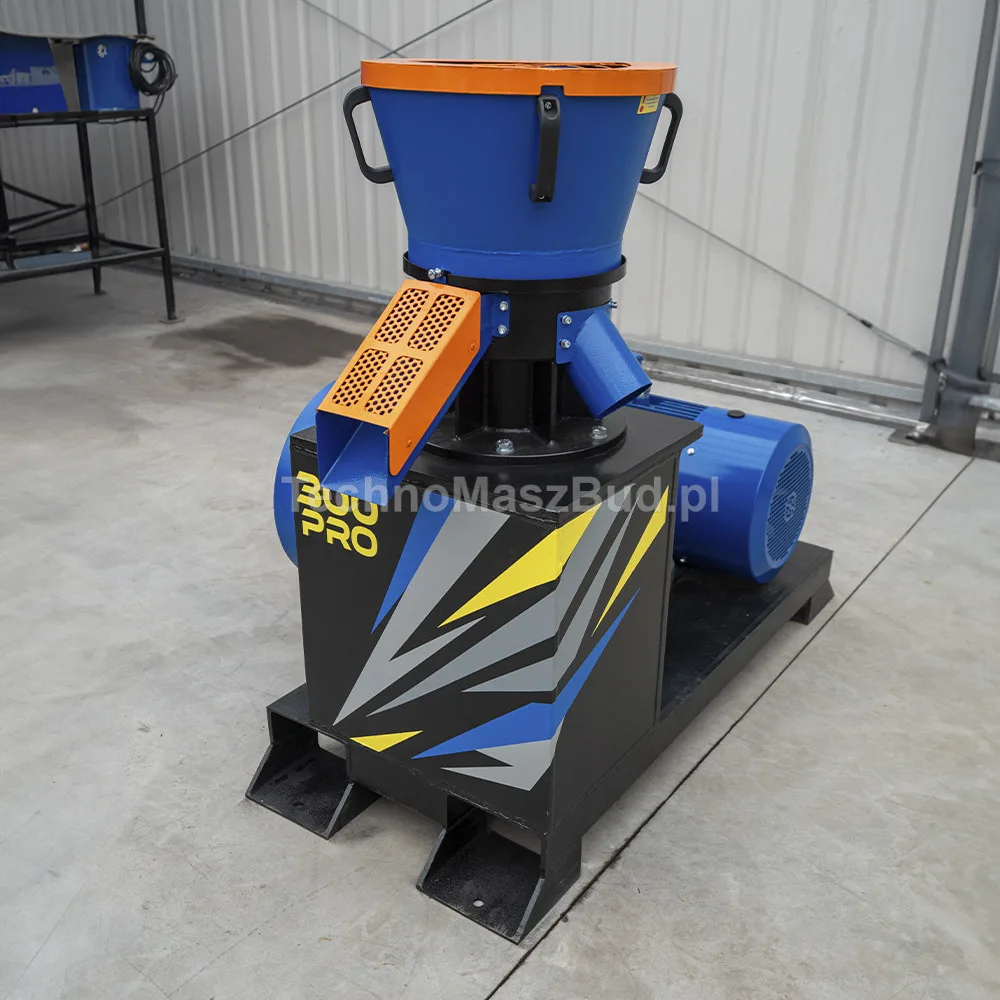

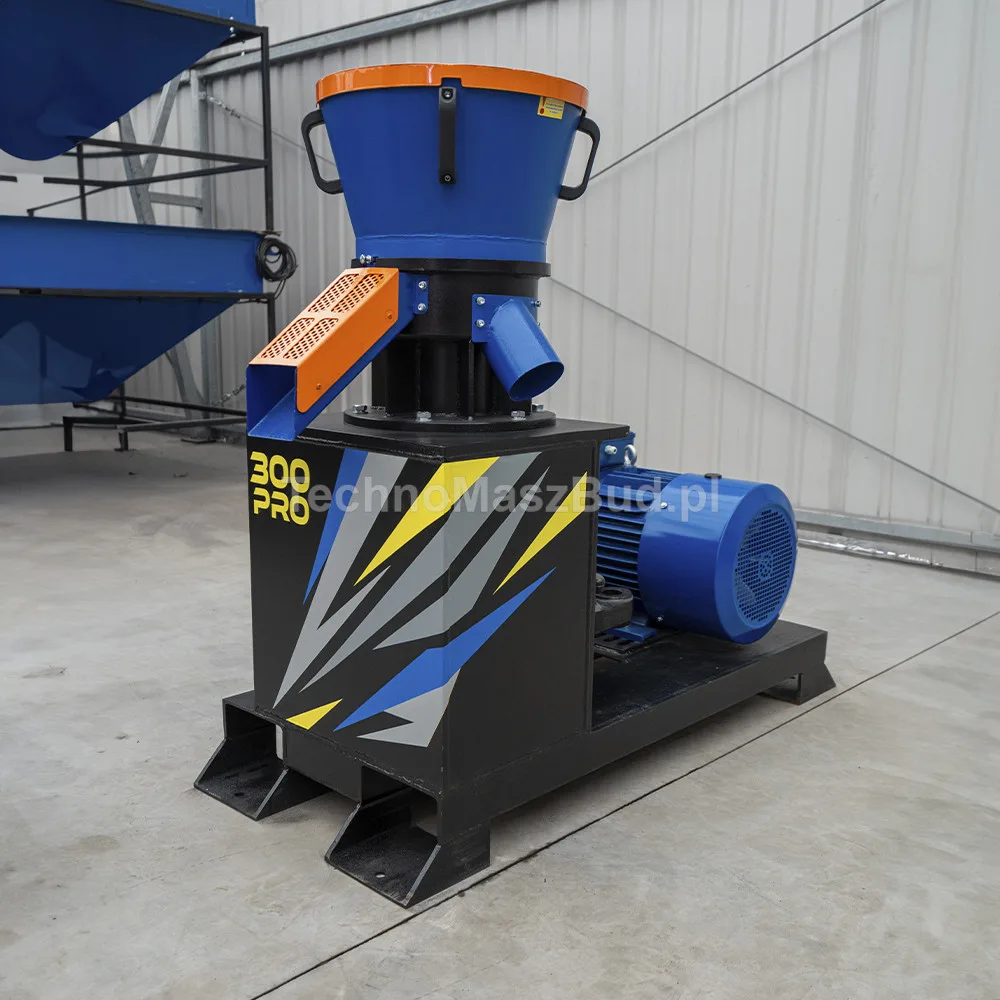

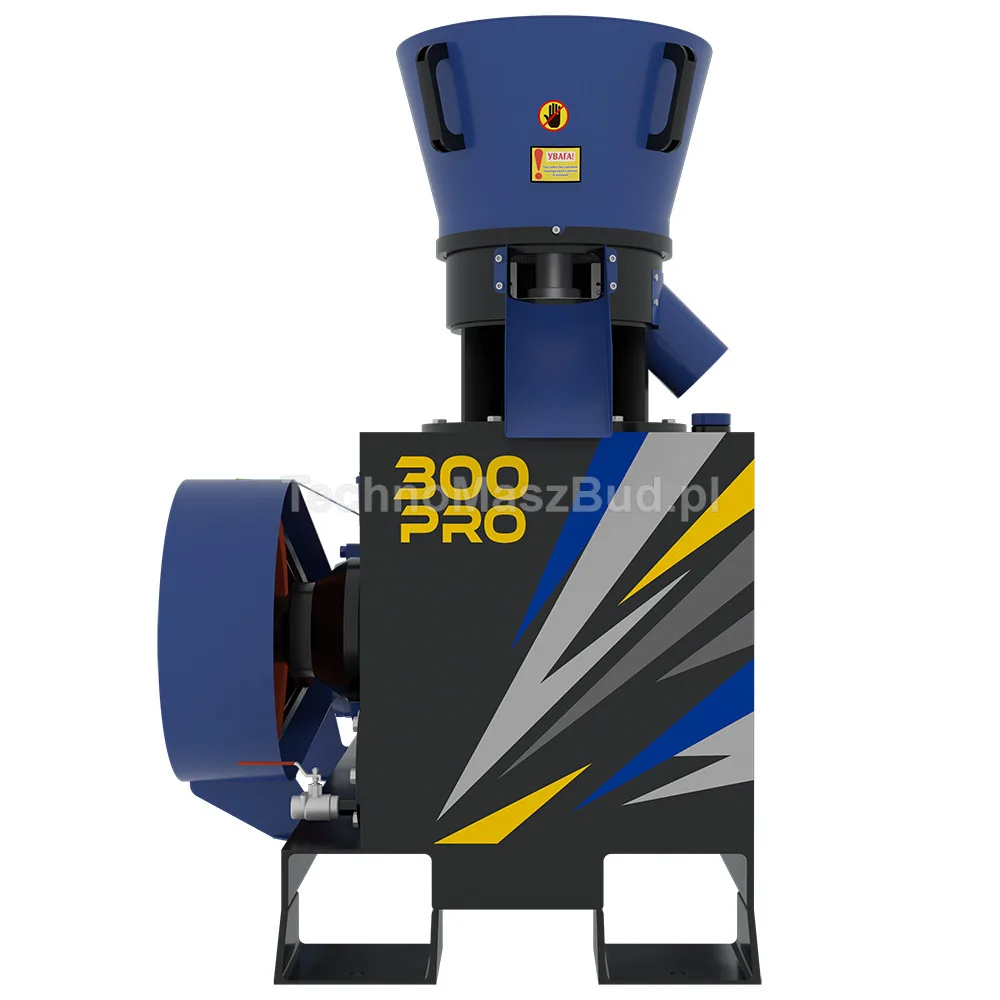

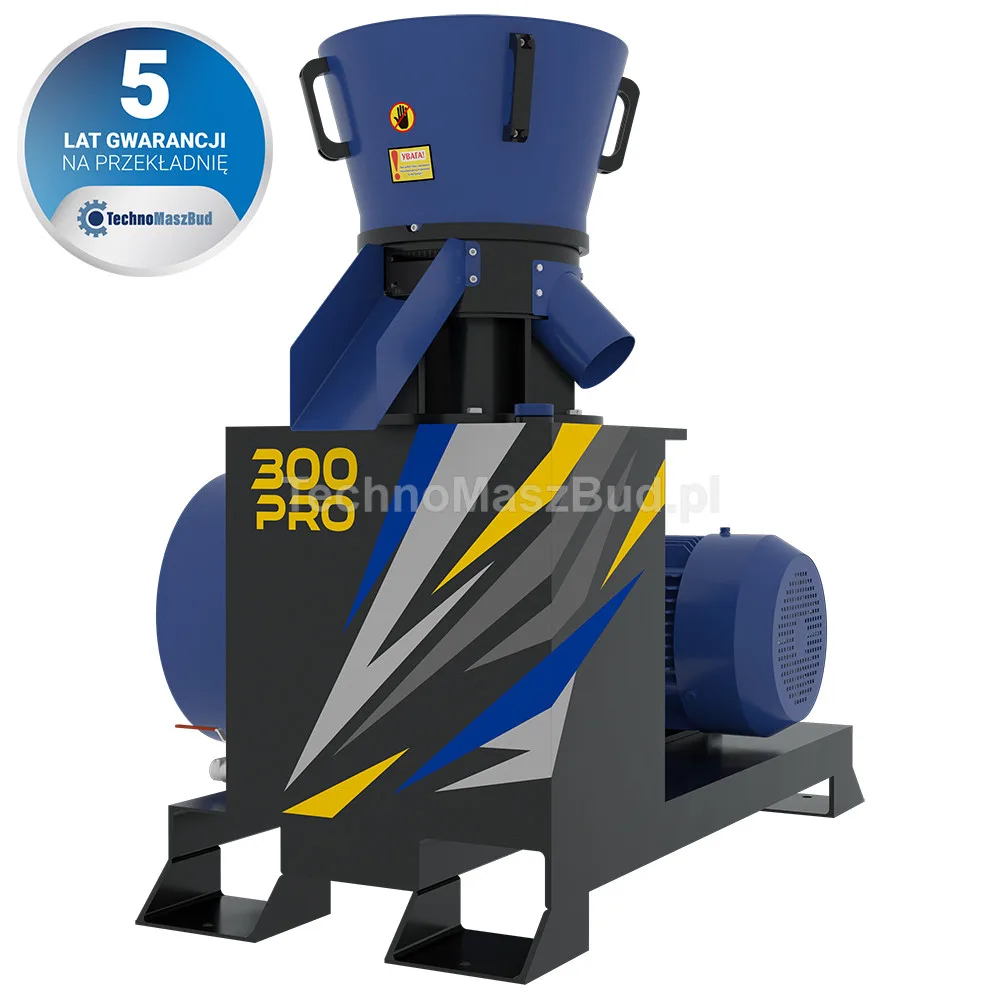

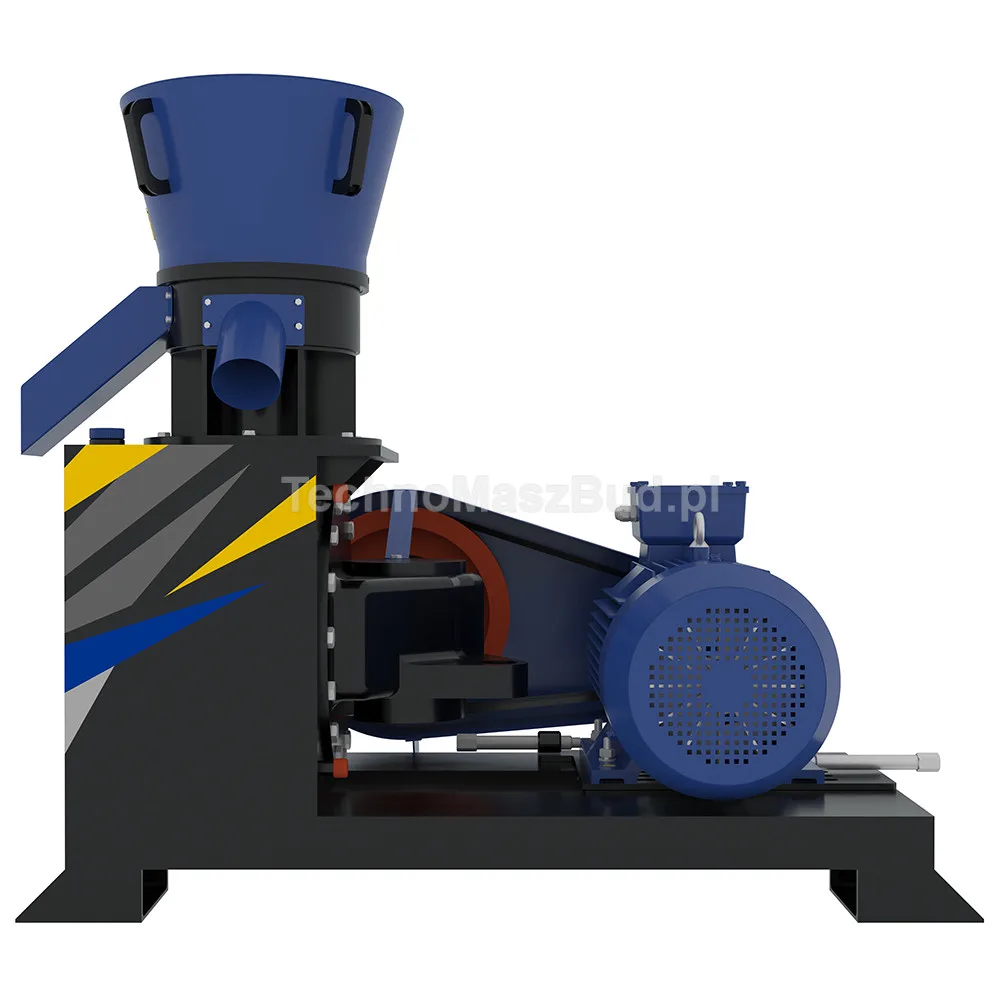

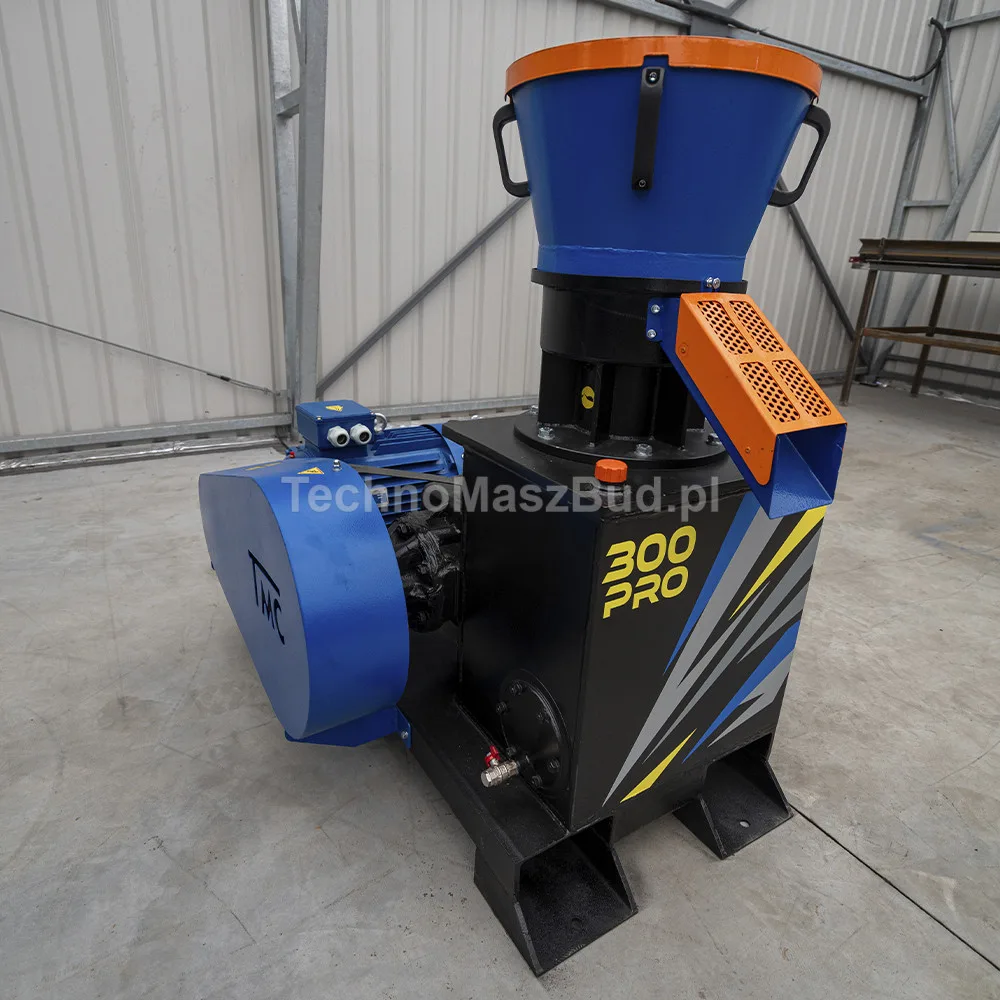

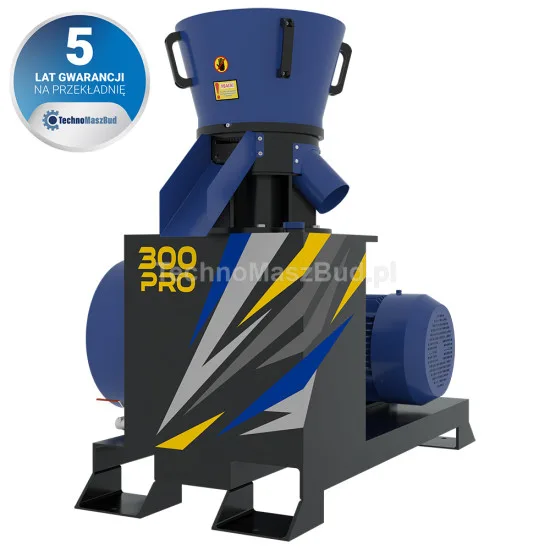

Granulator / Pellet mill PRIME-300 PRO
In Stock
Available Options
- Product Code: PRIME-300 PRO
Main characteristics
All specifications
Length:
1430.0(mm)
Width:
900.0(mm)
Height:
1300.0(mm)
Weight:
680.0(kg)
Product type:
Granulator / Pellet Mill
Description
After intensive tests, implementations and experiments, we proudly present the Prime - 300 PRO pellet machine. This pellet machine achieves a capacity of 500 kilograms of finished pellets per hour (performance depends on the type of input), constituting an irreplaceable tool in the production of pellets and feed.
The PRIME-300 PRO pellet machine is a key element of the LDG-3000 KOMBI PRO, LDG-3000 MAX and LDG-3000 DUO PRO lines, perfectly coping with pelleting sawdust, hay, straw, herbs and fodder. Equipped with a 30 kW motor and rollers with a diameter of 178 mm, it ensures stable performance exceeding 500 kg/h (performance depends on the type of load). The 300 mm diameter die can be customized, with 6 mm and 8 mm hole options, enabling the production of pellets of various hardnesses and diameters.
However, Prime 300 PRO is not only an efficient pellet mill, but also an advanced set with an inverter that optimizes the operation of the engine, protecting it against overload and monitoring power consumption. The inverter allows you to adjust the engine speed, which allows you to adjust the machine's performance to specific needs and production conditions.
The Prime 300 PRO pellet machine can handle both coniferous sawdust, rich in lignin, and hardwood sawdust, which is more difficult to pellet. Thanks to high pressure, the machine also easily processes raw materials with low lignin content. In addition to sawdust, Prime 300 PRO is perfect for producing feed for a variety of animals, including rabbits, hens, chickens, broilers, pigs, cows and quails. This machine can also process sunflower husks, straw, hay, grasses, feed mixtures and plastics such as polypropylene, bags and foil. Prime 300 PRO is a versatile and reliable solution for everyone who needs an effective and efficient pellet machine for various raw materials.
Efficiency:
- Mixed feed – up to 700 kg/h;
- Sawdust – 500 kg/h (depends on the hardness of sawdust).
- Straw / Hay - 500 kg/h.
- Sunflower husk - 500 kg/h.
- Grain waste - 700 kg/h.
The set includes an inverter. The power cable is not included in the set!
The power cable is not included in the set!
We also offer a PS-200 screw feeder for smooth feeding of raw material. The tank capacity is over 0.2 m3. The feeding speed is regulated by an inverter.
Advantages of PRIME-300:
- Movable rollers;
- Reliable transmission;
- Possibility of pelleting sawdust from hard tree species;
- Die diameter: 300 mm;
- Approximate matrix consumption: average approx. 70 tons (regeneration possible after use);
- Material from which the dies and rollers are made: 40X hardened steel, 55 HRC.
Specification
Dimensions
Length
1430.0(mm)
Width
900.0(mm)
Height
1300.0(mm)
Weight
680.0(kg)
Key features
Product type
Granulator / Pellet Mill
The diameter of radial holes in the die
from 2 to 8 mm (optional)
Usage
For production of granular nutriment and pellets
Type of drive
Electric
Production capacity
up to 700.0(kg/h) - feed
~ 500.0(kg/h) - pellets
Engine power
30(kW)
Voltage
400V
The diameter of the die
300(mm)
The number of knives
2(PCs)
Additional features
The number of rolls
2(PCs)
Warranty
12 months
Dimensions
Length
1430.0(mm)
Width
900.0(mm)
Height
1300.0(mm)
Weight
680.0(kg)
Key features
Product type
Granulator / Pellet Mill
The diameter of radial holes in the die
from 2 to 8 mm (optional)
Usage
For production of granular nutriment and pellets
Type of drive
Electric
Production capacity
up to 700.0(kg/h) - feed
~ 500.0(kg/h) - pellets
Engine power
30(kW)
Voltage
400V
The diameter of the die
300(mm)
The number of knives
2(PCs)
Additional features
The number of rolls
2(PCs)
Warranty
12 months
