Granulation Line LDG-3000 (DUO) PRO
  • 67 kW
  • Granulation Line LDG-3000 (DUO) PRO

Granulation Line LDG-3000 (DUO) PRO

In Stock

Available Options


In Stock 201,953.70
164,190.00zł

Incl Tax: 201,953.70zł


  • Product Code: LDG-3000-DUO-PRO

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Length: 5500.0(mm)
Width: 3300.0(mm)
Height: 2300.0(mm)
Weight: 1900.0(kg)
Product type: Granulation line / Pellet Mill line

Description

The pellet production line with a capacity of 1000 kg per hour (the output depends on the type of raw material used) is based on high-performance Prime-300 PRO granulators. This line enables the processing of sawdust and other biomaterials into pellets, as well as the production of granules from feed mixtures.

High efficiency of the line is achieved thanks to the simultaneous operation of two Prime-300 PRO granulators. Each pelletizer is equipped with a 30 kW motor, a 300 mm diameter die, and movable rollers with a diameter of 178 mm.

One of the key advantages of the LDG-3000 (DUO) PRO line is its ability to operate continuously even during maintenance or unforeseen failures. Thanks to the use of two Prime-300 PRO granulators, the line can continue production when one granulator requires maintenance or repair. This solution ensures operational continuity, minimizes downtime, and increases overall production efficiency, guaranteeing uninterrupted functionality of the entire line.

Video: Complete LDG-3000 DUO pellet line | Production from oak sawdust :


Video: LDG-3000 DUO Pellet Line | Pellet production from pine sawdust:

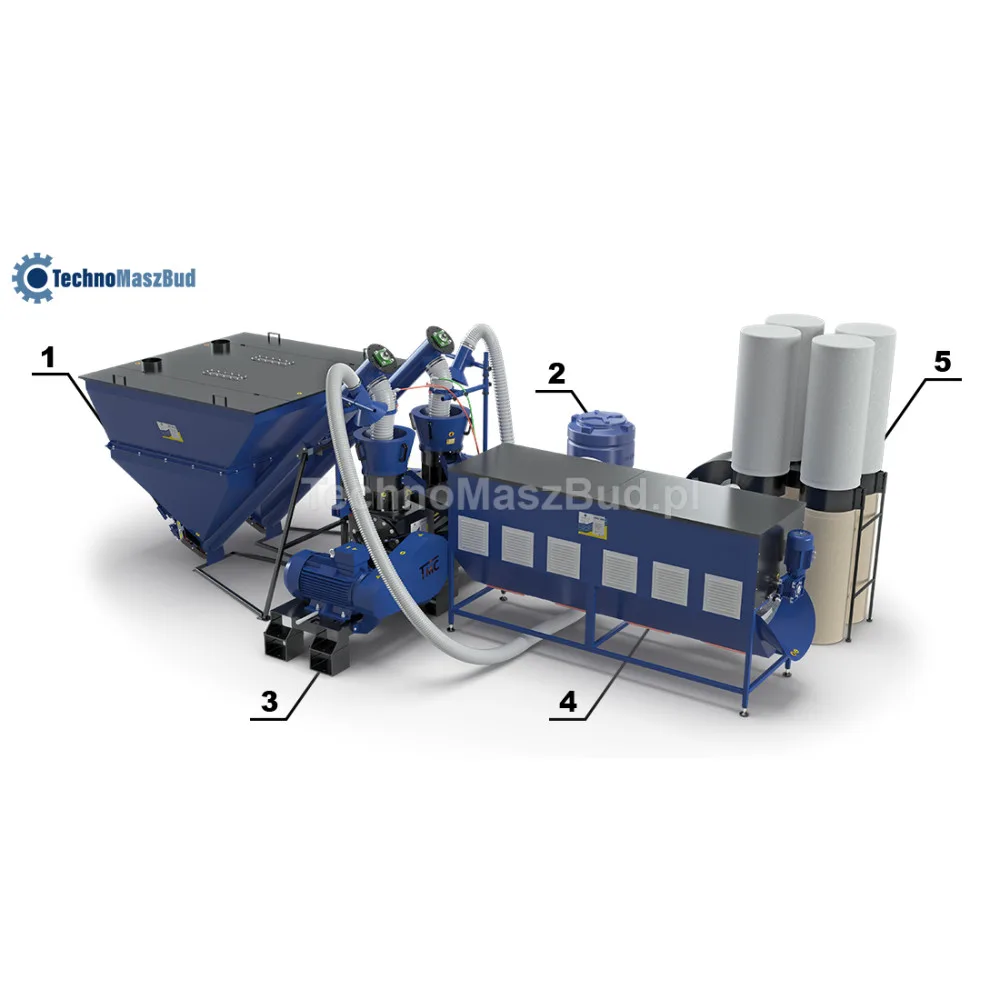

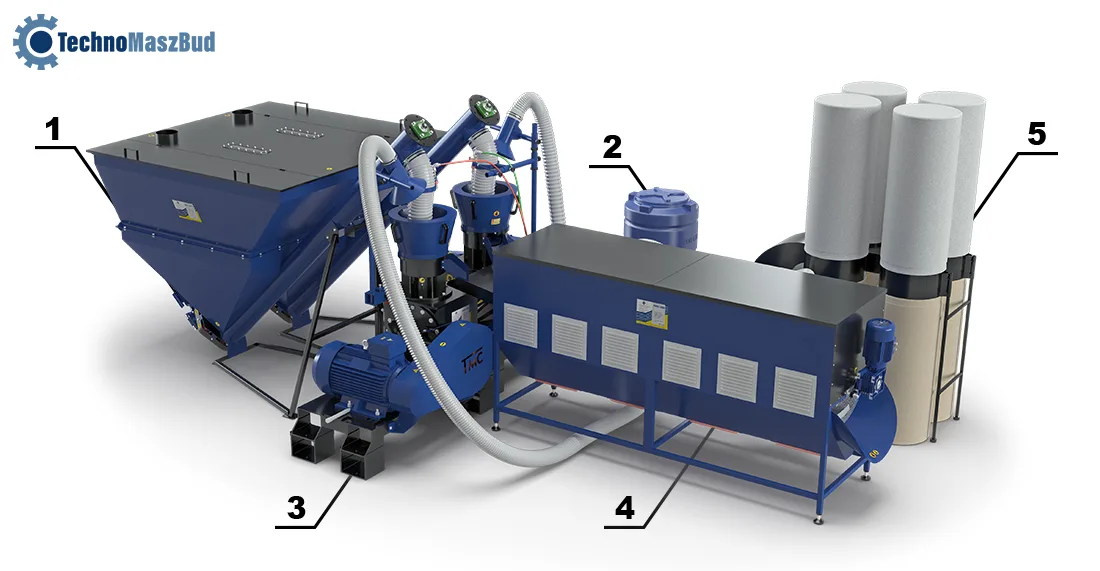

The LDG-3000 DUO PRO line set includes:

1. PS-200 DUO PRO Screw Conveyor:

The conveyor is designed for collecting raw materials and evenly feeding biomass into the pelletizer. This unit has a smooth feed speed adjustment using a frequency converter. Total power consumption: 3 kW. Tank capacity: 2m³.

2. Moisturizing system:

Used to ensure the proper moisture content of the raw material. This system consists of the following elements: valve, pump, 100-liter water tank, nozzle. The moisturizing of the raw material with the required, measured amount of moisture during granulation is achieved by connecting the system to the stand above the working area. Power consumption: 0.37 kW.

3. Reliable PRIME-300 PRO Pelletizers:

Two universal PRIME-300 granulators process various types of raw materials with an actual output of up to 1000 kg/h for wood pellets and up to 1400 kg/h for feed granules.

4. Calibrator - cooler for granules/pellets KC-300:

Hot granules coming out of the granulator are fed to the drum calibration screen. During drum rotation, the pellets are spread in a thin layer on the surface. At the same time, a stream of air generated by a fan passes through the cooling chambers, cooling the granules and reducing their moisture content. Fine dust and particles are collected in bags through a cyclone system.

5. Closed extraction system SO-4:

The closed extraction system removes excess dust and raw materials from the cooling and sorting system, collects them in bags, and filters the air from dust using two upper filter bags. The heart of the system is a high-performance fan that generates the necessary pressure to extract small particles and dust.

6. Control cabinet (control panel):

The control cabinet includes electrical devices for remote automatic control of the mechanisms and electrical drives of the complex, installed in the control cabinet. Compact dimensions and a built-in automation cooling system make the control panel reliable and convenient to install near the production line.


Cables for connecting the line are not included in the set!



Video: Pellet production line LDG-3000 DUO + Dryer SA-800 | Pellet production in the sawmill:


Video: Complete pellet line with a capacity of up to 800 kg/h | Production from pine sawdust:




Actual performance of the LDG-3000 DUO pellet production line depending on raw materials:

- Wood waste - 1000 kg/hour (performance depends on the type of raw material used);

- Straw - up to 1000 kg/hour;

- Feed - up to 1400 kg/h.

For your convenience, we can not only customize the line to your needs but also assist with installation, commissioning, and achieving excellent results!


Achieving optimal efficiency in pellet production largely depends on meeting specific requirements for the processed raw materials. Careful selection and proper preparation of input materials are crucial for the effective operation of the production line and obtaining high-quality end products.

The granulation line can be used as a standalone production unit and can also be equipped with additional equipment to make pellet and feed granulation production more efficient and automated.


Film: Complete Pellet Production Line LDG-3000 (DUO) | Up to 800 kg/h:


Film: Complete Pellet Production Line LDG-3000 DUO | Capacity up to 800 kg/h:


Specification

Dimensions
Length
5500.0(mm)
Width
3300.0(mm)
Height
2300.0(mm)
Weight
1900.0(kg)
Key features
Product type
Granulation line / Pellet Mill line
The diameter of radial holes in the die
from 2 to 8 mm (optional)
Usage
For production of granular nutriment and pellets
Type of drive
Electric
Production capacity
up to 1400.0(kg/h) - feed up to 1000.0(kg/h) - pellets
Power consumption
67 kW
Voltage
400.0(V)
The diameter of the die
300(mm)
The number of knives
2(PCs)
Additional features
The number of rolls
4(PCs)
Warranty
12 months
Dimensions
Length
5500.0(mm)
Width
3300.0(mm)
Height
2300.0(mm)
Weight
1900.0(kg)
Key features
Product type
Granulation line / Pellet Mill line
The diameter of radial holes in the die
from 2 to 8 mm (optional)
Usage
For production of granular nutriment and pellets
Type of drive
Electric
Production capacity
up to 1400.0(kg/h) - feed up to 1000.0(kg/h) - pellets
Power consumption
67 kW
Voltage
400.0(V)
The diameter of the die
300(mm)
The number of knives
2(PCs)
Additional features
The number of rolls
4(PCs)
Warranty
12 months
