Hammer Mill MB-500
  • 15 kW - 30 kW
  • Hammer Mill MB-500

Hammer Mill MB-500

In Stock

Available Options


In Stock 10,517.39€
8,550.72€

Incl Tax: 10,517.39€


  • Product Code: MB-500

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Length: 1350.0mm
Width: 1200.0mm
Height: 1200.0 mm
Weight: 360/440/460 (kg) - depending on the model
Product type: Hammer mill

Description

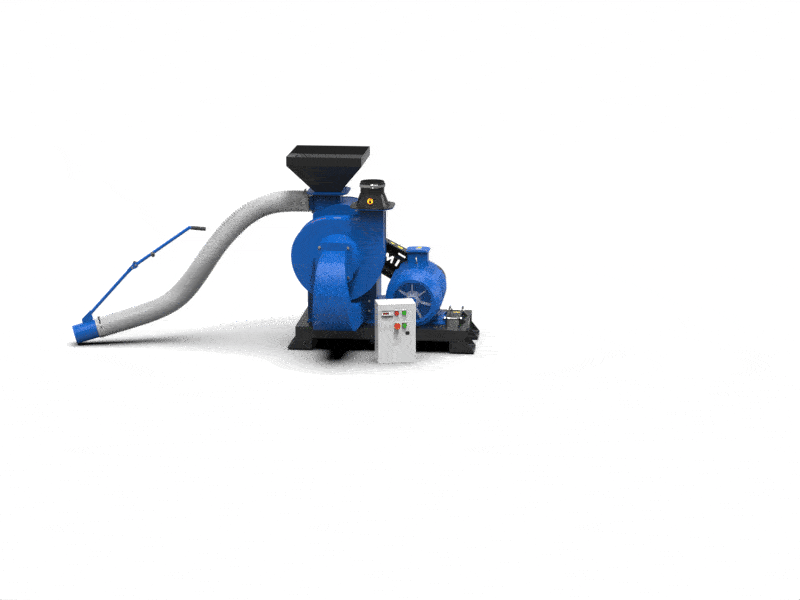

The hammer mill (grain crusher) MB-500 produced by TechnoMaszBud is designed for grinding grain, chips, sawdust, husks, and shavings.

The hammer mill is used for the preliminary grinding of chips and shavings to the required fraction before the pelletizing process (the ideal fraction for pelletizing is 6mm) and fits perfectly into our production line; it can also be used as a standalone unit.

Video: Hammer mill MB-500 for grinding wood chips, grain, biomass:


Video: Granulation line LDG-3000 + Hammer Mill MB-500 | Granulating leaves from the forest, park, yard:


Advantages of the MB-500 hammer mill:

Performance: Our hammer mill is designed for maximum performance. With advanced technology and precise construction, you can be sure that your grains will be crushed with excellent uniformity and efficiency.


Versatility: Our hammer mill handles a variety of grain types, from cereals to oilseeds. Whether you need ground flour, shredded seeds, or other products, our mill will easily adapt to that.


Durability: We understand that durability is crucial in an industrial environment. Our hammer mill is made from durable materials and thoroughly tested to ensure long-lasting and reliable operation, even in intensive conditions.


Easy Operation and Maintenance: Our team of engineers has ensured that the mill is not only efficient but also easy to operate and maintain. With an intuitive interface and available maintenance tools, keeping the mill in excellent condition is simple and quick.


Safety: Ensuring safe operation is a priority. Our hammer mill is equipped with advanced safety systems and emergency stops, which minimize the risk of accidents and disruptions at work.


Video: Hammer Mill MB-500 | Working on wood chips:


Don't waste time and money on less efficient solutions. Our Industrial Hammer Mill is an investment that will provide you with long-term benefits through increased efficiency and production quality.


Included are 3 meters of corrugated pipe with a diameter of 127 mm and a raw material intake end.

In case of purchasing a cyclone, included is 2.5 meters of corrugated pipe with a diameter of 160 mm from the mill to the cyclone

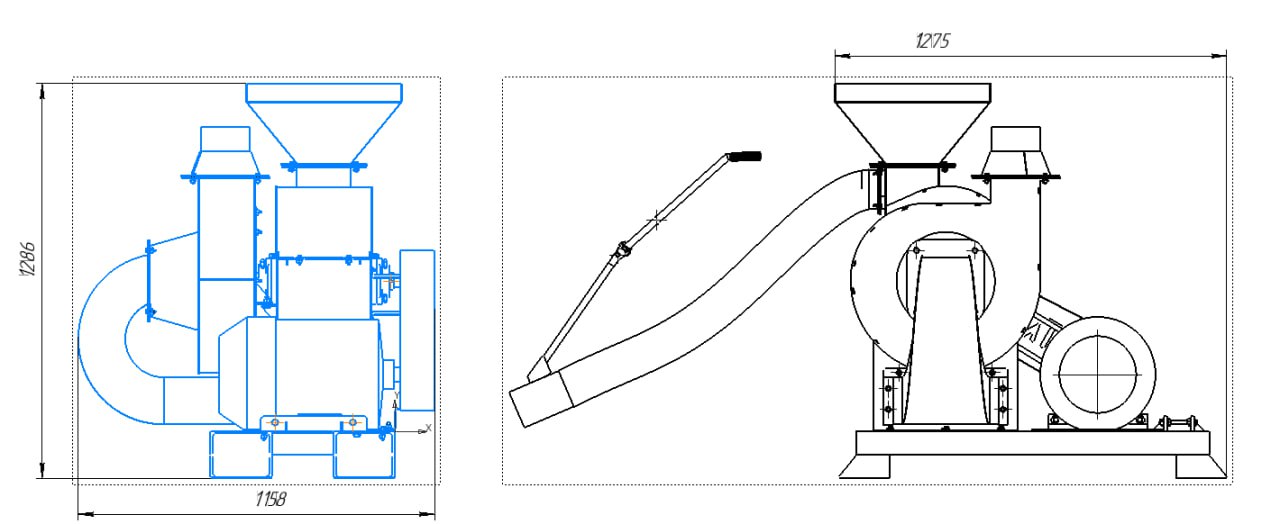

Dimensions without cyclone DX width x height 1350 x 1200 x 1200

Dimensions with cyclone length x width x height (MMM) 3688 x 1151 X 3348


Possibility of testing your raw material grinding on this shredder at our warehouse!


Contact us today to learn more about our Industrial Hammer Mill and how we can adapt it to your specific needs. Change your approach to grain processing and invest in reliability and quality now!

Video: Hammer Mill MB-500 | Wood chip grinding test:


Video: Shell grinding | Hammer Mill MB-500:

Specification

Dimensions
Length
1350.0mm
Width
1200.0mm
Height
1200.0 mm
Weight
360/440/460 (kg) - depending on the model
Key features
Product type
Hammer mill
Usage
For grinding shavings, sawdust, wood chips, grain
Type of drive
Electric
Production capacity
400.0(kg/h) | 500.0(kg/h) | 600.0(kg/h) - Sawdust; 3000.0(kg/h) | 3500.0(kg/h) | 4000.0(kg/h) - Grain;
Engine power
15 (kW) | 22 (kW) | 30 (kW)
Voltage
400 (V)
Rotation speed
3000 rpm
Additional features
Warranty
12 months
Dimensions
Length
1350.0mm
Width
1200.0mm
Height
1200.0 mm
Weight
360/440/460 (kg) - depending on the model
Key features
Product type
Hammer mill
Usage
For grinding shavings, sawdust, wood chips, grain
Type of drive
Electric
Production capacity
400.0(kg/h) | 500.0(kg/h) | 600.0(kg/h) - Sawdust; 3000.0(kg/h) | 3500.0(kg/h) | 4000.0(kg/h) - Grain;
Engine power
15 (kW) | 22 (kW) | 30 (kW)
Voltage
400 (V)
Rotation speed
3000 rpm
Additional features
Warranty
12 months
