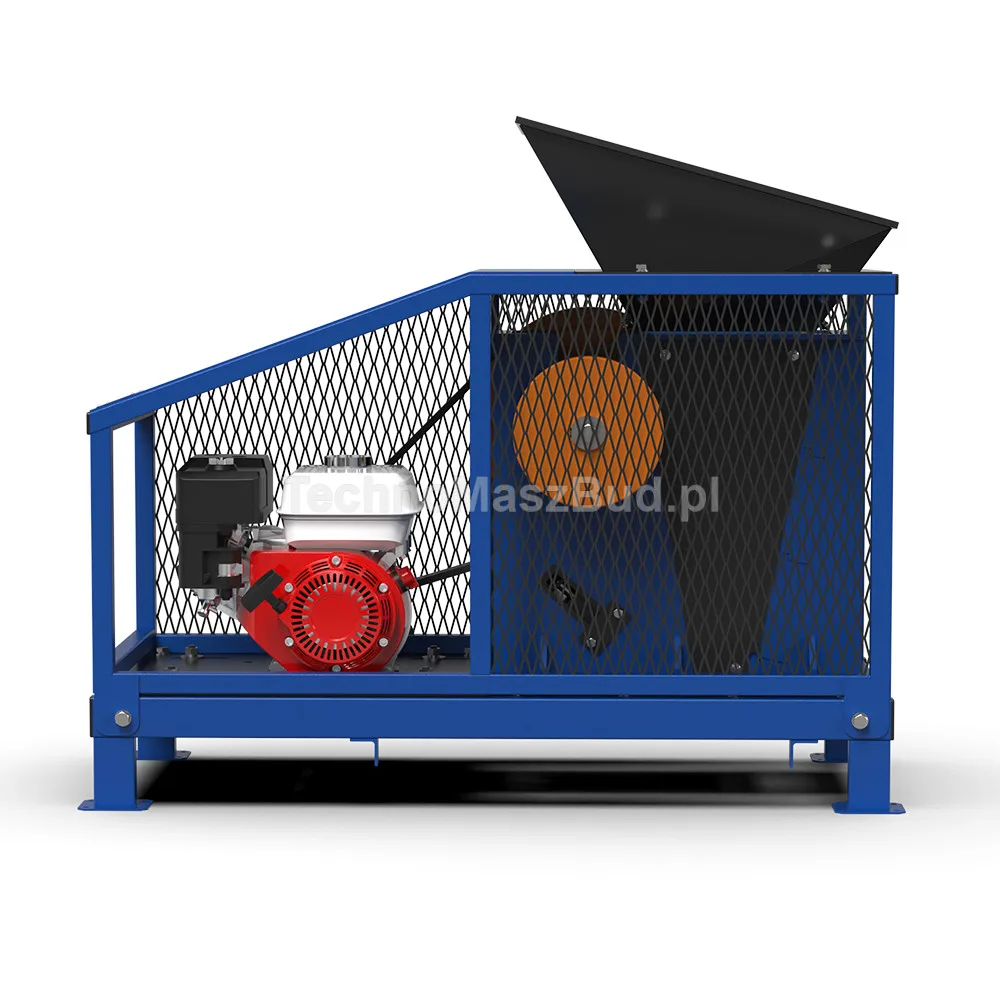

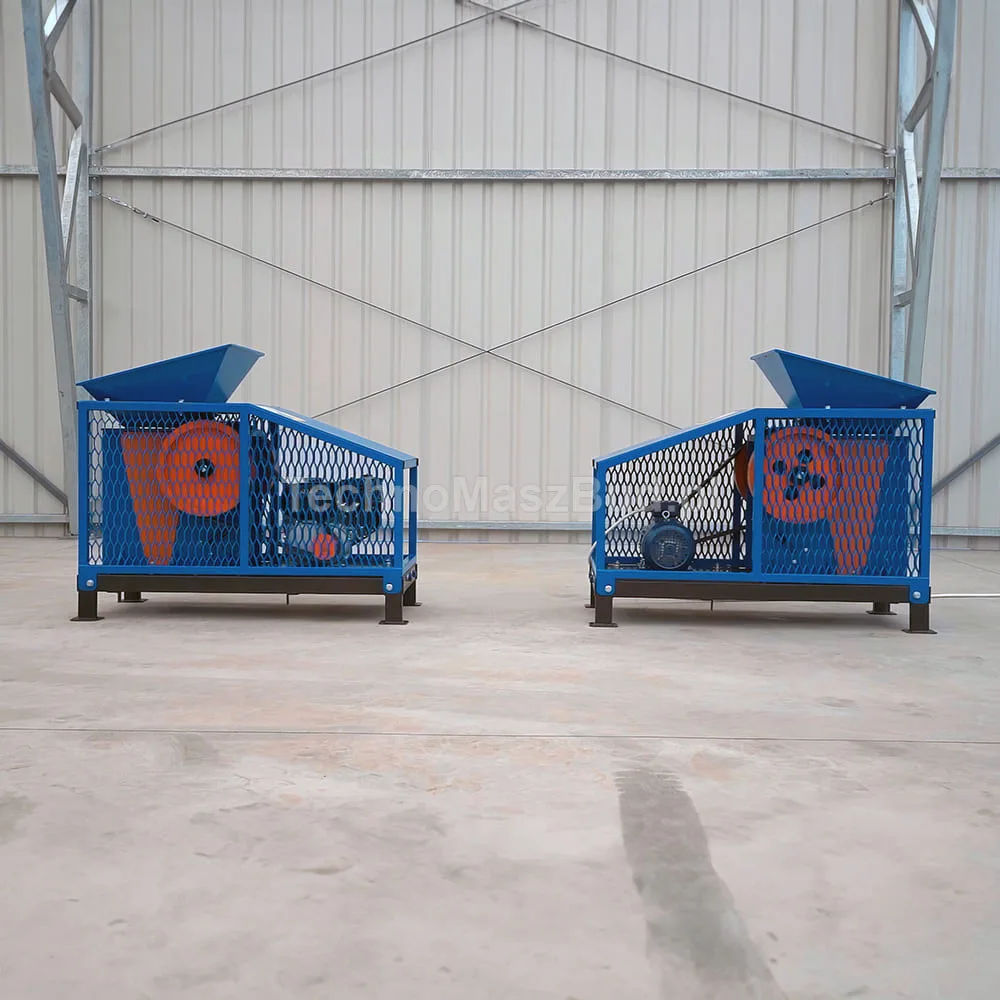

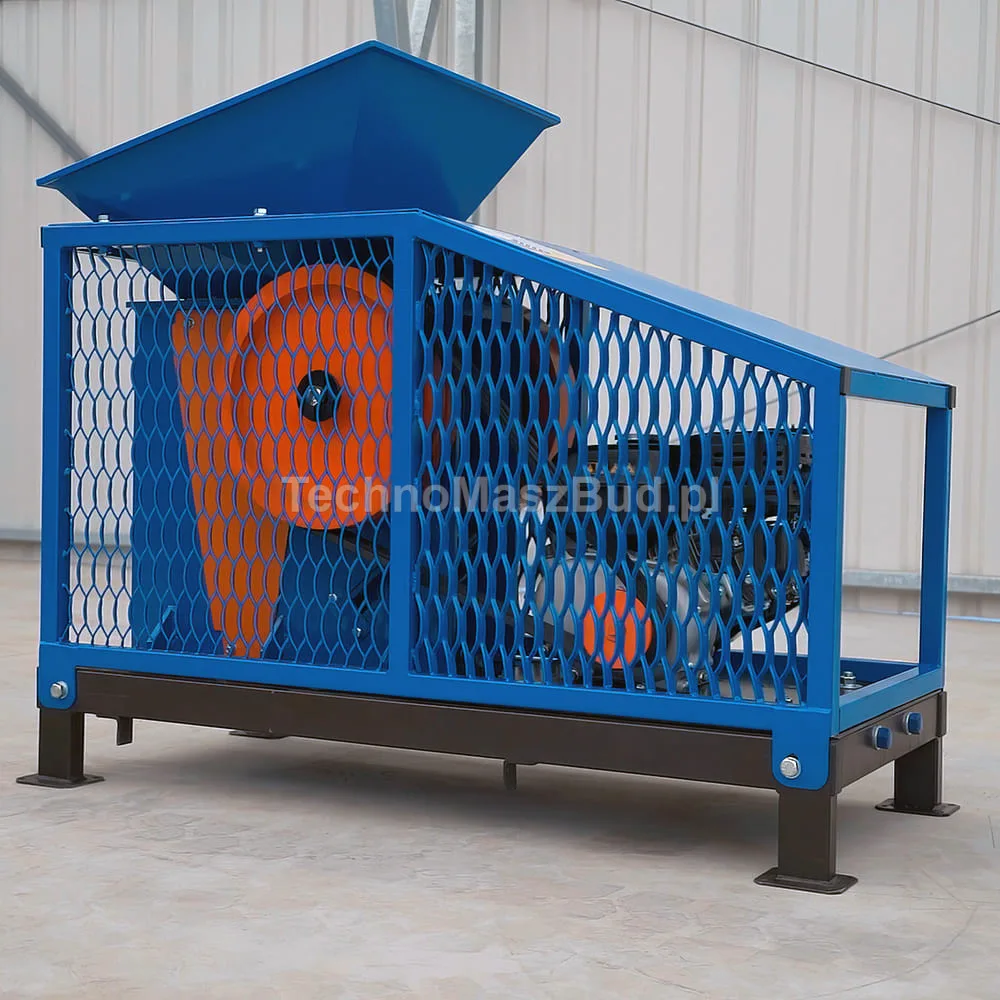

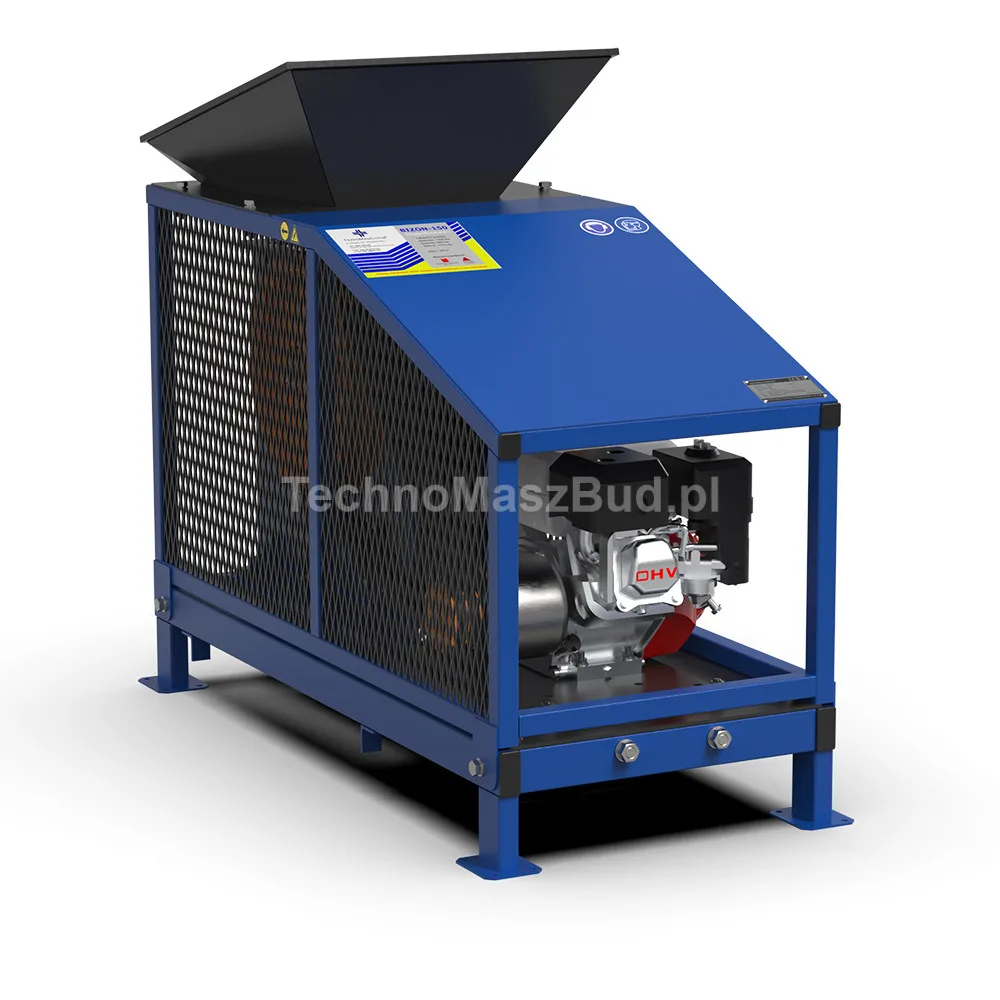

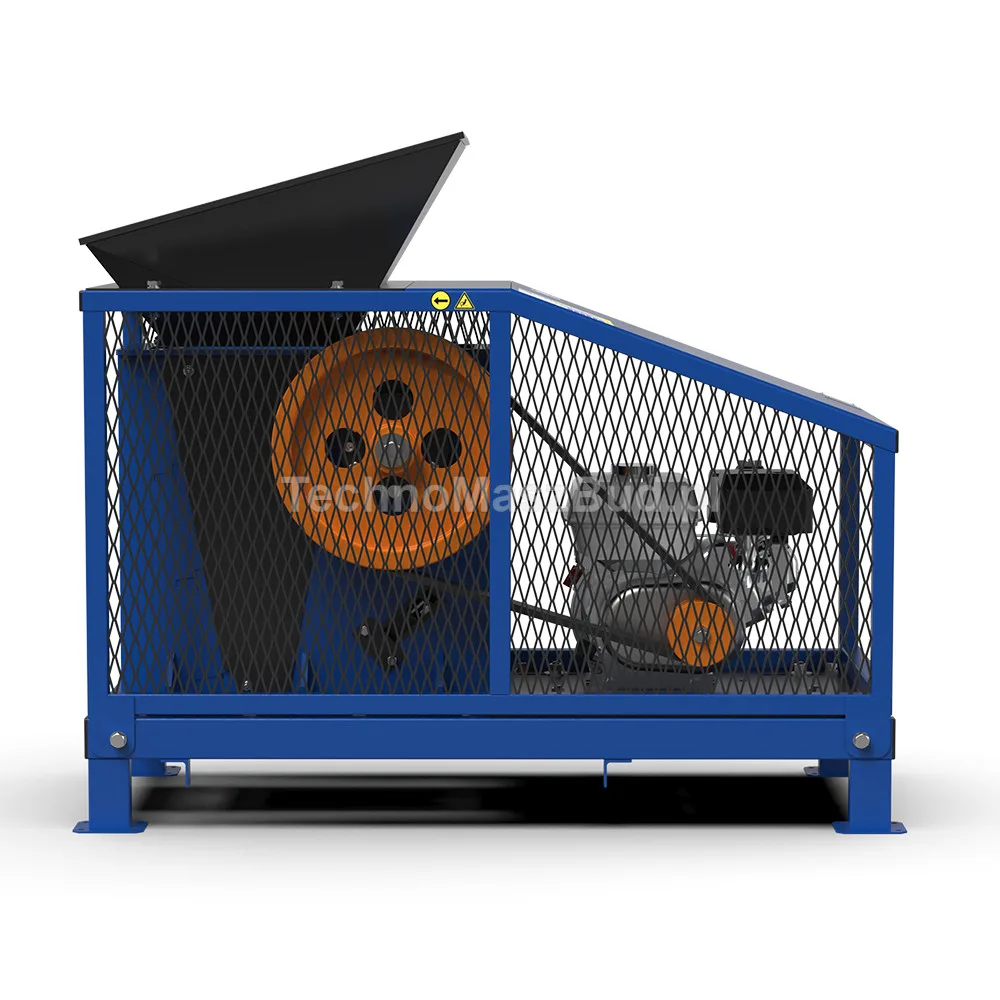

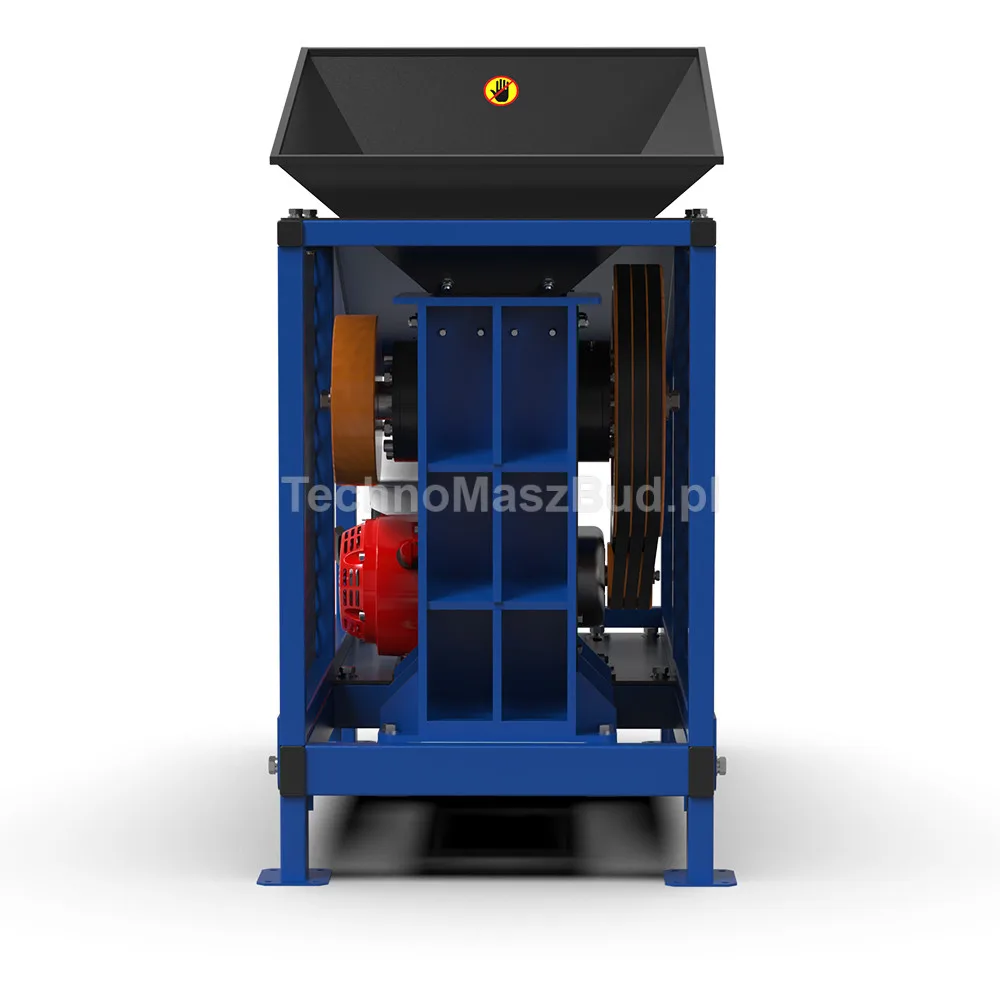

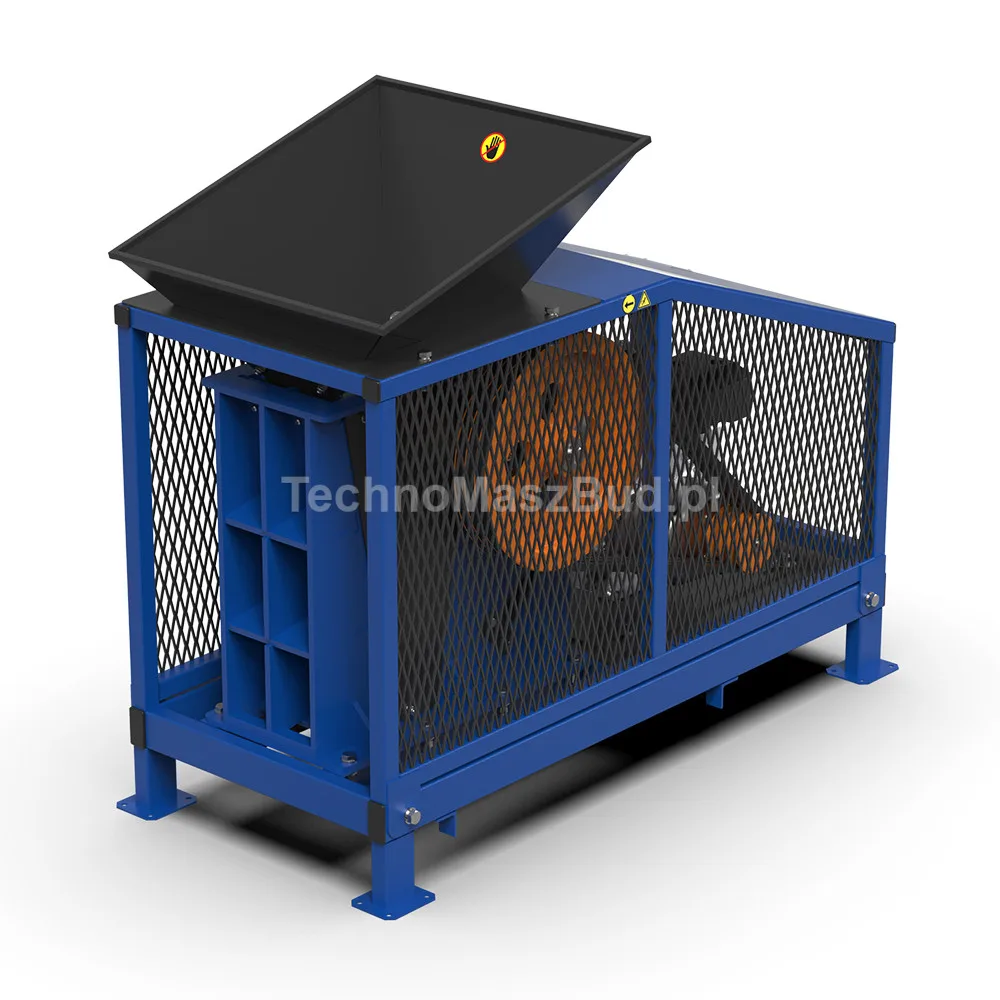

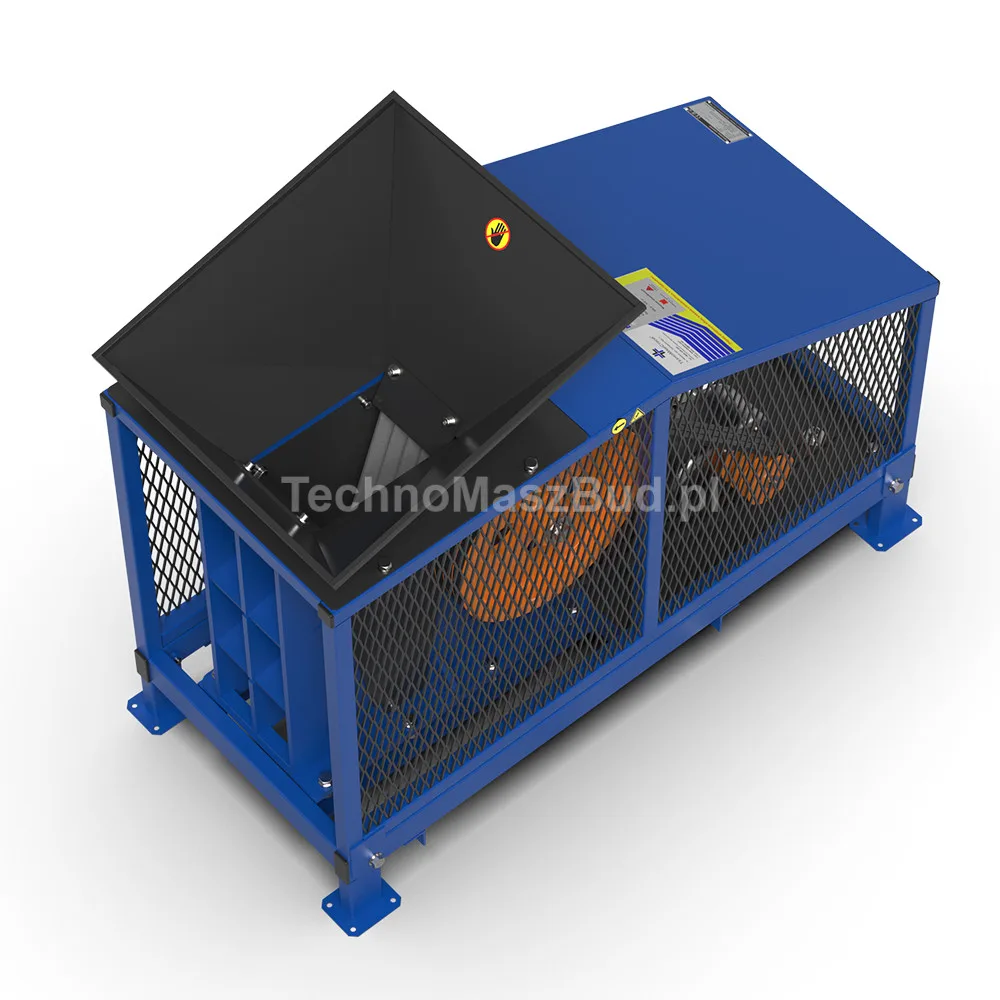

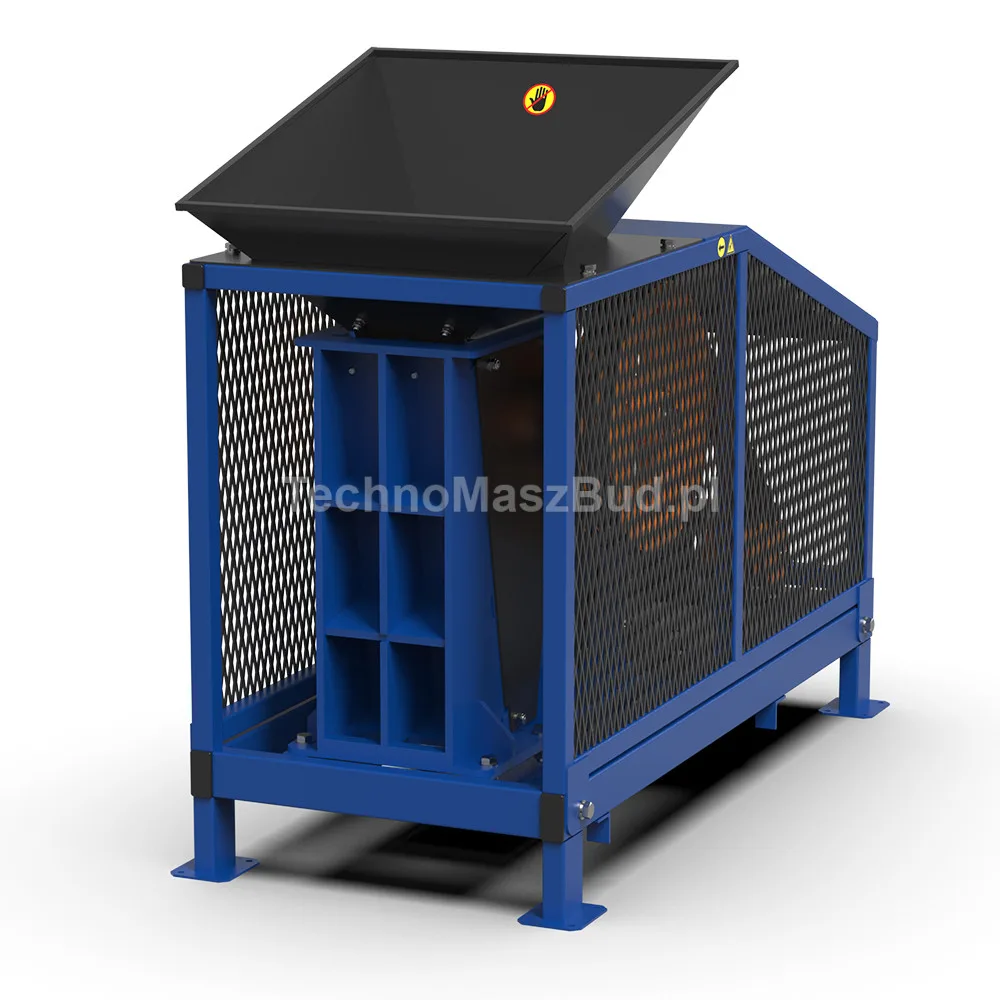

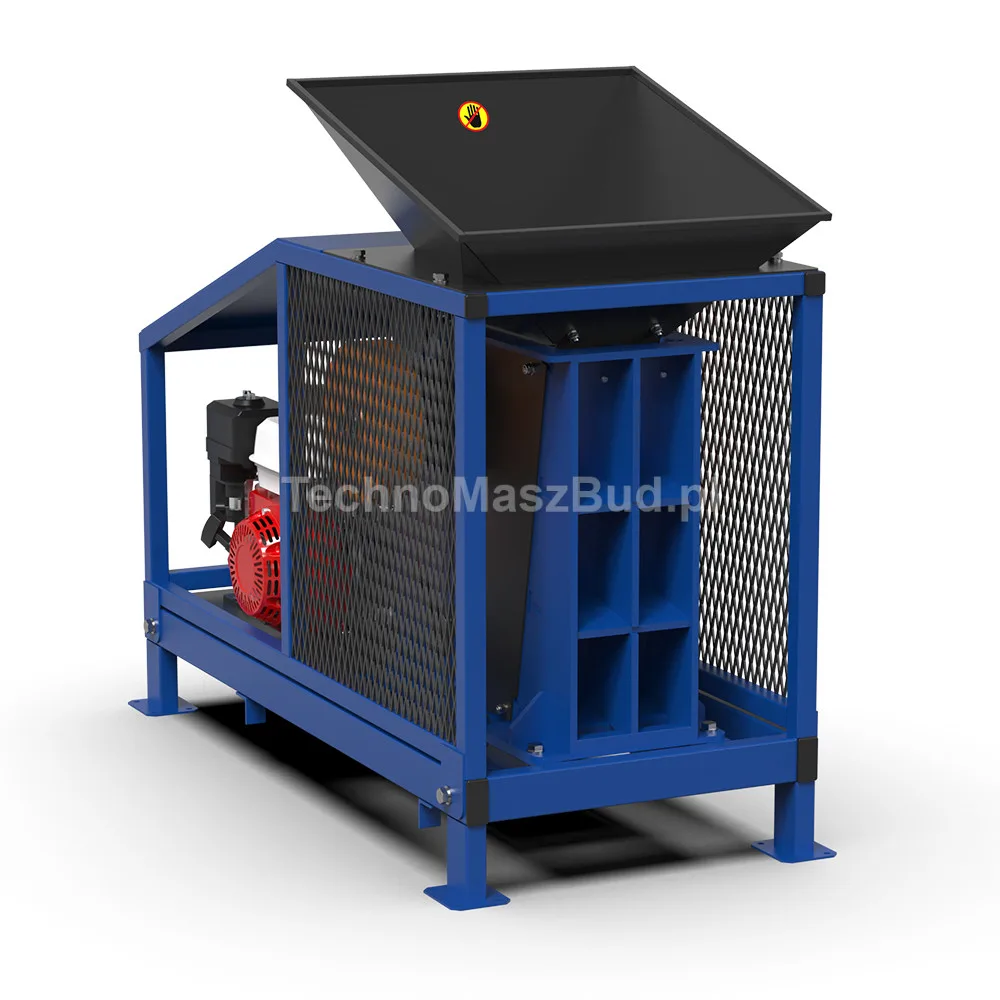

Jaw crusher BIZON-150

Jaw crusher BIZON-150

In Stock
Rating:

In Stock 18,757.50
15,250.00zł

Incl Tax: 18,757.50zł


  • Product Code: BIZON-150

Warranty and service
About Us
Delivery and Payment
Contact

Main characteristics All specifications
Length: 1200.0(mm)
Width: 565.00(mm)
Height: 860.0(mm)
Weight: 305.0(kg)
Product type: Jaw Crusher

Description

The BIZON-150 jaw crusher is widely used in construction, construction waste processing, mining, construction materials production,

chemical industry, etc. The jaw crusher is suitable for primary and secondary crushing of all kinds of minerals and construction waste (stone,

concrete, brick, various types of artificial materials) with a compressive strength of less than 320 MPa.


Advantages of the BIZON-150 jaw crusher:

1. Simple design, easy maintenance.

2. High degree of crushing, uniform output size.

3. High reliability, low cost.

4. Low level of noise, small amount of dust.


How it works:

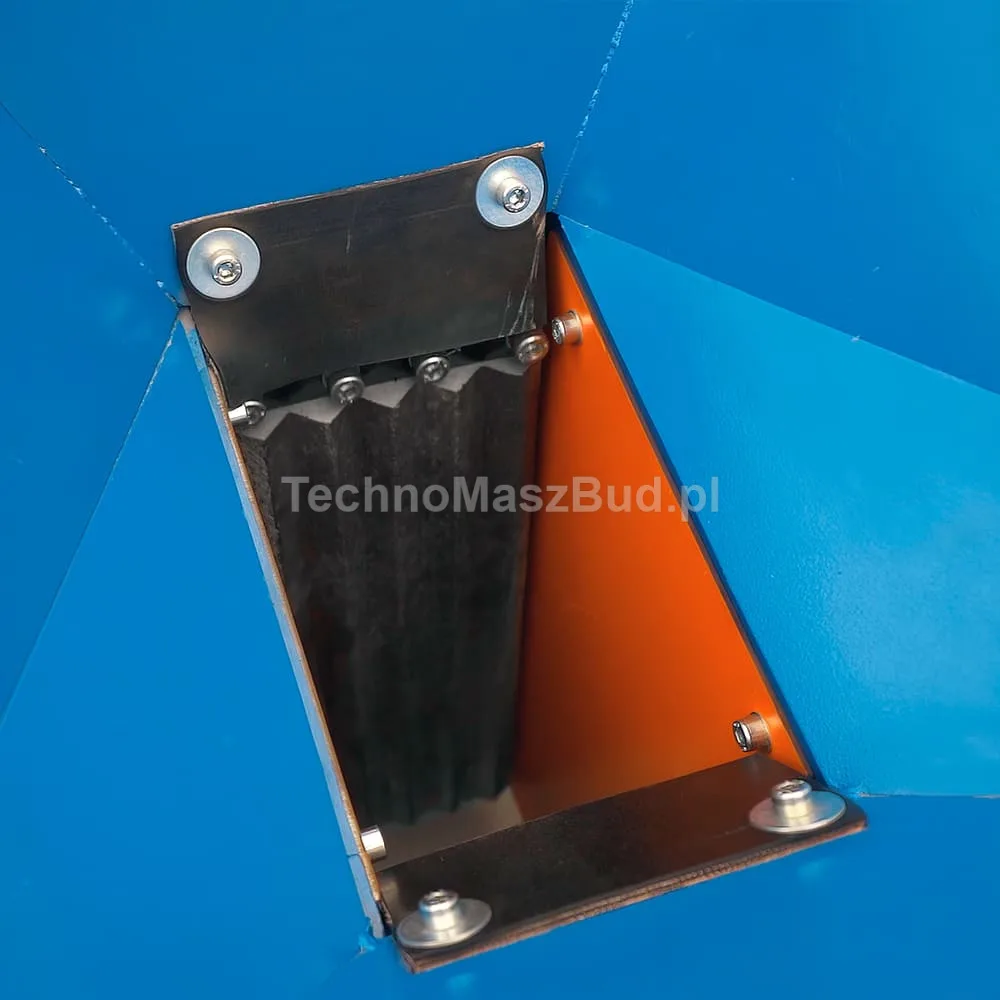

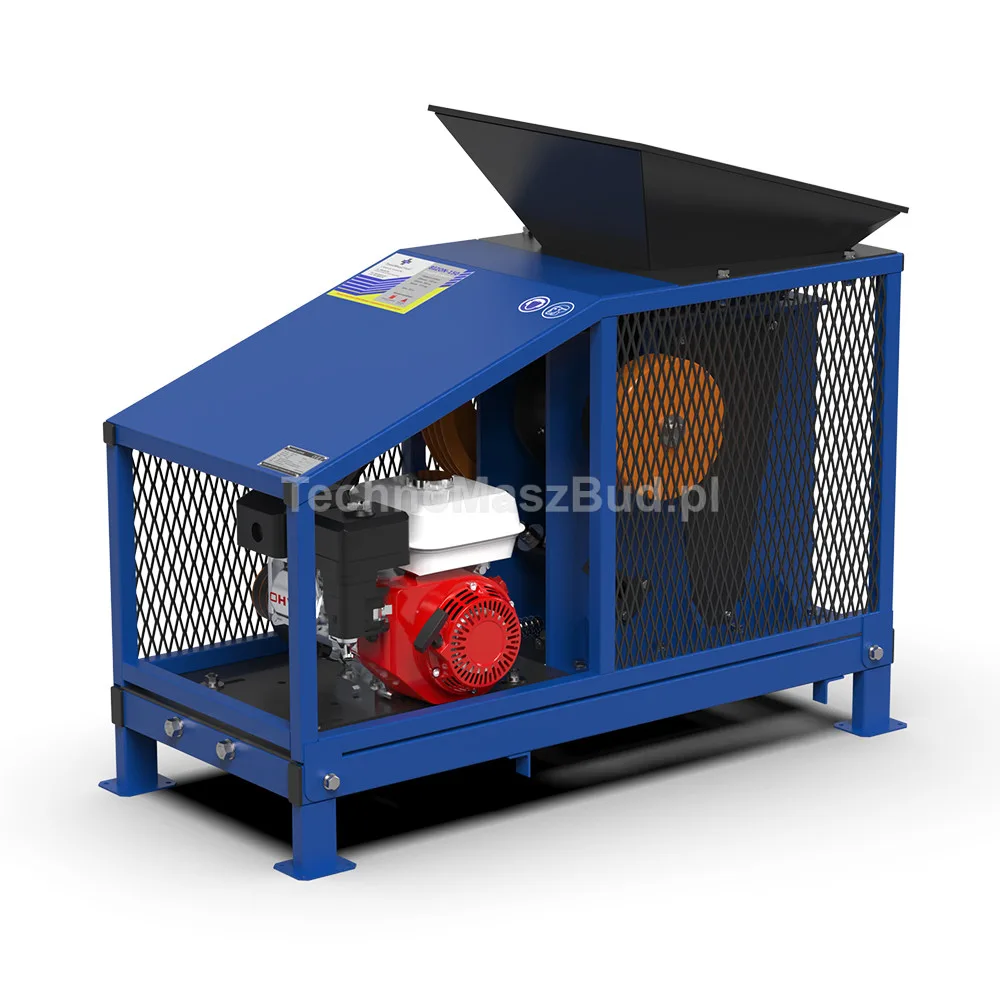

The jaw crusher can be powered by an engine of your choice, it can be a petrol, diesel or electric engine. The movable sponge plate is

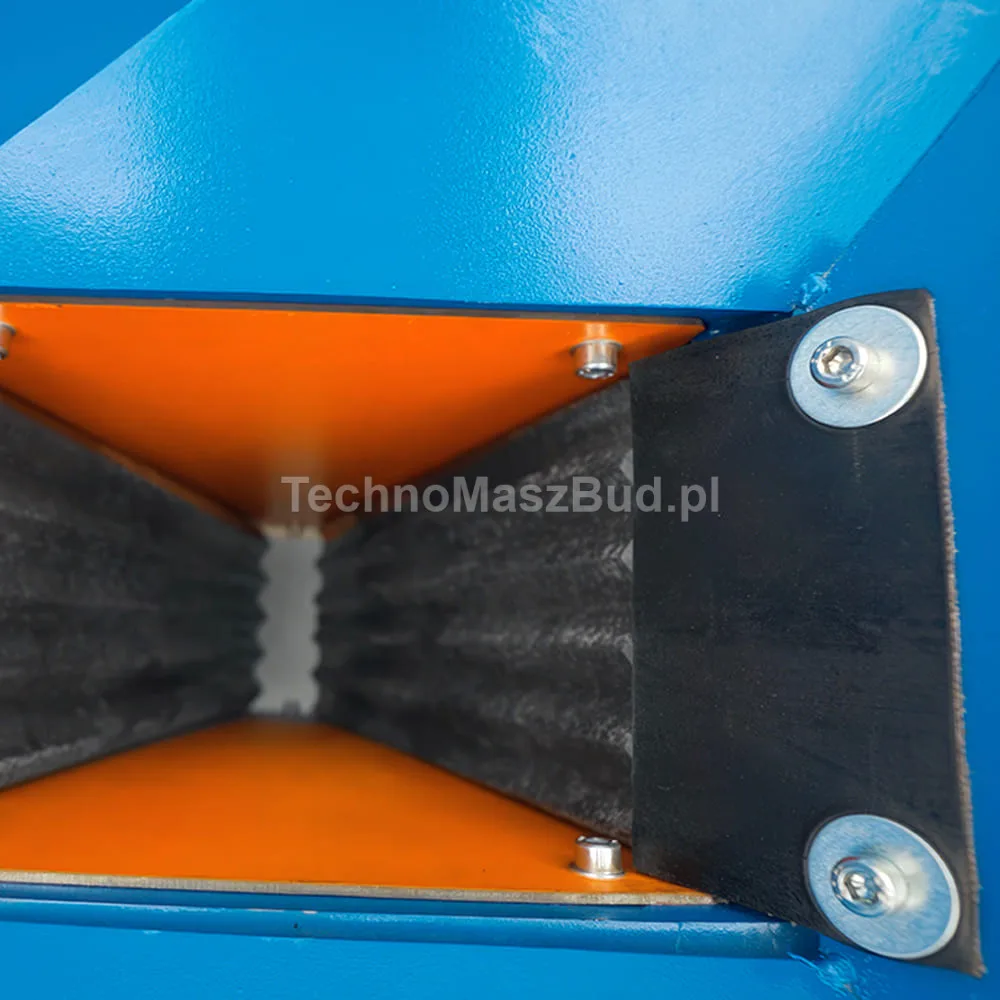

moved up and down by an eccentric shaft. The angle and distance between the stationary flat jaw and the moving one become smaller

when the moving falling materials are crushed into pieces. The angle and distance will become larger when the moving sponge moves up.

When the movable plate moves away from the stationary plate with the help of springs, the crushed particles leave the working area.


Technical data:

* the size of the loading opening is 150 mm x 200 mm;

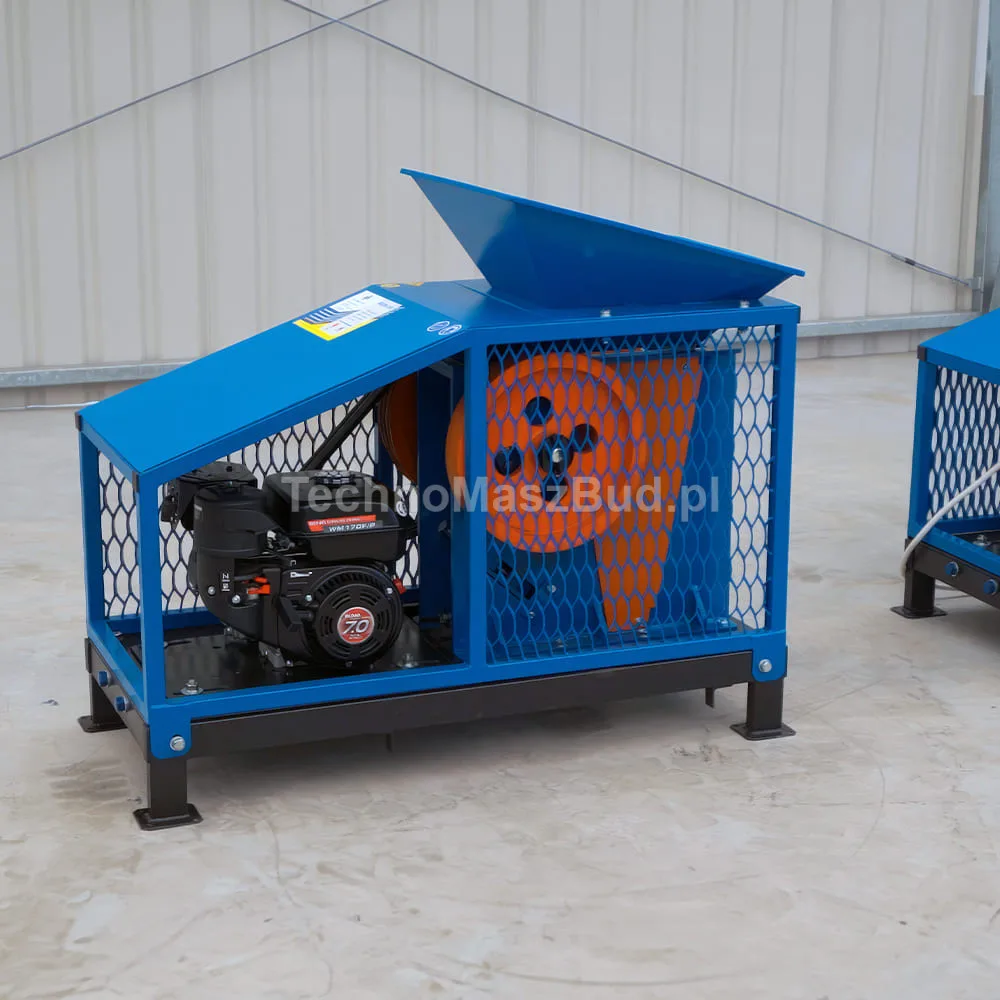

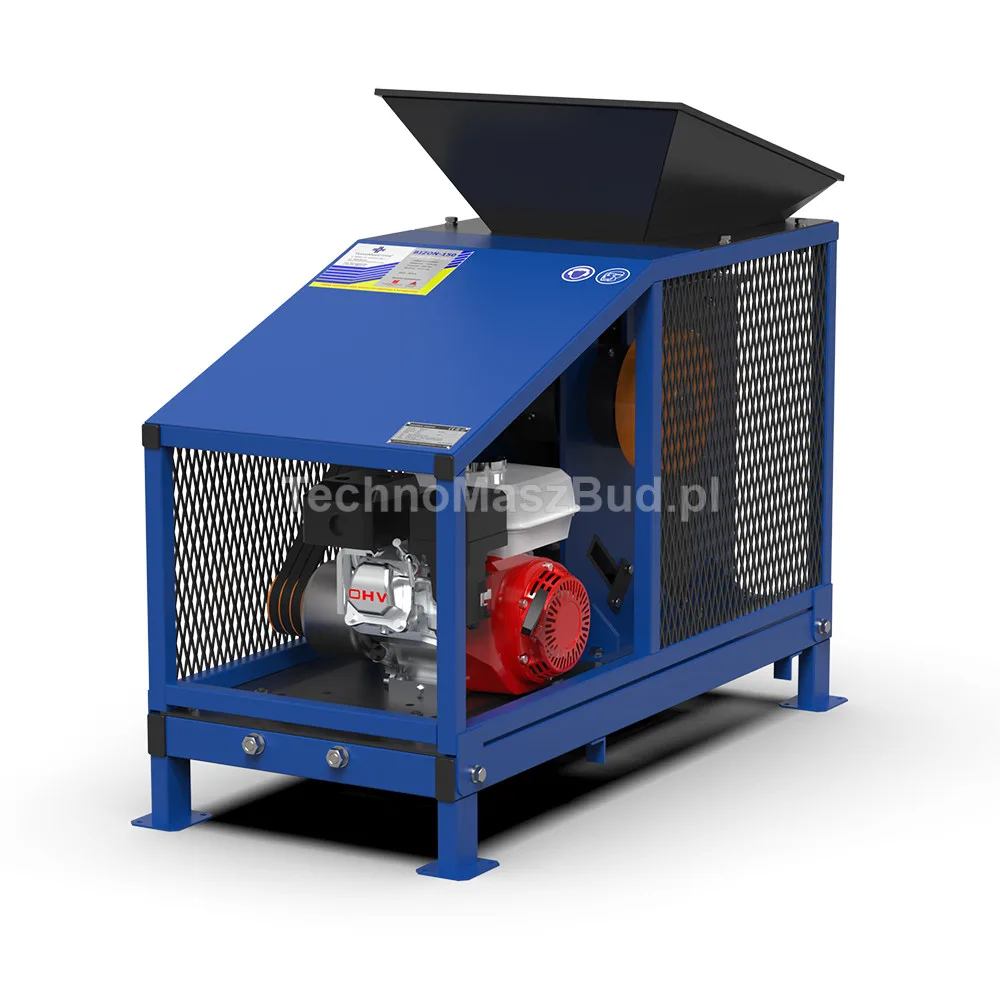

* petrol engine - 7 km;

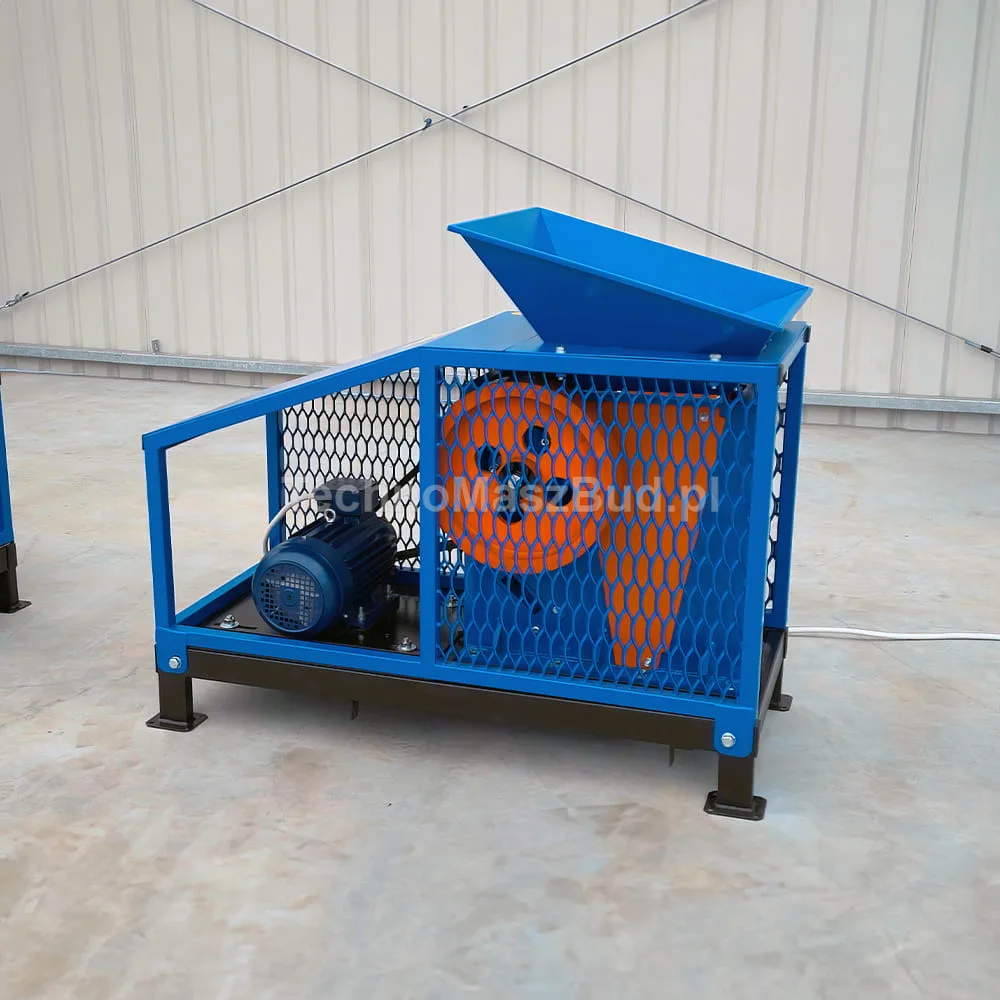

* electric motor - 4/5. 5 kW.;

* weight - 305 kg.


Performance:

* with a 10 mm fraction - 1.5 t / h.;

* with a 50 mm fraction  - 7.5 t / h.


Specification

Dimensions
Length
1200.0(mm)
Width
565.00(mm)
Height
860.0(mm)
Weight
305.0(kg)
Key features
Product type
Jaw Crusher
Usage
Crushing: Ore, Coal, Coke, Granite, Ceramics, Quartz, Concrete, Crushed Stone
Type of drive
Electric, Petrol, Diesel
Production capacity
With a 10 mm fraction - 1.5 t/h.; With a 50 mm fraction - 7.5 t/h.
Engine power
Petrol engine - 6 hp ; Diesel engine - 7 hp ; Electric motor - 4/5.5 kW.;
Voltage
380V-400V/50/60Hz
Additional features
Warranty
12 months
Dimensions
Length
1200.0(mm)
Width
565.00(mm)
Height
860.0(mm)
Weight
305.0(kg)
Key features
Product type
Jaw Crusher
Usage
Crushing: Ore, Coal, Coke, Granite, Ceramics, Quartz, Concrete, Crushed Stone
Type of drive
Electric, Petrol, Diesel
Production capacity
With a 10 mm fraction - 1.5 t/h.; With a 50 mm fraction - 7.5 t/h.
Engine power
Petrol engine - 6 hp ; Diesel engine - 7 hp ; Electric motor - 4/5.5 kW.;
Voltage
380V-400V/50/60Hz
Additional features
Warranty
12 months
