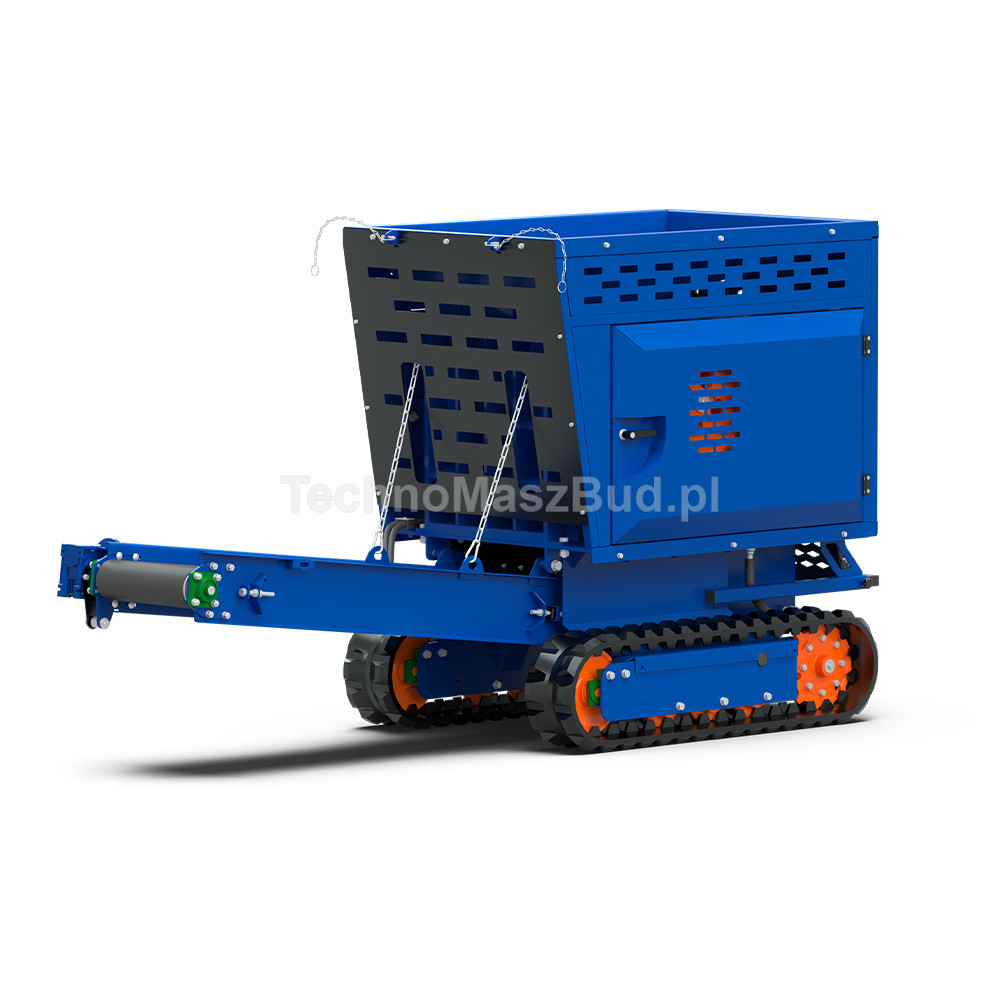

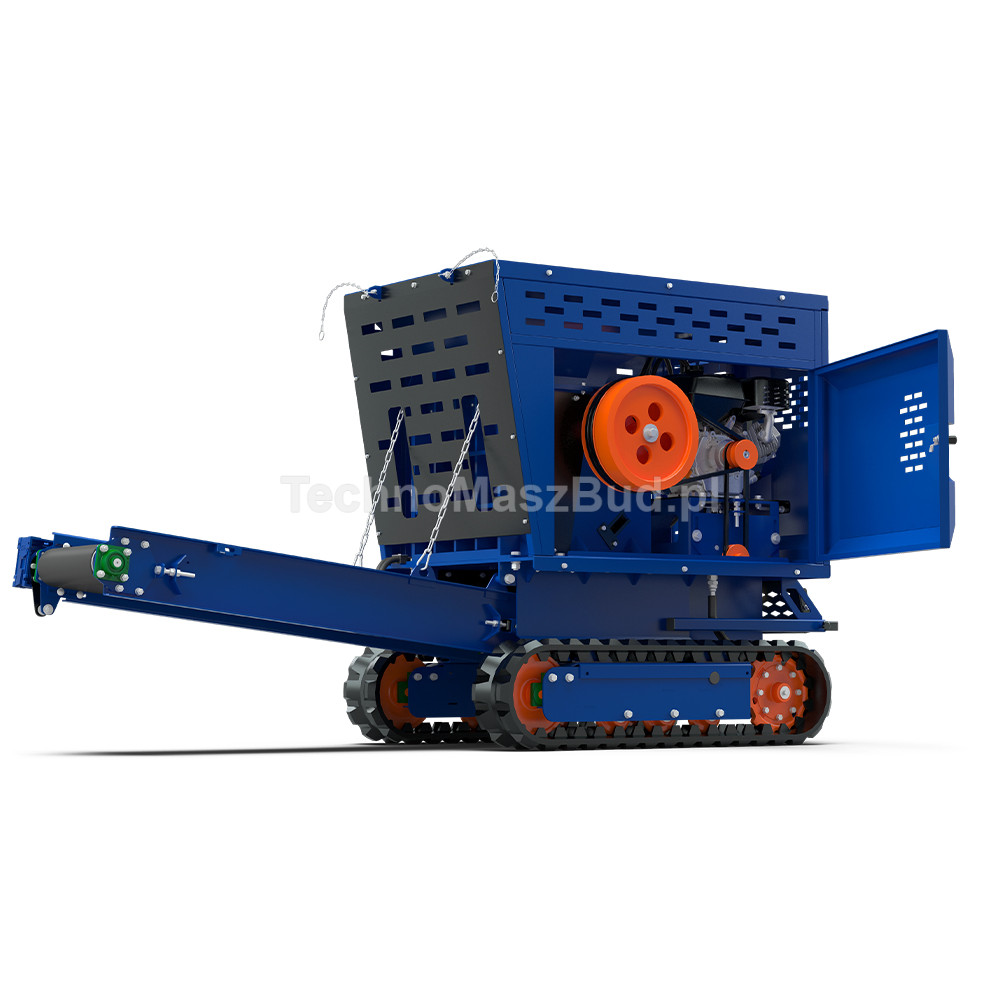

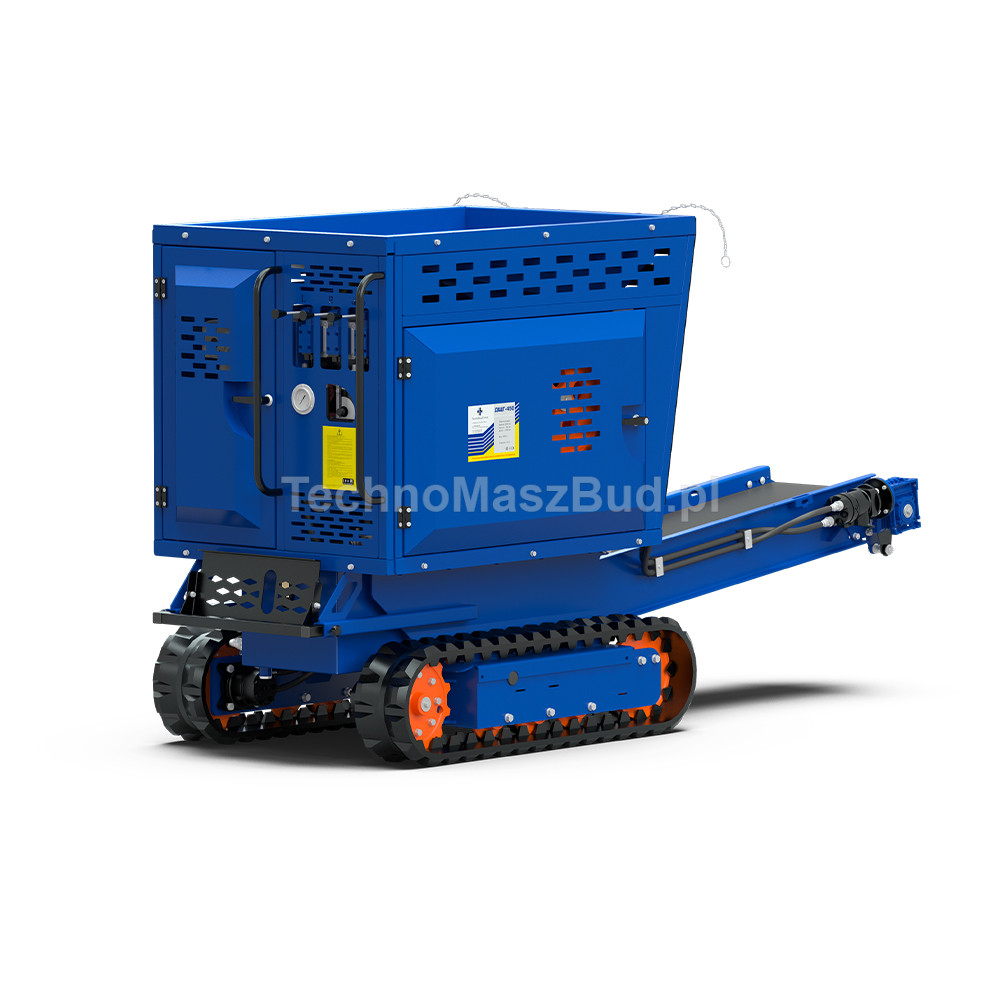

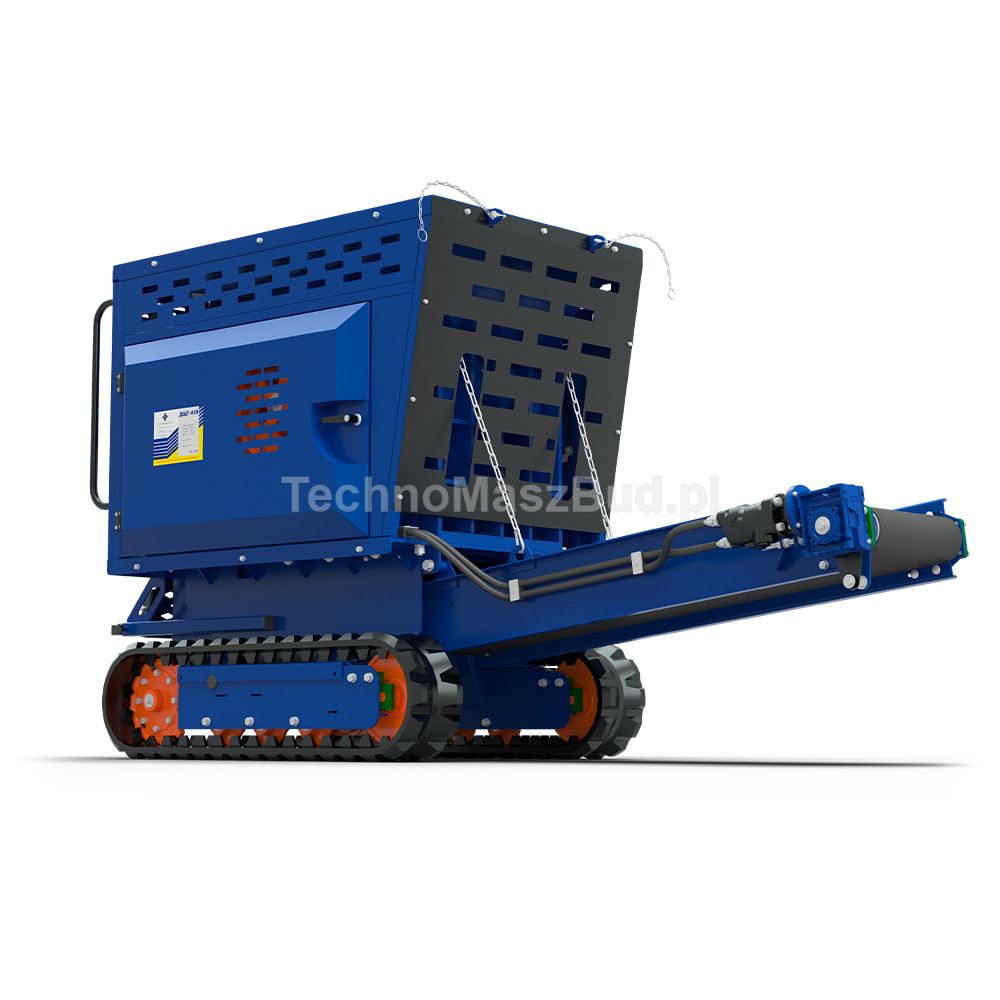

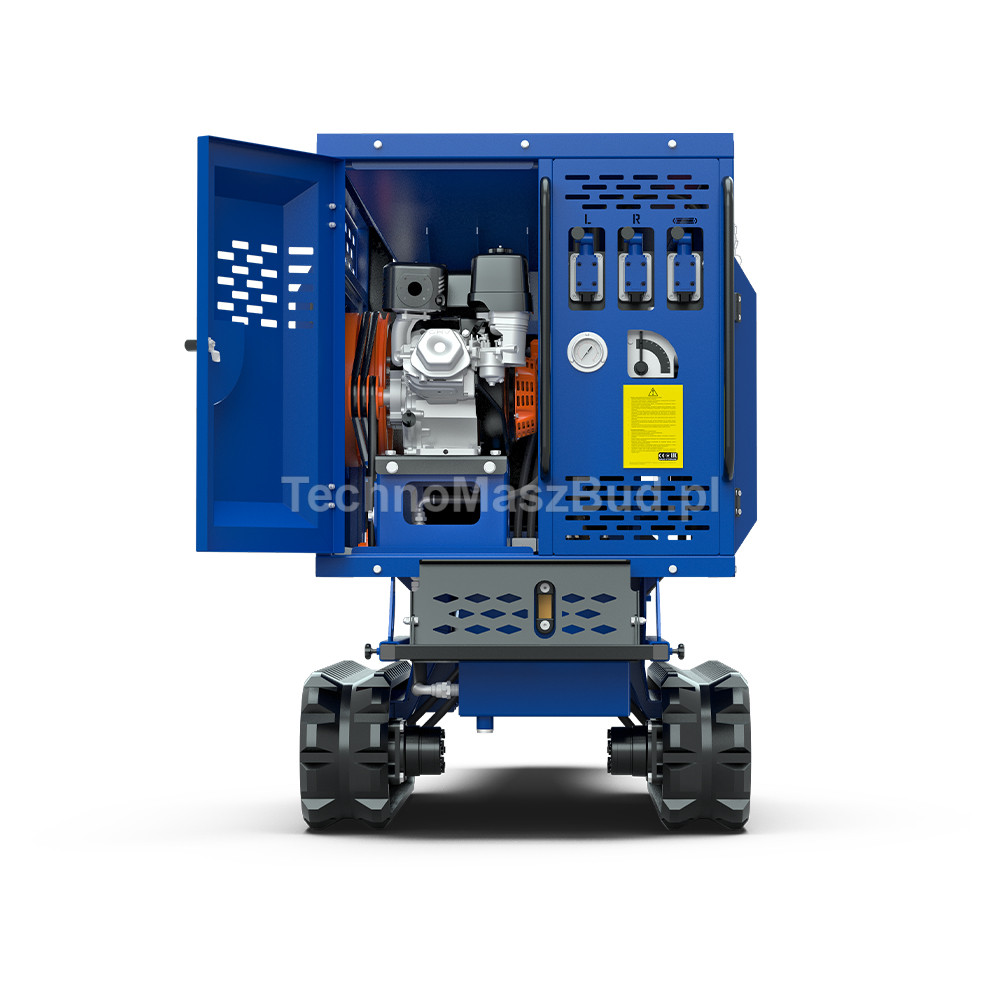

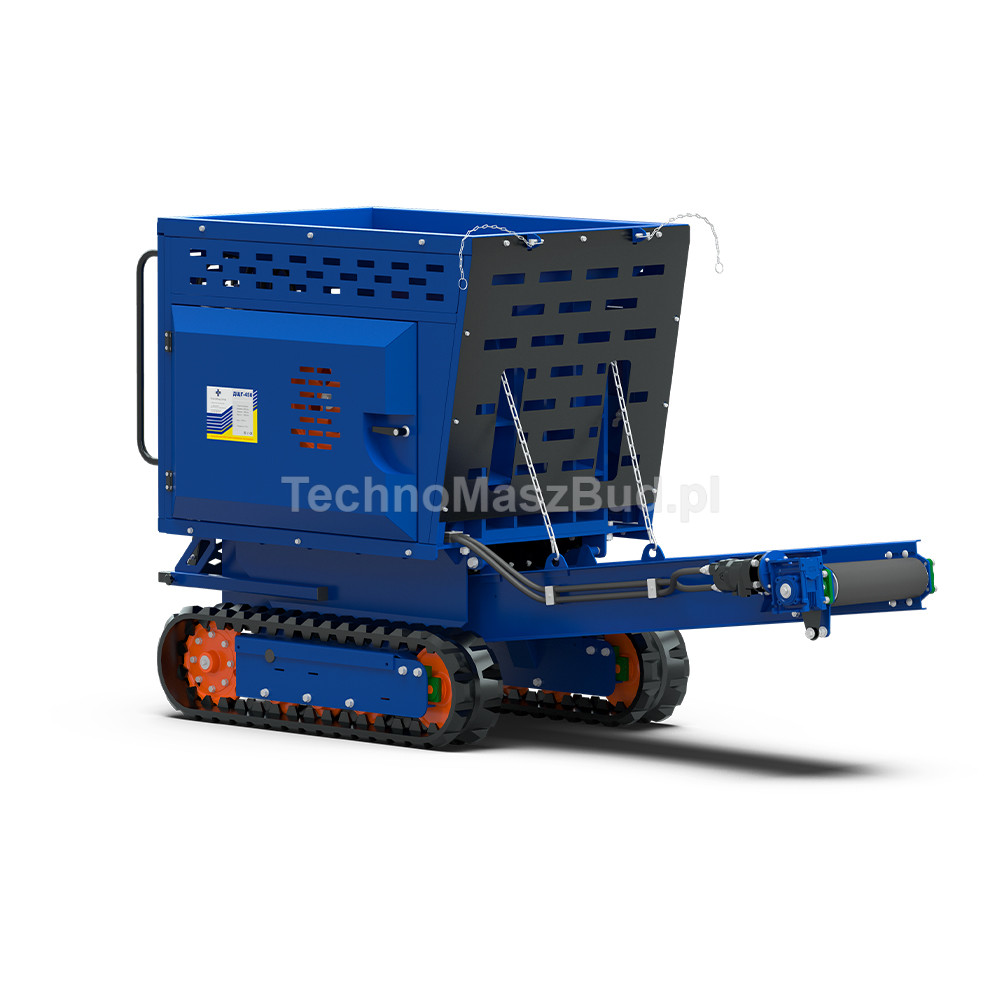

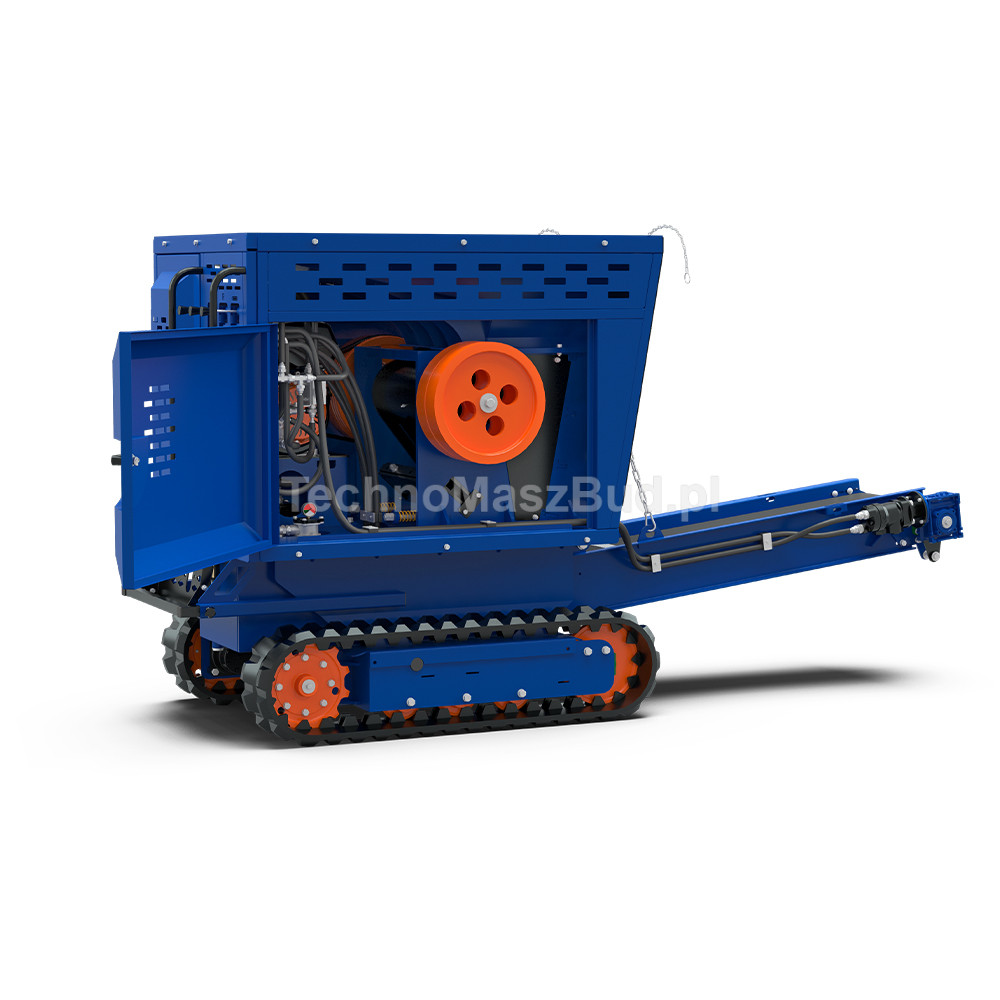

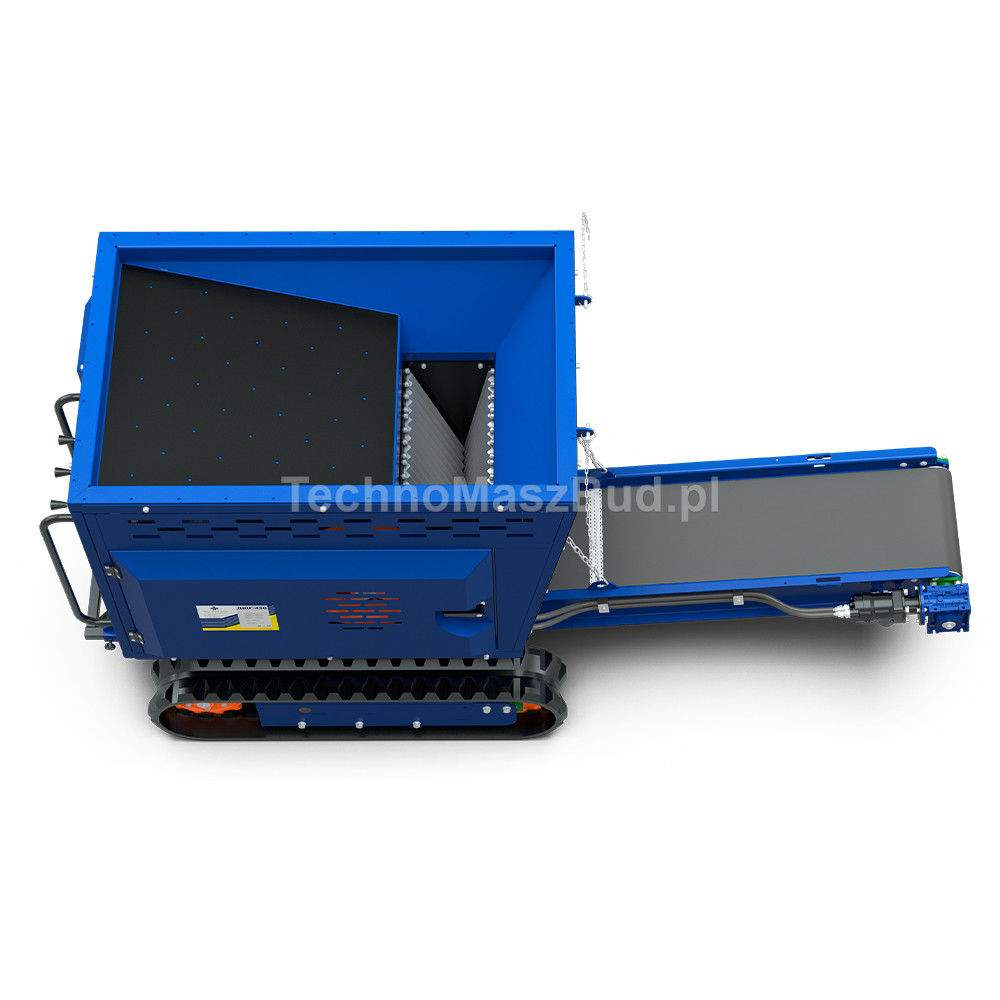

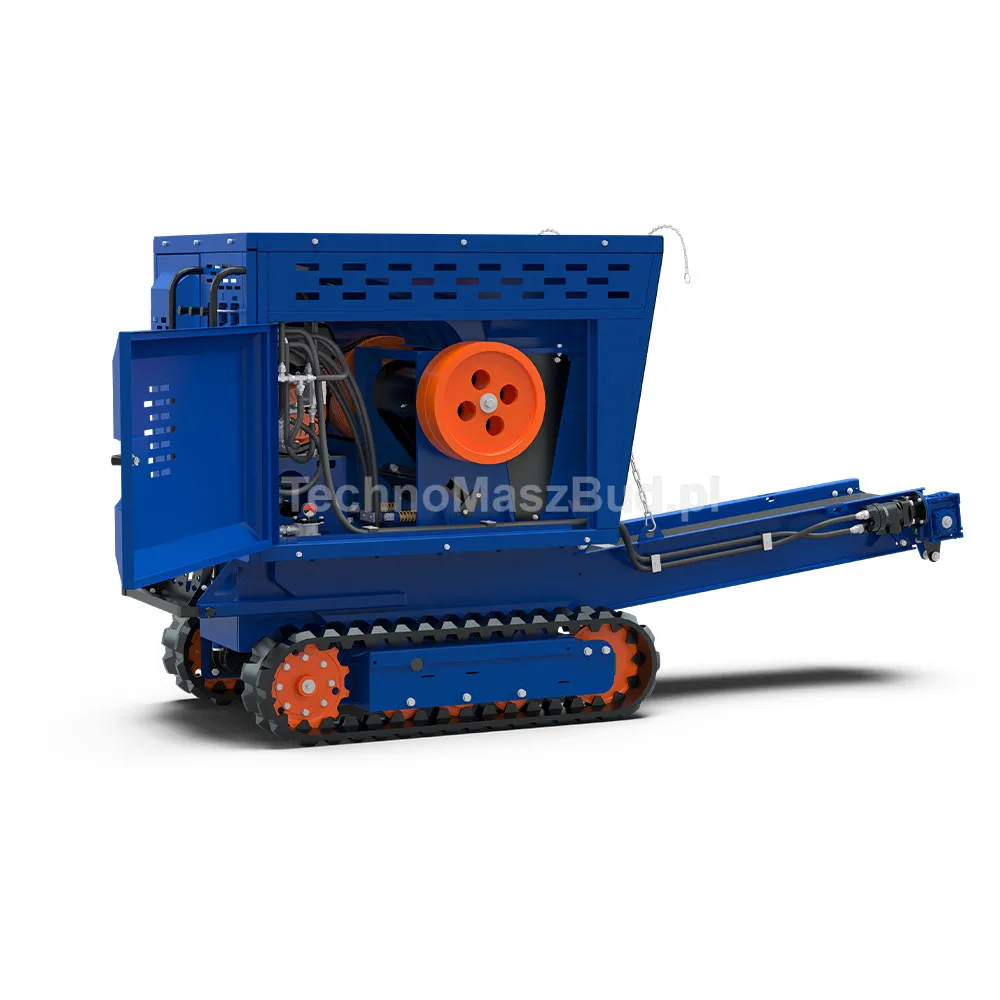

Jaw crusher BIZON-450 PRO

BIZON-450 PRO Jaw Crusher is the most powerful and advanced model in the BIZON crushing equipment series. The machine combines very high efficiency with versatile applications and reliable performance when processing a wide range of mineral and construction raw materials.

The BIZON-450 PRO model is equipped with a track platform, which significantly increases the mobility and operational flexibility of the device. The crusher can be easily moved directly at the worksite, on a construction site, in a quarry, or in demolition zones.

The tracked chassis provides excellent traction even on uneven and difficult terrain, helping to reduce raw material transportation costs. Thanks to this, the BIZON-450 PRO is perfectly suited for crushing material directly at the extraction or dismantling site.

Compared to smaller models in the BIZON series, the 450 PRO version allows processing of large blocks up to 450 mm in length and up to 250 mm in height and width. If a very fine fraction below 10 mm is required, a two-stage system is recommended, where the material is initially crushed to 50–80 mm and then reduced further in the next stage.

Applications

The BIZON-450 PRO crusher is used in:

• construction and recycling of construction waste
• mining industry
• production of construction materials
• chemical industry

The device is suitable for primary and secondary crushing of minerals and construction waste such as stone, concrete, brick, or synthetic materials with a compressive strength of up to 320 MPa.

Advantages

• Simple and durable design with easy maintenance
• High degree of crushing and uniform end product quality
• Economical operation and low operating costs
• Reduced noise and dust emissions

Technical specifications

• Engine: Vanguard (USA)
• Drive type: hydraulic
• Hydraulic oil capacity: 36 l
• Pump: CASAPPA HYDRAULICS
• Crusher base: hydraulic track drive
• Feed opening: 450 x 250 mm
• Electric motor power: 11 kW
• Drive: 14 HP petrol engine
• Performance: from 6 to 60 t/h (depending on fraction and material type)
• Crusher type: jaw
• Crushed material: ore, coal, coke, granite, ceramics, quartz, concrete, aggregate
• Discharge hopper: yes
• Loading hopper: no
• Feed opening dimensions: 450 x 250 mm
• Warranty period: 12 months
