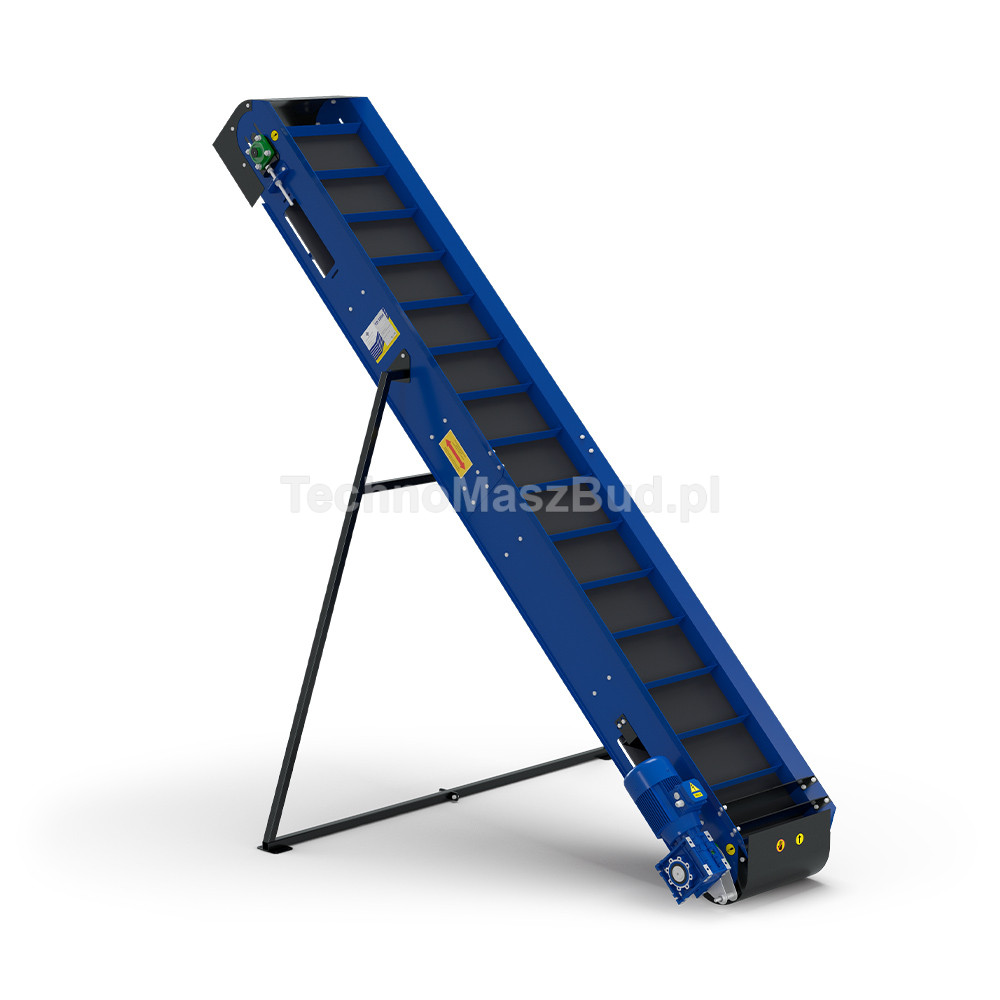

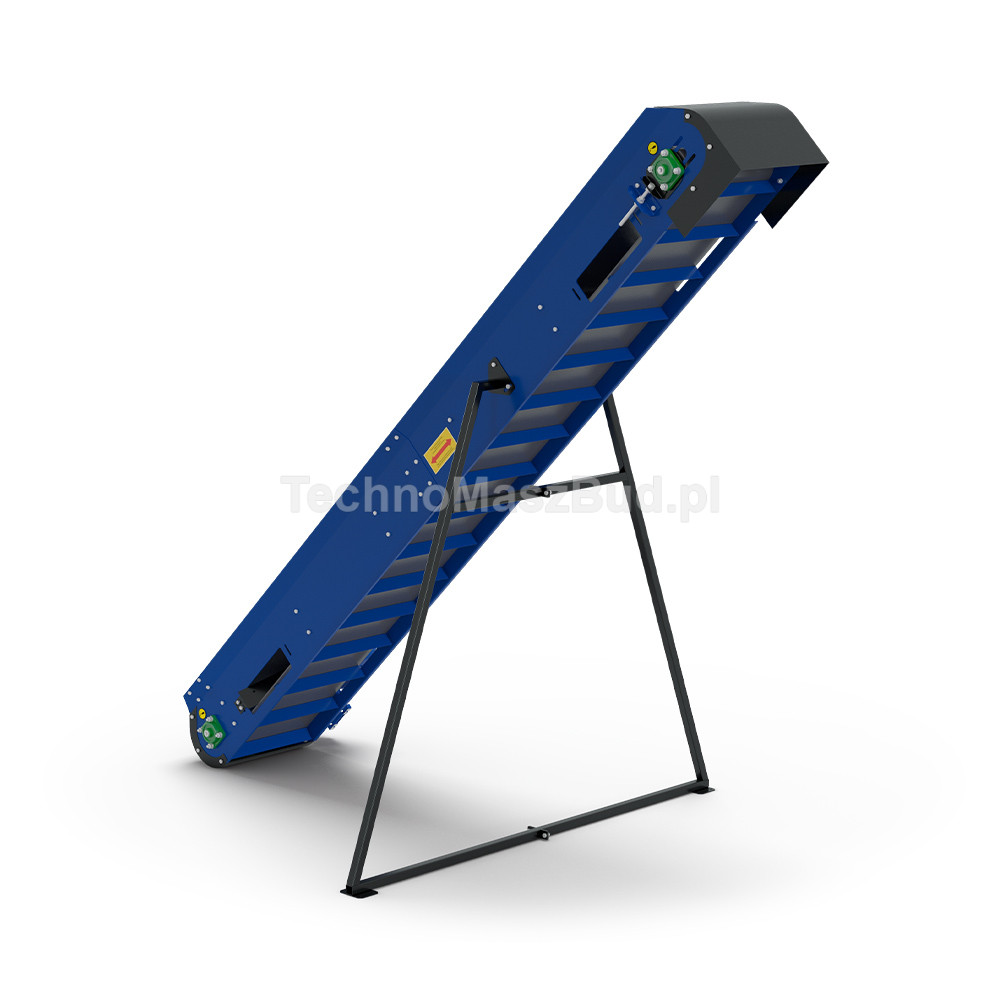

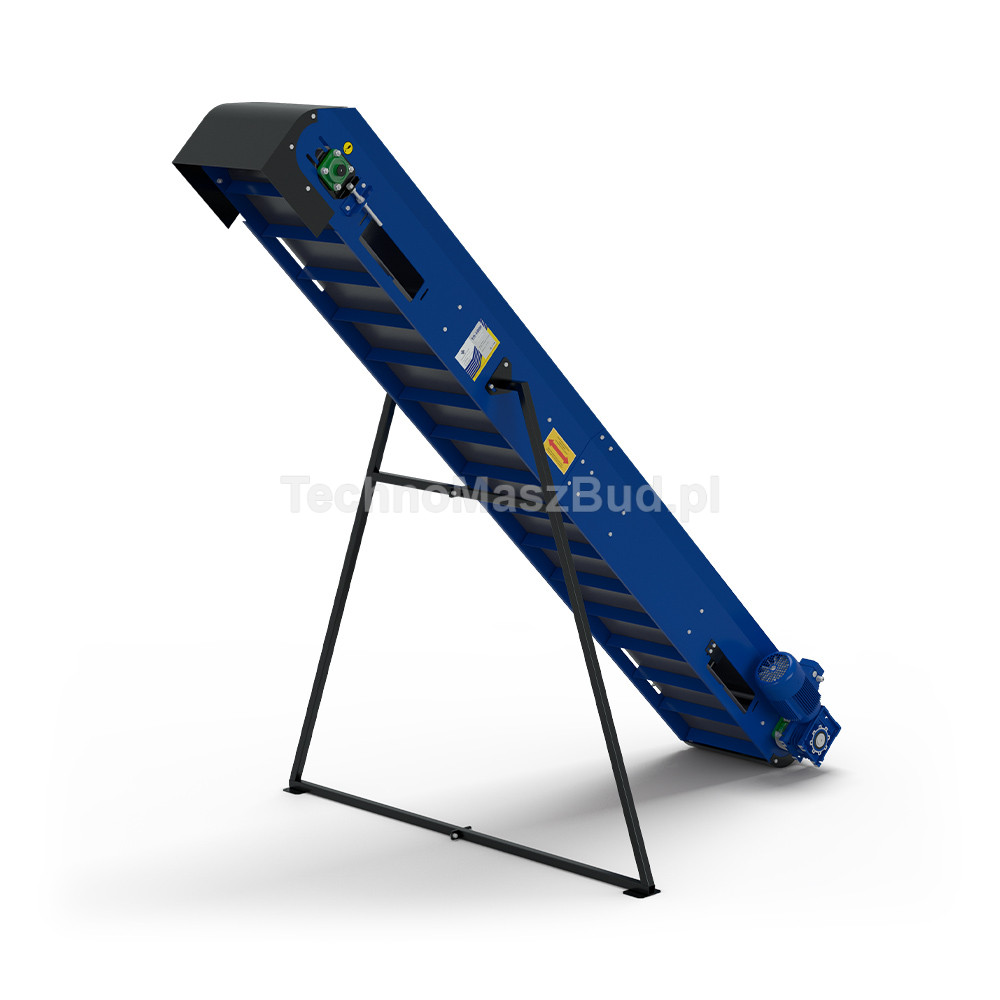

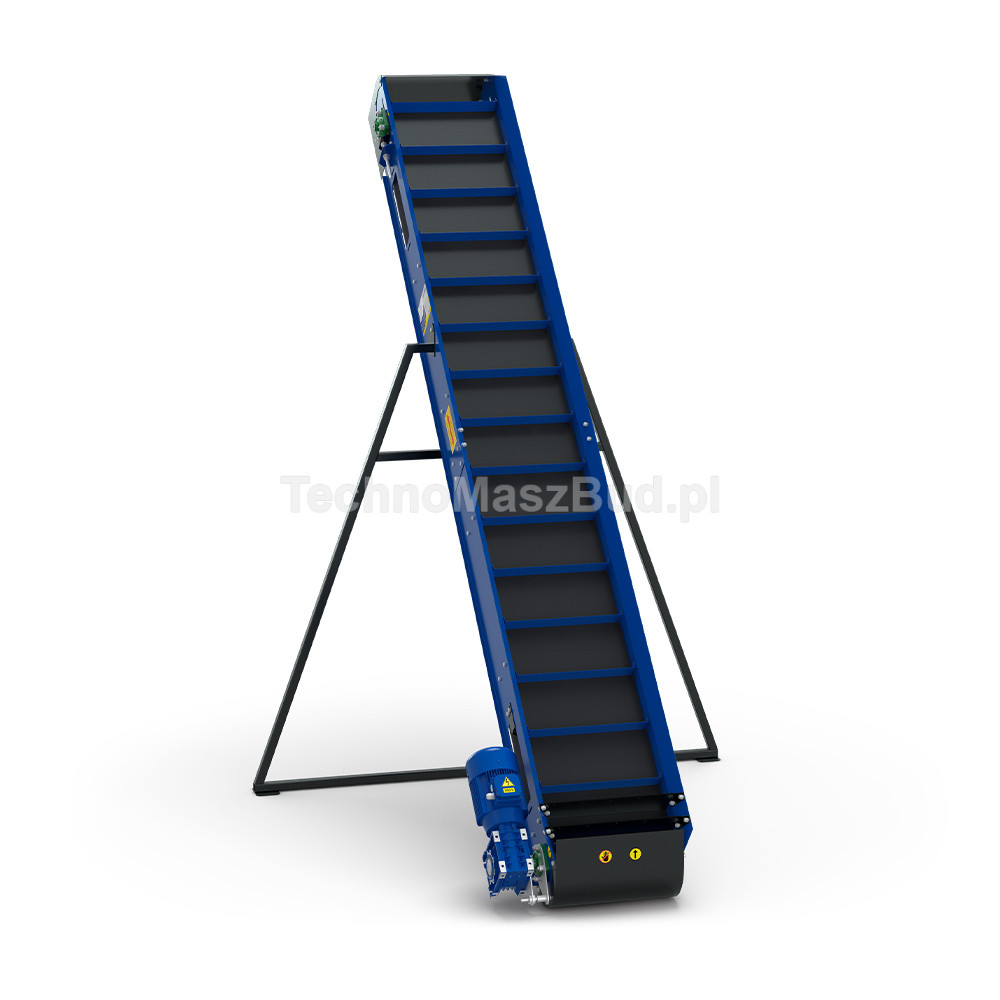

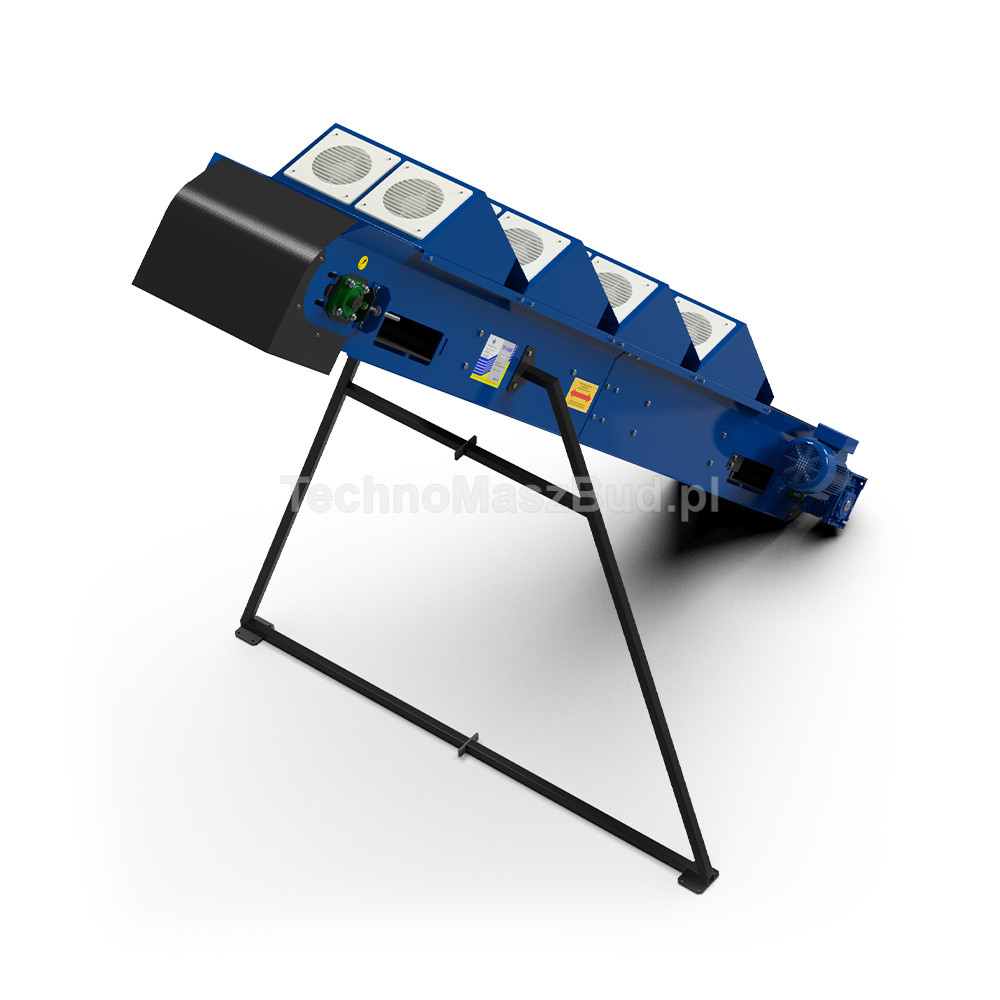

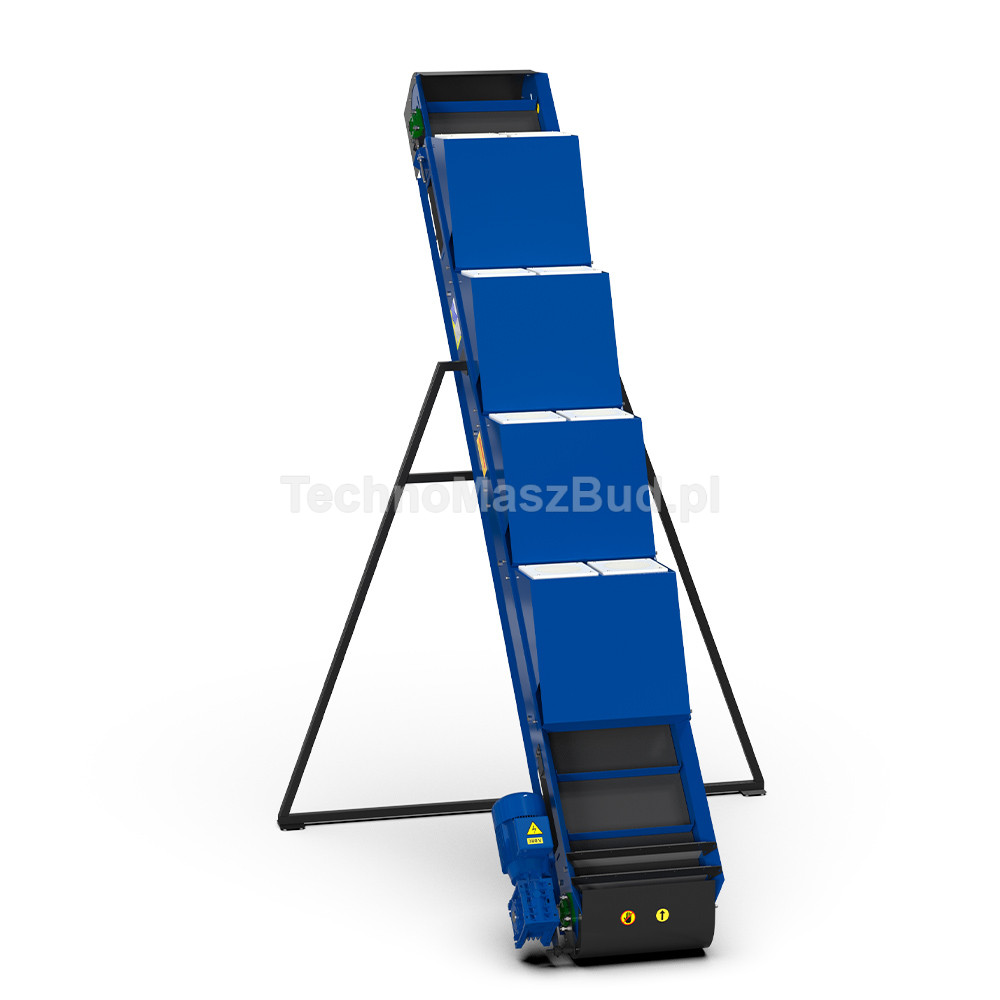

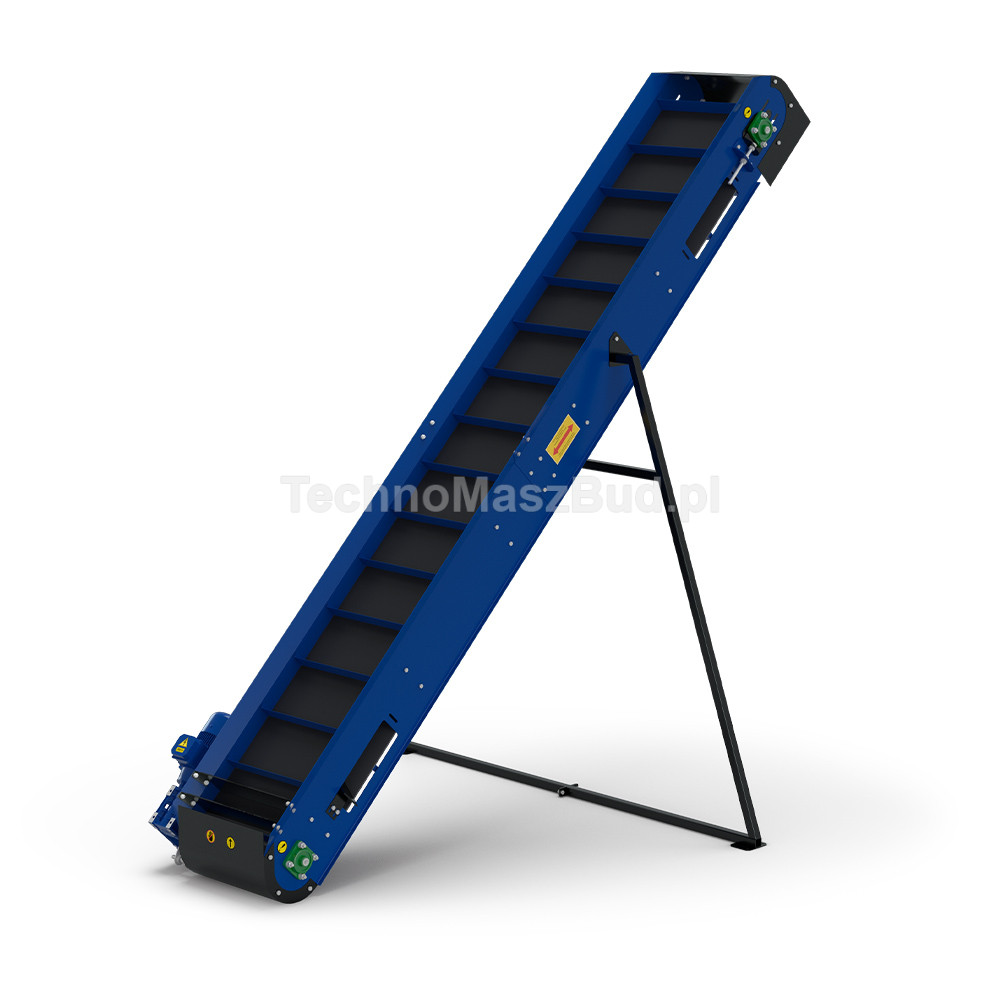

Belt Conveyor PT-1000

PT-1000 Belt Conveyor is a modern device designed to optimize the transport of bulk and hard materials as well as granulate in production lines. It provides key support in the areas of packaging, granulation and raw material storage. It increases production efficiency, speeds up operation, and enables automation of the production process.

The conveyor belt shows resistance to extreme temperatures, which allows it to be used in various manufacturing industries. The scrapers are made of an eco-friendly, safe material, approved for the food industry.

PT-1000 belt conveyor differs from the PT-500 model in length (4 m) and in the number of cooling fans (when purchasing the option with fans, the unit has 12 instead of 8).

The equipment can be purchased as a stand-alone production unit or as part of a granulation line.

Advantages of the PT-1000 belt conveyor

• Low power consumption – the conveyor is energy efficient, which translates into lower operating costs.
• Small size – compact dimensions allow for easy integration of the device even in small spaces.
• Optimal belt speed – ensures efficient and uniform operation, accelerating the production process.
• High performance – a powerful drive and granulate cooling system (4 fans) increase work efficiency.

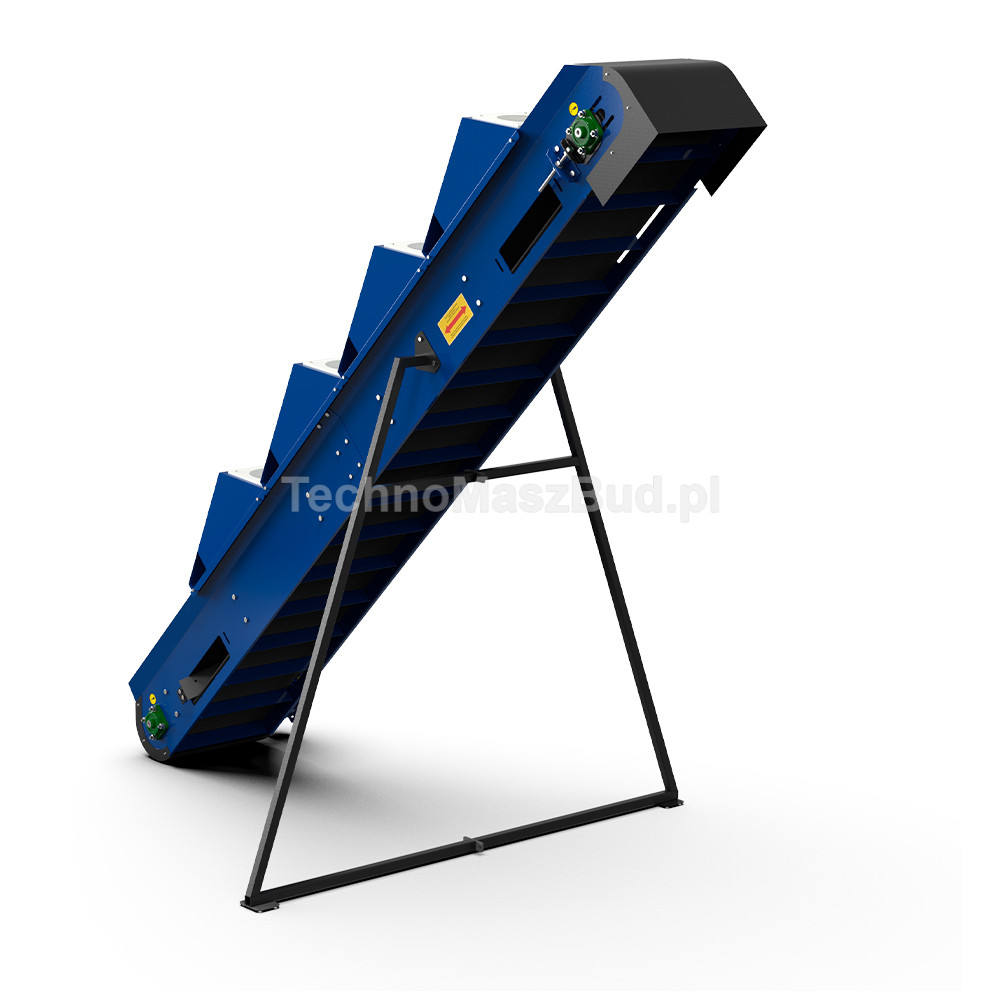

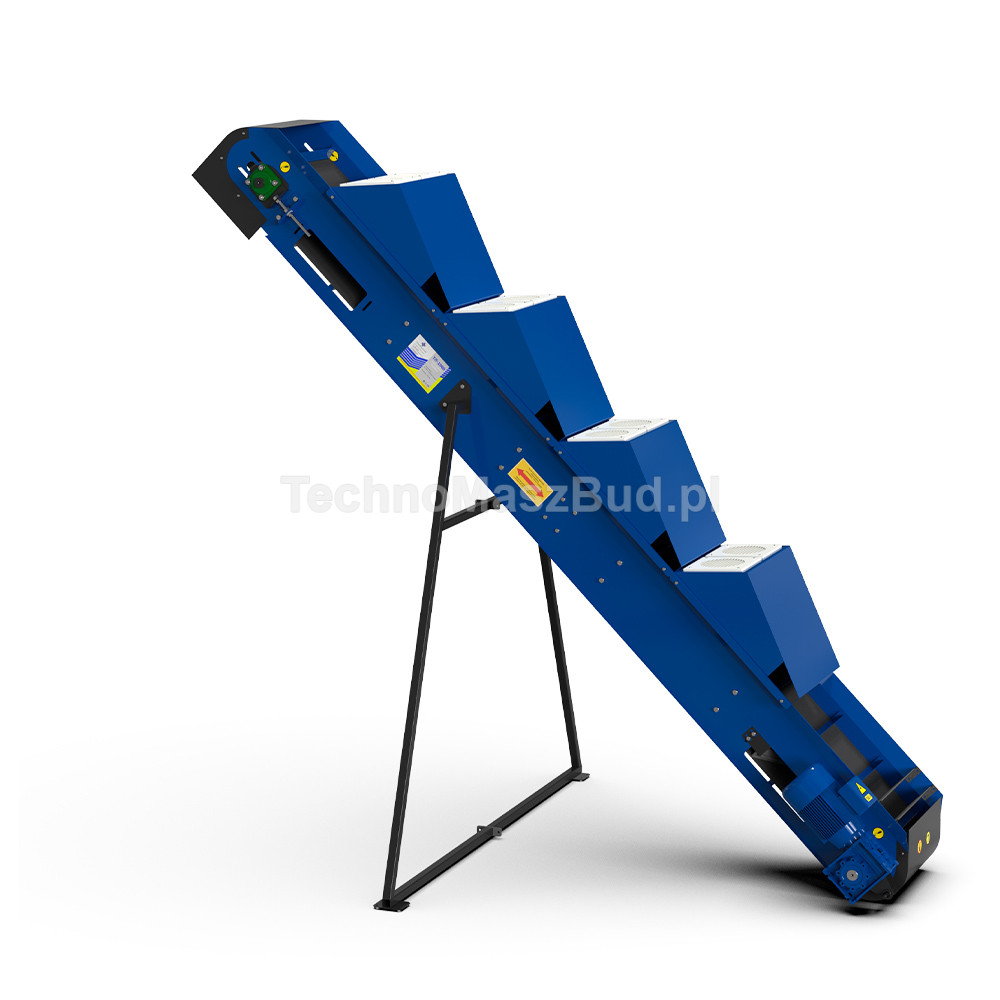

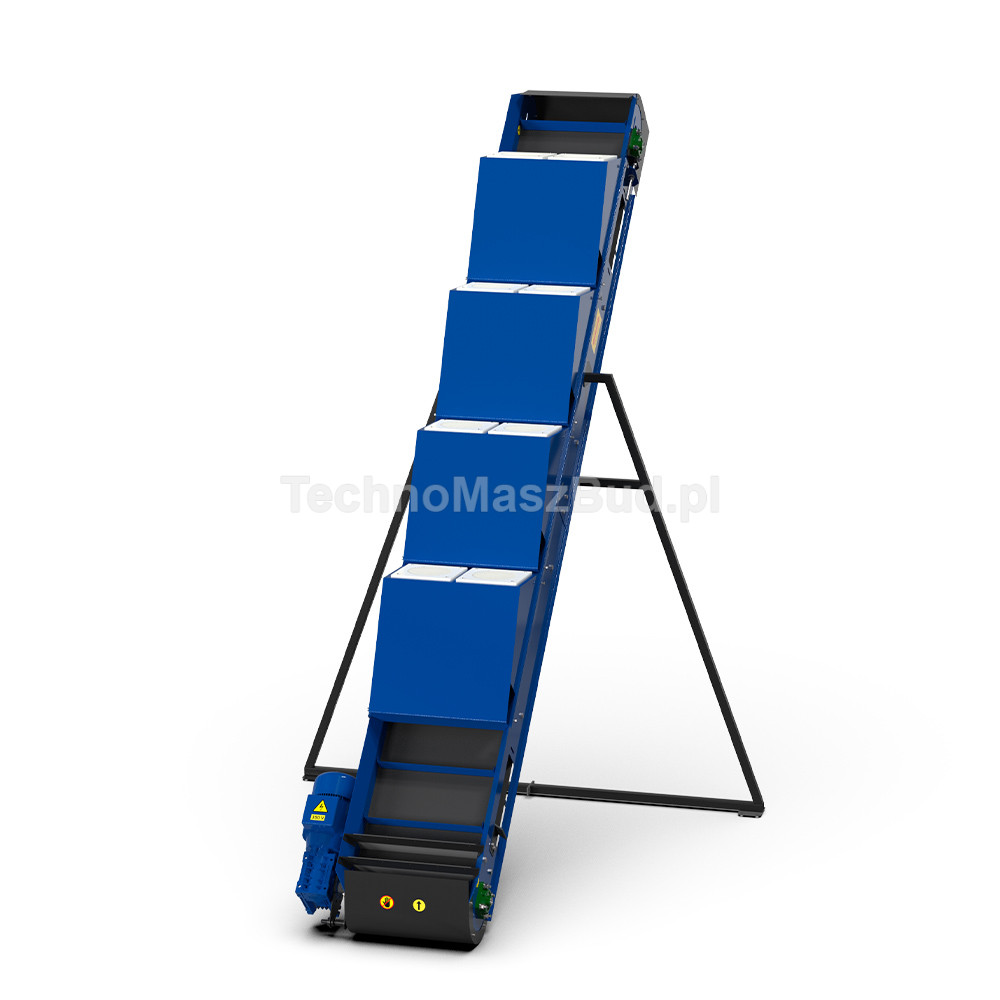

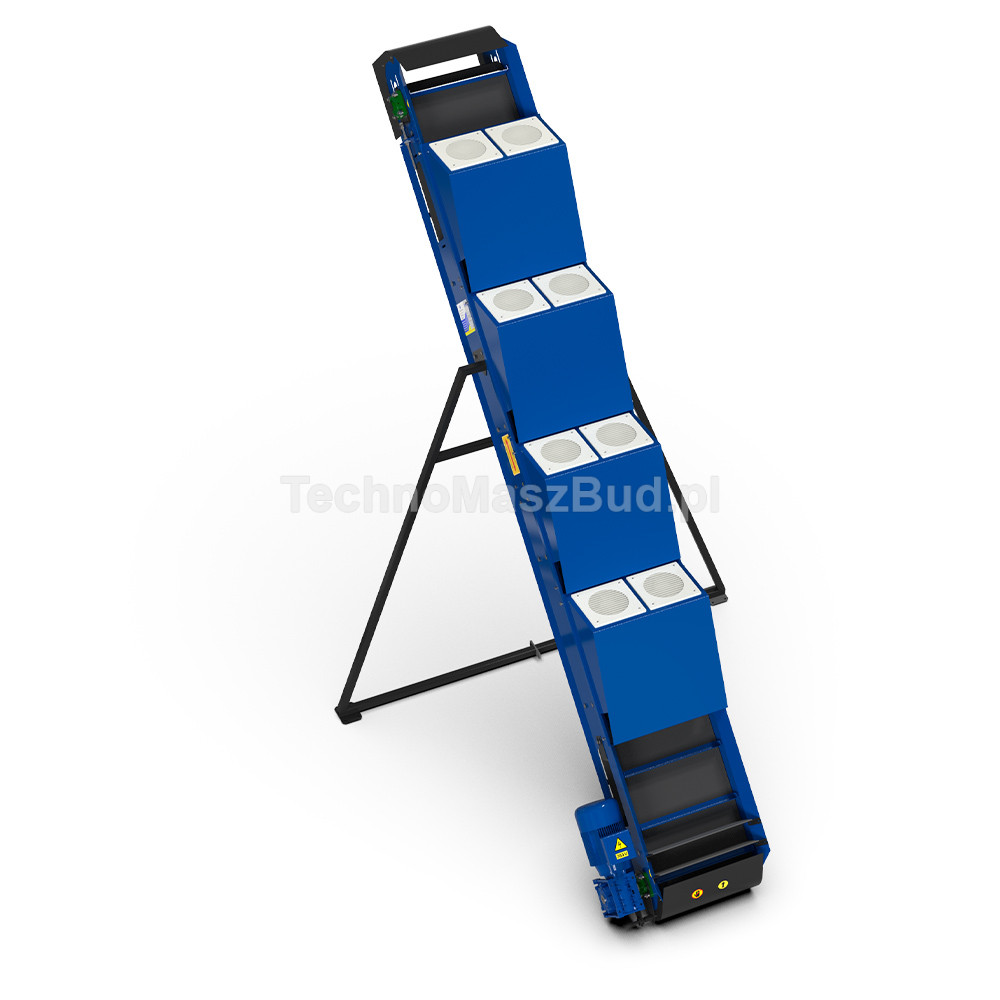

• Product cooling (optional) – thanks to the granulate cooling system, it is possible to maintain high product quality during transport.
• Ease of use – the easy-to-use design minimizes the time required for staff training and maintenance.
• Low noise level (40 dB) – quiet operation improves user comfort and protects users’ health.
• Long service life – robust construction ensures durability and reliability over long-term use.

Technical specifications:

• Height at angle: 2760 mm;
• Width: 2220 mm;
• Body length at angle: 3240 mm;
• Width without mounting: 636 mm;
• Belt width: 400 mm;
• Weight: 250 kg.
• Drive element: belt;
• Type of material feed: hopper with feed chute;
• Motor: 0.37 kW gearmotor;
• Carrying element: scraper-type;
• Capacity: up to 1000 kg of product per hour;
• Belt speed: 7 m/min;
• Number of scrapers: 40.

Technical drawing:

Applications of the PT-1000 belt conveyor

The PT-1000 belt conveyor is perfect wherever automation of bulk material transport or granulate is required in packaging, granulation or storage processes. The belt conveyor can be used in production plants, warehouses and in food, chemical and plastics processing companies.
