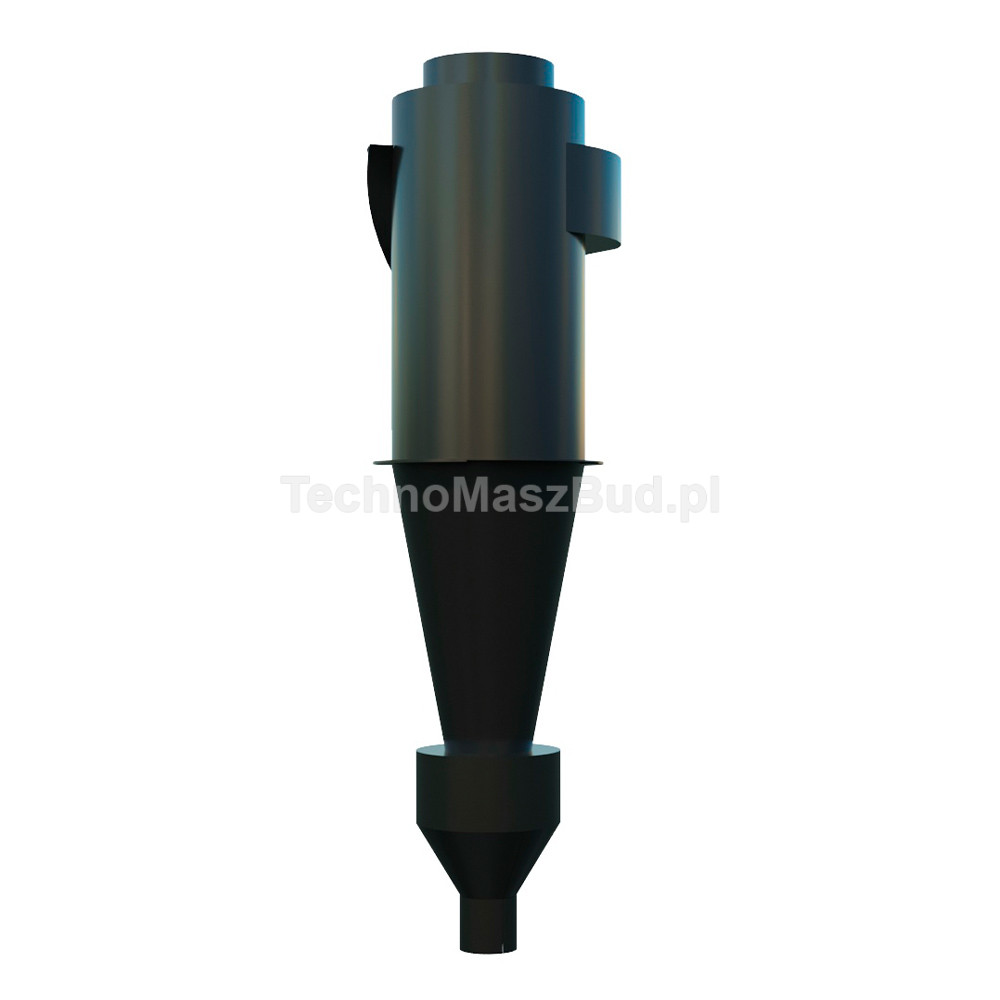

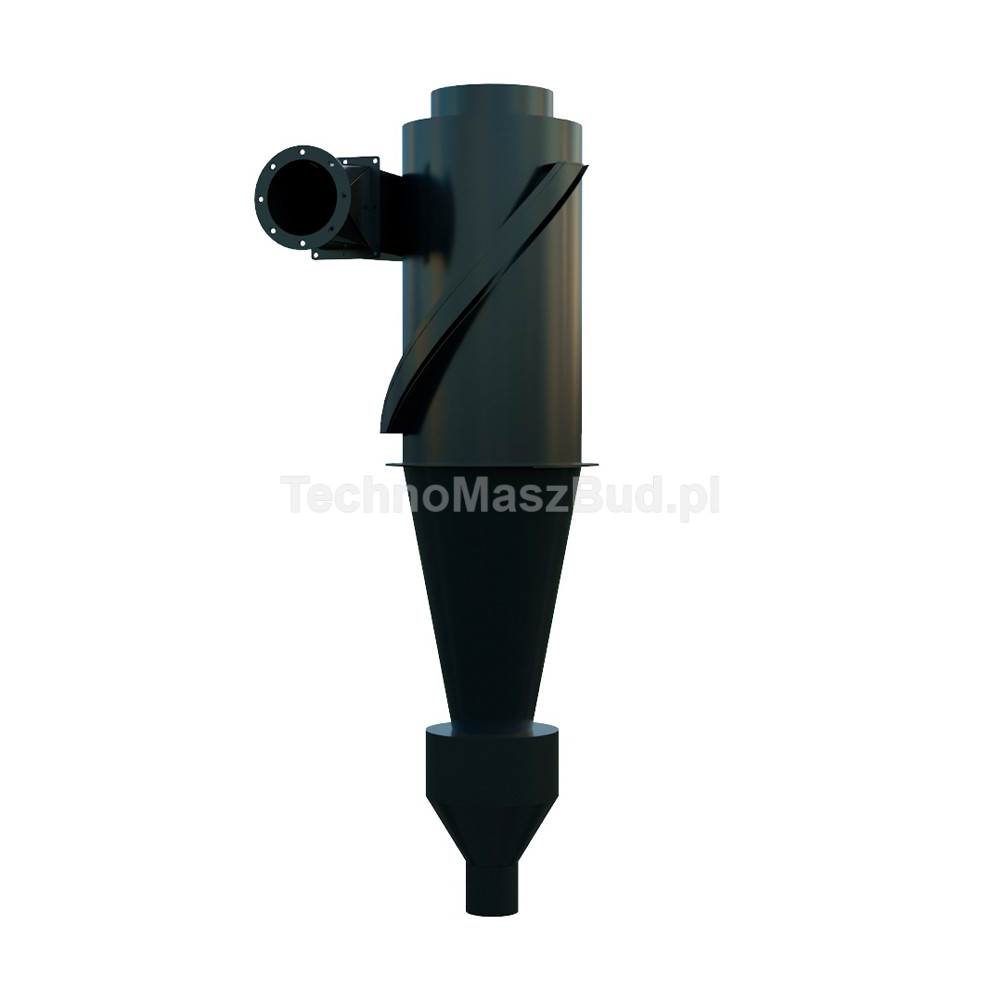

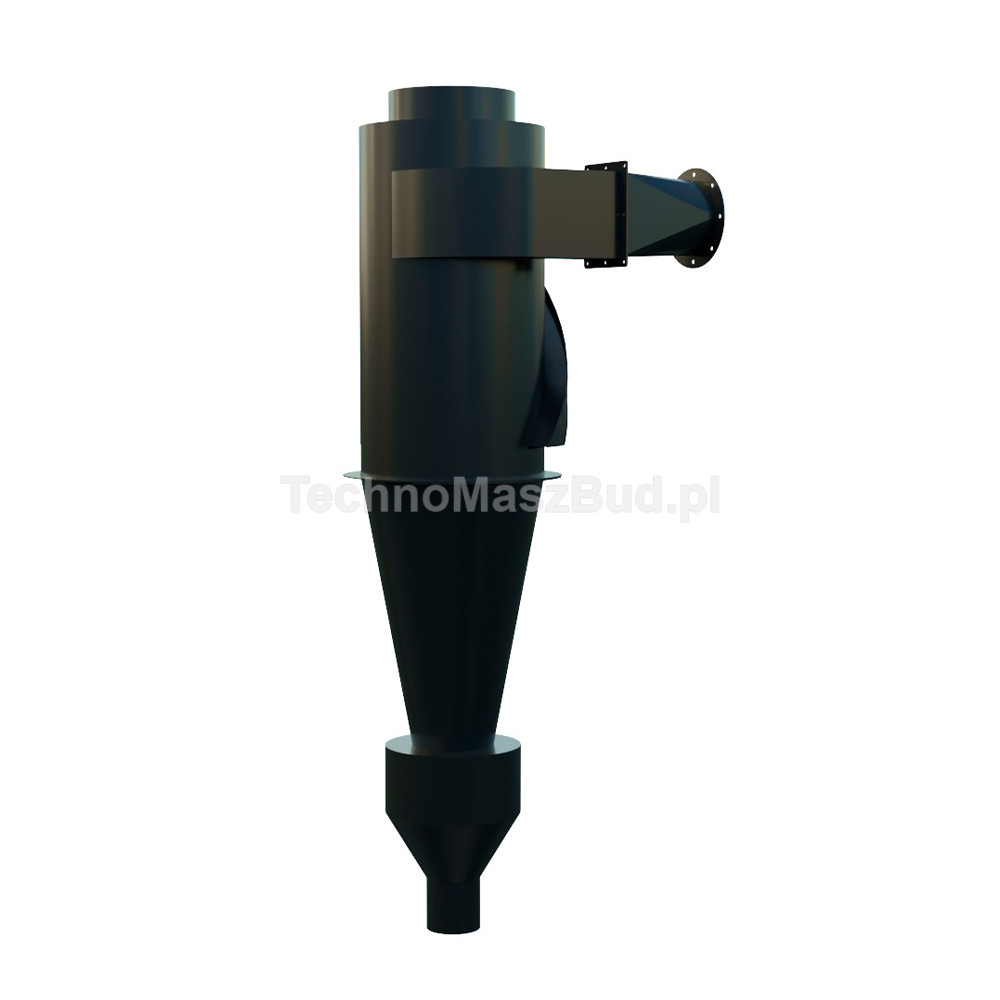

Cyclone for SA Dryer

Cyclone for SA Dryer is an industrial air separator designed to separate dust and light solid particles from the air stream. The device uses the effect of centrifugal force and gravity, effectively reducing the amount of contaminants reaching subsequent elements of the installation.

The cyclone is an important element of SA series aerodynamic dryers and other process installations used during biomass drying, pellet production, or pneumatic conveying. A simple design without filter elements ensures reliable operation and low maintenance requirements.

Thanks to its high separation efficiency, the device improves the operating conditions of the entire installation, reduces the amount of dust in the flowing air, and supports the protection of subsequent process devices.

Main advantages

• Effective separation of dust and fine solid particles
• Operation without filter media
• Use of centrifugal force and gravity
• Simple and durable design
• Low service requirements
• Reduction of the amount of dust in the installation
• Ability to work with SA aerodynamic dryers
• Adapted for operation under industrial conditions

Application

The cyclone is used wherever effective separation of dust from flowing air is required.

• aerodynamic biomass dryers
• pellet production lines
• dedusting installations
• pneumatic conveying of sawdust
• woodworking plants and sawmills
• biomass processing
• process installations requiring dust separation

Operating principle

Air together with dust particles is introduced into the inside of the cyclone in a swirling motion. The resulting centrifugal force separates the heavier particles from the air stream, and they then fall into the lower part of the device under the influence of gravity. The cleaned air leaves the cyclone through the upper outlet connection.

Construction

• Cyclone body
• Separation chamber
• Inlet connection
• Outlet connection
• Discharge hopper

Technical parameters

• length - 650 mm
• width - 650 mm
• height - 2440 mm

Industrial cyclone for effective dedusting

Cyclone for SA Dryer increases the operating efficiency of process installations through effective separation of dust from the transported air. Reducing the amount of contaminants results in more stable operation of the entire system and improves the operating conditions of subsequent devices.

Thanks to its simple design and the use of natural physical phenomena, the device does not require the use of filter media, which translates into easy operation and high reliability during daily work.
