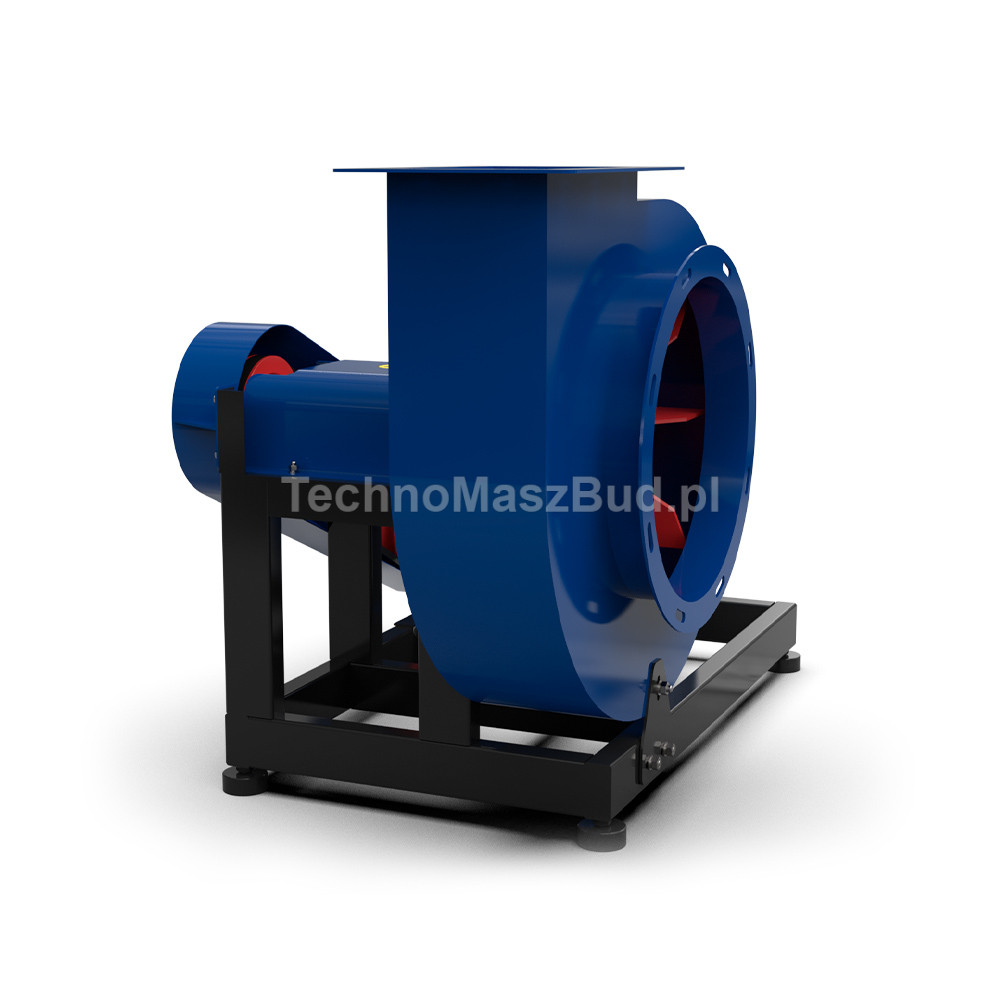

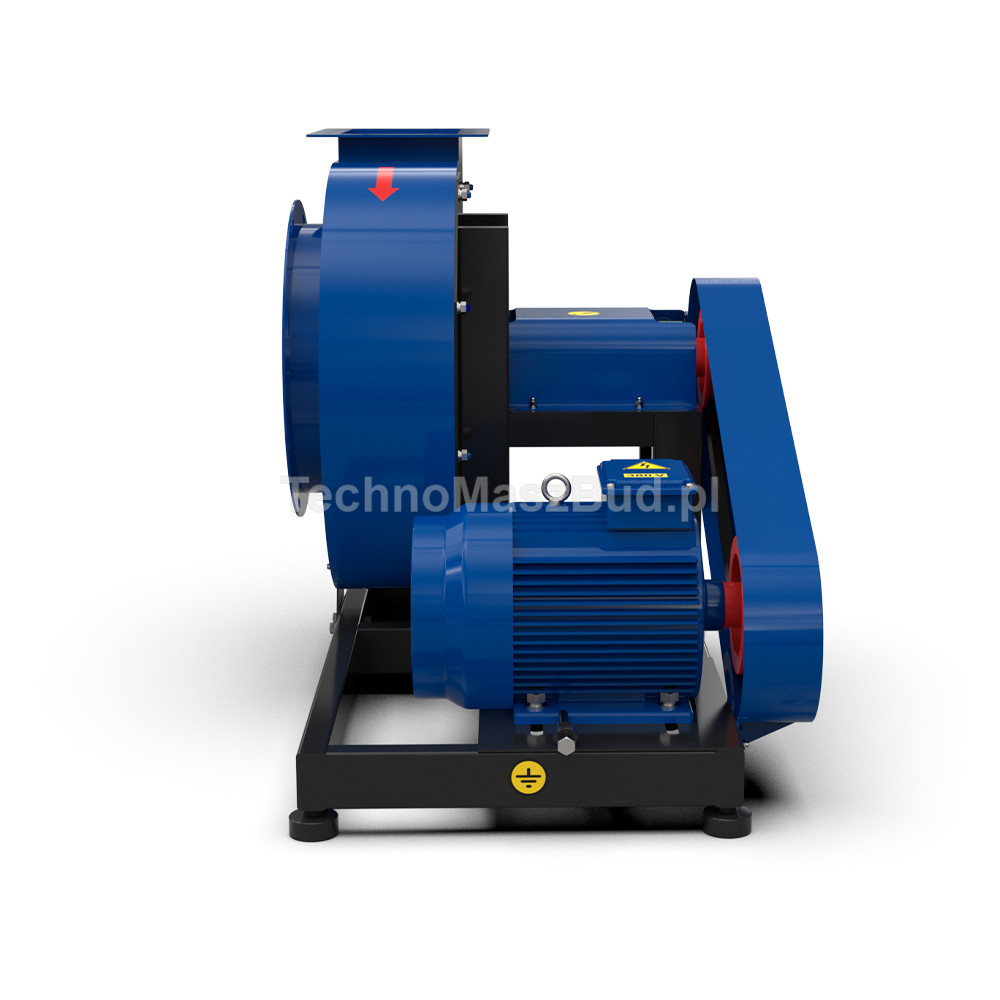

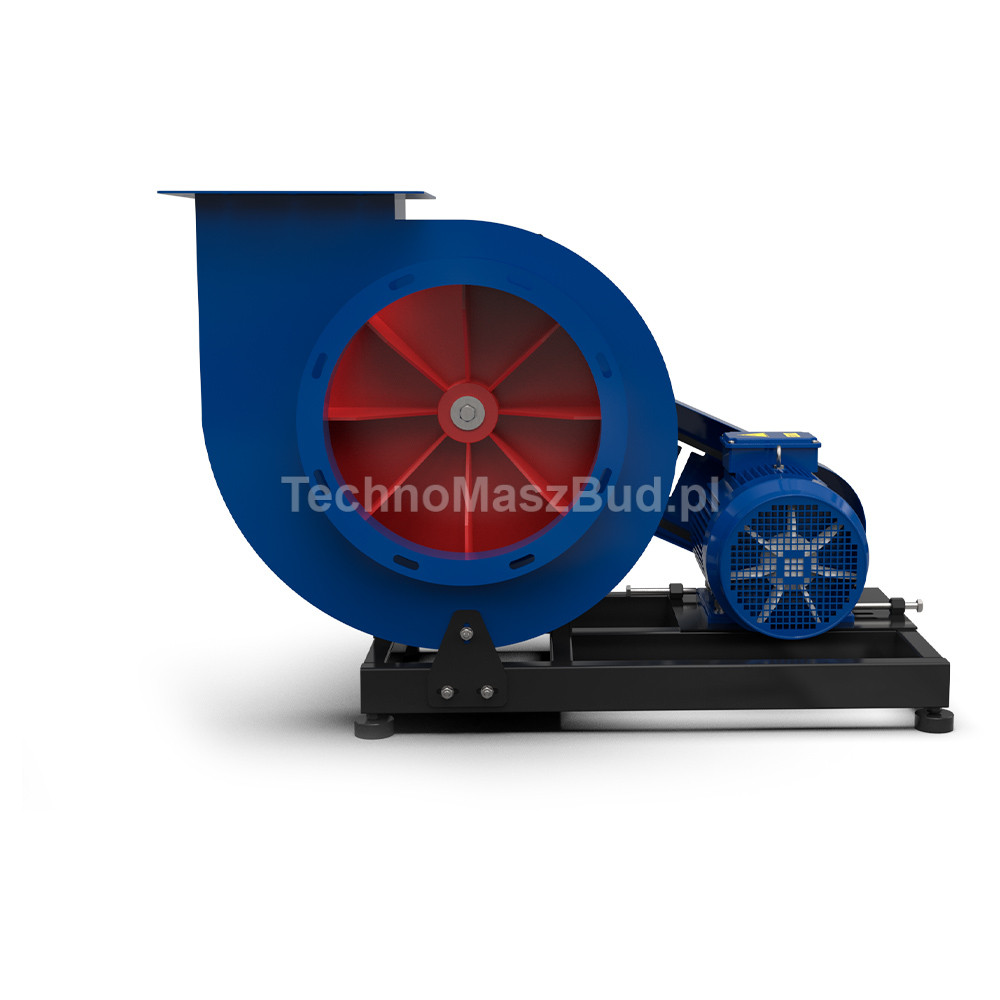

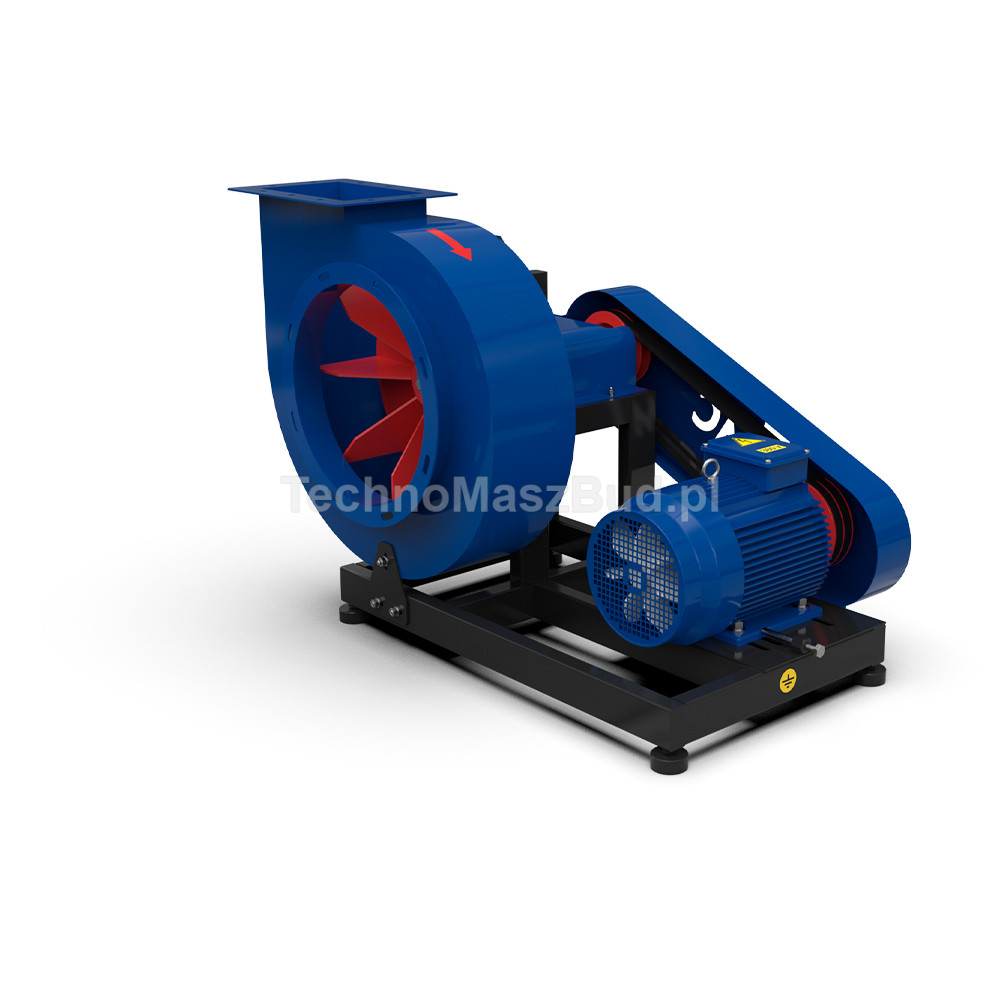

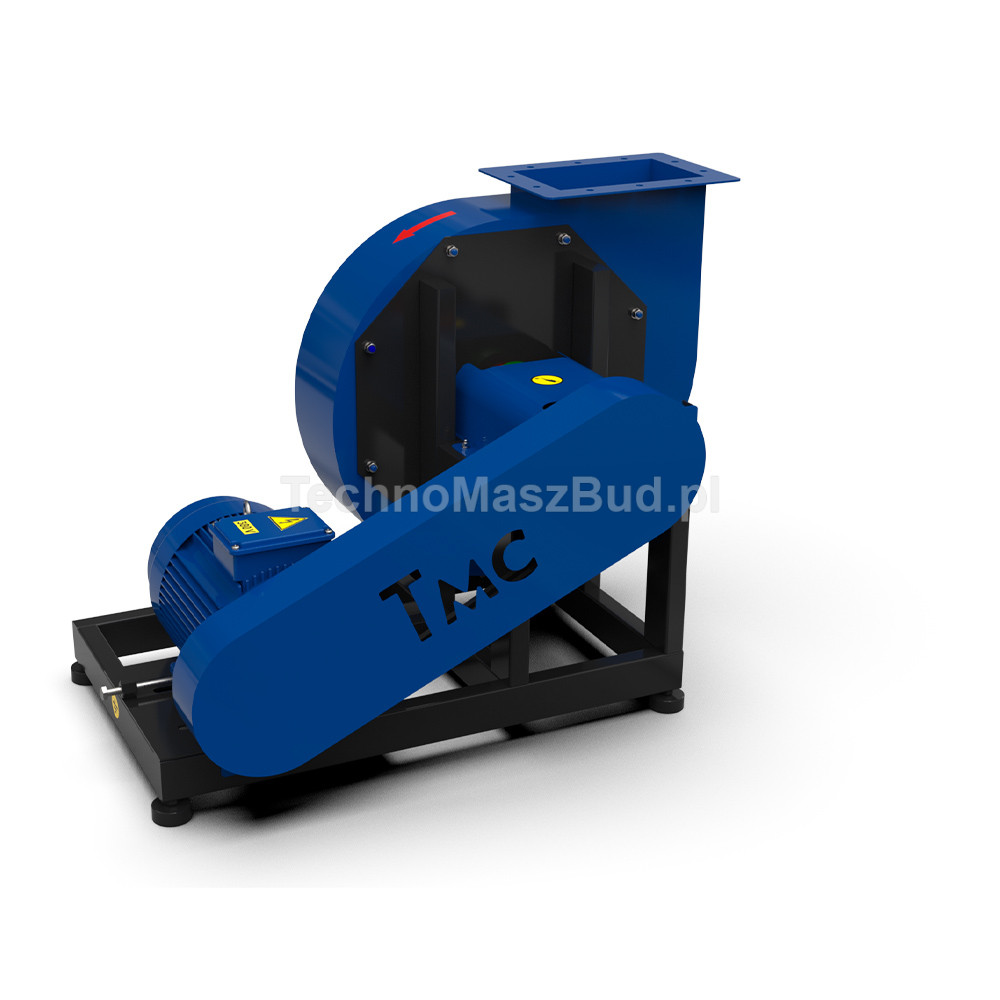

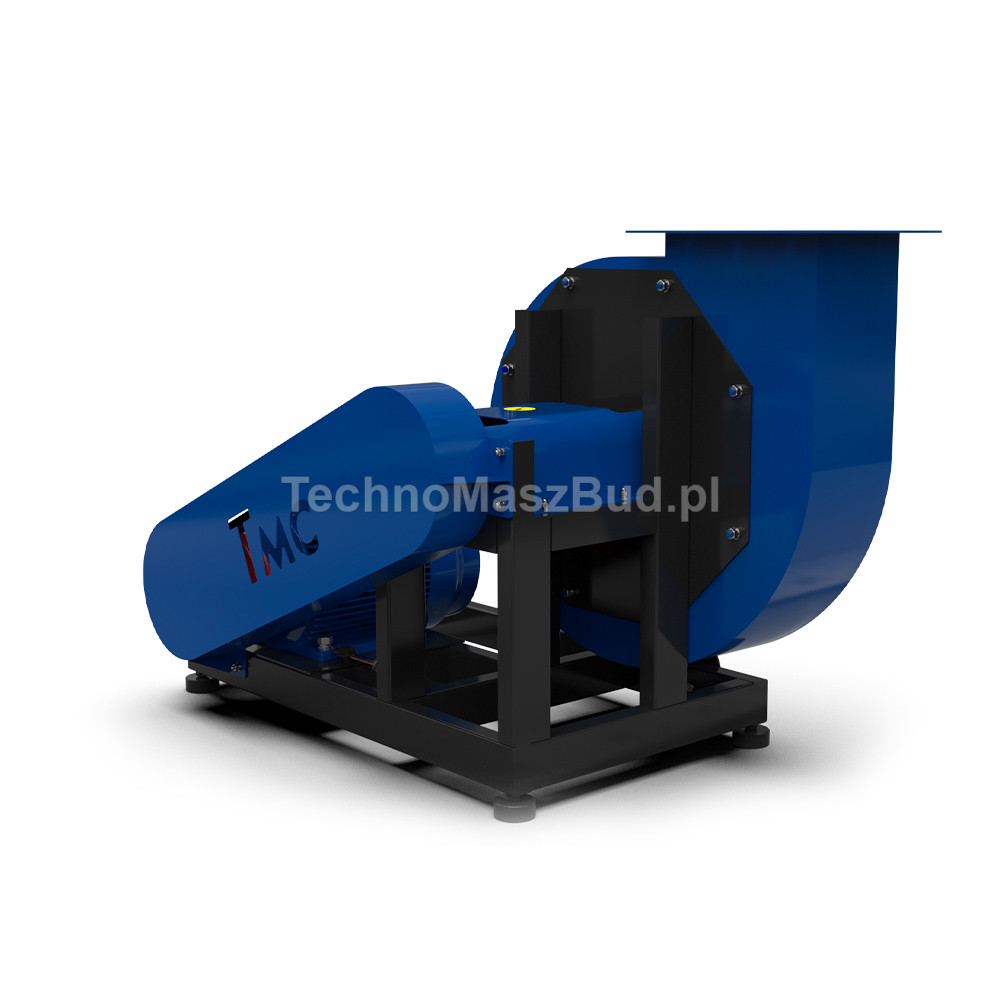

Dust fan WP-4 (360 mm impeller)

Dust fan WP-4 (360 mm impeller) is an industrial radial fan intended for the transport of air and gas mixtures containing a small amount of dust and fine solid particles. The device is used in dust extraction installations, pneumatic conveying systems, and technological lines for biomass processing.

The WP-4 model has been designed to operate with air and gases at temperatures up to 80°C, which do not contain sticky or fibrous substances. The solid construction and the 360 mm diameter impeller ensure stable and efficient operation in demanding industrial conditions.

The fan can operate as a standalone device or be part of the SA-400 aerodynamic dryer and other installations used during pellet production and biomass processing.

Main advantages

• 360 mm diameter impeller
• Capacity up to 2500 m³/h
• Total pressure up to 1570 Pa
• Adapted for operation with air at temperatures up to 80°C
• Stable operation at a rotational speed of 3000 rpm
• Possibility of operation as a standalone device or an element of a technological line
• Solid construction intended for industrial applications
• Low noise level up to 78 dB

Application

The WP-4 dust fan is used wherever effective transport of air and light solid particles is required.

• pellet production lines
• aerodynamic biomass dryers
• dust extraction installations
• pneumatic conveying of sawdust
• carpentry shops and sawmills
• biomass processing
• industrial ventilation systems

Construction

• Radial fan housing
• 360 mm diameter impeller
• 4 kW electric motor
• Drive system
• Connection nozzles

Technical parameters

• maximum capacity - 2500 m³/h
• total pressure - 1570 Pa
• rotational speed - 3000 rpm (±10%)
• motor power - 4 kW
• impeller diameter - 360 mm
• weight with motor - 67 kg
• weight without motor - 40 kg
• maximum noise level - 78 dB
• maximum temperature of transported air and gases - up to 80°C
• dimensions (L x W x H) - 619 × 551 × 663 mm

Dust fan WP-4 for industrial installations

The WP-4 model is a reliable solution for the transport of air and light contaminants in industrial installations. Thanks to appropriately selected operating parameters, it can be used both as an independent fan and as an element of larger technological systems.

The device works perfectly with aerodynamic dryers and pellet production lines, ensuring stable airflow and reliable operation for a long time.
