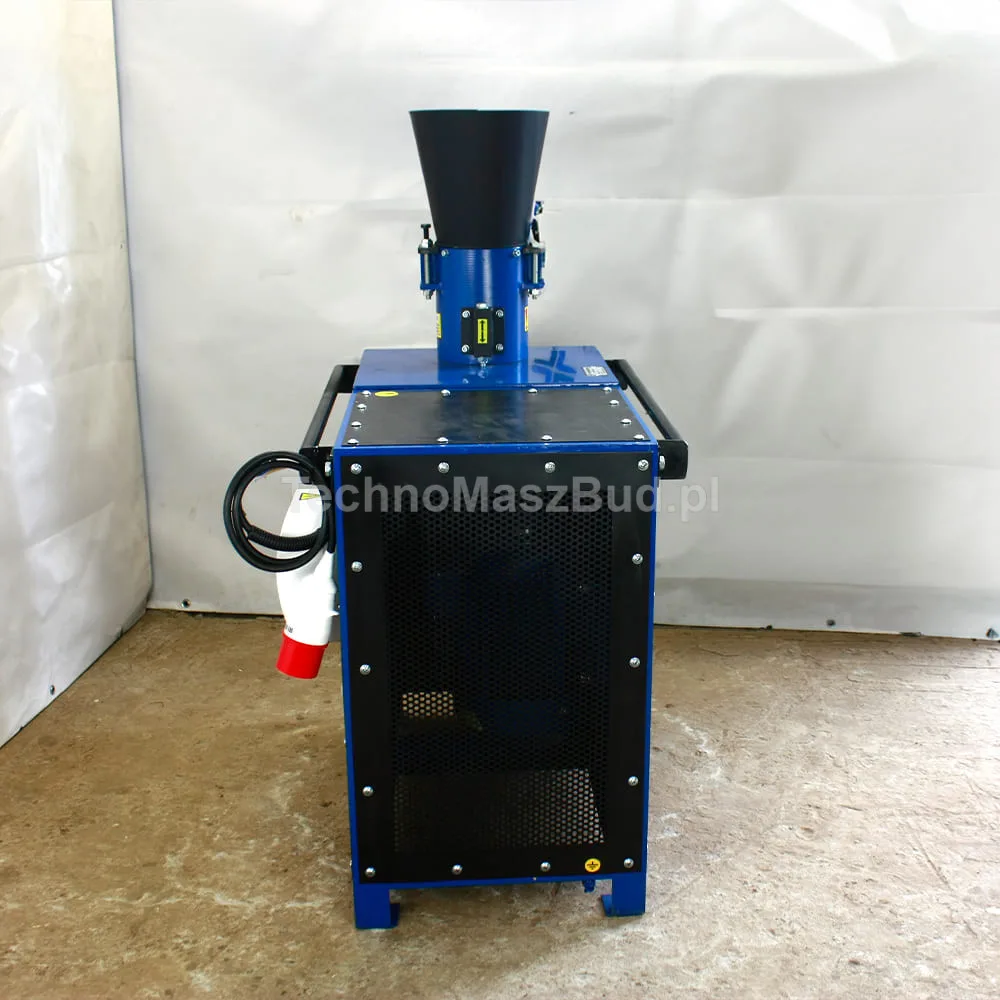

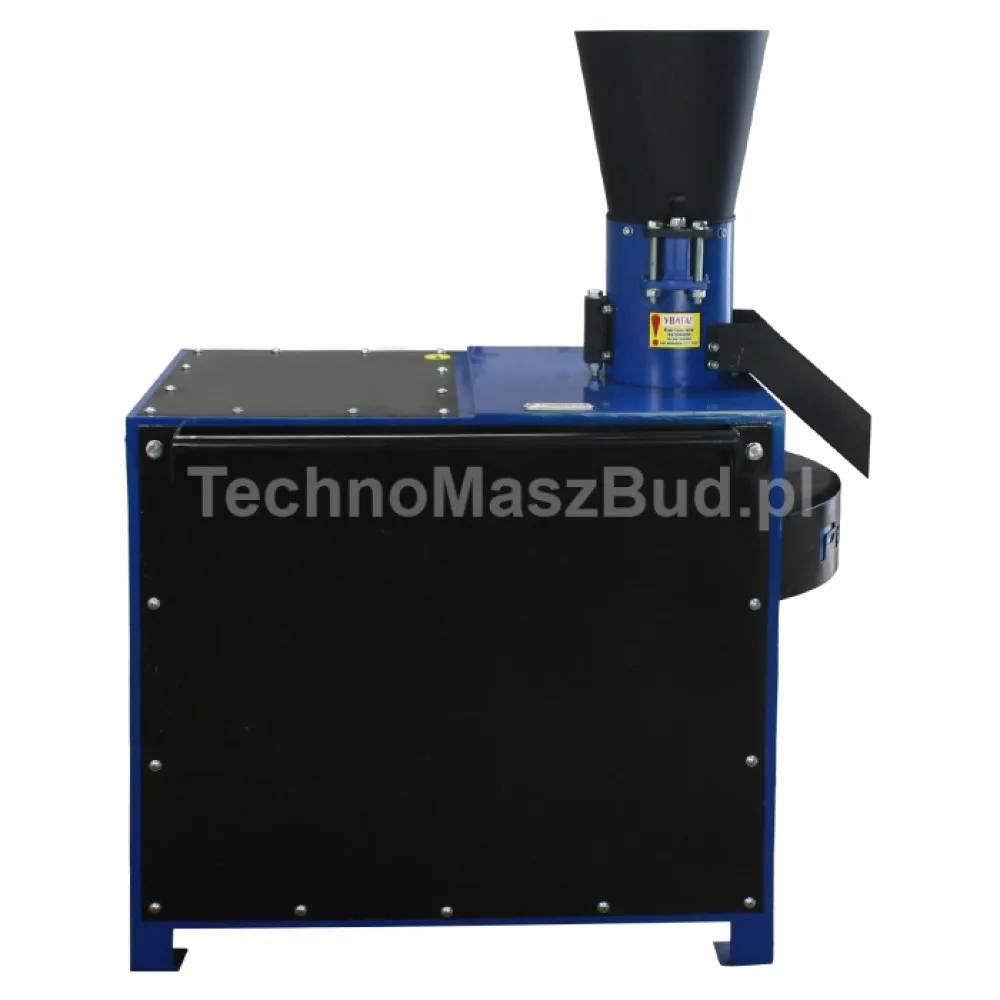

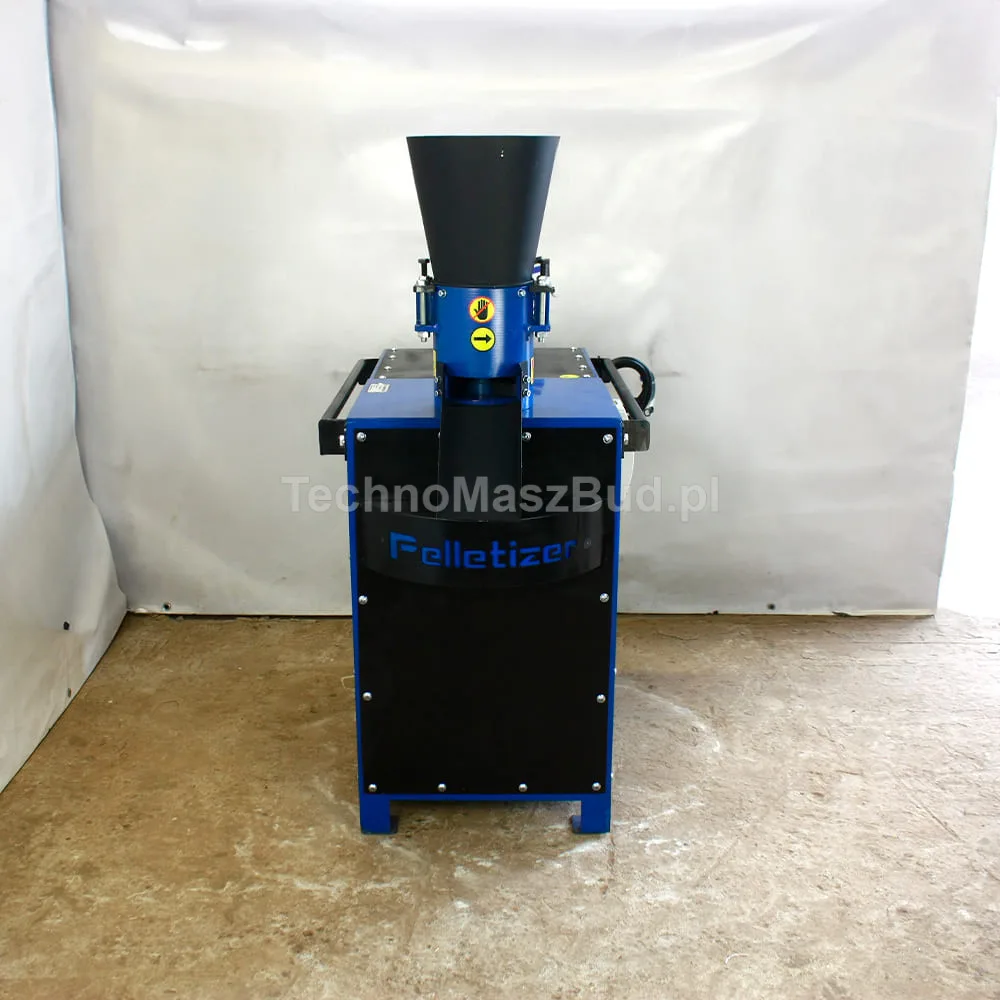

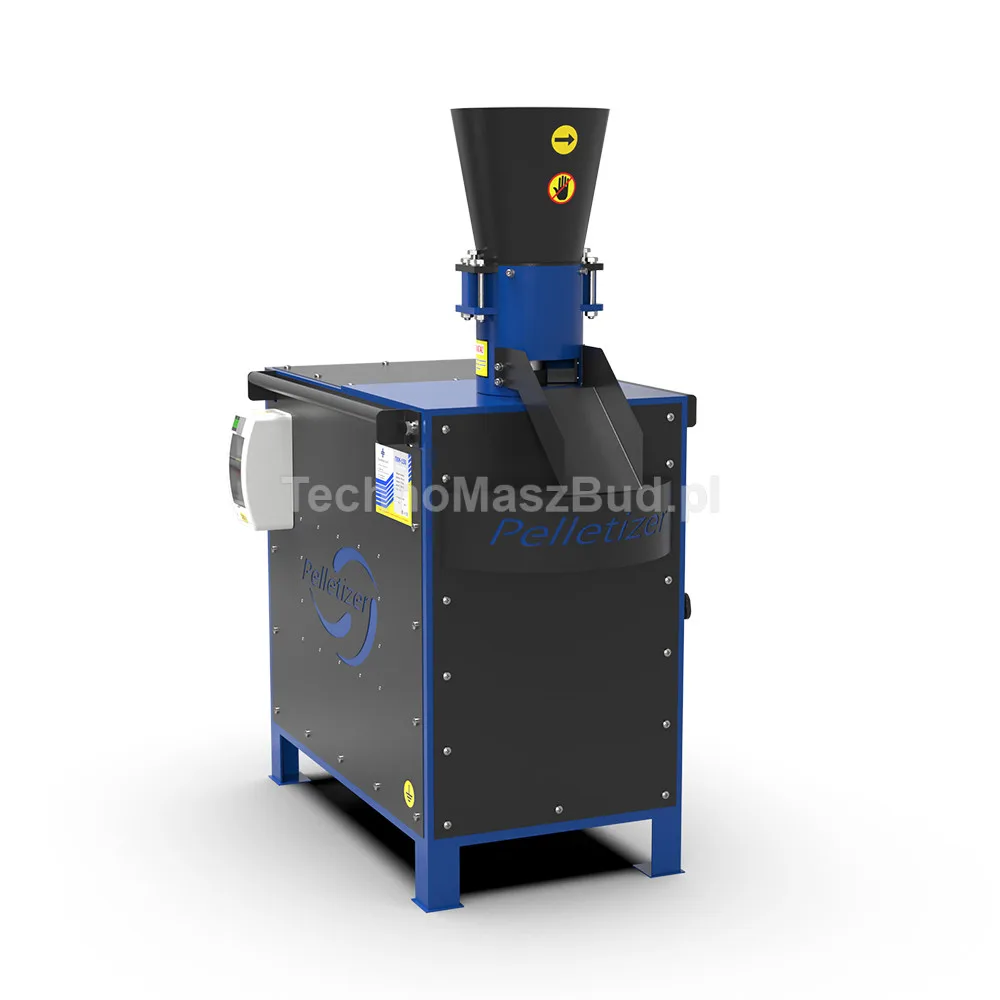

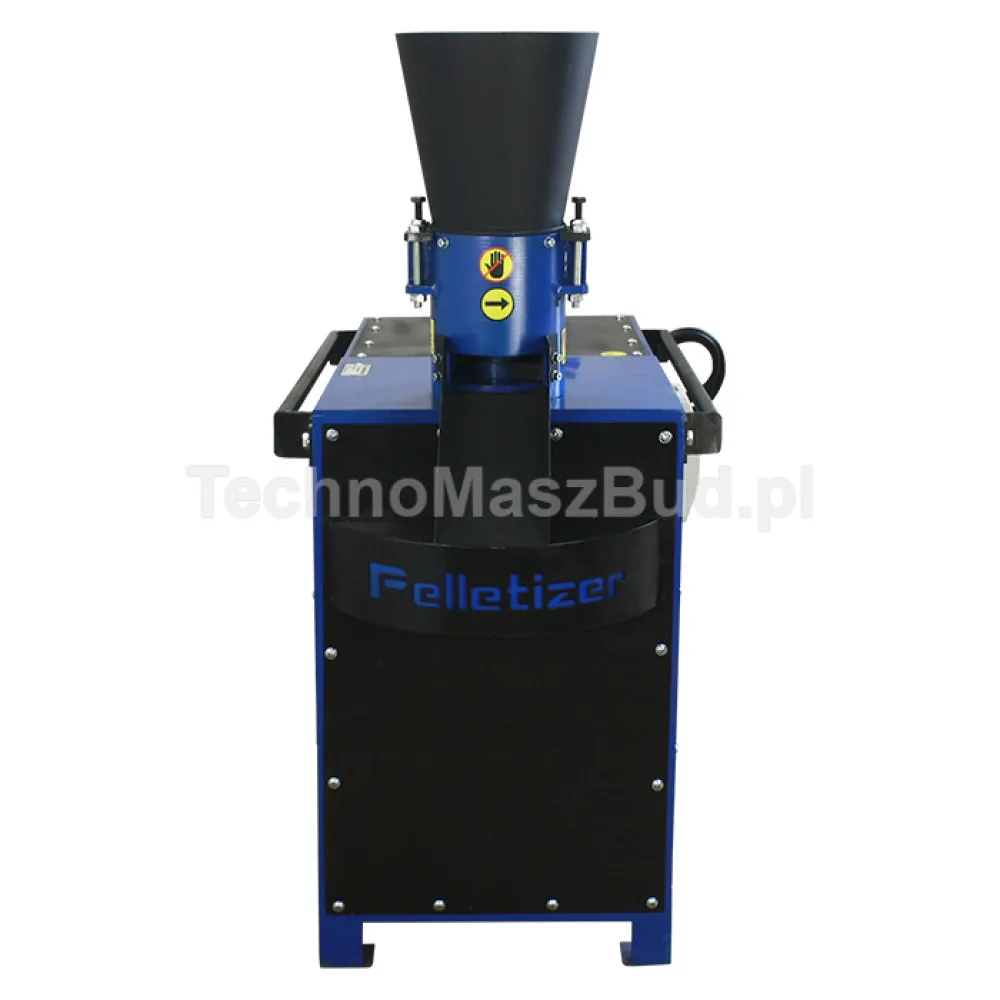

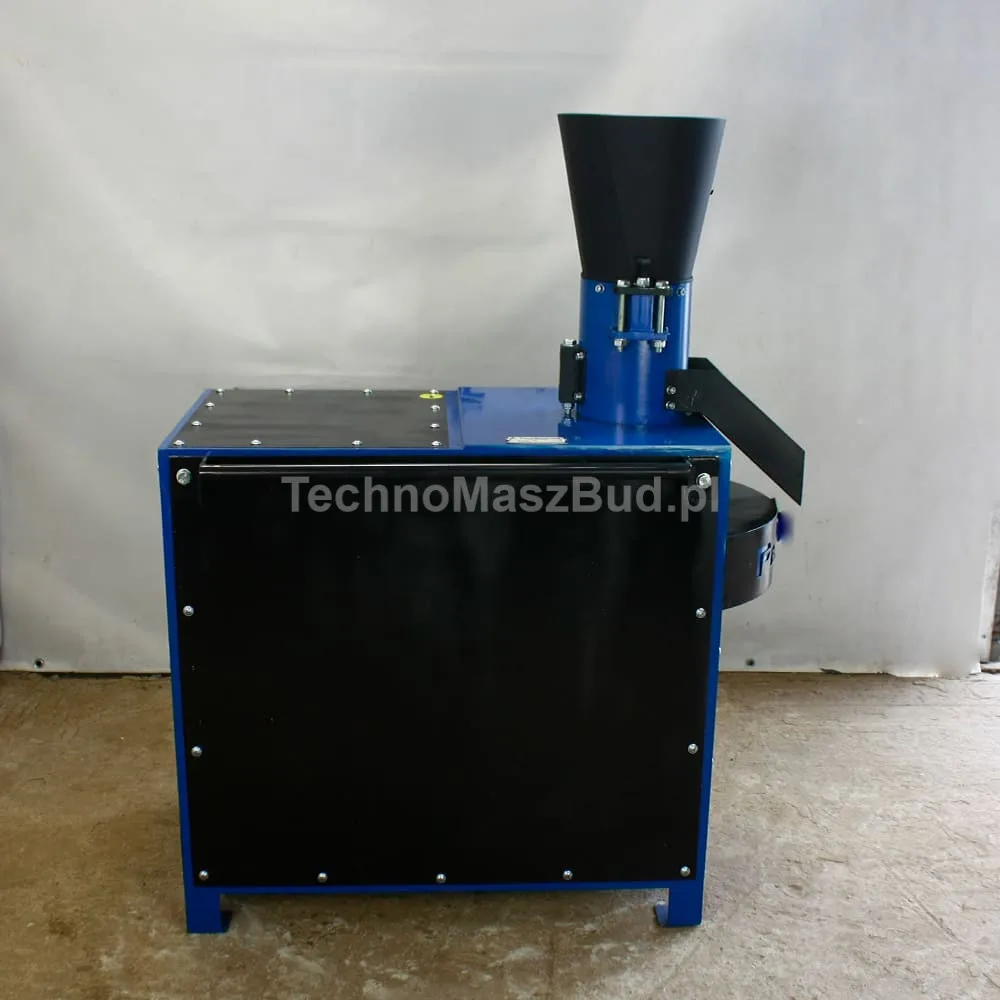

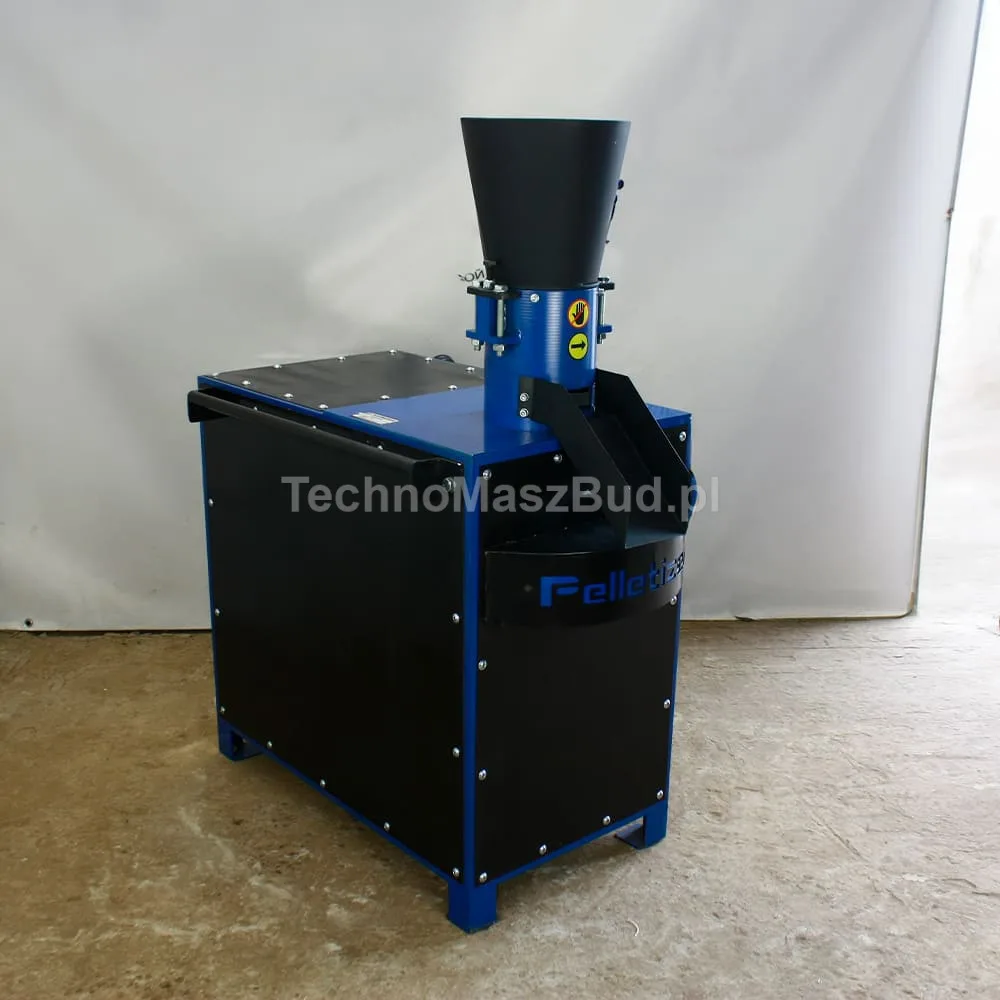

Granulator for feed and pellet GMK-150

GMK-150 Granulator is an advanced piece of equipment designed for producing livestock feed and fuel pellets. The GMK-150 Granulator allows granulating various raw materials, such as:
• crushed grain
• grain processing waste
• millet, corn
• sunflower husk
• straw and hay

With the GMK-150 you can produce pelleted feed for many animal species, such as:
• hens, broilers, quail
• rabbits, pigs, cattle
• horses, fish and other farm animals

The device also enables the production of fuel pellets, making it a versatile solution for both breeders and farm owners. Using your own raw materials significantly reduces costs, and the option to choose the die hole diameter (from 2 to 8 mm) lets you tailor pellet size to specific needs.

Advantages of the GMK-150 Granulator

• Lower animal upkeep costs thanks to producing your own feed
• Ability to pelletize feed and produce fuel pellets
• Pellets remain afloat for a long time – ideal for fish
• Dies with different diameters – easy to match to species and animal age
• High-density, well-balanced pellets improve weight gain
• Effective use of nutrients and elimination of feed losses
• Functions as a pelletizer/pellet-making machine

Technical parameters

• Die diameter: 150 mm
• Die hole diameter: from 2 to 8 mm
• Capacity: up to 100 kg/h (feed), up to 50 kg/h (pellets)
• Motor power: 4 kW
• Supply voltage: 230 V or 400 V (to choose from)
• Rotational speed: 1500 rpm
• Number of rollers: 2 pcs.
• Number of knives: 1 pc.

Set includes

• GMK-150 Granulator – 1 pc.
• Operating manual – 1 pc.
• Die puller – 1 pc.

Specification

• Length: 900 mm
• Width: 600 mm
• Height: 1200 mm
• Weight: 132 kg
• Drive type: electric
• Product type: granulator / pelletizer
• Warranty period: 12 months

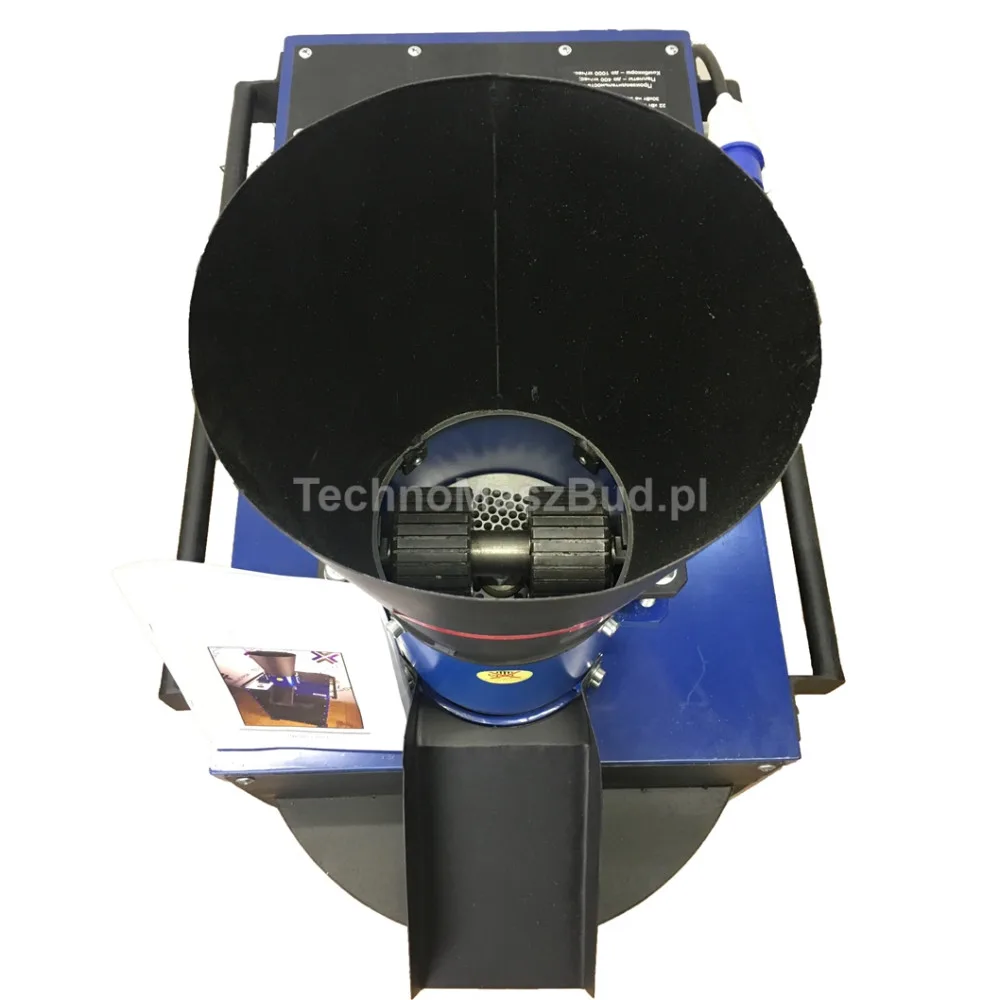

A 1500 rpm motor drives the die via pulleys and a shaft. Rollers pressed against the die force the feed into the die holes.

The granulator is equipped with a double-sided die made of high-alloy hardened steel, with hole sizes from 2 to 8 mm to choose from.

Technical parameters:

• Roller diameter (400 V, 1 roller) – 82 mm.
• Roller width (400 V, 1 roller) – 43 mm.
• Roller diameter (230 V, 1 roller) – 82 mm.
• Roller width (230 V, 1 roller) – 25 mm.
• Die diameter – 150 mm

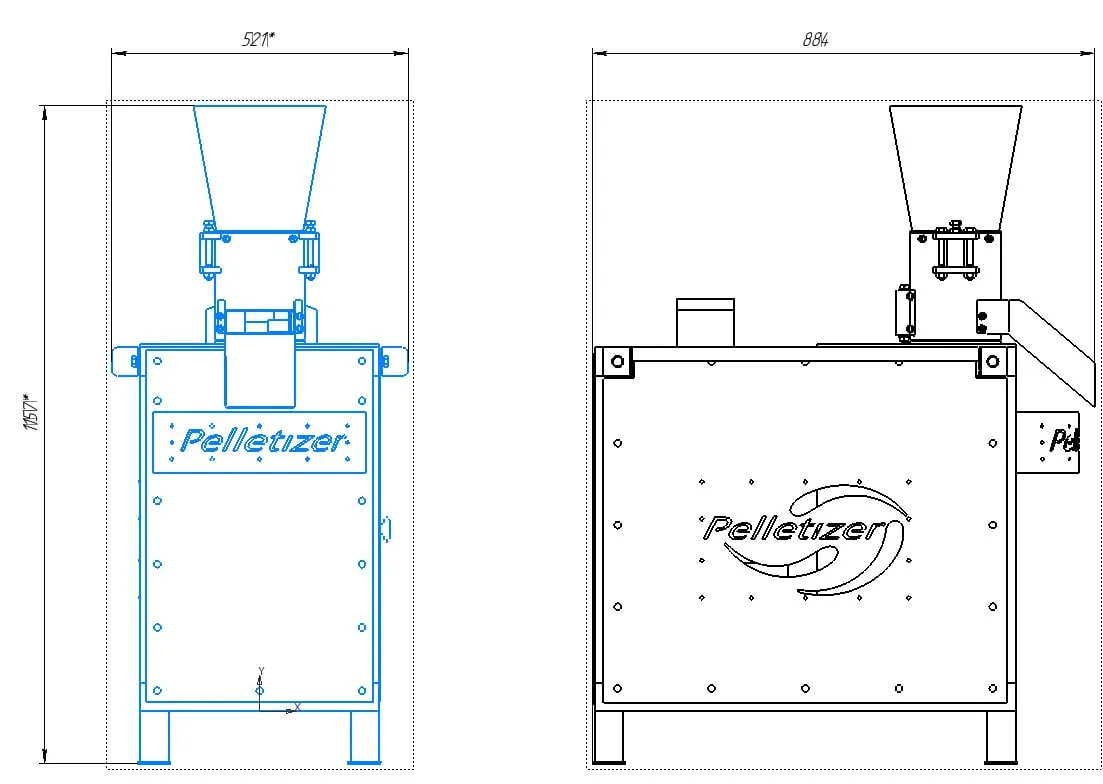

Technical drawing:

Applications

The GMK-150 Granulator will successfully serve in farms, breeding operations and companies producing feed and fuel pellets. The GMK-150 Granulator is perfect for preparing feed for poultry, pigs, rabbits, cattle and fish. The ability to work with various raw materials and flexible die configuration make it a universal and economical machine.

*The granulator is not intended for processing sawdust or producing wood pellets. The machine is designed for the production of pelleted feed and fuel pellets from properly prepared agricultural biomass such as straw, hay, and grain-processing residues.
