Hammer Mill / Crusher KRAFT-1000 with PTO drive

Hammer Mill / Crusher KRAFT-1000 with PTO drive is an efficient device designed for grinding grain, corn, sawdust and wood shavings. Thanks to the drive from the tractor power take-off shaft (PTO), the mill is perfect for farms where mobility, high capacity and the possibility of operation without access to electricity are important.

The KRAFT-1000 model enables the preparation of meal with a capacity of up to 1000 kg/h, which significantly streamlines daily feed production for cattle, pigs and poultry. The solid construction and efficient crushing system ensure uniform grinding of the raw material and stable operation even during intensive use.

The device is equipped with a set of flexible transport hoses with a length of 5 m (Ø80 mm) and 3 m (Ø127 mm), which enable convenient intake and transport of the ground material. The standard equipment also includes a handle-manipulator, facilitating grain suction without the need to manually carry the raw material.

The crusher can be equipped with a screen with a hole diameter of 3 mm or 6 mm, which allows the degree of grinding to be adjusted to the type of feed being prepared. Additionally, the user can choose a version with a PTO output with 6 or 8 splines, so the device can be easily adapted to different tractor models.

Key advantages of the KRAFT-1000 PTO hammer mill

• Tractor PTO drive - full mobility and the possibility of operation anywhere on the farm.
• Capacity up to 1000 kg/h - quick preparation of large quantities of meal.
• Choice of 3 mm or 6 mm screens - the possibility of obtaining the appropriate material fraction.
• Two transport hoses included - convenient intake and transport of the ground raw material.
• Handle-manipulator - comfortable operation during material suction.
• PTO output with 6 or 8 splines - compatibility with different agricultural tractors.
• Solid construction - adapted for many hours of operation.
• Universal application - grinding of grain, sawdust and shavings.

Video: Series of hammer grain crushers "KRAFT":

Video: Grinding wood shavings and wheat - KRAFT hammer mill:

Video: Grinding wheat with the KRAFT hammer mill:

Application

Hammer mill / crusher KRAFT-1000 PTO is used primarily on farms preparing feed for their own needs. It is perfect for grinding wheat, barley, corn and other grains used for the production of feed mixtures.

The device can also be used for grinding sawdust and wood shavings, thanks to which it is also used in carpentry workshops and farms engaged in biomass production. The mobile PTO drive enables operation directly at the place of raw material storage, eliminating the need to use an electrical installation.

Technical parameters

• type of grinding system - rotary;
• capacity - up to 1000 kg/h;
• drive - tractor PTO;
• screen - 3 mm or 6 mm (optional);
• PTO output - 6 or 8 splines (optional);
• corrugated hose Ø80 mm - 5 m;
• corrugated hose Ø127 mm - 3 m;
• handle-manipulator for raw material intake included;
• material to be ground - grain, sawdust, shavings;
• dimensions (L×W×H) - 722 × 780 × 999 mm;
• weight - 156 kg;
• manufacturer's warranty - 12 months.

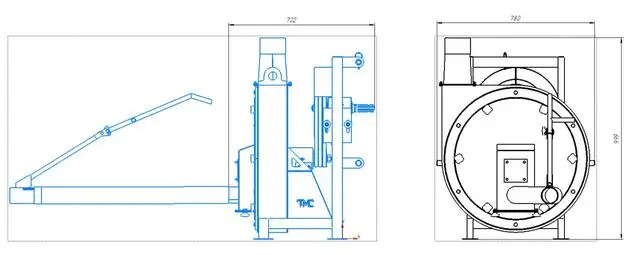

Technical drawing:

Why choose the KRAFT-1000 PTO model?

KRAFT-1000 PTO is a solution for users who expect high capacity and full independence from the electrical grid. The drive from the power take-off shaft allows the tractor's potential to be used, and the rich standard equipment significantly speeds up daily work in feed preparation.

The possibility of choosing a screen, compatibility with different PTO types and a complete set of transport hoses make it possible to easily adapt the device to the individual needs of the farm. The solid construction and high quality of workmanship guarantee many years of trouble-free operation even under intensive use.
