4 - 22 kW
-

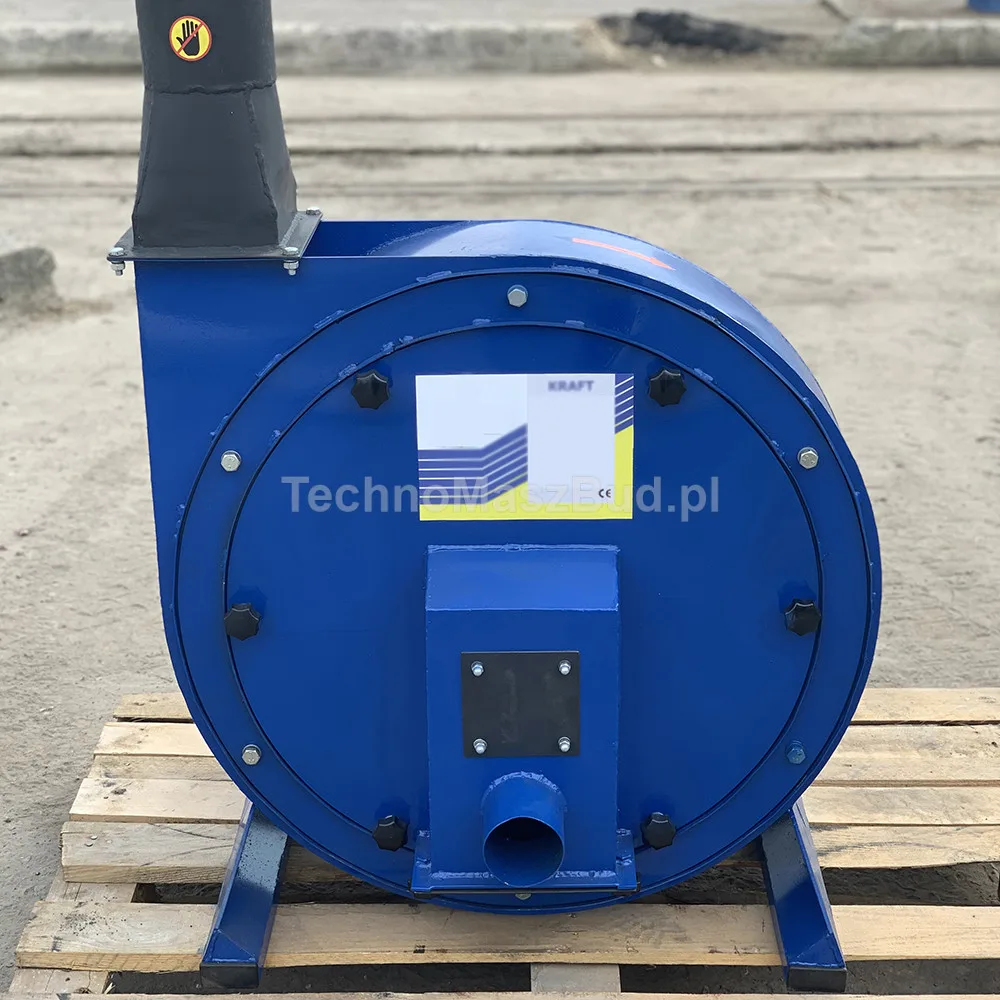

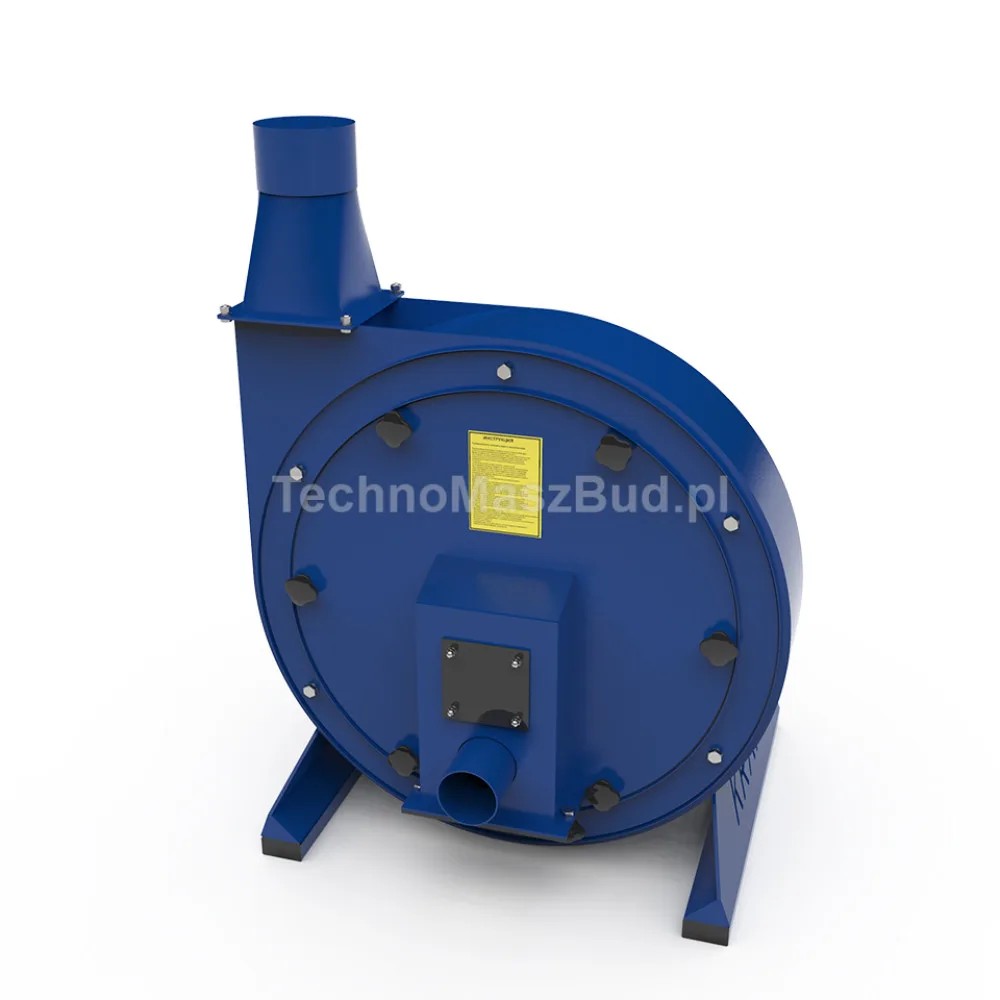

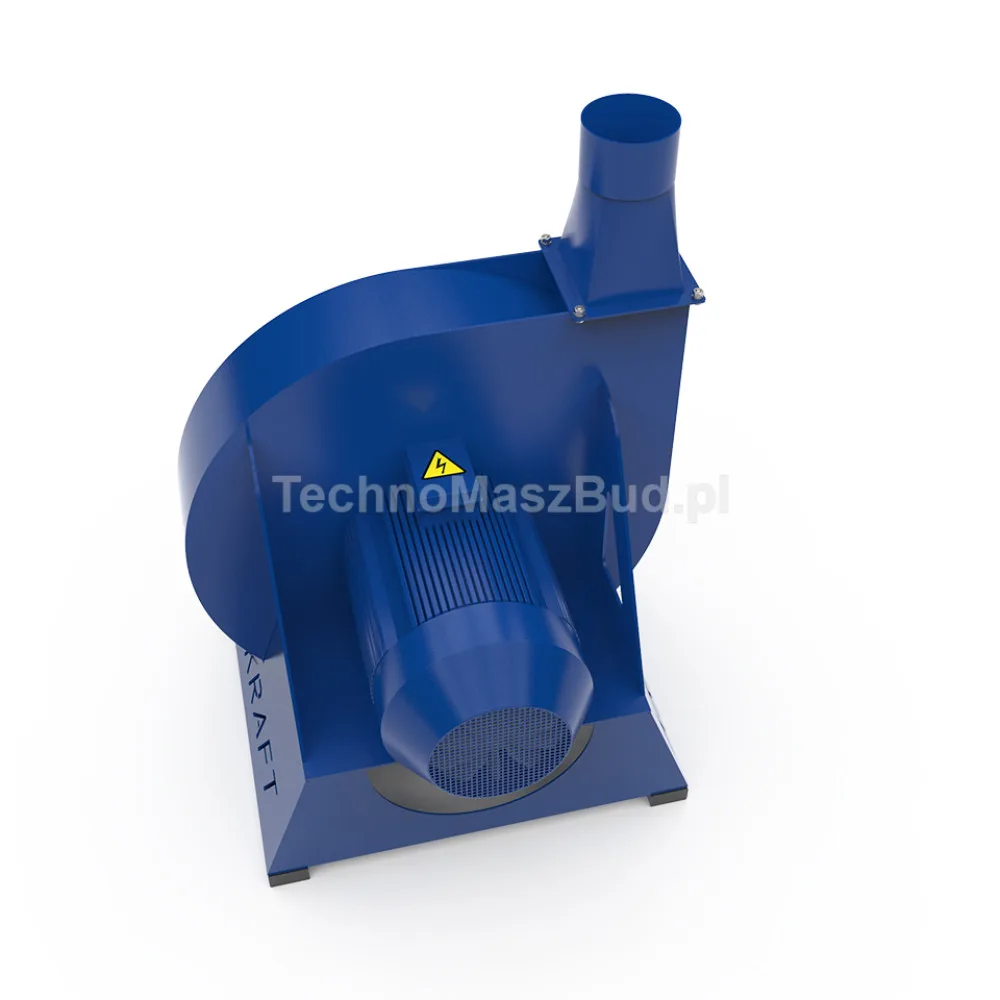

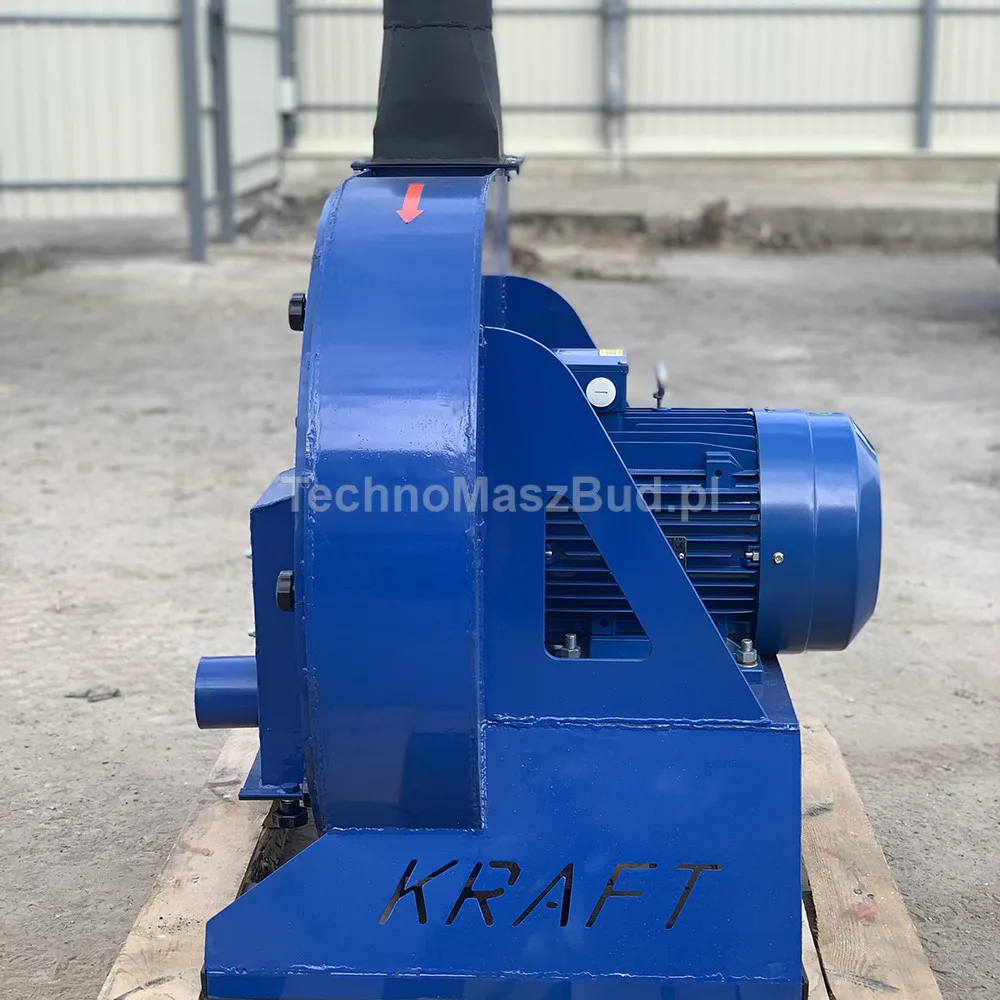

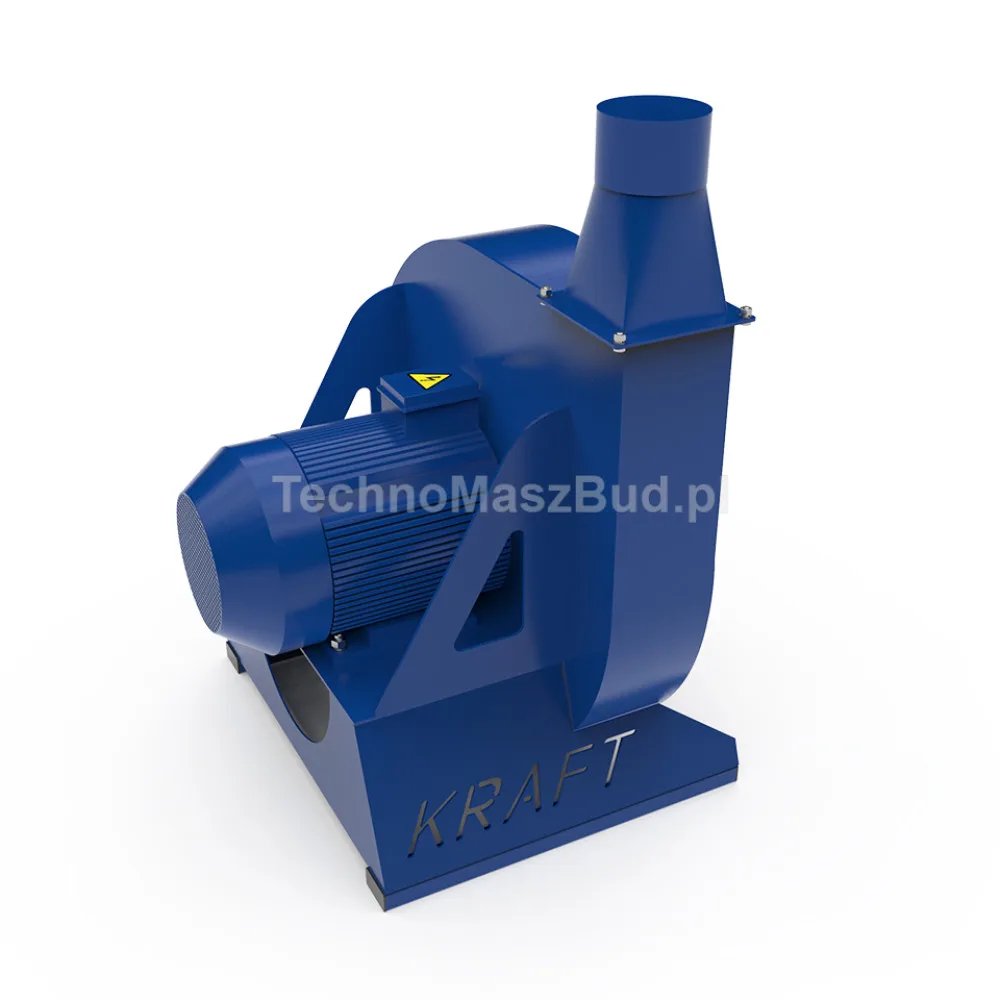

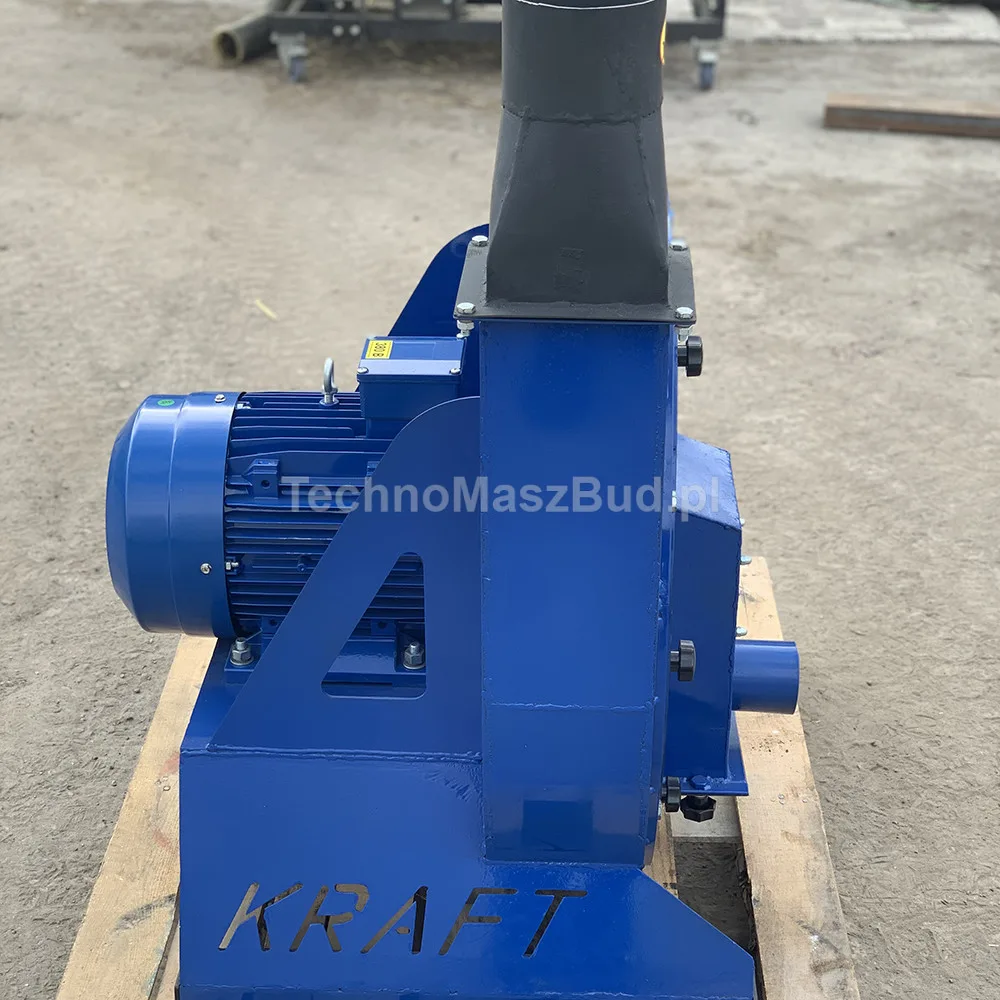

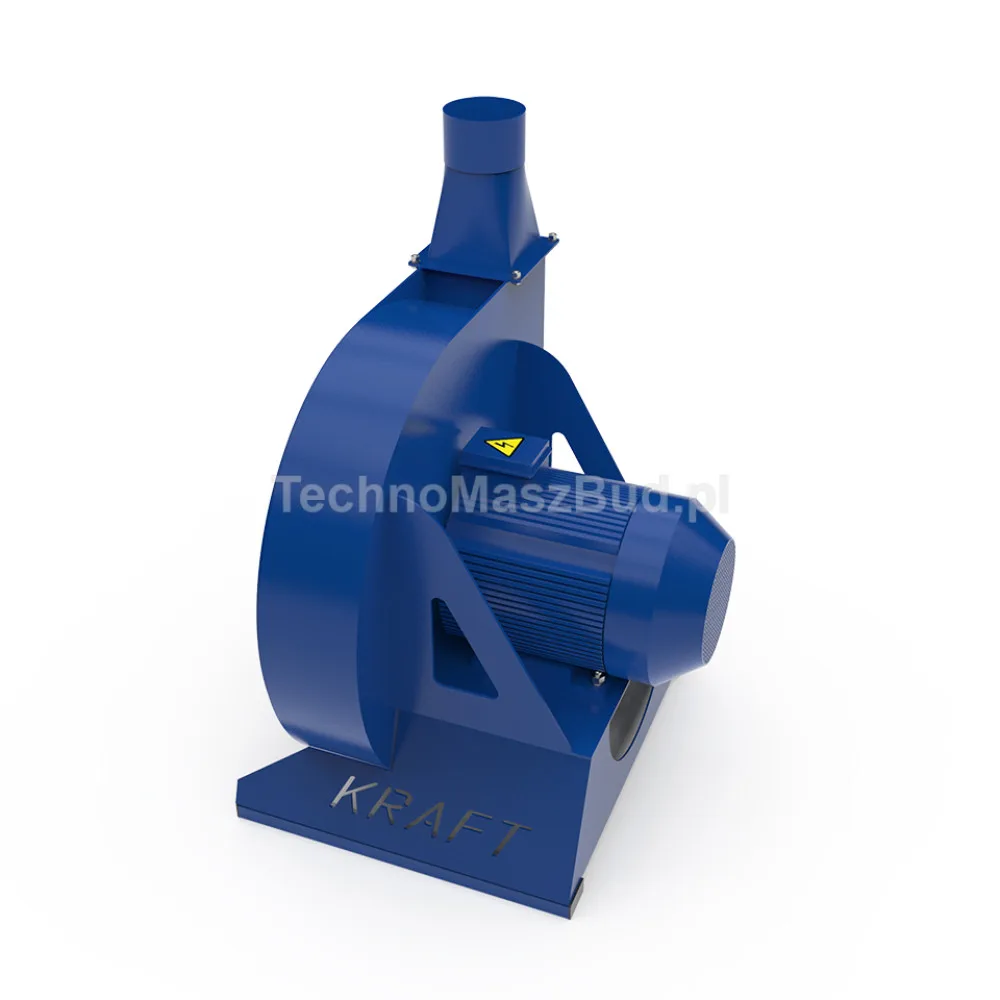

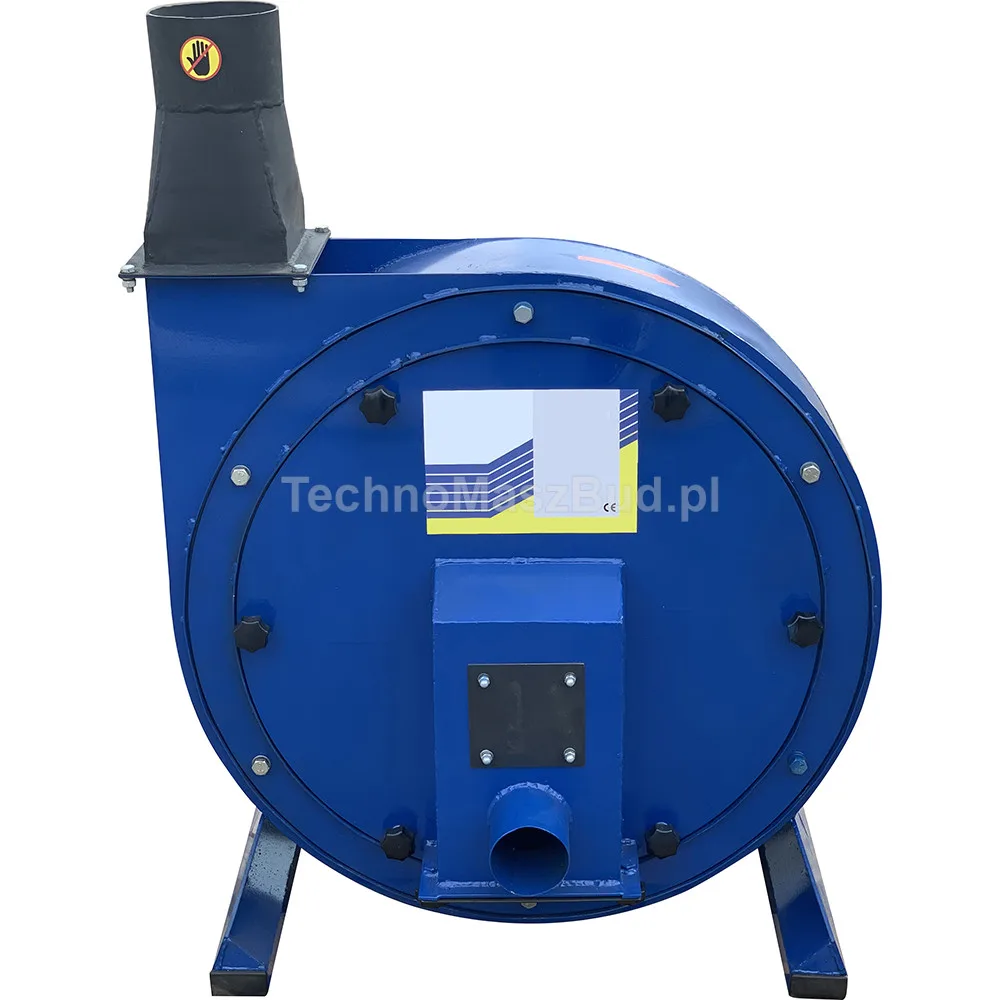

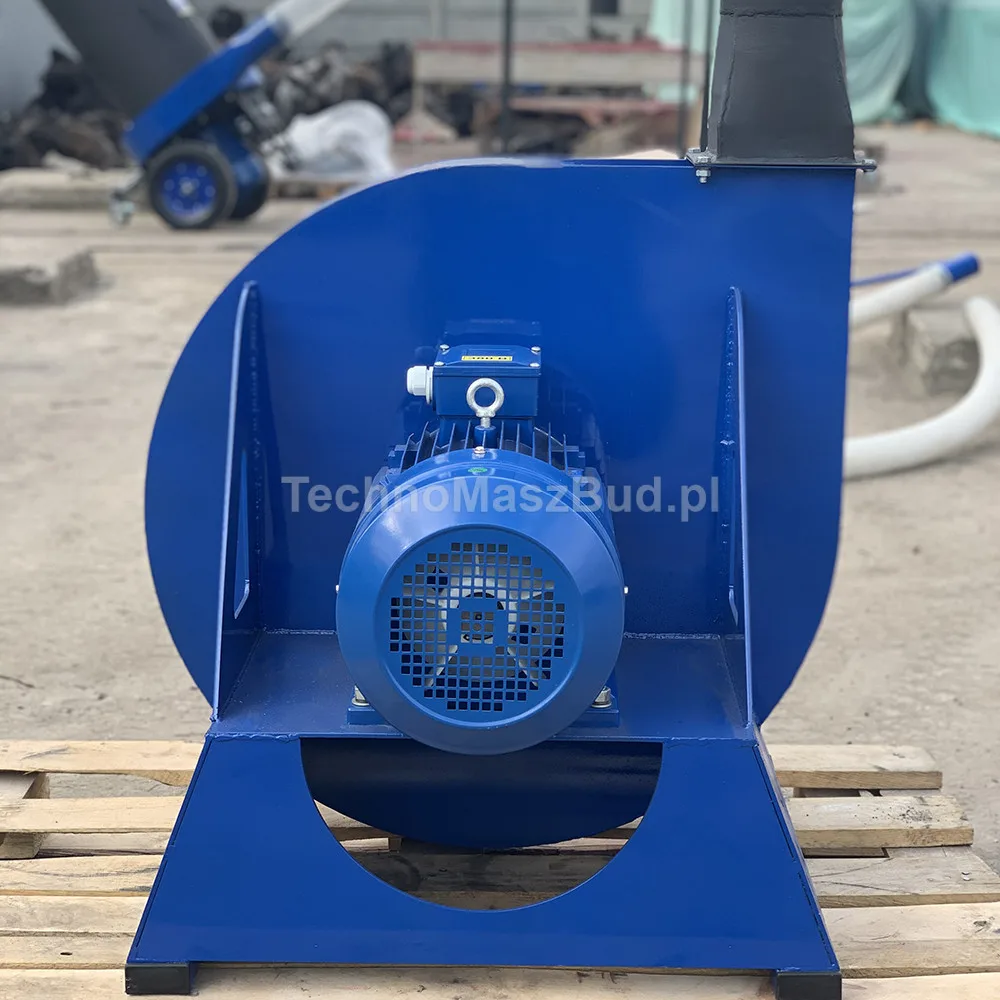

Hammer Mill / Crusher KRAFT
Available Options
- Product Code: KRAFT
Description
The KRAFT hammer mill/grinder is an efficient device for shredding and grinding various raw materials, but primarily cereals. It can also shred wood chips and organic materials.
Thanks to the use of modern grinding technology, it ensures high efficiency, uniform grinding, and long service life. This model is a reliable solution for farms, feed mills, and mills looking for a grain grinder for daily intensive and continuous use.
The KRAFT grinder is designed for grinding grain into meal. The device automatically sucks in the grain to be crushed and feeds it directly into the feed mixer, creating a complete feed preparation line.
The grain mill is suitable for home farms and small farms for the production of feed for animals and poultry. The grinder ensures uniform grinding of the raw material with low dust fraction production. The user can adjust the degree of grinding. The device significantly reduces the costs associated with keeping animals and poultry.
A robust electric motor guarantees sufficient power, while its compact size and low weight make the equipment easy to transport and store.
You can test this machine on your raw material at our warehouse!
Video: Pelletized Feed Production | Up to 700 kg/h | LDG-3000 + KRAFT Hammer Mill + WP-600:
Main advantages of the KRAFT hammer mill / grinder
- High performance – powerful drive and robust design enable the grinding of large quantities of material.
- Precise grinding – the hammer system guarantees uniform grinding of the raw material,
- Durability and reliability – the device is made of materials resistant to intensive use,
- Ease of use and maintenance – simple design allows for quick use and convenient servicing,
- Ability to grind grains and corn cobs,
- Overload protection,
- Stone and metal separation system.
Video: Pelleted feed production – up to 300 kg/h | Video from real operation at a customer site:
Application
The KRAFT hammer mill / grinder can be used on farms, in feed mills (as a feed preparation device), in the food industry (for the production of flour and meal), and in industrial plants (as part of a larger production line). Thanks to its versatility and robust construction, the KRAFT hammer mill / grinder is an excellent choice for any plant where reliable and efficient grain grinding is important.
Video: Feed production set: KRAFT-4 grain mill and MP-450 feed mixer:
Technical specifications:
|
Model |
Weight (kg) |
Capacity (kg/h) |
Power (kW) |
|
KRAFT-4 |
81 |
400 |
4 kW 220-240V /380-400V |
|
KRAFT-7 |
180 |
700 |
7,5 kW 380-400V |
|
KRAFT-11 |
200 |
1000 |
11 kW 380-400V |
|
KRAFT-15 |
240 |
1500 |
15 kW 380-400V |
|
KRAFT-22 |
300 |
2000 |
22 kW 380-400V |
|
KRAFT-30 |
350 |
3000 |
30 kW 380-400V |
|
KRAFT-55 |
400 |
5000 |
55 kW 380-400V |
Video: Feed production set: KRAFT-30 grain mill and MP-3000 feed mixer:
Standard equipment:
| Equipment / Model | KRAFT-4 | KRAFT-7 | KRAFT-11 | KRAFT-15 | KRAFT-22 | KRAFT-30 | KRAFT-55 |
| Control panel with ammeter | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Suction pipeline Ø80 mm (m) | 3 | 5 | 5 | 5 | 5 | 5 | - |
| Collecting pipeline Ø127 mm (m) | - | - | - | - | - | - | 5 |
| Feed pipeline Ø102 mm (m) | 2 | - | - | - | - | - | - |
| Feed pipeline Ø127 mm (m) | - | 3 | 3 | 3 | 3 | 3 | - |
| Feed pipeline Ø159 mm (m) | - | - | - | - | - | - | 5 |
| Clamp Ø92–97 mm (pcs.) | 2 | 2 | 2 | 2 | 2 | 2 | - |
| Clamp Ø131–139 mm (pcs.) | - | 2 | 2 | 2 | 2 | 2 | 2 |
| Clamp Ø104–112 mm (pcs.) | 2 | - | - | - | - | - | - |
| Clamp Ø150–170 mm (pcs.) | - | - | - | - | - | - | 2 |
| Adjustable suction nozzle (pcs.) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Sieve 3 mm or 6 mm (optional) (pcs.) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Stone and metal separator | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Video: Feed Production Set: Hammer Mill “KRAFT-11” and Feed Mixer “WIR-1000”:
Video: Feed Production Set: Hammer Mill KRAFT-7 and Feed Mixer MP-600:
Video: Set for the production of feed: KRAFT-4 grain crusher and MP-300 feed mixer:
Video: Feed Mixer MP-1000 (Mixer for Dry Feeds) with Grain Crusher KRAFT-11:
