86 kW
-
Hammer mill MB-1200
In Stock
- Product Code: MB-1200
Main characteristics
All specifications
Product type:
Beater mill
Usage:
For grinding chips, sawdust, wood chips, grain
Type of drive:
Electric
Production capacity:
1200 - 1300 (kg/h) - Sawdust;
6000.0 (kg/h) - Grain;
Engine power:
86 (kW)
Description
The MB-1200 Hammer Mill is our most powerful machine designed for grinding a variety of raw materials, such as wood chips, shavings, sawdust, grain, seeds, wood waste, or shells.
The fraction size can be adjusted (6–20 mm, depending on the screen), making the mill ideal for many applications, including feed, pellet, and briquette production, as well as other industrial processes. The device is perfect for processing raw materials with up to 60% moisture content, ensuring safe operation without risking damage to the drive system.
Additionally, the MB-1200 hammer mill is equipped with a functional cyclone that provides efficient material separation. As a result, the grinding process is smooth and precise.
It is possible to test this machine on your raw material at our warehouse!

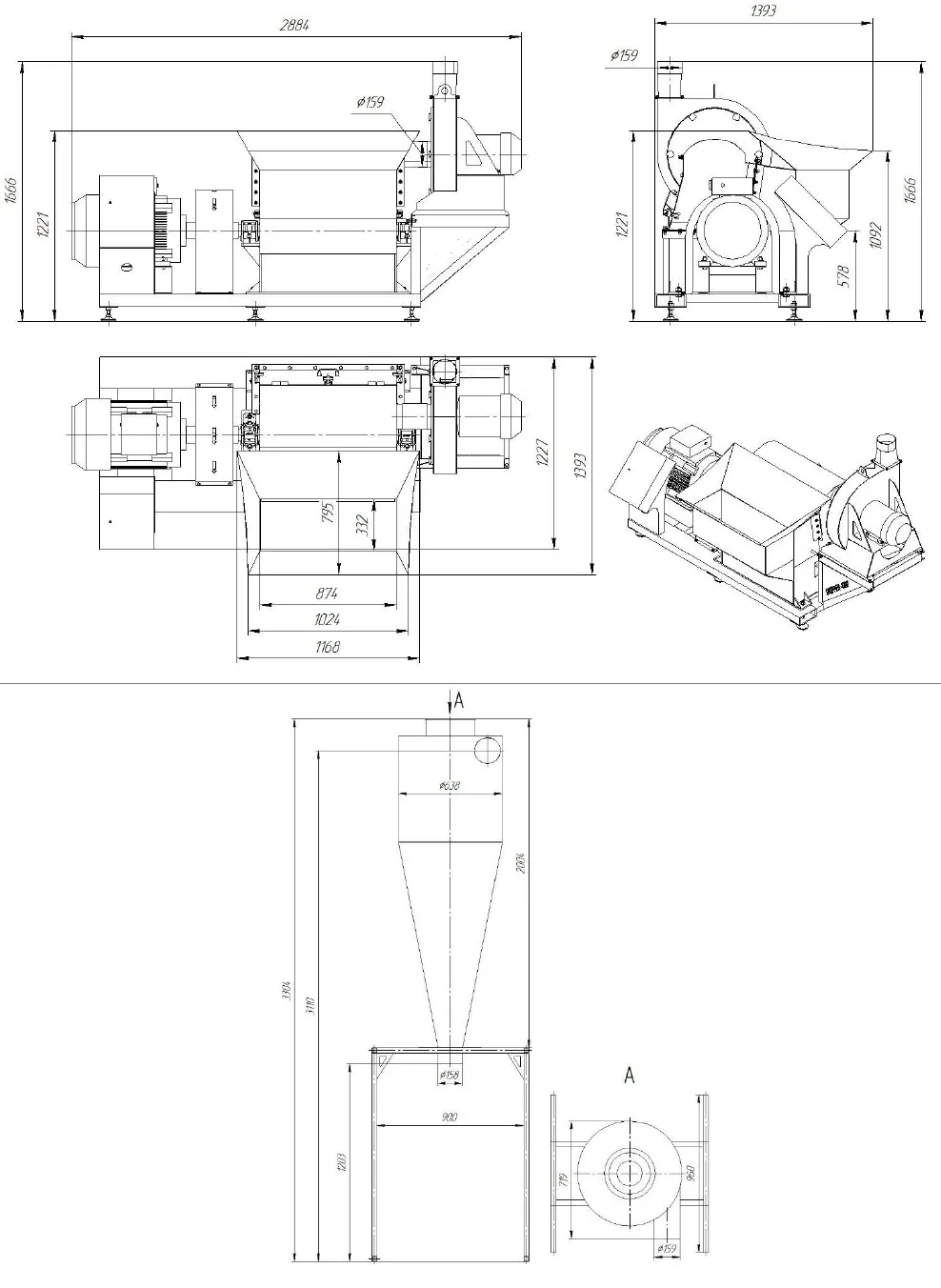

Technical drawing:
Video: Hammer Mill MB-1000 | For grinding carpentry waste, wood chips, grain:
Advantages of the MB-1200 Hammer Mill:
- Efficiency: Our hammer mill ensures maximum work efficiency.
- Versatility: The mill handles different types of grain, from cereals to oilseeds. It is also suitable for wood waste. Regardless of the raw material, you get a product perfectly suited to your needs.
- Durability: Thanks to solid materials and rigorous testing, the mill is durable and reliable, even in demanding industrial environments.
- Easy operation: An intuitive interface and easy access to parts make operation and maintenance quick and trouble-free.
- Safety: Advanced safety systems minimize the risk of accidents, ensuring a safe and stable operation.
Video: Hammer Mill MB-500 | Wood chip grinding test:
Performance:
- 1200 - 1300 kg/h
* The crusher's performance depends on the type and physical properties of the crushed material and the fraction obtained.
Technical specifications:
- Motors: 75 kW and 11 kW
- Dimensions (L×W×H): 2824 × 1393 × 1666 mm
- Weight: 1980 kg
- Feed opening dimensions: 870 × 332 mm
- Loading height: 1100 mm
- Number of hammers: 56 pcs.
Cyclone specifications:
- Weight: 70 kg
- Dimensions (L×W×H): 1058 × 1367 × 3302 mm
Power consumption:
- 86 kW
Video: Grinding plywood, boards, carpentry waste | Hammer Mill MB-1000:
Video: Hammer Mill MB-500 | Working on wood chips:
Need more information about this device?
Contact us – we will advise you on the best solution!
Contact usSpecification
Key features
Product type
Beater mill
Usage
For grinding chips, sawdust, wood chips, grain
Type of drive
Electric
Production capacity
1200 - 1300 (kg/h) - Sawdust;
6000.0 (kg/h) - Grain;
Engine power
86 (kW)
Voltage
400 (V)
Rotation speed
3000 rpm
Additional features
Warranty
12 months
Dimensions
Weight
1980 (kg)
Width
1393.0(mm)
Length
2824.0(mm)
Height
1667.0(mm)
