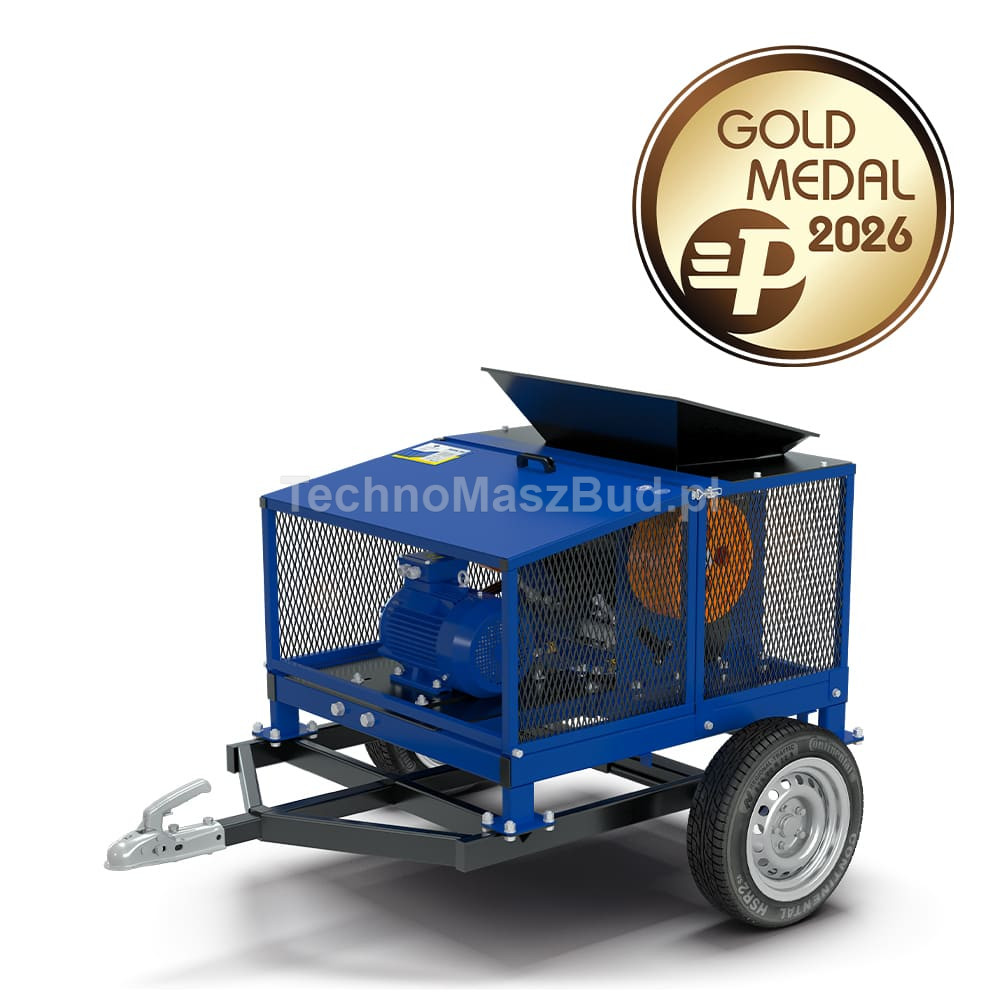

Jaw crusher BIZON-450 with electric motor

Bizon-450-E is the most efficient jaw crusher in the series, designed for effective crushing of large construction materials such as stone, concrete, brick and rubble, with strength up to 320 MPa. Thanks to its large feed opening, it can crush pieces up to 450 mm in size, making this model ideal for recycling and construction industry applications. The Bizon-450 model is also available in a petrol version, which is suitable for workplaces where there is no access to electricity.

Unlike the smaller BIZON series models, this jaw crusher allows you to work with stone of a larger fraction (up to 450 mm in length and up to 250 mm in height and width).

To obtain a fraction below 10 mm, we recommend setting up two jaw crushers in one technological line – the larger crusher processes the raw material down to 50–80 mm, and the smaller one then further crushes it to the required fine fraction.

Operating principle

The jaw crusher is powered by a motor of your choice – either petrol or electric. A moving plate – the jaw – moves up and down using an eccentric shaft. The angle and distance between the fixed plate and the moving jaw decrease as the moving plate descends – this is when the material is crushed into pieces. The gap widens as the moving jaw rises. When the moving plate retracts from the fixed plate using springs, the crushed particles exit the working zone.

Advantages of the Bizon-450-E jaw crusher:

• Quiet and environmentally friendly operation – no exhaust fumes and low noise level

• Constant efficiency and low operating costs

• Ideal for use in halls and enclosed spaces



Technical drawing:

Applications

The Bizon-450-E machine is a universal concrete crusher, stone crusher, rubble crusher as well as a brick crusher. Its simple structure makes it easy to use and adaptable in a wide variety of environments. It is perfect for recycling, road construction, chemical industry and mining. The electric version is designed for companies that value quiet operation with zero emissions.

Technical data:

• Feed opening dimensions – 450 mm х 250 mm
• Electric motor – 11 kW
• Petrol engine – 18 HP
• Weight – 700 kg
