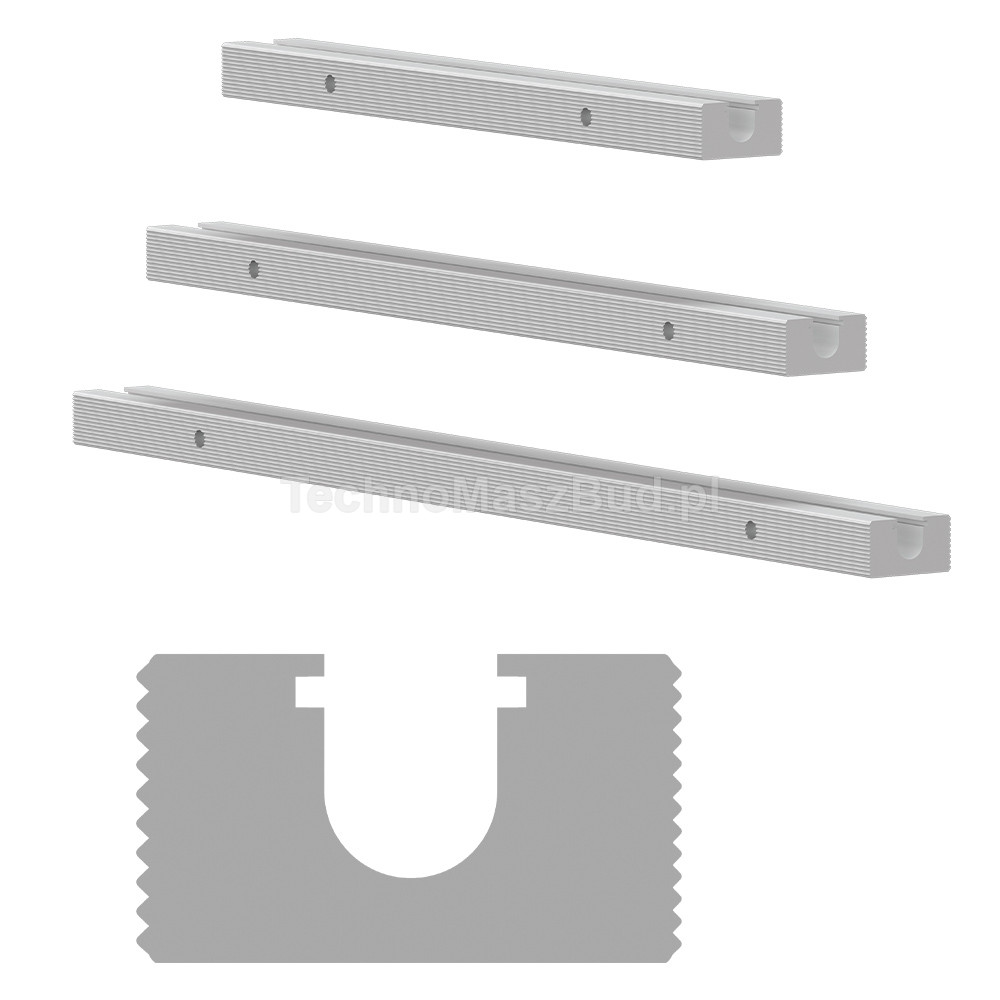

Mold for ZW(SC) and ZO sealers

Mold for ZW(SC) and ZO sealers is a replaceable working element intended for making a durable, ribbed seal (the so-called Euro seal) during the sealing of film packaging. The mold works with heating elements (TEN) used in ZW(SC) and ZO series sealers, ensuring uniform pressure and high quality of the seal produced.

A properly selected mold makes it possible to obtain an aesthetic and durable seal that effectively protects the packaging against opening and the influence of external factors. The solution is used during the packaging of food, chemical, agricultural, and many other materials requiring tight closure.

Application

The mold is intended for use with impulse sealers of the ZW(SC) and ZO series. It makes it possible to seal most popular packaging made of plastics and multilayer materials.

It can be used for sealing:

• polypropylene films (PP);
• multilayer films;
• Doypack packaging;
• duplex and triplex films;
• paper-film laminates;
• composite materials with a thickness from 10 to 120 μm.

Video: ZW, ZO Series Sealers (for sealing polymer bags and packaging):

Why is the proper selection of the mold and heating element so important?

To obtain a uniform seal along the entire length, the heating element should have a length corresponding to the length of the mold or be longer than it. The use of a heating element that is too short causes insufficient heating of the ends of the mold, which may lead to an incomplete or non-durable seal.

For example, the use of a heating element with a length of 260 mm with a 300 mm mold will cause the ends of the mold to remain cool, and the package will not be properly closed. Therefore, it is recommended to use heating elements with a length equal to or greater than the length of the mold.

Key advantages

• making a durable ribbed Euro seal;
• high manufacturing quality and resistance to intensive use;
• uniform pressure along the entire length of the seal;
• compatibility with ZW(SC) and ZO sealers;
• the possibility of working with most packaging materials;
• easy installation and quick replacement.

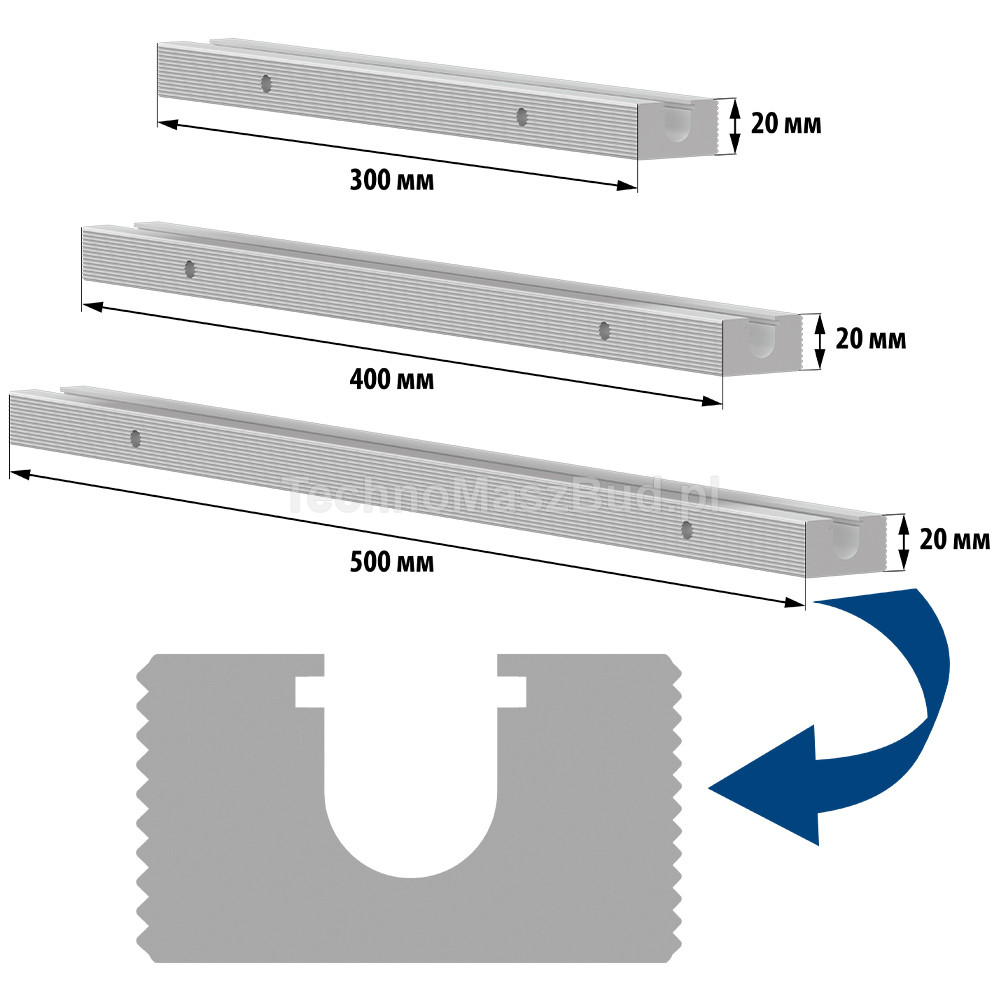

Technical parameters

• intended use - ZW(SC) and ZO sealers;
• seal type - Euro seal (ribbed);
• mold width - 20 mm;
• available lengths - 300 mm, 400 mm, 500 mm, 600 mm;
• supported material thickness - 10-120 μm;
• compatible materials - PP films, multilayer films, Doypack, duplex, triplex, paper-film laminates.

Why is it worth choosing a mold for ZW(SC) and ZO sealers?

A properly selected mold guarantees high seal quality and trouble-free cooperation with the heating element. Thanks to solid workmanship and compatibility with a wide range of packaging materials, it is a reliable solution for enterprises engaged in professional product packaging.
