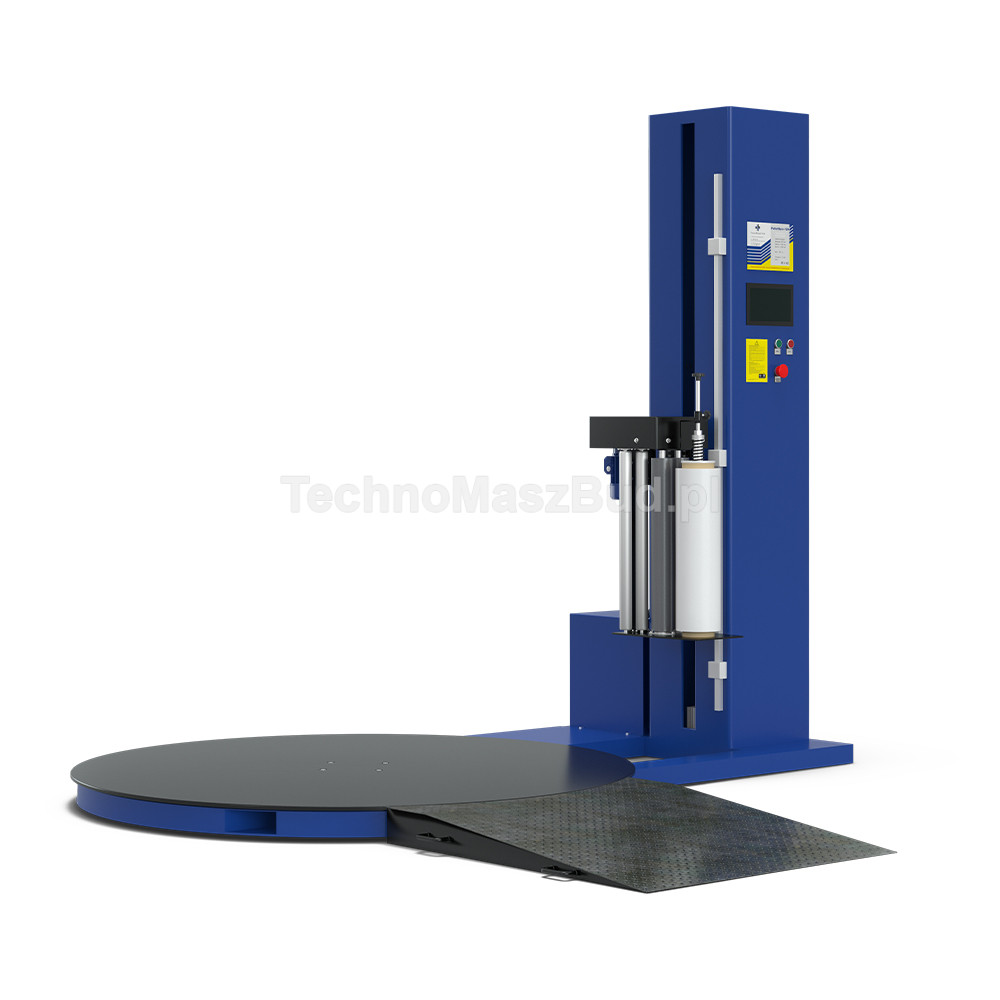

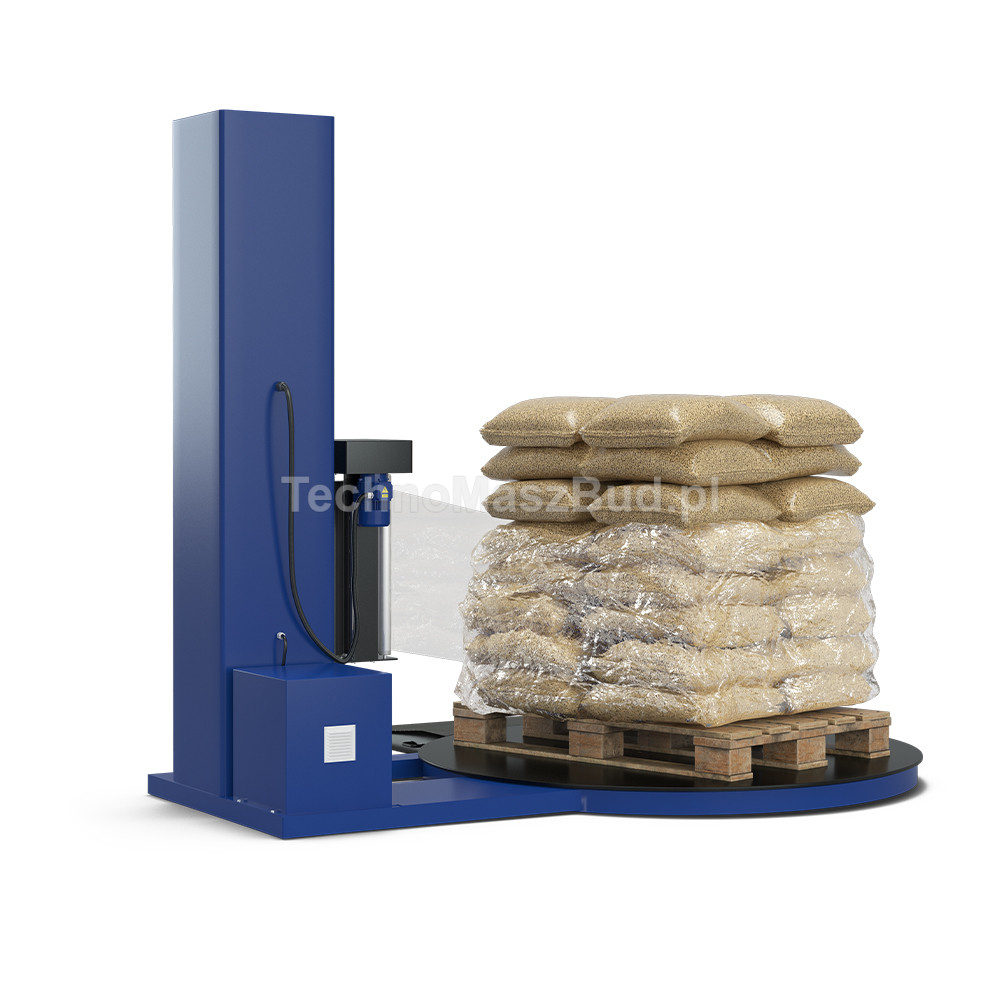

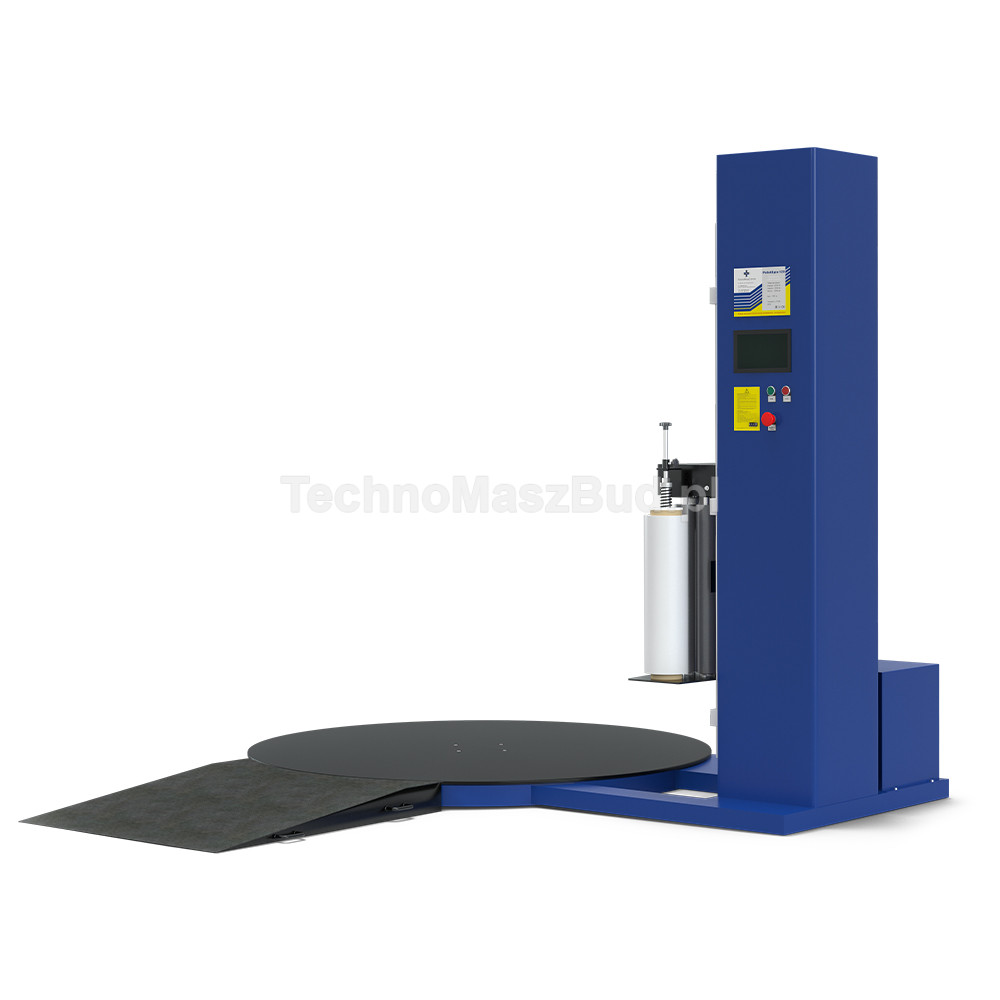

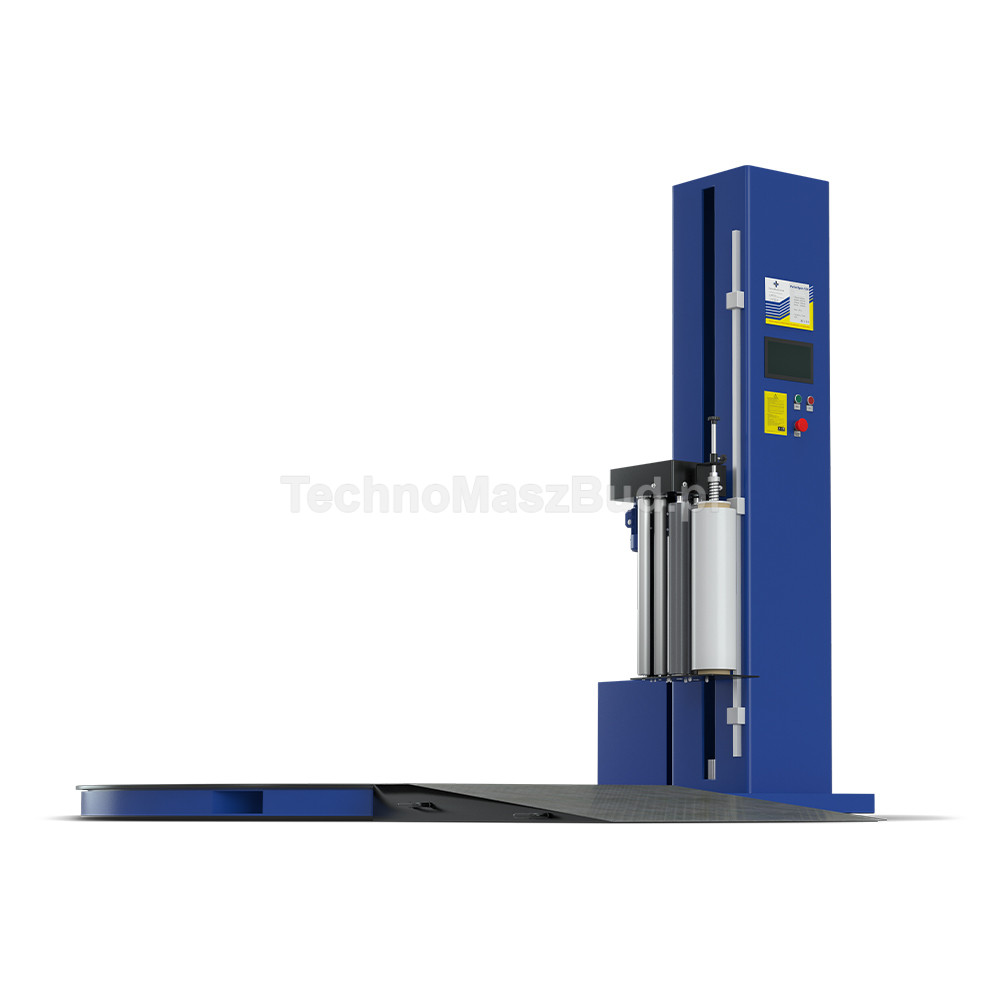

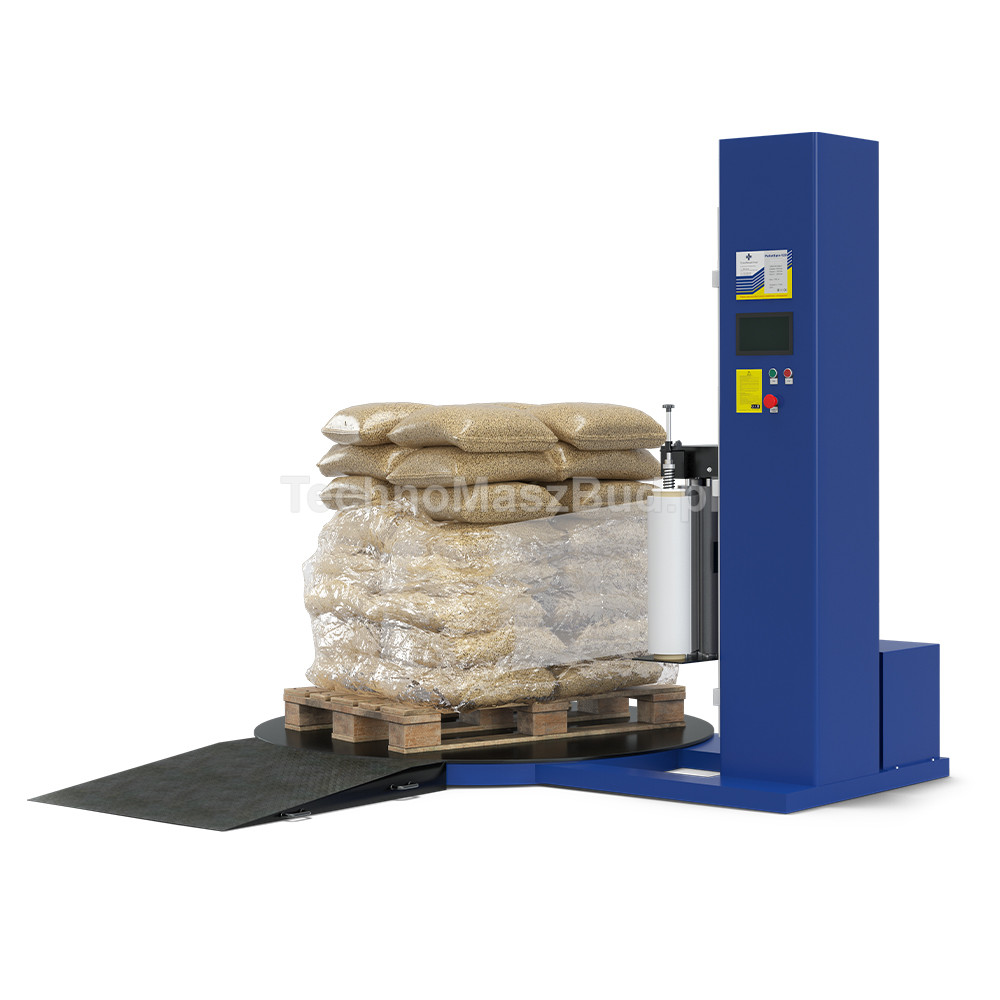

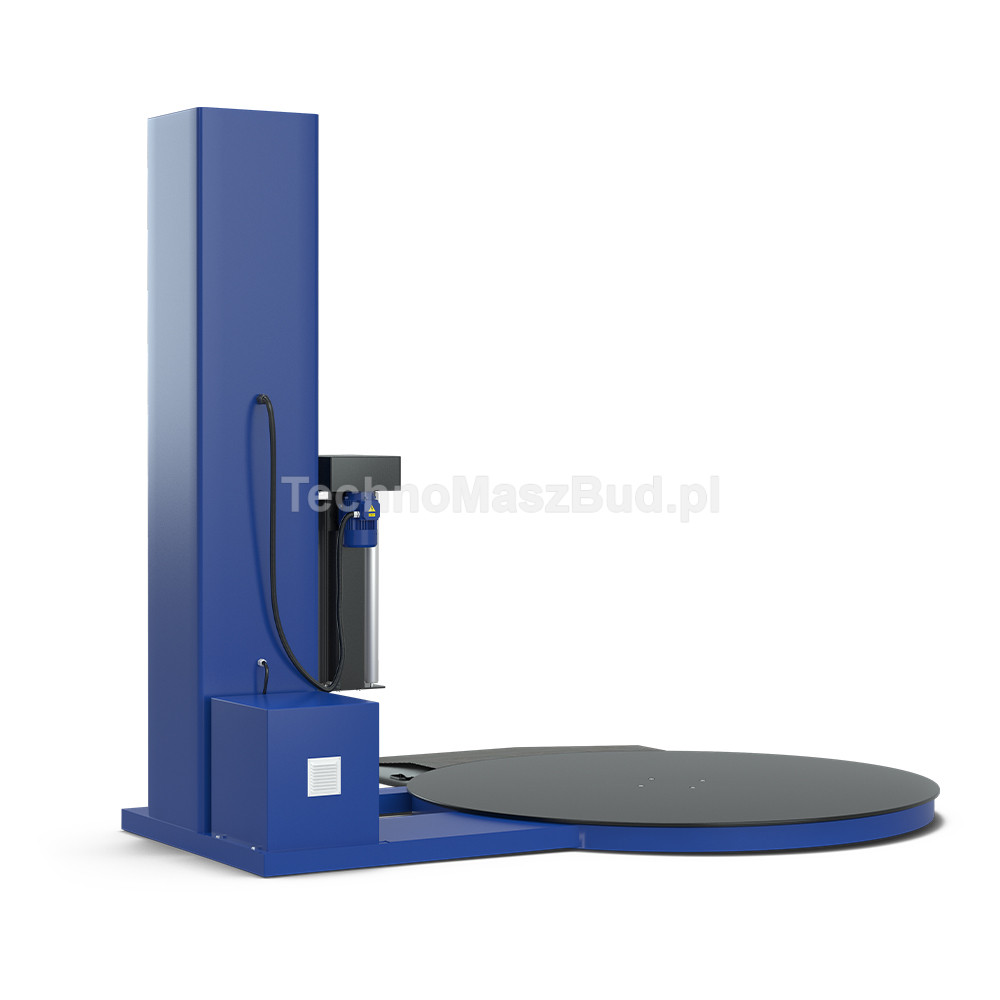

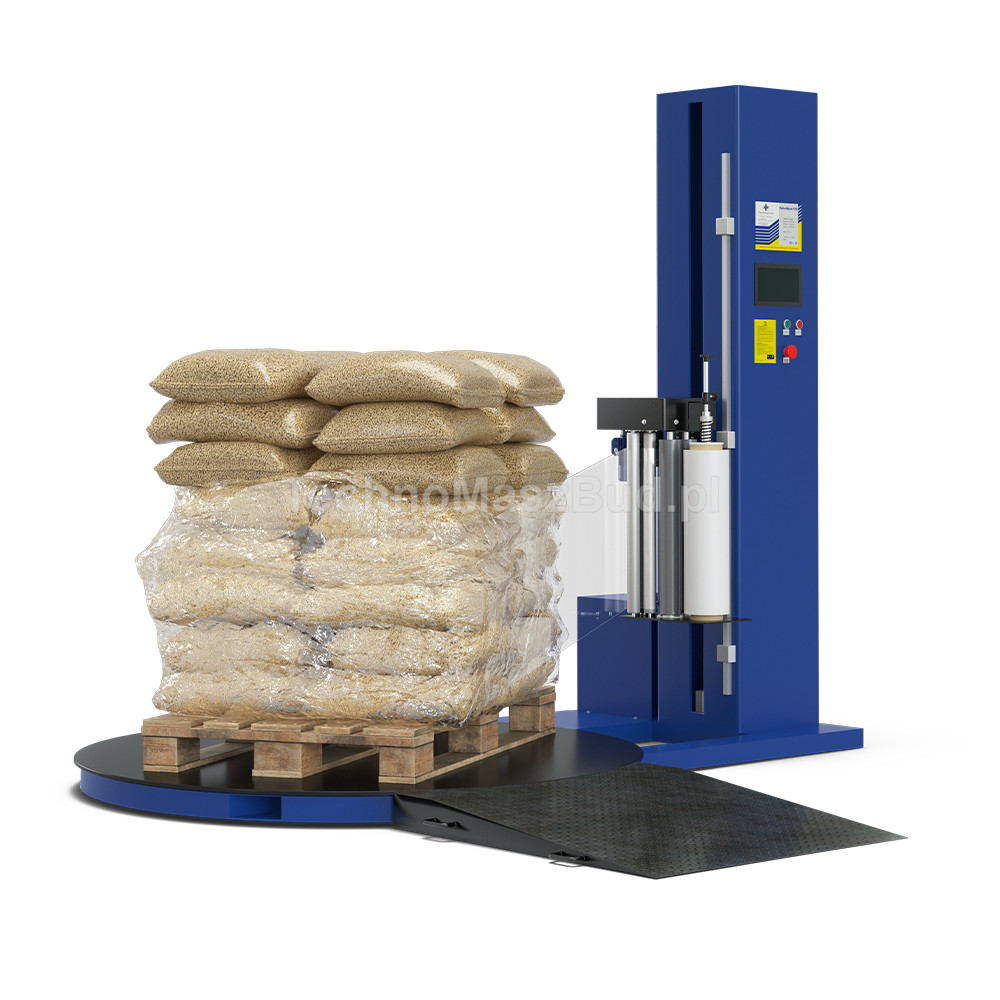

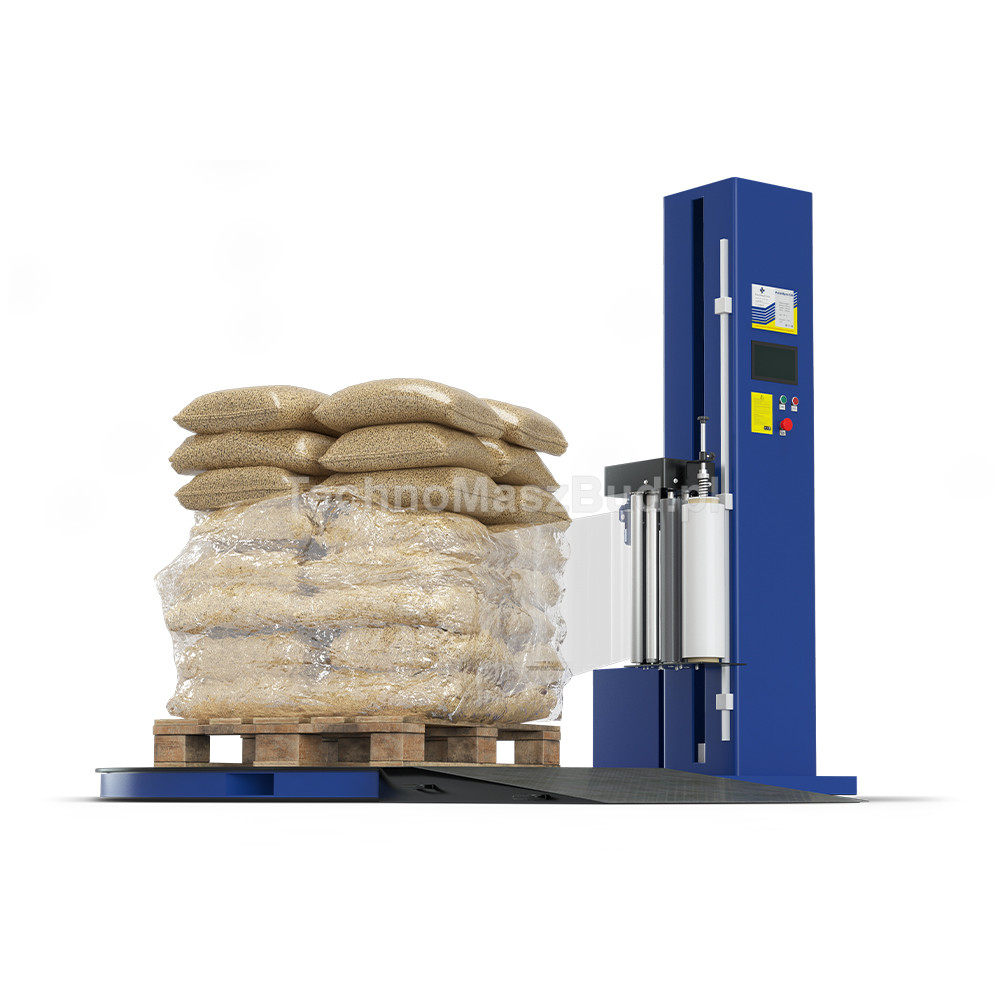

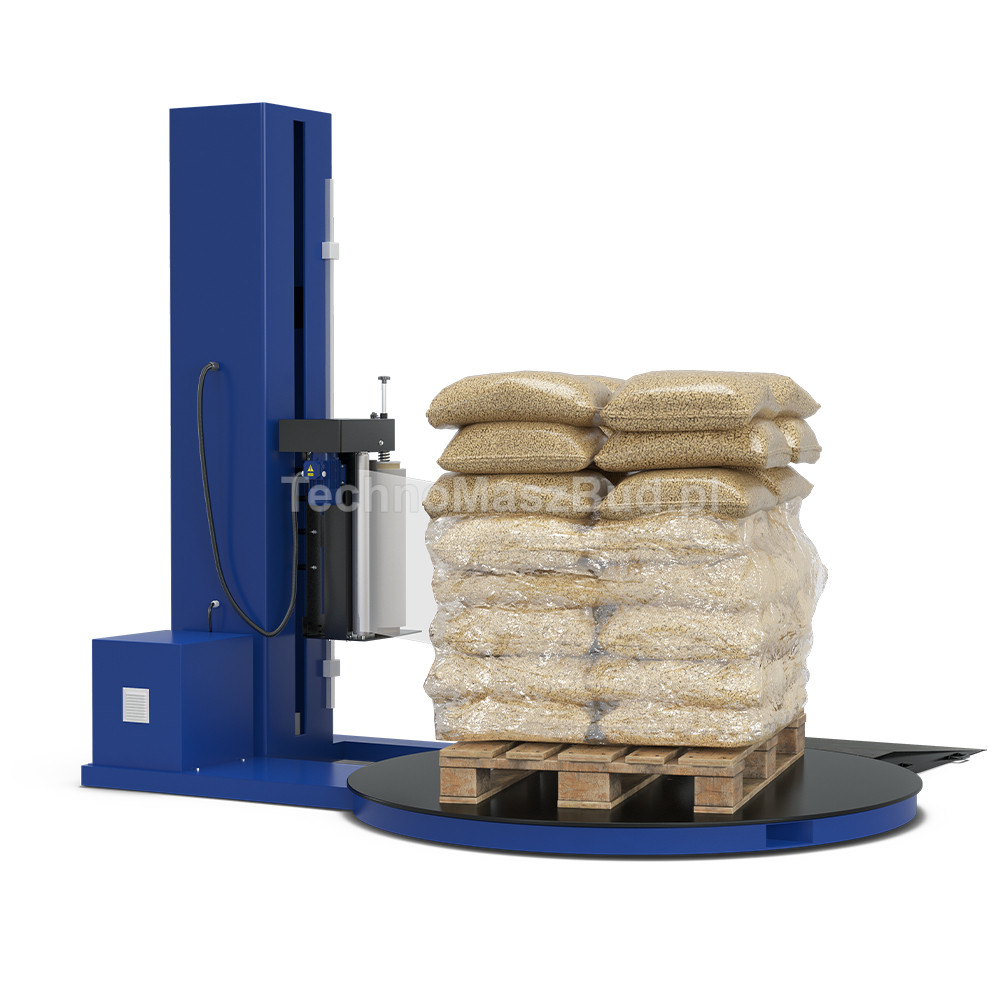

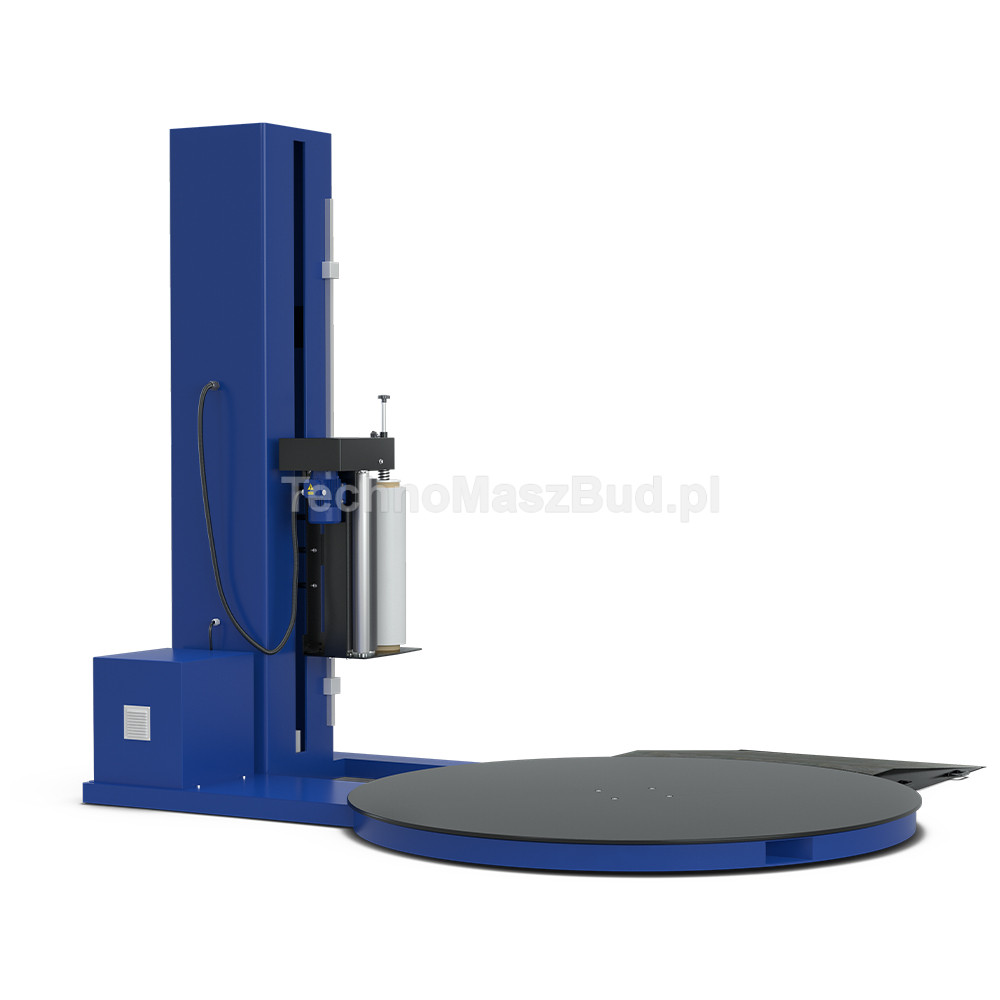

Pallet Wrapper PalletSpin-165

Pallet Wrapper PalletSpin-165 is a modern machine designed for fast and safe wrapping of pallets with stretch film. The machine effectively secures the load against shifting during transport, and also protects it against dust, moisture and mechanical damage. Thanks to the semi-automatic operating cycle and the electric drive of the platform and film carriage, the machine significantly increases the efficiency of the packaging process.

PalletSpin-165 is used in warehouses, logistics centers, production plants, farms and enterprises in the food industry. Robust construction and intuitive operation make the machine ideal for intensive use.

Video: Pallet wrapper PalletSpin-165 | Automatic pallet wrapping with stretch film:

Key advantages

• Stable and safe wrapping of loads on pallets
• Protection of products against dust, moisture and mechanical damage
• Film tension adjustment enabling reduced film consumption
• Electric drive of the platform and film carriage
• Semi-automatic operation ensuring high work efficiency
• Durable construction adapted for intensive use
• Ability to pack pallets weighing up to 2000 kg
• Low-profile platform facilitating pallet loading

Application

Pallet Wrapper PalletSpin-165 is designed for securing goods on pallets before storage and transport. It is ideal for packaging industrial, food and agricultural products, as well as wherever fast and aesthetically pleasing wrapping with stretch film is required.

Video: Pallet wrapper PalletSpin-165 — wrapping of non-standard, heavy and oversized loads:

Technical data

• platform drive type - electric
• film carriage drive - electric
• control type - semi-automatic / automatic
• platform diameter - 1650 mm
• platform height - 85 mm
• platform rotational speed - 0-12 rpm
• maximum pallet height - 2000 mm
• maximum load - 2000 kg
• dimensions (L×W×H) - 2500 × 1650 × 2450 mm
• weight - 550 kg
• power - 1.5 kW
• supply voltage - 220-240 V

Supported stretch film

• film type - LLDPE
• film thickness - 20-35 μm
• film width - 500 mm
• inner core diameter - 76.2 mm
• maximum roll diameter - 250 mm
