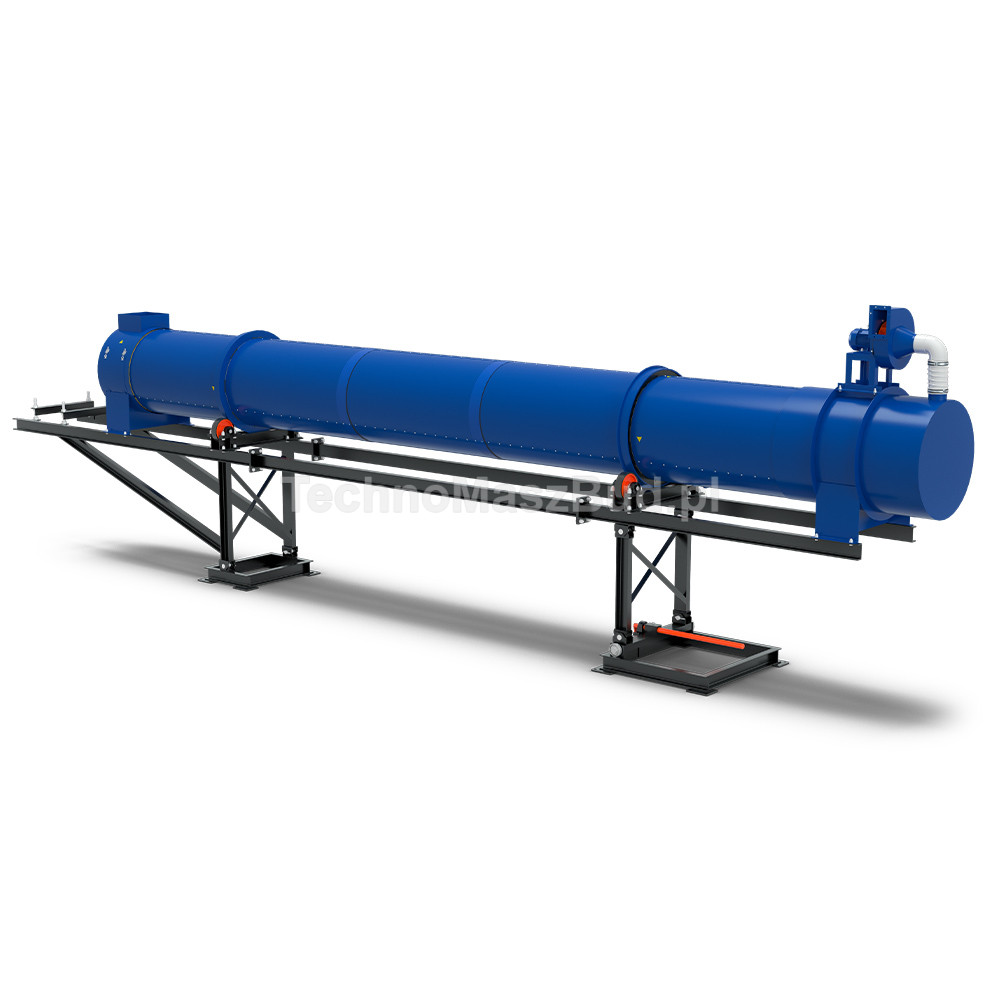

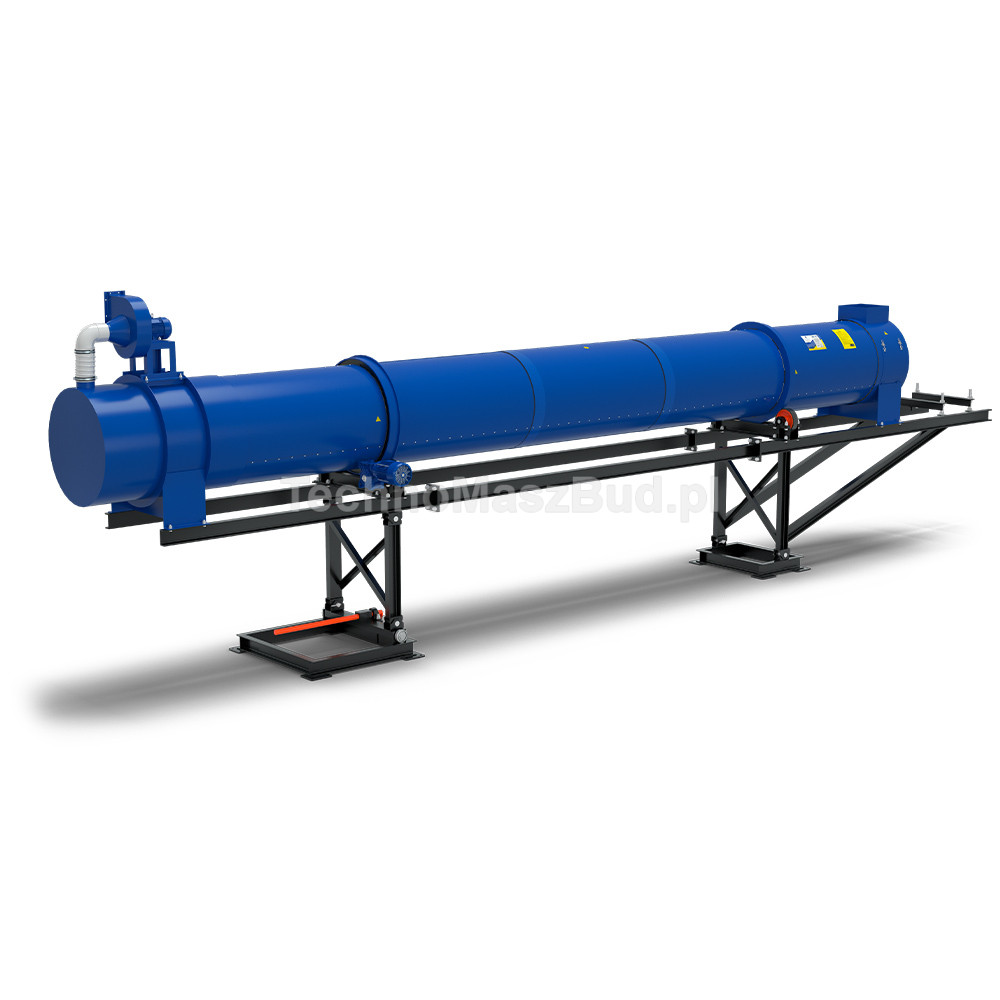

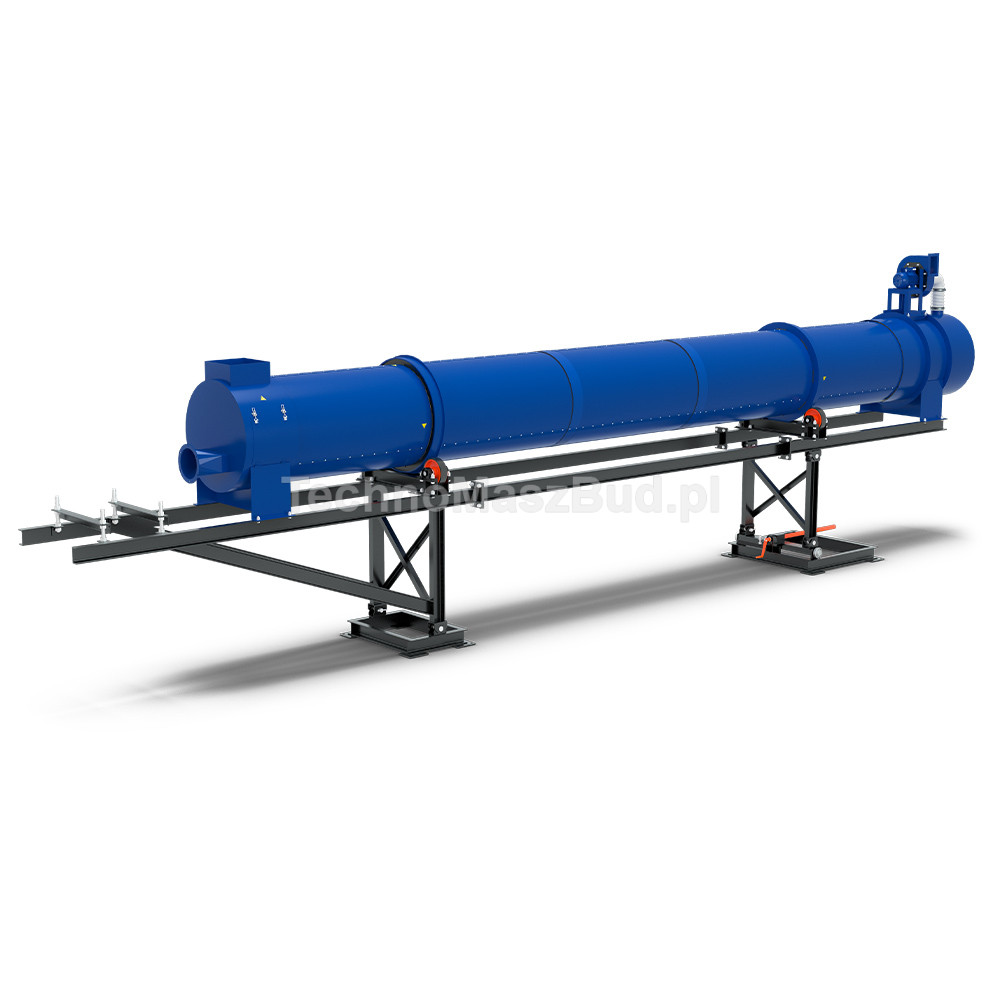

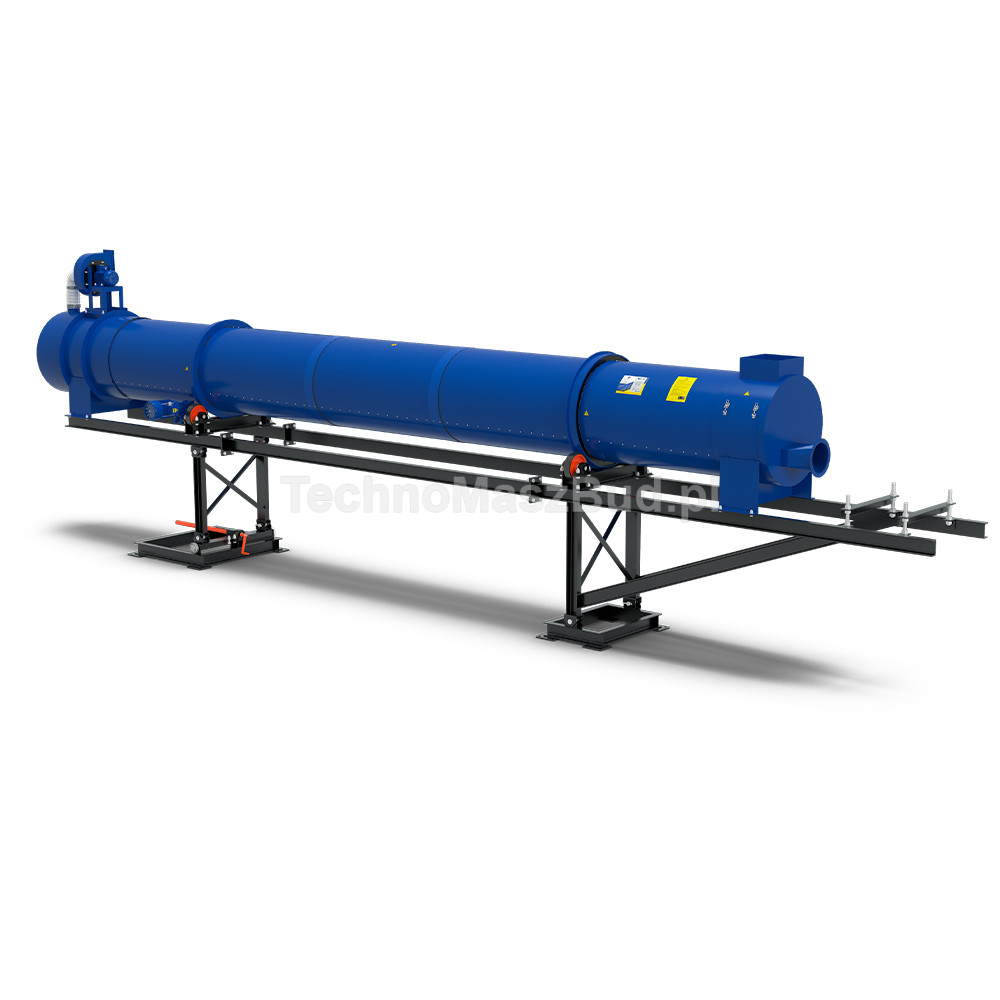

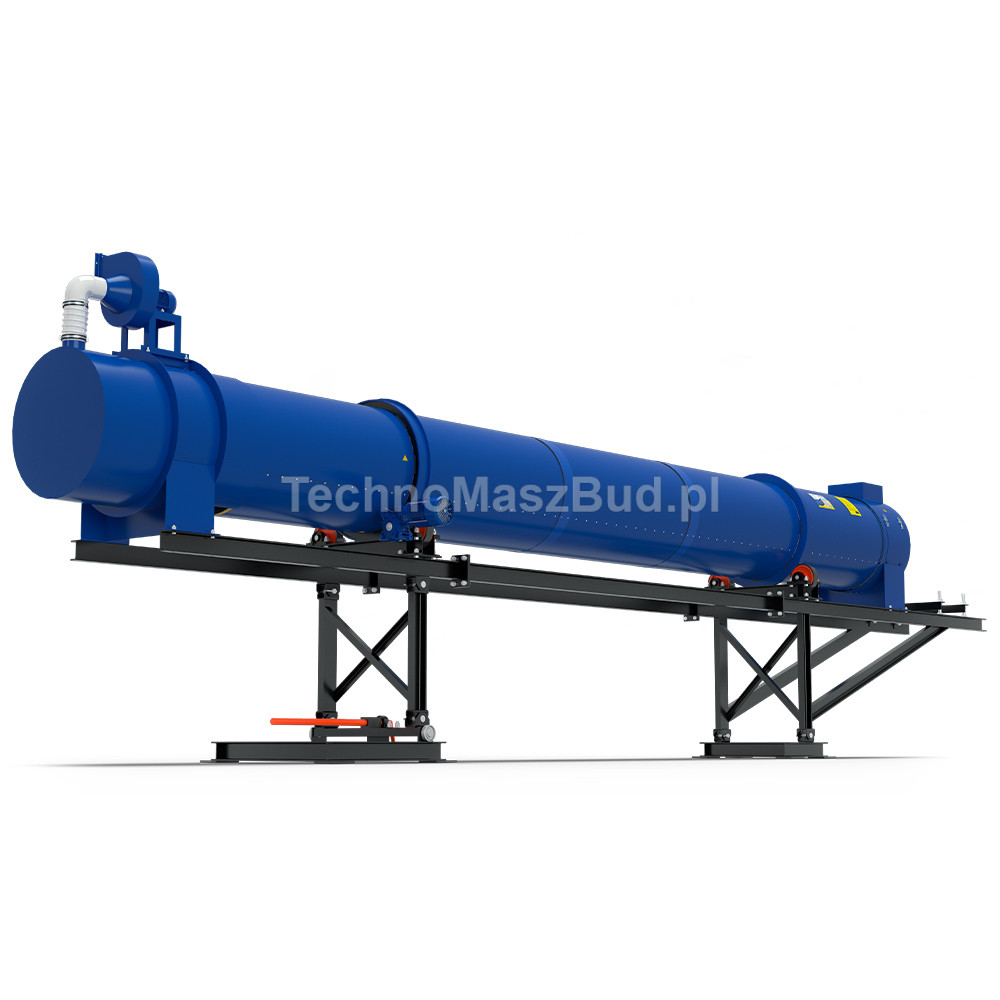

Rotary Drum Dryer SB-6

Rotary Drum Dryer SB-6 is an industrial machine intended for efficient drying of sawdust and various types of biomass before the pelletizing or briquetting process. The design was developed for plants that require a stable drying process and obtaining raw material with appropriate moisture content for further production.

Thanks to its modular design, the SB-6 model can be easily transported and assembled at the site of intended operation. The machine will work well both as a standalone dryer and as an element of a complete technological line for pellet production.

The raw material is fed into the drum by means of a screw feeder, where during rotation it is moved evenly. The stream of hot air effectively removes excess moisture, preparing the material for the subsequent production stages.

Main advantages

• Drying capacity up to 250 kg/h of sawdust*
• Modular design facilitating transport and assembly
• Uniform drying of the raw material during drum operation
• Adjustable drum inclination angle
• Effective thermal insulation reducing heat losses
• Compatibility with various heat sources
• Adapted for operation in pellet and briquette production lines
• Stable operation in industrial applications

* Capacity depends on the moisture content of the raw material and operating conditions.

Application

The SB-6 dryer was designed to prepare biomass with appropriate moisture content before further processing.

• wood pellet production
• briquette production
• carpentry shops and sawmills
• biomass processing
• wood-based panel production
• compost production
• production of feed additives

How does a rotary drum dryer work?

1. The screw feeder transports the raw material to the drum
2. The rotating drum evenly mixes the material
3. Hot air removes moisture from the entire volume of the feedstock
4. Automatic parameter control makes it possible to maintain the appropriate moisture level
5. The dried raw material goes to the next production process

Equipment

• Drying drum
• Modular design
• Thermal insulation made of mineral wool with a thickness of 50 mm
• Drive system
• Drum rotation system

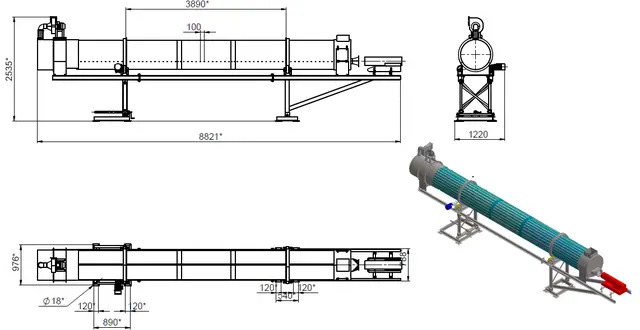

Technical drawing:

Technical parameters

• capacity - up to 250 kg/h of sawdust*
• recommended heat generator type - diesel
• recommended heat generator power - 50 kW
• drum rotational speed - 8 rpm
• drum inclination angle - 0-4°
• thermal insulation - mineral wool 50 mm
• dimensions (LxWxH) - 8821 × 1220 × 2535 mm
• machine weight - 1172 kg
• design - modular

* Capacity depends on the moisture content of the raw material and the seasonality of operation.

SB-6 dryer for efficient biomass drying

The SB-6 model makes it possible to prepare sawdust and biomass with the parameters required during the production of pellets, briquettes, and other fuel materials. Properly dried raw material improves the course of further technological processes and affects the quality of the finished product.

The modular design, the possibility of retrofitting with a heat generator, and easy integration with production lines make the SB-6 a practical solution for modern biomass processing plants.
