Screw feeder PS 200 DUO PRO

PS-200 DUO PRO screw feeder is a dual-motor solution for the continuous conveying of all kinds of bulk materials. The machine operates using two parallel-running screws that ensure stable feeding of raw material with varied particle sizes—from sawdust and wood chips to feed mixes and grains. The PS-200 DUO PRO model can be used as a sawdust feeder in pellet production lines or as a grain feeder on farms and in processing plants. Thanks to its compact yet reinforced design and smooth speed control, the PS-200 DUO PRO screw feeder ensures smooth operation and easy integration with other machines. The difference between the PS-200 DUO and the PS-200 DUO PRO lies in the larger hopper—the PRO version has a capacity of 2 m³, while the standard version is 0.4 m³

Main advantages of the PS-200 DUO PRO screw feeder

• Dual-feed operation — two screws enable supplying two discharge points or increasing the throughput of a single station.

• Stable performance — a uniform material flow reduces blockages and line downtime.

• Smooth adjustment — ability to adapt the feed rate to process requirements.

• Robust design — reinforced frame and wear-resistant working components.

• Operational safety — guards and protection systems safeguard the operator and the drive.

• Easy integration — seamless inclusion in existing process lines.

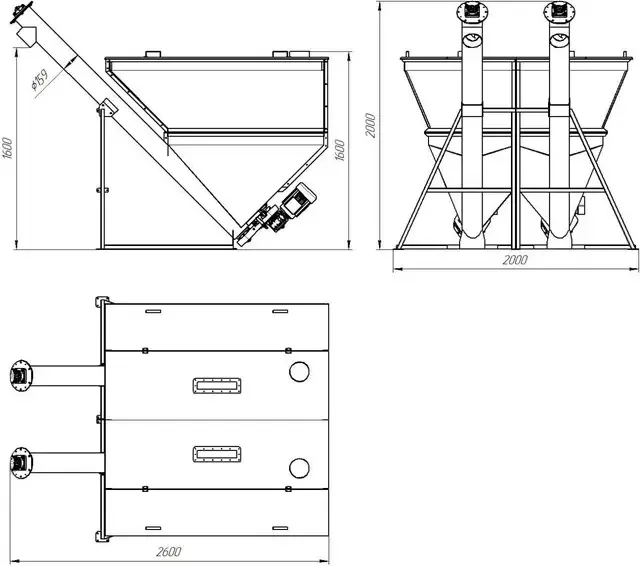

Technical drawing:

Applications

The PS-200 DUO PRO model is suitable for pellet production lines (acting as a screw feeder for sawdust), as well as in the feed industry and agriculture (as a grain feeder). It handles feeding bulk mixes to pellet mills, mills, mixers, or buffer tanks with ease, ensuring an easy, repeatable production process.

All our screw feeders are equipped with two neodymium magnets that remove metallic contaminants from the raw material.

Specifications:

• Power: 3.0 kW, 380–400 V
• Hopper capacity: 2 m³
• Screw speed without inverter: 56–84 rpm
• Capacity on sawdust: up to 1400 kg/h
• Capacity on feed: up to 2000 kg/h
• Conveyor type: screw
• Conveyor path type: vertical, enclosed

Overall dimensions:

• Weight: 300 kg
• Length: 2560 mm
• Width: 1975 mm
• Height: 2000 mm
