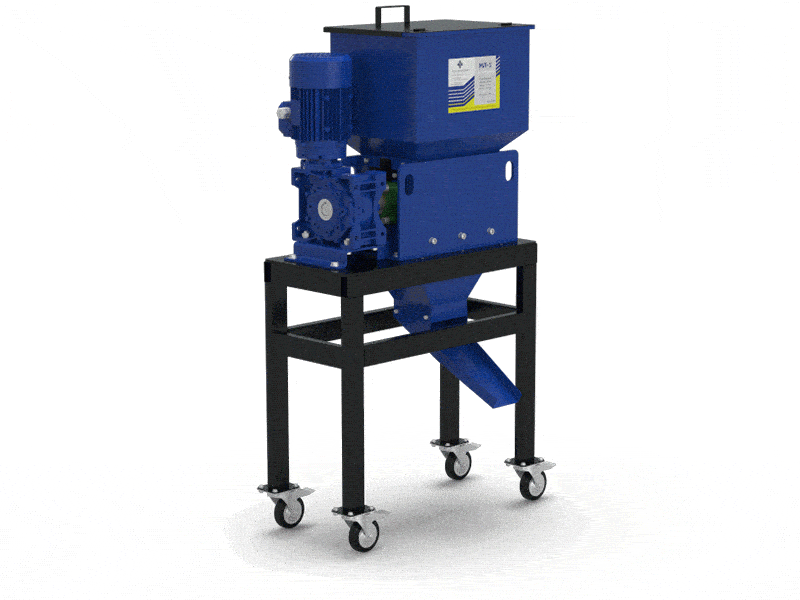

RM-1 Crusher for extrudates | Up to 1 t/h

Model RM-1 is a compact pomace shredder, designed for efficient processing of post-extraction waste.

Oil cake shredder is intended for shredding oil cake produced after the oil pressing process. Unlike competing devices, the shredder is equipped with a more powerful 3 kW motor, which enables effective shredding of oil cake even after double pressing.

Film: RM-1 Press Cake Crusher | Up to 1 t/h

The shredded oil cake is suitable for use in animal feed production.

RM-1 Shredder can be used both in food processing plants as well as in feed and biogas production. Compared to larger industrial models, the RM-1 is a pomace shredder model distinguished by its ease of use, mobility, and favorable power-to-performance ratio.

Advantages of the RM-1 pomace shredder:

• Low energy consumption with high efficiency maintained

• Corrosion-resistant steel construction
• Ability to process a variety of organic materials
• Compact size – easy integration into a production line
• Quick disassembly of working components – easy cleaning

Technical drawing:

Applications

It is an excellent choice as a shredder for fruit and vegetable pomace, shredder for organic waste, or biomass shredder. Thanks to its compact design, the RM-1 machine is the ideal solution for companies seeking equipment that can be easily adapted to the workspace—universal, yet economical and efficient.

Operating principle:

The oil cake is fed into the feed hopper, from where it drops onto the shredder knives. The shaft-mounted knives press the cake against the counter-knife plates, crushing and pushing it between them. The shredded material passes through a screen, onto which it is moved by the rotating knives.
Small oil cake fragments fall through the screen holes, while larger pieces are pressed and shredded again between the counter-knives. As a result, the device yields a product in the form of small pieces, which accelerates cooling and facilitates further processing.

Technical data:

Motor: 3 kW
Throughput: up to 1000 kg/h
