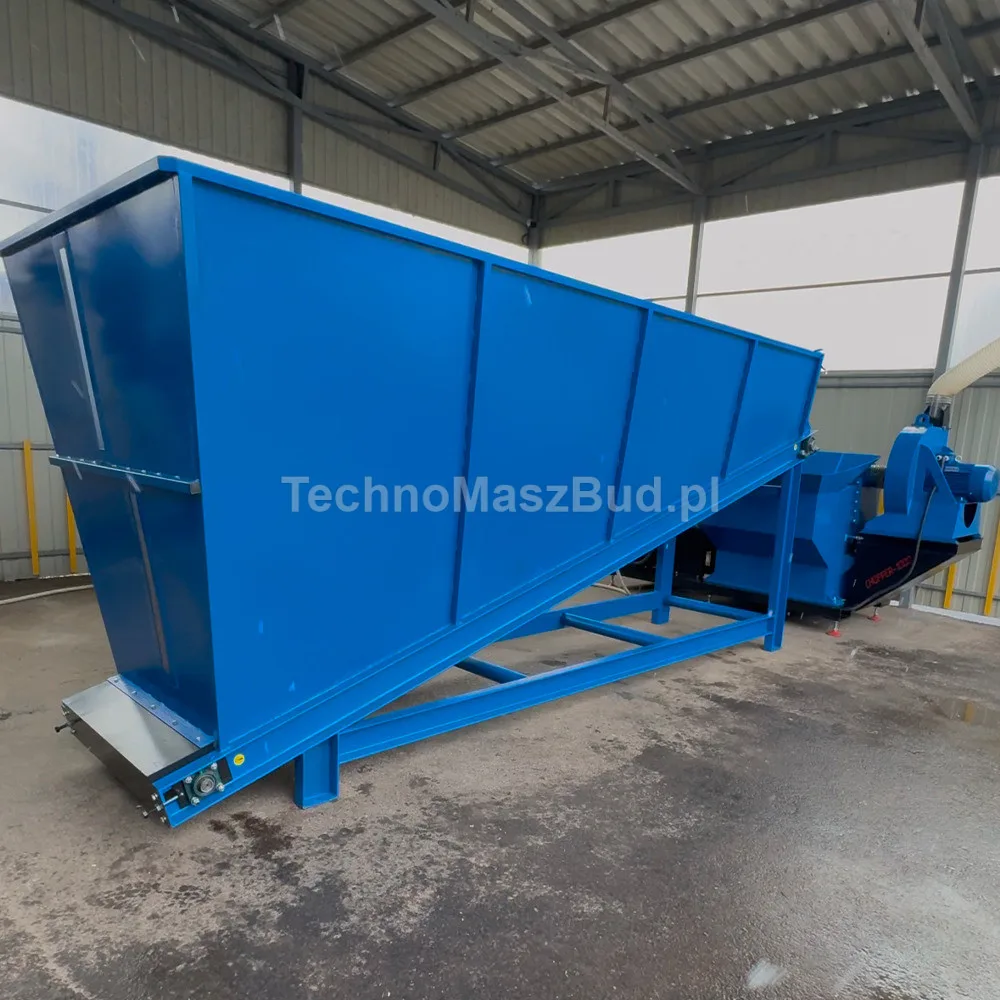

Hopper-feeder TYTAN-5

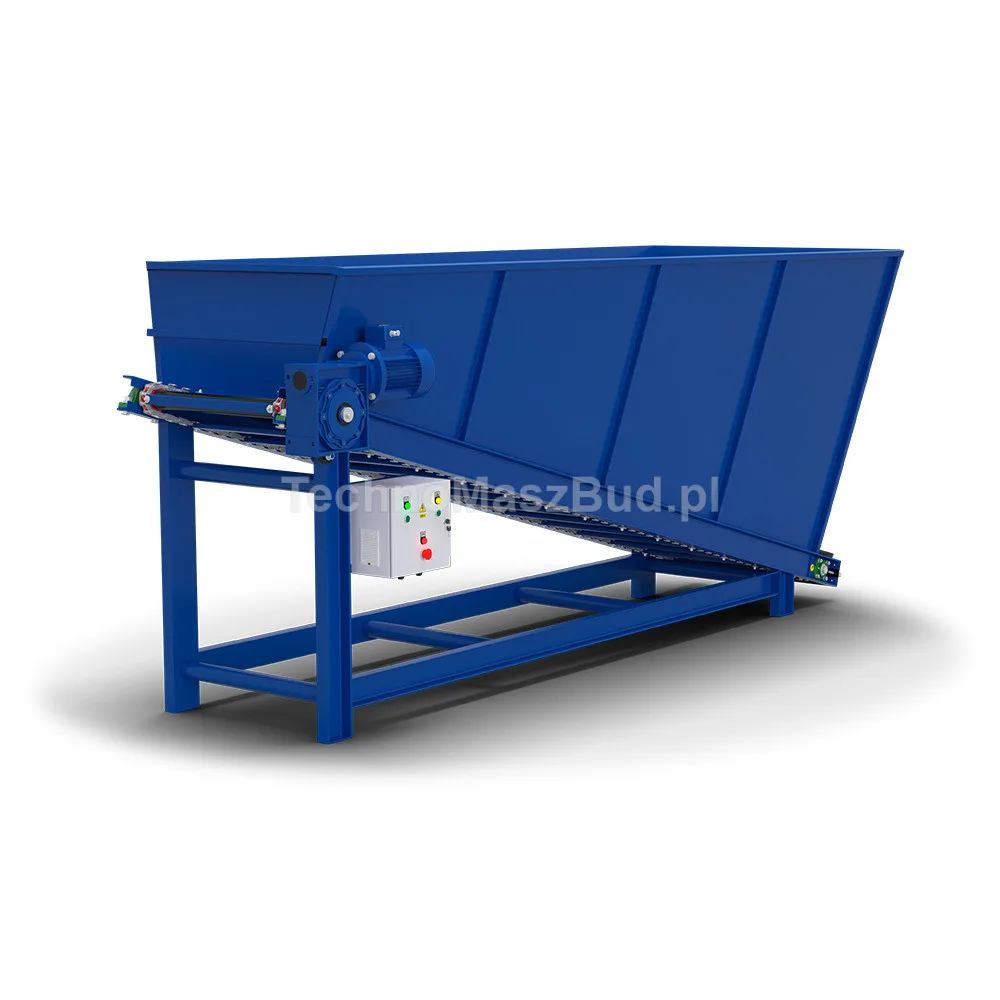

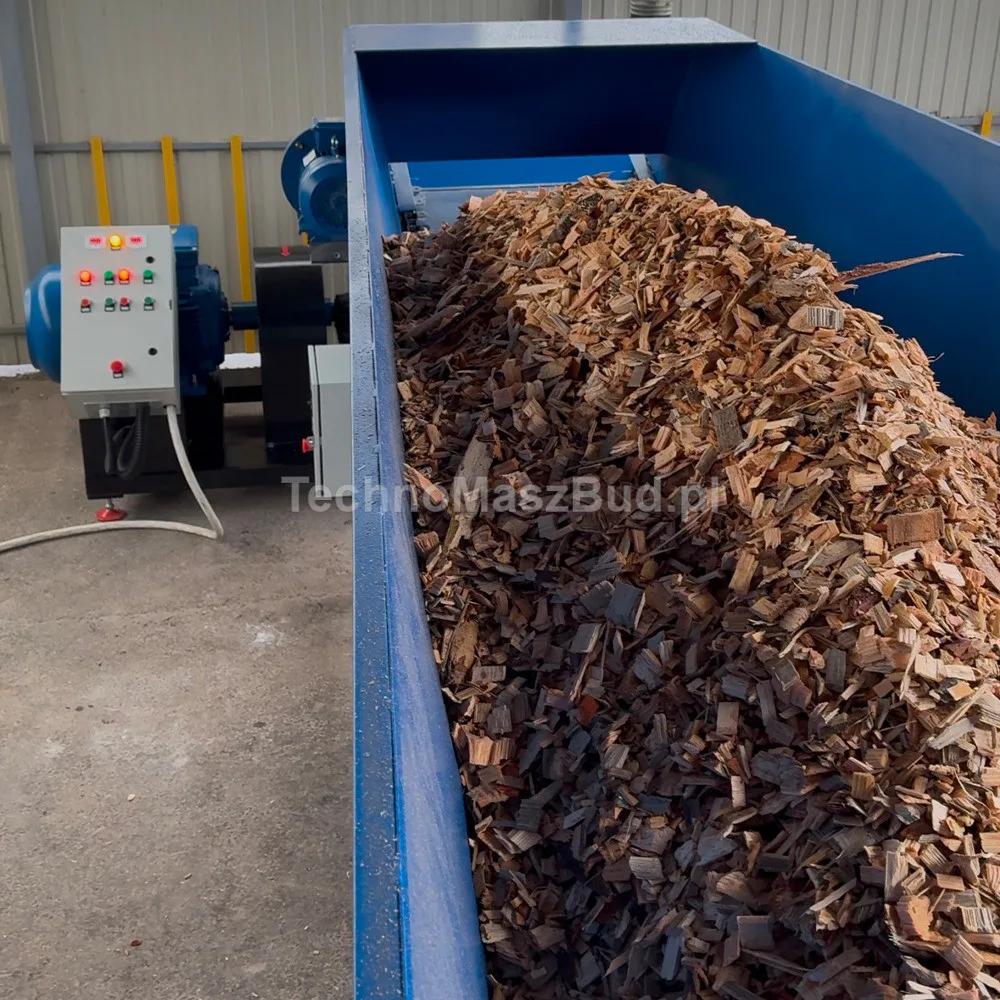

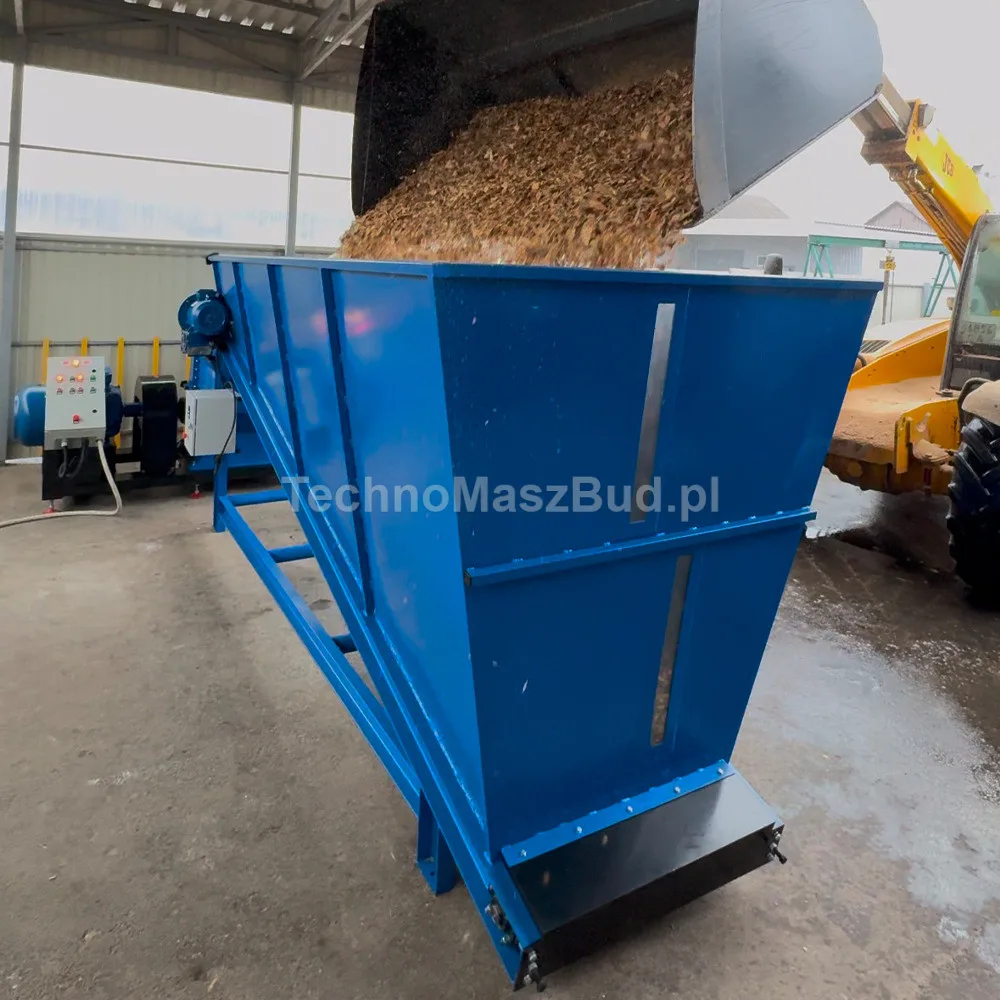

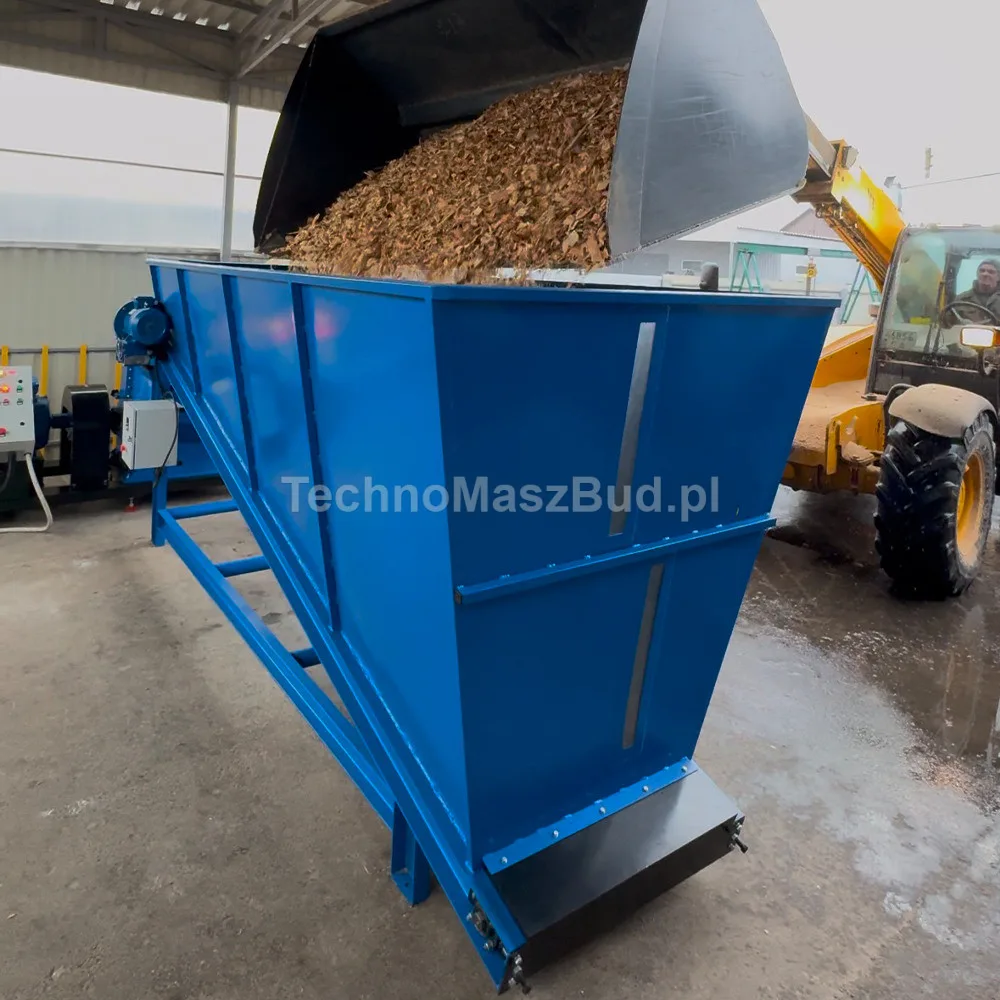

TYTAN-5 Storage-Feeder combines the functions of storage and feeding of raw materials – it is an efficient and fully automatic device that can store and feed biomass, sawdust, wood chips, or grains.

Equipped with a 5.5 kW chain drive (380-400 V), a control panel with frequency inverter, and a 5 m³ tank, TYTAN-5 ensures a constant supply of raw material to hammer mills, pellet mills, or other machines that are part of a technological line.

The set includes:

• Buffer tank with a capacity of 5 m³.

• Chain material feeding system.

• 5.5 kW (380–400 V) electric motor.

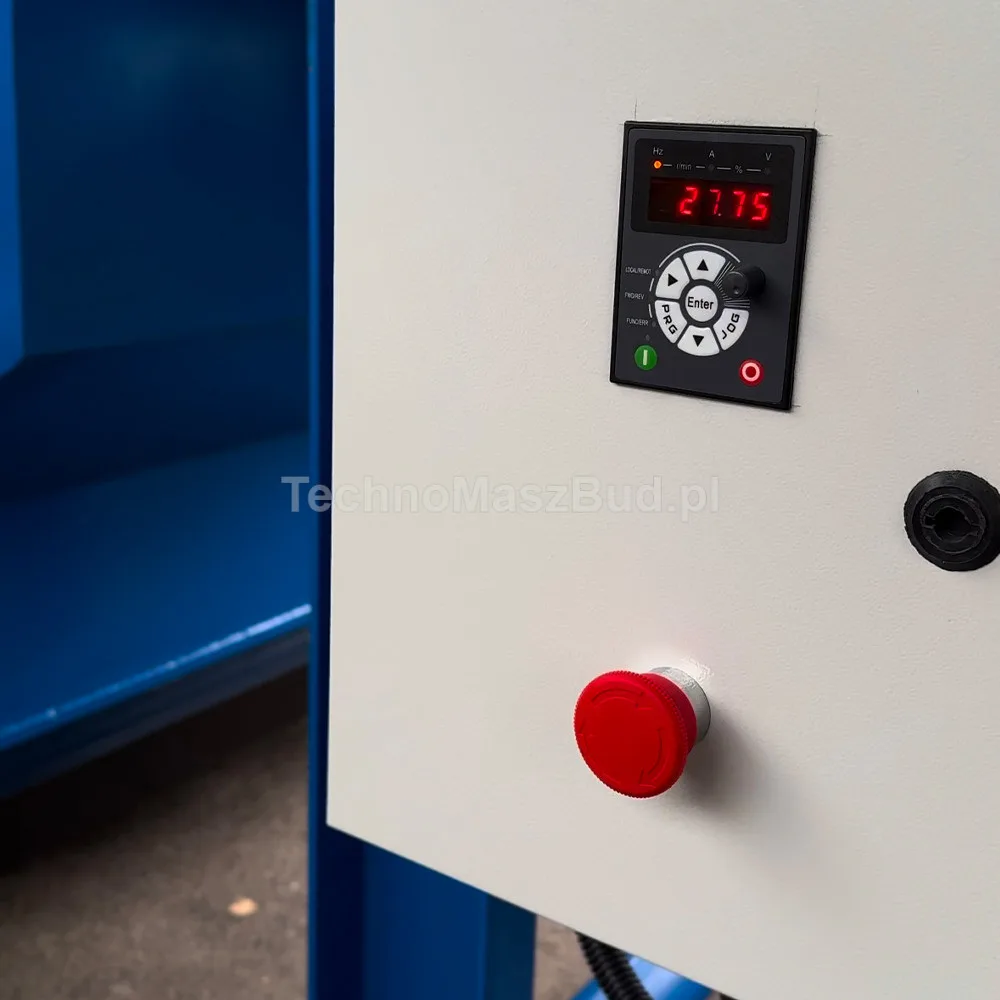

• Control panel with frequency inverter and safety features.

• Loading and receiving tanks ensuring continuous operation.

Main advantages of the TYTAN-5 Storage-Feeder

• Automatic material feeding – eliminates the need for manual feeding of raw material.

• High efficiency with low electricity consumption.

• Robust construction – frame resistant to intensive use and heavy loads.

• Precise feed rate adjustment thanks to the frequency inverter.

• Work safety – covers and reliable safeguards.

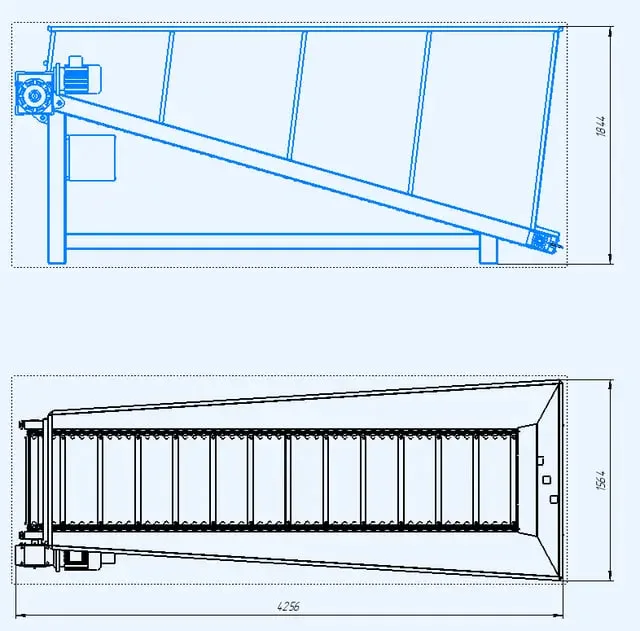

Technical drawing:

Application

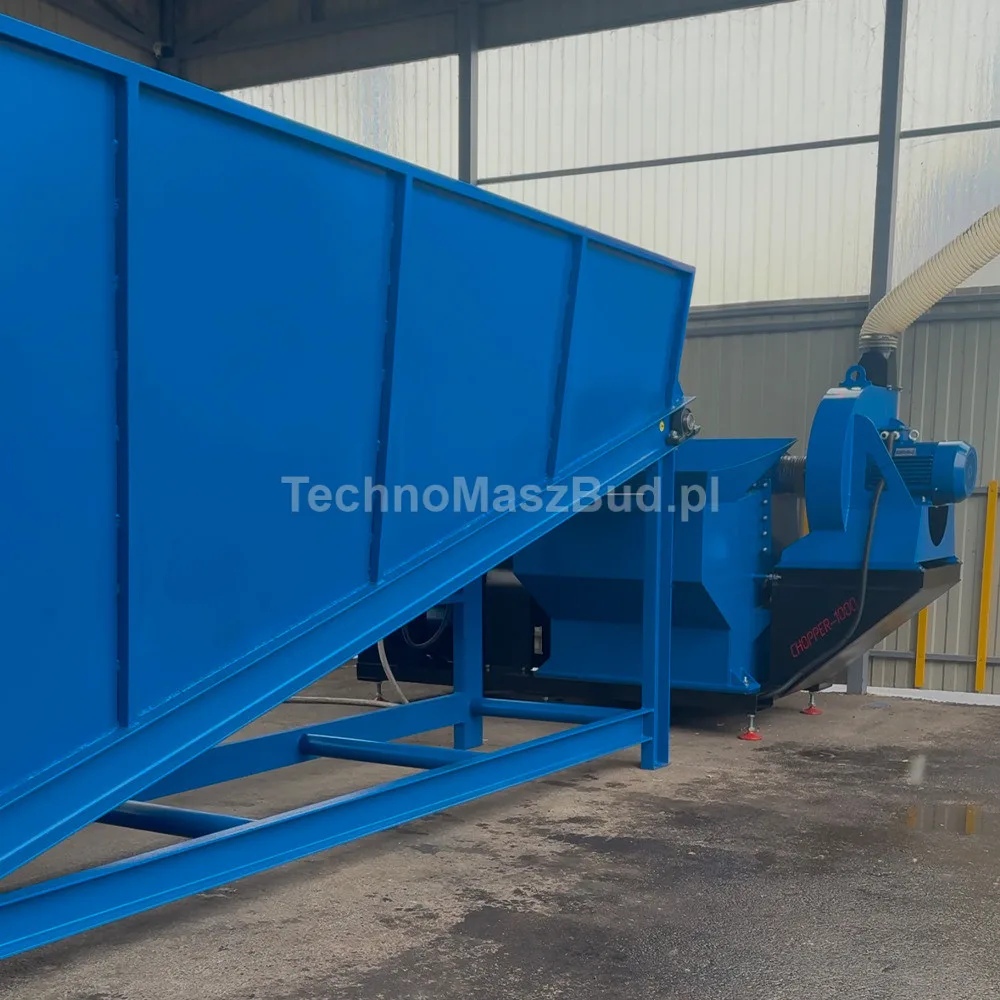

TYTAN-5 Storage-Feeder is a key element of pellet production lines, biofuels, and granulated feed. It will prove itself as a biomass feeder, sawdust tank or grain feeder. It can be connected to hammer mills such as MB-1000 or MB-1200, pellet mills, dryers, and other devices that require a stable, continuous supply of raw materials.

Capacity:

• up to 1000 kg/h

* The crusher's capacity depends on the type and physical properties of the raw material being processed and the obtained fraction.

Technical specifications:

• Motors: 55 kW and 11 kW
• Dimensions (L×W×H): 2824 × 1393 × 1666 mm
• Weight: 1980 kg
• Loading hole dimensions: 870 × 332 mm
• Loading height: 1100 mm
• Number of hammers: 56 pcs.

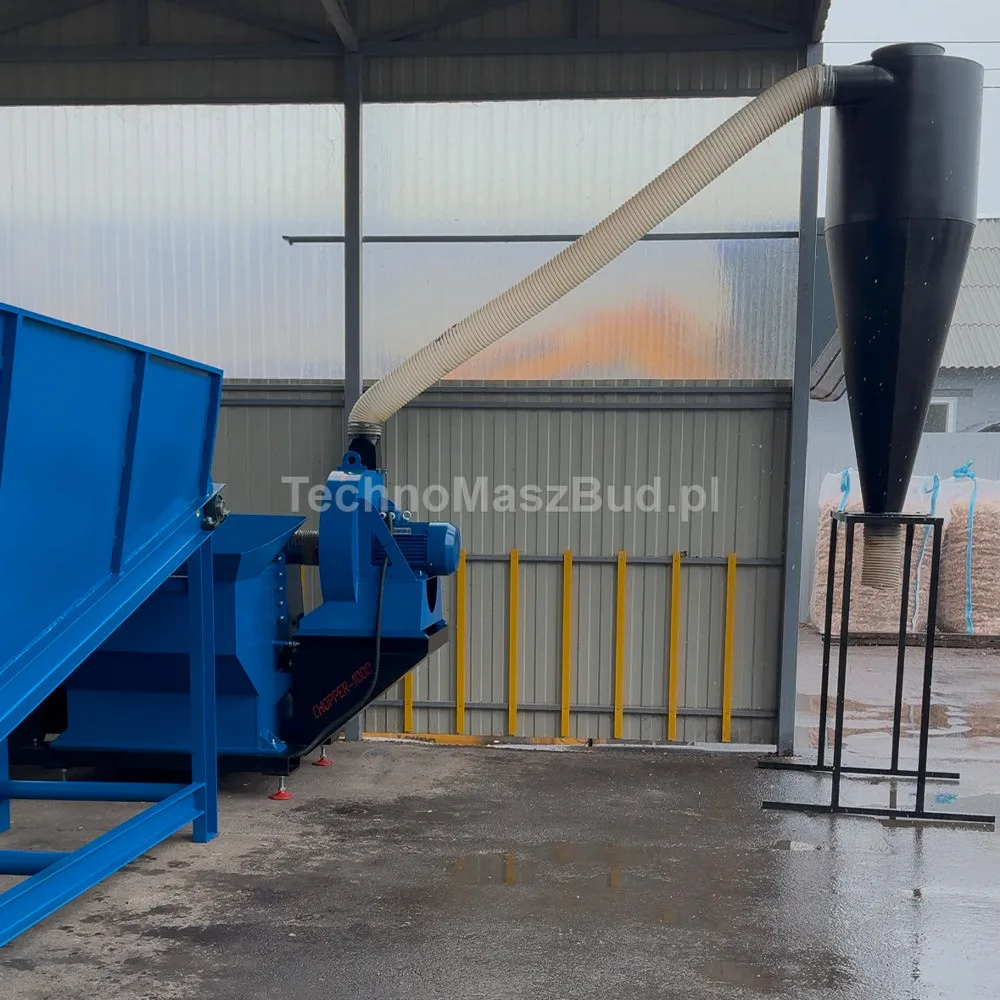

Cyclone characteristics:

• Weight: 70 kg
• Dimensions (L×W×H): 1058 × 1367 × 3302 mm


Power consumption:

• 66 kW

TYTAN-5 tank parameters:

• Gearmotor: 5.5 kW (380-400 V)
• Dimensions (L×W×H): 4600 × 1500 × 1800 mm
• Drive: chain
• Capacity: 5 m³
• Weight: 840 kg
• Included: control panel with frequency inverter
