Screw feeder PS-200

PS-200 Screw Feeder is a device designed for continuous feeding of raw material to pellet mills, granulators or other equipment that is part of production or process lines.

The large 0.2 m³ hopper and agitator ensure stable and uniform material feeding. The feed rate can be adjusted with a frequency inverter (VFD not included).

PS-200 Screw Feeder consists of a screw tube with an internal auger and a loading hopper.

The PS-200 feeder is part of the complete pellet and feed production lines LDG-2000 KOMBI, LDG-3000 KOMBI, LDG-4000 KOMBI

.

Advantages of the PS-200 screw feeder

• Continuous, stable operation—no blockages or downtime.
• High capacity—up to 700 kg/h with sawdust and up to 1,000 kg/h with feed.
• Easy to operate—speed adjustable via a VFD.
• Durable construction—steel load-bearing tube and robust internal screw.
• Versatile application—compatible with pellet mills, granulators, and other equipment in production lines.

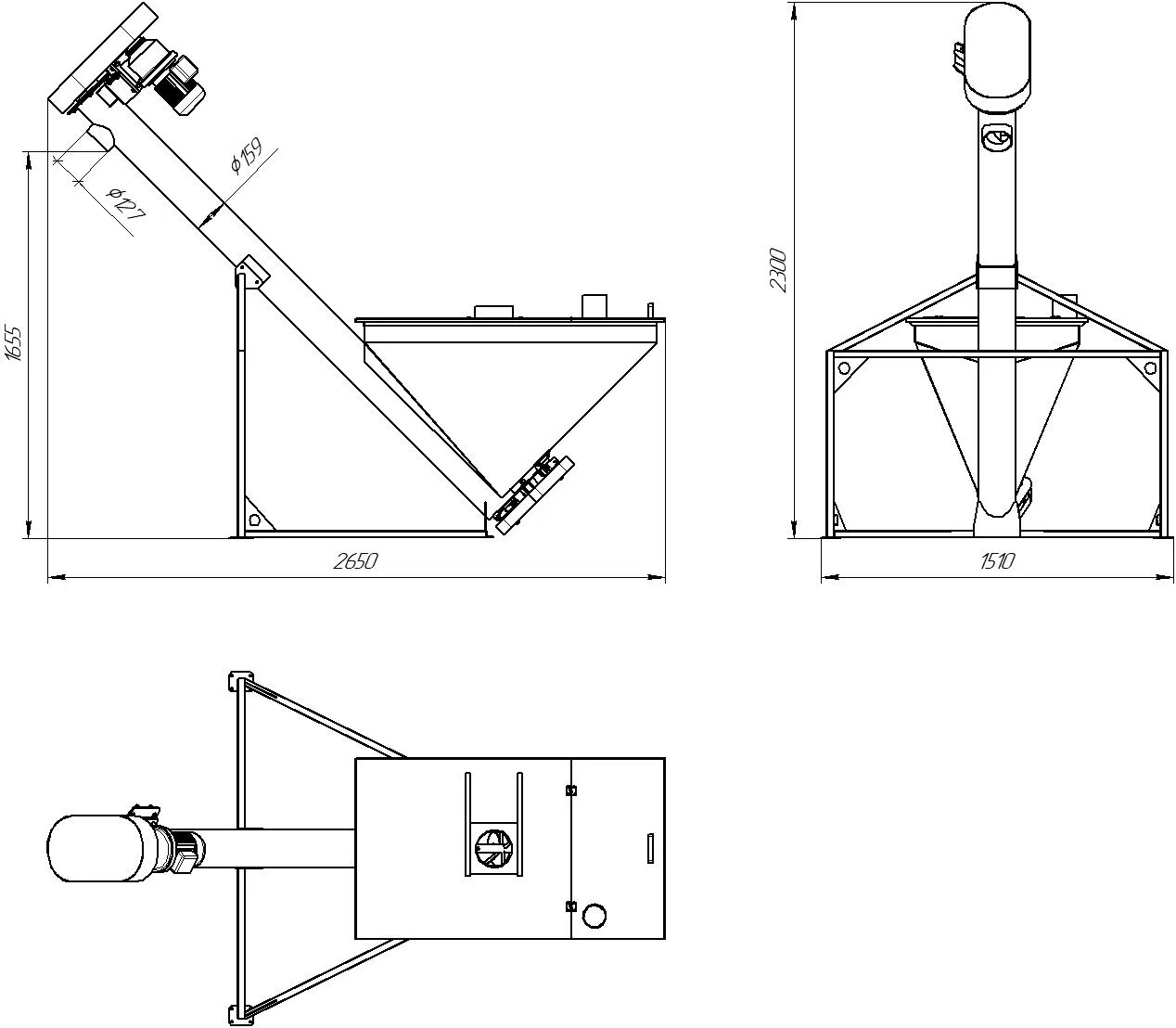

Technical drawing:

Applications of the PS-200 feeder

The PS-200 screw feeder is perfect for pellet and feed production lines. It is also suitable for other production processes that require automatic conveying of bulk raw materials.

The PS-200 is ideal for use in sawmills, woodworking shops, farms, and the feed industry.

All our screw feeders are equipped with two neodymium magnets that remove metal contaminants from the raw material.

Technical specifications:

• Power: 1.5 kW, 380–400 V
• Hopper capacity: 0.2 m³
• Screw speed without VFD: 56–84 rpm
• Throughput with sawdust: up to 700 kg/h
• Throughput with feed: up to 1,000 kg/h
• Conveyor type: screw
• Conveyor path type: vertical, enclosed
• Weight: 160 kg

Overall dimensions:

• Length: 2650 mm
• Width: 1510 mm
• Height: 2000 mm
