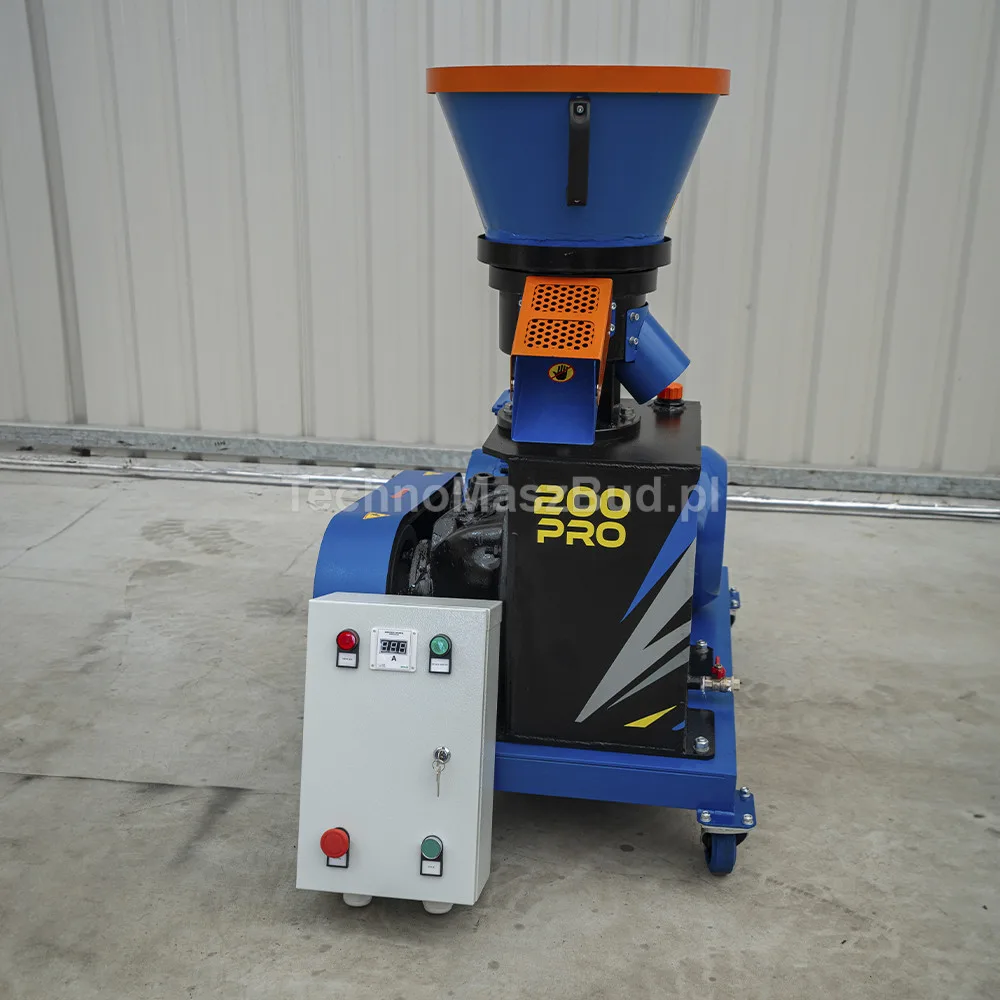

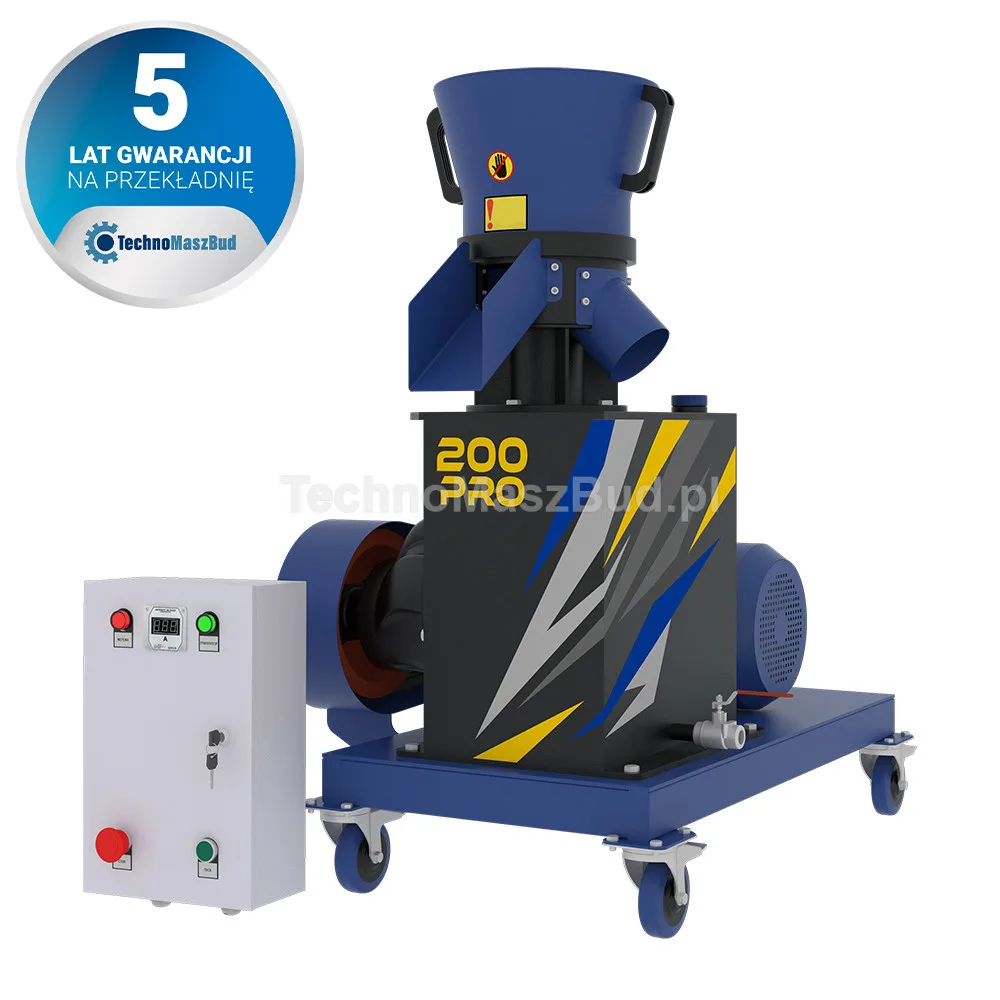

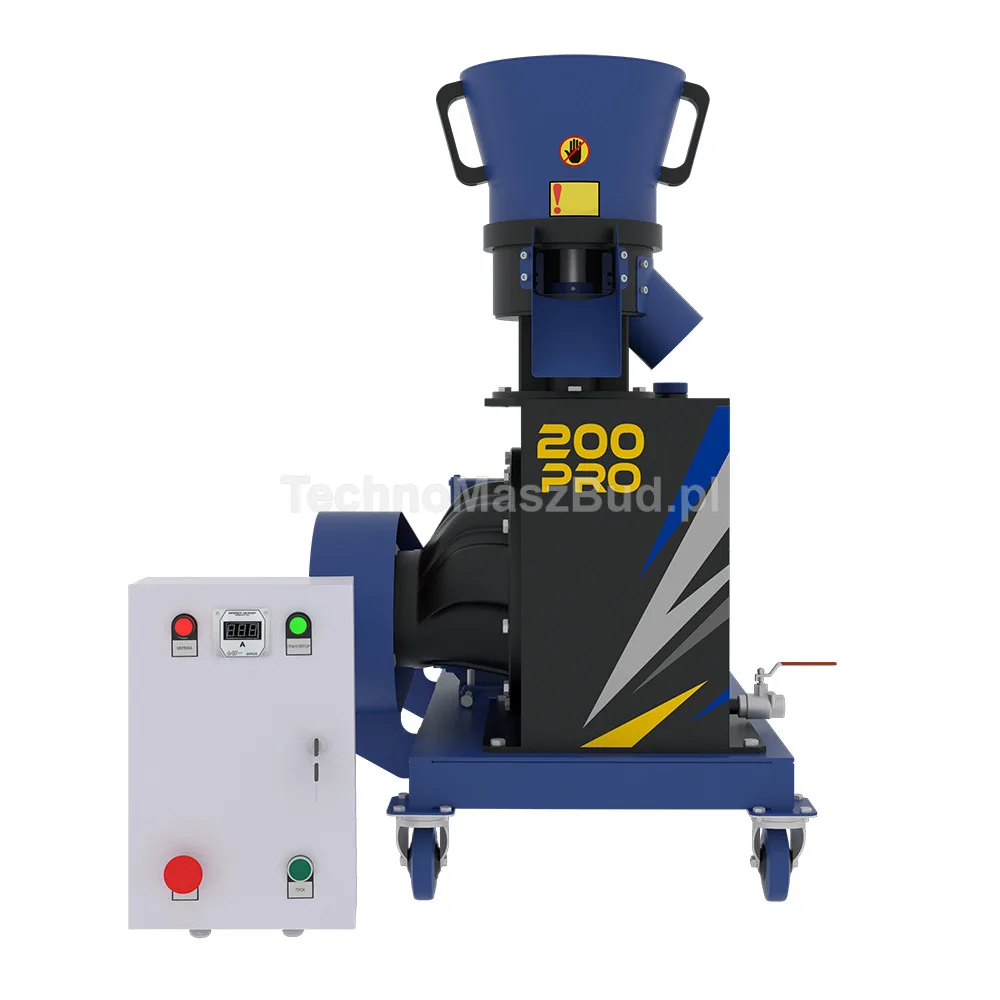

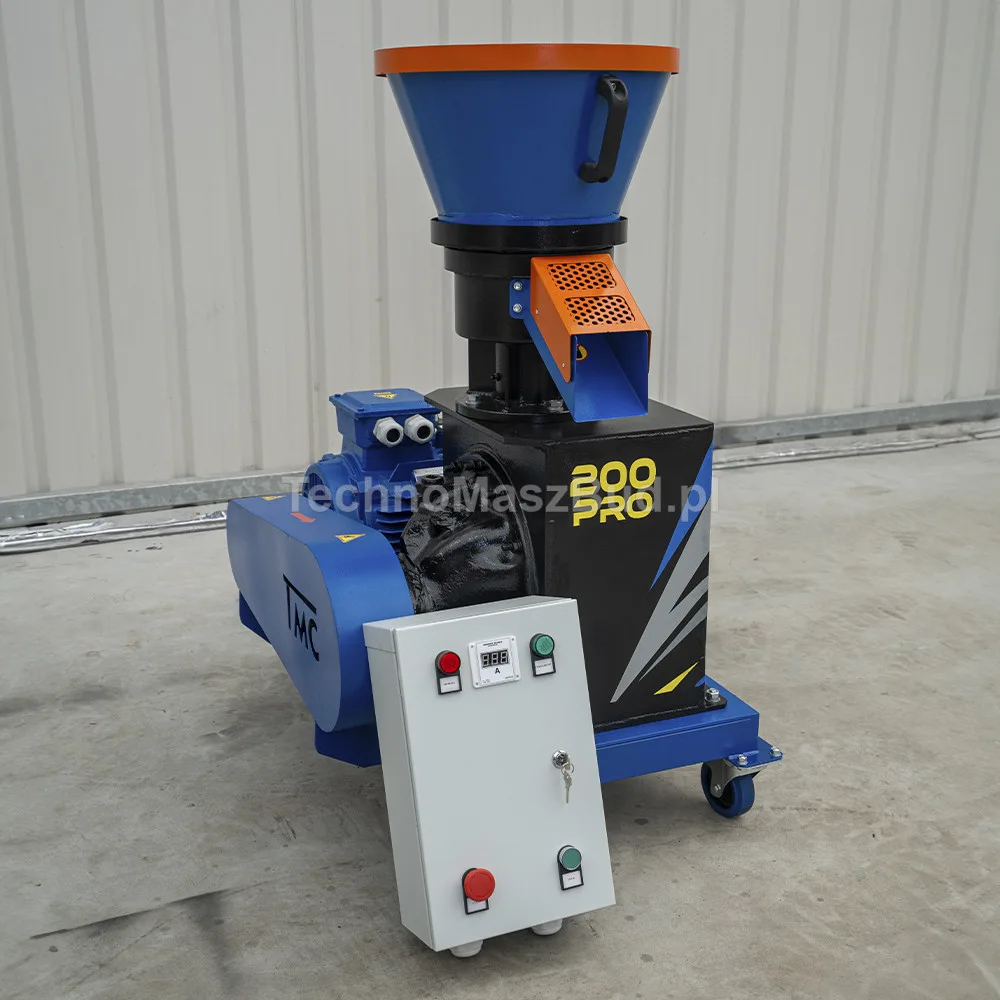

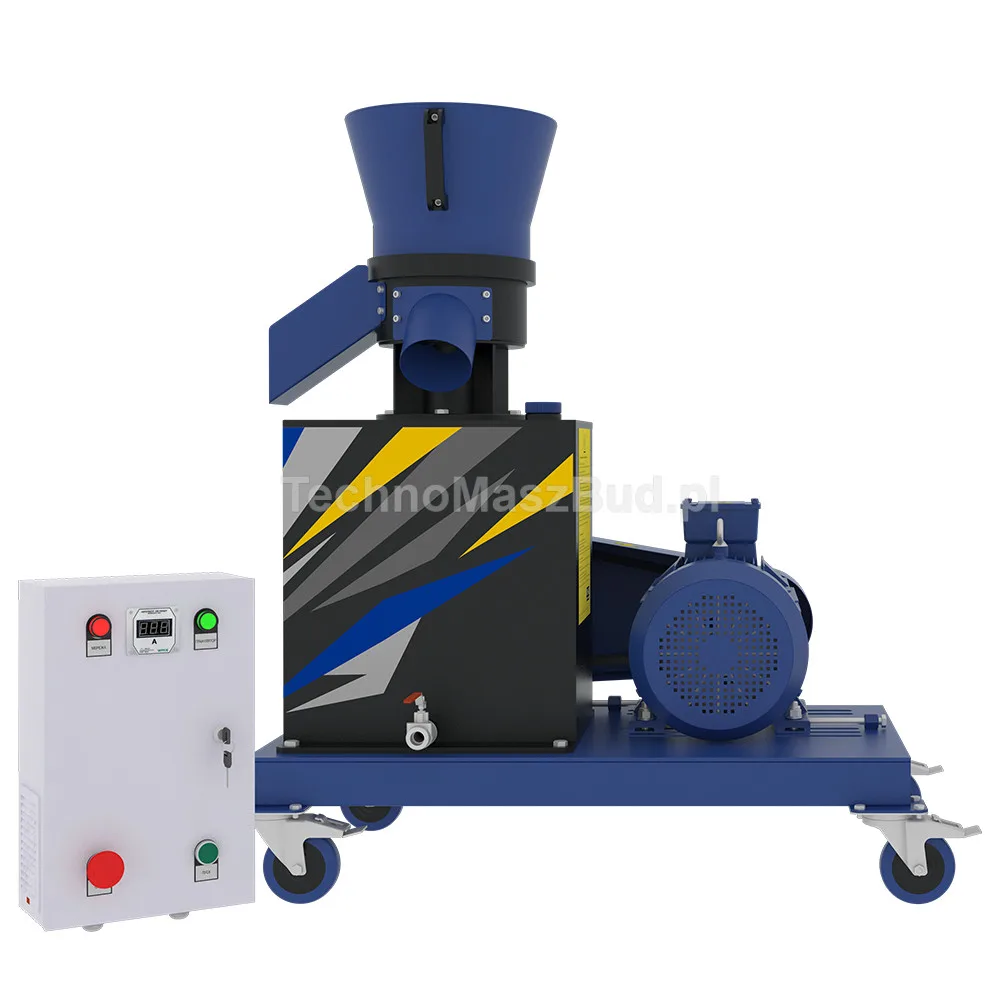

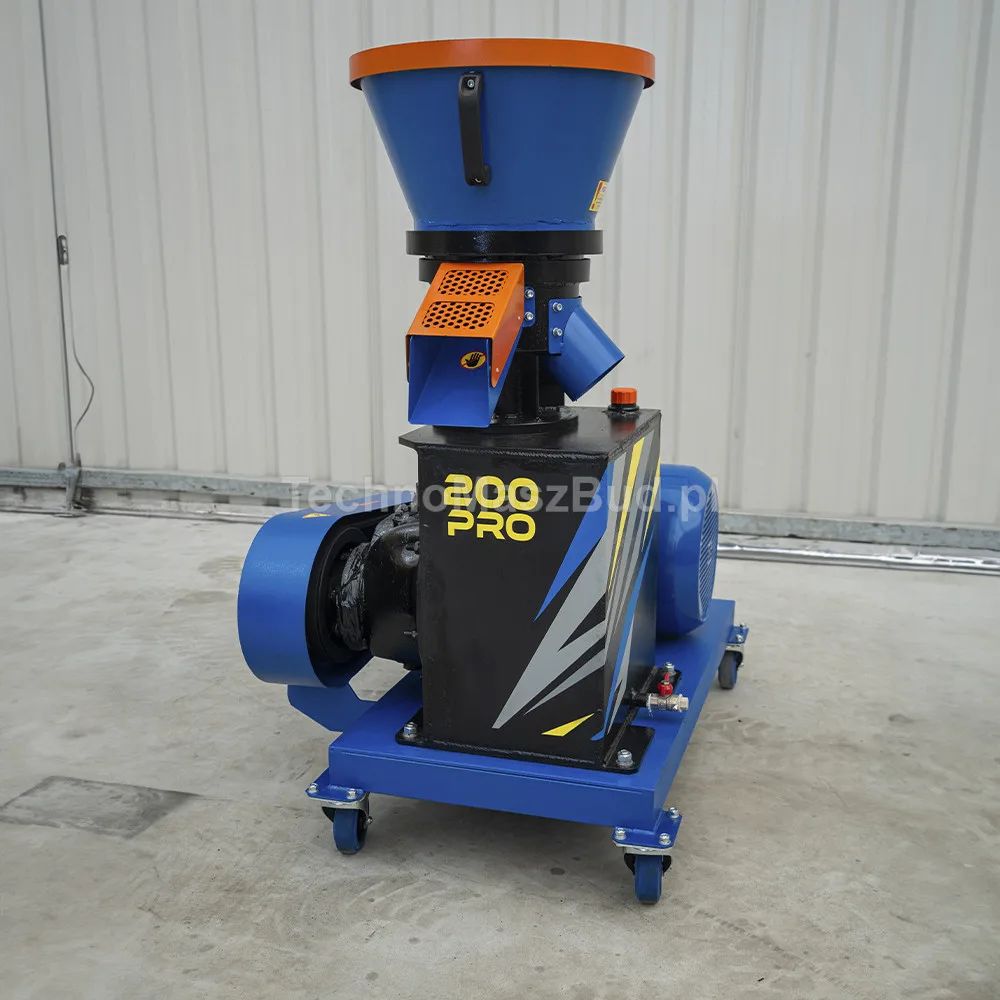

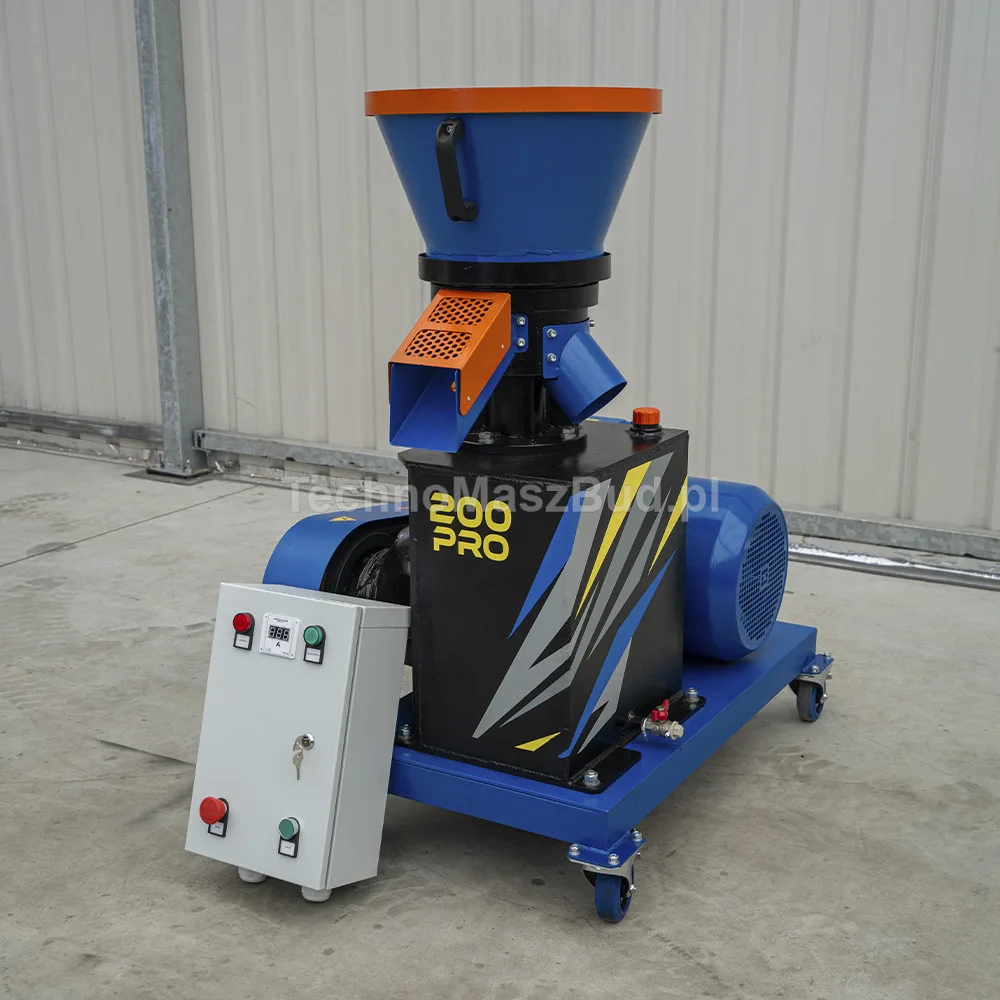

Pelletiser / Granulator Prime-200 Pro

Opportunity to test your material on this pellet mill at our warehouse!

PRIME-200 PRO - is a pellet press with a capacity of 220 kilograms per hour. With a durable 15 kW motor and rollers with a diameter of 148 mm, the PRIME-200 PRO handles various raw materials. The installed die in the pellet mill has a diameter of 216 mm. The pellet mill is supplied with one die, with the hole size chosen by the buyer. Options are available for 6 mm and 8 mm pellets with different thicknesses (depending on the raw material).

Thanks to the powerful motor installed in the granulator and the moving pressing rollers, the PRIME-200 PRO can process not only softwood sawdust but also hardwood. Pine sawdust is most commonly used for producing heating pellets due to its high lignin content, a natural binding substance. Hardwood has virtually no lignin, but the PRIME-200 PRO pellet mill generates high pressure under the rollers, allowing it to process hardwood sawdust effortlessly. Additionally, the PRIME-200 PRO granulator can be used to produce pellets from sunflower husks and various types of straw. You only need to get a few dies: one for feed and one for pellets.

Video: Performance Measurement | PRIME-200 Pellet Mill (pine sawdust)

Video: PRIME-200 Pellet Mill (11 kW)

Technical Specifications:

Capacity: up to 220 kg/h

Motor Power: 15 kW

Power Supply: 380-400 V / 50-60 Hz

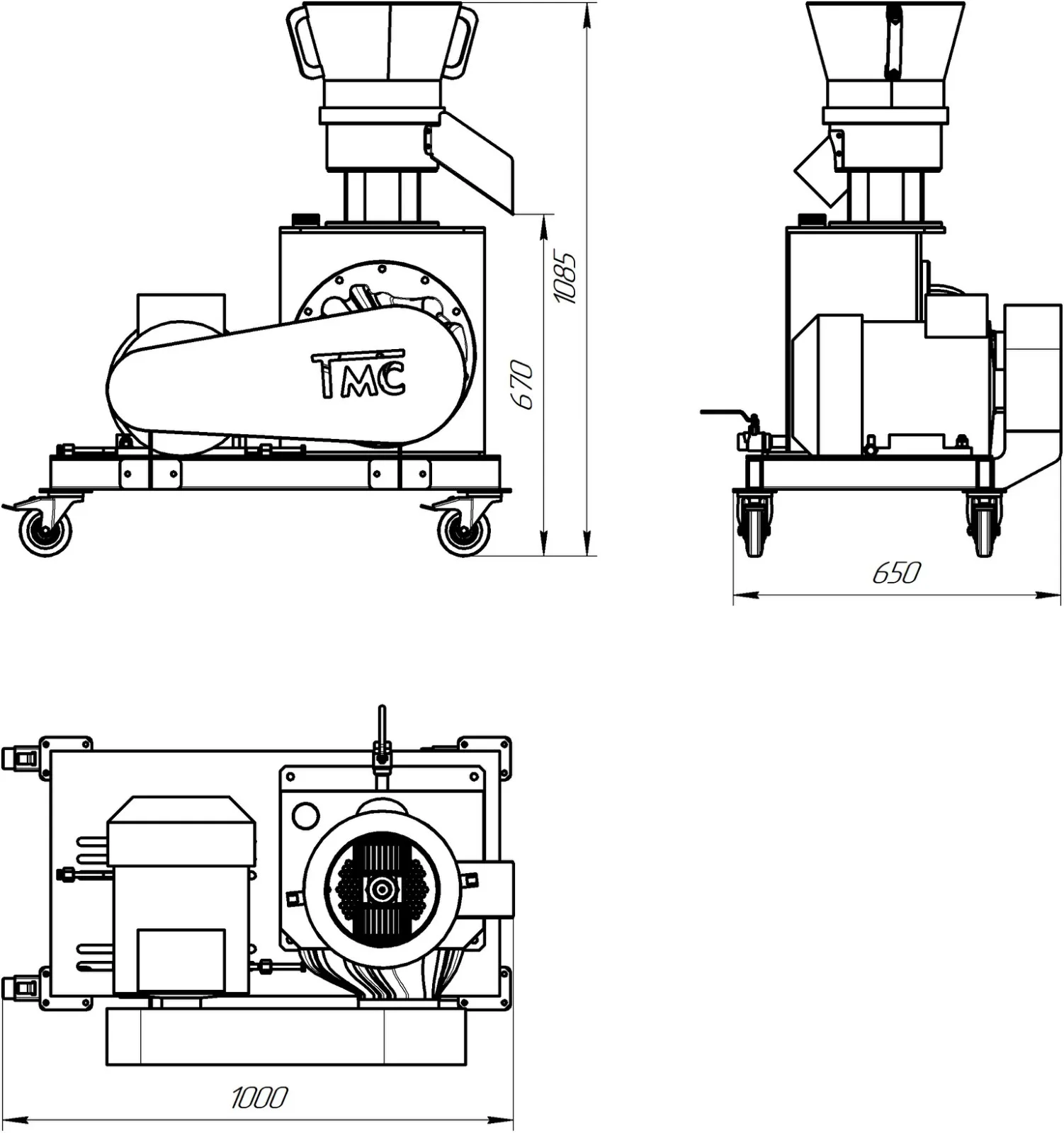

Dimensions:

• Length: 100 cm
• Width: 65 cm
• Height: 115 cm

Pellet Discharge Height: 67 cm

Weight: 370 kg

Pellet:

• Diameter: from 2 to 8 mm (depending on the installed die)
• Length: 10-50 mm (adjustable directly on the machine by setting the knife height)

Die:

• Diameter: 216 mm
• Hole Diameter: from 2 to 8 mm (selectable)

Rollers:

• Diameter: 148 mm

Warranty: 12 months

Raw Material Requirements:

• Moisture: 12-14%
• Fraction: smaller than the die hole diameter

Included in the Set:

• PRIME-200 Pro pellet mill with a 15 kW electric motor
• Fixed die (suitable for the raw material)
• Moving rollers 148 mm
• Inverter
• Instruction manual

Video: Wool Pelletizing Test | PRIME-200 Pellet Mill

Video: PRIME-200 Pellet Mill (11 kW) | Pelletizing Sawdust

Video: PRIME-200 Granulator | Processing Grain Waste

Pellet Mill PRIME-200 (beech sawdust):

Video: PRIME-200 Pellet Mill Pelletizing PVC Shavings (Furniture PVC)

Video: Pellet Production Machine, PRIME-200 Pellet Mill (11 kW) | Pelletizing MDF Dust

Video: Sunflower Husk Pellet Production | PRIME-200 Pellet Mill

Video: Granulator | PRIME-200 Pellet Mill (Tea Pelletizing)

Video: Die Replacement and Burnishing on PRIME Series Pellet Mills
